The 2E10-110-TX-V2 is the transmitting half of an EPo2 pair and carries Ethernet and PoE together over a single two-wire line. Existing doorbell, telephone or other two-conductor wiring in the building can therefore be kept instead of being replaced — for door stations, access readers, speakers, sensors or cameras. It feeds in through one 10/100 Mbit/s RJ45 port as PSE and supplies power to IEEE 802.3af, 802.3at and 802.3bt. The unit needs no configuration, draws 2 W and comes in a metal housing for wall or optional DIN-rail mounting.

EPoC transmit adapter with one 75 Ω BNC port and one RJ45 PoE output that feeds as PSE under IEEE 802.3af, 802.3at and 802.3bt. It sits at the camera end of a coaxial run and powers the camera with no local supply: over RG59, RG6 or RG11 the link is rated for 9.7 W at 1,200 m with 100 Mbps, a PoE IP camera is given up to 8.3 W, and data alone travels 2,400 m. Existing coax can therefore keep serving PoE IP cameras. Power arrives either as PoE on the coax or as 56 VDC at the DC jack; the unit draws 2 W and a DIP switch turns the PoE output off. An SD-301 surge protector is available as an option. Metal case 86.6 x 47.1 x 27.0 mm, 0.2 kg, wall or optional DIN-rail mounting, operating range -20 °C to 60 °C, humidity 5 to 95 % non-condensing, EN62368-1.

Transmit end of an EPoT link, where data and power share one shielded Cat5e/6 STP/FTP cable wired on four pairs, two pairs or a single pair. It carries one EPoT port on RJ45 and one RJ45 PoE output acting as PSE for IEEE 802.3af, 802.3at and 802.3bt; the link is rated for 16 W at 1,200 m with 100 Mbps, at that length a PoE IP camera is given up to 9.7 W, and data alone travels 2,400 m. No intermediate switch or power supply is needed along the run. Power comes in over EPoT at 50 to 56 VDC or through the DC jack at 56 VDC, the unit itself draws 2 W, and a DIP switch turns the PoE output off. Peer-to-peer, daisy-chain and failover ring topologies are supported. Surge protection is 6 kV, ESD ±4 kV contact and ±8 kV air. Metal case 102.9 x 48.9 x 27.0 mm, 0.2 kg, wall mounted or on an optional DIN rail, operating range -20 °C to 60 °C, humidity 5 to 95 % non-condensing, EN62368-1, MTBF above 50,000 hours.

The 2E11-110-RX-V2 is the receiving half of an EPo2 pair: it takes data and power off the two-wire run and presents them at a 10/100 Mbit/s RJ45 port as a powered device. It can be fed from the two-wire line itself or from 48 to 56 V DC, and passes PoE through to the connected device. IP equipment can therefore reach the network where only old two-conductor wiring exists. No configuration is required and the unit itself draws 2 W.

EPoC receive adapter carrying one 75 Ω BNC port and one 10/100 Mbps PoE PD port, placed at the head end of a coaxial run. All power for the link is sourced from a PoE switch or injector: it accepts IEEE 802.3bt at 90 W, 802.3at at 30 W and 802.3af at 15.4 W as end-span or mid-span, or 48 to 56 VDC, and the manufacturer recommends 802.3bt with 90 W for long runs. Over RG59, RG6 or RG11 it passes data and PoE to the TX adapter and the camera as far as 1,200 m at 100 Mbps, with data alone reaching 2,400 m, so older CCTV cabling can move to IP without new cable. The unit draws 2 W. An eight-bay 19-inch chassis (CH-110-V2) and the SD-301 surge protector are optional. Metal case 103.4 x 48.9 x 27 mm, 0.2 kg, wall or optional DIN-rail mounting, operating range -20 °C to 60 °C, EN62368-1.

Receive end of an EPoT link, sitting at the head of the run: one EPoT port on RJ45 and one 10/100 Mbps PoE PD port. Every watt for the link is drawn from a PoE switch or injector – IEEE 802.3bt at 90 W is the recommendation – and 30 W, 60 W or 48 to 56 VDC at the DC jack are accepted as well. Data and power travel over shielded Cat5e/6 STP/FTP cable on four pairs, two pairs or one pair for as far as 1,200 m, with data alone reaching 2,400 m at 100 Mbps. That feeds both the TX adapter and the camera at the far end with no switch or power supply in between. Peer-to-peer, daisy-chain and failover ring topologies work, and an eight-bay 19-inch chassis (CH-110-V2) is available as an option. The unit draws 2 W; surge protection is 6 kV, ESD ±4 kV contact and ±8 kV air. Metal case 102.9 x 48.9 x 27.0 mm, 0.2 kg, wall or optional DIN-rail mounting, operating range -20 °C to 60 °C, EN62368-1.

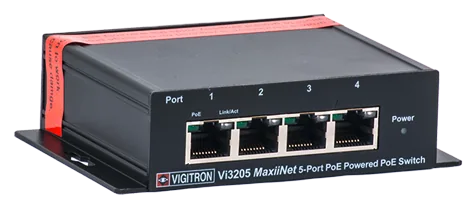

The VI-COAX-3205 places four 10/100BaseTX Ethernet ports with PoE and PoE+ (RJ45) behind a single coaxial uplink, which makes existing analogue video cabling usable for IP applications. The coax port is a BNC connector and the maximum transmission distance with the listed cables is 500m, with the power loss of the path to be taken into account. Cabling is 50Ohm RG6, RG58A/U, RG58C/U and RG58U or 75Ohm RG59 and equivalents, and plug-and-play operation removes the need for software configuration. For PoE at the cameras the switch always has to be powered locally, either from 48VDC or PoE, at a maximum consumption of 120W. Its table or wall mount housing measures 126 x 95 x 30mm (L x D x H) and is rated for -30°C to +70°C. 4-port PoE switch with coaxial uplink4 x 10/100BaseT, PoE, PoE+, RJ451 x coax, BNC, distances up to 500m48VDC or PoE powering, max. 120W-30°C to +70°C126 x 95 x 30mm (L x D x H)

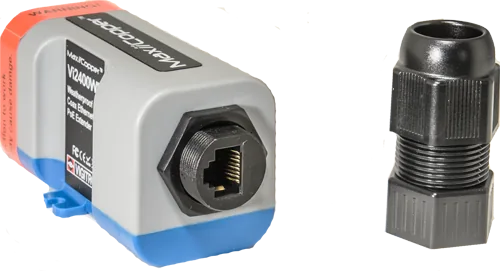

Housed in an IP67-rated enclosure, the VI-COAX-2400WP can be mounted outdoors without an additional weatherproof box. It carries 10/100Mbps Ethernet together with PoE-af (15W) and PoE-at (30W) over coaxial cable across a maximum of approximately 500m, with pass-through technology forwarding the supply of a PoE switch as far as an IP camera. The far end of the coaxial link must be a device from the VI-COAX-24xy series, and no software configuration is needed. Power comes from PoE alone; the unit cannot be supplied locally. Cabling is 75Ohm RG59 or 50Ohm RG6, RG58A/U, RG58C/U and RG58U or equivalent. It provides one 10/100BaseT port (RJ45) and one coax port (BNC), draws 3W, dissipates 7 BTU/h, measures 174 x 40 x 47mm (L x D x H) and operates from -40 to +75°C. IP67 protected housingDistances up to 500m over coaxial cablePoE-af (15W), PoE-at (30W)PoE powered only, no local supply1 x 10/100BaseT RJ45, 1 x coax BNC174 x 40 x 47mm (L x D x H), 3W

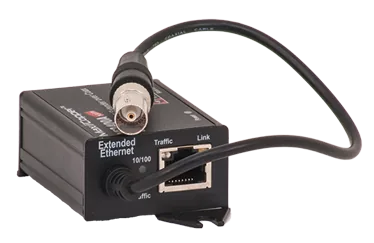

Recommended for the camera end of a link, the single-channel VI-COAX-2400A joins one 10/100BaseT port (RJ45) to one coaxial port (BNC) and spans up to 500m. Alongside 10/100Mbps Ethernet, pass-through technology carries PoE-af (15W) or PoE-at (30W), so no separate supply is needed in PoE mode; the power loss of the run has to be accounted for. Suitable cabling is 50Ohm RG6, RG58A/U, RG58C/U and RG58U, or 75Ohm RG59 and equivalents. No software configuration is involved and diagnostic LEDs indicate the operating state. Built for table or wall mounting, the module measures 55 x 45 x 27mm (L x D x H), draws 2W, dissipates 7 BTU/h, weighs 0.09 kg net and works from -40 to +75°C. Single-channel IP/PoE extender over coaxial cable1 x 10/100BaseT RJ45, 1 x coax BNCDistances up to 500mPoE-af (15W), PoE-at (30W)2W power consumption, -40 to +75°C55 x 45 x 27mm (L x D x H)

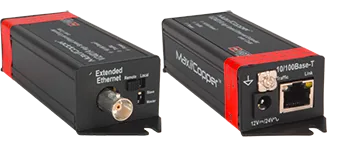

Intended primarily for the central side but equally usable at the camera, the single-channel VI-COAX-2401A carries 10/100Mbps Ethernet plus PoE-af (15W) and PoE-at (30W) over coaxial cable across up to 500m. Pass-through technology forwards the PoE supply of a midspan, for example, so no separate feed is required in PoE mode; the power loss of the run must be taken into account. Cabling is 50Ohm RG6, RG58A/U, RG58C/U and RG58U or 75Ohm RG59 and equivalents. Software configuration is not involved, and diagnostic LEDs show the operating state. The module has one 10/100BaseT port (RJ45) and one coax port (BNC), mounts on a table, a wall or a top hat rail, measures 95 x 40 x 30mm (L x D x H), draws 2W, dissipates 7 BTU/h and is rated for -40 to +75°C. Single-channel IP/PoE extender over coaxial cableRecommended for use on the central sideTable, wall or top hat rail mountingDistances up to 500m, PoE-af (15W) and PoE-at (30W)95 x 40 x 30mm (L x D x H), 2W-40 to +75°C, 0.13 kg net weight

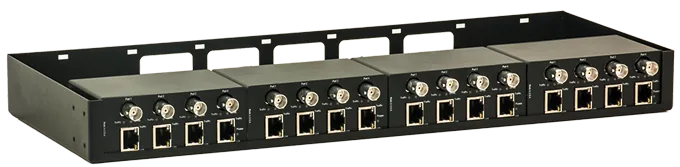

With sixteen channels, the VI-COAX-2416AB serves 16 separate extender lines and provides 16 10/100BaseT ports (RJ45) plus 16 coaxial ports (BNC). Each line transports 10/100Mbps Ethernet together with PoE-af (15W) and PoE-at (30W) over coaxial cable across up to 500m, and the power loss of the run must be factored in. Operating voltage is 12VDC from the separate VI-0014AB power supply included in delivery, which inserts no PoE of its own. Cables can be 50Ohm RG6, RG58A/U, RG58C/U and RG58U or 75Ohm RG59 and equivalents, and no software configuration is needed. Supplied in a 19 inch format of 1U and 250mm that also allows table or wall mounting, it draws 30W, dissipates 34 BTU/h, weighs 2.8 kg net and runs from -40 to +75°C. 16 channels for 16 separate extender lines16 x 10/100BaseT RJ45, 16 x coax BNC12VDC supply, VI-0014AB power supply included19 inch, 1U, 250mmDistances up to 500m, PoE-af (15W) and PoE-at (30W)30W, 34 BTU/h

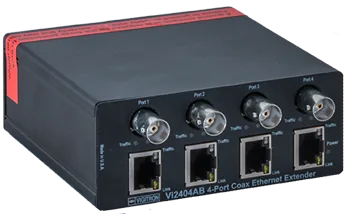

A four-channel module for the central side, the VI-COAX-2404AB connects four separate extender lines and provides four 10/100BaseT ports (RJ45) together with four coaxial ports (BNC). Each line carries 10/100Mbps Ethernet and PoE-af (15W) or PoE-at (30W) over coaxial cable across up to 500m, with the power loss of the transmission path to be taken into account. The unit runs on 12VDC from the separate VI-0014AB power supply included in delivery, which does not insert PoE itself. Suitable cabling is 50Ohm RG6, RG58A/U, RG58C/U and RG58U or 75Ohm RG59 and equivalents, and no software configuration is required. Built for table or wall mounting, it measures 125 x 95 x 60mm (L x D x H), draws 8W, dissipates 27 BTU/h and operates from -40 to +75°C. 4 channels for four separate extender lines4 x 10/100BaseT RJ45, 4 x coax BNC12VDC supply, VI-0014AB power supply includedDistances up to 500m, PoE-af (15W) and PoE-at (30W)125 x 95 x 60mm (L x D x H), 8W-40 to +75°C, 27 BTU/h

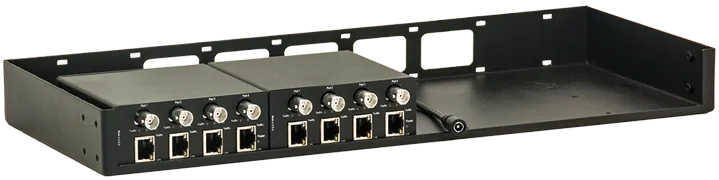

The VI-COAX-2408AB is an eight-channel module that attaches eight separate extender lines over coaxial cable, offering eight 10/100BaseT ports (RJ45) and eight coaxial ports (BNC). Every line carries 10/100Mbps Ethernet as well as PoE-af (15W) and PoE-at (30W) across up to 500m, and the power loss of the transmission path has to be considered. Power comes from 12VDC supplied by the enclosed VI-0014AB unit, which does not itself inject PoE. Cabling can be 50Ohm RG6, RG58A/U, RG58C/U and RG58U or 75Ohm RG59 and equivalents, with no software configuration involved. The 19 inch chassis of 1U and 250mm depth also suits table or wall mounting, draws 15W, dissipates 27 BTU/h, weighs 2.0 kg net and covers -40 to +75°C. 8 channels for eight separate extender lines8 x 10/100BaseT RJ45, 8 x coax BNC12VDC supply, VI-0014AB power supply included19 inch, 1U, 250mmDistances up to 500m, PoE-af (15W) and PoE-at (30W)15W, -40 to +75°C

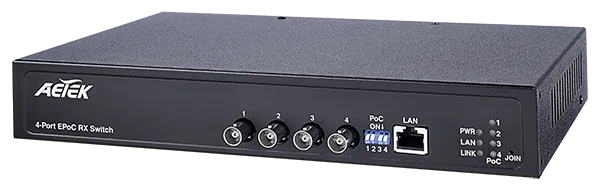

EPoC receive switch for the head end of a coaxial run: four 75 Ω BNC ports and one Gigabit RJ45 port, plus a built-in 250 W supply for 100 to 240 VAC. Working in RX mode, it carries data and PoE onward over existing RG6 coax – at 1,200 m the camera still gets 9.7 W, whatever brand it is. That lets older RG59 or RG6 CCTV cabling be moved to IP without pulling new cable, and unlike fibre the coax delivers the camera's power as well. Every coax port has 6 kV surge protection, and the unit also accepts 56 VDC as a back-up feed. Brackets for a 19-inch rack are included. Size 276.6 x 178 x 44 mm, weight 1 kg, operating range -10 °C to 50 °C, EN60950-1.

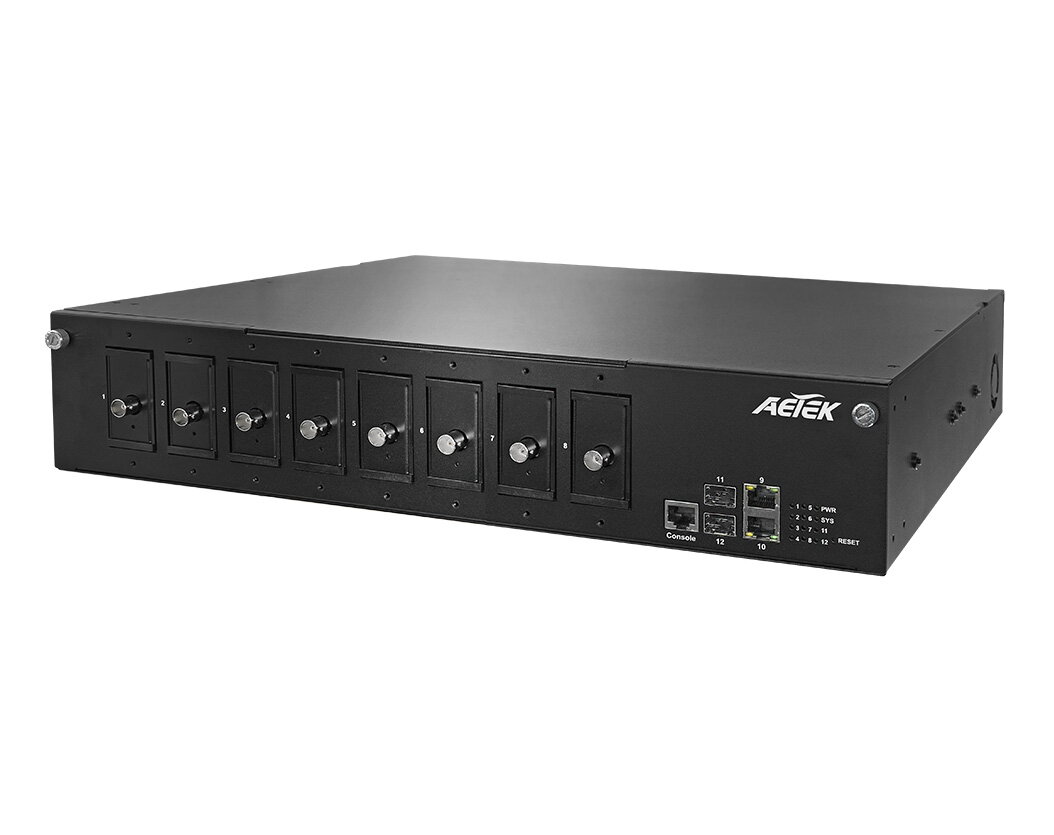

Managed L2 PRO switch with twelve ports that stretches an IP network across existing coaxial cabling: eight 100 Mbps EPoC ports on 75 Ω BNC, two Gigabit RJ45 ports and two Gigabit SFP slots for the uplink. As PSE it supplies up to 90 W per port from a 720 W budget; without PoE the system draws 12 W, and input is 100 to 240 VAC. Over RG59, RG6 or RG11 both data and power travel as far as 1,200 m: paired with the XE22-110-TX-V2 that is up to 10 W at 1,200 m, 13.5 W at 1,100 m, 30 W at 500 m and 51 W at 300 m over RG6; with the XE10-110-TX-V2, up to 9.66 W at 1,200 m, 13.5 W at 750 m, 30 W at 400 m and 51 W at 200 m. Peer-to-peer, daisy-chain and ring topologies let an analogue installation move to IP without rewiring. AETEK's Network Topology System adds a topology view, a floor map view and remote power reboot of a single port. Metal case for 2U in a 19-inch rack, 440 x 372 x 88 mm, 9.3 kg, RJ45 console, reset button for restart (2 to 7 s) or factory defaults (7 to 12 s), operating range 0 °C to 40 °C, EN62368-1.

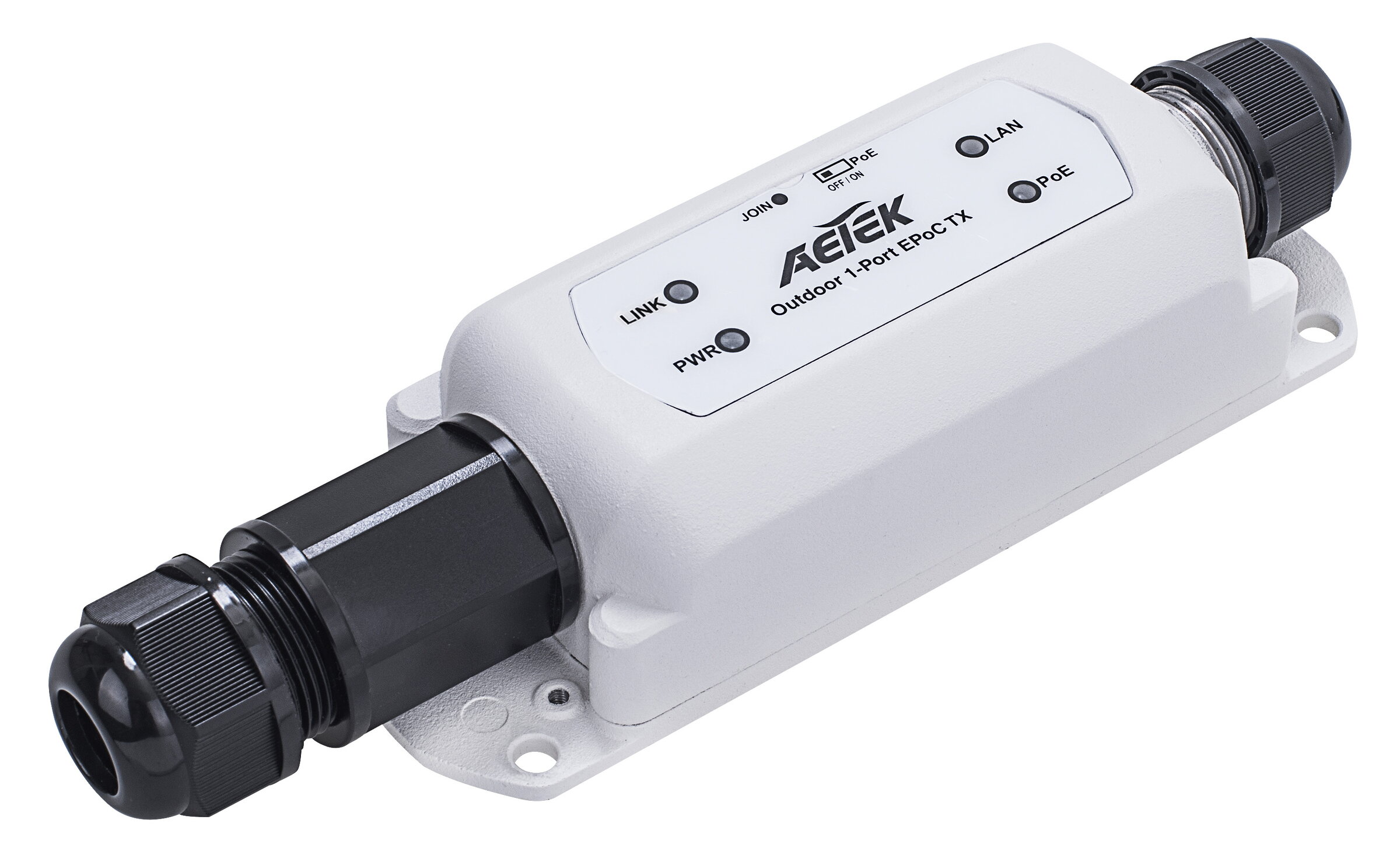

Outdoor EPoC transmit adapter, mounted on a wall or pole next to the camera. It provides one 75 Ω BNC port and one RJ45 PoE output acting as PSE for IEEE 802.3af, 802.3at and 802.3bt, with a voltage booster on the output; no local power supply is required because the unit is fed by PoE over the coax. Across RG59, RG6 or RG11, up to 9.7 W remain available at 1,200 m while running 100 Mbps, and data alone reaches 2,400 m, so the coax of an existing CCTV installation can keep serving PoE IP cameras. The aluminium case is rated IP67 and IK10, surge protection is 6 kV, and it works from -30 °C to 60 °C, is stored between -40 °C and 85 °C and tolerates 5 to 95 % non-condensing humidity. Cable entry is one M25 gland each for BNC and RJ45, a DIP switch disables the PoE output, and the unit draws 3 W. Size 193.6 x 55.8 x 39.76 mm, 0.3 kg, wall mounting, EN62368-1.

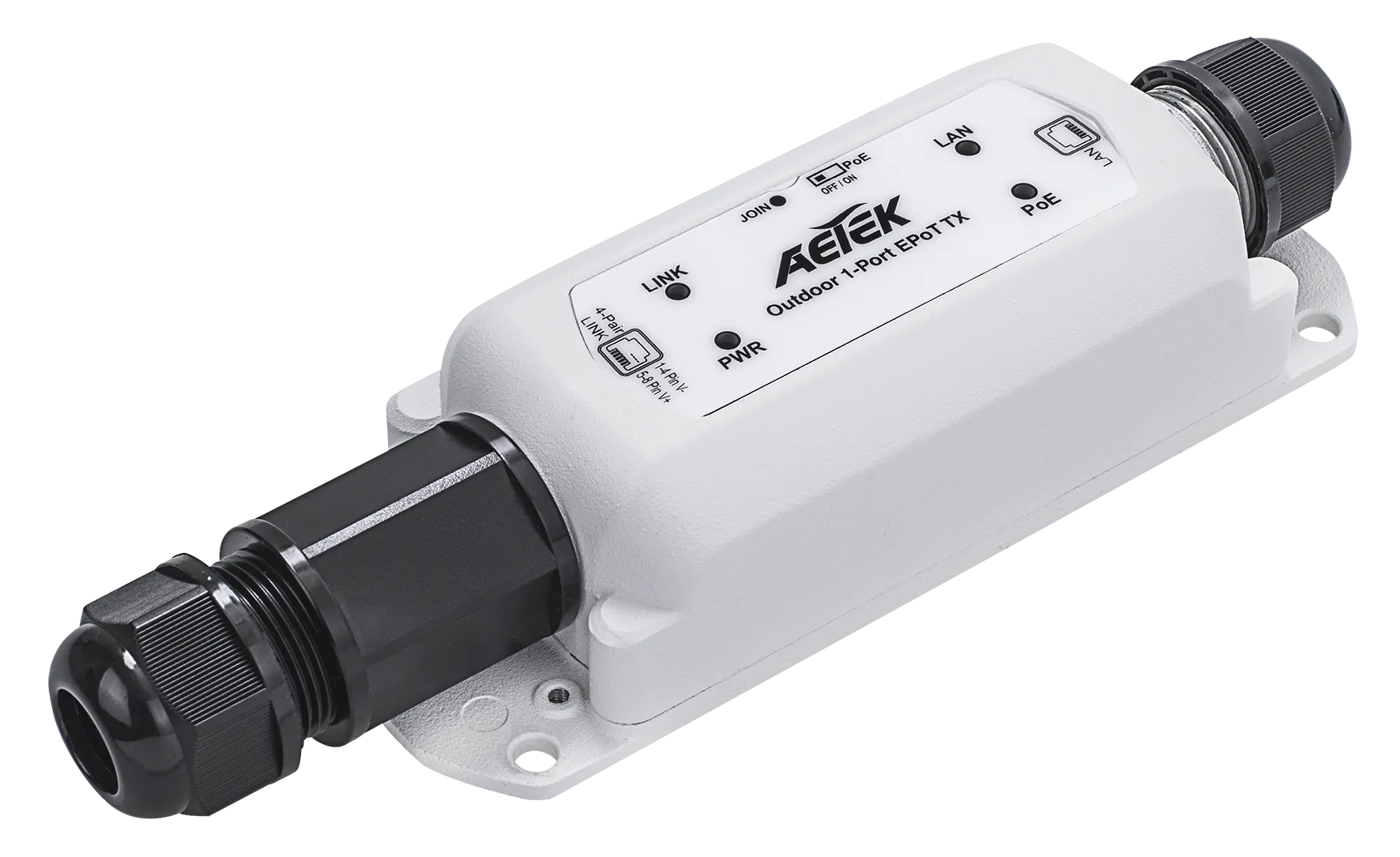

Outdoor EPoT transmit adapter, mounted on the pole or wall beside the camera. It offers one EPoT port on RJ45 and one RJ45 PoE output acting as PSE for IEEE 802.3af, 802.3at and 802.3bt, with a voltage booster holding the output up. Data and power share a shielded Cat5e/6 STP/FTP cable on four pairs, two pairs or one pair: 16 W at 1,200 m while running 100 Mbps, or data alone as far as 2,400 m. Intermediate switches and power supplies along the run are unnecessary. The aluminium case is rated IP67 and IK10, surge protection is 6 kV and ESD ±4 kV contact, ±8 kV air; it works from -30 °C to 60 °C, is stored between -40 °C and 85 °C and tolerates 5 to 95 % non-condensing humidity. Input is EPoT at 50 to 56 VDC, the unit draws 2 W, a DIP switch disables the PoE output, and peer-to-peer, daisy-chain and failover ring topologies are supported. Size 193.6 x 55.82 x 39.76 mm, 0.36 kg, wall mounting, EN62368-1, MTBF above 50,000 hours.

The VI-COAX-2608A carries eight Ethernet channels over coaxial cabling and is built as an IP over Coax device in 19-inch form factor. Reach extends to 500 m and PoE is supported. High-definition video and IP cameras are covered, with data transmission designed for reliability. Setup runs as plug and play, while a simple management interface handles administration. The design is durable. 8 Ethernet channels over coaxIP over Coax, 19-inch form factorRange up to 500 mPoE supportPlug-and-play installationSimple management interface

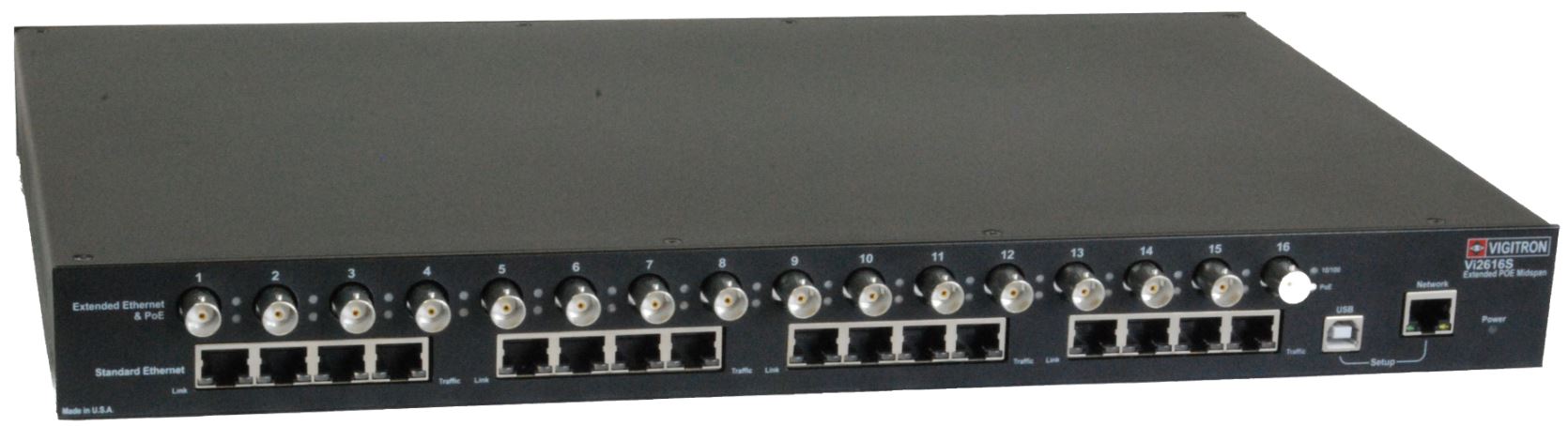

The VI-COAX-2616A transmits video over coaxial cabling on 16 channels and handles IP as well as analogue cameras. Power is provided via PoE+, and distances of up to 500 m are covered. Network management is integrated and LED indicators report the status. Built as an IP over Coax unit in 19-inch form factor, it is designed robustly for industrial applications, and installation is plug and play. 16-channel video over coaxIP and analogue camerasPoE+ power supplyDistances up to 500 mIntegrated network managementLED status indicators
