NVR

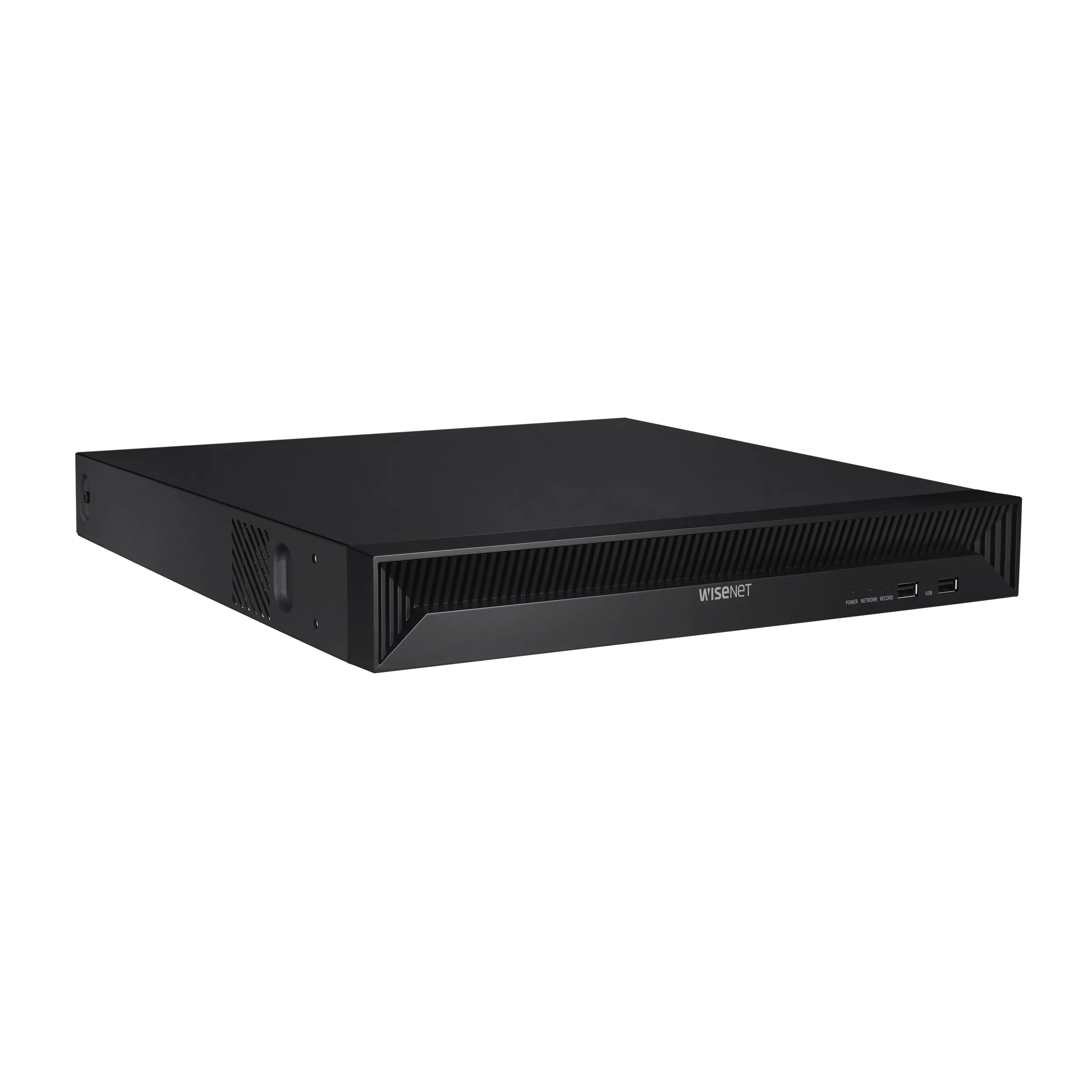

The QRN-1630S records up to 16 network cameras at resolutions from CIF to 8 MP and speaks both SUNAPI and ONVIF. Recording uses H.265, H.264 or MJPEG at a maximum of 128 Mbps, with playback bandwidth of up to 32 Mbps. Two SATA bays take a combined 20 TB and individual drives of up to 10 TB. Sixteen PoE ports (LAN, 10/100) plus a PoE connection on the WAN side at 1 Gbps bring cameras online by plug and play. Locally HDMI1 outputs 3840x2160 at 30 Hz and HDMI2 1920x1080 at 60 Hz, and simultaneous playback covers up to 40 channels, 16 locally and 8 per remote user across a maximum of four users. The embedded Linux system supports ARB and P2P connection by QR code. Up to 16 channels, 8 MP down to CIFRecording bandwidth max. 128 Mbps, playback 32 Mbps16 PoE ports (LAN, 10/100) and PoE on WAN at 1 GbpsTwo SATA bays, 20 TB combinedHDMI1 at 3840x2160 30 Hz, HDMI2 at 1920x1080ARB and P2P connection by QR code

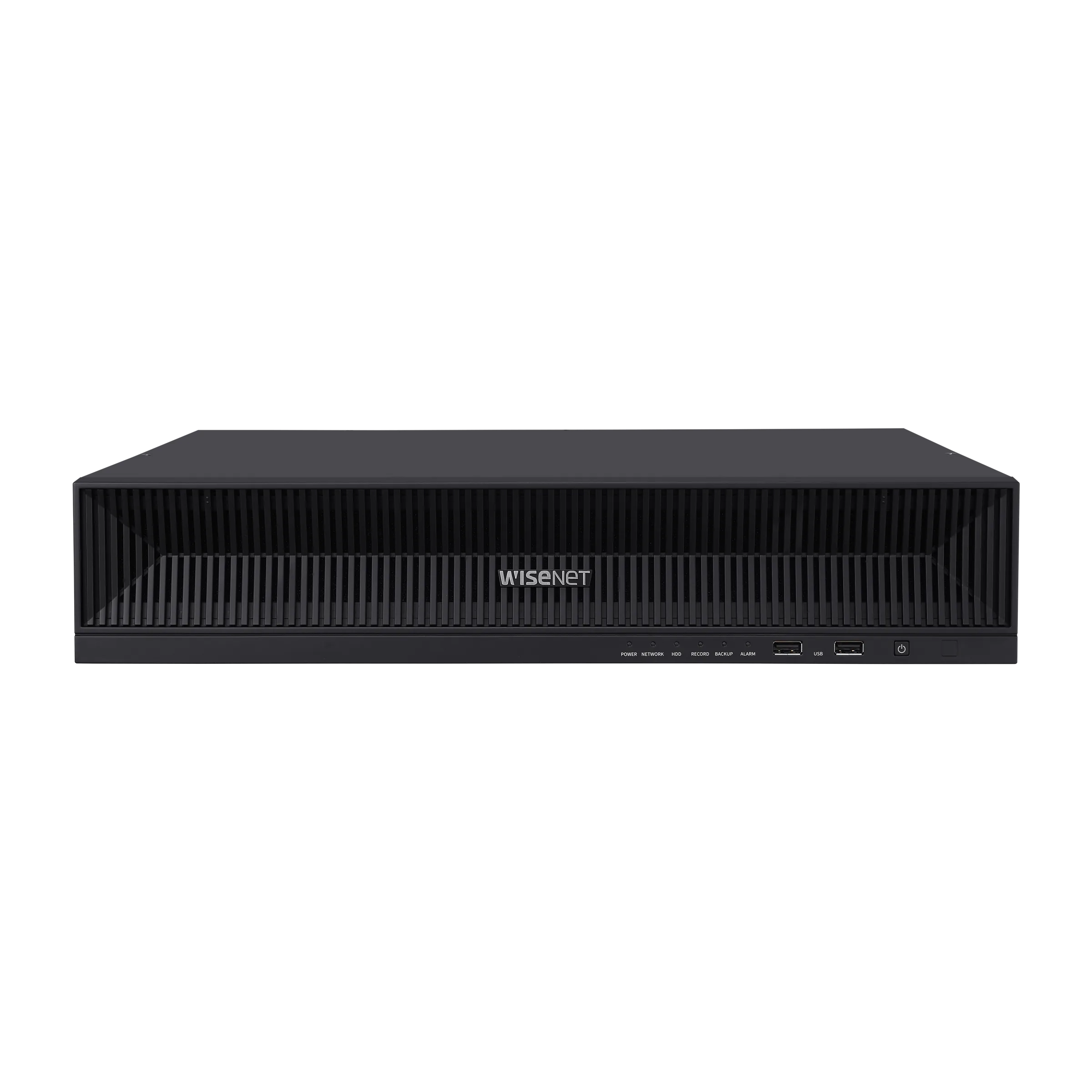

The XRN-1620SB1 records up to 16 network cameras with resolutions from CIF to 32MP, integrating them over SUNAPI and ONVIF. Recording is performed in H.265, H.264 and MJPEG at up to 140Mbps, and playback reaches 32Mbps across a maximum of 64 simultaneous channels split into 16 local and 16 per remote user. Local viewing supports two FHD monitors over HDMI and VGA or one UHD monitor over HDMI, together with dynamic layout and virtual channel view. Events can be triggered by alarm inputs, video loss, camera events such as sensor, motion detection, video analytics, defocus and audio, as well as dynamic and user events, with actions including e-mail, event push, PTZ preset, alarm out, buzzer, monitor out and FTP. Storage uses four SATA bays for up to 24TB with drives of up to 6TB, and the unit runs on embedded Linux. Up to 16 channels, CIF to 32MPMax. 140Mbps recording bandwidth4 SATA bays, up to 24TBDrives up to 6TBSUNAPI and ONVIFTime, event, text and smart search

The XRN-1620B2 is a network video recorder for up to 16 channels that connects cameras from CIF to 32MP over SUNAPI and ONVIF. Recording uses H.265, H.264 and MJPEG at a bandwidth of up to 140Mbps, while playback runs at up to 32Mbps across a maximum of 64 simultaneous channels, comprising 16 local and 16 per remote user. Locally the unit drives two FHD monitors via HDMI and VGA or a single UHD monitor via HDMI, with dynamic layout and virtual channel view available. Recording modes include normal, dual stream, schedule, event with pre- and post-recording and bookmarks, triggered by alarm inputs, video loss, camera events and dynamic events, so new camera functions can be used without a software update. AI search becomes available when Wisenet AI cameras are deployed; storage is provided by eight SATA bays for up to 80TB with drives of up to 10TB, and the recorder runs embedded Linux. Up to 16 channels, CIF to 32MPMax. 140Mbps recording bandwidthH.265, H.264, MJPEG8 SATA bays, up to 80TBAI search with Wisenet AI camerasDynamic events without software update

The ARN-1610S is a network video recorder for up to 16 channels at resolutions from CIF to 8 megapixel, connected through SUNAPI and ONVIF. Sixteen PoE ports take the cameras directly for plug and play setup, and recording bandwidth reaches a maximum of 80Mbps in H.265, H.264 and MJPEG. Two SATA bays accept hard disks of up to 6TB each for a maximum of 12TB. The embedded Linux system drives a local monitor over HDMI and VGA in clone mode and serves up to four users, one local and three remote, at up to 32Mbps playback bandwidth. Event triggers such as alarm input, video loss and camera events, actions including e-mail, event push, PTZ preset, alarm out, buzzer and monitor out, smart search and P2P access by QR code for Wisenet Viewer and Wisenet Mobile are all supported. Up to 16 channels, CIF to 8MP16 PoE ports with plug and playRecording bandwidth up to 80Mbps2 SATA bays, up to 6TB per driveHDMI and VGA local monitor outputP2P QR code access for Wisenet Viewer and Wisenet Mobile

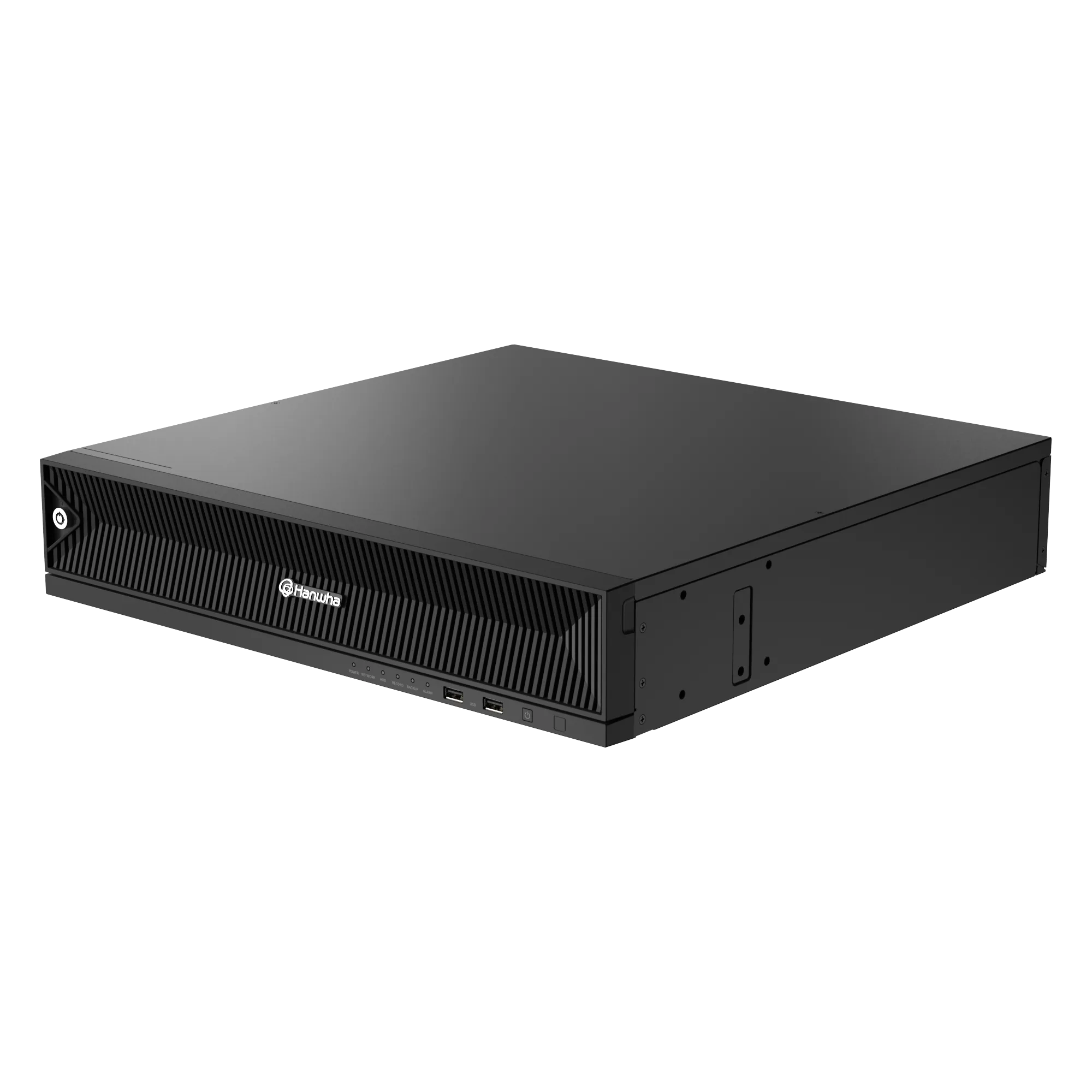

The XRN-3220RB2 handles up to 32 channels with resolutions from CIF to 32MP and is powered by a 12th generation Intel processor. Eight hot-swap SATA bays accept up to 80TB in non-RAID mode, with individual drives of up to 10TB. Recording is done in H.265, H.264 and MJPEG at up to 520Mbps in distributed mode, 300Mbps in normal mode and 520Mbps in normal RAID operation, while playback reaches 200Mbps with 32 channels running simultaneously. Two HDMI outputs present 3840x2160 at 30Hz and 1920x1080 at 60Hz and allow dynamic layout, virtual channel view and a clone mode of up to 64 divisions. Event and alarm configuration is simplified, built-in web management covers up to 100, and the recorder can be operated with Wisenet Viewer and Wisenet mobile. 32 channels, up to 32MP8 hot-swap SATA bays, up to 80TBRAID mode supportedUp to 520Mbps recording bandwidthPlayback up to 200Mbps across 32 channelsCompatible with Wisenet Viewer and Wisenet mobile

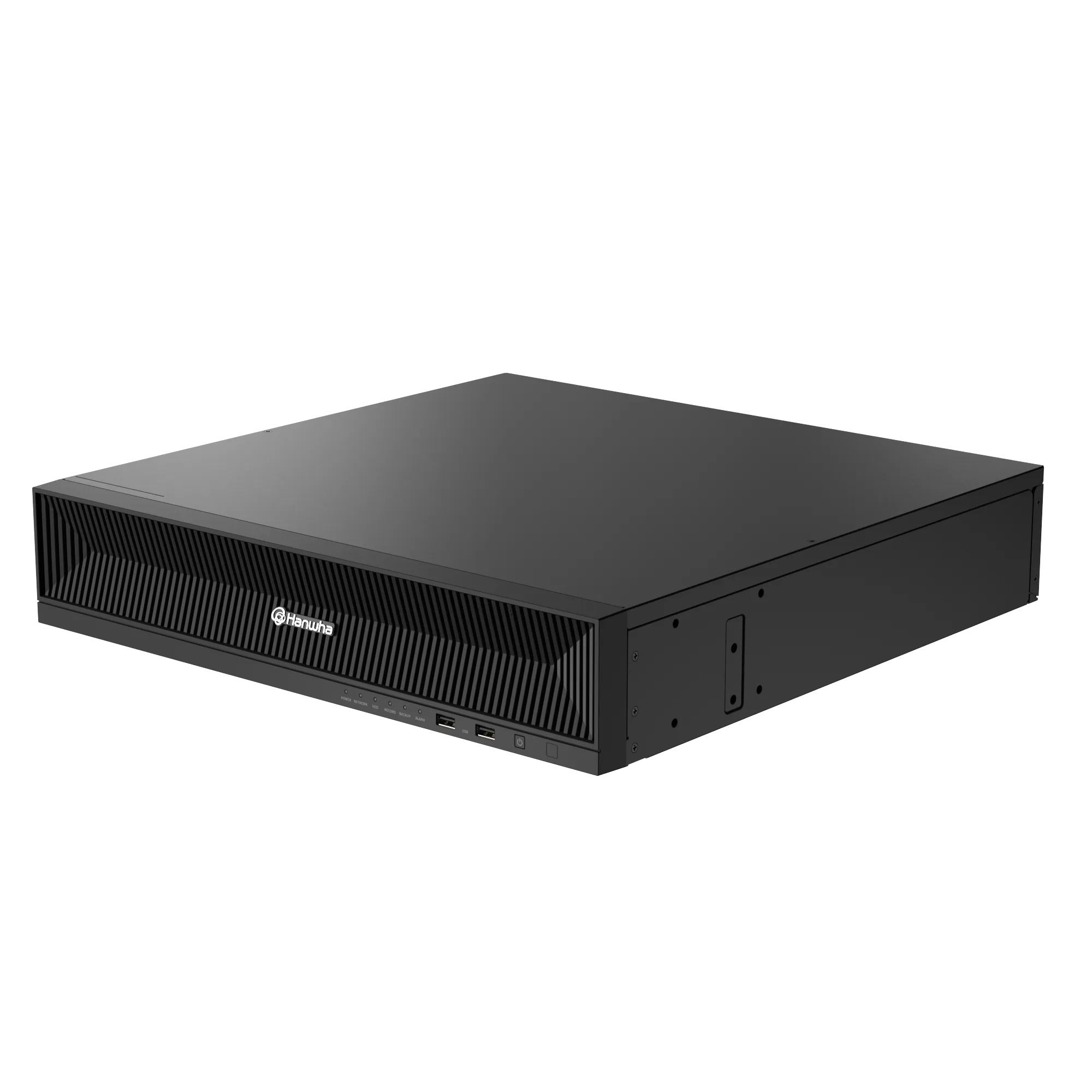

The XRN-3220B2 is a 32-channel network video recorder based on a 12th generation Intel processor, handling camera resolutions from CIF to 32MP. Recording bandwidth reaches up to 520Mbps in distributed mode and up to 300Mbps in normal mode, using H.265, H.264 and MJPEG. Two HDMI outputs provide 3840x2160 at 30Hz and 1920x1080 at 60Hz and support dynamic layout, virtual channel view and a clone mode with up to 64 divisions. Playback runs at up to 200Mbps with 32 channels simultaneously and a maximum of 80 channels in total, with searches by time, event, text, ARB, bookmark and smart search. Eight SATA bays hold up to 80TB using drives of up to 10TB, channel, event and alarm configuration is simplified, built-in web management supports up to 100, and the recorder works with Wisenet Viewer and Wisenet mobile. 32 channels, up to 32MP12th generation Intel processorUp to 520Mbps recording bandwidth8 SATA bays, up to 80TBDual HDMI at 3840x2160 and 1920x1080Compatible with Wisenet Viewer and Wisenet mobile

Designed for 32 channels with resolutions from CIF to 32MP, the XRN-3220B4 combines a 12th generation Intel processor with generous storage capacity. Sixteen hot-swap SATA bays take up to 160TB in non-RAID mode, with support for drives of up to 10TB. Recording runs in H.265, H.264 and MJPEG at up to 520Mbps in distributed mode, 300Mbps in normal mode and 520Mbps under normal RAID operation. Two HDMI outputs deliver 3840x2160 at 30Hz and 1920x1080 at 60Hz, alongside dynamic layout, virtual channel view and a clone mode with up to 32 divisions. Playback reaches up to 200Mbps with 32 simultaneous channels and 80 channels in total, built-in web management supports up to 100, and the recorder is compatible with Wisenet Viewer and Wisenet mobile. 32 channels, up to 32MP16 hot-swap SATA bays, up to 160TBUp to 520Mbps recording bandwidthRAID mode supportedDual HDMI at 3840x2160 and 1920x1080Web management for up to 100

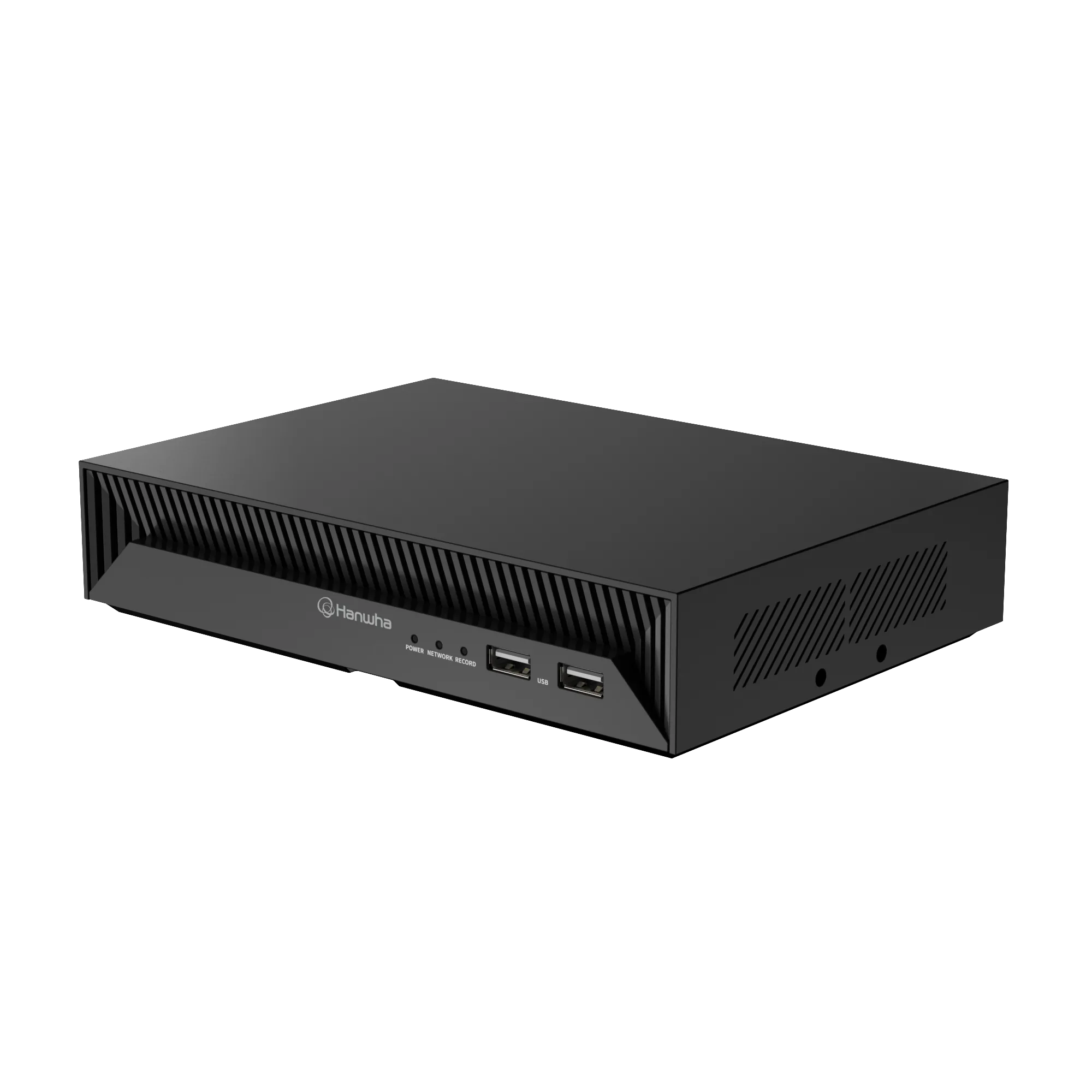

Equipped with a pre-installed 2TB SSD in an M.2 slot, the XRN-426S-2T is an AI-capable network video recorder for up to four cameras from CIF to 8MP. Cameras are integrated over SUNAPI and ONVIF, and recording is performed in H.265, H.264 and MJPEG at a maximum of 40Mbps. Four PoE ports at 10/100 supply the cameras, while the HDMI output presents 3840x2160 at 30Hz locally with dynamic layout, virtual channel view and up to four divisions. Playback runs at up to 32Mbps with a maximum of 16 simultaneous channels, and searching covers time, event, text, export, ARB and bookmarks. Combined with Hanwha AI cameras it adds AI search by object attribute, and backups are stored locally as recorder, SEC, AVI or JPG files and over the network as AVI or PNG. Up to 4 channels, 8MP camerasPre-installed 2TB SSD in M.2 slot4 PoE ports (LAN, 10/100)Max. 40Mbps recording bandwidthAI search by object attributeHDMI output at 3840x2160, 30Hz

The ARN-410S is a PoE network video recorder for up to four channels at resolutions from CIF to 8 megapixel via SUNAPI and ONVIF. Four PoE ports connect the cameras in plug and play fashion, and recording runs in H.265, H.264 and MJPEG at a maximum of 40Mbps. A single SATA bay holds one hard disk of up to 6TB, and the embedded operating system is Linux. Local display goes out over HDMI with 4K monitor output, while playback reaches up to 32Mbps for a maximum of four users, one local and three remote. Dual track recording, event triggers such as alarm input, video loss and camera events, actions including e-mail, event push, PTZ preset, alarm out, buzzer and monitor out, plus P2P by QR code for Wisenet Viewer and Wisenet Mobile are available. Up to 4 channels, CIF to 8MP4 PoE ports with plug and playRecording bandwidth up to 40Mbps1 SATA bay, up to 6TBDual track recording, 4K HDMI outputP2P QR code access for Wisenet Viewer and Wisenet Mobile

The QRN-430S is a network recorder for up to four cameras at resolutions from CIF to 8 MP, connected over SUNAPI or ONVIF. Four PoE ports adopt the cameras by plug and play, recording in H.265, H.264 or MJPEG peaks at 40 Mbps and playback runs to 32 Mbps. A single SATA bay holds one drive of up to 6 TB. The local HDMI output serves 8 MP at 30 fps as well as 1080p, 720p and D1 at 120 fps each, with single, two, three or four way layouts and a sequence mode. Four users can work at the same time, one local and three remote, sharing 16 channels of playback. Event actions on the embedded Linux system include e-mail, event push, PTZ preset, alarm out, buzzer and monitor out, and P2P connection works by QR code. Up to 4 channels, 8 MP down to CIFFour PoE ports with plug and playRecording bandwidth max. 40 Mbps, playback 32 MbpsSingle SATA bay up to 6 TBSUNAPI and ONVIF, embedded LinuxP2P connection by QR code

The XRN-420S is a compact network video recorder for up to four cameras with resolutions from CIF to 8MP, integrated through SUNAPI and ONVIF. It records in H.265, H.264 and MJPEG at a maximum of 50Mbps and plays back at up to 32Mbps across no more than 16 simultaneous channels, four of them local and four per remote user. Cameras connect plug and play through four PoE ports at 10/100, joined by a PoE WAN connection at 1Gbps, while local viewing is available over HDMI or VGA. With Wisenet AI cameras, AI search by object attribute is available in addition to searching by date and time, event list, text and smart search. The recorder runs embedded Linux, supports ARB and accommodates one SATA drive of up to 6TB. Up to 4 channels, CIF to 8MPMax. 50Mbps recording bandwidth4 PoE ports (LAN, 10/100) with plug and play1 PoE (WAN, 1Gbps)1 SATA bay, up to 6TBARB supported

The XRN-6420B2 is a network video recorder for up to 64 channels with resolutions from CIF to 32MP, built around a 12th generation Intel processor. Recording in H.265, H.264 and MJPEG reaches up to 520Mbps in distributed mode and up to 300Mbps in normal mode. Two HDMI outputs supply 3840x2160 at 30Hz and 1920x1080 at 60Hz and support dynamic layout, virtual channel view and a clone mode of up to 64 divisions. Playback runs at up to 200Mbps with 64 channels at the same time and 112 channels in total, made up of 64 local and 16 per remote user. Eight SATA bays accept up to 80TB with drives of up to 10TB, and the recorder adds simplified channel, event and alarm configuration, built-in web management for up to 100, and operation with Wisenet Viewer and Wisenet mobile. 64 channels, up to 32MP12th generation Intel processorUp to 520Mbps recording bandwidth8 SATA bays, up to 80TBUp to 112 simultaneous playback channelsCompatible with Wisenet Viewer and Wisenet mobile

As a 64-channel recorder with a 12th generation Intel processor, the XRN-6420RB2 processes camera resolutions from CIF to 32MP. Eight hot-swap SATA bays offer up to 80TB in non-RAID mode and support drives of up to 10TB. Recording in H.265, H.264 and MJPEG reaches up to 520Mbps in distributed mode, 300Mbps in normal mode and 520Mbps under normal RAID operation, while playback runs at up to 200Mbps with 64 simultaneous channels and 112 channels in total. Two HDMI outputs deliver 3840x2160 at 30Hz and 1920x1080 at 60Hz and allow dynamic layout, virtual channel view and a clone mode of up to 64 divisions. Channel, event and alarm configuration is simplified, built-in web management supports up to 100, and the recorder works together with Wisenet Viewer and Wisenet mobile. 64 channels, up to 32MP8 hot-swap SATA bays, up to 80TBRAID mode supportedUp to 520Mbps recording bandwidthPlayback up to 200Mbps across 64 channelsWeb management for up to 100

Sixteen hot-swap SATA bays holding up to 160TB in non-RAID mode characterise the XRN-6420B4, a network video recorder for 64 channels from CIF to 32MP. Driven by a 12th generation Intel processor, it records in H.265, H.264 and MJPEG at up to 520Mbps in distributed mode, 300Mbps in normal mode and 520Mbps under normal RAID operation. Two HDMI outputs provide 3840x2160 at 30Hz and 1920x1080 at 60Hz, together with dynamic layout, virtual channel view and a clone mode of up to 64 divisions. Playback achieves up to 200Mbps with 64 simultaneous channels and 112 channels in total, and individual drives may be as large as 10TB. Searching covers time, event, text, ARB, bookmark and smart search, and built-in web management is designed for up to 100. 64 channels, up to 32MP16 hot-swap SATA bays, up to 160TBRAID mode supportedUp to 520Mbps recording bandwidthDual HDMI at 3840x2160 and 1920x1080Web management for up to 100

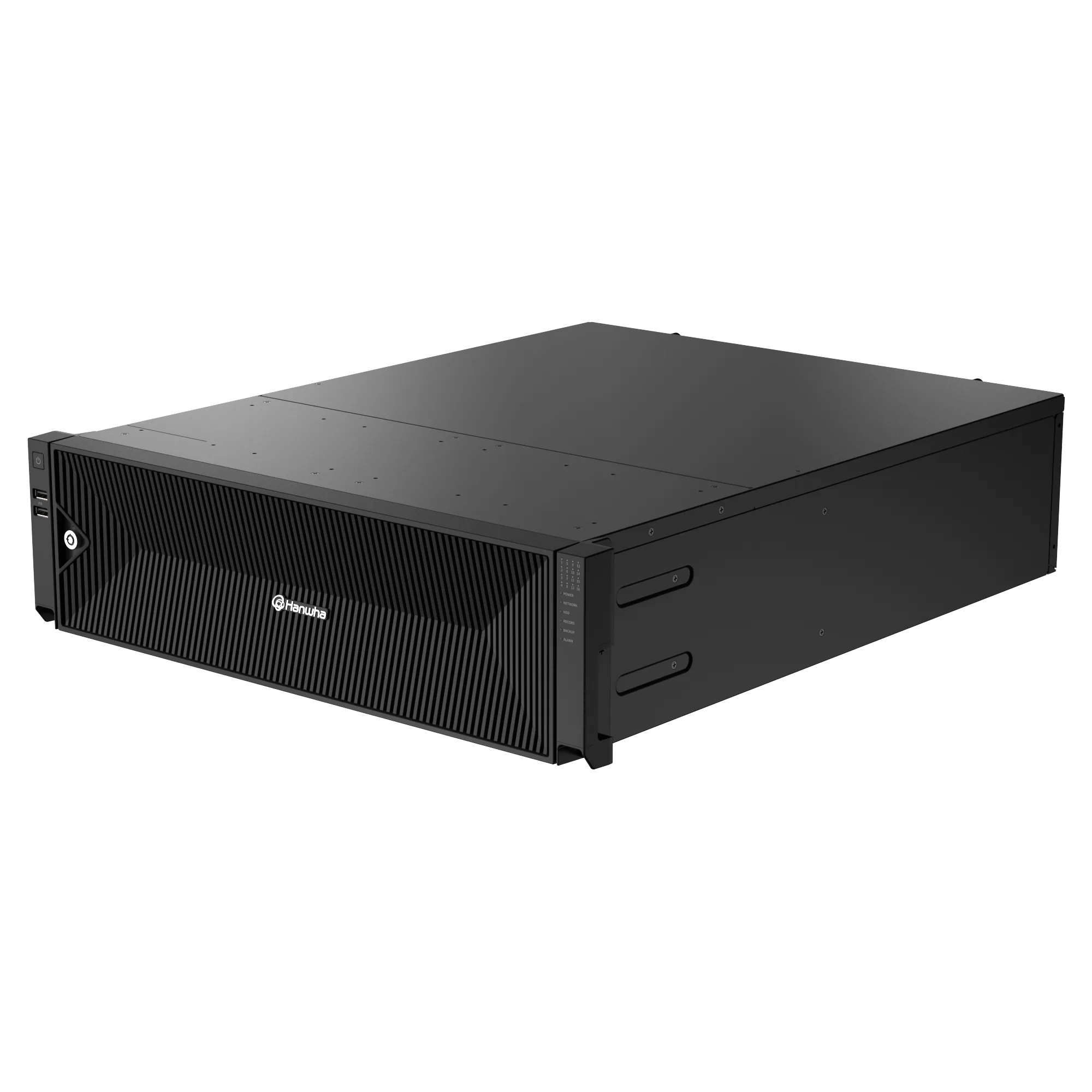

The XRN-6420DB4 manages up to 64 channels with resolutions from CIF to 32MP using a 12th generation Intel processor. Storage is provided by sixteen hot-swap SATA bays holding up to 160TB in non-RAID mode, with individual drives of up to 10TB. Recording is carried out in H.265, H.264 and MJPEG at up to 520Mbps in distributed mode, 300Mbps in normal mode and 520Mbps under normal RAID operation, while playback reaches 200Mbps across 64 simultaneous channels. Local output uses two HDMI connections at 3840x2160/30Hz and 1920x1080/60Hz, complemented by dynamic layout, virtual channel view and a clone mode of up to 64 divisions. Event triggers such as alarm input, video loss, camera events and dynamic or user events can be linked to actions ranging from e-mail and PTZ preset through to FTP. 64 channels, up to 32MP16 hot-swap SATA bays, up to 160TBUp to 520Mbps recording bandwidthDual HDMI at 3840x2160 and 1920x1080Up to 112 simultaneous playback channelsCompatible with Wisenet Viewer and Wisenet mobile

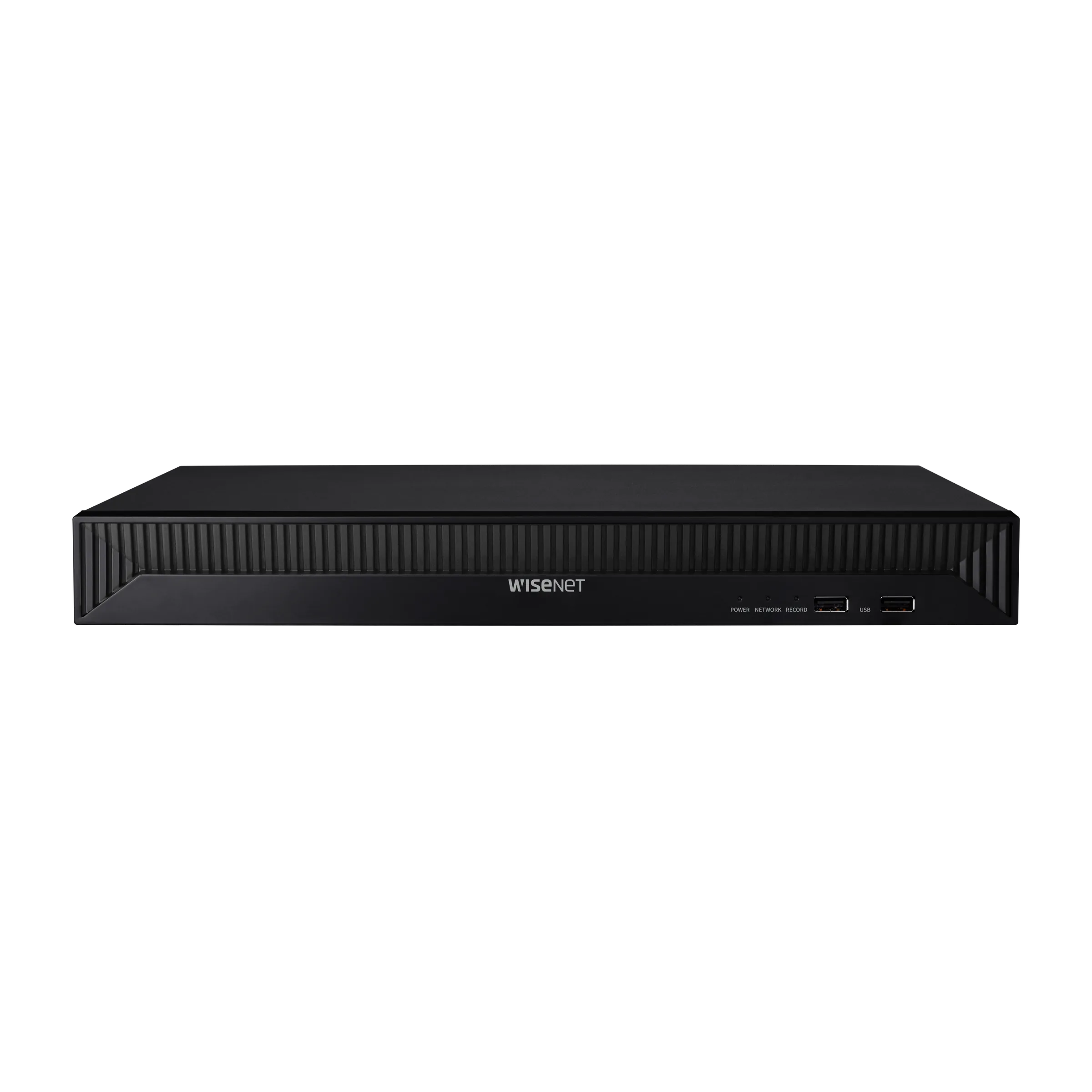

Built on embedded Linux, the XRN-815S records up to 8 channels and connects cameras via SUNAPI or ONVIF at resolutions from 12MP down to CIF. Recording uses H.265, H.264 or MJPEG at a maximum of 100Mbps and 8MP to CIF, with normal, dual stream, scheduled (continuous or event) and pre/post event modes plus bookmarks. Connection is plug and play through eight PoE ports (LAN, 10/100) and one PoE port (WAN, 1Gbps), while two SATA slots take drives of up to 10TB for a maximum of 20TB. Playback runs at up to 32Mbps for a maximum of four users (1 local, 3 remote) and up to 32 simultaneous channels, searchable by calendar, event list, text or smart search. Local output is provided on HDMI1 at 3840x2160 (30Hz) and HDMI2 at 1920x1080 (60Hz); ARB and the P2P service with QR code connect are included, and AI search by object attribute requires an integrated Wisenet AI camera. Max. 8CH, camera resolution 12MP to CIFRecording bandwidth max. 100Mbps, H.265, H.264, MJPEG8x PoE (LAN, 10/100) and 1x PoE (WAN, 1Gbps)2x SATA, HDD up to 10TB, max. 20TB totalPlayback max. 32Mbps, max. 4 usersARB and P2P service via QR code

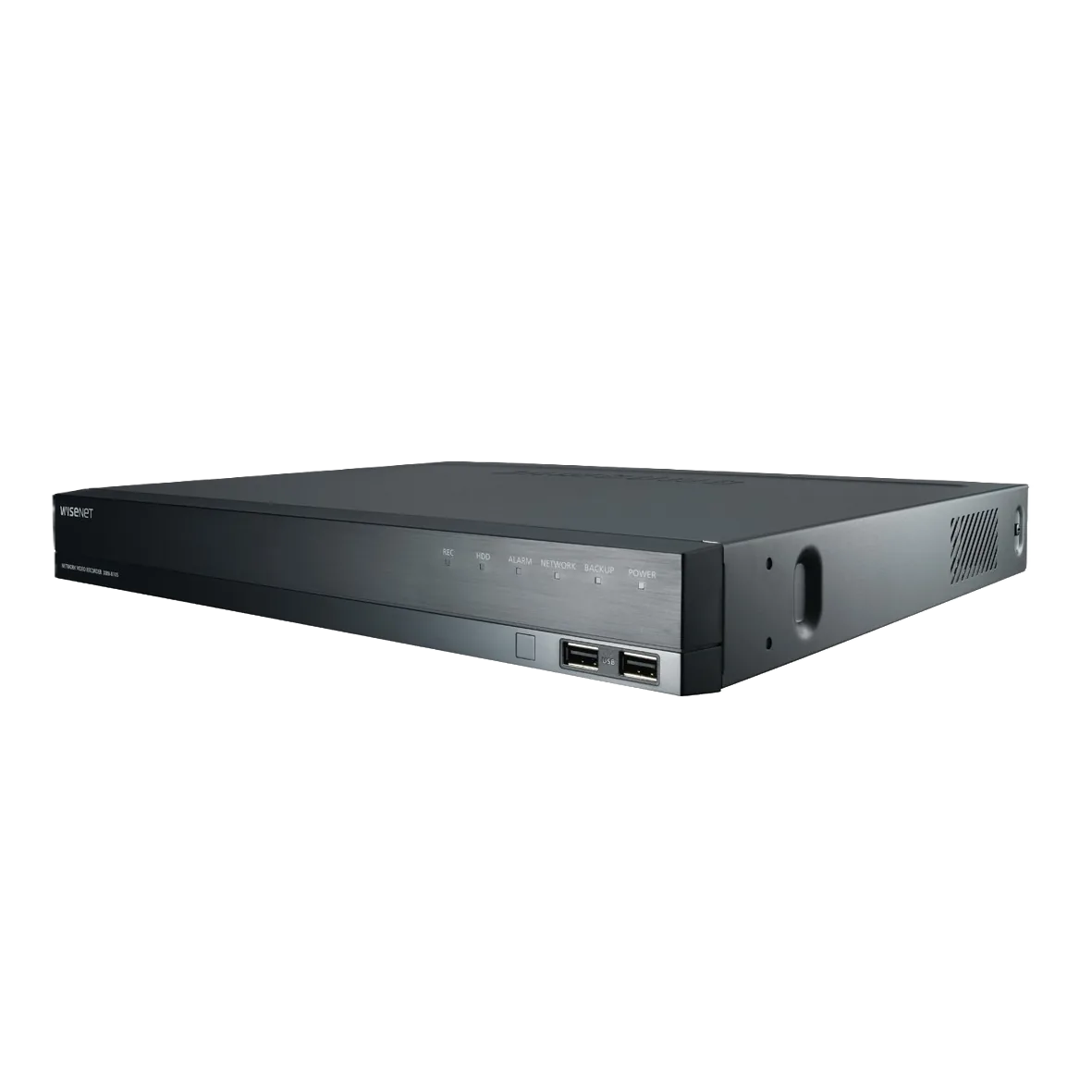

The XRN-820S is a network video recorder for up to 8 channels, running embedded Linux and accepting cameras over SUNAPI or ONVIF from 32MP down to CIF. Recording is available in H.265, H.264 or MJPEG at a maximum of 120Mbps, in normal, dual stream, scheduled (continuous or event) and pre/post event modes with bookmarks. Local viewing uses either HDMI and VGA as an FHD dual monitor or HDMI as a single UHD monitor, with dynamic layout, virtual channel view, up to 16 divisions in clone mode and up to 9 in expand mode. Playback reaches 32Mbps from CIF to 32MP (H.264 up to 9MP, H.265 up to 32MP) for a maximum of four users (1 local, 3 remote) and up to 32 simultaneous channels. Two SATA slots hold drives of up to 6TB for a total maximum of 12TB, and searches run by calendar, event list, text or smart search. Max. 8CH, camera resolution 32MP to CIFRecording bandwidth max. 120Mbps, H.265, H.264, MJPEGHDMI and VGA FHD dual monitor or HDMI single UHD monitor2x SATA, HDD up to 6TB, max. 12TB totalPlayback max. 32Mbps, max. 4 usersSUNAPI and ONVIF, embedded Linux

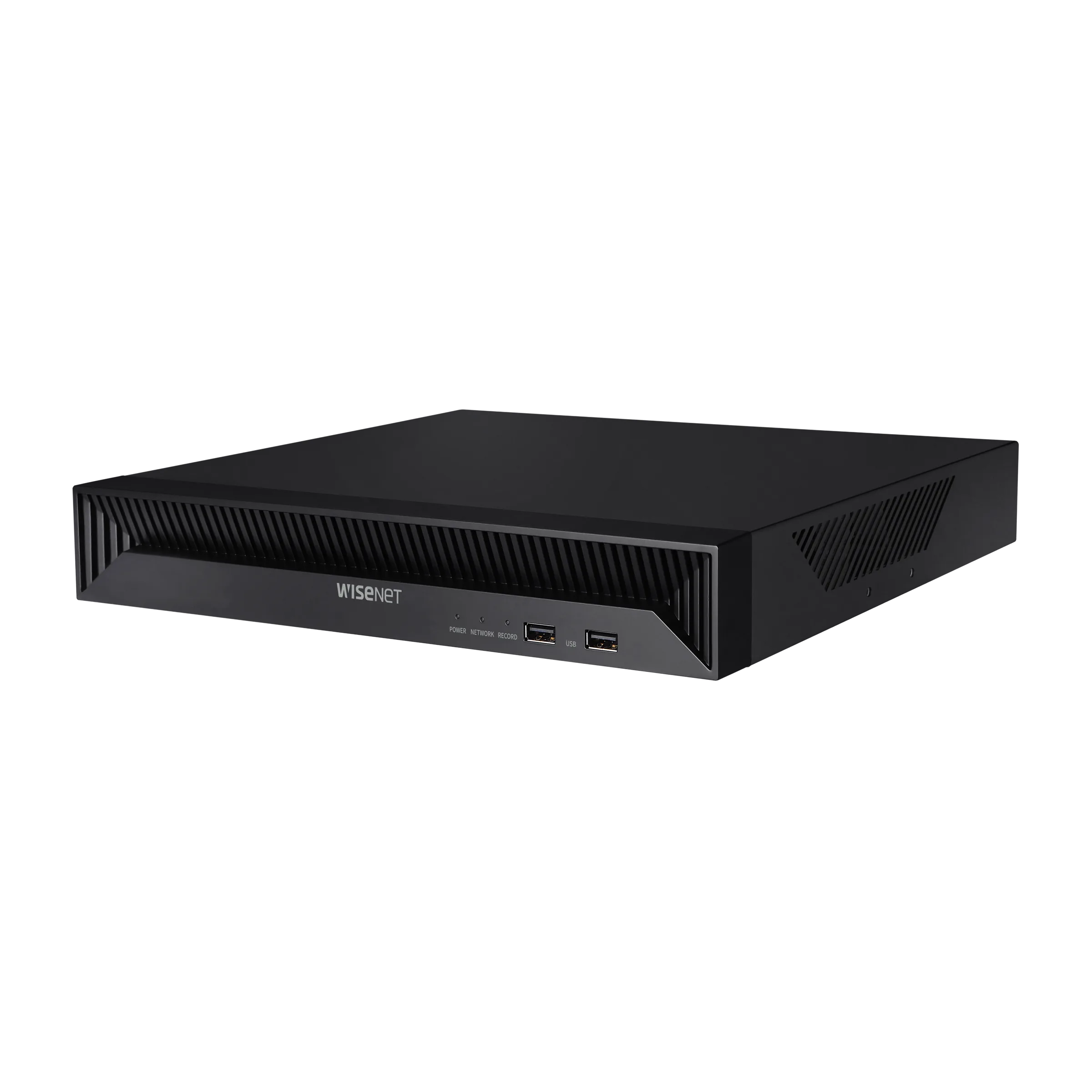

The QRN-830S records up to eight network cameras from CIF to 8 MP and supports the SUNAPI and ONVIF protocols. Recording in H.265, H.264 or MJPEG runs at a maximum of 80 Mbps, with 32 Mbps available for playback. Its SATA bay accommodates one drive of up to 6 TB. Local output comes from HDMI1 at 3840x2160 and 30 Hz and HDMI2 at 1920x1080 and 60 Hz, decoding 8 MP at 60 fps, 1080p at 240 fps, 720p at 480 fps and D1 at 960 fps. Simultaneous playback reaches 32 channels, eight of them local and eight per remote user across a maximum of four users. Event actions include e-mail, event push, PTZ preset, alarm out, buzzer, monitor out, FTP, SUNAPI command and shutdown. Up to 8 channels, 8 MP down to CIFRecording bandwidth max. 80 Mbps, playback 32 MbpsHDMI1 at 3840x2160 30 Hz, HDMI2 at 1920x1080 60 HzSingle SATA bay up to 6 TBSimultaneous playback of up to 32 channelsSUNAPI and ONVIF, embedded Linux

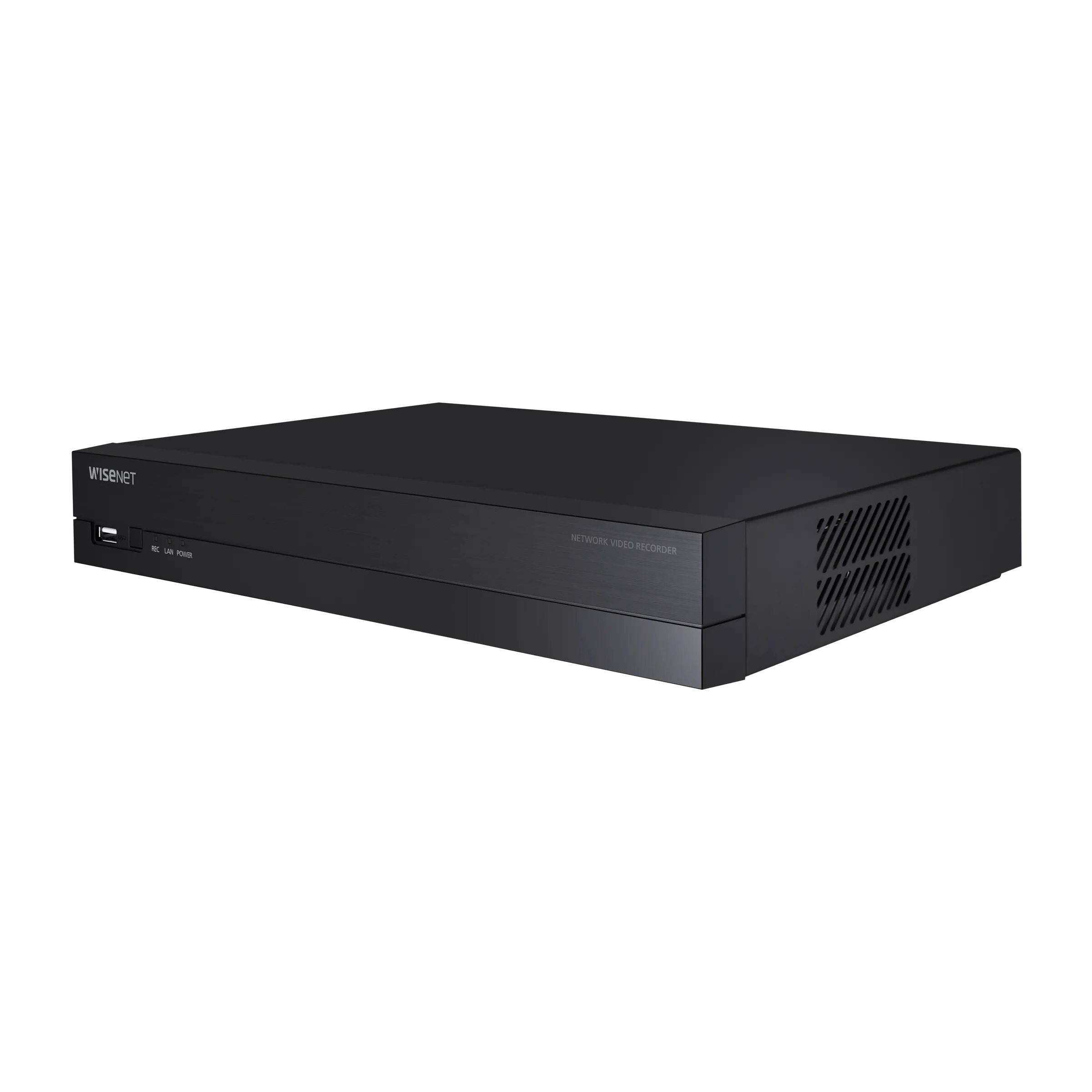

The ARN-810S records up to eight channels at resolutions from CIF to 8 megapixel and attaches cameras through SUNAPI and ONVIF. Eight PoE+ ports with a 65W budget power the cameras directly and allow plug and play, with recording bandwidth of up to 60Mbps in H.265, H.264 and MJPEG. One SATA bay accepts a hard disk of up to 6TB, and Linux serves as the embedded operating system. Local output uses HDMI with 4K monitor out, while playback reaches up to 32Mbps for a maximum of four users, one local and three remote. Dual track recording, event triggers such as alarm input, video loss and camera events, actions including e-mail, event push, PTZ preset, alarm out, buzzer and monitor out, and P2P access by QR code for Wisenet Viewer and Wisenet Mobile complete the recorder. Up to 8 channels, CIF to 8MP8 PoE+ ports with 65W budgetRecording bandwidth up to 60Mbps1 SATA bay, up to 6TBDual track recording, 4K HDMI outputP2P QR code access for Wisenet Viewer and Wisenet Mobile

Finished in black, this Ajax NVR records on 16 channels and supports resolutions of up to 8 MP. Two SATA ports hold the drives. Maximum incoming bandwidth amounts to 100 Mbit/s. Audio along with alarm inputs and outputs rounds out the recorder. 16 channelsResolution up to 8 MP2x SATAAlarm inputs and outputsMax. 100 Mbit/s incomingBlack finish

This Ajax network video recorder records on 16 channels and handles footage at resolutions of up to 8 MP. Four SATA bays are provided for storage, and the stated bandwidth is 320 Mbit/s. Two HDMI outputs are available for video output, complemented by audio as well as alarm inputs and outputs. The housing is finished in black. 16 channelsresolution up to 8 MP4x SATA bay2x HDMI output320 Mbit/s bandwidthblack housing

This Ajax network video recorder records on 16 channels and handles footage at resolutions of up to 8 MP. Four SATA bays are provided for storage, and the stated bandwidth is 320 Mbit/s. Two HDMI outputs are available for video output, complemented by audio as well as alarm inputs and outputs. 16 channelsresolution up to 8 MP4x SATA bay2x HDMI output320 Mbit/s bandwidthalarm inputs and outputs

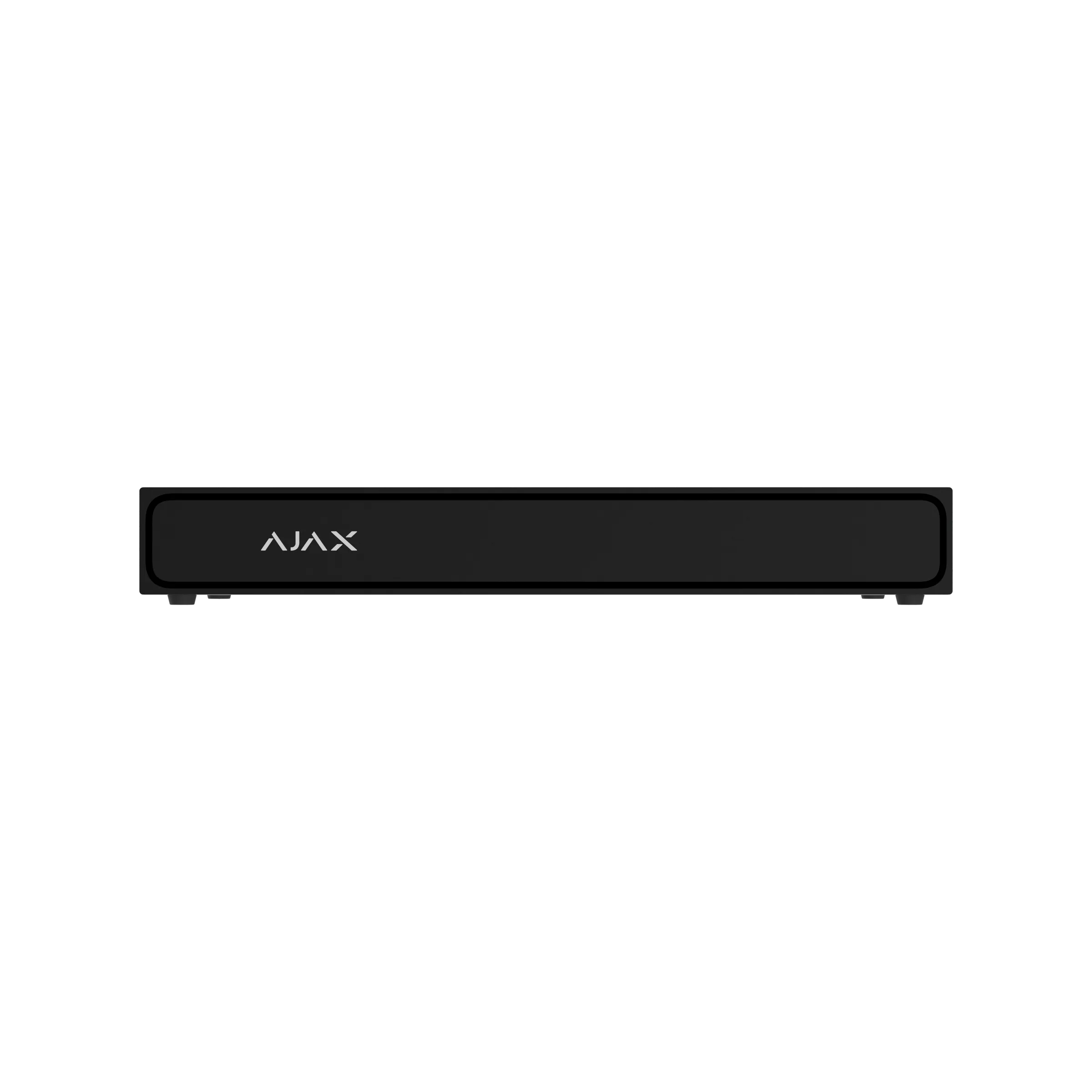

The NVR H2D16PAC is configured for 16 channels at 8 MP resolution. Two HDMI outputs handle video, complemented by audio support. Hard disks can be fitted into two SATA bays. The black unit offers an alarm input/output and 320 Mbit/s of bandwidth. 16 channels8 MP resolution2x HDMI2x SATAAlarm input/output320 Mbit/s

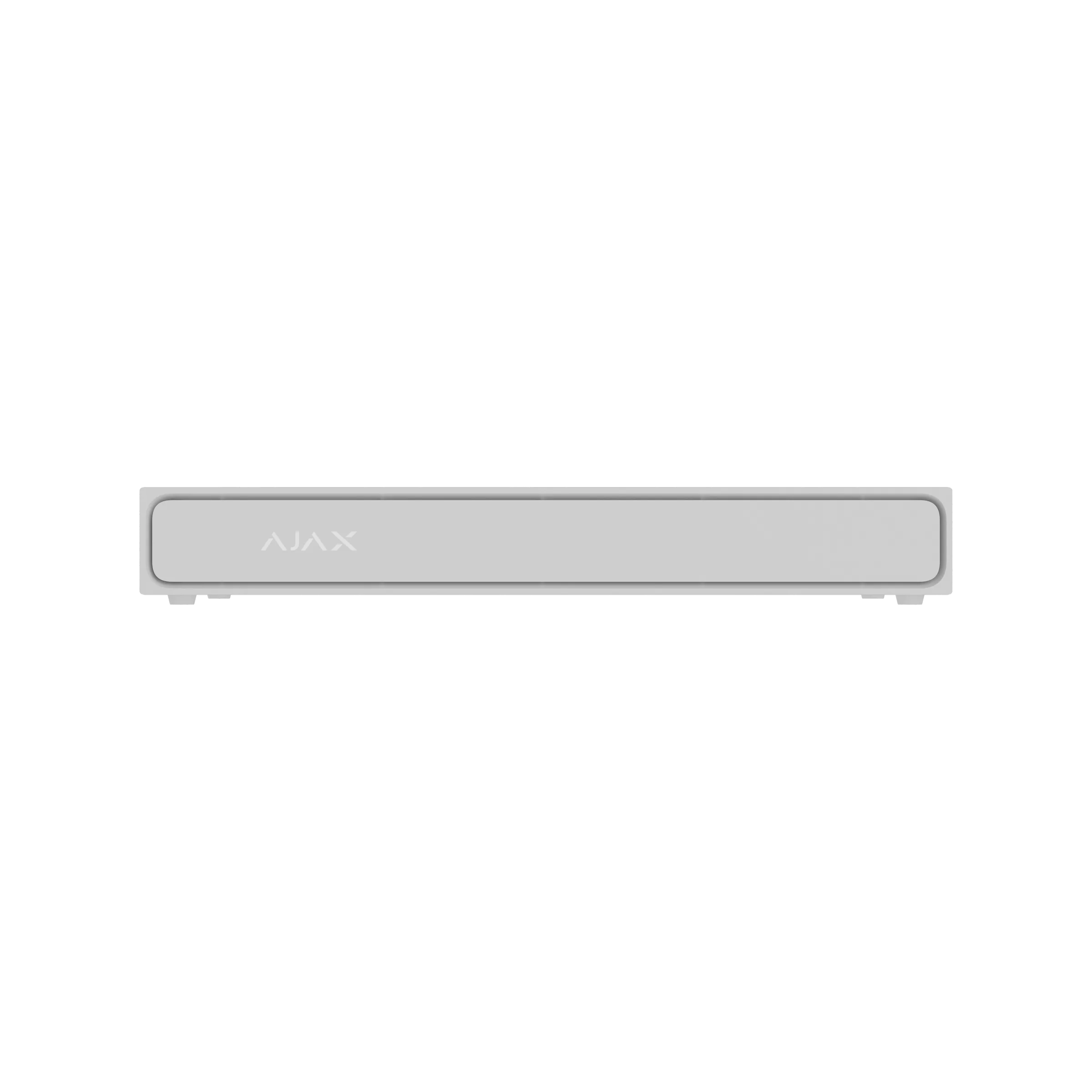

This white NVR H2D16PAC records 16 channels at 8 MP. One HDMI output is available for a monitor, and audio is supported. Two SATA bays are intended for hard disks. The recorder has an alarm input/output, and bandwidth is 200 Mbit/s. 16 channels8 MP resolution1x HDMI2x SATAAlarm input/output200 Mbit/s
