Lens

The SLA-T1080FA is a 2MP lens module built around a 1/2.8-inch CMOS sensor. Its fixed 1.6 mm lens at F1.6 produces a very wide view of 187° horizontally and 113.9° vertically, with minimum illumination of 0.03 lux in colour and black-and-white. Focus is fixed and the module is connected to the main unit over RJ12. The black metal body measures Ø35 x 68.9 mm and weighs 430 g. Supported products are the XNB-6002, PNM-9000QB, PNM-C20000QB and XNB-A8004B, and the stated lens module cable is the SCL-150 at 15 m. Fixed 1.6 mm focal length, F1.6187° horizontal, 113.9° vertical field of view1/2.8-inch CMOS, 0.03 luxMetal body Ø35 x 68.9 mm, 430 gRJ12 connection to the main unitSCL-150 lens module cable (15 m)

1/1.8" CS mount 9.0-50.0mm F1.5-360C Aspherical 12 Megapixel Varifocal "with P-Iris connector" Drive IR Corrected with 31cm Lens Lead

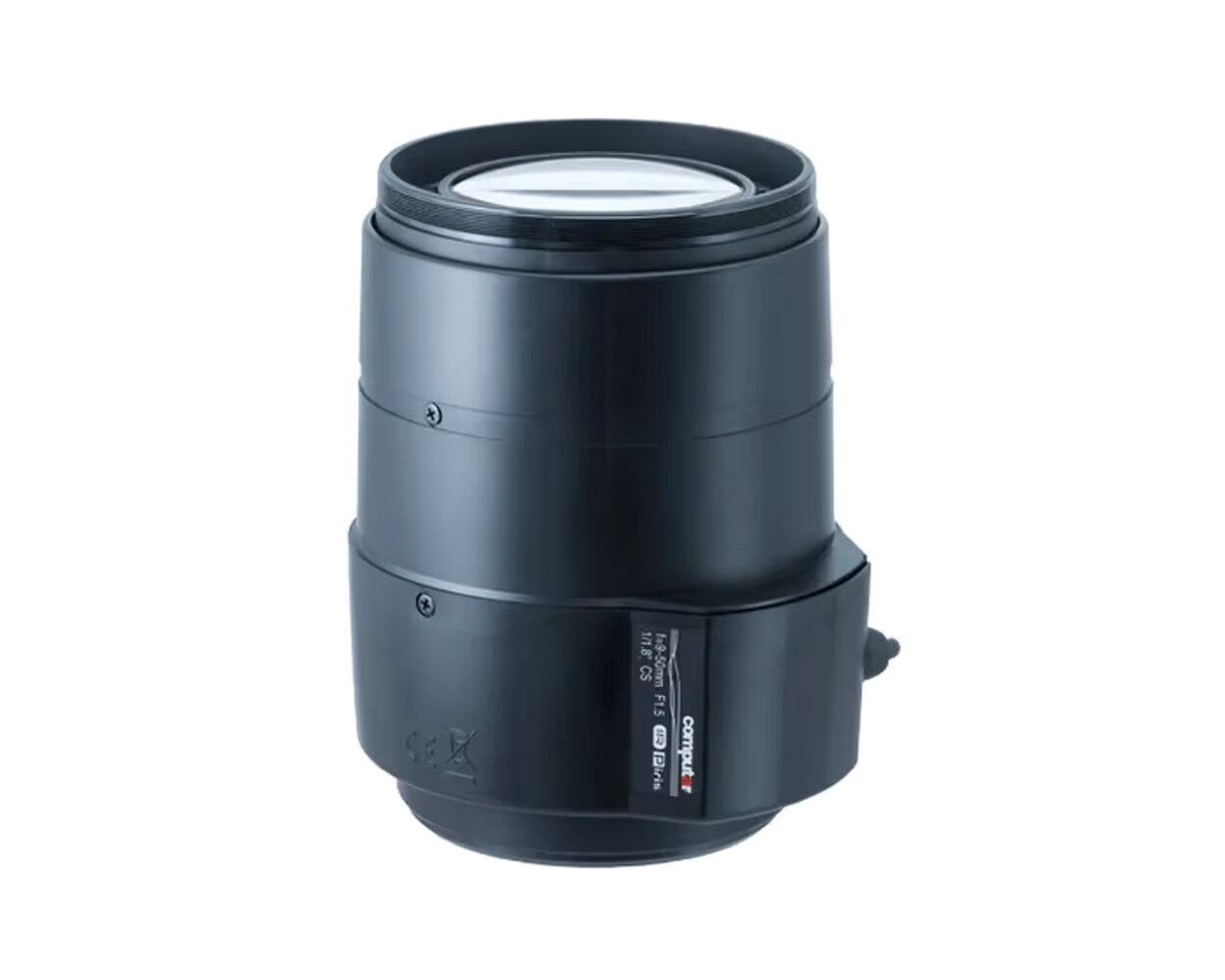

1/1.8" CS mount 9.0-50.0mm F1.5-360C Aspherical 12 Megapixel Varifocal DC Drive IR Corrected with 31cm Lens Lead

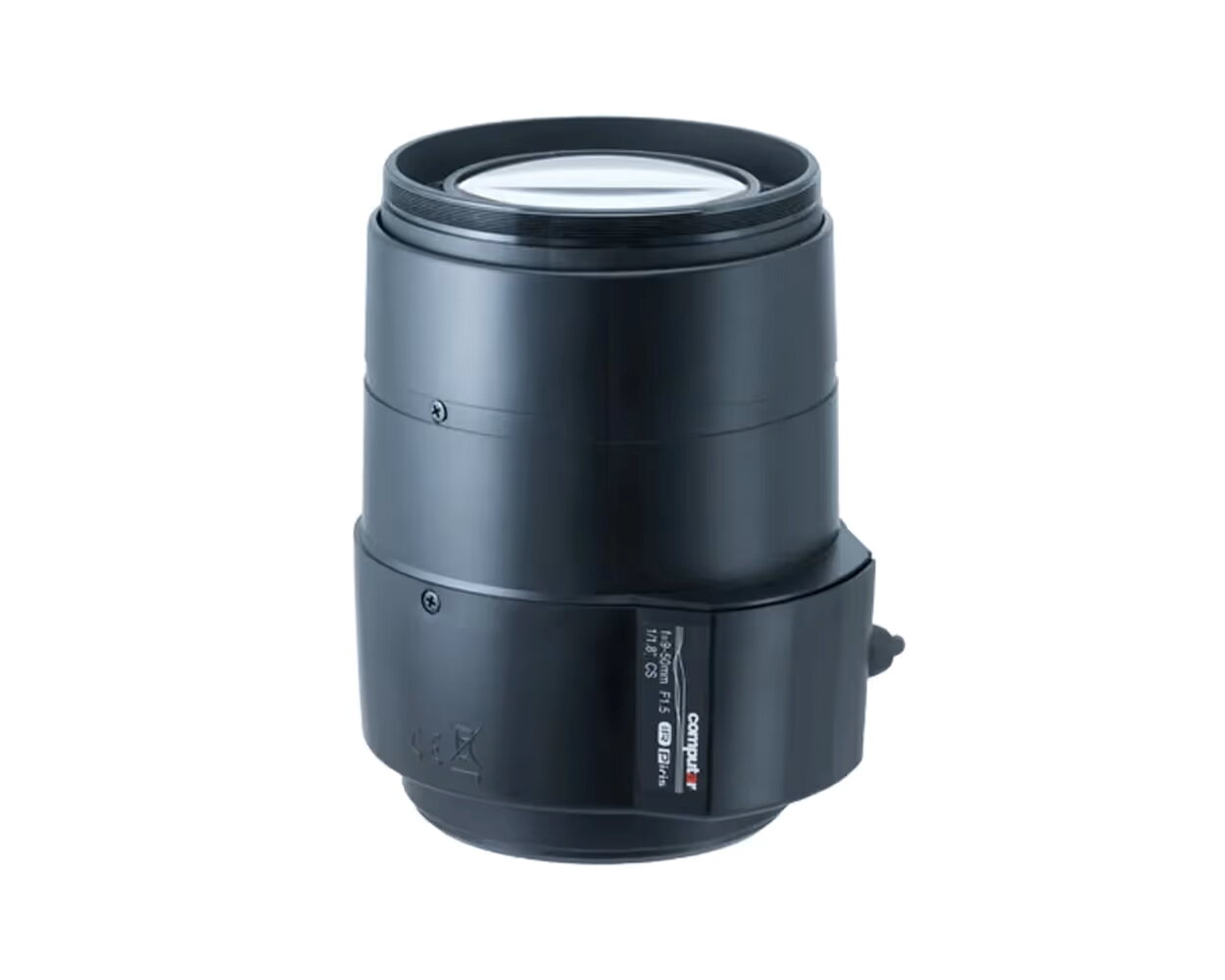

1/1.8" CS mount 9.0-50.0mm F1.5-360C Aspherical 12 Megapixel Varifocal "P-Iris" Drive IR Corrected with 31cm Lens Lead

1/2.8" 2MP CMOS with a 16mm fixed lens module for XNB-6002  Remote Head Camera, waterproof, black

The SLA-T2480VA is a 2MP lens module with a 1/2.8-inch CMOS sensor and a fixed 2.4 mm lens at F2.0. Minimum illumination is 0.045 lux in colour as well as black-and-white, and the field of view spans 138° horizontally, 73° vertically and 165° diagonally. Focus is fixed and the module is tied to the main unit over RJ12. The black plastic and metal body measures 30 x 27.9 x 45 mm and weighs 328 g. Supported products are the XNB-6002, PNM-9000QB, PNM-C20000QB and XNB-A8004B. Fixed 2.4 mm focal length, F2.00.045 lux in colour and BW138° x 73° x 165° field of view30 x 27.9 x 45 mm body, 328 gRJ12 connection to the main unit1/2.8-inch CMOS sensor

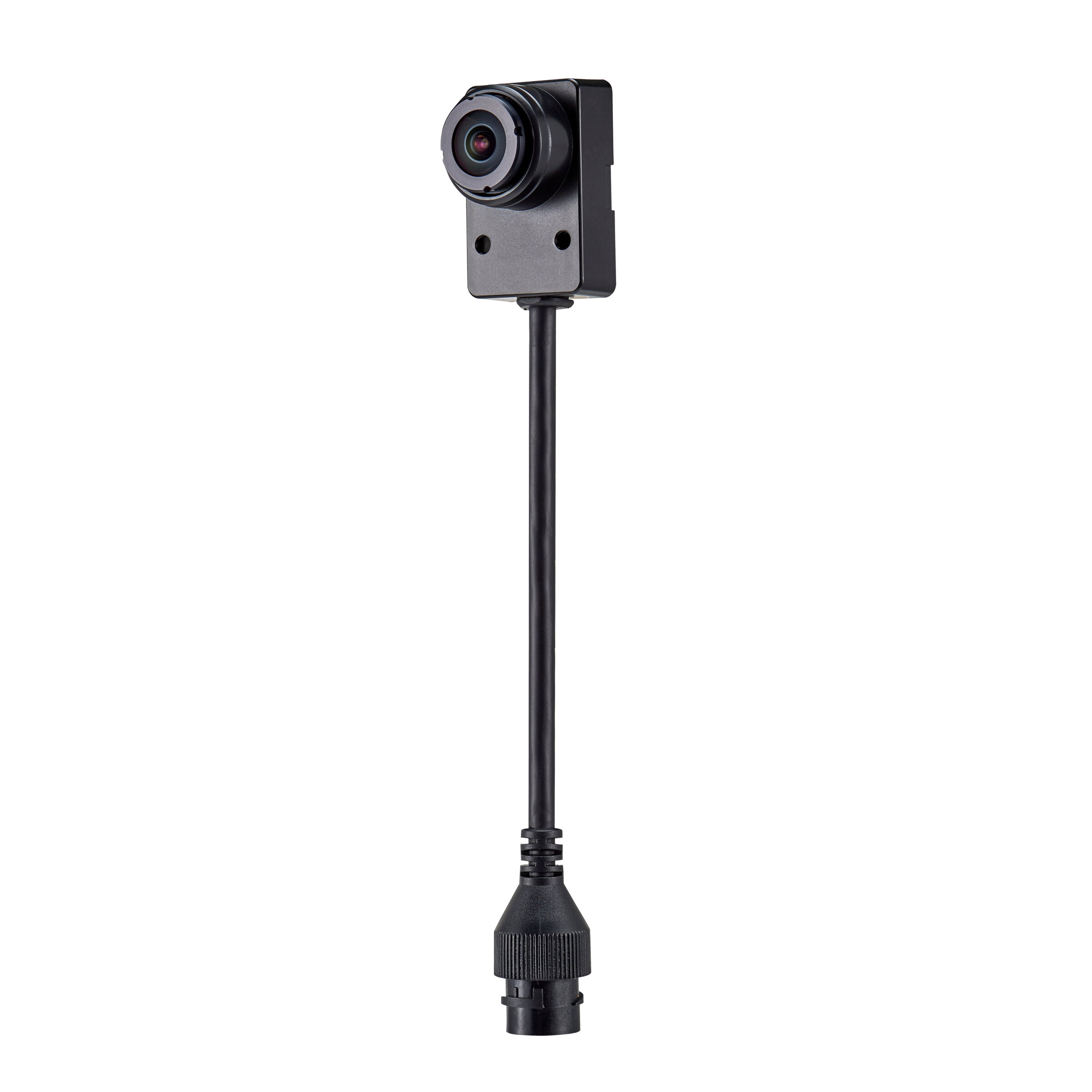

The SLA-T2480V is a 2MP lens module using a 1/2.8-inch CMOS sensor with 1,945 x 1,109 effective pixels, or 2.16 megapixels. Its fixed focal length is 2.4 mm at F2.0, covering 138° horizontally, 73° vertically and 165° diagonally. Minimum illumination is 0.45 lux in colour and 0.045 lux in black-and-white. Focus is fixed and the connection to the main unit runs over RJ12. The black plastic and metal body measures 30 x 27.9 x 45 mm, weighs 328 g and is rated from -10 °C to +55 °C. 1,945 x 1,109 effective pixels (2.16 MP)Fixed 2.4 mm focal length, F2.0138° x 73° x 165° field of view0.45 lux colour, 0.045 lux BW30 x 27.9 x 45 mm body, 328 gRJ12 connection to the main unit

The SLA-T2480A is a 2MP lens module combining a 1/2.8-inch CMOS sensor with a fixed 2.4 mm lens at F2.0. Coverage amounts to 138° horizontally, 73° vertically and 165° diagonally, and minimum illumination is 0.045 lux in both colour and black-and-white. Focus is fixed and the module attaches to the main unit over RJ12. The black plastic body measures Ø24 x 49.8 mm and weighs 318 g, with an operating range of -10 °C to +55 °C. Supported products are the XNB-6002, PNM-9000QB, PNM-C20000QB and XNB-A8004B, using the SCL-150 lens module cable at 15 m. Fixed 2.4 mm focal length, F2.0138° x 73° x 165° field of view1/2.8-inch CMOS, 0.045 luxPlastic body Ø24 x 49.8 mm, 318 gRJ12 connection to the main unitSCL-150 lens module cable (15 m)

2MP Lens, 1/3", varifocal (5-50mm), DC Auto Iris, CS-Mount, TAMRON

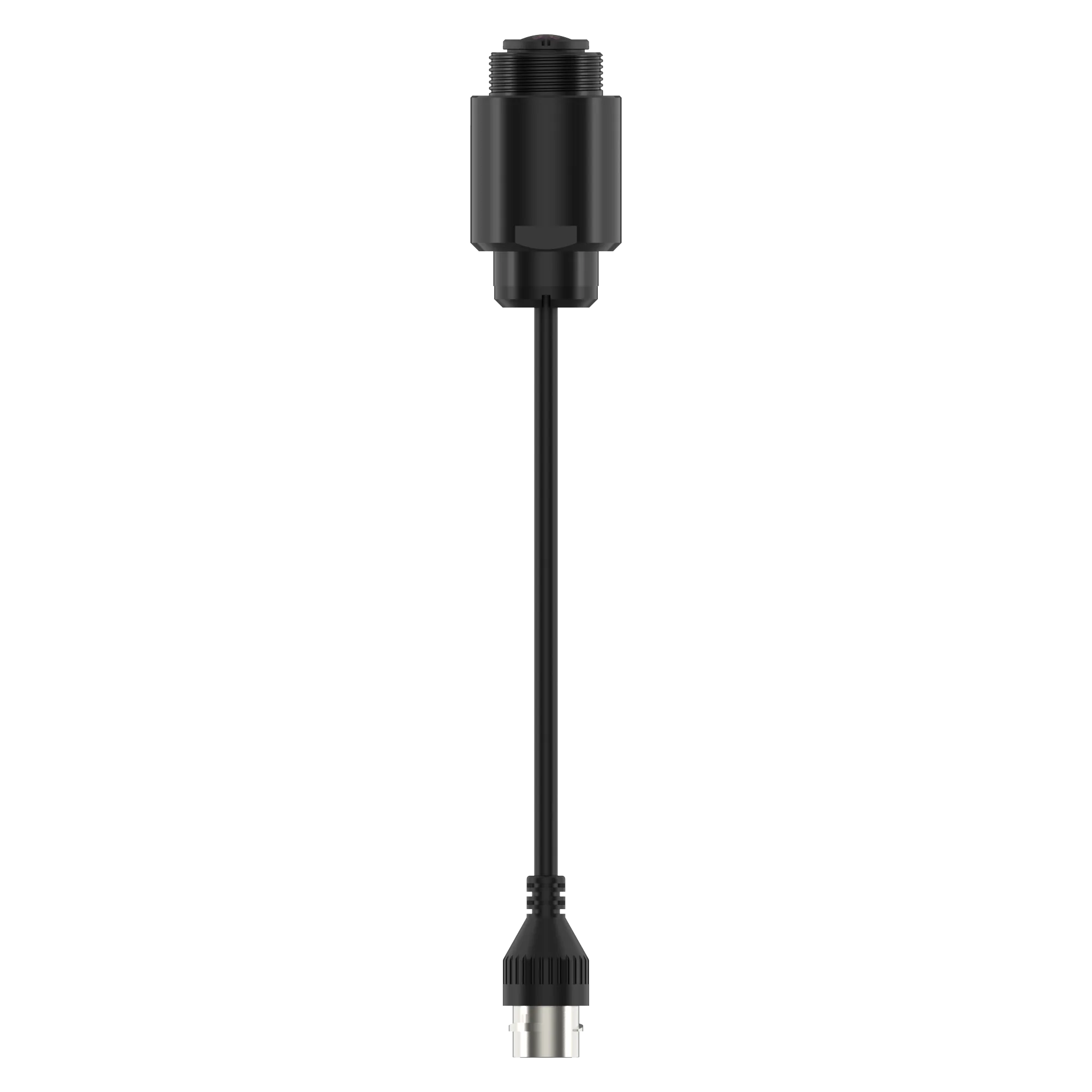

The SLA-T2480WA is a 2MP lens module rated to IP66 and NEMA 4X. A 1/2.8-inch CMOS sensor works behind a fixed 2.4 mm lens at F2.0, covering 138° horizontally, 73° vertically and 165° diagonally at a minimum illumination of 0.045 lux in colour and black-and-white. Focus is fixed and the link to the main unit runs over RJ12 with an 8 m cable. The black plastic body measures ø35 x 63.2 mm and weighs 101 g. Operation is specified from -30 °C to +55 °C with start-up above -30 °C, and supported products are the XNB-6002, PNM-9000QB, PNM-C20000QB and XNB-A8004B. IP66 and NEMA 4X ratedFixed 2.4 mm focal length, F2.0138° x 73° x 165° field of view1/2.8-inch CMOS, 0.045 luxø35 x 63.2 mm body, 101 g8 m cable, operation from -30 °C

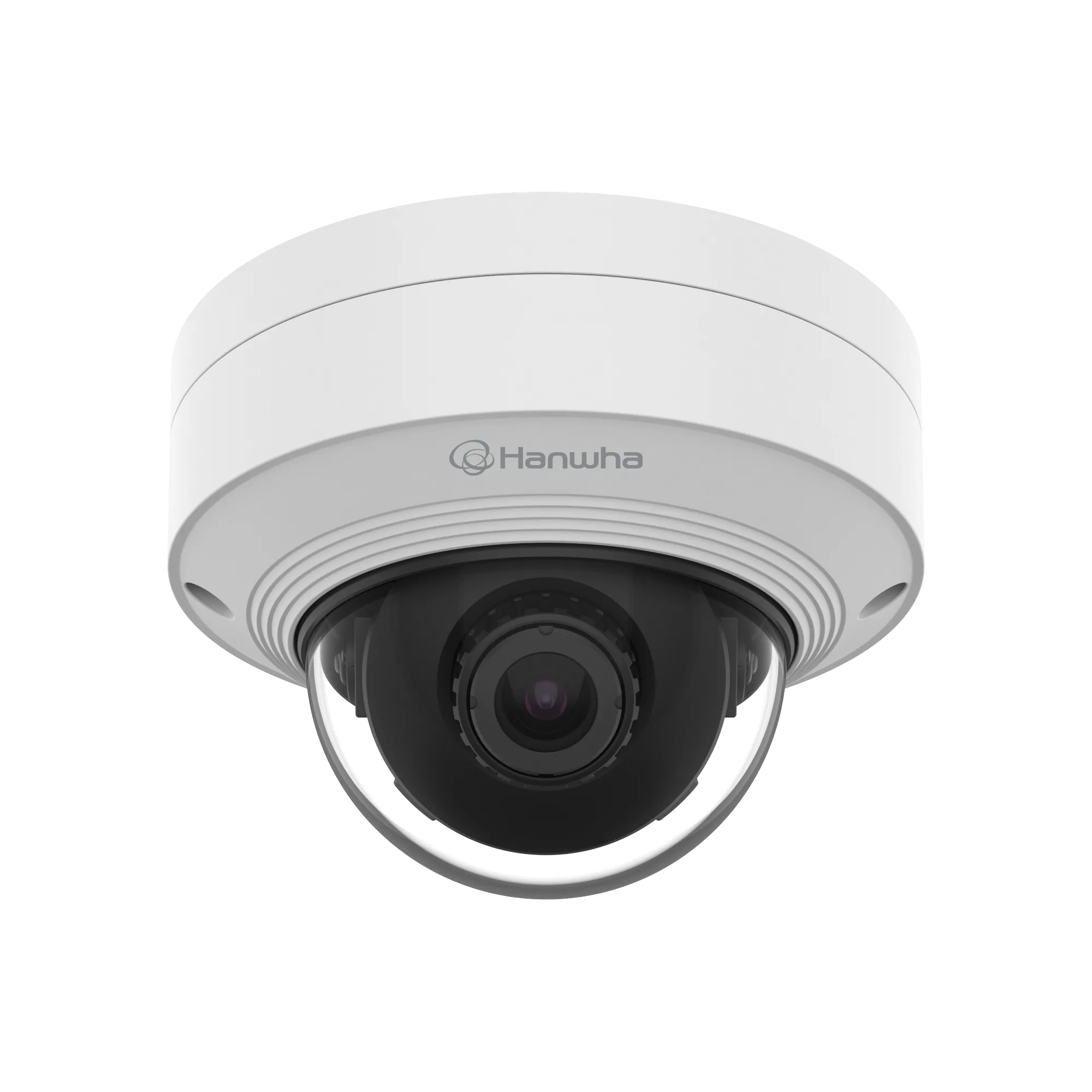

The SLA-T2480WDA is a waterproof 2MP dome lens module in a white plastic housing. It is declared to EN IEC 63000, IEC 60529 IP66, IEC 62262 IK10 and NEMA 250 type 4X. Its 1/2.8-inch CMOS sensor works with a fixed 2.4 mm lens at F2.0, covering 138° horizontally, 73° vertically and 165° diagonally, with minimum illumination of 0.045 lux in colour and black-and-white. Alignment is available through 0° to 350° pan, 0° to 70° tilt and 0° to 355° rotation. The module measures ø110.0 x 77.0 mm, weighs 450 g and is rated from -30 °C to +55 °C with start-up above -30 °C. Dome form factor, white plastic housingIP66, IK10, NEMA 250 type 4XFixed 2.4 mm focal length, F2.0138° x 73° x 165° field of viewPan 0°-350°, tilt 0°-70°, rotate 0°-355°ø110.0 x 77.0 mm, 450 g

3MP Lens, 1/2.7", varifocal (2.8-8mm), DC Auto Iris, CS-Mount, TAMRON

3MP Lens, 1/2.7", varifocal (8-50mm), DC Auto Iris, CS-Mount, TAMRON

3MP Lens, 1/2.7", varifocal (2.7-13mm), DC Auto Iris, CS-Mount, TAMRON

3MP Lens, 1/2.7", varifocal (2.8-8mm), Manual Iris, CS-Mount, TAMRON

3MP Lens, 1/2.7", varifocal (2.8-8mm), P Iris, CS-Mount, TAMRON

3MP Lens, 1/2.7", varifocal (8-50mm), P Iris, CS-Mount, TAMRON

1/2.7" CS mount 2.8-10.0mm F1.2-16C Aspherical 3 Megapixel Manual Iris IR Corrected

TG3Z0312FCS-MPIR-32 from the Wisenet range is a varifocal lens with a CS mount. It is specified for 3 MP. The iris operates automatically as an auto iris. The published information is limited to these characteristics and the article number, and no further data is available for the lens. Varifocal lens3 MPAuto irisCS mount

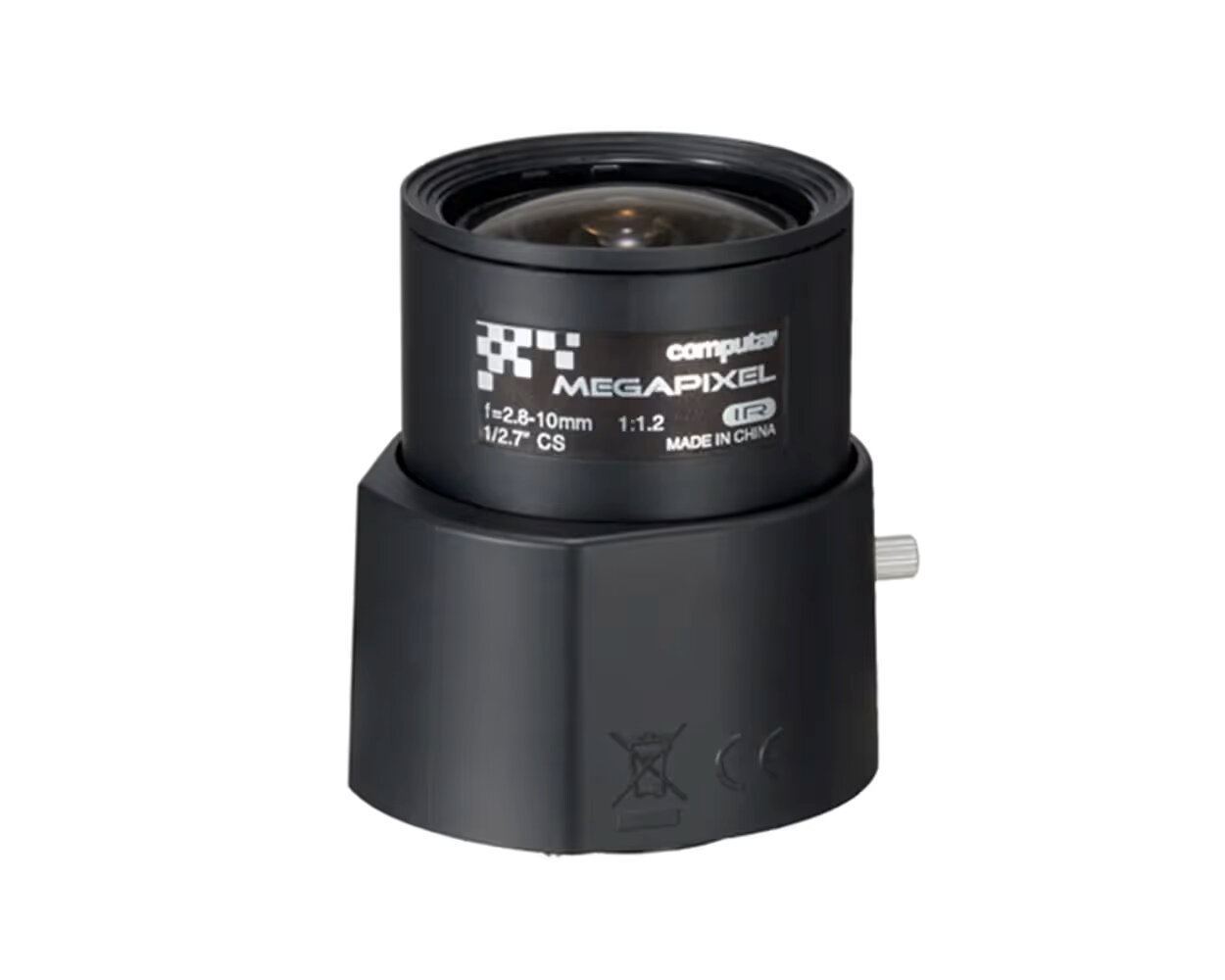

1/2.7" CS mount 2.8-10.0mm F1.2-360 Aspherical 3 Megapixel Varifocal DC Drive IR Corrected with 31cm Lens Lead

1/2.7" CS mount 8.5-50.0mm F1.6-360C Aspherical 3 Megapixel Varifocal DC Drive with 31cm Lens Lead

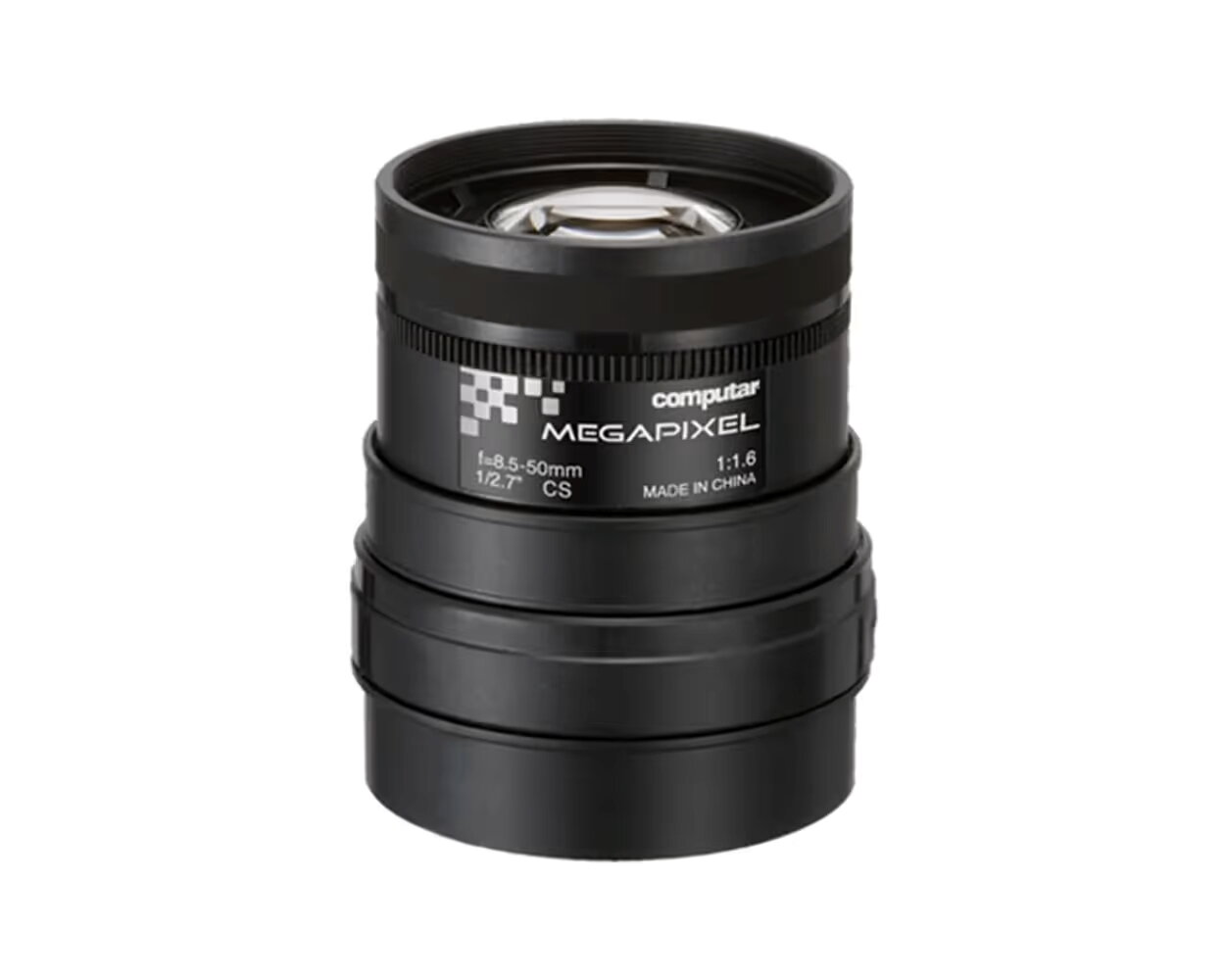

1/2.7" CS mount 8.5-50.0mm F1.6-16C Aspherical 3 Megapixel Varifocal Manual Iris

The SLA-T4680VA is a 2MP lens module for the PNM-9000QB, built around a 1/2.8-inch CMOS sensor. Focal length is fixed at 4.6 mm with a maximum aperture of F2.5, giving 73° horizontal, 39° vertical and 85° diagonal coverage at a minimum illumination of 0.06 lux in colour and black-and-white. Focus is fixed and the module connects to the main unit over RJ12. Its black plastic and metal body measures 30 x 27.9 x 45 mm, weighs 321 g and is rated from -10 °C to +55 °C. Supported products are the XNB-6002, PNM-9000QB, PNM-C20000QB and XNB-A8004B. Fixed 4.6 mm focal length, F2.573° x 39° x 85° field of view1/2.8-inch CMOS, 0.06 lux30 x 27.9 x 45 mm body, 321 gRJ12 connection to the main unitSCL-150 lens module cable (15 m)

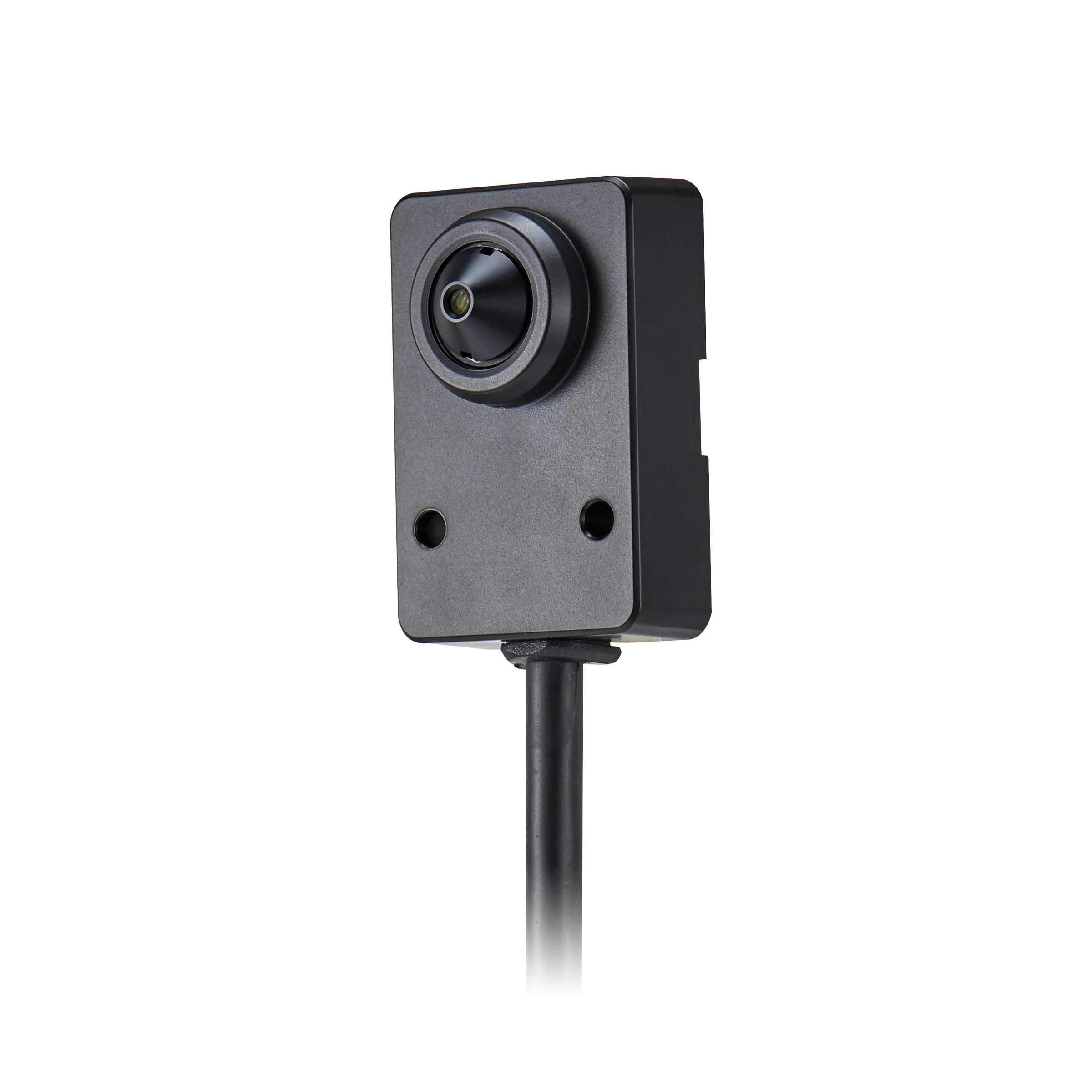

The SLA-T4680V is a 2MP lens module using a 1/2.8-inch CMOS sensor with 1,945 x 1,109 effective pixels, equal to 2.16 megapixels. Its fixed 4.6 mm pinhole lens works at F2.5 and covers 73° horizontally, 39° vertically and 85° diagonally, with minimum illumination of 0.06 lux in colour and black-and-white. Focus is fixed and the main unit is connected over RJ12. The black plastic and metal body measures 30 x 20.2 x 45 mm, weighs 321 g and is rated from -10 °C to +55 °C. 1,945 x 1,109 effective pixels (2.16 MP)4.6 mm pinhole lens, F2.573° x 39° x 85° field of view1/2.8-inch CMOS, 0.06 lux30 x 20.2 x 45 mm body, 321 gRJ12 connection to the main unit
