Keline

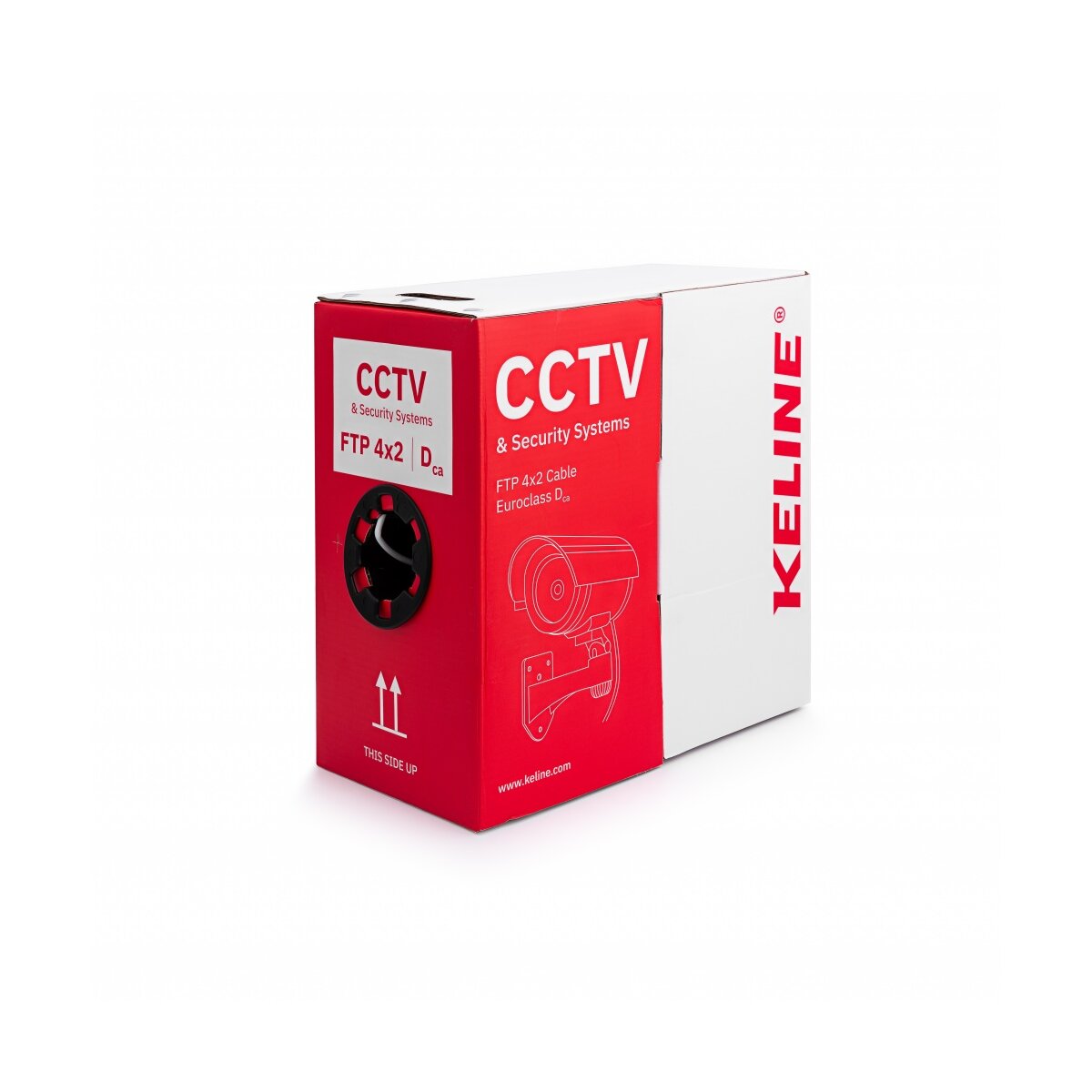

A CCTV cable in FTP (F/UTP) design, classified as CAT 5e. Usable bandwidth is 100 MHz. Remote powering of connected devices is covered up to PoE type 4. The sheath material is LSOH and the fire class is stated as Dca. The cable comes in a 305 m box. CAT 5e class, 100 MHzFTP (F/UTP) screenedPoE type 4LSOH sheathFire class Dca305 m box

This fibre optic universal cable carries two multimode fibres in 2G50/125 format and is terminated with E2000 at one end and ST at the other. Fibre type follows the OM4 standard: laser-optimised multimode fibre of 50/125 µm, specified in ISO/IEC 11801 for 10 Gbit/s over 550 m at 850 nm. The cable length is 50 m. Multimode fibre, OM4 standard50/125 µm, laser-optimised (ISO/IEC 11801)10 Gbit/s over 550 m at 850 nmTwo fibres, 2G50/125E2000 to ST termination50 m length

Carrying the type designation 90, this HD keystone jack variant offers a screened RJ45 interface in keystone format. The module belongs to category 6A / class EA and supports bandwidths up to 500 MHz. Per ISO/IEC 11801 and EN 50173 it is specified for 10GBASE-T over 100 m. Its connector complies with RJ45 8P8C to IEC 60603-7. Category 6A / class EA, up to 500 MHzSpecified for 10GBASE-T over 100 m (ISO/IEC 11801, EN 50173)RJ45 8P8C per IEC 60603-7Screened versionKeystone format, HD design 90

This HD keystone jack provides a screened RJ45 outlet in keystone format. In transmission terms the module is category 6A / class EA and therefore usable up to 500 MHz. It is specified for 10GBASE-T over 100 m to ISO/IEC 11801 and EN 50173. The interface follows the RJ45 8P8C standard per IEC 60603-7. The keystone format allows the module to be fitted into matching mounts. Category 6A / class EA, up to 500 MHzSpecified for 10GBASE-T over 100 m (ISO/IEC 11801, EN 50173)RJ45 8P8C per IEC 60603-7Screened versionKeystone format, HD design

Intended for outdoor routes and direct burial, this STP cable pairs screened twisted pairs with a double sheath. Four pairs in AWG23 make up the construction, and the stated bandwidth is 550 MHz. In transmission terms it is category 6A / class EA and specified for 10GBASE-T over 100 m to ISO/IEC 11801 and EN 50173. It is supplied on a 500 m reel. Category 6A / class EA (ISO/IEC 11801, EN 50173)Specified for 10GBASE-T over 100 m4x2xAWG23 construction, 550 MHzSTP, screened twisted pairDouble sheath for outdoor and direct burial500 m reel

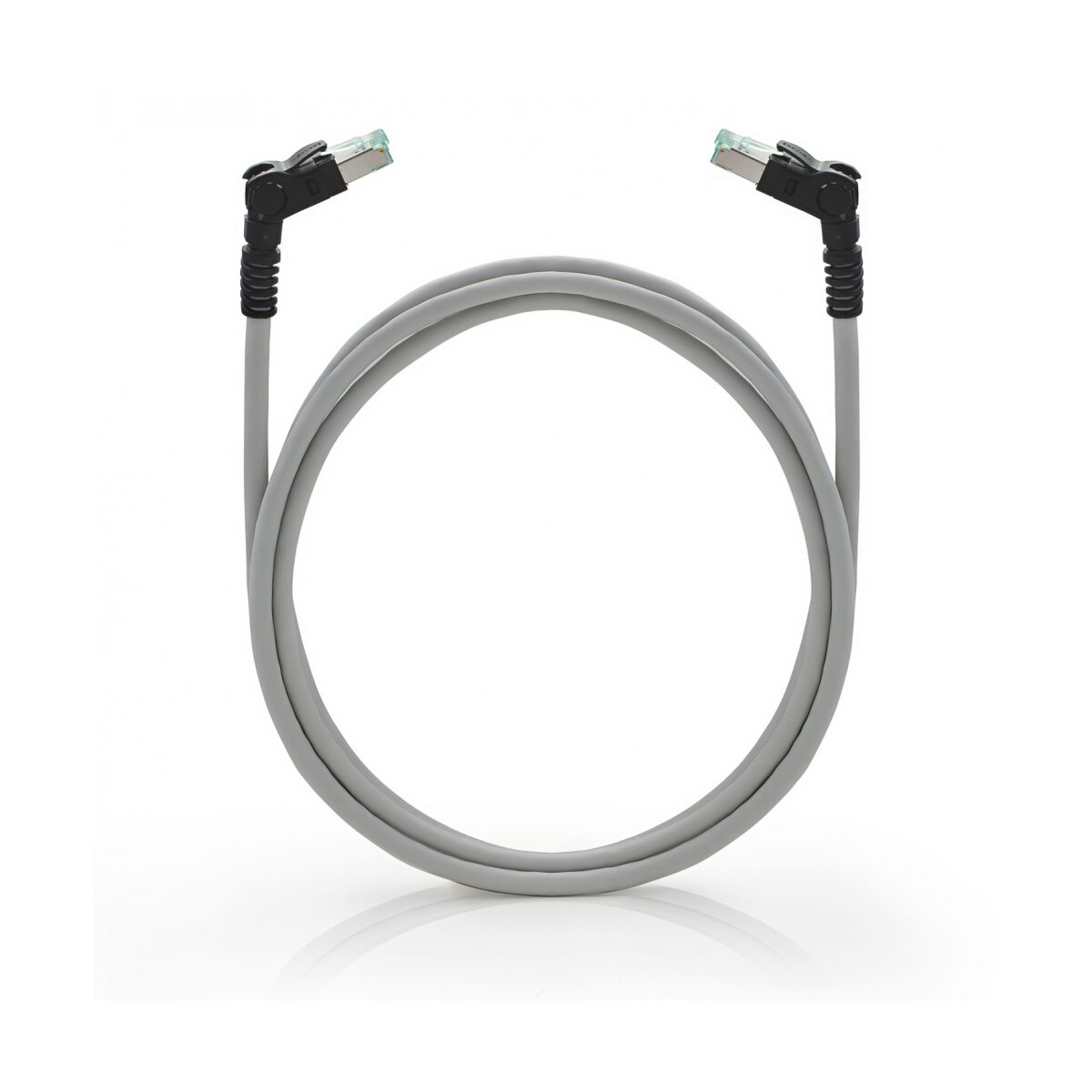

At 0.5 m long, this CAT 6A patch cord uses a pair-screened S/FTP construction with stranded conductors, screening it against alien crosstalk and electromagnetic interference. The PUR sheath keeps the cable extremely flexible and resistant to water and chemicals such as petroleum products or ozone, with high mechanical strength and abrasion resistance; sheath materials are given as LSOH and PUR. Its boot adjusts by up to 90 degrees in four directions, and the RJ45 plug matches IEC 60603-7 in dimensions and transmission properties. A bandwidth of 500 MHz is guaranteed, so all high-speed protocols including 10GBASE-T can be carried. The copper conductor is AWG 26/7, the operating temperature range runs from -25 °C to +60 °C, the colour is grey and PoE ++ is supported; special lengths are available. CAT 6A class, 500 MHzS/FTP, pair-screened with stranded conductorsPUR / LSOH sheath, water- and chemical-resistantRJ45 per IEC 60603-7, boot adjustable up to 90 degreesAWG 26/7, PoE ++, -25 °C to +60 °CLength 0.5 m, colour grey

At 1.0 m long, this CAT 6A patch cord uses a pair-screened S/FTP construction with stranded conductors, screening it against alien crosstalk and electromagnetic interference. The PUR sheath keeps the cable extremely flexible and resistant to water and chemicals such as petroleum products or ozone, with high mechanical strength and abrasion resistance; sheath materials are given as LSOH and PUR. Its boot adjusts by up to 90 degrees in four directions, and the RJ45 plug matches IEC 60603-7 in dimensions and transmission properties. A bandwidth of 500 MHz is guaranteed, so all high-speed protocols including 10GBASE-T can be carried. The copper conductor is AWG 26/7, the operating temperature range runs from -25 °C to +60 °C, the colour is grey and PoE ++ is supported; special lengths are available. CAT 6A class, 500 MHzS/FTP, pair-screened with stranded conductorsPUR / LSOH sheath, water- and chemical-resistantRJ45 per IEC 60603-7, boot adjustable up to 90 degreesAWG 26/7, PoE ++, -25 °C to +60 °CLength 1.0 m, colour grey

At 1.5 m long, this CAT 6A patch cord uses a pair-screened S/FTP construction with stranded conductors, screening it against alien crosstalk and electromagnetic interference. The PUR sheath keeps the cable extremely flexible and resistant to water and chemicals such as petroleum products or ozone, with high mechanical strength and abrasion resistance; sheath materials are given as LSOH and PUR. Its boot adjusts by up to 90 degrees in four directions, and the RJ45 plug matches IEC 60603-7 in dimensions and transmission properties. A bandwidth of 500 MHz is guaranteed, so all high-speed protocols including 10GBASE-T can be carried. The copper conductor is AWG 26/7, the operating temperature range runs from -25 °C to +60 °C, the colour is grey and PoE ++ is supported; special lengths are available. CAT 6A class, 500 MHzS/FTP, pair-screened with stranded conductorsPUR / LSOH sheath, water- and chemical-resistantRJ45 per IEC 60603-7, boot adjustable up to 90 degreesAWG 26/7, PoE ++, -25 °C to +60 °CLength 1.5 m, colour grey

At 10.0 m long, this CAT 6A patch cord uses a pair-screened S/FTP construction with stranded conductors, screening it against alien crosstalk and electromagnetic interference. The PUR sheath keeps the cable extremely flexible and resistant to water and chemicals such as petroleum products or ozone, with high mechanical strength and abrasion resistance; sheath materials are given as LSOH and PUR. Its boot adjusts by up to 90 degrees in four directions, and the RJ45 plug matches IEC 60603-7 in dimensions and transmission properties. A bandwidth of 500 MHz is guaranteed, so all high-speed protocols including 10GBASE-T can be carried. The copper conductor is AWG 26/7, the operating temperature range runs from -25 °C to +60 °C, the colour is grey and PoE ++ is supported; special lengths are available. CAT 6A class, 500 MHzS/FTP, pair-screened with stranded conductorsPUR / LSOH sheath, water- and chemical-resistantRJ45 per IEC 60603-7, boot adjustable up to 90 degreesAWG 26/7, PoE ++, -25 °C to +60 °CLength 10.0 m, colour grey

At 15.0 m long, this CAT 6A patch cord uses a pair-screened S/FTP construction with stranded conductors, screening it against alien crosstalk and electromagnetic interference. The PUR sheath keeps the cable extremely flexible and resistant to water and chemicals such as petroleum products or ozone, with high mechanical strength and abrasion resistance; sheath materials are given as LSOH and PUR. Its boot adjusts by up to 90 degrees in four directions, and the RJ45 plug matches IEC 60603-7 in dimensions and transmission properties. A bandwidth of 500 MHz is guaranteed, so all high-speed protocols including 10GBASE-T can be carried. The copper conductor is AWG 26/7, the operating temperature range runs from -25 °C to +60 °C, the colour is grey and PoE ++ is supported; special lengths are available. CAT 6A class, 500 MHzS/FTP, pair-screened with stranded conductorsPUR / LSOH sheath, water- and chemical-resistantRJ45 per IEC 60603-7, boot adjustable up to 90 degreesAWG 26/7, PoE ++, -25 °C to +60 °CLength 15.0 m, colour grey

At 2.0 m long, this CAT 6A patch cord uses a pair-screened S/FTP construction with stranded conductors, screening it against alien crosstalk and electromagnetic interference. The PUR sheath keeps the cable extremely flexible and resistant to water and chemicals such as petroleum products or ozone, with high mechanical strength and abrasion resistance; sheath materials are given as LSOH and PUR. Its boot adjusts by up to 90 degrees in four directions, and the RJ45 plug matches IEC 60603-7 in dimensions and transmission properties. A bandwidth of 500 MHz is guaranteed, so all high-speed protocols including 10GBASE-T can be carried. The copper conductor is AWG 26/7, the operating temperature range runs from -25 °C to +60 °C, the colour is grey and PoE ++ is supported; special lengths are available. CAT 6A class, 500 MHzS/FTP, pair-screened with stranded conductorsPUR / LSOH sheath, water- and chemical-resistantRJ45 per IEC 60603-7, boot adjustable up to 90 degreesAWG 26/7, PoE ++, -25 °C to +60 °CLength 2.0 m, colour grey

At 20.0 m long, this CAT 6A patch cord uses a pair-screened S/FTP construction with stranded conductors, screening it against alien crosstalk and electromagnetic interference. The PUR sheath keeps the cable extremely flexible and resistant to water and chemicals such as petroleum products or ozone, with high mechanical strength and abrasion resistance; sheath materials are given as LSOH and PUR. Its boot adjusts by up to 90 degrees in four directions, and the RJ45 plug matches IEC 60603-7 in dimensions and transmission properties. A bandwidth of 500 MHz is guaranteed, so all high-speed protocols including 10GBASE-T can be carried. The copper conductor is AWG 26/7, the operating temperature range runs from -25 °C to +60 °C, the colour is grey and PoE ++ is supported; special lengths are available. CAT 6A class, 500 MHzS/FTP, pair-screened with stranded conductorsPUR / LSOH sheath, water- and chemical-resistantRJ45 per IEC 60603-7, boot adjustable up to 90 degreesAWG 26/7, PoE ++, -25 °C to +60 °CLength 20.0 m, colour grey

At 3.0 m long, this CAT 6A patch cord uses a pair-screened S/FTP construction with stranded conductors, screening it against alien crosstalk and electromagnetic interference. The PUR sheath keeps the cable extremely flexible and resistant to water and chemicals such as petroleum products or ozone, with high mechanical strength and abrasion resistance; sheath materials are given as LSOH and PUR. Its boot adjusts by up to 90 degrees in four directions, and the RJ45 plug matches IEC 60603-7 in dimensions and transmission properties. A bandwidth of 500 MHz is guaranteed, so all high-speed protocols including 10GBASE-T can be carried. The copper conductor is AWG 26/7, the operating temperature range runs from -25 °C to +60 °C, the colour is grey and PoE ++ is supported; special lengths are available. CAT 6A class, 500 MHzS/FTP, pair-screened with stranded conductorsPUR / LSOH sheath, water- and chemical-resistantRJ45 per IEC 60603-7, boot adjustable up to 90 degreesAWG 26/7, PoE ++, -25 °C to +60 °CLength 3.0 m, colour grey

At 5.0 m long, this CAT 6A patch cord uses a pair-screened S/FTP construction with stranded conductors, screening it against alien crosstalk and electromagnetic interference. The PUR sheath keeps the cable extremely flexible and resistant to water and chemicals such as petroleum products or ozone, with high mechanical strength and abrasion resistance; sheath materials are given as LSOH and PUR. Its boot adjusts by up to 90 degrees in four directions, and the RJ45 plug matches IEC 60603-7 in dimensions and transmission properties. A bandwidth of 500 MHz is guaranteed, so all high-speed protocols including 10GBASE-T can be carried. The copper conductor is AWG 26/7, the operating temperature range runs from -25 °C to +60 °C, the colour is grey and PoE ++ is supported; special lengths are available. CAT 6A class, 500 MHzS/FTP, pair-screened with stranded conductorsPUR / LSOH sheath, water- and chemical-resistantRJ45 per IEC 60603-7, boot adjustable up to 90 degreesAWG 26/7, PoE ++, -25 °C to +60 °CLength 5.0 m, colour grey

At 7.0 m long, this CAT 6A patch cord uses a pair-screened S/FTP construction with stranded conductors, screening it against alien crosstalk and electromagnetic interference. The PUR sheath keeps the cable extremely flexible and resistant to water and chemicals such as petroleum products or ozone, with high mechanical strength and abrasion resistance; sheath materials are given as LSOH and PUR. Its boot adjusts by up to 90 degrees in four directions, and the RJ45 plug matches IEC 60603-7 in dimensions and transmission properties. A bandwidth of 500 MHz is guaranteed, so all high-speed protocols including 10GBASE-T can be carried. The copper conductor is AWG 26/7, the operating temperature range runs from -25 °C to +60 °C, the colour is grey and PoE ++ is supported; special lengths are available. CAT 6A class, 500 MHzS/FTP, pair-screened with stranded conductorsPUR / LSOH sheath, water- and chemical-resistantRJ45 per IEC 60603-7, boot adjustable up to 90 degreesAWG 26/7, PoE ++, -25 °C to +60 °CLength 7.0 m, colour grey

This data cable uses an S/FTP construction with four wire pairs in AWG 23: every pair has its own foil screen (PiMF) underneath a braided overall screen. The transmission class is given as Category 7 with 1000 MHz. The jacket material is a halogen-free LSOH/LSZH compound that produces low smoke density and no corrosive gases while burning (IEC 60754, IEC 61034); the fire classification is Euroclass Dca - s2, d2, a1. The cable ships on a reel holding 500 m. S/FTP screening: braided overall screen, pairs individually foil-screened (PiMF)4 x 2 x AWG 23Category 7, 1000 MHzLSOH/LSZH sheath to IEC 60754 and IEC 61034Euroclass Dca - s2, d2, a1500 m reel

This category 7A installation cable is built as S/FTP with four pairs in AWG23. Every pair carries its own foil screen (PiMF) underneath a braided overall screen. Bandwidth is specified up to 1200 MHz. The sheath uses a halogen-free LSZH compound that burns with low smoke density and without corrosive gases (IEC 60754, IEC 61034). Its fire classification is given as Euroclass Dca - s2, d2, a1, and the cable ships on a 500 m reel. Category 7A, 1200 MHz4x2xAWG23 constructionS/FTP, braided overall screen plus foil-screened pairs (PiMF)Halogen-free LSZH sheath (IEC 60754, IEC 61034)Euroclass Dca - s2, d2, a1500 m reel

Minimum order quantity for this connector = 20 pcs.!
