DVR

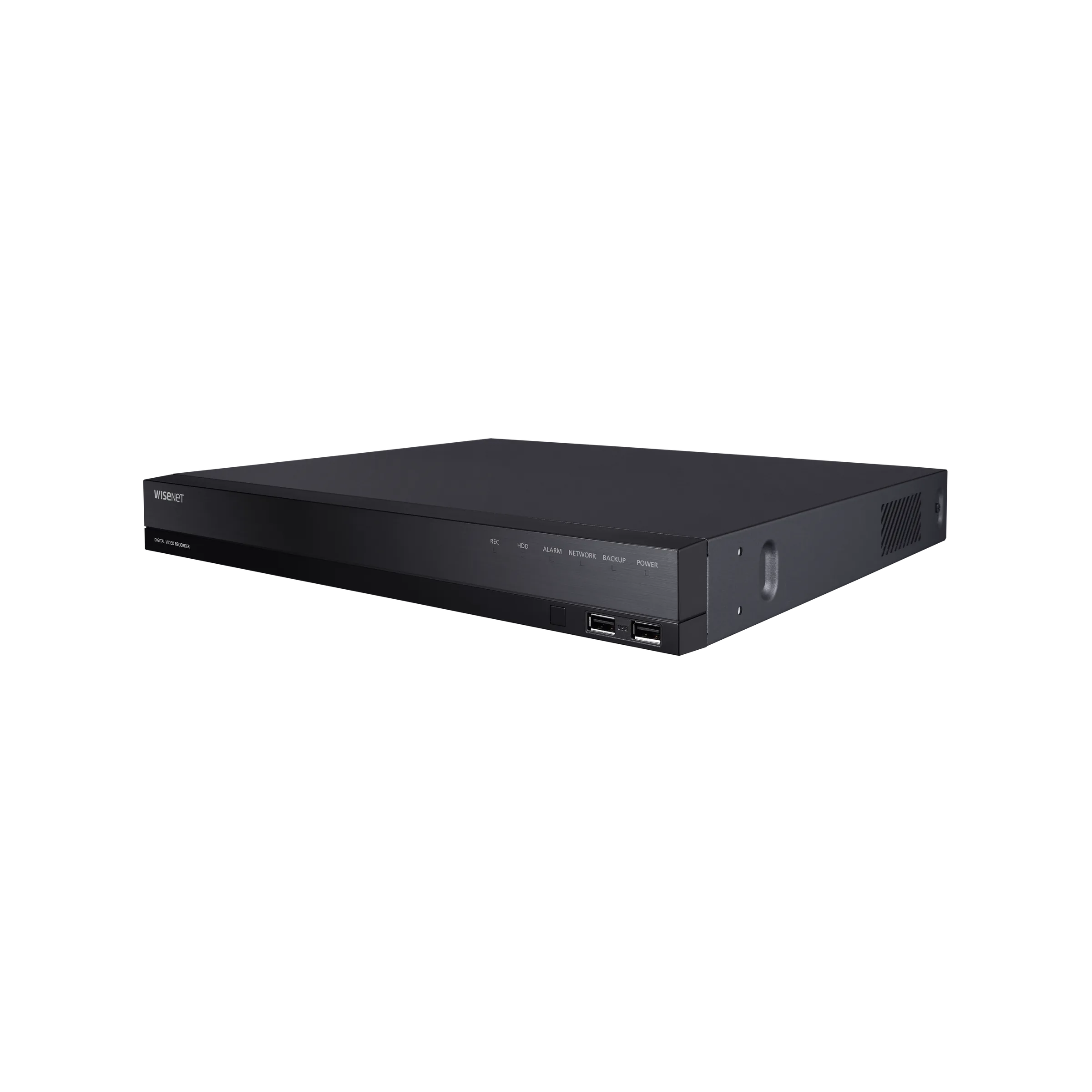

The HRX-1635 takes 16 analog channels over BNC (1Vp-p, 75ohm) and handles AHD, HDTVI, HDCVI, CVBS and IP signals of up to 8MP, with two extra network channels bringing the total to 18. Network cameras connect through SUNAPI (Wisenet) and ONVIF at resolutions from 8MP to CIF. Recording is done in H.265, H.264 or MJPEG at a maximum of 128Mbps in normal, dual stream, schedule, event or bookmark mode, with analog rates of 8/8fps at 8MP and 12/12fps at 5MP. Eight SATA bays accept drives of up to 6TB each for a maximum of 48TB. Playback reaches 32Mbps across 18 simultaneous channels for up to four users (1 local, 3 remote) and is displayed via 1 x HDMI and 1 x VGA in dual monitor mode. Events can trigger e-mail, event push, PTZ preset, alarm out, buzzer, monitor out, FTP, a SUNAPI command or shutdown, and backups are stored as recorder, SEC or AVI files. 16 analog channels, 18 channels in totalAHD, HDTVI, HDCVI, CVBS and IP inputs up to 8MPEight SATA bays, maximum 48TBH.265, H.264 and MJPEG at up to 128MbpsCoaxial control and smart search for network cameras18-channel playback at up to 32Mbps

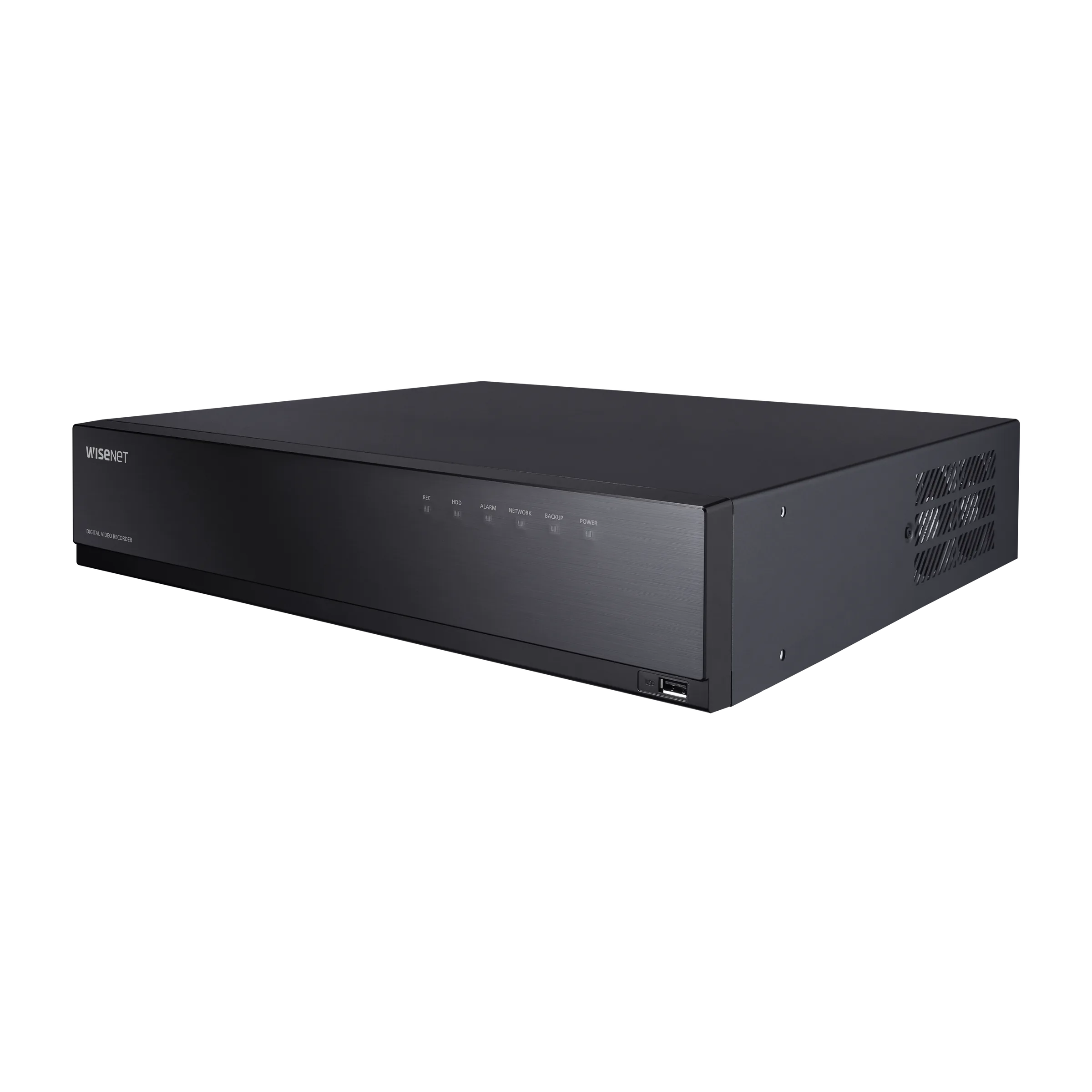

The HRX-1634 is a pentabrid recorder with 16 analog BNC inputs (1Vp-p, 75ohm) that accepts AHD, HDTVI, HDCVI and CVBS signals up to 8MP and expands by two network channels to 18 channels in total. Network cameras are integrated over SUNAPI (Wisenet) and ONVIF at resolutions from 8MP down to CIF. Recording uses H.265, H.264 or MJPEG at up to 128Mbps in normal, dual stream, schedule, event or bookmark mode, with analog rates of 8/8fps at 8MP, 12/12fps at 5MP, 15/12fps at 4MP and 30/25fps at 2MP. Event actions include e-mail, event push, PTZ preset, alarm out, buzzer, monitor out, FTP, SUNAPI command and shutdown. Playback runs at up to 32Mbps across 18 channels simultaneously for a maximum of four users (1 local, 3 remote), shown on 1 x HDMI and 1 x VGA in dual monitor mode. Two SATA bays take drives of up to 6TB for a maximum of 12TB, and backups are written as recorder, SEC or AVI files. 16 analog channels, 18 channels in totalAHD, HDTVI, HDCVI, CVBS and IP inputs up to 8MPH.265, H.264 and MJPEG at up to 128MbpsTwo SATA bays, maximum 12TBCoaxial control and smart search for network cameras1 x HDMI and 1 x VGA dual monitor output

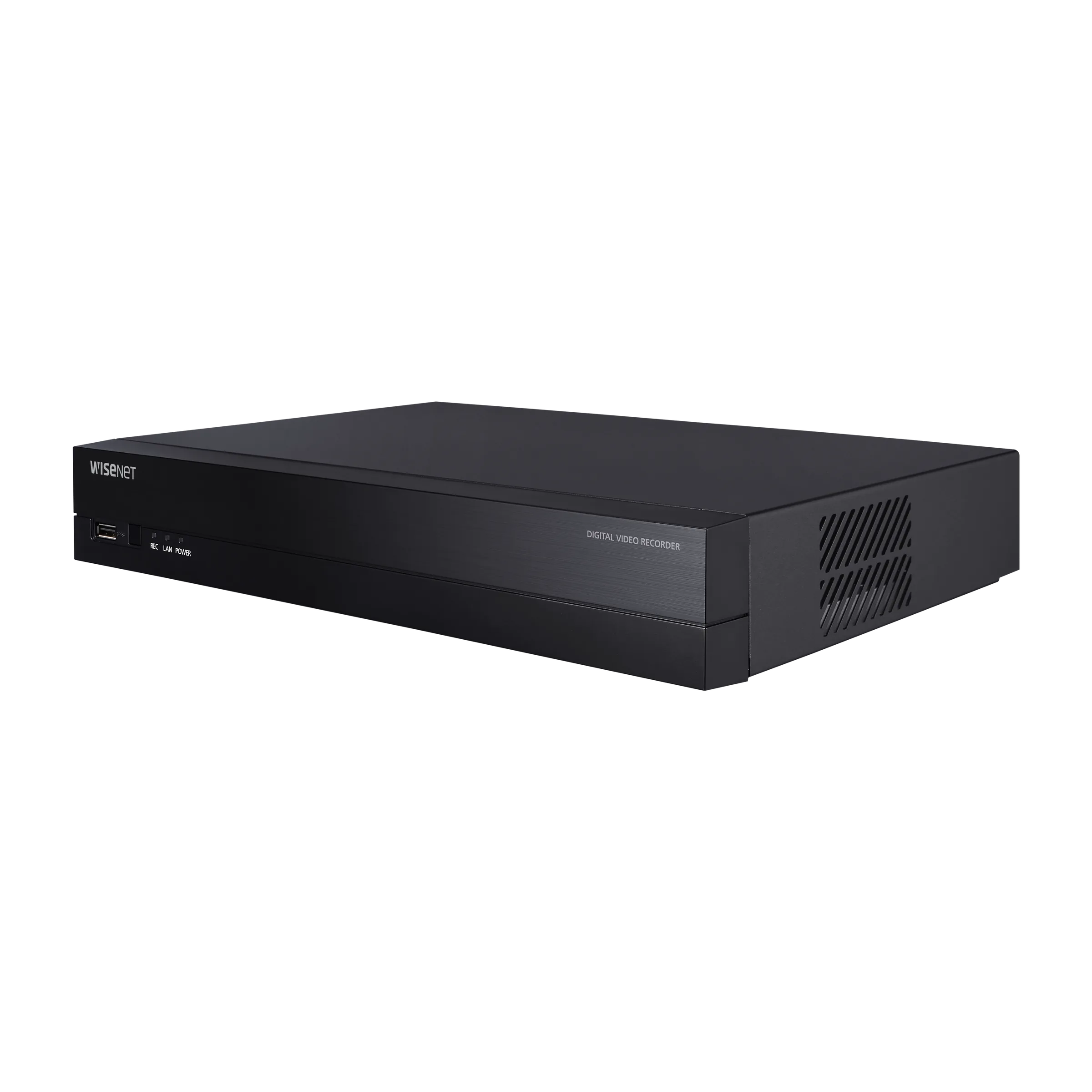

The HRX-434 is a pentabrid recorder offering four analog BNC inputs (1Vp-p, 75ohm) for AHD, HDTVI, HDCVI and CVBS signals up to 8MP, expandable by two network channels to six channels in total. IP cameras are added over SUNAPI (Wisenet) and ONVIF at resolutions from 8MP to CIF. Compression uses H.265, H.264 or MJPEG at a recording bandwidth of up to 30Mbps, with analog rates of 8/8fps at 8MP and 12/12fps at 5MP and record modes covering manual, schedule, event and dual track. A single SATA bay holds one drive of up to 6TB. Playback runs at up to 32Mbps across six simultaneous channels for a maximum of four users (1 local, 3 remote), displayed through 1 x HDMI and 1 x VGA with simultaneous output. Events can trigger e-mail, PTZ preset, alarm out, buzzer or monitor out, backups are saved as BU, EXE including a player or AVI from the web viewer, and coaxial control is supported. Four analog channels plus two network channelsAHD, HDTVI, HDCVI, CVBS and IP inputs up to 8MPH.265, H.264 and MJPEG compression, up to 30MbpsOne SATA bay for up to 6TBCoaxial controlHDMI and VGA simultaneous output

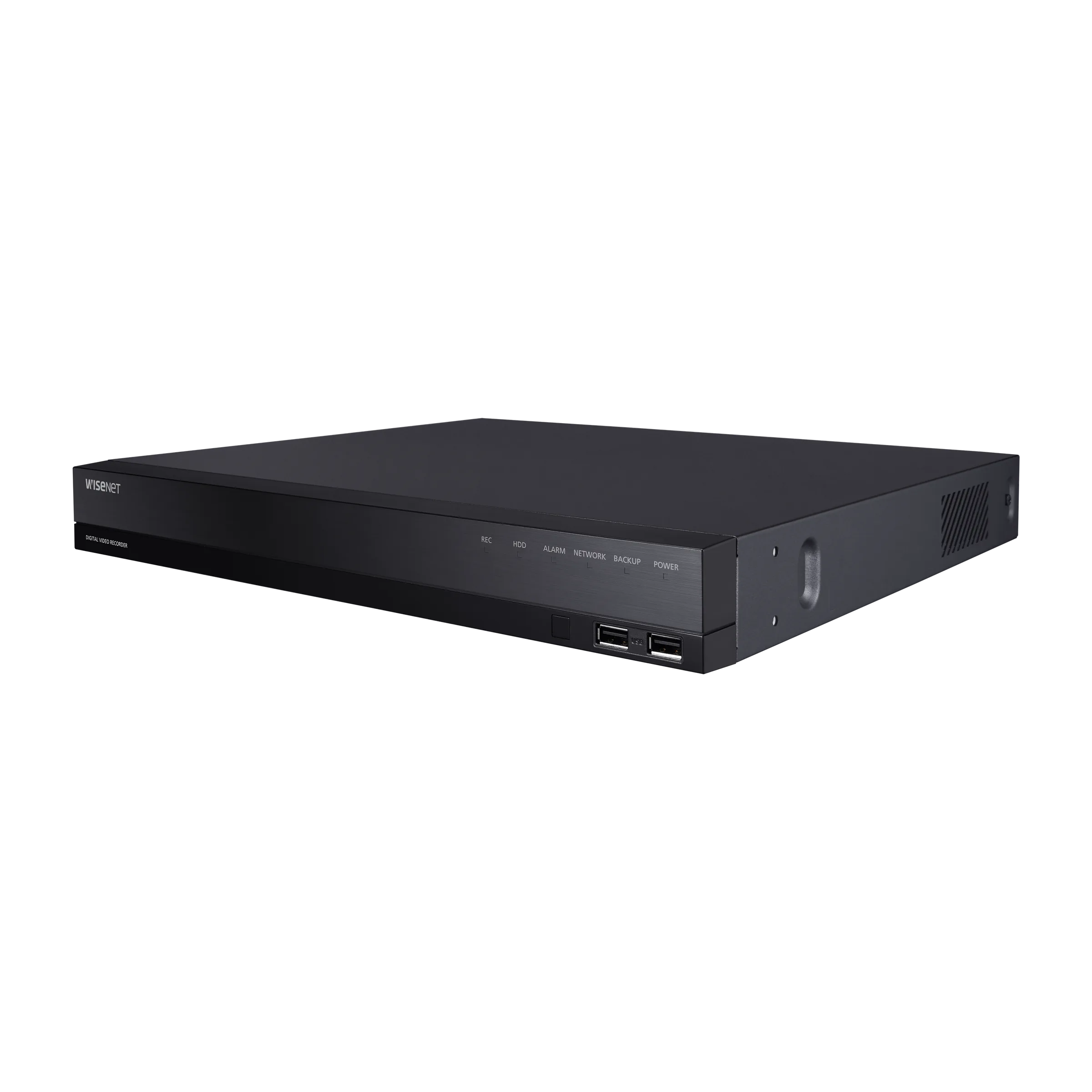

With four analog BNC inputs (1Vp-p, 75ohm) and two additional network channels, the HRX-435 covers up to six channels and processes AHD, HDTVI, HDCVI, CVBS and IP signals of up to 8MP. Network cameras are attached over SUNAPI (Wisenet) and ONVIF at 8MP down to CIF. Recording is in H.265, H.264 or MJPEG at a maximum of 30Mbps, with analog rates of 8/8fps at 8MP and 12/12fps at 5MP in manual, schedule, event or dual track mode. Two SATA bays accept drives of up to 6TB for a maximum of 12TB. Playback reaches 32Mbps across six simultaneous channels for up to four users (1 local, 3 remote) and is delivered through 1 x HDMI and 1 x VGA at the same time. Event actions include e-mail, PTZ preset, alarm out, buzzer and monitor out, backups are written as BU, EXE with a player or AVI from the web viewer, and coaxial control is available. Four analog channels plus two network channelsAHD, HDTVI, HDCVI, CVBS and IP inputs up to 8MPTwo SATA bays, maximum 12TBH.265, H.264 and MJPEG compression, up to 30MbpsCoaxial controlHDMI and VGA simultaneous output

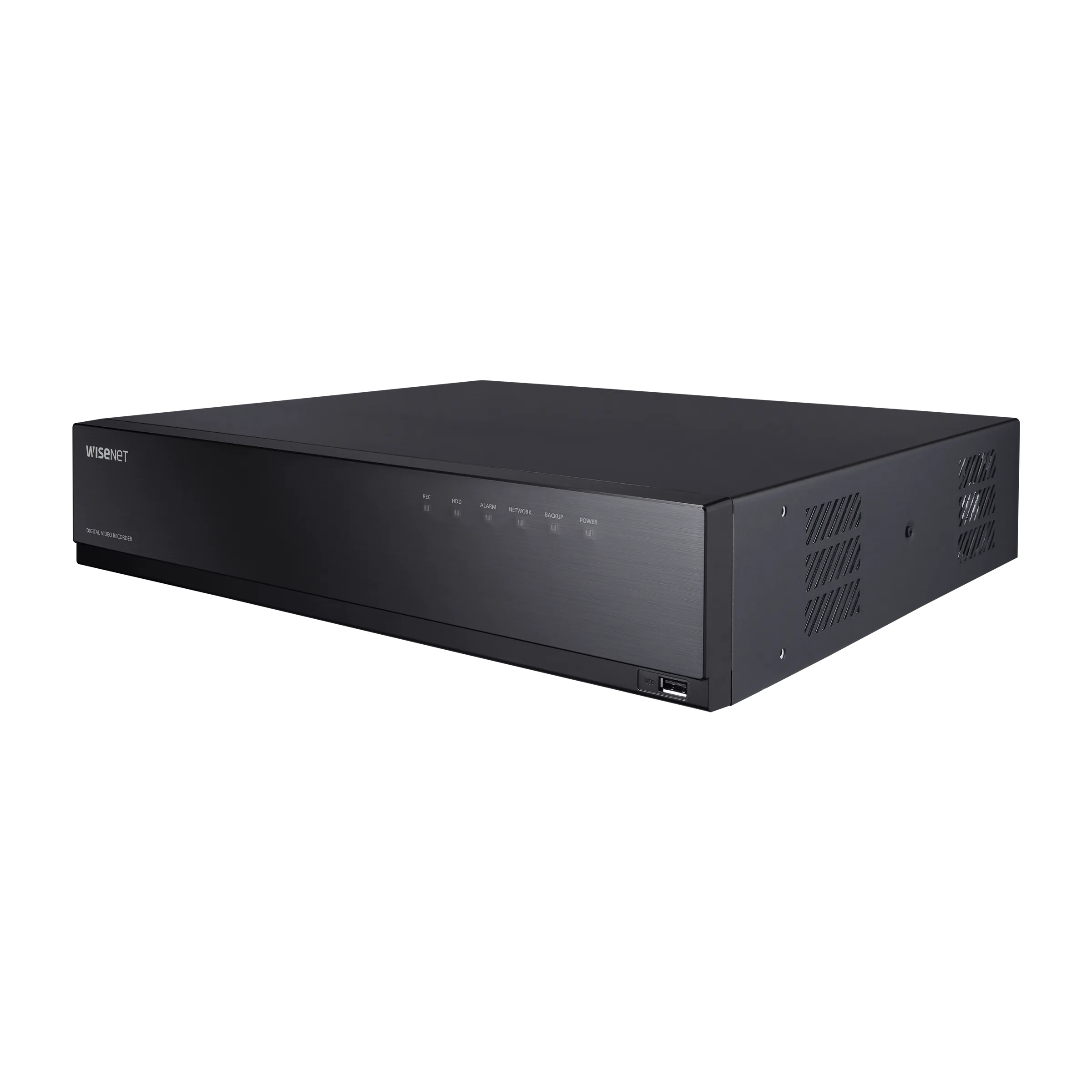

The HRX-835A handles eight analog channels over BNC (1Vp-p, 75ohm) and accepts AHD, HDTVI, HDCVI, CVBS and IP signals of up to 8MP, with two further network channels giving ten channels in total. IP cameras are integrated through SUNAPI (Wisenet) and ONVIF at resolutions from 8MP to CIF. Recording uses H.265, H.264 or MJPEG at up to 80Mbps in normal, dual stream, schedule, event and bookmark modes, with analog rates of 8fps at 8MP, 12fps at 5MP, 15/12fps at 4MP and 30/25fps at 2MP. Four SATA bays take drives of up to 6TB each for a maximum of 24TB. Playback runs at up to 32Mbps across ten simultaneous channels for a maximum of four users (1 local, 3 remote), output via 1 x HDMI and 1 x VGA in dual monitor expand mode. Events can trigger e-mail, event push, PTZ preset, alarm out, buzzer, monitor out, FTP, a SUNAPI command or shutdown, and coaxial control is included. Eight analog channels, ten channels in totalAHD, HDTVI, HDCVI, CVBS and IP inputs up to 8MPH.265, H.264 and MJPEG codec, up to 80MbpsFour SATA bays, maximum 24TBCoaxial controlHDMI/VGA dual monitor with expand mode
