Box

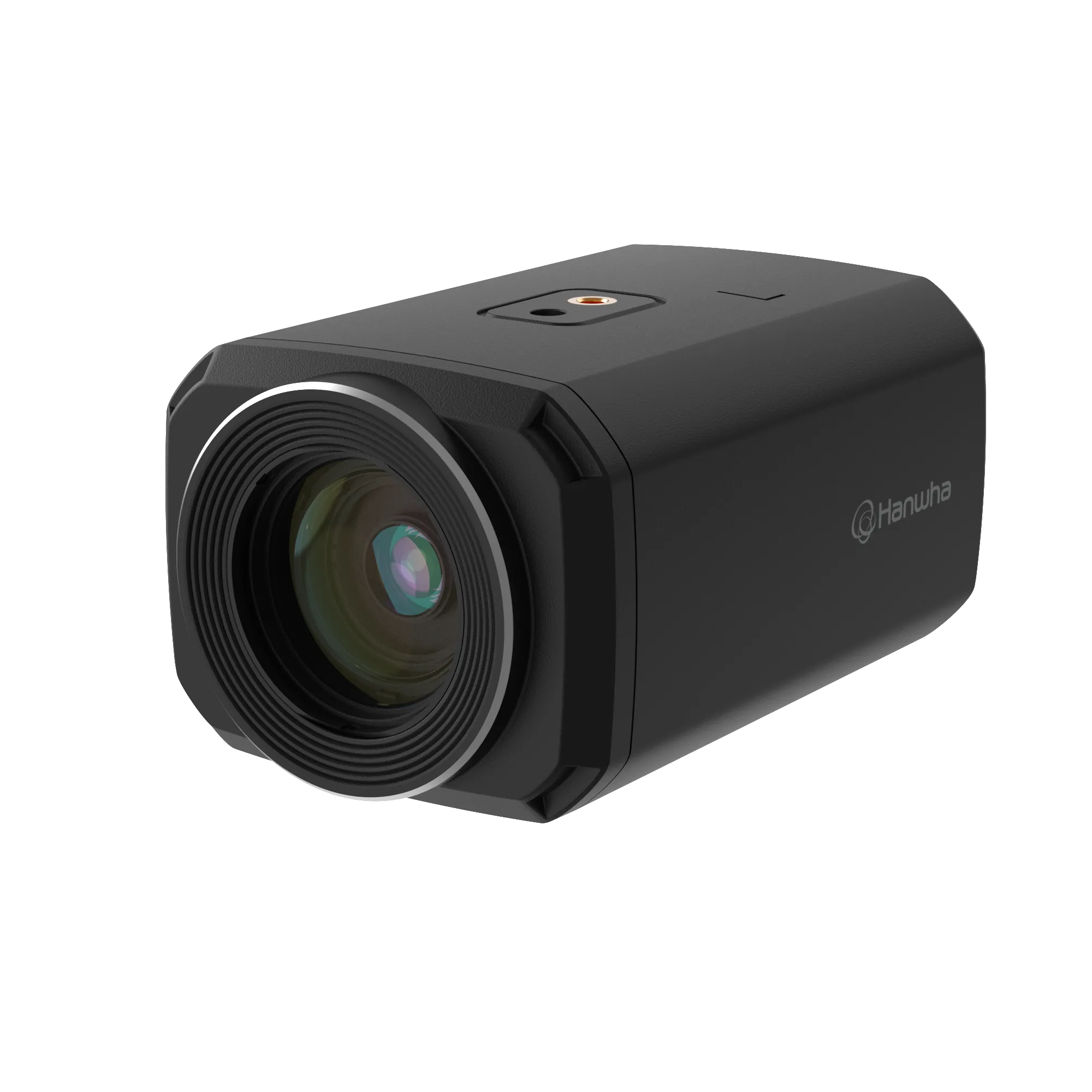

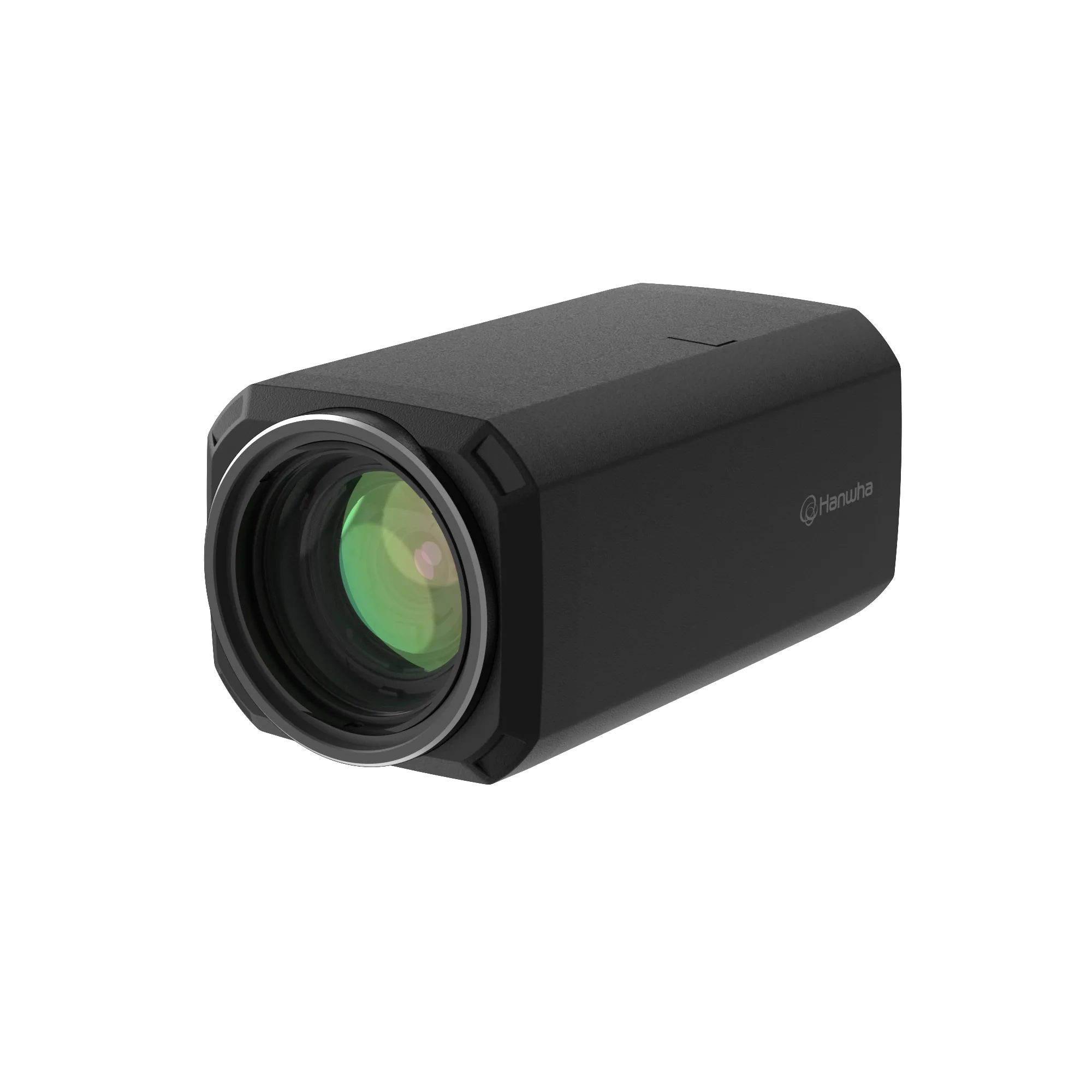

As a 2MP zoom camera with H.265 coding, the XNZ-L6320A relies on a 1/2.8-inch CMOS sensor and records at up to 1920x1080 pixels. Its focal range of 4.44 to 142.6mm corresponds to 32x optical zoom, complemented by 32x digital zoom and a DC auto iris spanning F1.6 to F4.4. H.265 and H.264 reach up to 60fps at 60Hz or 50fps at 50Hz at every resolution, and MJPEG runs at 30fps with multiple streams available in parallel. The camera operates down to 0.05 lux in colour and 0.005 lux in black and white and offers ICR day and night switching, 120dB WDR, defog plus BLC, HLC and SSDR. Video output is a CVBS signal of 1.0 Vp-p into 75 ohms for installation, and the specification adds video and audio analytics, auto and oneshot AF focusing, PoE and 12VDC power, and one microSD/SDHC/SDXC slot for 256GB. 2MP, 1920x1080 pixels4.44-142.6mm, 32x optical zoom120dB WDR, defog, BLC, HLC, SSDRCVBS installation output 1.0 Vp-p / 75 ohmsPoE and 12VDC1 microSD/SDHC/SDXC slot, 256GB

The XNZ-6320A is a 2MP zoom camera module with H.265 support, built on a 1/2.8-inch CMOS sensor that captures Full HD at 1920x1080 pixels. Its lens runs from 4.44 to 142.6mm and combines 32x optical with 32x digital zoom behind a DC auto iris of F1.6 to F4.4, narrowing the horizontal field of view from 64.66 to 2.29 degrees. All resolutions support up to 60fps at 60Hz or 50fps at 50Hz in H.265 and H.264, MJPEG runs at 30fps, and multiple streams can be delivered in parallel. Challenging light is addressed by ICR day and night switching, 120dB WDR, defog and the BLC, HLC and SSDR functions, with minimum illumination of 0.05 lux in colour and 0.005 lux in black and white. Focusing is automatic or by oneshot AF from an object distance of 1.5m, and the module adds video and audio analytics, a direction indicator, PoE and 12VDC power, and two microSD/SDHC/SDXC slots for up to 512GB. 2MP, 1920x1080 pixels4.44-142.6mm, 32x optical and 32x digital zoomUp to 60fps at all resolutions (H.265/H.264)120dB WDR, defog, BLC, HLC, SSDRPoE and 12VDC2 microSD/SDHC/SDXC slots, 512GB

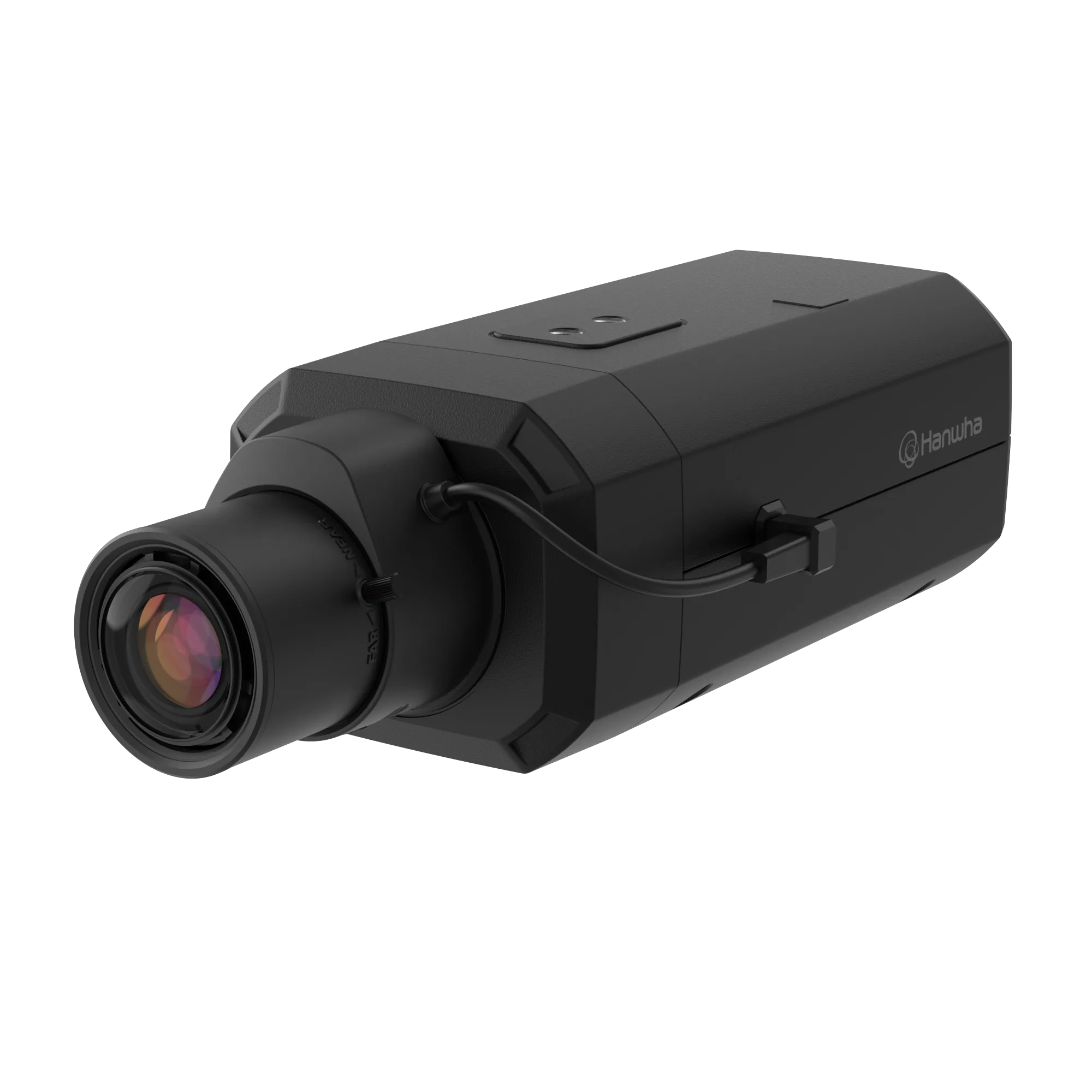

2MP box camera with an AI engine. The 1/2.8" CMOS sensor outputs 1920x1080 and reaches 120fps/100fps (60Hz/50Hz) with WDR off and 60fps/50fps with WDR on, while MJPEG runs at 30fps. Minimum illumination is 0.007 Lux in colour and 0.0007 Lux in black and white, extremeWDR is rated 150dB, and day and night via ICR, BLC, HLC, SSDR, defog and digital image stabilisation with a gyro sensor are provided. Noise reduction and streaming use the AI engine through WiseNRⅡ and WiseStreamⅢ. NPU-based analytics cover object detection for person, face, vehicles such as car, truck, bus, bicycle and motorcycle, and licence plates, plus IVA with virtual line and area, enter and exit, loitering, direction and intrusion; further events are defocus, motion, tampering, fog and audio detection, sound classification, shock detection and appear/disappear. Lenses connect via C mount or CS mount with simple focus. 2MP, up to 120fps/100fps with WDR offextremeWDR 150dB, 0.007 Lux colourAI object detection for person, face, vehicle, licence plateIVA with virtual line, intrusion, directionWiseNRⅡ and WiseStreamⅢ based on AI engineC and CS mount, simple focus

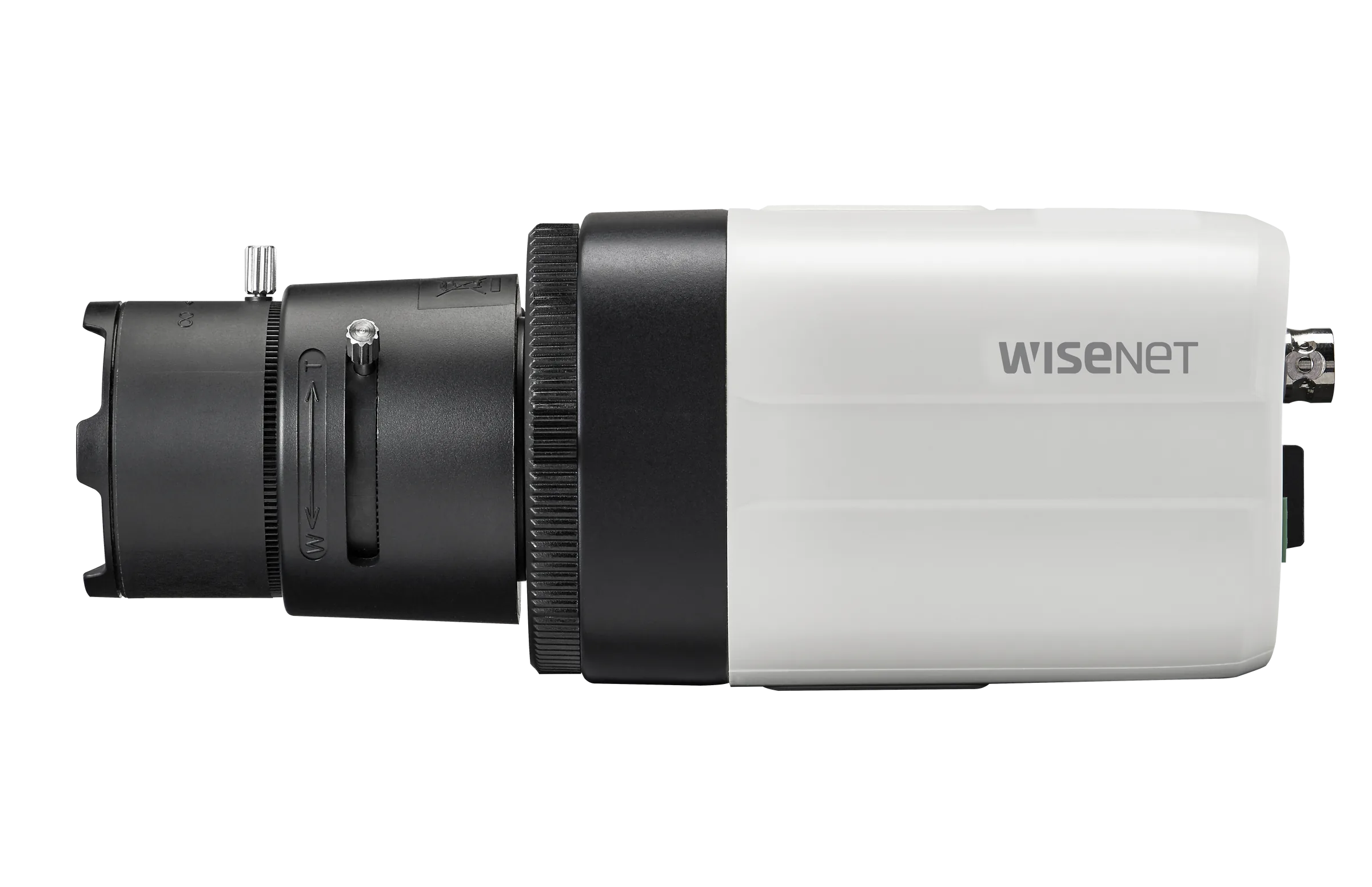

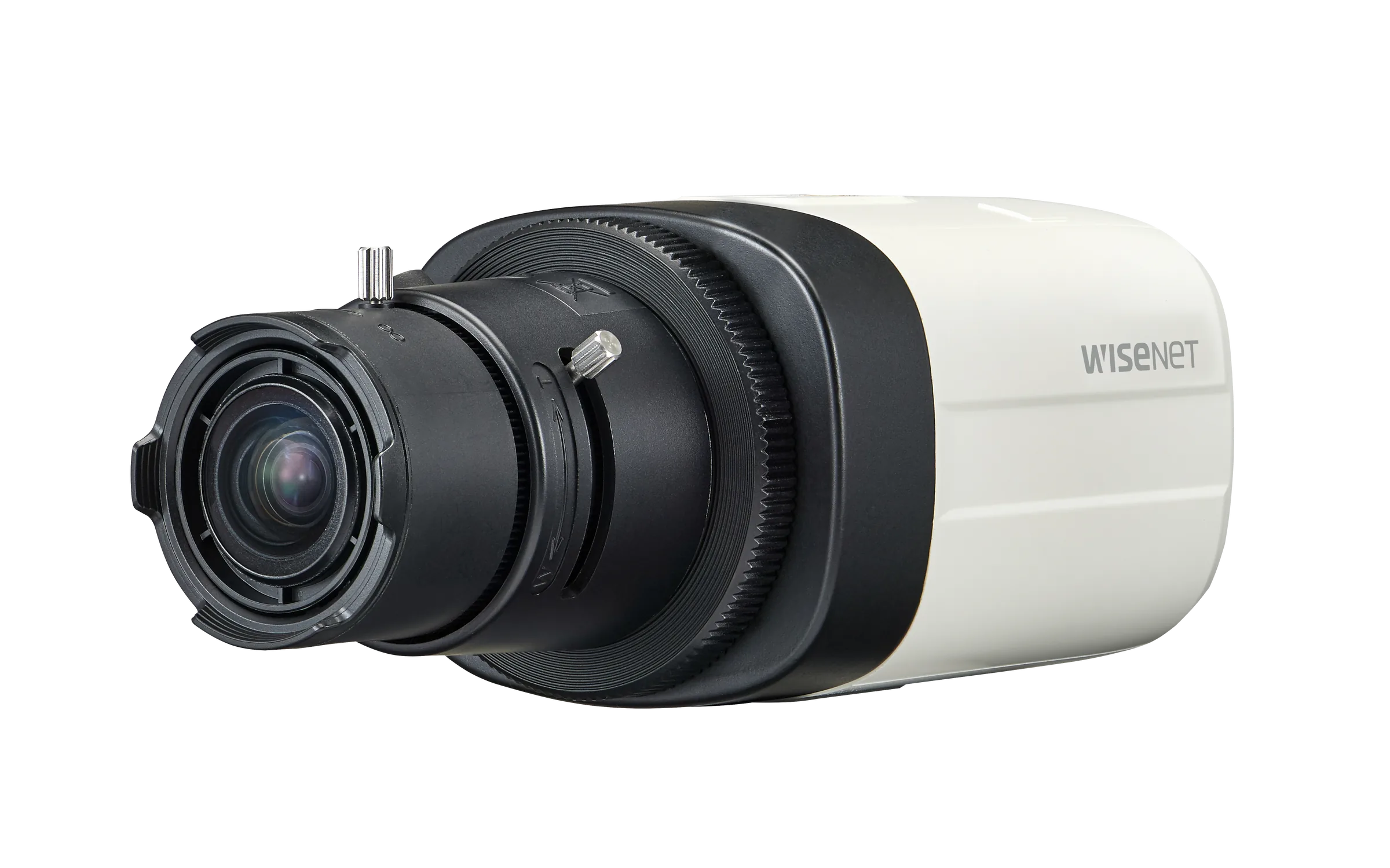

As an analog HD box camera, the HCB-6000PH produces 1920x1080 images from a 1/2.8-inch CMOS sensor at 30fps in NTSC or 25fps in PAL. The BNC connector supplies the signal as AHD, TVI, CVI or CVBS and reaches up to 500m over 5C2V coaxial cable. Low-light figures are 0.09 lux in colour and 0.009 lux in black and white, and an ICR filter switches automatically between day and night operation. Image processing includes BLC, HLC and 120dB WDR, SSNRⅣ noise reduction and a defog function, together with four motion areas and eight rectangular privacy zones. Flip and mirror rotate the image, white balance provides ATW, AWC, manual, indoor and outdoor modes, gain is set in four steps and the electronic shutter spans 1 to 1/12,000sec. The camera accepts C and CS mount lenses, installs plug and play and offers an RS-485 serial interface. 1/2.8-inch CMOS sensor, 1920x1080Selectable AHD/TVI/CVI/CVBS BNC output120dB WDR, SSNRⅣ, defogFlip and mirror image rotationRS-485 serial interfaceC and CS mount, up to 500m transmission

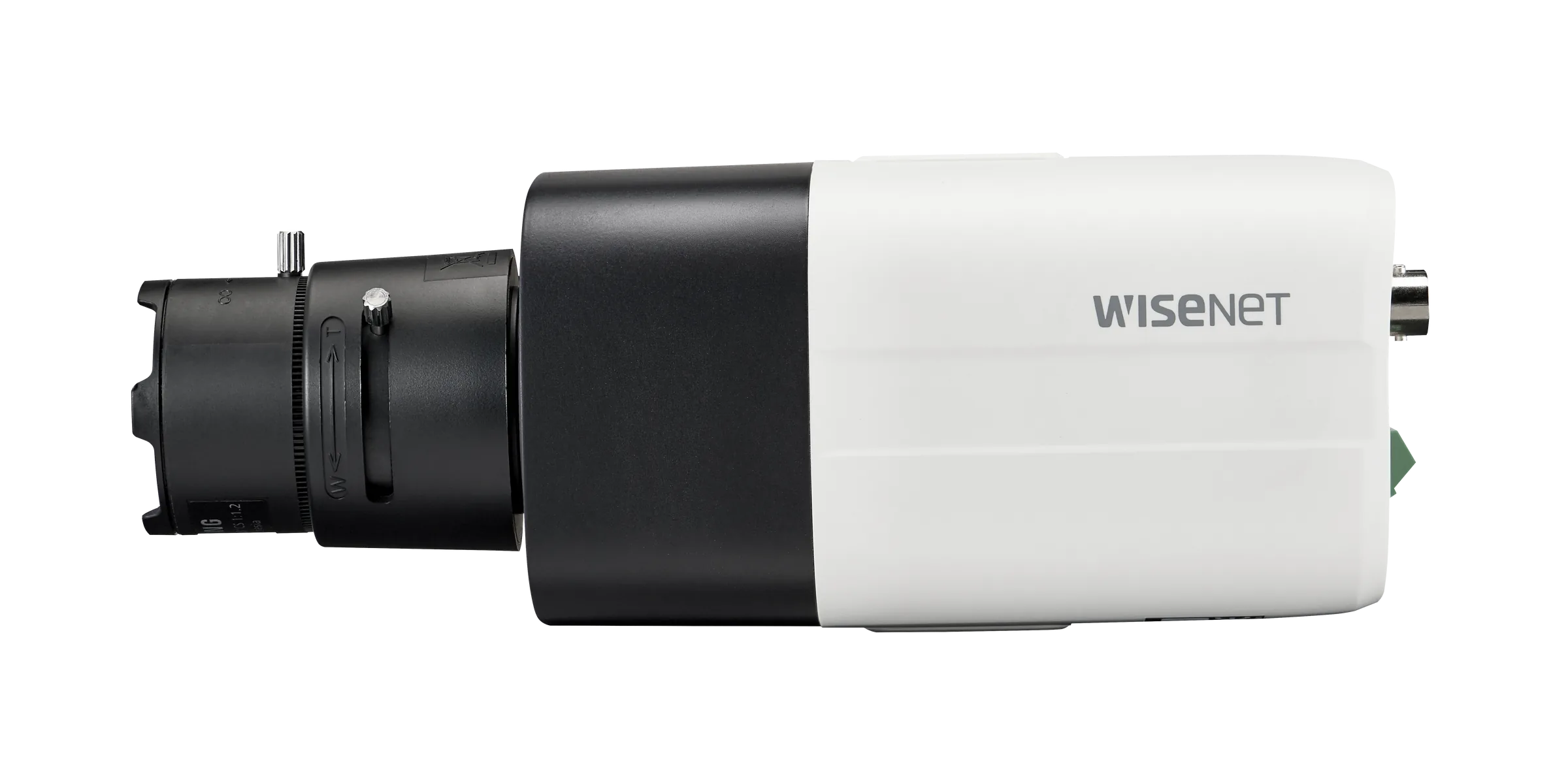

The HCB-6001 is an analog HD box camera whose 1/2.8-inch CMOS sensor outputs 1920x1080 at 30fps (NTSC) or 25fps (PAL). AHD, TVI, CVI and CVBS can be selected at the BNC output, and 5C2V coaxial cable supports runs of up to 500m. Focus control offers simple focus in addition to manual operation, while the lens interface provides a DC auto iris with IR correction and C or CS mount. In low light the camera is rated at 0.09 lux in colour and 0.009 lux in black and white, with automatic ICR switching. BLC, HLC and 120dB WDR, SSNRⅣ and defog refine the image, supported by four motion areas and four rectangular privacy zones. Five white balance modes, four-step gain control, a 1 to 1/12,000sec shutter, plug-and-play installation, dual power and RS-485 complete the specification. 1/2.8-inch CMOS sensor, 1920x1080 at 30/25fpsSimple focus and manual focus controlSelectable AHD/TVI/CVI/CVBS BNC output120dB WDR, SSNRⅣ, defogFour privacy zones, four motion areasDual power and RS-485

The HCB-6000 is an analog HD box camera built around a 1/2.8-inch CMOS sensor delivering 1920x1080 at 30fps (NTSC) or 25fps (PAL). Its BNC output is selectable between AHD, TVI, CVI and CVBS, and 5C2V coaxial cable carries the signal over distances of up to 500m. Minimum illumination is rated at 0.09 lux in colour and 0.009 lux in black and white, with an automatic ICR filter handling the day and night transition. Backlit scenes are handled by BLC, HLC and 120dB WDR, noise by SSNRⅣ, and the camera adds defog, four motion detection areas and eight rectangular privacy zones. On the optical side it uses manual focus, a DC auto iris with IR correction and C or CS mount. White balance offers ATW, AWC, manual, indoor and outdoor modes, gain control runs in four steps, the electronic shutter covers 1 to 1/12,000sec, and installation is plug and play with dual power and RS-485. 1/2.8-inch CMOS sensor, 1920x1080Selectable AHD/TVI/CVI/CVBS BNC output0.09 lux colour, 0.009 lux black and white120dB WDR, SSNRⅣ, defogTransmission up to 500m over 5C2V coaxial cableC and CS mount with DC auto iris

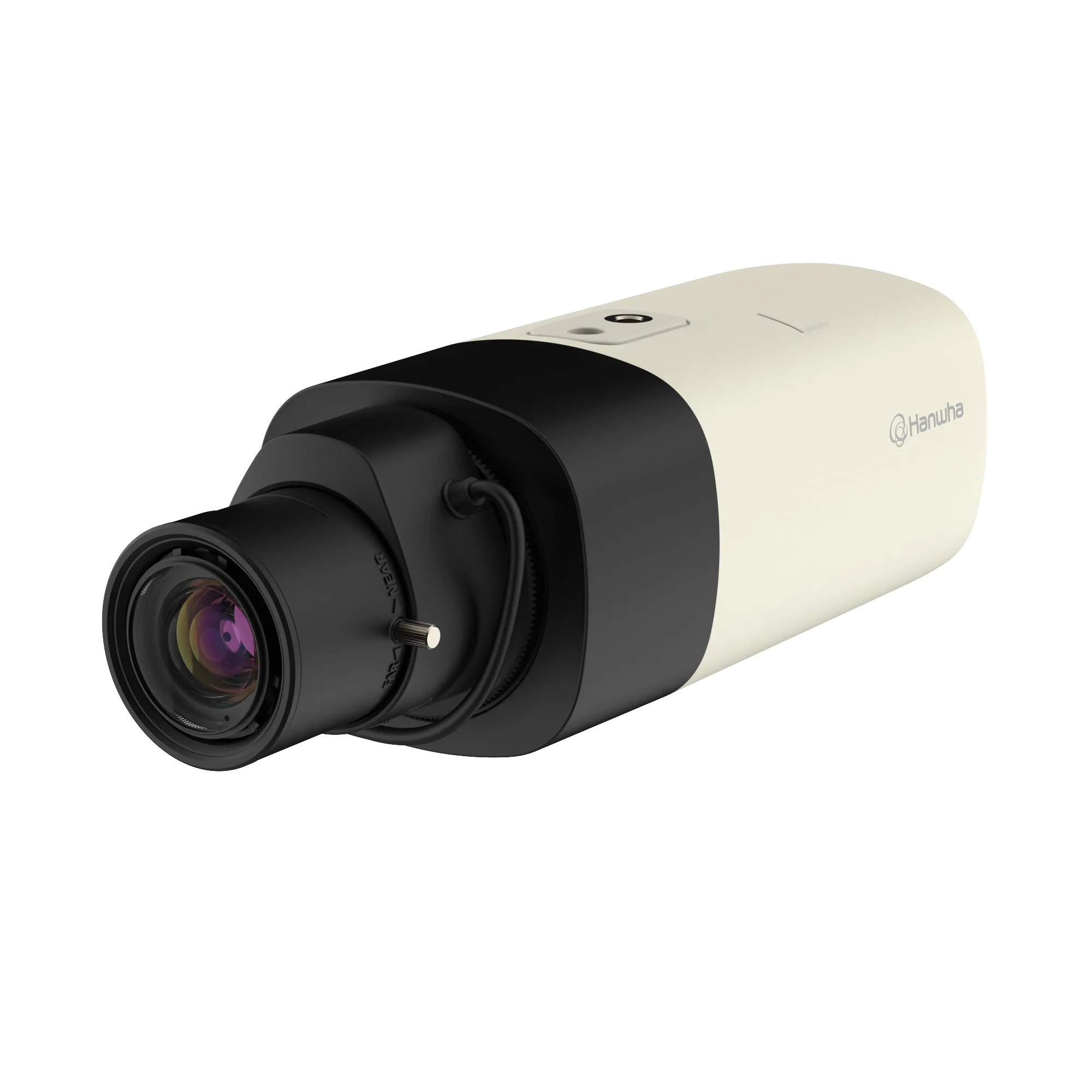

2M box camera with H.265. Its 1/2.8" CMOS sensor outputs a maximum of 1920x1080 and reaches 60fps/50fps (60Hz/50Hz) in H.265 and H.264 and 30fps in MJPEG, with multiple streaming as well as motion detection and handover supported. Colour capture remains possible down to 0.01 Lux and black and white down to 0.001 Lux. Image processing covers day and night via Auto ICR, BLC, HLC, SSDR, WDR up to 150dB, SSNRⅤ, defog and digital image stabilisation with a built-in gyro sensor. Lenses attach through C mount or CS mount and may be DC auto iris, manual, I-CS or P iris types with simple focus; SLA-M2890DN and SLA-M2890PN are listed as optional lenses. Motion detection uses eight 8point polygonal zones and privacy masking 32 four-point areas. 2MP, 1920x1080 at 60fps/50fpsWDR up to 150dB, BLC, HLC, SSDR0.01 Lux colour, 0.001 Lux black and whiteDigital image stabilisation with gyro sensorC and CS mount, DC auto iris, I-CS, P iris8 motion zones, 32 privacy masks

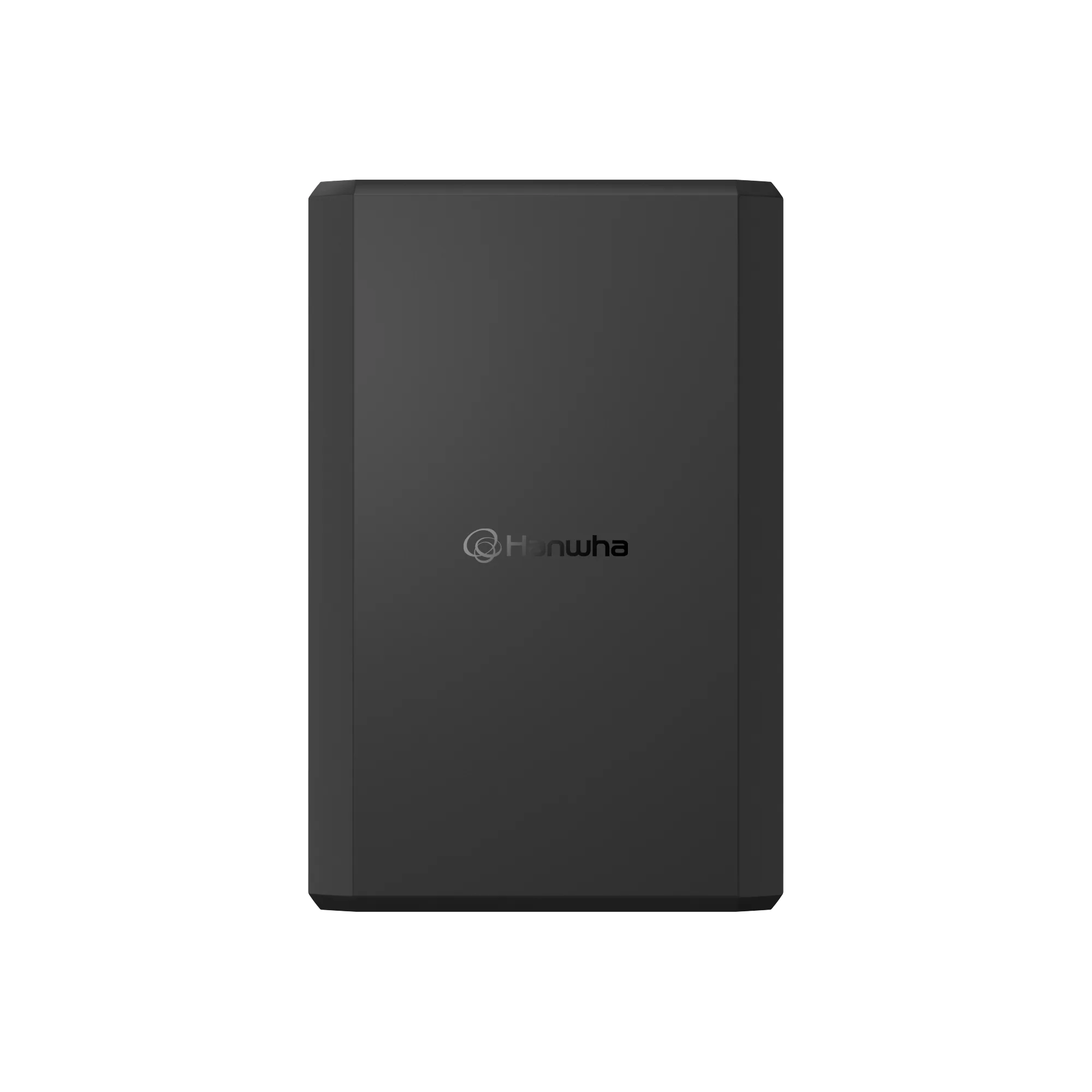

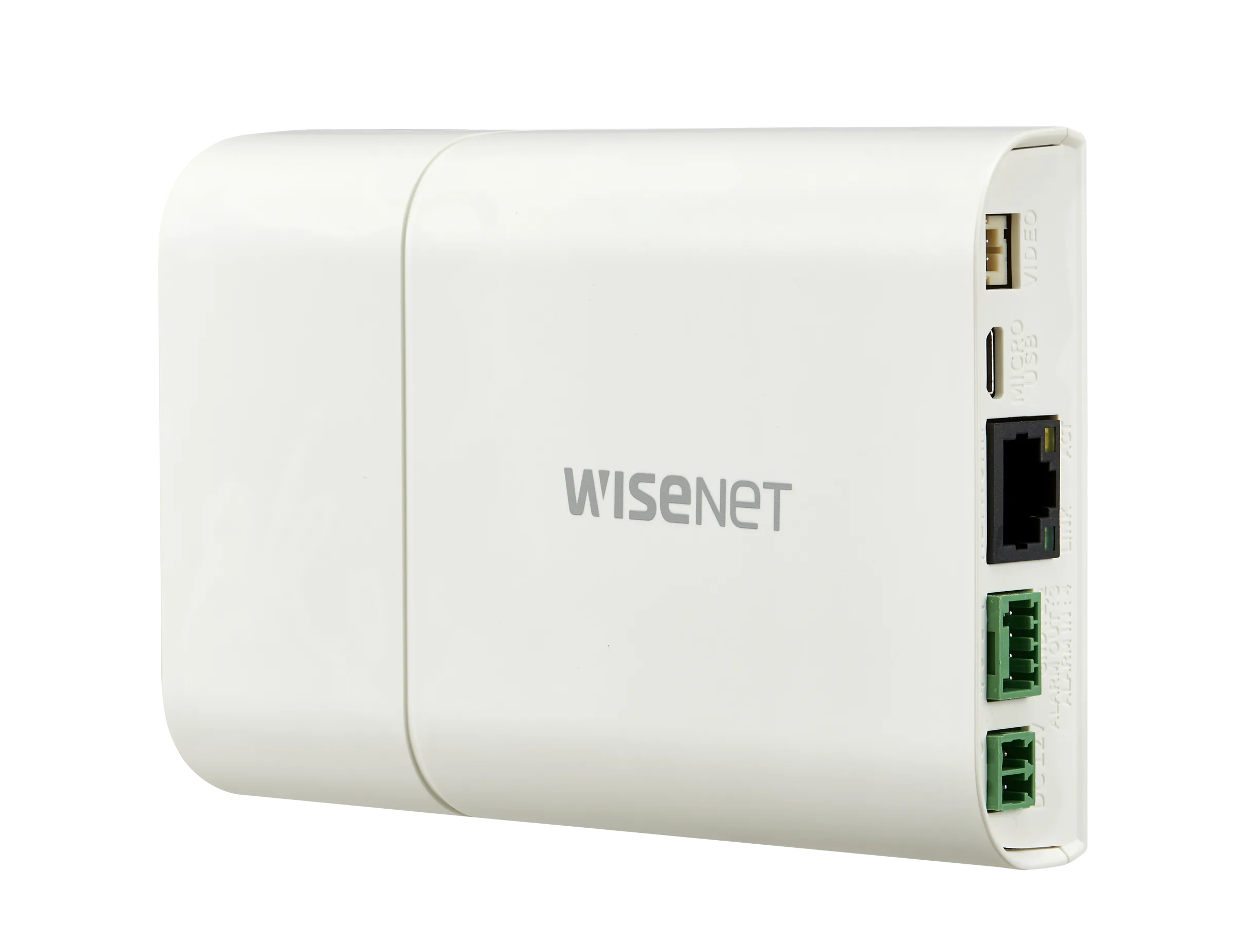

2MP network camera with a remote head and matching lens modules. Maximum resolution is 1920x1080 at 60fps/50fps (60Hz/50Hz) in H.265 and H.264 and 30fps in MJPEG, with multiple streaming, hallway view at 90°/270° and WiseStreamII supported. Day and night switching is electrical and WDR is rated 120dB, joined by BLC, HLC, SSDR, SSNRⅤ, defog, digital image stabilisation and LDC. The electronic shutter spans 2~1/12,000sec, white balance offers ATW, AWC, manual, indoor and outdoor, and gain control has three steps. Motion detection uses eight 8point polygonal zones while privacy masking provides 32 areas in selectable colours or as a mosaic. Lens modules listed are SLA-T1080F, SLA-T2480, SLA-T2480V, SLA-T4680 and SLA-T4680V, and an SD/SDHC/SDXC slot takes up to 256GB. 2MP, 1920x1080 at 60fps/50fpsRemote head with lens modules120dB WDR, defog, DIS, LDCShutter 2~1/12,000secHallway view 90°/270°, WiseStreamIISD/SDHC/SDXC slot up to 256GB

2MP network camera built as a remote head with lens modules. Resolution peaks at 1920x1080, running 60fps/50fps (60Hz/50Hz) in H.265 and H.264 and 30fps in MJPEG, with multiple streaming and WiseStreamII available. Day and night switching is electrical, extremeWDR is rated 120dB, and BLC, HLC, SSDR, WiseNR with SSNRⅤ, defog, digital image stabilisation and LDC (not supported for fisheye lenses) are included. The electronic shutter covers 2 to 1/12,000sec and adds anti flicker plus a prefer shutter control mode, while white balance offers ATW, NarrowATW, AWC, manual, indoor and outdoor. Analytics include tampering, loitering, directional detection, fog detection, audio detection, sound classification, heatmap, people counting, queue management, face detection, motion detection and handover. The listed lens modules are SLA-T1080FA, SLA-T2480A, SLA-T2480VA, SLA-T4680A and SLA-T4680VA. 2MP, 1920x1080 at 60fps/50fpsRemote head with lens modulesextremeWDR 120dB, defog, DIS, WiseStreamIIWiseNR and SSNRⅤHeatmap, people counting, queue management, face detectionShutter 2~1/12,000sec with anti flicker

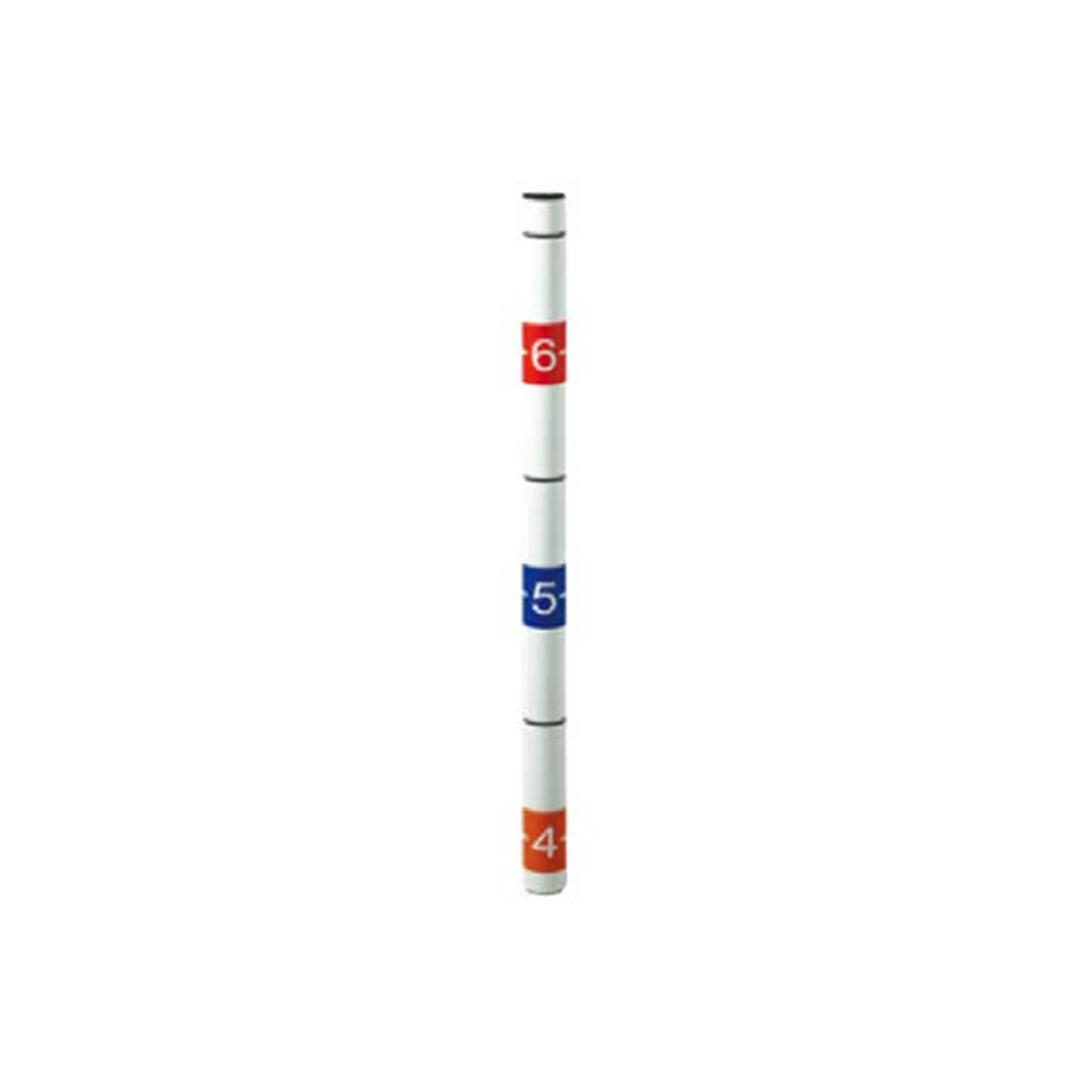

The XNB-H6461H pairs a pinhole camera with a height strip, so a person's face and approximate height are captured in one record. Its 1/2.8" CMOS sensor reaches 1920x1080 at 60fps/50fps (60Hz/50Hz) in H.265 and H.264 and 30fps in MJPEG, with minimum illumination of 0.06 lux in colour and in black-and-white alike. Coverage comes from a fixed 4.6 mm F2.5 lens spanning 73° horizontally, 39° vertically and 85° diagonally, down to a minimum object distance of 0.3 m. Image processing provides 120 dB WDR, BLC and HLC, SSNRⅤ noise reduction, digital image stabilisation and defog, and motion detection uses eight polygonal zones of eight points each. The aluminium strip offers three lens mounting positions, colour-coded height levels and wrap-around labels that remain readable from the side. 1/2.8" CMOS sensor, 1920x1080Fixed 4.6 mm F2.5 lens120 dB WDR, BLC, HLCMotion detection across eight polygonal zonesAluminium strip with colour-coded height levelsThree lens mounting positions

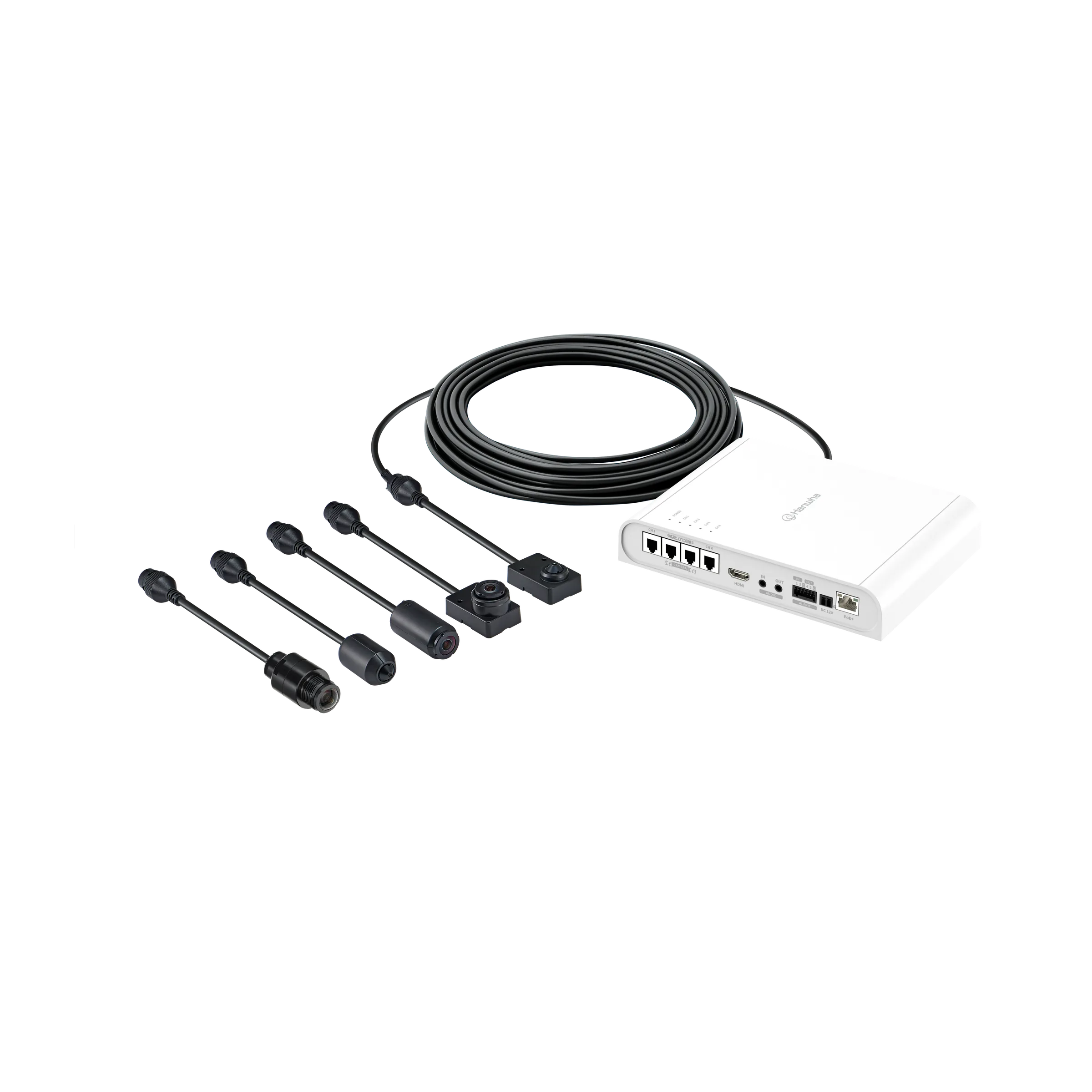

The PNM-9000QB is a remote-head unit for four 2MP channels with a maximum of 1920x1080 pixels. H.265 and H.264 operate at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps, while HDMI provides single or quad view output. Optional lens modules are supported, and SCL-150 with a length of 15 m is listed as the compatible connecting cable. Image processing covers BLC, HLC, 120 dB WDR, SSDR, SSNR V noise reduction, digital image stabilisation, defog, LDC and WiseStream II. Eight motion detection zones as 8-point polygons, 32 four-point privacy masks in seven display options, white balance from ATW to manual, flip and mirror rotation and an electronic shutter from 2 to 1/12,000 sec complete the feature set. Four 2MP channelsHDMI single and quad view120 dB WDR, SSNR V, WiseStream II32 privacy masks, 8 motion zonesShutter 2 to 1/12,000 secSCL-150 connecting cable (15 m)

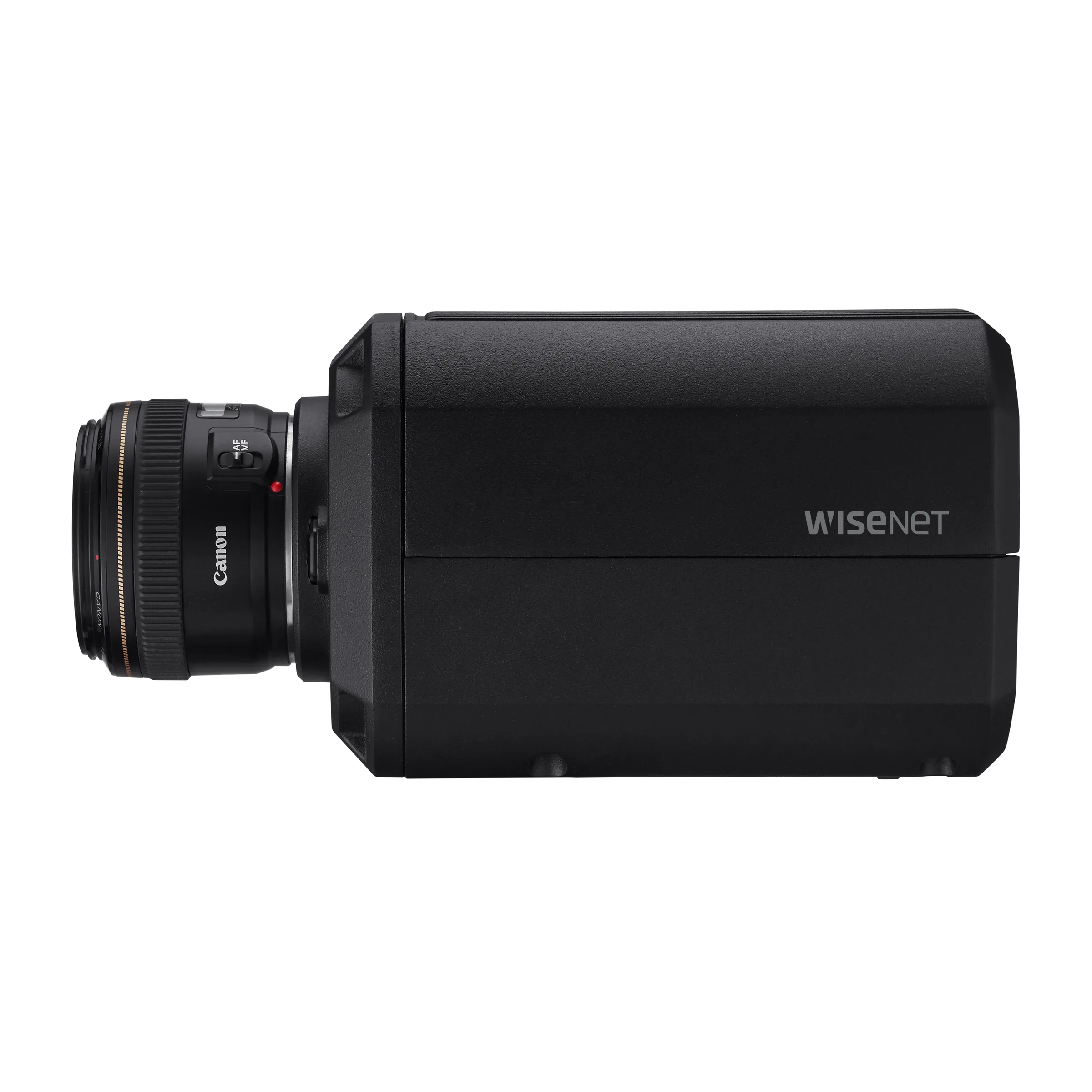

The TNB-9000 is a network box camera with a full-frame CMOS imaging device of 43.3mm diagonal and a top resolution of 7680x4320. Frame rate depends on the selected mode: 15fps@32MP(8K) in Mode 0, 20fps@24MP in Mode 1, 30fps@15MP in Mode 2 and 60fps@8MP(4K) in Mode 3, while minimum illumination is 0.015 lux in colour and 0.0015 lux in black and white. Lenses attach through a Canon EF mount, focusing uses simple focus, and an HDMI output delivers 1080p@30/25fps(60/50Hz). Image handling covers automatic day and night switching by ICR, BLC and DWDR, SSNRⅤ, eight motion detection zones as 8-point polygons and six rectangular privacy masks in gray, black or white, plus gain control in three steps, white balance as ATW, AWC, manual, indoor or outdoor, and an electronic shutter with minimum, maximum and anti flicker settings. Recording uses a single microSD slot up to 256GB, connectivity is provided by RJ-45 and an SFP slot at 100/1000 Mbps, and compression is H.265/H.264 Main/High and MJPEG with WiseStream II. 43.3mm full-frame CMOS sensor8K (7680 x 4320) at up to 15 fpsCanon EF lens mountHDMI video output 1080p@30/25fpsSingle microSD slot up to 256GBRJ-45 and SFP slot, 100/1000 Mbps

Box Camera, 2M 60fps, H.265/H.264/MJPEG, f3.9-10mm, i-CS, remote back focus, D/N, SNVII, WDR PRO II, 3DNR, Smart stream III, PoE/DC12V/AC24V, I/O 2*2, RS485, 2way audio

Box Camera, 2M 60fps, H.265/H.264/MJPEG, remote back focus, D/N, SNVII, WDR PRO II, 3DNR, Smart stream III, PoE/DC12V/AC24V, I/O 2*2, RS485, 2way audio

License plate capture, Box Camera, 2M 60fps, H.265/H.264/MJPEG, f12- 40mm, P-Iris, remote back focus, D/N, SNVII, WDR PRO II, 3DNR, Smart stream III, PoE/DC12V/AC24V, I/O 2*2, RS485, 2way audio

License plate capture, Box Camera, 2M 60fps, H.265/H.264/MJPEG, f9- 50mm, ICS, remote back focus, D/N, SNVII, WDR PRO II, 3DNR, Smart stream III, PoE/DC12V/AC24V, I/O 2*2, RS485, 2way audio

License plate capture, Box Camera, 2M 60fps, H.265/H.264/MJPEG, w/o lens, i-CS supported, remote back focus, D/N, SNVII, WDR PRO II, 3DNR, Smart stream III, PoE/DC12V/AC24V, I/O 2*2, RS485, 2way audio

License Plate Recognition, 60mph(90kmph), Box Camera, 2M 60fps, H.265/H.264/MJPEG, f12-40mm, P-iris, remote back focus, D/N, SNVII, WDR PRO II, 3DNR, Smart stream III, PoE/DC12V/AC24V, I/O 2*2, RS485, 2way Audio

License Plate Recognition, 60mph(90kmph), Box Camera, 2M 60fps, H.265/H.264/MJPEG, f9-50mm, ICS, remote back focus, D/N, SNVII, WDR PRO II, 3DNR, Smart stream III, PoE/DC12V/AC24V, I/O 2*2, RS485, 2way audio

License Plate Recognition, 60mph(90kmph), Box Camera, 2M 60fps, H.265/H.264/MJPEG, Non Lens, P/DC iris, i-CS reserved, remote back focus, D/N, SNVII, WDR PRO II, 3DNR, Smart stream III, PoE/DC12V/AC24V, I/O 2*2, RS485, 2way audio

NDAA Box Camera, 5M 30fps, H.265/H.264/MJPEG, f2.8-8.5mm, i-CS, remote back focus, D/N, SNV, WDR PRO, 3DNR, PoE/DC12V/AC24V, I/O 2*2, BNC, RS485, 2way audio

NDAA Box Camera, 5M 30fps, H.265/H.264/MJPEG, i-CS/P-iris/DC-iris, remote back focus, D/N, SNV, WDR PRO, 3DNR, PoE/DC12V/AC24V, I/O 2*2, BNC, RS485, 2way audio

License plate capture, NDAA Box Camera, 5M 30fps, H.265/H.264/MJPEG, f9-50mm, i-CS, remote back focus, D/N, SNV, WDR PRO, 3DNR, PoE/DC12V/AC24V, I/O 2*2, BNC, RS485, 2way audio

License plate capture, NDAA Box Camera, 5M 30fps, H.265/H.264/MJPEG, i- CS/P-iris/DC-iris, remote back focus, D/N, SNV, WDR PRO, 3DNR, PoE/DC12V/AC24V, I/O 2*2, BNC, RS485, 2way audio
