Infrared

12 W infrared illuminator for the P20 and P60 camera housings, fitted through the ITB touch board and powered from the housing itself. Two high-power LEDs emit at 850 nm in a circular pattern with a horizontal beam angle of 10° to 40°, covering 50 to 140 m. A digital input switches the IR on and off, while the light sensor sits on the digital output and responds at 100 lux, read over RS-485. It weighs 1.2 kg, measures 135 x 106 x 111 mm and is rated from -40 °C to 50 °C in operation, -40 °C to 70 °C in storage.

24 W infrared illuminator for the P20 and P60 camera housings, connected through the ITB touch board and drawing its power from the housing. Eighteen LEDs emit at 850 nm in an elliptical pattern with a horizontal beam angle of 10° to 30°, covering 70 to 200 m – a shape that suits long, narrow scenes such as access roads or tracks. A digital input switches the IR, and the light sensor on the digital output responds at 100 lux, read over RS-485. It weighs 1.2 kg, measures 135 x 106 x 111 mm and is rated from -40 °C to 50 °C in operation, -40 °C to 70 °C in storage.

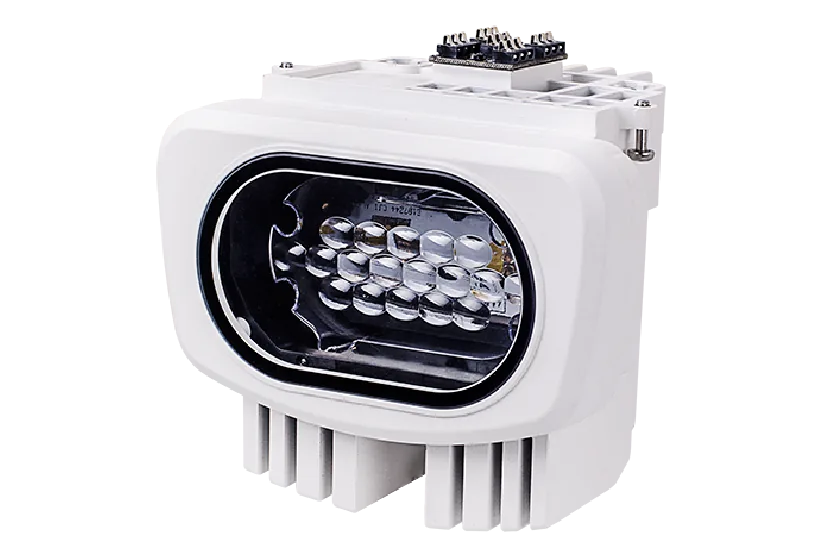

48 W infrared illuminator for the P20 and P60 camera housings, wired through the ITB touch board and powered from the housing. Eighteen high-power LEDs emit at 850 nm in an elliptical pattern with a horizontal beam angle of 10° to 30°, reaching 150 to 350 m. A digital input switches the IR, and the light sensor on the digital output responds at 100 lux, queried over RS-485. Once assembled into the housing it reaches IP66 with a wiper camera housing, IP68 with a camera housing, and IK10. It weighs 1.2 kg, measures 135 x 106 x 111 mm and is rated from -40 °C to 50 °C in operation, -40 °C to 70 °C in storage.

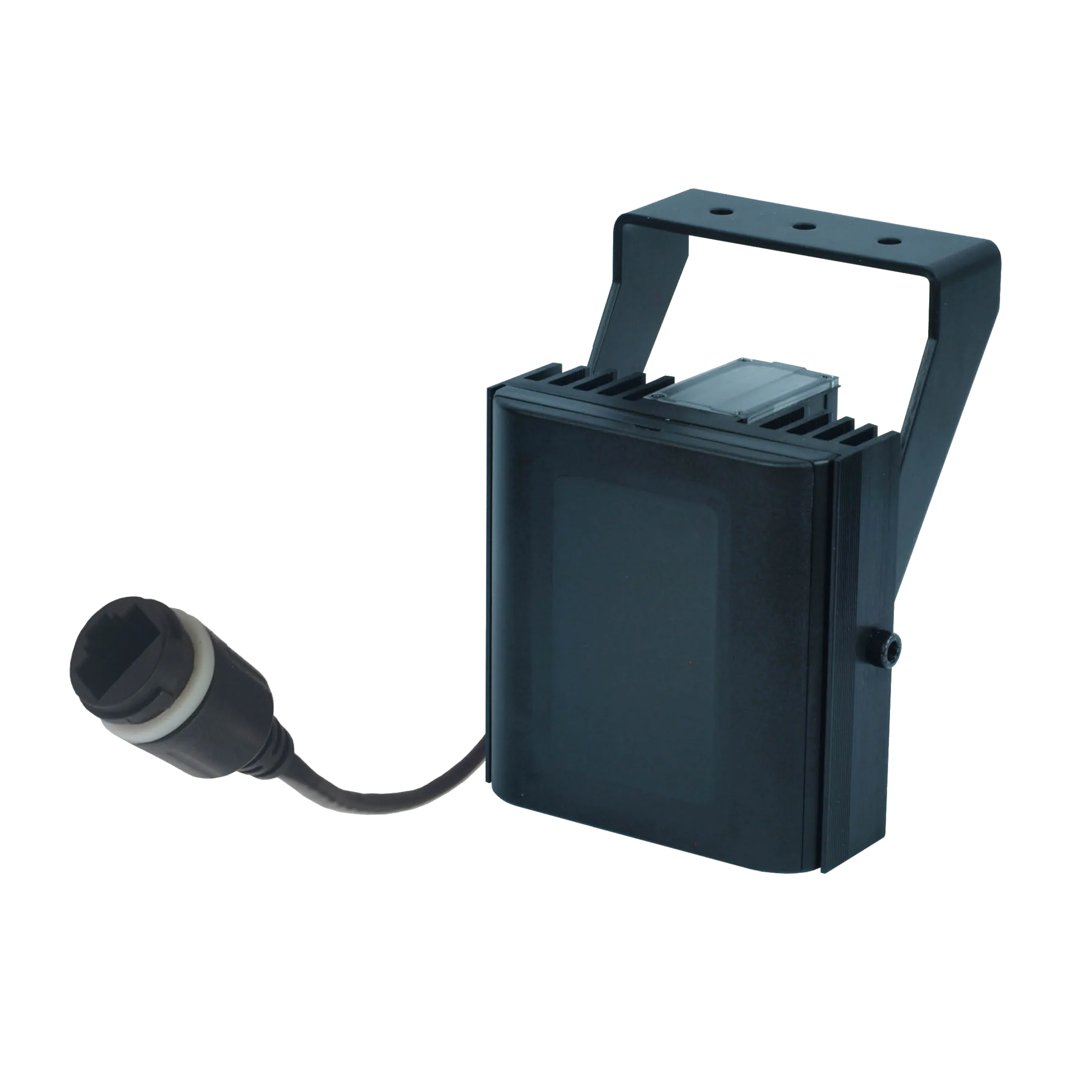

The SECL-IR850-IPPOEPL-M is a medium size IP infrared illuminator powered over PoE. It uses semi covert 850nm IR LEDs, for which the manufacturer states consistent illumination and a projected working life of more than ten years. Under difficult lighting conditions the unit improves image quality and analytics; box type cameras are named as a typical pairing. An integrated photocell sensor with adjustable sensitivity handles automatic switching, while a vibration sensor with programmable triggers protects the device. Interchangeable diffuser lenses provide different distance and field of view profiles, and the illuminator is intended for indoor and outdoor installations. Medium IP IR illuminator with PoESemi covert 850nm IR LEDsProjected LED life over ten yearsPhotocell sensor with adjustable sensitivityVibration sensor with programmable triggersInterchangeable diffuser lenses

The SECL-WL1856-IPPOEPL-M is a medium size IP white light LED illuminator powered over PoE. The white light enables night-time surveillance in colour and, according to the manufacturer, also acts as an intruder deterrent. The LEDs are specified for consistent illumination and a projected working life of more than ten years, and the unit improves image quality and analytics in difficult lighting conditions. An integrated photocell sensor with adjustable sensitivity switches the light automatically. Interchangeable diffuser lenses deliver different distance and field of view profiles, and the illuminator is intended for indoor and outdoor use, including alongside box type cameras. Medium IP white light illuminator with PoENight-time surveillance in colourIntruder deterrent from powerful white light LEDsProjected LED life over ten yearsPhotocell sensor with adjustable sensitivityInterchangeable diffuser lenses

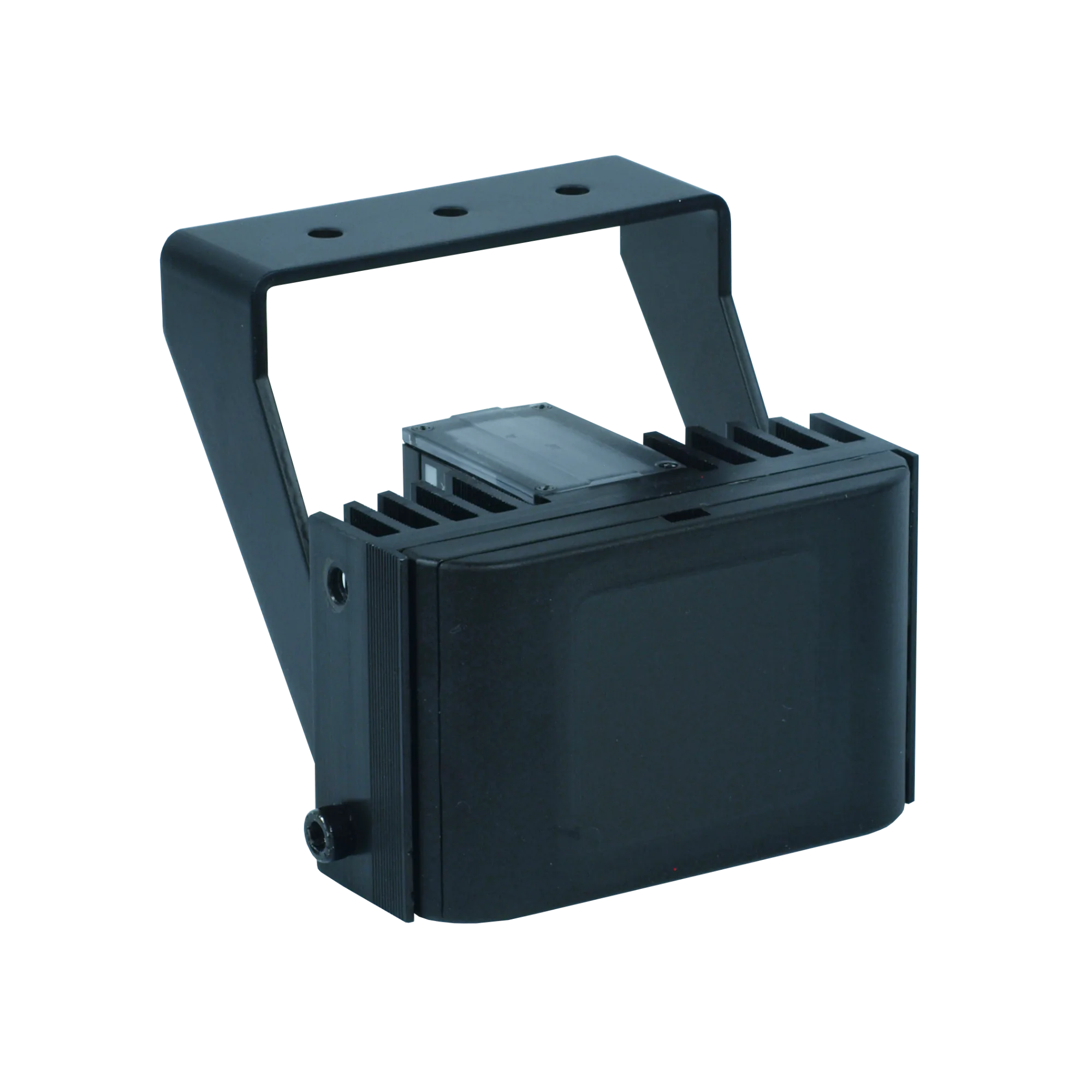

The SECL-IR850-POE-S is a small size infrared LED illuminator powered over PoE. It works with semi covert 850nm IR LEDs, credited by the manufacturer with consistent illumination and a projected working life of more than ten years. In difficult lighting conditions the unit improves image quality and analytics, with box type cameras named as a typical pairing. An integrated photocell sensor with adjustable sensitivity switches the light automatically, and interchangeable diffuser lenses give different distance and field of view profiles. It suits indoor and outdoor installations, and a range of accessory brackets combines several illuminators to extend distance and field of view angle up to 360 degrees. Small IR LED illuminator with PoESemi covert 850nm IR LEDsProjected LED life over ten yearsPhotocell sensor with adjustable sensitivityInterchangeable diffuser lensesAccessory brackets for coverage up to 360 degrees

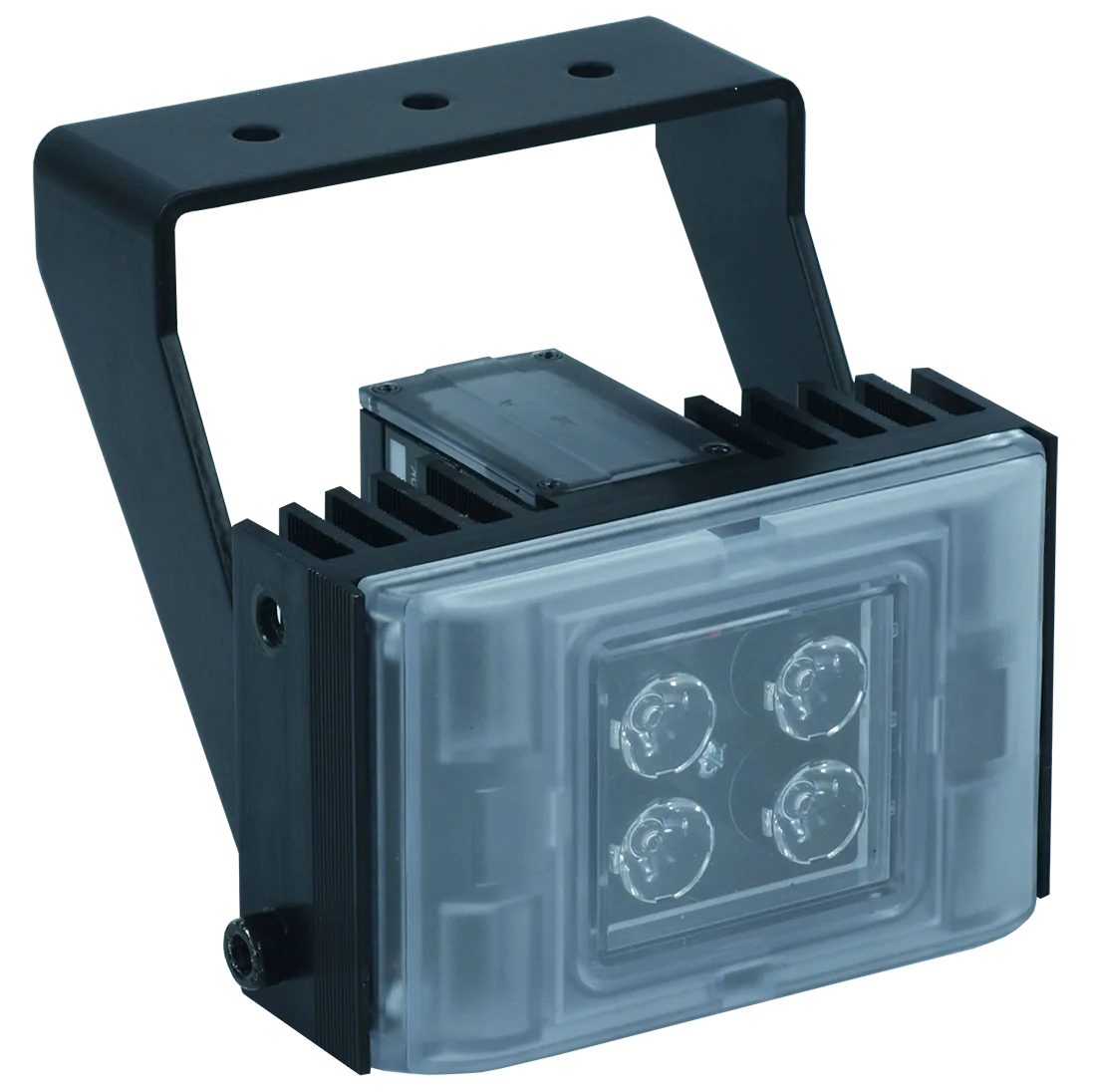

The SECL-WL928-POE-S is a small white light LED illuminator powered over PoE. Its high-quality LEDs give consistent illumination with a projected working life of more than 10 years, which keeps image quality and analytics usable when lighting conditions are difficult. Because the light is white rather than infrared, night-time surveillance stays in colour, and the output also acts as an intruder deterrent. Switching is handled automatically by a built-in photocell sensor whose sensitivity can be adjusted. Interchangeable diffuser lenses provide several distance and field-of-view profiles; installation indoors or outdoors is supported, and box type cameras are a particularly suitable pairing. White light LED illuminator with PoE supplyProjected LED working life over 10 yearsColour night-time surveillancePhotocell sensor with adjustable sensitivityInterchangeable diffuser lenses for distance and FoVIndoor and outdoor installation
