Weatherproof housings

SHB-4300H1 is an extreme weatherproof housing for fixed camera applications, made of die-cast aluminium in ivory. It operates from -50 °C to +50 °C (-58 °F to +122 °F) at less than 90 % relative humidity and is certified to IP66 and CE (Class A). The integrated de-mister heater and blower are temperature controlled, the heater switching at 5 °C ± 5 °C and the blower at 45 °C ± 5 °C. Power is 24 VAC with a consumption of 55 W, split between one 2 W AC fan and two 20 W AC heaters. The bracket is fully cable managed and takes three cable glands; outside dimensions are 184(W)x127(H)x460(D) mm with 91(W)x78(H)x190(D) mm inside, and the mount covers 0° to 360° pan and 0° to 90° tilt. Extreme weatherproof housing for fixed camerasDie-cast aluminium, ivory-50 °C to +50 °C, IP66 and CE (Class A)24 VAC, 55 WDe-mister heater and blowerFully cable-managed bracket, three cable glands

SHB-4301HP is a box camera enclosure for wall placement, cast from ADC 12 aluminium and finished in ivory. It can be powered either over PoE to IEEE 802.3at Class 4 or from 12 VDC, drawing 16 W. Fan and heater are supported, the operating range runs from -35 °C to +50 °C at 0 to 90 % relative humidity, and the housing is dustproof and waterproof to IP66. Dimensions are 184x460x127 mm and the weight without the bracket is 2.5 kg. Pan covers 0° to 360° and tilt 0° to 90°; supported products include PNB-A9001 and XNB-6003. Box type camera housing for wall placementPoE (IEEE 802.3at, Class 4) or 12 VDC, 16 WFan and heater supportedIP66, -35 °C to +50 °CADC 12 die-cast aluminium, ivory184x460x127 mm, 2.5 kg without bracket

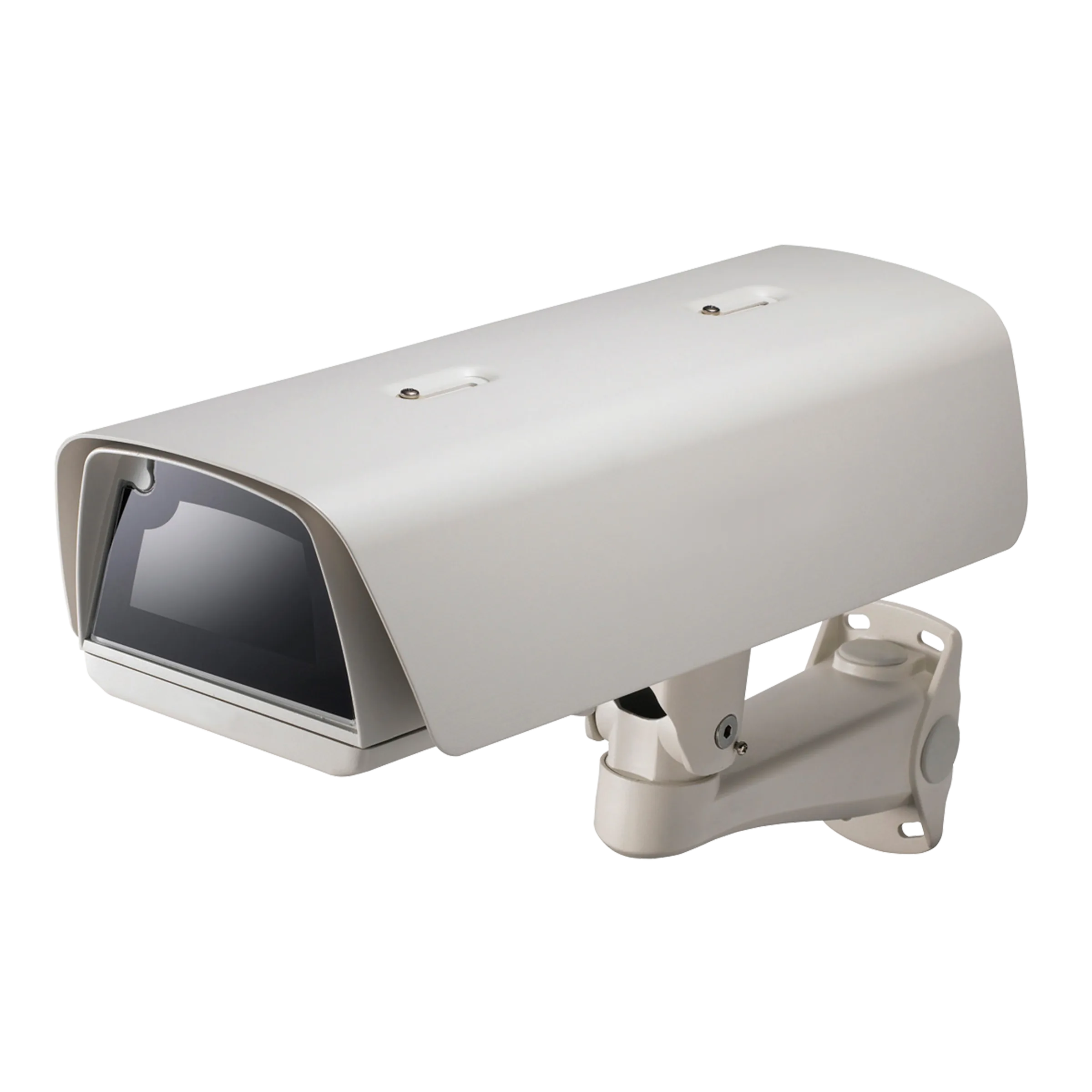

SHB-4300H is an outdoor housing in ivory aluminium for fixed network and analogue box cameras. A de-mister heater and a blower are built in and switch by temperature, the heater at 5 °C ± 5 °C and the blower at 45 °C ± 5 °C. This covers an operating range of -35 °C to +50 °C (-31 °F to +122 °) at 0 to 90 % relative humidity, with IP66 and CE (Class A) certification. Supply is 24 VAC at a power consumption of 25 W, made up of one 2 W AC fan and one 20 W AC heater. Outside dimensions are 184(W)x127(H)x460(D) mm with 91(W)x78(H)x190(D) mm of internal space; pan covers 0° to 360° and tilt 0° to 90°. Outdoor housing for fixed network and analogue camerasBuilt-in de-mister heater and blowerIP66 and CE (Class A)-35 °C to +50 °C24 VAC, 25 WOutside 184x127x460 mm, inside 91x78x190 mm

SHB-4200H accommodates fixed cameras and is built from aluminium in ivory. Fan and heater are supported, which covers an operating range of -35 °C to +50 °C at 0 to 90 % relative humidity; the certification is IP66. Power is supplied at 24 VAC with a consumption of 21.6 W. The enclosure measures 148x421x107 mm and can be panned through 0° to 360° and tilted through 0° to 90°, with no rotation axis. The listed supported products are PNB-A9001 and XNB-6003. Housing for fixed camerasFan and heater supportedIP66, -35 °C to +50 °C24 VAC, 21.6 WAluminium body in ivory148x421x107 mm

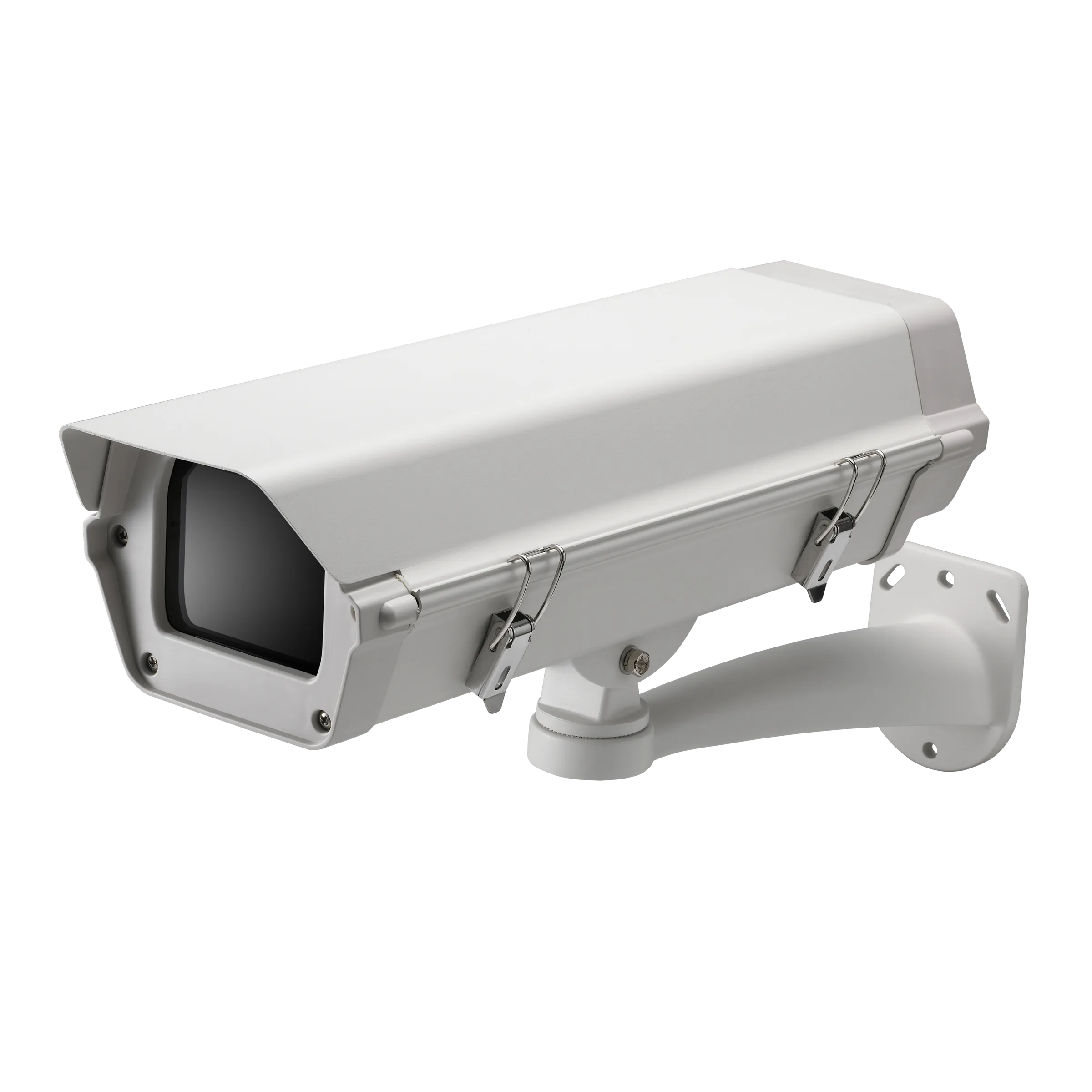

SHB-4200 is a side-open indoor box camera housing for fixed network and analogue cameras. The body is aluminium in ivory and measures 148x421x107 mm. Operation is specified from -15 °C to +45 °C at 0 to 90 % relative humidity, and the housing carries an IP66 certification. The mount allows a pan range of 0° to 360° and a tilt range of 0° to 90°; no rotation axis is provided. PNB-A9001 and XNB-6003 are listed as supported products. Indoor housing for fixed camerasSide-open designAluminium body in ivoryIP66, -15 °C to +45 °C148x421x107 mmPan 0°~360°, tilt 0°~90°

SHB-4301H2 is a box camera housing built for extreme weather exposure, using aluminium in ivory. A fan and a heater are fitted, giving an operating range of -50 °C to +50 °C at 0 to 90 % relative humidity with IP66 protection. Supply voltage is 230 VAC and power consumption is 55 W. The enclosure measures 184x460x127 mm and weighs 3.7 kg (8.16 lb) without the bracket. Pan runs from 0° to 360° and tilt from 0° to 90° with no rotation axis; the manufacturer lists PNB-A9001 and XNB-6003 as supported products. Weatherproof housing for box camerasBuilt-in fan and heaterIP66, -50 °C to +50 °C230 VAC, 55 WAluminium, ivory, 184x460x127 mm3.7 kg without bracket

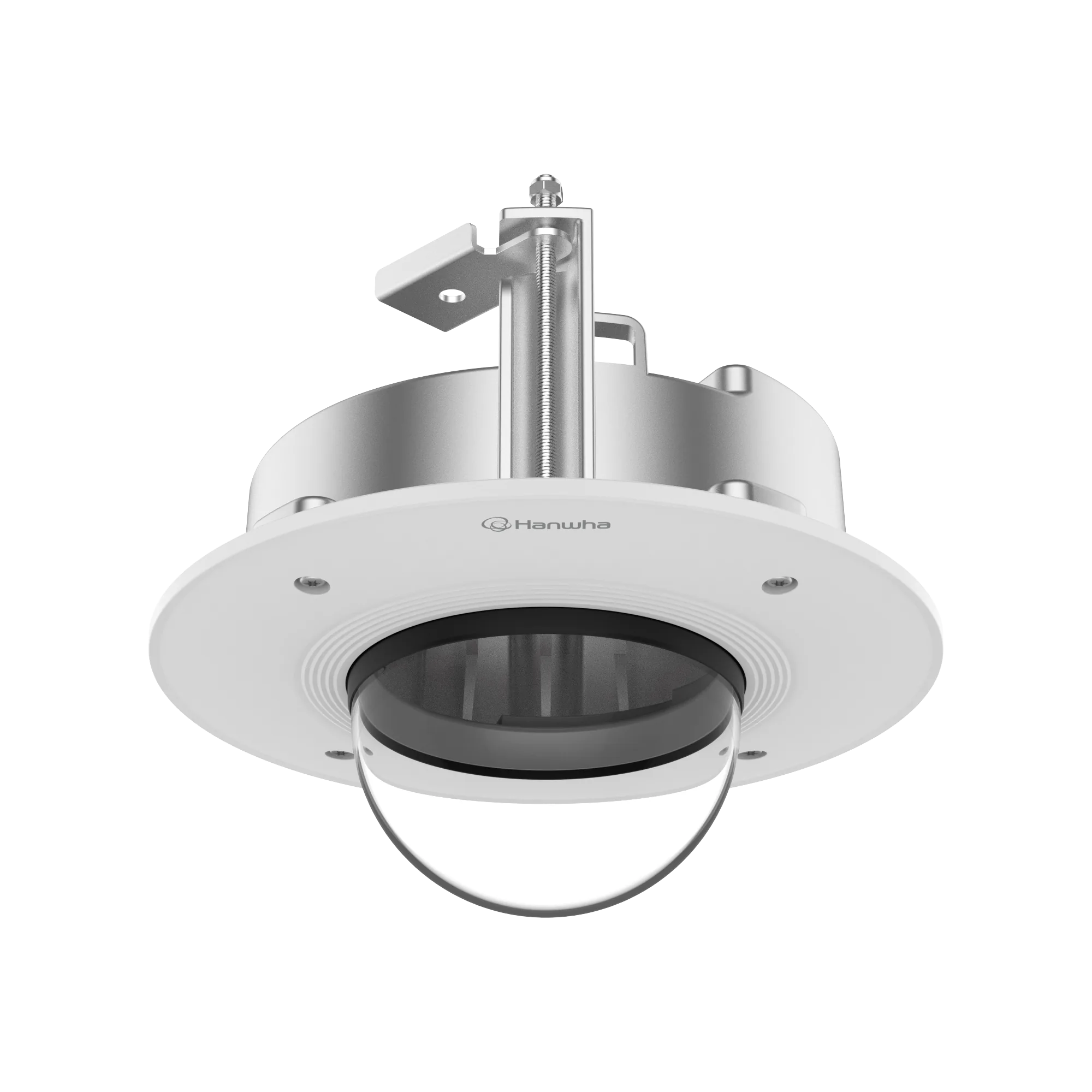

SHD-1350FPW is an in-ceiling housing made of aluminium with a polycarbonate part, finished white to RAL 9003. At ø205x163 mm (8.07x6.42") it is one of the larger in-ceiling enclosures in the range, and it weighs 1,170 g (2.58 lb). Conduit holes of 12.7 mm (1/2", M20) and 19.1 mm (3/4", M25) are provided for cable routing. The supported model stated is XND-6083RV. In-ceiling housing in aluminium and polycarbonateWhite, RAL 9003ø205x163 mm1,170 gConduit holes 12.7 mm (M20) and 19.1 mm (M25)For XND-6083RV

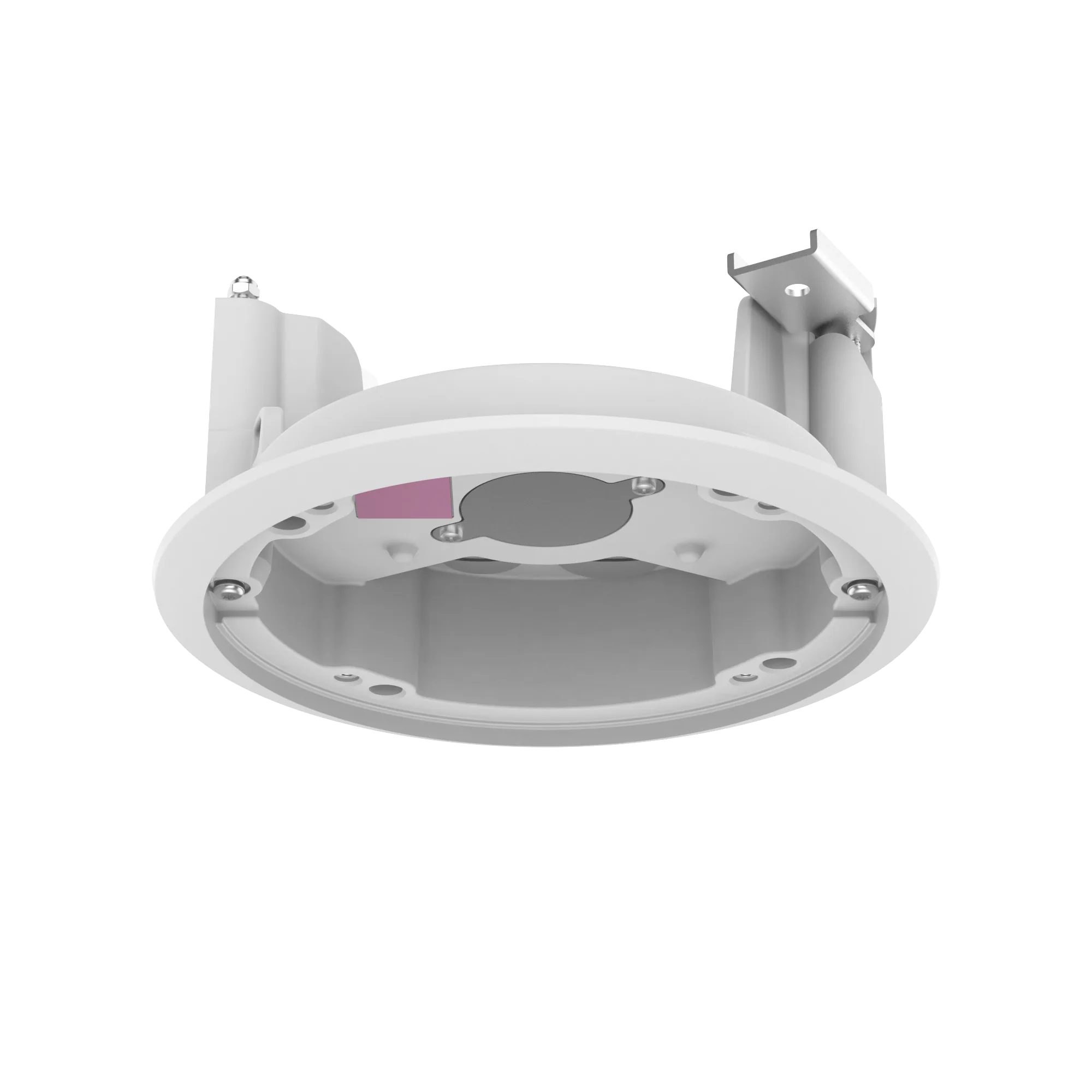

SHD-1370FPW is an aluminium in-ceiling housing finished white to RAL 9003. It measures ø205x103 mm (ø8.07x4.05") and weighs 770 g (1.70 lb); the ceiling hole has to be cut to ø181 mm (ø7.12"). Tile thicknesses of 10 to 70 mm (0.4 to 2.8") are supported, with TR20 mount screws. Cabling passes through conduit holes of 12.7 mm (1/2", M20) and 19.1 mm (3/4", M25). Up to 3 kg (6.61 lb) can be carried, with a ceiling board maximum of 6.5 kg (14.30 lb); supported cameras include PNV-A6081R, XNV-6083R, XNV-6123R and XNV-6083RZ. In-ceiling housing in aluminiumWhite, RAL 9003ø205x103 mm, 770 gCeiling hole ø181 mm, tile thickness 10~70 mmMax. load 3 kgFor PNV-A6081R, XNV-6083R, XNV-6123R, XNV-6083RZ

SHD-1200FPW is an in-ceiling housing with an aluminium body and a polycarbonate part, finished white to RAL 9003. It measures ø180x100.7 mm (ø7.09x3.96") and weighs 676.4 g (1.49 lb). Installation is possible in ceilings with a tile thickness of 10 to 70 mm (0.4 to 2.8"), using TR20 mount screws. Conduit holes of 12.7 mm (1/2", M20) and 19.1 mm (3/4", M25) take the cabling, and the maximum load is 1.5 kg with a ceiling board limit of 3 kg. A QR installation guide supports the fitting; the supported cameras are QNV-C8011R, QNV-C8012 and QNV-C9011R. In-ceiling housing in aluminium and polycarbonateWhite, RAL 9003ø180x100.7 mm, 676.4 gTile thickness 10~70 mm, TR20 screwConduit holes 12.7 mm (M20) and 19.1 mm (M25)For QNV-C8011R, QNV-C8012, QNV-C9011R

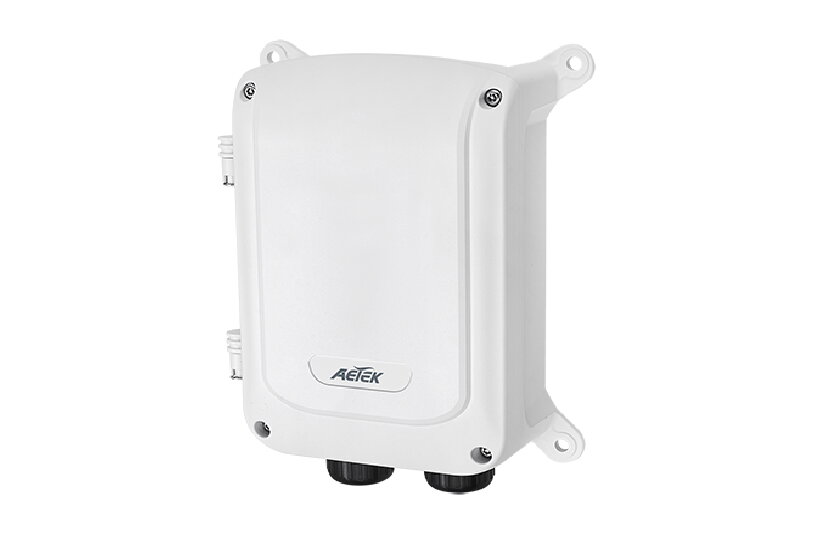

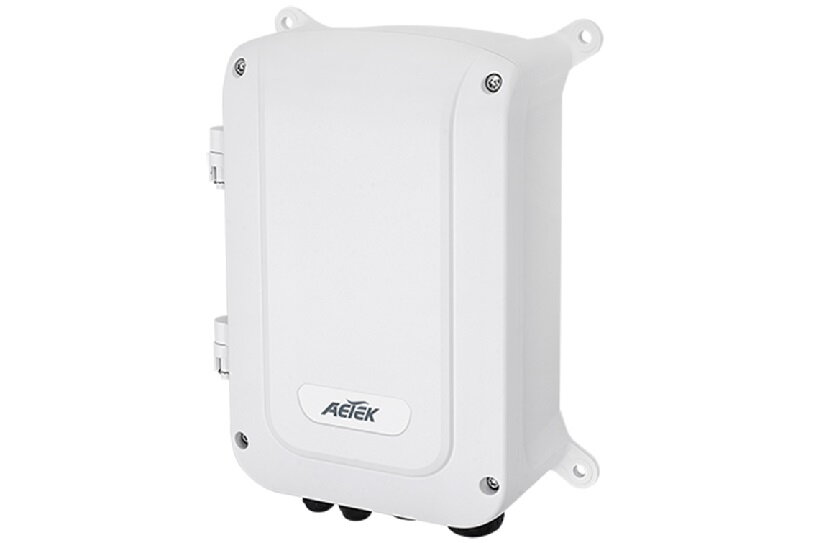

Junction box for the D40, D60 and D62 PoE switch series. It holds the cable entries and connections that sit outside the switch housing. External dimensions are 245.8 × 315.4 × 118 mm with 214 × 180 × 87 mm available inside. The box is prepared for four M16 and two M25 glands. Weight 2 kg. Junction box for the D40, D60 and D62 switchesExternal 245.8 × 315.4 × 118 mmInternal 214 × 180 × 87 mmFour M16 and two M25 glandsWeight 2 kgDesigned to mount on the AT-100 or AT-101 pole adapter

Aluminium junction box matched to the A10, P20, A50 and P60 camera housing series. It sits between bracket and housing and keeps connections and small devices out of the weather. Sealed to IP67, impact rated IK10, finished white. At 255.2 x 199.9 x 90 mm it is shallower than the larger box in the same line and weighs 1.5 kg, with a usable interior of 170 x 140 x 66 mm. Rated load 10 kg, cable entry through a PF 3/4 gland.

Outdoor 304L stainless steel cabinet to IP66 with a power supply, battery backup and a controller of its own. The power module puts out 55 V DC at 5.03 A within a 360 W budget; the controller adds 12 V DC at 2.5 A and 24 V DC at 1.25 A for devices that take no PoE. Without any PoE load the system draws 12.3 W. Four 12 V batteries of 7 to 10 Ah fit inside (not supplied, lead acid or LiFePO4), charged at 1.5 A and 55 V DC, cut off at 43 V ±0.5 V, with reverse polarity handled. A web interface reports the current power source and input voltage, battery voltage, remaining capacity and estimated runtime, plus temperature, humidity and GPS position; events such as a change of source or a low battery raise an alert. GPS antenna on SMA, 2 digital inputs and 2 outputs, glands 4 x M25 and 8 x M16, lockable 304 stainless swing handle. Working range -5 °C to 50 °C, from -40 °C with a heater or blower module. 380 x 273.5 x 525 mm, 12 kg.

The larger version of the OS-210 outdoor cabinet: a 600 W budget, a power module output of 55 V DC at 7.87 A and a charging current of 3 A at 55 V DC. That covers more PoE devices at one location, or hungrier ones. The controller also supplies 12 V DC at 2.5 A and 24 V DC at 1.25 A; with no PoE load the system draws 15 W. The shell is 304L stainless steel to IP66, with a 304 stainless swing handle for a padlock up to a 13 mm shackle. Four 12 V batteries of 7 to 10 Ah fit (lead acid or LiFePO4, not supplied), cut off at 43 V ±0.5 V, reverse polarity handled. Mains state, battery state, temperature, humidity and GPS position are reported through the web interface, with the antenna on SMA. Input 110 V AC or 220 V AC, 2 digital inputs and 2 outputs, glands 4 x M25 and 8 x M16. Working range -5 °C to 50 °C, from -40 °C with a heater or blower module. 380 x 273.5 x 525 mm, 12.5 kg.

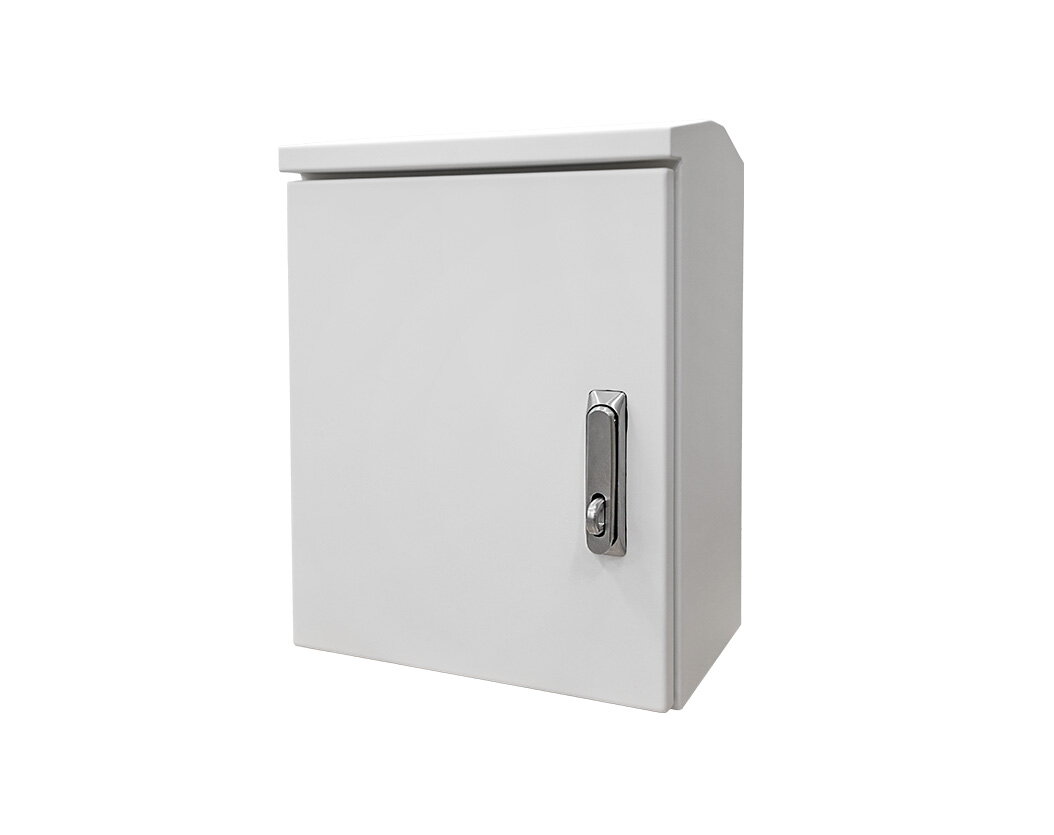

Outdoor cabinet with a power supply and battery backup built in, for PoE equipment on a pole or a wall. The shell is 304L stainless steel with a white powder coat, sealed to IP66; the 304 stainless swing handle takes a padlock with a shackle under 13 mm. Inside are a mounting plate with DIN rails for an industrial switch or a PoE surge protector, a set of cable glands (4 x M25, 8 x M16) and the power module. It delivers 55 V DC at 5.03 A within a 360 W budget and charges the batteries at 55 V DC and 1.5 A; when mains fails, the battery carries the load. Overload, short circuit and deep discharge are guarded against, cut-off is 43 V ±0.5 V, and reverse polarity is handled. There is room for four 12 V batteries of 7 to 10 Ah (not supplied), lithium (LiFePO4) or lead acid. Input 110 V AC or 220 V AC, 2 digital inputs and 2 outputs, prepared for an opening alarm switch and a fibre tray. Working range -5 °C to 50 °C, from -40 °C with a heater or blower module. 380 x 273.5 x 525 mm, 11.7 kg.

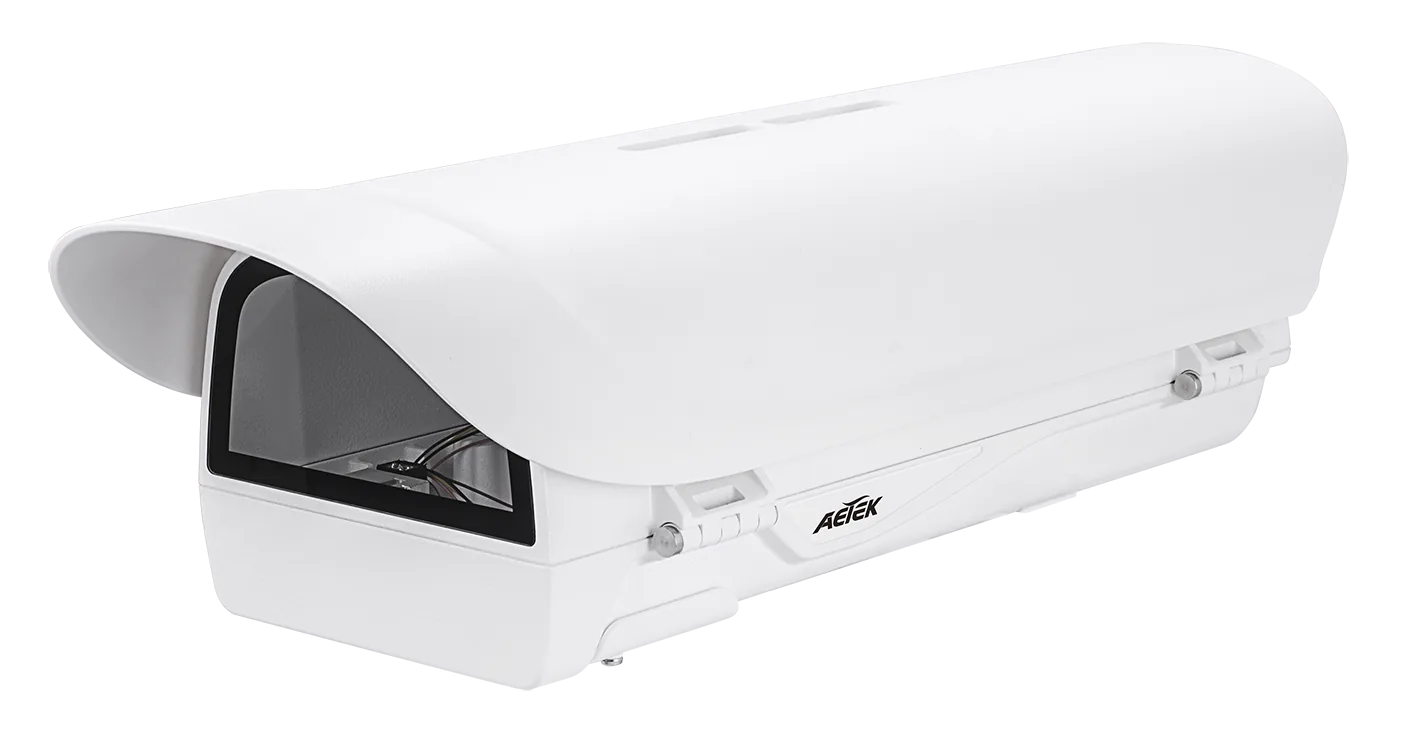

Camera housing that draws everything it needs from one network cable: the input takes 30 W, 60 W or 95 W PoE at 50 to 57 V DC and is backward compatible with 802.3af and 802.3at. How much is available inside depends on the source — 25 W behind a 30 W PSE, 48 W behind a 60 W PSE, 72 W behind a 95 W PSE. The camera itself is fed 12 W over passive PoE compliant with IEEE 802.3af, and 24 V DC at 48 W is available besides. Window heater (10 W) and blower (2 W) keep the glass clear, and the camera draws 6 to 12 W. Cast aluminium to IP68 and IK10, working range -20 °C to 65 °C, to 50 °C with IR illuminators; the camera fitted must be rated for -20 °C to 65 °C. Room for lenses from 8 to 80 mm, adjustable sunshield, opening alarm switch, ITB board, one RS485 port. 502.8 x 170 x 158.5 mm, 2.8 kg, four M16 glands.

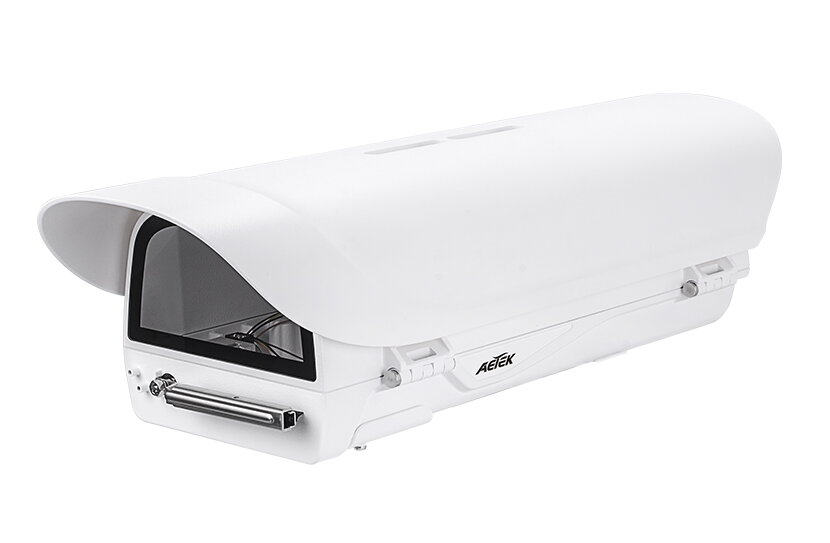

Cast aluminium camera housing with wiper, window heater and blower, so mist and ice can be cleared from the front glass without a trip up the pole. Everything runs off one Ethernet cable: 30 W, 60 W or 90 W PoE at 50 to 57 V DC, backward compatible with 802.3af and 802.3at. A 30 W PSE leaves 25 W for the gear, a 60 W PSE 48 W and a 95 W PSE 72 W; the camera itself is fed 12 W of passive PoE compliant with 802.3af, and 24 V DC at 48 W is available as well. Consumption: 10 W window heater, 2 W blower, 6 W wiper, 6 to 12 W camera. Box cameras with 8 to 80 mm lenses fit inside. Rated IP66 and IK10, it runs from -20 °C to 65 °C, or -20 °C to 50 °C with IR LEDs; the wiper works between -10 °C and 60 °C, the heater switches on at 20 °C and off at 30 °C, the blower on at 35 °C and off at 25 °C. One RS485 port, four M16 glands, 502.8 x 170 x 158.5 mm, 2.9 kg. A side-opening alarm switch, an adjustable sunshield and the ITB (Illuminator Touch Board), which takes an optional vari-IR illuminator and hides its wiring, are part of the housing.

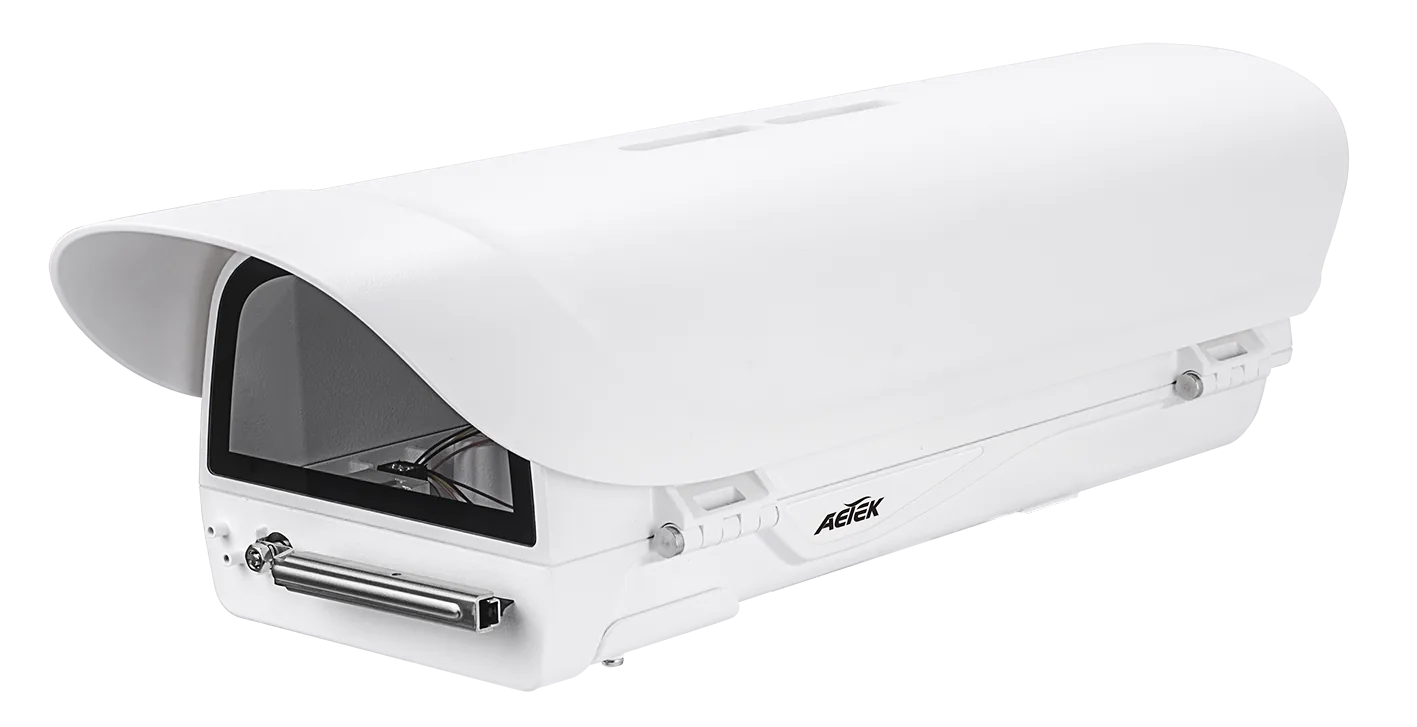

Camera housing with a wiper fitted, cast aluminium to IP66 and IK10, for box cameras carrying lenses from 8 to 80 mm. Wiper, window heater and blower keep the glass clear: the heater comes on at 20 °C or below and drops out from 30 °C, the blower runs from 35 °C and stops at 25 °C or below. The wiper works between -10 °C and 60 °C, the housing as a whole from -20 °C to 65 °C and to 50 °C with IR illuminators; the camera inside must be cleared for -20 °C to 65 °C. Supply 24 V AC, 24 V DC optional, budget 30 W at 12 V DC and 80 W at 24 V AC. Draw per item: window heater 10 W, blower 2 W, camera 6 to 8 W, wiper 6 W; optional illuminators VR-120 12 W, VR-240/241 24 W, VR-480/481 48 W, optional pump TP-100 12 W. Adjustable sunshield, side-opening alarm switch, ITB board, one RS485 port. 502.8 x 170 x 158.5 mm, 2.9 kg.

Cast aluminium camera housing to IP68 and IK10, laid out for box cameras with wide-angle and long lenses from 8 to 80 mm. A window heater and a blower keep the glass clear of mist and ice: the heater comes on at 20 °C or below and drops out from 30 °C, the blower starts from 35 °C and stops at 25 °C or below. Supply 24 V AC, 24 V DC optional, with an output budget of 30 W at 12 V DC and 80 W at 24 V AC. The working range is -20 °C to 65 °C, or -20 °C to 50 °C with IR illuminators; the camera fitted inside must be cleared for -20 °C to 65 °C. Also on board: an adjustable sunshield, a side-opening alarm switch, an ITB board that takes an IR illuminator with no visible wiring, one RS485 port and an input and output for IR control and status. 502.8 x 170 x 158.5 mm, 2.8 kg, four M16 glands.

Cast aluminium camera housing to IP68 and IK10, roomy enough for box cameras with wide-angle or long lenses from 8 to 80 mm. It runs on 24 V AC, optionally 24 V DC, and provides 30 W at 12 V DC and 80 W at 24 V AC. Besides the window heater and blower there is a second heater for the camera itself, which allows a cold start at -40 °C. Thresholds are fixed: window heater on at 20 °C or below and off from 30 °C, cold start heater on at 0 °C and off from 5 °C, blower on from 35 °C and off at 25 °C or below. Working range -20 °C to 65 °C, and -50 °C to 50 °C with IR illuminators; the camera inside must itself be rated for -20 °C to 65 °C. Adjustable sunshield, side-opening alarm switch, an ITB board that clips IR LEDs to the housing and hides their wiring, one RS485 port, one input for IR control and one output for its status. 502.8 x 170 x 158.5 mm, 2.8 kg, four M16 glands.

Camera housing with a wiper and a cold start heater, cast aluminium to IP66 and IK10, sized for box cameras with lenses from 8 to 80 mm. It is fed from 24 V AC or optionally 24 V DC and provides 30 W at 12 V DC and 80 W at 24 V AC. The camera heater allows a cold start at -40 °C; the working range runs from -50 °C to 65 °C, and to 50 °C with IR illuminators. The camera inside must be rated for -20 °C to 65 °C, and the wiper works between -10 °C and 60 °C. Consumption item by item: window heater 10 W, blower 2 W, camera 6 to 8 W, cold start heater 30 W, wiper 6 W; the optional illuminators draw 12 W (VR-120), 24 W (VR-240/241) and 48 W (VR-480/481), and the optional 10 l tank and pump TP-100 draws 12 W. Adjustable sunshield, side-opening alarm switch, ITB board, one RS485 port. 502.8 x 170 x 158.5 mm, 2.9 kg, four M16 glands.

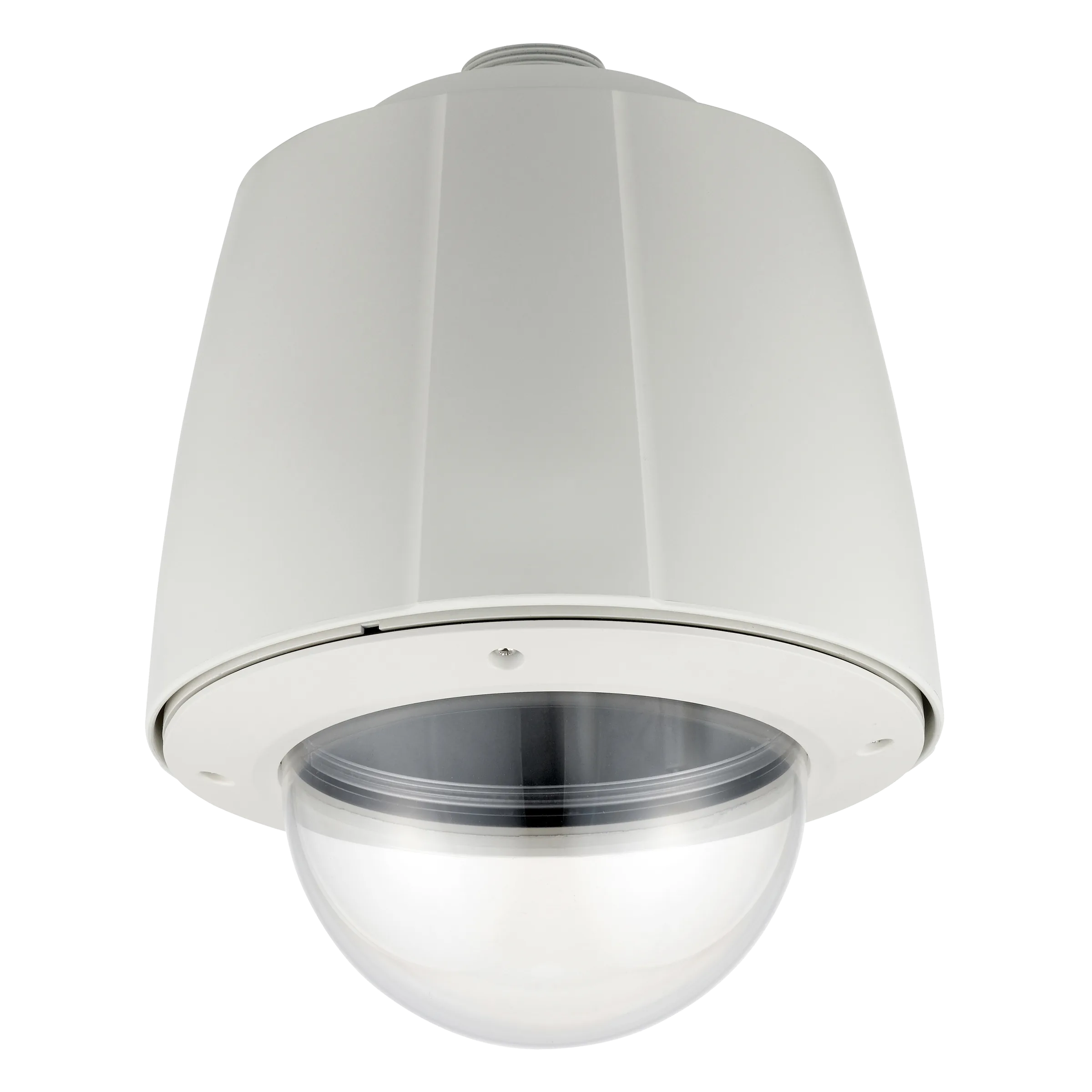

The SHP-3701H is an outdoor housing for PTZ cameras with a built-in fan and heater. It is certified to IP66 and IK10, and its operating range runs from -50°C to +50°C at 0 to 90% relative humidity. The housing is made of PC (polycarbonate) and aluminium in ivory and measures ø250x319mm at 2900g. A 1 1/2" PF threaded connection is provided for fixing. The supported cameras are XNP-6320 and XNP-6321. Outdoor housing for PTZ camerasBuilt-in fan and heaterIP66, IK10-50°C ~ +50°C, 0~90% RHPC (polycarbonate) and aluminium, ivory, ø250x319mm / 2900gFor XNP-6320, XNP-6321

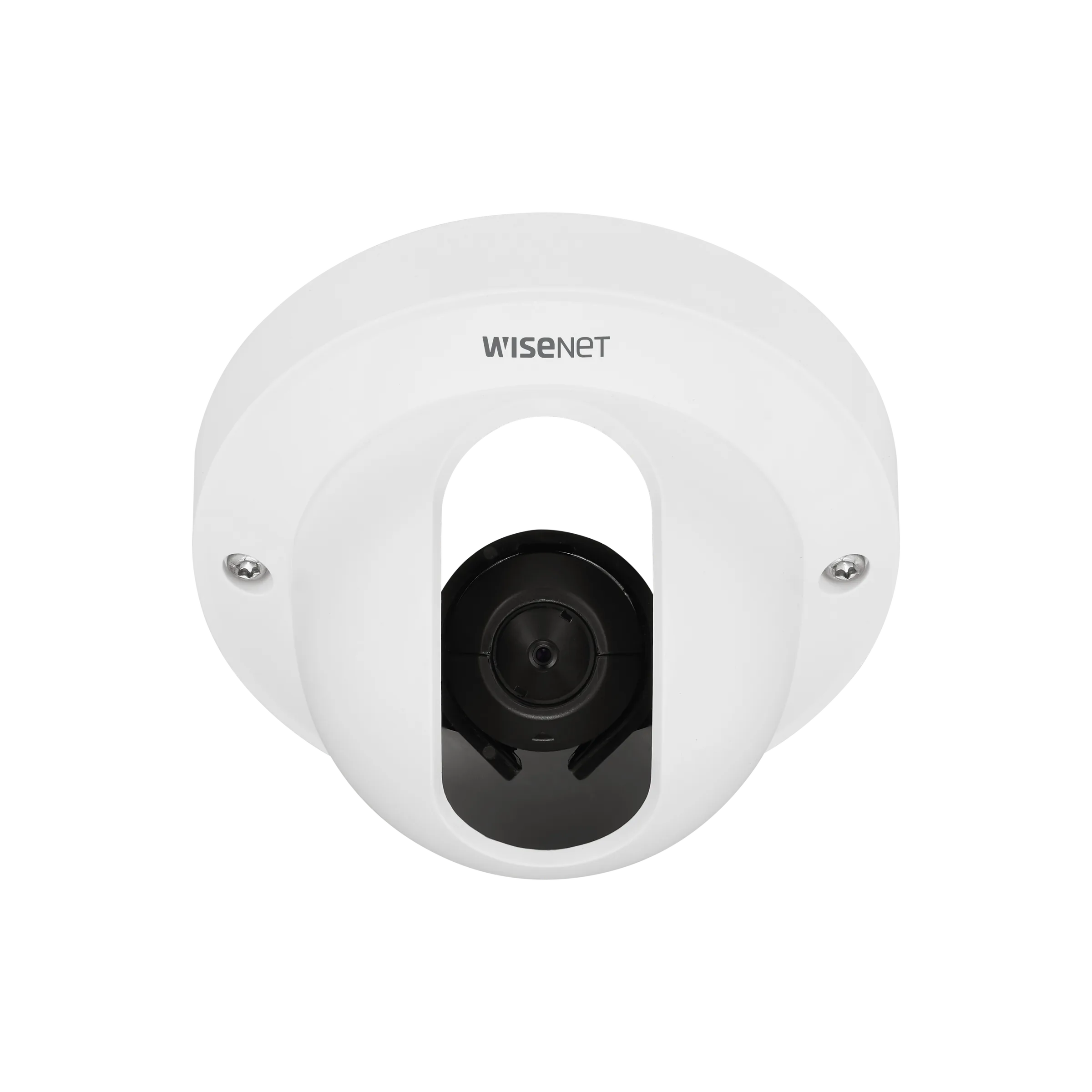

The SBL-100D is a ceiling housing for remote head cameras. It is moulded from polycarbonate and coloured white to RAL9003. Its diameter is 89.9mm with a height of 54.7mm, and it weighs only 65g. The housing is intended for the SLA-T2480 and SLA-T2480A camera modules. The manufacturer publishes further compatible models on its website and in its Toolbox. Ceiling housing for remote head camerasPolycarbonate, white RAL9003ø89.9x54.7mm, 65gFor SLA-T2480 and SLA-T2480A
