Vivotek

The AM-21E (-V2) is a wall mount bracket made of aluminum alloy in a white finish. The bracket measures 318 x 226 x 108 mm and weighs 1.05 kg. It is listed under part numbers VIO900044700 (AM-21E) and VIO900065200 (AM-21E-V2) for LPC kits. Individual packaging measures 340 x 120 x 160 mm for shipping, while the carton comes to 390 x 360 x 360 mm at 7 kg. Wall mount bracketAluminum alloy, white finishDimensions 318 x 226 x 108 mmWeight 1.05 kgAM-21E-V2 version for LPC kits

Bubble for remote camera, PN 3382286900 small form factor

Supplied as a complete surveillance cabinet solution, the AT-CAB-001 addresses single as well as multiple camera installations. The housing is rated IP66 against weather and IK10 against vandalism. Its stated operating range runs from -40°C to 75°C (-40°F to 167°F) at 90% humidity. Size is 289 x 280 x 132 mm with a weight of 3.5 kg. A quick installation guide, an accessories pack and a stainless steel wall-mount bracket are included, and compatibility covers all VIVOTEK cameras. Surveillance cabinet for single and multiple camera useIP66 weather-proof, IK10 vandal-proof housingOperating temperature -40°C to 75°C, 90% humidityDimensions 289 x 280 x 132 mm, 3.5 kgQuick guide, accessories pack and stainless steel bracket included

The AT-CAB-002 is a side-mount bracket intended for HLG series power supplies. It combines plastic with stainless steel and comes in white. Outer dimensions are 276 x 100 x 101.5 mm and the bracket weighs 520 g. It allows the supply to be attached to the side of an existing assembly rather than housed separately. Side-mount bracket for HLG power suppliesPlastic and stainless steelWhite finish276 x 100 x 101.5 mm520 g

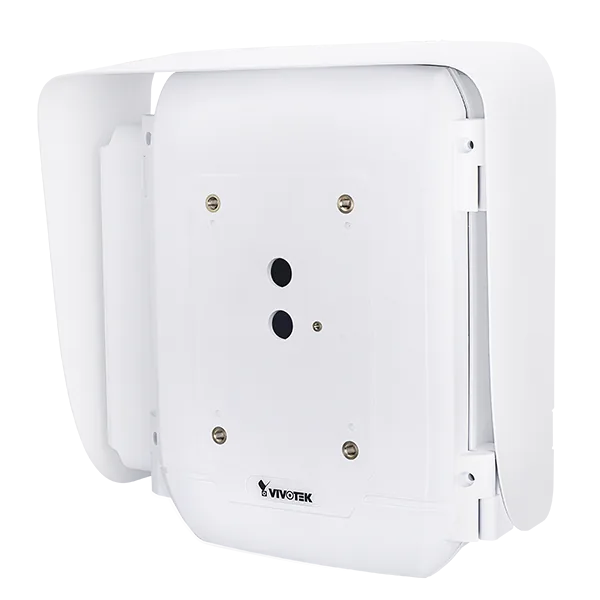

The AT-CAS-001 is a complete surveillance cabinet solution covering single and multiple camera applications. Its enclosure is weather-proof to IP66 and vandal-proof to IK10. Operating conditions are stated as -40°C to 75°C (-40°F to 167°F) with humidity up to 90%. The cabinet measures 289 x 280 x 132 mm and weighs 3.5 kg. Supplied items are a quick installation guide, an accessories pack and a stainless steel wall-mount bracket, and all VIVOTEK cameras are listed as compatible. Surveillance cabinet for single and multiple camera useIP66 weather-proof and IK10 vandal-proof housingOperating temperature -40°C to 75°CDimensions 289 x 280 x 132 mm, 3.5 kgStainless steel wall-mount bracket includedCompatible with all VIVOTEK cameras

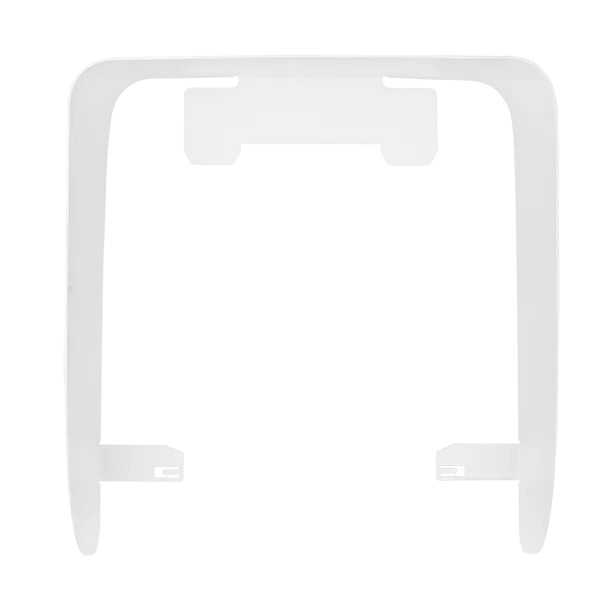

The AT-SUN-001 is a sunshield made for AT-CAx series cabinets. The body is SECC steel with a white powder coating. It measures 308 x 332 x 153 mm and the stated weight is 1,500 g. Fitted above the cabinet, it shades the cabinet's upper surface. Sunshield for AT-CAx cabinetsSECC materialWhite powder coating308 x 332 x 153 mm1,500 g

The AT-SUN-002 is dimensioned for an AT-CAx cabinet combined with the side-mounted AT-CAB-002, which makes it the wider of the two shields. It is built from SECC steel with a white powder coating. Dimensions are 375 x 332 x 153 mm and the stated weight is 1,630 kg. In this form it covers cabinet and side bracket together. Sunshield for AT-CAx plus AT-CAB-002SECC materialWhite powder coating375 x 332 x 153 mm1,630 kg

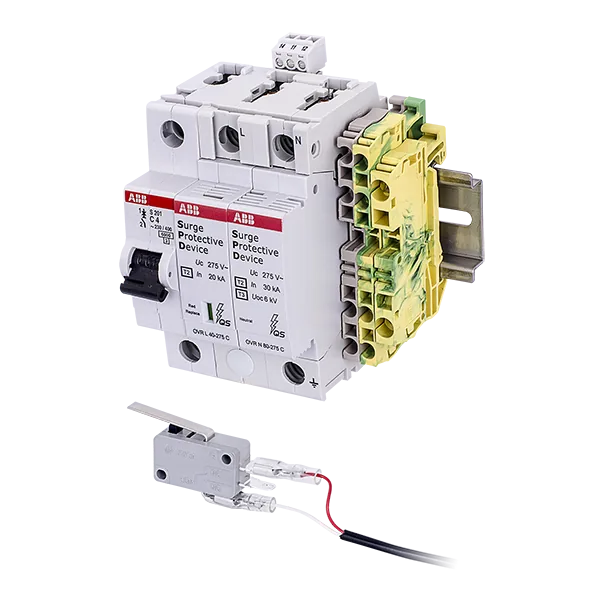

Designated AT-SWH-000, this power safety kit bundles several supply-side components. Its MCB fuse measures 88 x 17.5 x 69 mm and weighs 125 g. The surge protector is specified at 95 x 35.6 x 58 mm with a weight of 240 g. A grey 4 x 2.5 mm² terminal block measuring 72.6 x 5.1 x 35.5 mm is also listed. Power safety kitMCB fuse 88 x 17.5 x 69 mm, 125 gSurge protector 95 x 35.6 x 58 mm, 240 gTerminal block 4 x 2.5 mm² (grey), 72.6 x 5.1 x 35.5 mm

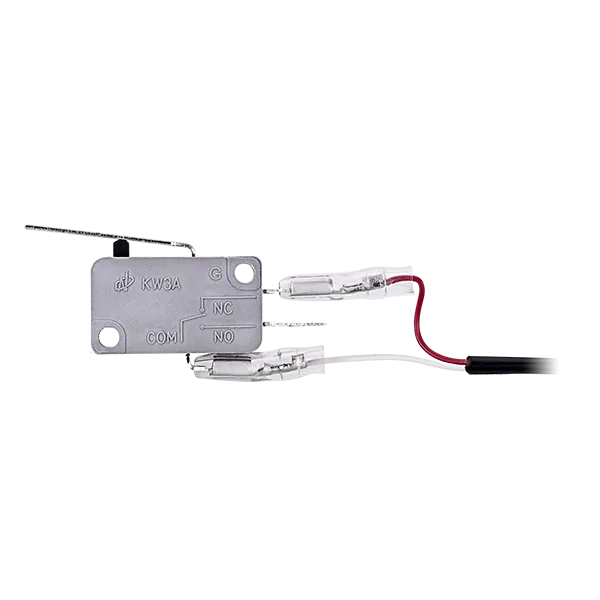

The AT-SWH-002 is a switch used to detect whether a door is open or closed. The switch body measures 41 x 10 x 30 mm, and the attached cable has a length of 300 mm. Component weight is given as 10 g. No further technical data is published for this accessory. Door open/close detection switchDimensions 41 x 10 x 30 mmCable length 300 mmWeight 10 g

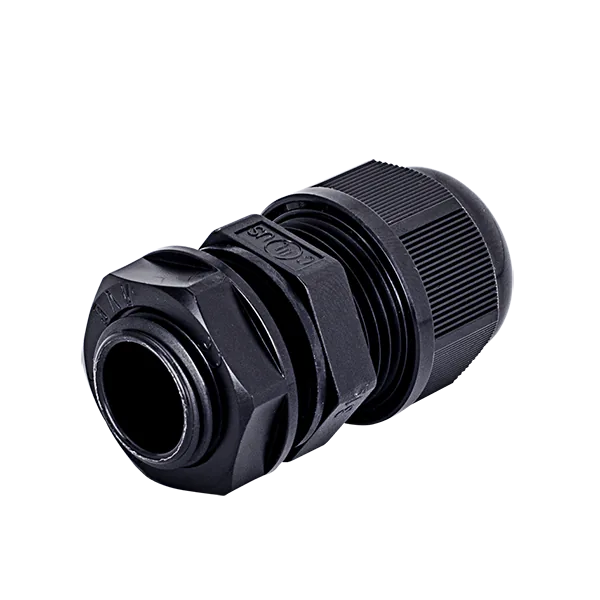

The AT-WPC-001 is an M16 cable gland for cables in the 4~7mm AWG range. It is made of nylon in a black finish. With a length of 41 mm and a diameter of 25 mm, it weighs 10 g. It is used at the cable entry point of an enclosure. M16 cable glandFor 4~7mm AWG cableNylon materialBlack finishL: 41 mm / Ø 25 mm10 g

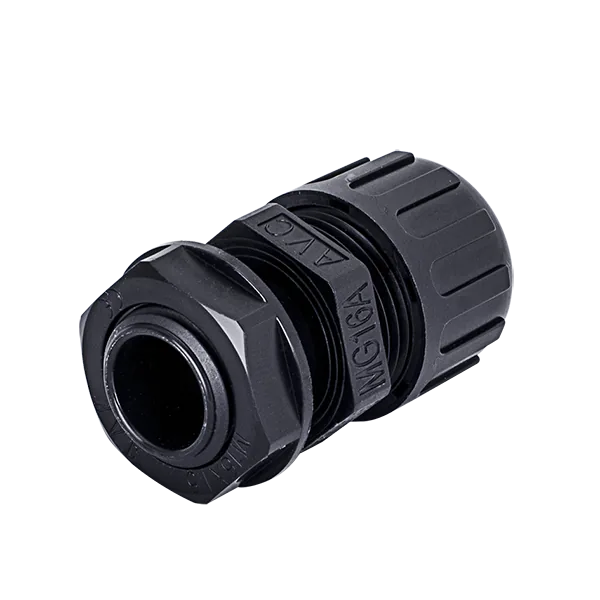

The AT-WPC-002 is an M16 cable gland for 5/16" corrugated tubing. Nylon is used as the material and the finish is black. The gland is 41 mm long with a diameter of 25 mm and weighs 10 g. It guides the corrugated tubing where it passes through the enclosure. M16 cable glandFor 5/16" corrugated tubingNylon materialBlack finishL: 41 mm / Ø 25 mm10 g

2.8~12mm, F1.8, P-iris

4.4~10mm, F1.3, P-iris

10~40mm, F1.3, P-iris

3.9~10mm, F1.5, P-iris, 1/1.8"

9~50mm, F1.5, i-CS

12~40mm, F2.3, P-iris, 1/2"

12~50mm, F1.8, P-iris, 1/1.7"

2.8~8.5mm, F1.2, i-CS

3.9~10mm, F1.5, i-CS

The CD9381 is a corner-mount dome camera with AI functions, a 1/2.7" progressive CMOS sensor and a maximum resolution of 2560x1920 (5MP). Its motorized vari-focal f = 2.8-8 mm lens with remote focus with a fixed iris at F1.8(W)~F2.78(T) covers 95° to 41° horizontally, 69° to 31° vertically and 126° to 53° diagonally, and frame rate reaches 30 fps at 2560x1920 with WDR Pro on or 60 fps at 1920x1080 with WDR Pro off. Two invisible 940nm IR LEDs with Smart IR are effective up to 10 metres, giving minimum illumination of 0.085 lux in colour at 30IRE and below 0.005 lux in black and white. H.265, H.264 and MJPEG recording runs seamlessly to a MicroSD/SDHC/SDXC card of up to 1 TB and to network-attached storage, ePTZ provides 48x digital zoom and the tilt range is 15°. Housing protection is IP6K9K/IP67 with IK10, the anti-ligature design suits correctional facilities, a microphone is built in and Trend Micro IoT Security supplies cyber protection. 2560x1920 (5MP) maximum resolutionMotorized vari-focal f = 2.8-8 mm with remote focusInvisible 940nm IR effective up to 10 mIP6K9K/IP67 weather-proof, IK10 vandal-proofAnti-ligature design with built-in microphoneTrend Micro IoT Security cyber protection

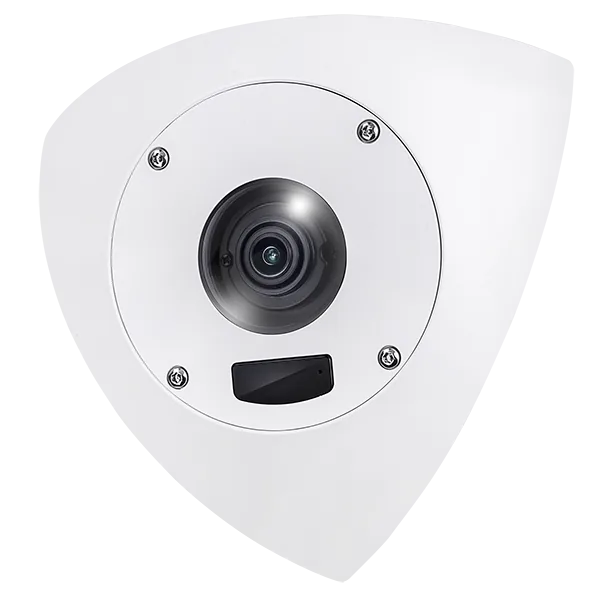

The CD9381 is a corner-mount dome camera with AI functions, a 1/2.7" progressive CMOS sensor and a maximum resolution of 2560x1920 (5MP). Its fixed-focal f = 2.4 mm lens with a fixed iris at F2.1 covers 124° horizontally, 92° vertically and 156° diagonally, and frame rate reaches 30 fps at 2560x1920 with WDR Pro on or 60 fps at 1920x1080 with WDR Pro off. Two invisible 940nm IR LEDs with Smart IR are effective up to 10 metres, giving minimum illumination of 0.07 lux in colour at 30IRE and below 0.005 lux in black and white. H.265, H.264 and MJPEG recording runs seamlessly to a MicroSD/SDHC/SDXC card of up to 1 TB and to network-attached storage, ePTZ provides 48x digital zoom and the tilt range is 0°. Housing protection is IP6K9K/IP67 with IK10, the anti-ligature design suits correctional facilities, a microphone is built in and Trend Micro IoT Security supplies cyber protection. 2560x1920 (5MP) maximum resolutionFixed-focal f = 2.4 mm lens at F2.1Invisible 940nm IR effective up to 10 mIP6K9K/IP67 weather-proof, IK10 vandal-proofAnti-ligature design with built-in microphoneTrend Micro IoT Security cyber protection

Smoked cover for Indoor Speed Dome

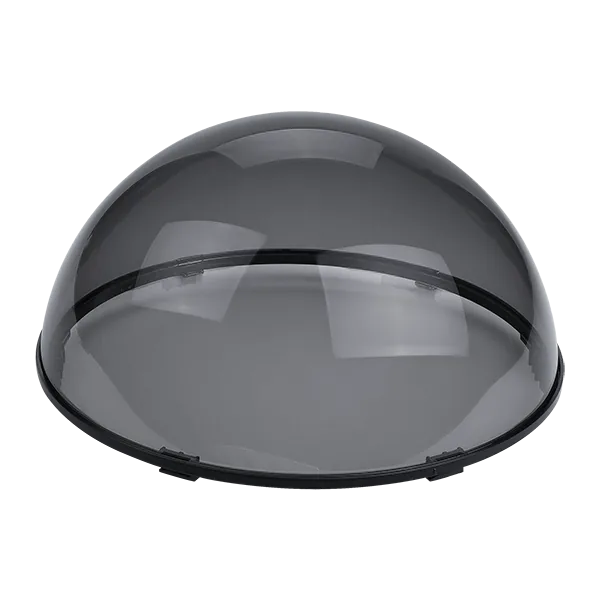

AC-21A is a smoked cover for PTZ cameras, moulded in PC and supplied in a smoked finish. It measures Ø176 x 85 mm and weighs 143 g. Packing is identical for box and carton at 474 (L) x 406 (W) x 262 (H) mm for 8 pieces with a weight of 3881 g. The cover is listed for the SD9367-EHL and SD9387-EHL models. Smoked cover for PTZ camerasPC material, smoked finishØ176 x 85 mm, 143 gListed for SD9367-EHL and SD9387-EHL
