Wireless

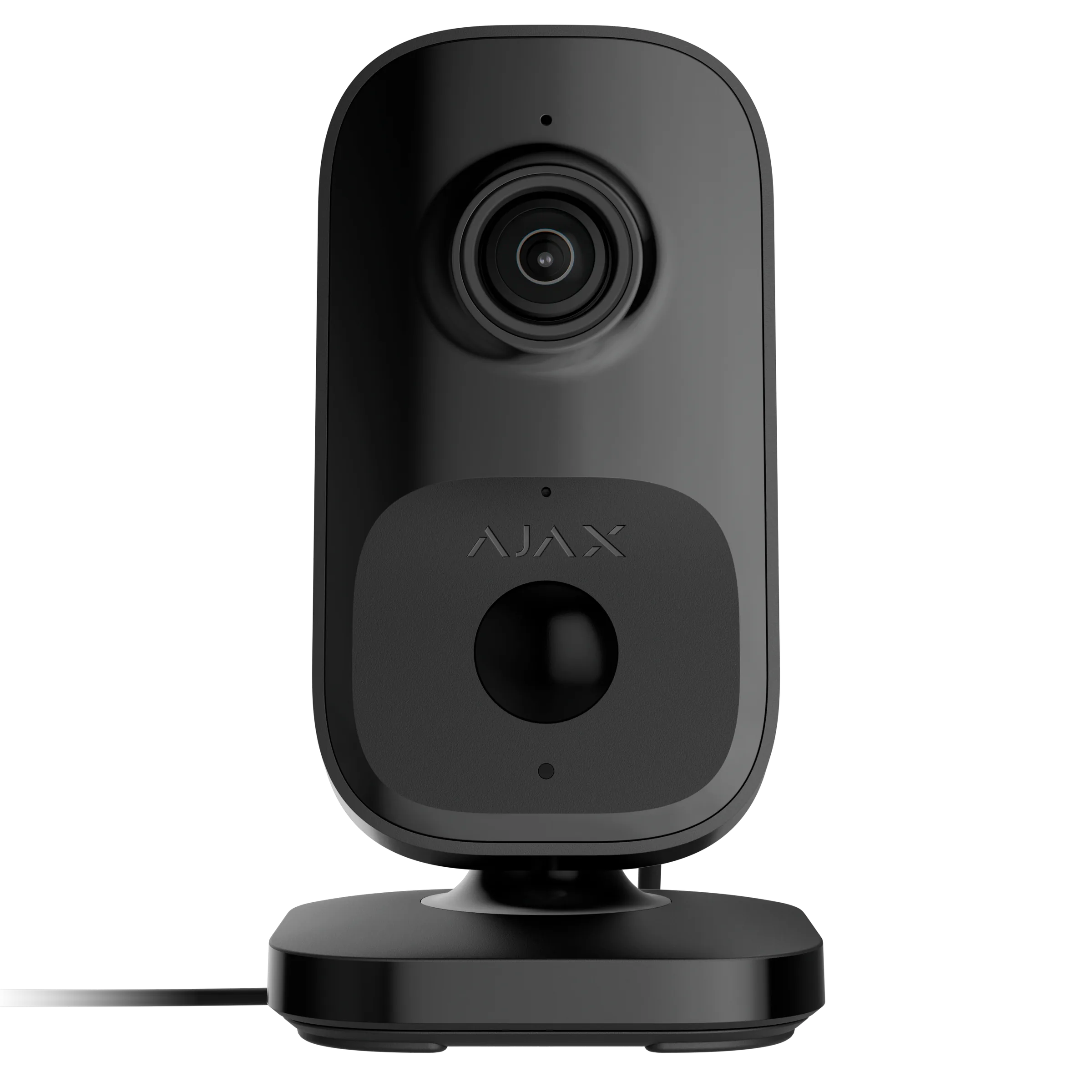

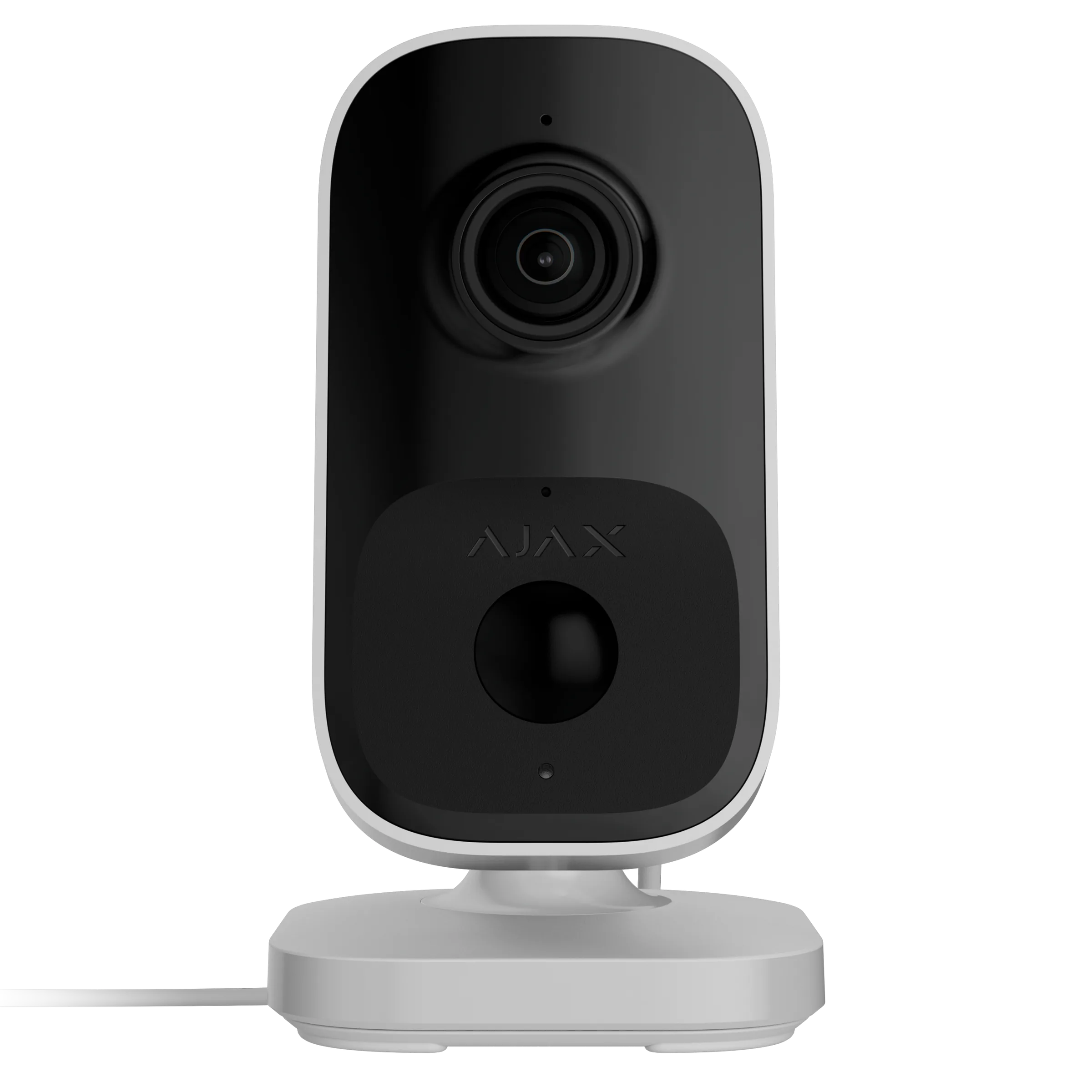

A 4 MP CMOS sensor produces video at up to 2688 × 1520 px across viewing angles of 110° horizontally and 60° vertically. Encoding uses H.264, while HDR improves the accuracy of detail in bright and dark scenes. Connectivity is handled by an 802.11 b/g/n module on 2.4 GHz along with the Jeweller and Wings communication technologies, and the stream reaches an NVR or Ajax Cloud Storage over JetSparrow, an encrypted peer-to-peer video protocol. Movement is registered by a built-in PIR sensor combined with software image frame analysis over a distance of up to 13 ft, and AI distinguishes people, pets and vehicles. Smart IR illumination reaches up to 26 ft and adjusts its intensity in real time to avoid overexposure. A microphone, a speaker rated 65 dB ± 3 dB, the G722 audio codec and always-active noise suppression and echo cancellation support two-way communication; the device is conformant with ONVIF® Profile S. 4 MP CMOS sensor, up to 2688 × 1520 pxViewing angles 110° horizontal, 60° verticalWi-Fi 802.11 b/g/n, 2.4 GHzAI object detection: people, pets, vehiclesSmart IR illumination up to 26 ftConformant with ONVIF® Profile S

A 4 MP CMOS sensor produces video at up to 2688 × 1520 px across viewing angles of 110° horizontally and 60° vertically. Encoding uses H.264, while HDR improves the accuracy of detail in bright and dark scenes. Connectivity is handled by an 802.11 b/g/n module on 2.4 GHz along with the Jeweller and Wings communication technologies, and the stream reaches an NVR or Ajax Cloud Storage over JetSparrow, an encrypted peer-to-peer video protocol. Movement is registered by a built-in PIR sensor combined with software image frame analysis over a distance of up to 13 ft, and AI distinguishes people, pets and vehicles. Smart IR illumination reaches up to 26 ft and adjusts its intensity in real time to avoid overexposure. A microphone, a speaker rated 65 dB ± 3 dB, the G722 audio codec and always-active noise suppression and echo cancellation support two-way communication; the device is conformant with ONVIF® Profile S. 4 MP CMOS sensor, up to 2688 × 1520 pxViewing angles 110° horizontal, 60° verticalWi-Fi 802.11 b/g/n, 2.4 GHzAI object detection: people, pets, vehiclesSmart IR illumination up to 26 ftConformant with ONVIF® Profile S

TL-MR110-Outdoor 4G LTE Router, Wi-Fi router SIM card, 4G Cat 4 up to 150 Mbit/s, 2.4 GHz Wi-Fi up to 300 Mbit/s, PoE/DC power supply, IP65, operating temperature -30℃ to +60℃  IP65-certified – weatherproof housing, ideal for outdoor use (dust- and waterproof) 4G LTE Cat 4 – download speed up to 150 Mbit/s for stable internet anywhere 300 Mbit/s Wi-Fi (2.4 GHz) – fast wireless connection for up to 32 devices simultaneously Wide temperature range – operation even under extreme conditions from -30 °C to +60 °C Lightning & ESD protection – 6 kV surge protection and 15 kV electrostatic protection Flexible power supply – supports 12 V DC, passive PoE (48 V) and 802.3af PoE (44–57 V) Easy mounting – installation on pole, wall or window possible. Quick commissioning – Plug & Play with SIM card, no configuration necessary Tether App – convenient management via smartphone (iOS/Android)

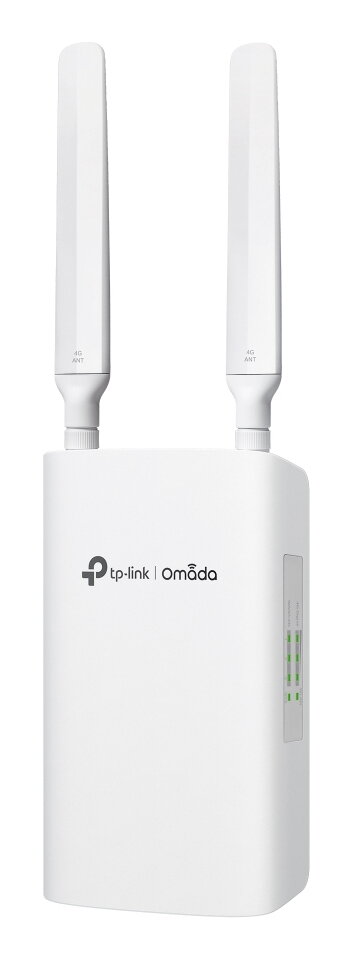

This outdoor gateway brings 4G LTE access, Wi-Fi 6 and three Gigabit PoE in and out ports together in one unit, with downlink and uplink rates of up to 300/50 Mbit/s and GSM bands at 850, 900, 1800 and 2100 MHz. A Nano SIM card is inserted directly or an Ethernet WAN port is used instead, and the device provides automatic backup and load balancing between the mobile and the wired path. The weatherproof enclosure was rated IP55 in ingress protection testing and can be powered over PoE or through the DC input, which also works with solar panels. Wireless operation covers the 2.4 and 5 GHz bands with SSID, WPA2 and WPA3 security plus MAC address filtering, and up to 50 PPTP/L2TP and 50 SSL VPN tunnels are supported at an SSL VPN throughput of 0.0866 Gbit/s. Hardware resources are 512 MB of DDR4 memory and 256 MB of flash; the white housing carries two external antennas with up to 4 dBi gain, a status LED and mounting kits for a wall or a pole. Setup and remote administration run through the Omada app or the web interface, and all services are ready after 3.8 s. 4G LTE gateway with Wi-Fi 6Three Gigabit PoE in/out portsIP55 weatherproof enclosure300/50 Mbit/s downlink/uplinkPoE or DC power supply512 MB DDR4 and 256 MB flash
