Multi sensor

The PNM-C12083RVD is a multi-directional AI camera with two 6MP channels on 1/2.8-inch CMOS sensors. Maximum resolution is 3328x1872 pixels and H.265, H.264 and MJPEG each run at 15fps. Analytics classify objects such as person, face, vehicle and licence plate and distinguish attributes including car, bus, truck, motorcycle and bicycle, with virtual area and line crossing rules drawing on the same classification. Defocus, motion, tampering and audio detection plus sound classification are also provided. The 3.54 to 6.69 mm lenses with 1.9x optical zoom open to F1.67 and F2.64 and span 96° to 47° horizontally, at 0.16 lux in colour and 0.016 lux in black and white with 25 m of 360 degree IR reach. WiseNR II, auto prefer shutter control, WiseStream III, extremeWDR at 120 dB and a micro SD slot for up to 512GB round out the specification. Two 6MP channelsAI classification of person, face, vehicle, plate3.54-6.69 mm varifocal, 1.9x optical25 m 360 degree IR reachextremeWDR 120 dB, WiseStream IIIMicro SD slot up to 512GB

The PNM-12082RVD is a multi-directional camera carrying two 6MP channels on 1/2.8-inch CMOS sensors. Maximum resolution is 3328x1872 pixels, and H.265, H.264 and MJPEG each run at 15fps. Both channels use a motorised varifocal lens from 3.54 to 6.69 mm (1.9x optical) with F1.67 wide and F2.64 tele, giving a horizontal angle of view between 96° and 47°. Rated sensitivity is 0.16 lux in colour and 0.016 lux in black and white, dropping to 0 lux with the IR LED on, and IR reach is stated as 25 m depending on the scene. WiseNR, WiseStream II, extremeWDR at 120 dB, TPM 2.0 to FIPS 140-2 and IP66, IK10 and NEMA4X ratings are included. Each channel pans 0° to 355°, tilts 0° to 78° and rotates 0° to 180°. Two 6MP channelsMax. 3328x1872 at 15fps3.54-6.69 mm varifocal, 1.9x25 m IR viewable lengthextremeWDR 120 dB, WiseNRIP66, IK10, NEMA4X

The PNM-A13022RV is a 13MP panoramic camera with AI functions and IR support. Its 1/2.8-inch CMOS sensors provide up to 5120x2592 pixels at 30fps/25fps (60Hz/50Hz) in H.265 and H.264, and 30fps in MJPEG. A fixed 3.06 mm lens at F1.6 covers 194° horizontally and 93° vertically, focusing from a minimum object distance of 5 m. Low-light figures are 0.1 lux in colour and 0.01 lux in black and white, assisted by automatic ICR switching, BLC, HLC, SSDR and 120 dB WDR. Noise reduction combines WiseNR II based on the AI engine with SSNR V, and motion detection uses eight 8-point polygonal zones. Mechanically the camera pans 0° to 360° and tilts 0° to 50°. Panoramic image up to 5120x259230fps/25fps in H.265 and H.264Fixed 3.06 mm lens, F1.6194° horizontal, 93° vertical view120 dB WDR, WiseNR II and SSNR VEight 8-point polygonal motion zones

The PNM-9031RV is a panoramic camera built from several 1/2.8-inch CMOS sensors and producing a stitched image of up to 6720x2240 pixels. H.265 and H.264 run at 20fps and MJPEG at 15fps, with automatic IR illumination applied across all image sensors. Its fixed 4.3 mm lens at F1.6 captures 195.3° to 197.0° horizontally and 63.6° vertically, with a minimum object distance of 5 m. Rated sensitivity is 0.1 lux in colour and 0.01 lux in black and white, supported by ICR day and night switching, BLC, SSDR, 120 dB WDR and SSNR V noise reduction. Multiple virtual channels can be created from the panoramic view and the unit connects over a single Ethernet link. The housing is rated IP66, IK10 and NEMA4X, the camera is NDAA compliant, and it pans 0° to 360° and tilts 0° to 60°. Panoramic image up to 6720x224020fps in H.265 and H.264Fixed 4.3 mm lens, F1.6195.3° to 197.0° horizontal view120 dB WDR, SSNR VIP66, IK10, NEMA4X, NDAA compliant

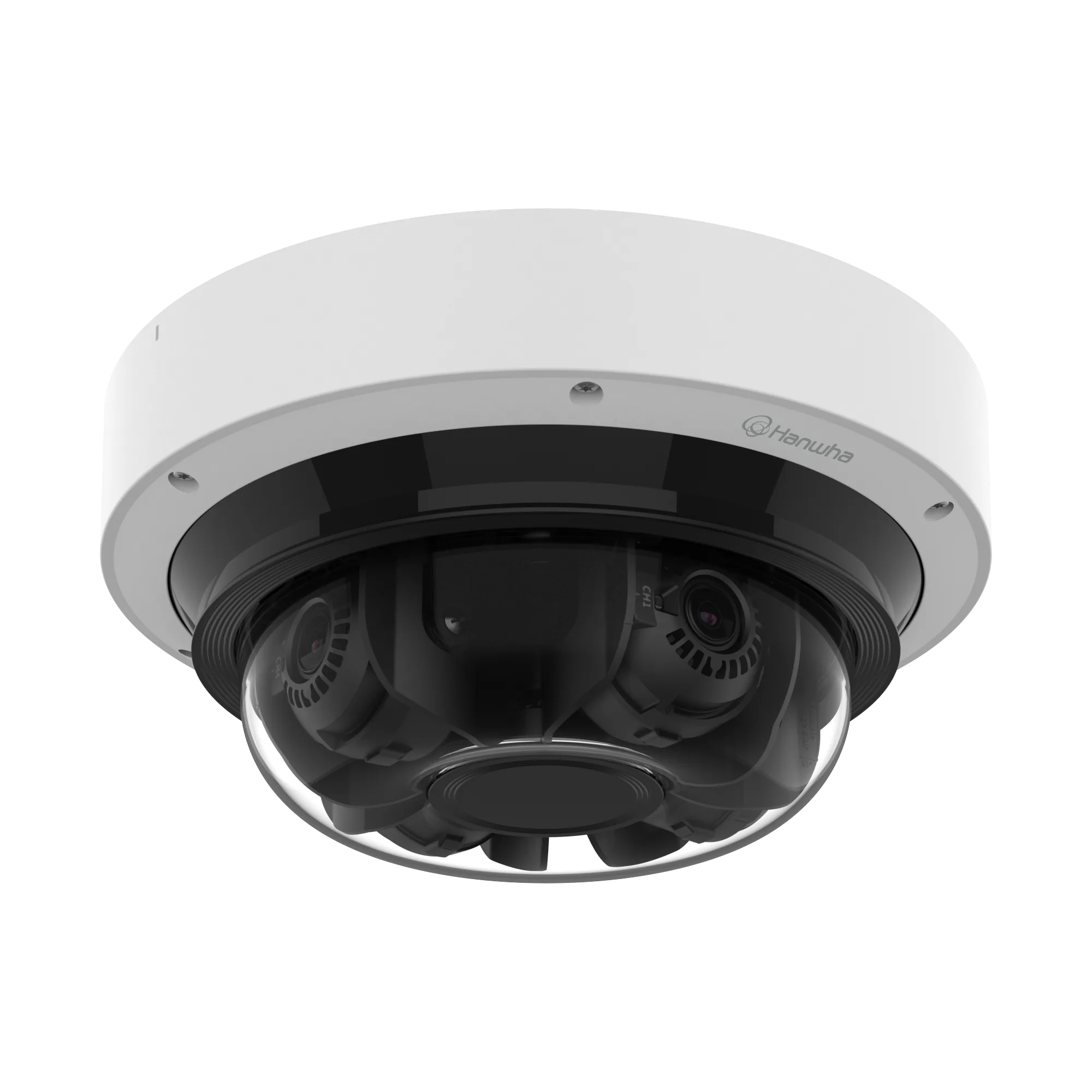

The PNM-C16083RVQ is a multi-directional outdoor camera with AI and IR that combines four 4MP channels for 16MP in total. Its 1/2.8-inch CMOS sensors reach 2592x1520 pixels, with H.265 and H.264 at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps, limited to 5fps at 4MP. The lenses cover 3.3 to 5.7 mm at 1.7x optical zoom, open to F1.5 wide and F1.9 tele and capture 100° to 53° horizontally and 125° to 61° diagonally. Low-light ratings are 0.075 lux in colour and 0.0075 lux in black and white, with automatic ICR day and night switching. Focusing is by simple focus from 1.3 m with a fixed iris, while the channels pan 0° to 360°, tilt 0° to 65° and rotate 0° to 90°. Four 4MP channels, 16MP totalMax. 2592x1520 at 30fps/25fps3.3-5.7 mm lens, 1.7x optical0.075 lux colour / 0.0075 lux BWFixed iris, simple focus from 1.3 mAutomatic day and night (ICR)

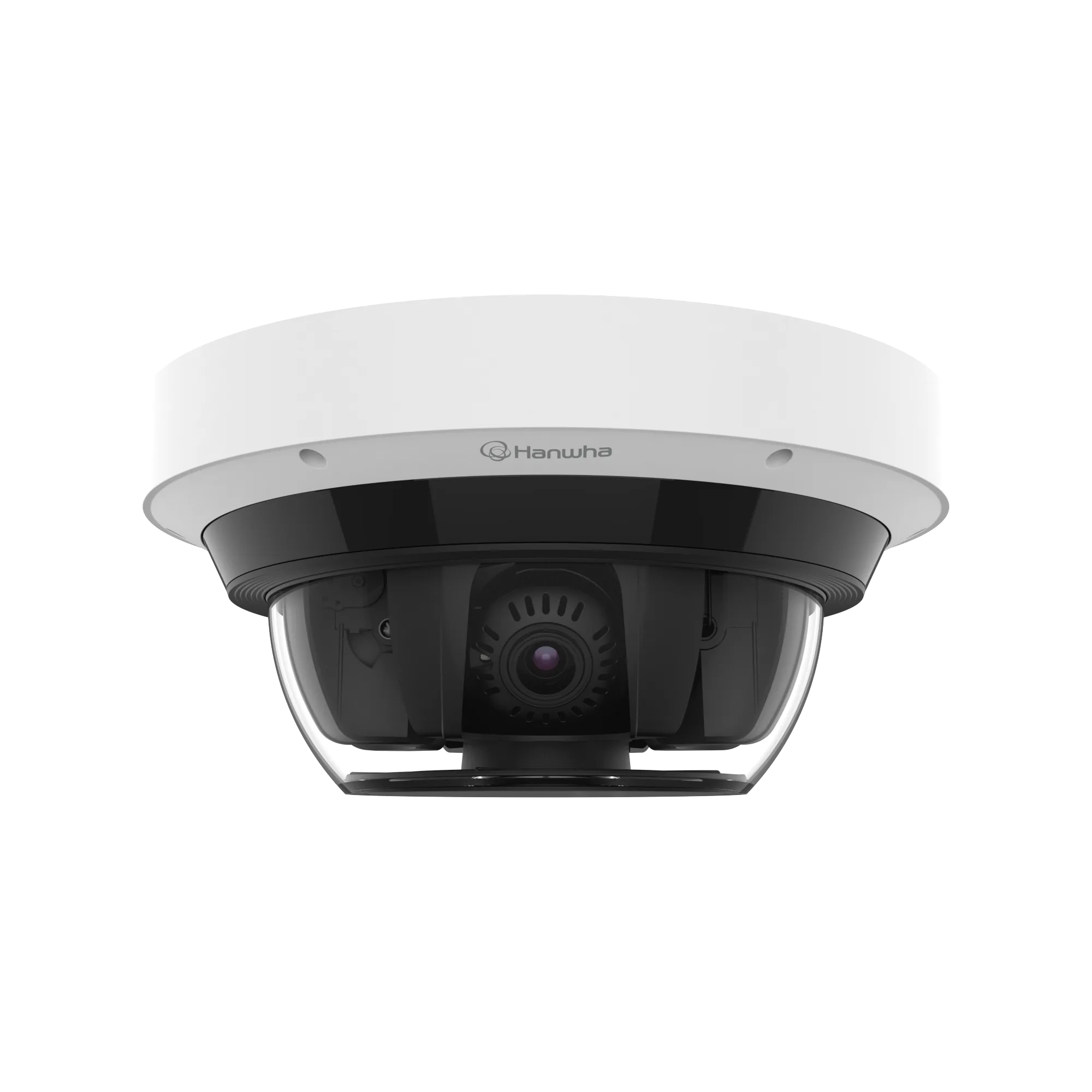

The PNM-C16083RQZ is a multi-directional camera with four 4MP channels on 1/2.8-inch CMOS sensors. Top resolution is 2592x1520 pixels, with H.265 and H.264 at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps, falling to a maximum of 5fps at 4MP. The varifocal lenses run from 3.2 to 10.2 mm with 3.2x optical zoom, open to F1.6 wide and F3.1 tele and capture 93° to 29° horizontally, using a P iris and simple focus from 1.2 m. Minimum illumination is given as 0.1 lux in colour and 0.01 lux in black and white, with automatic ICR switching. Channels pan 0° to 360°, tilt 30° to 90° and rotate 0° to 90°, and remote adjustment is rated for a maximum of 200 cycles. Four 4MP channelsMax. 2592x1520 at 30fps/25fps3.2-10.2 mm varifocal, 3.2x opticalP iris with simple focus from 1.2 mAutomatic day and night (ICR)Remote adjustment, max. 200 cycles

The PNM-C7083RVD is a multi-directional AI camera with two 2MP channels on 1/2.8-inch CMOS sensors. Peak resolution is 1920x1080 pixels, with H.265 and H.264 at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps. Analytics classify person, face, vehicle and licence plate, separate car, bus, truck, motorcycle and bicycle attributes and apply virtual area and line crossing rules to that classification, alongside defocus, motion, tampering and audio detection with sound classification. The 3 to 6 mm varifocal lenses with 2x zoom open to F2.2 and F3.1, cover 107° to 56° horizontally and focus from 0.5 m, at 0.035 lux in colour and 0.0035 lux in black and white with 25 m of 360 degree IR reach. WiseNR II, auto prefer shutter control, WiseStream III, extremeWDR at 150 dB, a micro SD slot for up to 512GB and per-channel flip, mirror and hallway view are also provided. Two 2MP channelsAI classification of person, face, vehicle, plate3-6 mm varifocal, 2x optical25 m 360 degree IR reachextremeWDR 150 dB, WiseStream IIIMicro SD slot up to 512GB

The PNM-7082RVD combines two 2MP channels on 1/2.8-inch CMOS sensors in one multi-directional housing. Peak resolution is 1920x1080 pixels, with H.265 and H.264 at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps. Each channel carries a motorised 3 to 6 mm varifocal lens with 2x optical zoom, F2.2 wide and F3.1 tele, covering 107° to 56° horizontally. Sensitivity is quoted at 0.035 lux in colour and 0.0035 lux in black and white, reaching 0 lux with the IR LED active and an IR viewable length of 25 m. WiseNR, WiseStream II, extremeWDR at 150 dB, TPM 2.0 to FIPS 140-2 and IP66, IK10 and NEMA4X are part of the specification; pan runs 0° to 355°, tilt 0° to 78° and rotation 0° to 180°. Two 2MP channelsMax. 1920x1080 at 30fps/25fps3-6 mm varifocal, 2x optical0.035 lux colour / 0.0035 lux BWextremeWDR 150 dB, WiseStream IIIP66, IK10, NEMA4X

The PNM-C32083RVQ is a multi-directional outdoor camera with AI and IR that brings together four 4K channels for 32MP in total. Working from 1/2.8-inch CMOS sensors it reaches 3840x2160 pixels at 15fps in H.265, H.264 and MJPEG; MJPEG is capped at 5fps at 8MP, and up to 20fps is possible with AI switched off. The lenses span 3.3 to 5.7 mm at 1.7x optical zoom, open to F1.5 wide and F1.9 tele and capture 109° to 56° horizontally and 136° to 65° diagonally. Sensitivity is quoted at 0.1 lux in colour and 0.01 lux in black and white, with simple focus from 1.3 m and a fixed iris. Mechanical ranges are 0° to 360° pan, 0° to 65° tilt and 0° to 90° rotation. Four 4K channels, 32MP totalMax. 3840x2160 at 15fpsUp to 20fps with AI switched off3.3-5.7 mm lens, 1.7x optical0.1 lux colour / 0.01 lux BWFixed iris, simple focus from 1.3 m

The PNM-C32083RQZ combines four 8MP channels on 1/1.8-inch CMOS sensors. Maximum resolution is 3840x2160 pixels at 15fps in H.265, H.264 and MJPEG; MJPEG falls to a maximum of 5fps at 8MP, and up to 20fps is available with AI switched off. The varifocal lenses span 4.38 to 9.33 mm with 2.1x optical zoom, open to F1.3 wide and F2.15 tele and cover 113° to 47° horizontally and 138° to 54° diagonally. Minimum illumination is stated as 0.07 lux in colour and 0.007 lux in black and white, with a P iris and simple focus from 1.3 m. Channels pan 0° to 360°, tilt 30° to 90° and rotate 0° to 90°, and remote adjustment is rated for a maximum of 200 cycles. Four 8MP channelsMax. 3840x2160 at 15fpsUp to 20fps with AI switched off4.38-9.33 mm varifocal, 2.1x optical0.07 lux colour / 0.007 lux BWRemote adjustment, max. 200 cycles

The PNM-8082VT brings together three 2MP channels in one multi-directional H.265 camera. Every channel uses a 1/2.8-inch CMOS sensor with a maximum of 1920x1080 pixels and reaches 30fps/25fps (60Hz/50Hz) in H.265 and H.264 plus 30fps in MJPEG, with multiple streaming available. The motorised 3.0 to 6.0 mm varifocal lenses with 2x zoom open to F2.2 and F3.1 respectively and span 107° to 56° horizontally. Low-light performance is stated as 0.04 lux in colour and 0.004 lux in black and white, with automatic ICR switching. Video analytics, WiseStream II and IP66, IK10 and NEMA4X ratings are included, while a CVBS output assists during installation. Three 2MP channelsMax. 1920x1080 at 30fps3.0-6.0 mm varifocal, 2x opticalVideo analytics and WiseStream IIIP66, IK10, NEMA4XCVBS output for installation

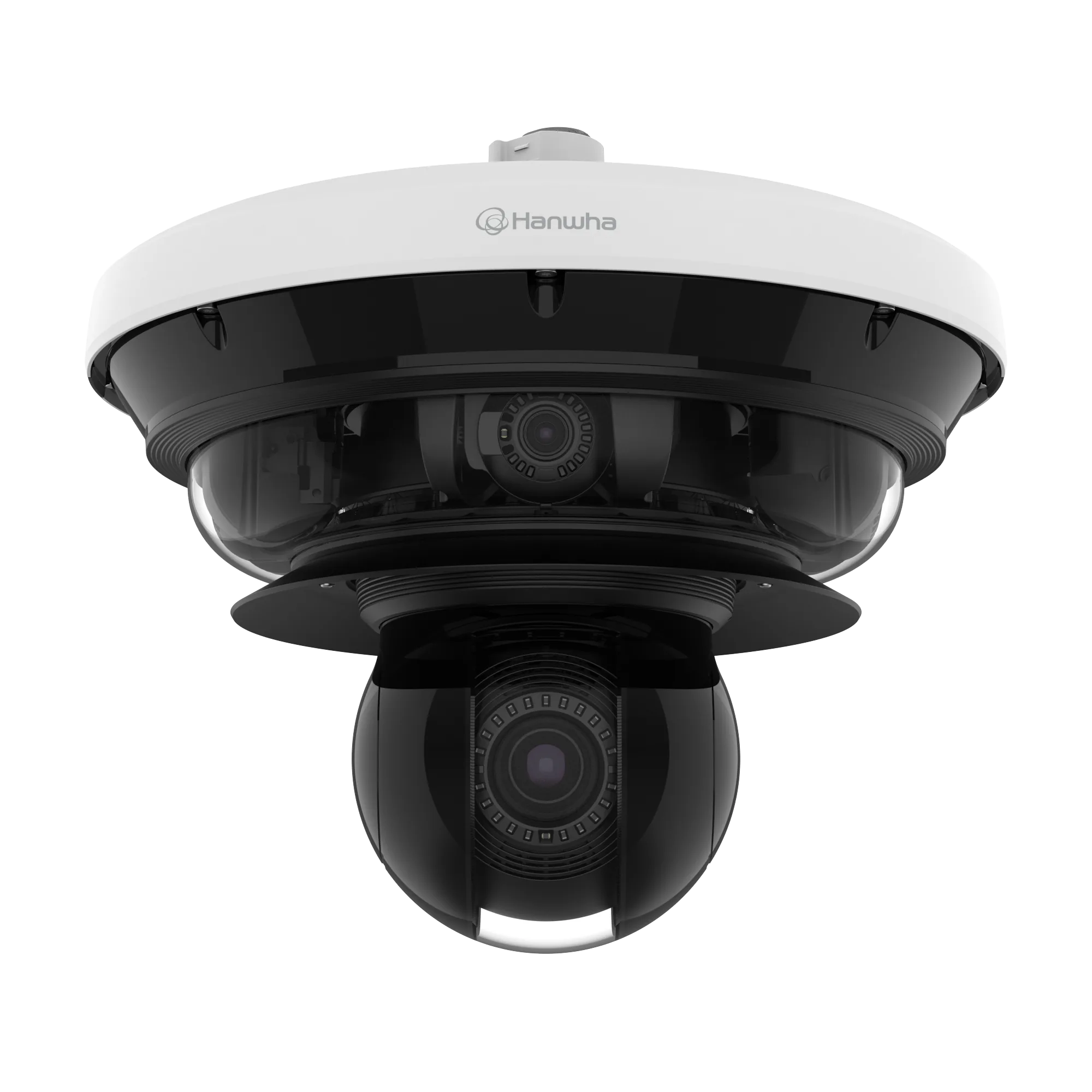

The PNM-C34404RQPZ links four 4K PTRZ channels with a 2MP PTZ channel offering 40x zoom, all built on 1/2.8-inch CMOS sensors. Image processing includes automatic ICR day and night switching, WiseNR II based on the AI engine, SSNR V and eight motion zones drawn as 8-point polygons. The electronic shutter covers 2 to 1/12,000 sec with minimum, maximum, anti flicker and an AI-based prefer shutter control mode, while IR illumination uses 850nm LEDs. Alarm input and output plus audio can be added through the optional I/O box, with triggers such as analytics, network disconnect, alarm input, app event, time schedule and MQTT subscription. Networking offers metal-shielded RJ-45 at 10/100/1000BASE-T, WiseStream III, CBR or VBR bitrate control, ONVIF S, G, T and M, SUNAPI as HTTP API, the Hanwha Vision Open Platform and direct cloud connection. Encrypted firmware, secure boot and signed firmware protect the device. Four 4K PTRZ channels plus 40x 2MP PTZ850nm IR LEDsWiseNR II and SSNR VShutter 2 to 1/12,000 secONVIF S, G, T and M, SUNAPISecure boot and signed firmware

Wisenet P series network vandal outdoor mini Multi-Directional camera 4CH x 4MP @ 15FPS, Fix Lens 3.19mm (FoV H: 97°, V: 54°), triple codec H.265/H.264/MJPEG, 120dB WDR; IR viewable length 20m (65.6ft), USB port for easy installation, Analytics events based on AI engine: Object detection (Person/Vehicle (car/truck/bus/bicycle/bike)), IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Appear/Disappear, WiseNR Ⅱ(using AI engine), WiseStreamⅢ(Based on AI engine), I/O Box compatibility; TPM with FIPS 140-2 level2, IP66, IK10, NEMA4X, PoE+, Ø: 200mm, H: 80mm, (HPoE Injector is not included)

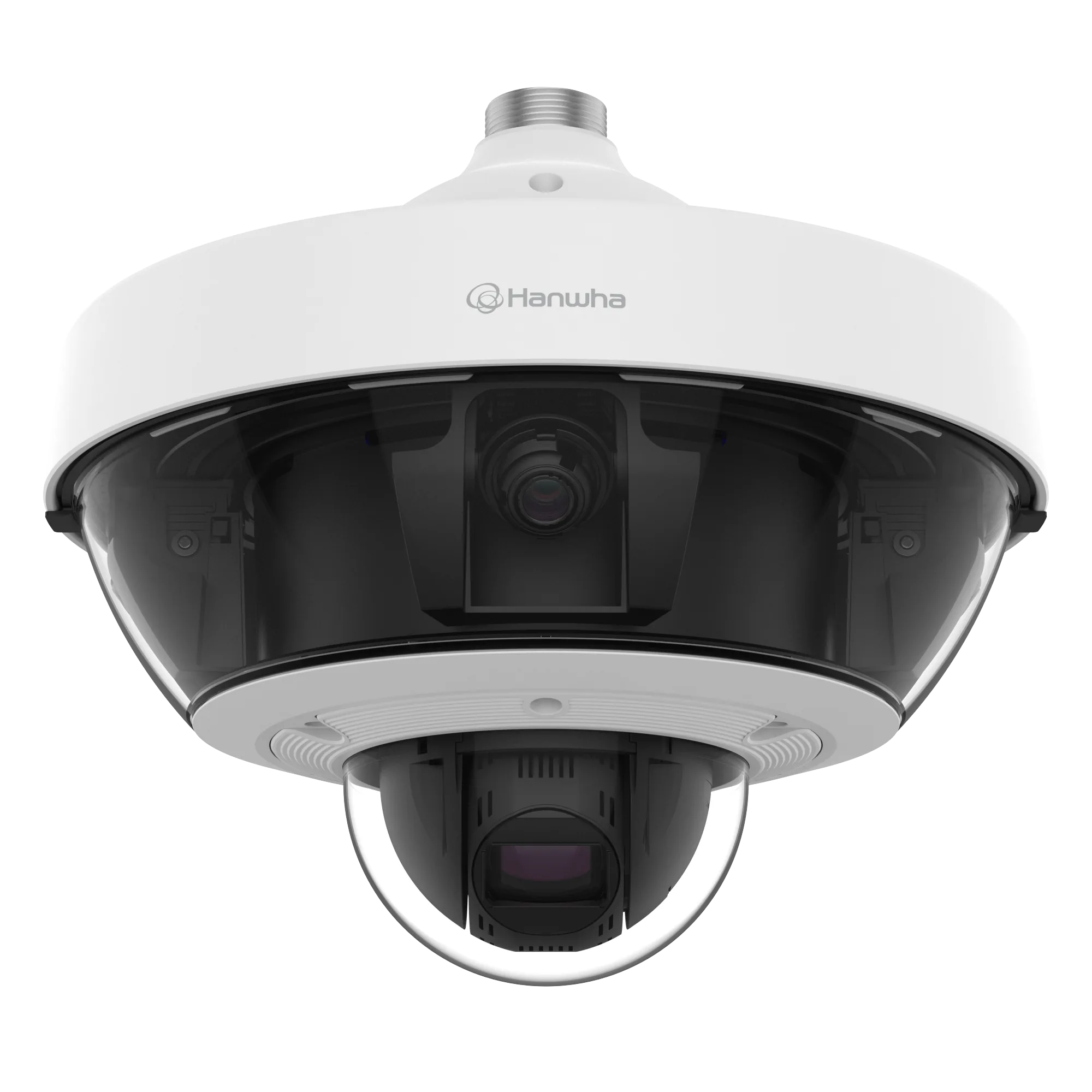

The PNM-9322VQP pairs four exchangeable 2MP or 5MP lens modules with a PTZ channel to form a five-channel camera. Depending on the module combination, total resolution runs from 10MP to 22MP, at a maximum of 60fps with 2MP and 30fps with 5MP in H.265 and H.264. Fixed lenses of 2.4 mm, 2.8 mm, 3.6 mm, 6 mm and 12 mm are available for the 2MP modules and 3.7 mm, 4.6 mm and 7 mm for the 5MP modules, while the PTZ channel uses a 4.44 to 142.6 mm lens with 32x optical zoom and ICR day and night switching. Image processing adds 150 dB WDR with 2MP and 120 dB with 5MP, plus BLC, HLC, SSDR, SSNR V, digital image stabilisation and defog, with H.265, H.264 and MJPEG encoding and WiseStream II. Networking covers metal-shielded RJ-45 at 10/100BASE-T and ONVIF profiles S and T, together with one alarm input and output, a selectable audio input and a line output. The housing is rated IP66 and IK10 and offers five SD, SDHC and SDXC card slots. Four exchangeable 2MP or 5MP modules10MP to 22MP total resolutionPTZ lens 4.44-142.6 mm, 32x optical150 dB WDR at 2MP, 120 dB at 5MPFive SD/SDHC/SDXC card slotsIP66, IK10, ONVIF S and T

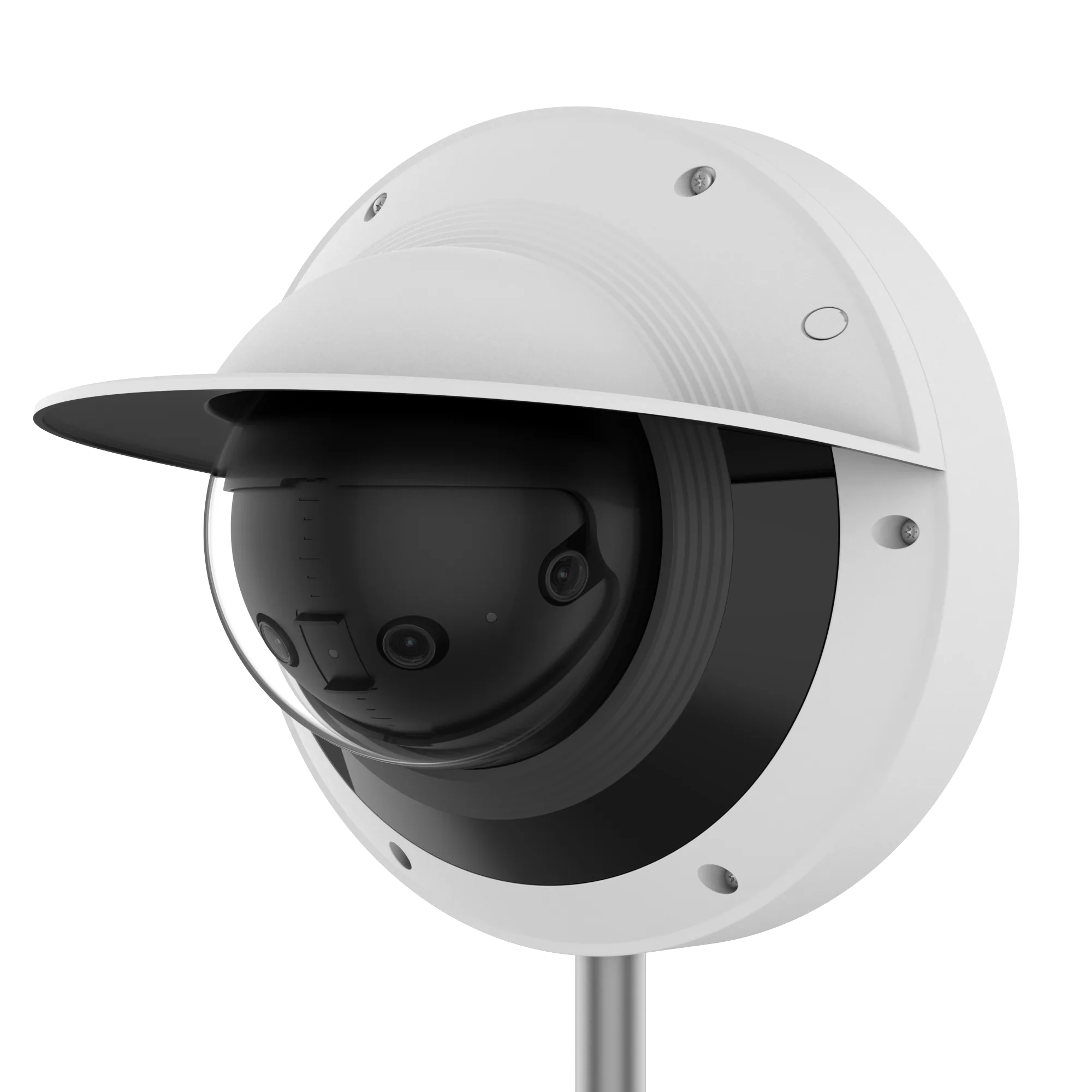

The PNM-C9022RV stitches several 1/2.8-inch CMOS sensors into a panoramic image of up to 8MP at 5120x1568 pixels. H.265, H.264 and MJPEG each run at 20fps, and IR illumination with WiseIR reaches a maximum of 20 m. The fixed 2.8 mm lens at F2.0 captures 209° horizontally and 60° vertically, using a fixed iris and a 5 m minimum object distance. Sensitivity is quoted at 0.1 lux in colour and 0.01 lux in black and white, supported by ICR day and night switching, BLC, SSDR and extremeWDR at 120 dB. The AI engine classifies people and vehicles and underpins WiseNR II and WiseStream III, with SSNR V alongside. The dome bubble is hard-coated, and the camera pans 0° to 360° and tilts 0° to 65°. Panoramic image up to 5120x156820fps in H.265, H.264 and MJPEGFixed 2.8 mm lens, F2.0209° horizontal, 60° vertical viewUp to 20 m IR reach with WiseIRextremeWDR 120 dB, WiseNR II

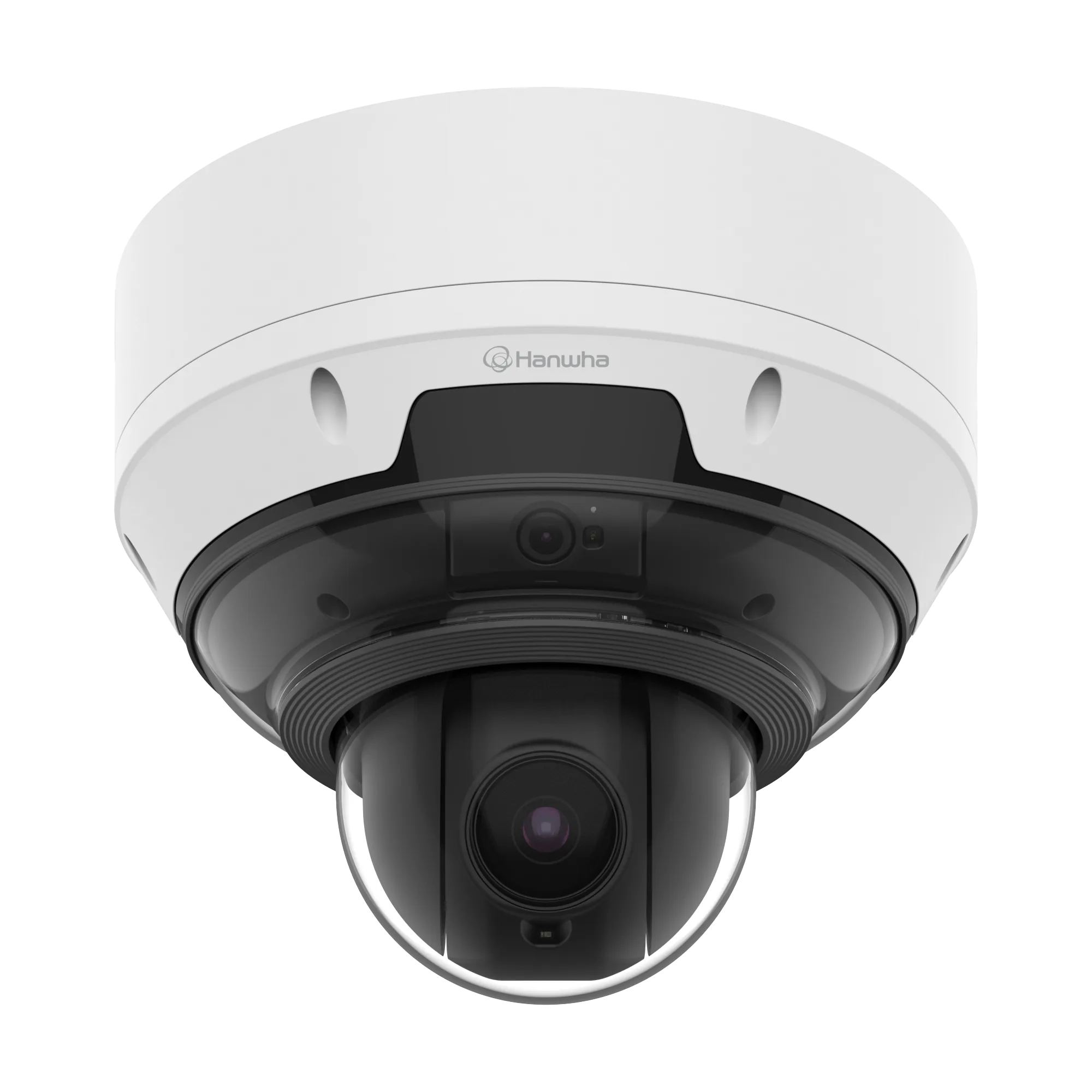

The PNM-C19183RVTP pairs three fixed 5MP channels with a 4MP PTZ channel offering 18x zoom, all on 1/2.8-inch CMOS sensors. AI analytics classify person, face, vehicle and licence plate, while imaging covers 120 dB WDR, WiseNR II based on the AI engine, SSNR V, defog and automatic ICR switching. The electronic shutter works from 1/5 to 1/12,000 sec and offers minimum, maximum, anti flicker and an AI-based prefer shutter control mode, with motion detection across eight 8-point polygonal zones. Alarm input and output as well as audio in and out are available through the optional I/O box, and alarm triggers include analytics, network disconnect, alarm input, app event, time schedule and MQTT subscription. Connectivity uses metal-shielded RJ-45 at 10/100/1000BASE-T with H.265 and H.264 in Main, Baseline and High plus MJPEG at CBR or VBR, supporting ONVIF profiles S, G, T and M, while a USB Type C port serves preview during installation. Three fixed 5MP channels plus 18x 4MP PTZAI classification of person, face, vehicle, plate120 dB WDR, WiseNR II and SSNR VShutter 1/5 to 1/12,000 secAlarm and audio via optional I/O boxONVIF S, G, T and M, gigabit RJ-45

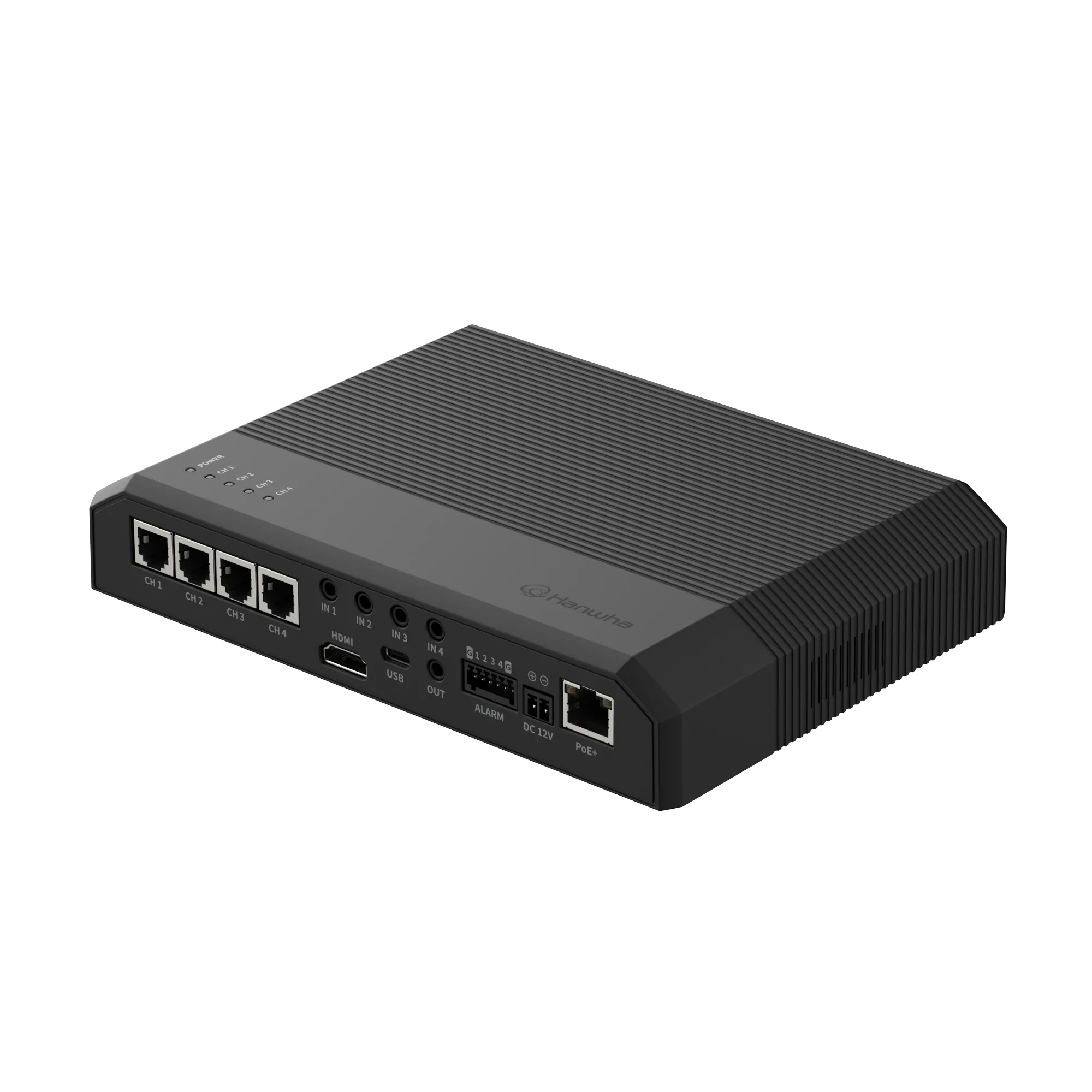

The PNM-C20000QB is an AI remote-head camera for four channels at 5MP or 2MP with a maximum of 2592x1944 pixels. H.265 and H.264 run at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps, while HDMI provides single and quad view for local monitoring alongside four audio inputs and one audio output. Analytics detect person, face, vehicle and licence plate and add virtual line and area rules, enter and exit, loitering, direction and intrusion plus AI-based people and vehicle counting, with a gyro sensor reporting shock. Imaging covers BLC, 120 dB WDR, SSDR, WiseNR II based on the AI engine, SSNR V, digital image stabilisation, defog and LDC, and streaming is available as unicast for 20 users or multicast. The shutter spans 2 to 1/12,000 sec, flip, mirror and hallway view can be set per channel, and 16 four-point privacy masks are supported. Security rests on a secure element certified to FIPS 140-3 Level 3 and CC EAL6+. Four channels at 5MP or 2MPHDMI single and quad viewFour audio inputs, one audio outputAI people and vehicle countingShock detection via gyro sensorSecure element FIPS 140-3 Level 3, CC EAL6+

The TNM-C4940TD combines a VGA thermal sensor and an 8MP visible sensor in one device sharing a single IP address, so both channels are operated together. Its optics pair a 9.1mm fixed thermal lens with a 4.4~9.3mm motorized varifocal visible lens, supported by day and night switching via ICR, 120dB WDR and a maximum IR viewable length of 30m. H.265/H.264 reaches up to 30fps at all resolutions, WiseNR II applies AI-based noise reduction on the visible channel, and smart coding uses WiseStream III for the visible channel and WiseStream II for the thermal channel. Pan covers -170°~+170°, tilt covers -40 ~50°, and up to 255 presets can be stored. Event handling offers eight motion detection zones as 8-point polygons, six rectangular privacy masks in gray, black or white and four configurable I/O ports, while the network side uses metal shielded RJ-45(10/100/1000BASE-T) with unicast for up to six users, multicast and up to three streaming profiles. VGA thermal and 8MP visible sensorDual channel through one device, one IP9.1mm fixed thermal and 4.4~9.3mm motorized varifocal visible lensUp to 30fps at all resolutions (H.265/H.264)Day and night (ICR), 120dB WDR, IR up to 30mWiseNR II noise reduction, WiseStream III and II codecs

The TNM-C4950TD unites a VGA thermal sensor and an 8MP visible sensor in one device that presents both channels under a single IP address. Its optics combine a 13.5mm fixed thermal lens with a 10.9~29mm motorized varifocal visible lens, together with day and night switching via ICR and 120dB WDR. H.265/H.264 delivers up to 30fps at all resolutions, AI-based video analytics and WiseNR II noise reduction run on the visible channel, and smart coding uses WiseStream III for the visible channel and WiseStream II for the thermal channel. Pan spans -170°~+170°, tilt spans -40° ~ 50°, and up to 255 presets can be stored. Event handling provides eight motion detection zones as 8-point polygons, six rectangular privacy masks in gray, black or white and four configurable I/O ports, with network access over metal shielded RJ-45(10/100/1000BASE-T) offering unicast for up to six users, multicast and up to three profiles. VGA thermal and 8MP visible sensorDual channel through one device, one IP13.5mm fixed thermal and 10.9~29mm motorized varifocal visible lensUp to 30fps at all resolutions (H.265/H.264)Day and night (ICR) and 120dB WDRAI video analytics on the visible channel, WiseNR II

The TNM-C4960TD combines a VGA thermal sensor with an 8MP visible sensor and serves both channels from one device under a single IP address. The thermal channel uses a 25mm fixed lens and the visible channel a 10.9~29mm motorized varifocal lens, supported by day and night switching via ICR and 120dB WDR. H.265/H.264 allows up to 30fps at all resolutions, AI-based video analytics and WiseNR II noise reduction address the visible channel, and smart coding relies on WiseStream III for the visible channel and WiseStream II for the thermal channel. Pan covers -170°~+170° and tilt -40°~50°, with up to 255 presets available. Event and privacy tools include eight motion detection zones as 8-point polygons, six rectangular masks in gray, black or white and four configurable I/O ports, connected through metal shielded RJ-45(10/100/1000BASE-T) with unicast for up to six users, multicast and up to three profiles. VGA thermal and 8MP visible sensorDual channel through one device, one IP25mm fixed thermal and 10.9~29mm motorized varifocal visible lensUp to 30fps at all resolutions (H.265/H.264)Day and night (ICR) and 120dB WDRAI video analytics on the visible channel, WiseNR II

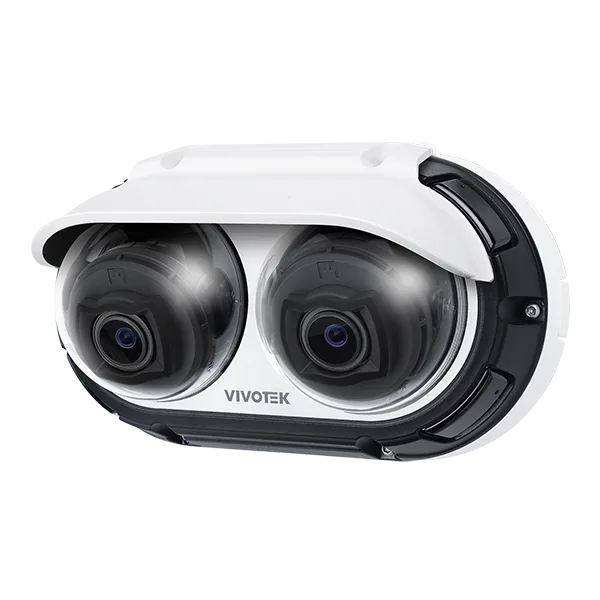

The MA9311-EHTV is a dual-directional panoramic camera with two 5MP channels covering two viewing directions from one housing. Each channel uses a 1/2.8" progressive CMOS at 2560x1920 (5MP) and a motorized vari-focal lens with remote focus at f = 2.8 ~ 12 mm, F1.6 ~ F3.3 and a P-iris, yielding 96.0° ~ 30.0° horizontal, 69.0° ~ 23.0° vertical and 129.0° ~ 38.0° diagonal coverage at 30 fps @ 2560x1920 per channel. Shutter time runs 1/30 sec. to 1/32,000 sec., minimum illumination is 0.05 lux @ F1.6 in colour, 0.005 lux @ F1.6 in black and white and 0 lux with IR illumination on, and built-in IR illuminators with Smart IR (IR LED*4) work up to 20 meters alongside WDR Pro and a removable IR-cut filter. Each lens pans 350°, tilts 80° and rotates 350°, while remote focus, remote zoom, a pixel calculator and a micro USB port (requires a Wi-Fi dongle and Micro B converter) assist commissioning, with ePTZ adding 48x digital zoom. Smart Motion Detection and Smart VCA run on a multimedia SoC with 8 GB flash and 4 GB RAM, recording goes to MicroSD/SDHC/SDXC up to 1TB or to network-attached storage, the enclosure is rated IP66/67, IK10 and NEMA 4X, and firmware is signed with secure boot and TPM 2.0. 2 channels at 5MP each, 2560x192030 fps @ 2560x1920 per channelMotorized vari-focal f = 2.8 ~ 12 mm, P-irisIR illumination up to 20 meters with Smart IRIP66/67, IK10 and NEMA 4X protectionSigned firmware, secure boot, TPM 2.0

MA9312-EHTV is a dual-directional panoramic AI camera with two 4K channels, each delivering 3840x2160 (8MP) at 30 fps from a 1/1.8" progressive CMOS sensor. Both motorised vari-focal remote-focus lenses cover f = 4.3 ~ 9.8 mm at F1.6 ~ F2.6 with P-iris, giving 110.4° ~ 45.1° horizontally, 57.9° ~ 25.4° vertically and 133.9° ~ 51.8° diagonally, and each lens can be set within 350° pan, 80° tilt and 350° rotation. WDR Pro, day/night switching, a removable IR-cut filter, shutter times from 1/30 sec. to 1/32,000 sec. and four built-in IR LEDs effective up to 20 meters with Smart IR support low light down to 0.02 lux at F1.6 in colour, 0.005 lux in black and white and 0 lux with IR on. The multimedia SoC with 8 GB flash and 4 GB RAM drives AI-powered Smart Motion Detection and Smart VCA, and protection is rated IP66/67, IK10 and NEMA 4X with signed firmware, secure boot and TPM. Recording runs seamlessly to MicroSD/SDHC/SDXC cards up to 1TB or to network-attached storage, and installation is assisted by remote focus, remote zoom, a pixel calculator and Micro USB. Two 4K channels, 3840x2160 (8MP) at 30 fps eachMotorised vari-focal f = 4.3 ~ 9.8 mm, F1.6 ~ F2.6, P-irisBuilt-in IR illuminators up to 20 meters with Smart IRIP66/67, IK10 and NEMA 4X rated protectionAI-powered Smart Motion Detection and Smart VCASigned firmware, secure boot and TPM

The MA9322-EHTV-V2 groups four 5MP camera modules in one multi-directional panoramic housing. Each channel uses a 1/2.8" progressive CMOS at 2560x1920 (5MP) with a motorized vari-focal remote focus lens at f = 3.2 ~ 7.7 mm, F1.85 ~ F2.4 and a fixed iris, giving 94.0° ~ 43.0° horizontal, 67.0° ~ 33.0° vertical and 129.0° ~ 54.0° diagonal coverage at 30 fps @ 2560x1920 per channel. Shutter times from 1/30 sec. to 1/32,000 sec., WDR Pro, a removable IR-cut filter and IR illuminators with Smart IR (IR LED*8) up to 30 meters handle changing light, with minimum illumination at 0.07 lux @ F1.85 in colour, 0.005 lux @ F1.85 in black and white and 0 lux with IR illumination on. Every lens tilts 0° ~ 105° and rotates ±90°, while remote focus, remote zoom, a pixel calculator and a micro USB port (requires a Wi-Fi dongle and Micro B converter) support installation and ePTZ contributes 48x digital zoom. Compression covers H.265, H.264 and MJPEG, Smart Motion Detection and Smart VCA run on a multimedia SoC with 8 GB flash and 4 GB RAM, and recording goes to MicroSD/SDHC/SDXC up to 1TB or to network-attached storage. The enclosure is rated IP66, IK10 and NEMA 4X, and firmware is signed with secure boot and TPM 2.0. 4 channels at 5MP each, 2560x192030 fps @ 2560x1920 per channelMotorized vari-focal f = 3.2 ~ 7.7 mmIR illumination up to 30 meters, IR LED*8IP66, IK10 and NEMA 4X protectionSigned firmware, secure boot, TPM 2.0

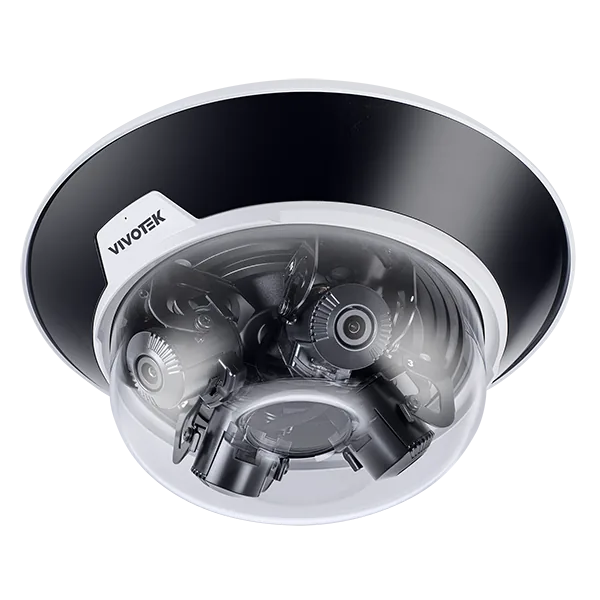

The MA9322-EHTVL combines four imaging channels into a multi-directional panoramic camera: each 1/2.7" progressive CMOS sensor delivers 2688x1920 pixels (5MP), 20MP in total. The motorized vari-focal lenses with remote focus run f = 3.7 ~ 7.7 mm at F1.9 ~ F2.9 with fixed iris and cover 88.6° ~ 40.1° horizontally, 61.2° ~ 28.6° vertically and 115.5° ~ 49.5° diagonally, each lens tilting 0° ~ 105° and rotating ±90°. Eight IR LEDs illuminate up to 30 meters with Smart IR, with minimum illumination of 0.035 lux @ F1.9 (Color), 0.005 lux @ F1.9 (B/W) and 0 lux with IR illumination on. The housing is weather-proof to IP66 and vandal-proof to IK10/NEMA 4X, a microphone is built in, and Supreme Night Visibility together with WDR Pro assists in difficult lighting. Video is encoded in H.265, H.264 and MJPEG at shutter times from 1/5 sec. to 1/32,000 sec. and stored on MicroSD/SDHC/SDXC cards up to 1TB or on network-attached storage. 4 x 2688x1920 (5MP), 20MP totalMotorized vari-focal f = 3.7 ~ 7.7 mm, F1.9 ~ F2.9IR illuminators up to 30 meters with Smart IRIP66 and IK10/NEMA 4X protection0° ~ 105° tilt per lensBuilt-in microphone
