The SLA-T1080FA is a 2MP lens module built around a 1/2.8-inch CMOS sensor. Its fixed 1.6 mm lens at F1.6 produces a very wide view of 187° horizontally and 113.9° vertically, with minimum illumination of 0.03 lux in colour and black-and-white. Focus is fixed and the module is connected to the main unit over RJ12. The black metal body measures Ø35 x 68.9 mm and weighs 430 g. Supported products are the XNB-6002, PNM-9000QB, PNM-C20000QB and XNB-A8004B, and the stated lens module cable is the SCL-150 at 15 m. Fixed 1.6 mm focal length, F1.6187° horizontal, 113.9° vertical field of view1/2.8-inch CMOS, 0.03 luxMetal body Ø35 x 68.9 mm, 430 gRJ12 connection to the main unitSCL-150 lens module cable (15 m)

1/1.8" CS mount 9.0-50.0mm F1.5-360C Aspherical 12 Megapixel Varifocal "with P-Iris connector" Drive IR Corrected with 31cm Lens Lead

The PNM-C12083RVD is a multi-directional AI camera with two 6MP channels on 1/2.8-inch CMOS sensors. Maximum resolution is 3328x1872 pixels and H.265, H.264 and MJPEG each run at 15fps. Analytics classify objects such as person, face, vehicle and licence plate and distinguish attributes including car, bus, truck, motorcycle and bicycle, with virtual area and line crossing rules drawing on the same classification. Defocus, motion, tampering and audio detection plus sound classification are also provided. The 3.54 to 6.69 mm lenses with 1.9x optical zoom open to F1.67 and F2.64 and span 96° to 47° horizontally, at 0.16 lux in colour and 0.016 lux in black and white with 25 m of 360 degree IR reach. WiseNR II, auto prefer shutter control, WiseStream III, extremeWDR at 120 dB and a micro SD slot for up to 512GB round out the specification. Two 6MP channelsAI classification of person, face, vehicle, plate3.54-6.69 mm varifocal, 1.9x optical25 m 360 degree IR reachextremeWDR 120 dB, WiseStream IIIMicro SD slot up to 512GB

The PNM-12082RVD is a multi-directional camera carrying two 6MP channels on 1/2.8-inch CMOS sensors. Maximum resolution is 3328x1872 pixels, and H.265, H.264 and MJPEG each run at 15fps. Both channels use a motorised varifocal lens from 3.54 to 6.69 mm (1.9x optical) with F1.67 wide and F2.64 tele, giving a horizontal angle of view between 96° and 47°. Rated sensitivity is 0.16 lux in colour and 0.016 lux in black and white, dropping to 0 lux with the IR LED on, and IR reach is stated as 25 m depending on the scene. WiseNR, WiseStream II, extremeWDR at 120 dB, TPM 2.0 to FIPS 140-2 and IP66, IK10 and NEMA4X ratings are included. Each channel pans 0° to 355°, tilts 0° to 78° and rotates 0° to 180°. Two 6MP channelsMax. 3328x1872 at 15fps3.54-6.69 mm varifocal, 1.9x25 m IR viewable lengthextremeWDR 120 dB, WiseNRIP66, IK10, NEMA4X

The XNF-9013RV pairs a 1/2.3" CMOS imager with a 1.08 mm fixed lens covering 187° horizontally, vertically and diagonally. Recording tops out at 3584x2688, with 30fps/25fps (60Hz/50Hz) for H.265 and H.264 and 30fps for MJPEG, dropping to a maximum of 5fps at 9MP. Alongside the original view, single panorama, double panorama and quad view can be called up, dewarped on board and cropped through digital PTZ. Processing draws on extreme WDR at 120 dB, BLC, HLC, SSDR plus WiseNR II based on the AI engine and SSNR V, while WiseStream III is likewise AI driven. Wise IR illumination reaches 8 m and minimum illumination is 0.39 lux in colour and 0.039 lux in black and white. Virtual channels are supported, the lens can be rotated, and motion detection uses 8 polygonal zones of 8 points each. Up to 3584x26881.08 mm fixed lens, 187° field of viewExtreme WDR 120 dBWiseNR II and WiseStream III, AI basedWise IR, 8 m rangeVirtual channel support

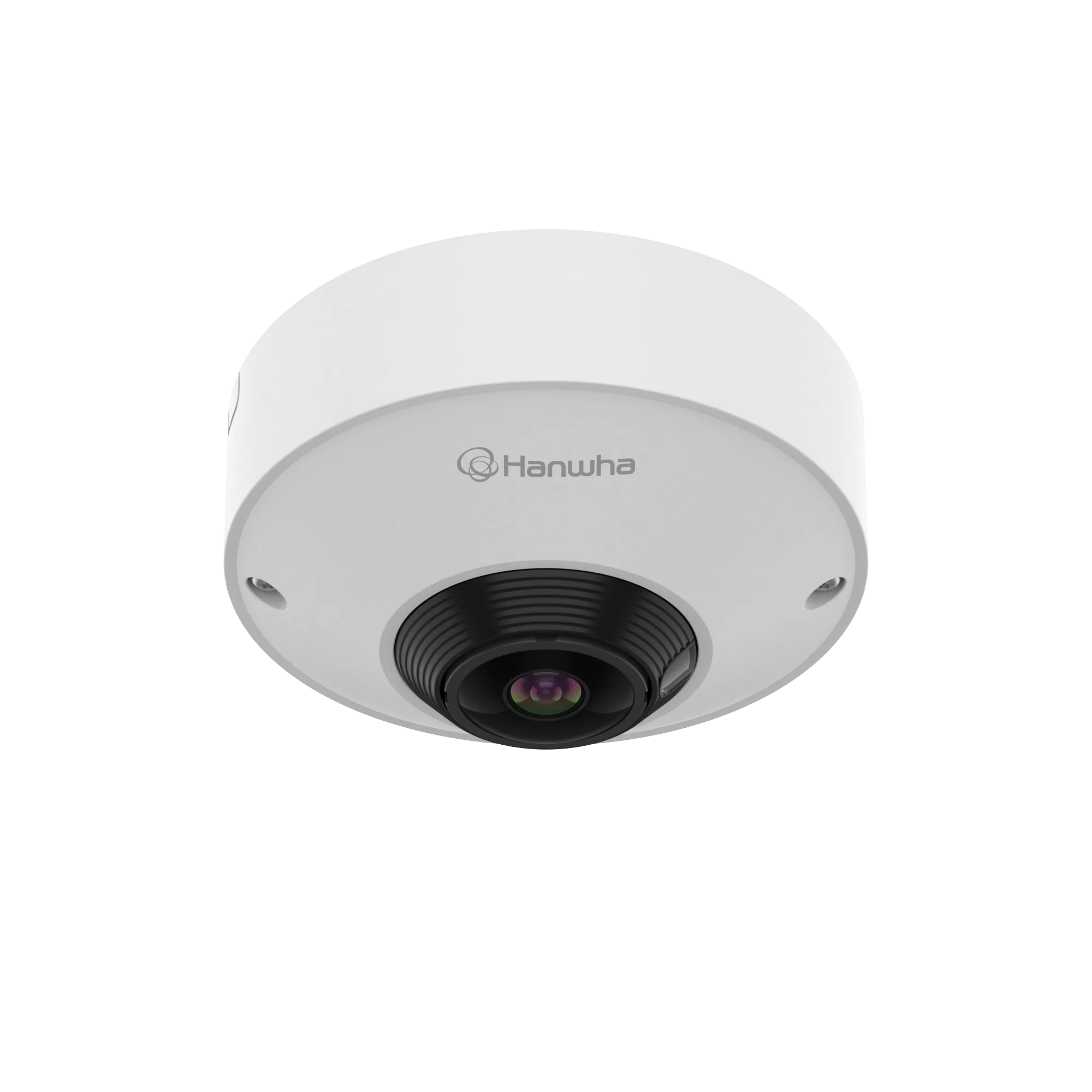

The QNF-C9010 is an AI fisheye camera built on a 1/1.6-inch 12MP CMOS sensor with a fixed stereographic lens of 1.76 mm at F1.8. Its field of view measures 185° horizontally, vertically and diagonally, the minimum object distance is 0.5 m, and digital rotation is available. The original view runs at up to 20fps at 3008x3008, double panorama at 20fps at 3584x1792, single panorama at 20fps at 3584x896, quad view at 20fps at 3584x2688 and quadrants Q1 to Q4 in 4:3 at 20fps at 1792x1344, while MJPEG runs at 5fps. Colour capture starts at 0.02 lux (F1.8, 1/30sec) and black and white at 0.001 lux, supported by ICR day/night switching, 120 dB WDR, BLC, SSDR plus WiseNR Ⅱ and SSNR Ⅴ. Analytics on the AI engine cover object detection for people and vehicles, colour attribute and BestShot, motion detection, virtual line crossing and direction, and virtual areas for loitering, intrusion, enter and exit, with H.265, H.264, MJPEG and WiseStream Ⅲ encoding. 1/1.6-inch 12MP CMOS sensor1.76 mm fixed lens, F1.8, 185° field of viewDigital rotation, 32 privacy masks120 dB WDR, WiseNR Ⅱ, ICR day/nightAI object detection for person and vehicle, colour attribute, BestShot

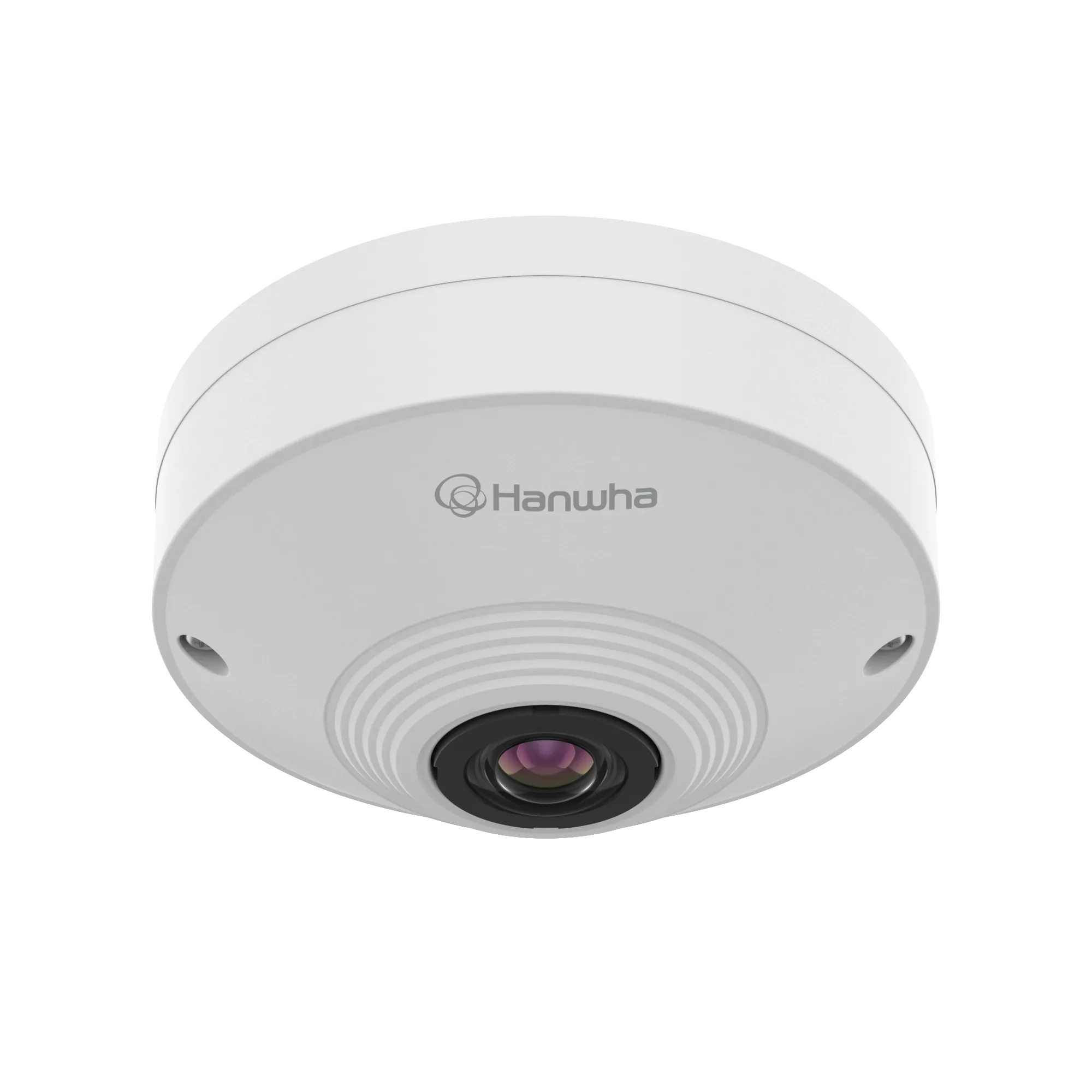

As a 12MP fisheye network camera, the QNF-9010 captures up to 3008 x 3008 pixels on a 1/2.3-inch CMOS sensor and reaches a maximum of 30fps at 9MP. Its 1.08 mm lens at F2.2 provides 187° horizontally, vertically and diagonally with a minimum object distance of 0.5 m. Available views are original fisheye, single panorama, double panorama and quad view, together with digital PTZ, and encoding uses H.265, H.264 and MJPEG with WiseStream Ⅱ. H.265 and H.264 run at 30fps/25fps (60Hz/50Hz) and MJPEG at 5fps, with minimum colour illumination of 0.39 lux. Electrical day/night switching, BLC, 120 dB WDR, SSDR, SSNR Ⅴ and three-step gain complement four polygonal motion zones and six rectangular privacy zones. Power comes over PoE and the Micro SD/SDHC/SDXC slot holds 256 GB. Resolution up to 3008 x 3008, max. 30fps at 9MP1.08 mm fisheye lens, F2.2, 187° field of viewOriginal fisheye, single and double panorama, quad viewDigital PTZ, 120 dB WDR, WiseStream ⅡMicro SD/SDHC/SDXC slot, 256 GB, PoE

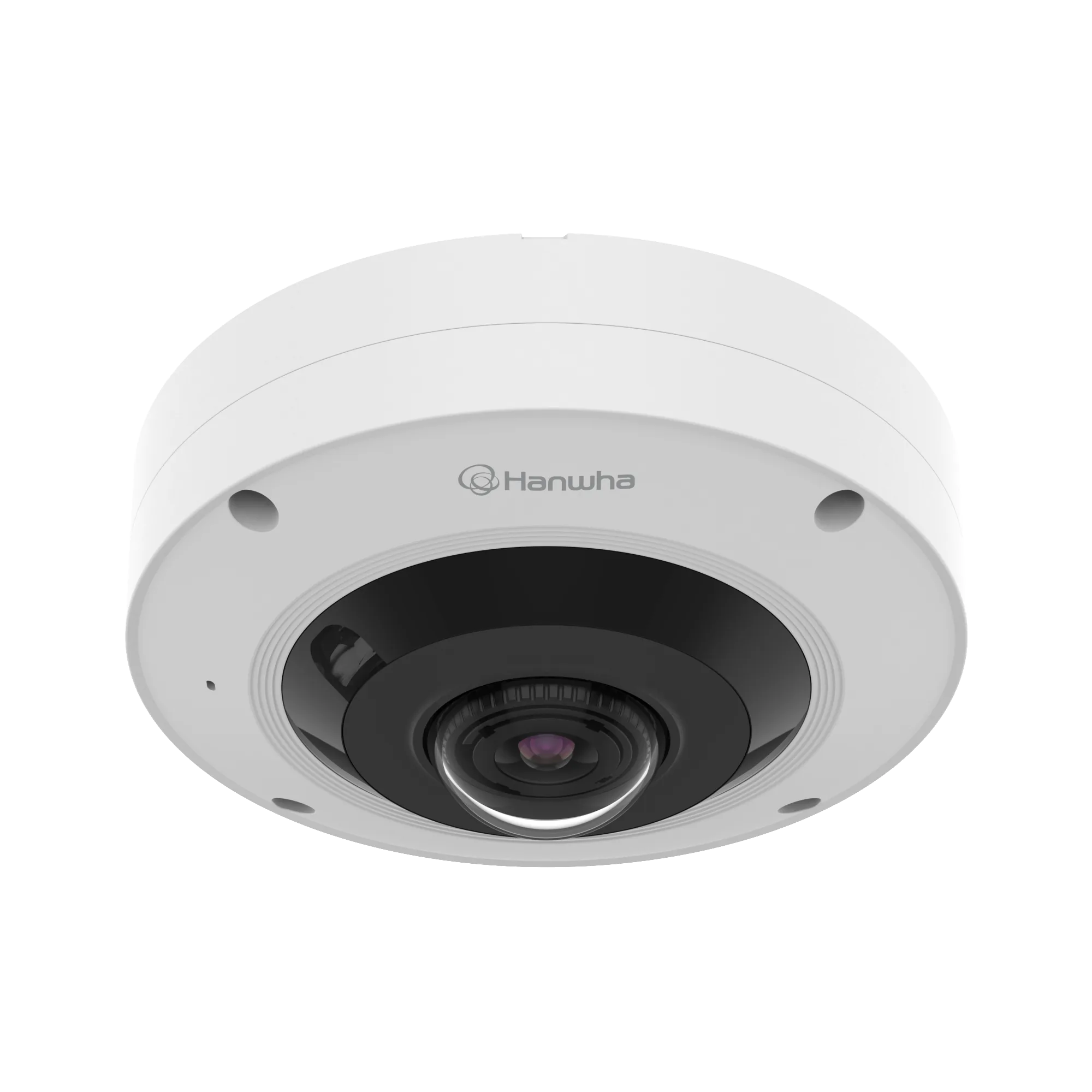

The XNF-9010RV is an IR fisheye camera with a 1/2.3" CMOS imager and a stereographic 1.08 mm fixed lens that raises resolution towards the periphery and covers 187° horizontally, vertically and diagonally. Peak resolution is 3584x2688, with H.265 and H.264 at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps, capped at 5fps for 9MP. Fisheye, single panorama, double panorama and quad view are dewarped on board and can be cropped by digital PTZ. Extreme WDR at 120 dB, BLC, HLC, SSDR and SSNR V condition the image, ICR handles the day and night change automatically, and Wise IR illumination reaches 10 m. Minimum illumination is given as 0.39 lux in colour and 0.039 lux in black and white, with object distance starting at 0.5 m. Motion detection offers 8 polygonal zones of 8 points each and privacy masking covers 32 areas. Up to 3584x26881.08 mm stereographic fixed lens187° field of view horizontal, vertical, diagonalExtreme WDR 120 dBWise IR, 10 m rangeOn-board dewarping, digital PTZ

Fitted with an M12 connector, the XNF-9010RVM works with a 1/2.3" CMOS imager and a stereographic 1.08 mm fixed lens that raises resolution towards the periphery and covers 187° horizontally, vertically and diagonally. Peak resolution is 3584x2688, with H.265 and H.264 at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps, capped at 5fps for 9MP. Fisheye, single panorama, double panorama and quad view are dewarped on board and can be cropped by digital PTZ. Extreme WDR at 120 dB, BLC, HLC, SSDR and SSNR V condition the image, ICR handles the day and night change automatically, and Wise IR illumination reaches 10 m. Minimum illumination is given as 0.39 lux in colour and 0.039 lux in black and white, with object distance starting at 0.5 m. Motion detection offers 8 polygonal zones of 8 points each and privacy masking covers 32 areas. M12 connectorUp to 3584x26881.08 mm stereographic fixed lens187° field of view horizontal, vertical, diagonalExtreme WDR 120 dBWise IR, 10 m range

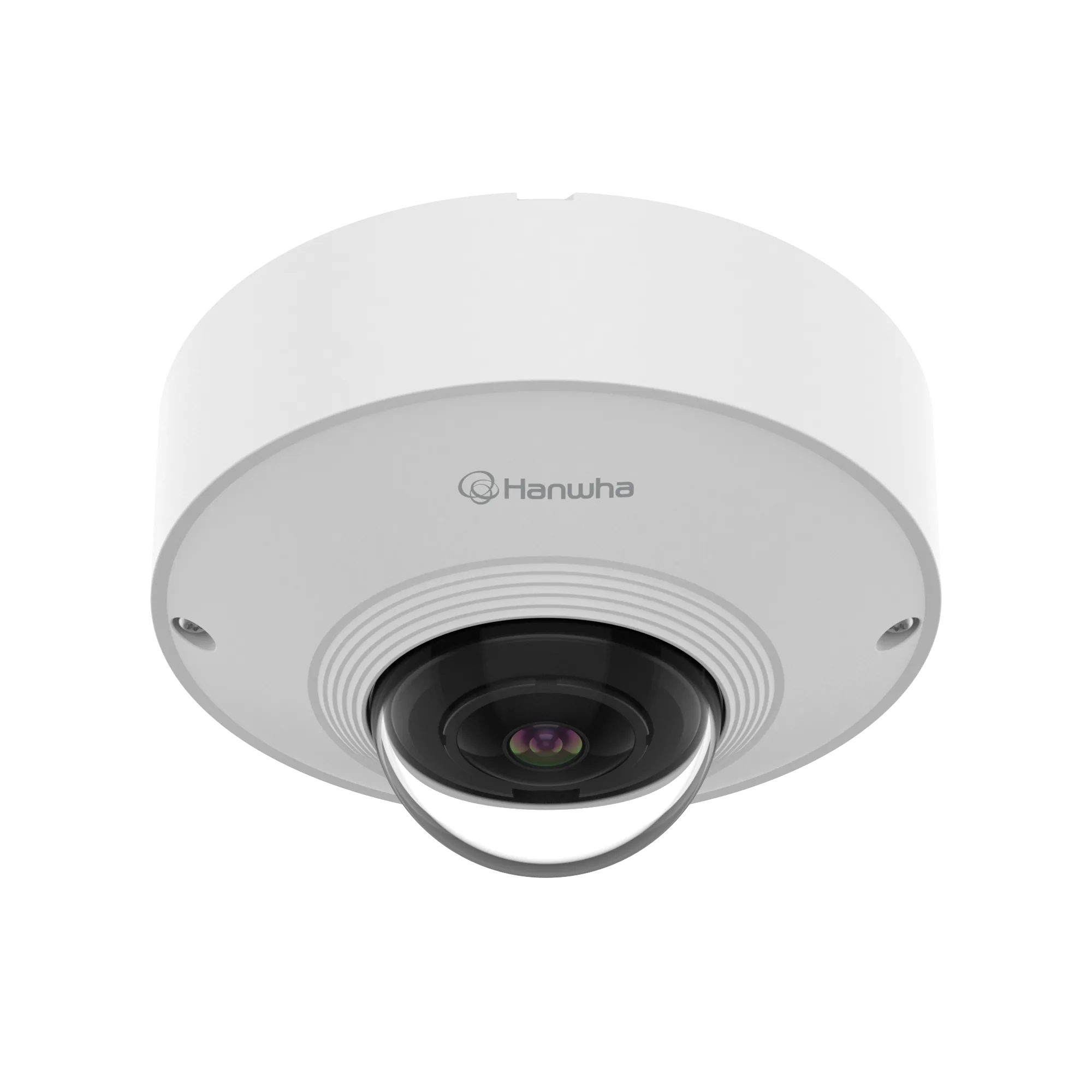

Rated IP66 and IK10, the QNF-C9010V is an AI fisheye camera with a 1/1.6-inch 12MP CMOS sensor. Its fixed stereographic 1.76 mm lens at F1.8 covers 185° horizontally, vertically and diagonally, the minimum object distance is 0.5 m, and the image can be rotated digitally. Original view reaches up to 20fps at 3008x3008, double panorama 20fps at 3584x1792, single panorama 20fps at 3584x896, quad view 20fps at 3584x2688 and quadrants Q1 to Q4 in 4:3 20fps at 1792x1344, with MJPEG at 5fps. Colour needs only 0.02 lux (F1.8, 1/30sec) and black and white 0.001 lux, alongside ICR day/night switching, 120 dB WDR, BLC, SSDR, WiseNR Ⅱ and SSNR Ⅴ. The AI engine classifies people, vehicles and colour, provides BestShot, and evaluates motion, virtual line crossing and direction, and virtual areas for loitering, intrusion, enter and exit, encoded with H.265, H.264, MJPEG and WiseStream Ⅲ. 1/1.6-inch 12MP CMOS sensor1.76 mm fixed lens, F1.8, 185° field of viewIP66 and IK10 ratedDigital rotation, 120 dB WDR, WiseNR ⅡAI classification of person, vehicle and colour, BestShot

1/1.8" CS mount 9.0-50.0mm F1.5-360C Aspherical 12 Megapixel Varifocal DC Drive IR Corrected with 31cm Lens Lead

1/1.8" CS mount 9.0-50.0mm F1.5-360C Aspherical 12 Megapixel Varifocal "P-Iris" Drive IR Corrected with 31cm Lens Lead

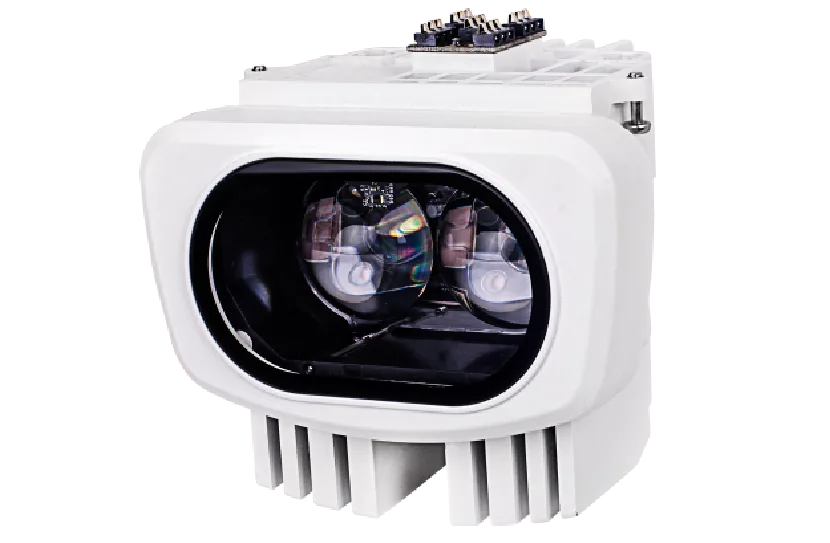

12 W infrared illuminator for the P20 and P60 camera housings, fitted through the ITB touch board and powered from the housing itself. Two high-power LEDs emit at 850 nm in a circular pattern with a horizontal beam angle of 10° to 40°, covering 50 to 140 m. A digital input switches the IR on and off, while the light sensor sits on the digital output and responds at 100 lux, read over RS-485. It weighs 1.2 kg, measures 135 x 106 x 111 mm and is rated from -40 °C to 50 °C in operation, -40 °C to 70 °C in storage.

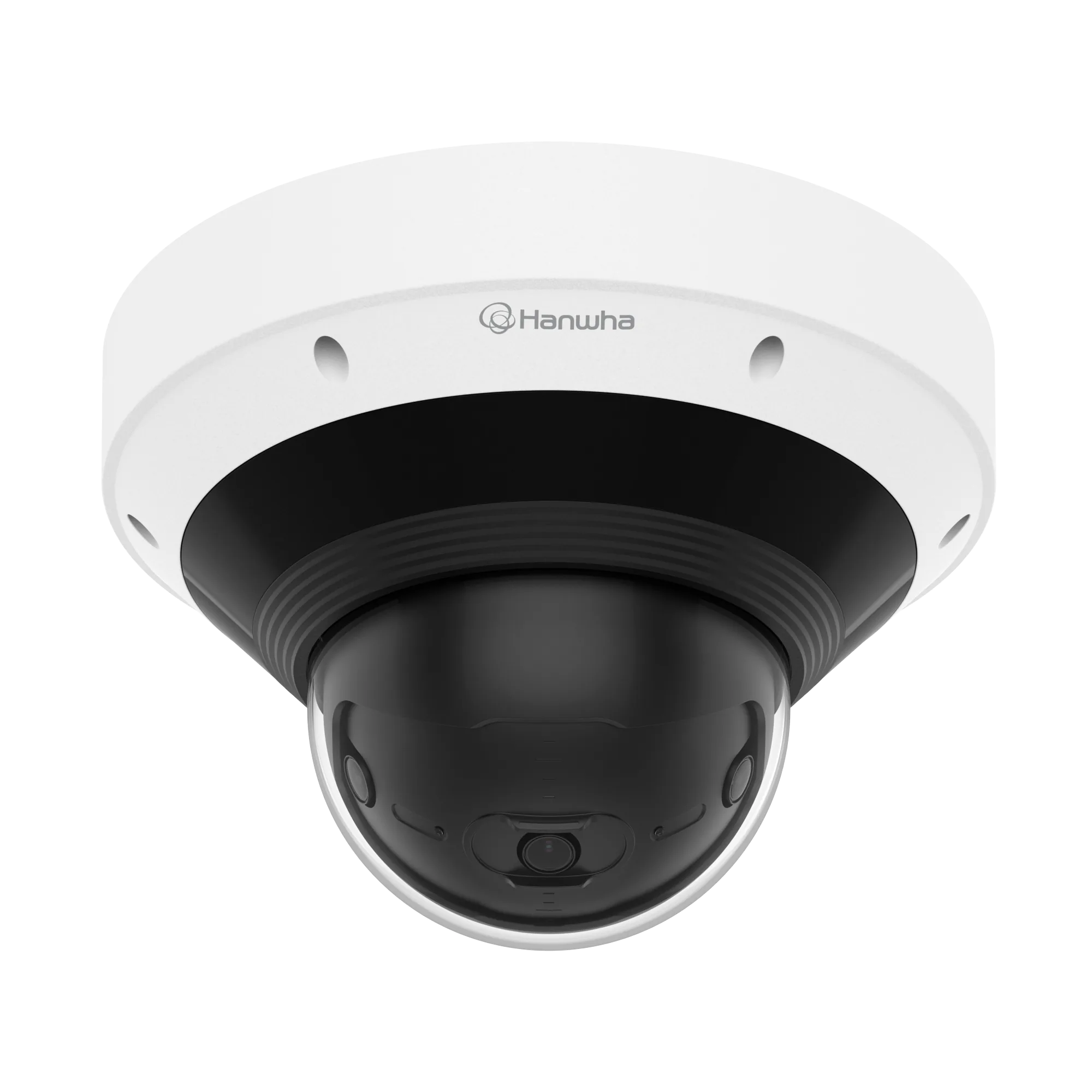

The PNM-A13022RV is a 13MP panoramic camera with AI functions and IR support. Its 1/2.8-inch CMOS sensors provide up to 5120x2592 pixels at 30fps/25fps (60Hz/50Hz) in H.265 and H.264, and 30fps in MJPEG. A fixed 3.06 mm lens at F1.6 covers 194° horizontally and 93° vertically, focusing from a minimum object distance of 5 m. Low-light figures are 0.1 lux in colour and 0.01 lux in black and white, assisted by automatic ICR switching, BLC, HLC, SSDR and 120 dB WDR. Noise reduction combines WiseNR II based on the AI engine with SSNR V, and motion detection uses eight 8-point polygonal zones. Mechanically the camera pans 0° to 360° and tilts 0° to 50°. Panoramic image up to 5120x259230fps/25fps in H.265 and H.264Fixed 3.06 mm lens, F1.6194° horizontal, 93° vertical view120 dB WDR, WiseNR II and SSNR VEight 8-point polygonal motion zones

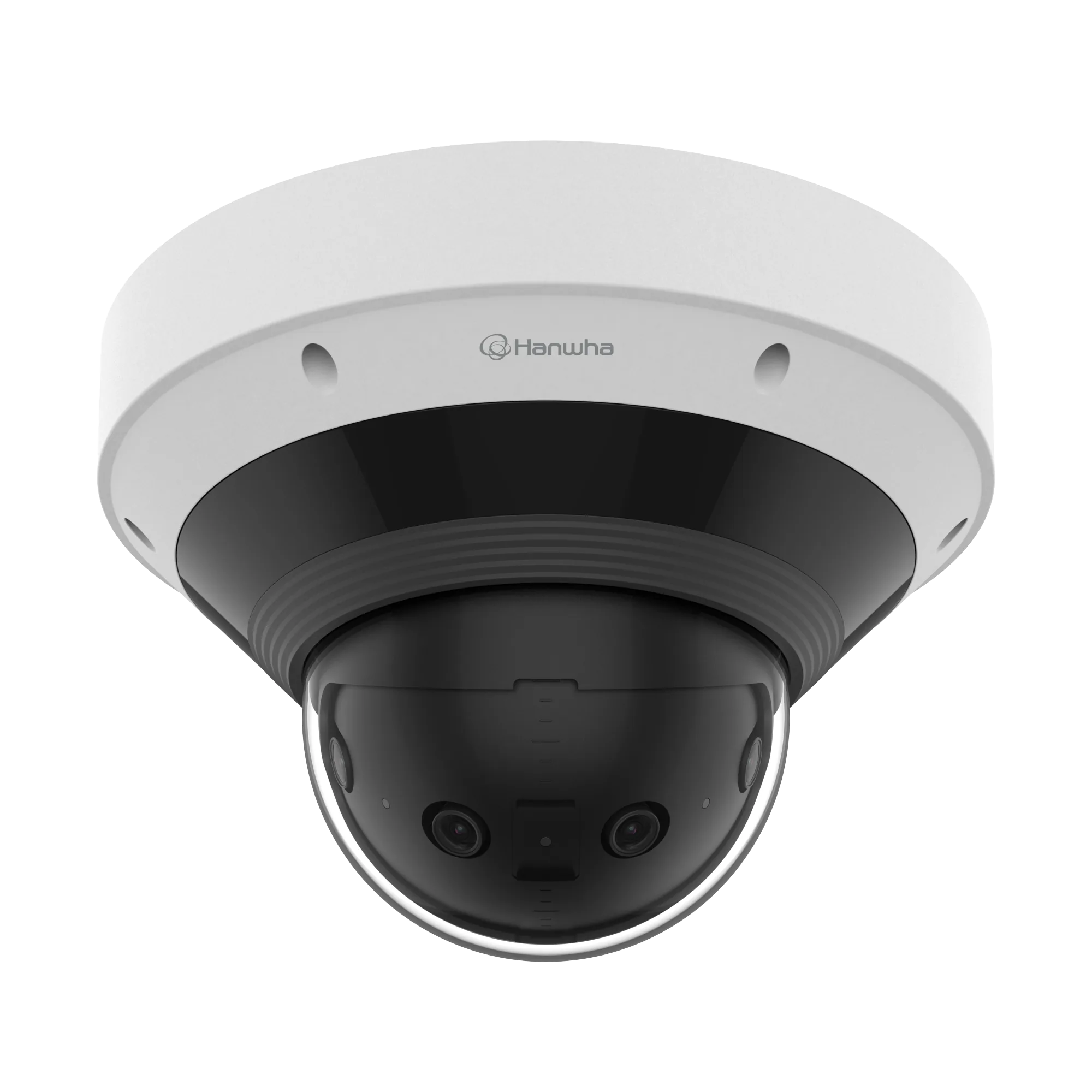

The PNM-9031RV is a panoramic camera built from several 1/2.8-inch CMOS sensors and producing a stitched image of up to 6720x2240 pixels. H.265 and H.264 run at 20fps and MJPEG at 15fps, with automatic IR illumination applied across all image sensors. Its fixed 4.3 mm lens at F1.6 captures 195.3° to 197.0° horizontally and 63.6° vertically, with a minimum object distance of 5 m. Rated sensitivity is 0.1 lux in colour and 0.01 lux in black and white, supported by ICR day and night switching, BLC, SSDR, 120 dB WDR and SSNR V noise reduction. Multiple virtual channels can be created from the panoramic view and the unit connects over a single Ethernet link. The housing is rated IP66, IK10 and NEMA4X, the camera is NDAA compliant, and it pans 0° to 360° and tilts 0° to 60°. Panoramic image up to 6720x224020fps in H.265 and H.264Fixed 4.3 mm lens, F1.6195.3° to 197.0° horizontal view120 dB WDR, SSNR VIP66, IK10, NEMA4X, NDAA compliant

1/2.8" 2MP CMOS with a 16mm fixed lens module for XNB-6002  Remote Head Camera, waterproof, black

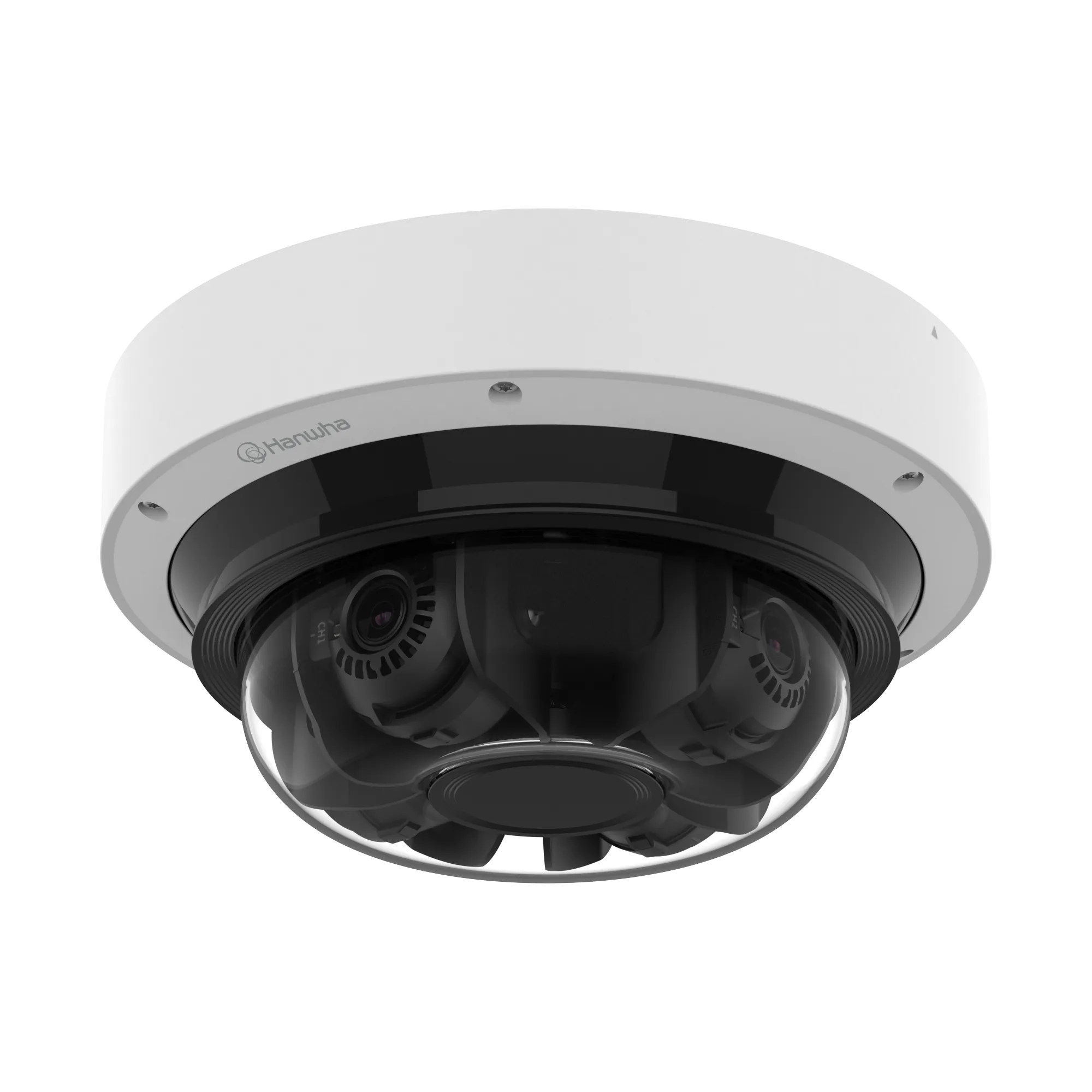

The PNM-C16083RVQ is a multi-directional outdoor camera with AI and IR that combines four 4MP channels for 16MP in total. Its 1/2.8-inch CMOS sensors reach 2592x1520 pixels, with H.265 and H.264 at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps, limited to 5fps at 4MP. The lenses cover 3.3 to 5.7 mm at 1.7x optical zoom, open to F1.5 wide and F1.9 tele and capture 100° to 53° horizontally and 125° to 61° diagonally. Low-light ratings are 0.075 lux in colour and 0.0075 lux in black and white, with automatic ICR day and night switching. Focusing is by simple focus from 1.3 m with a fixed iris, while the channels pan 0° to 360°, tilt 0° to 65° and rotate 0° to 90°. Four 4MP channels, 16MP totalMax. 2592x1520 at 30fps/25fps3.3-5.7 mm lens, 1.7x optical0.075 lux colour / 0.0075 lux BWFixed iris, simple focus from 1.3 mAutomatic day and night (ICR)

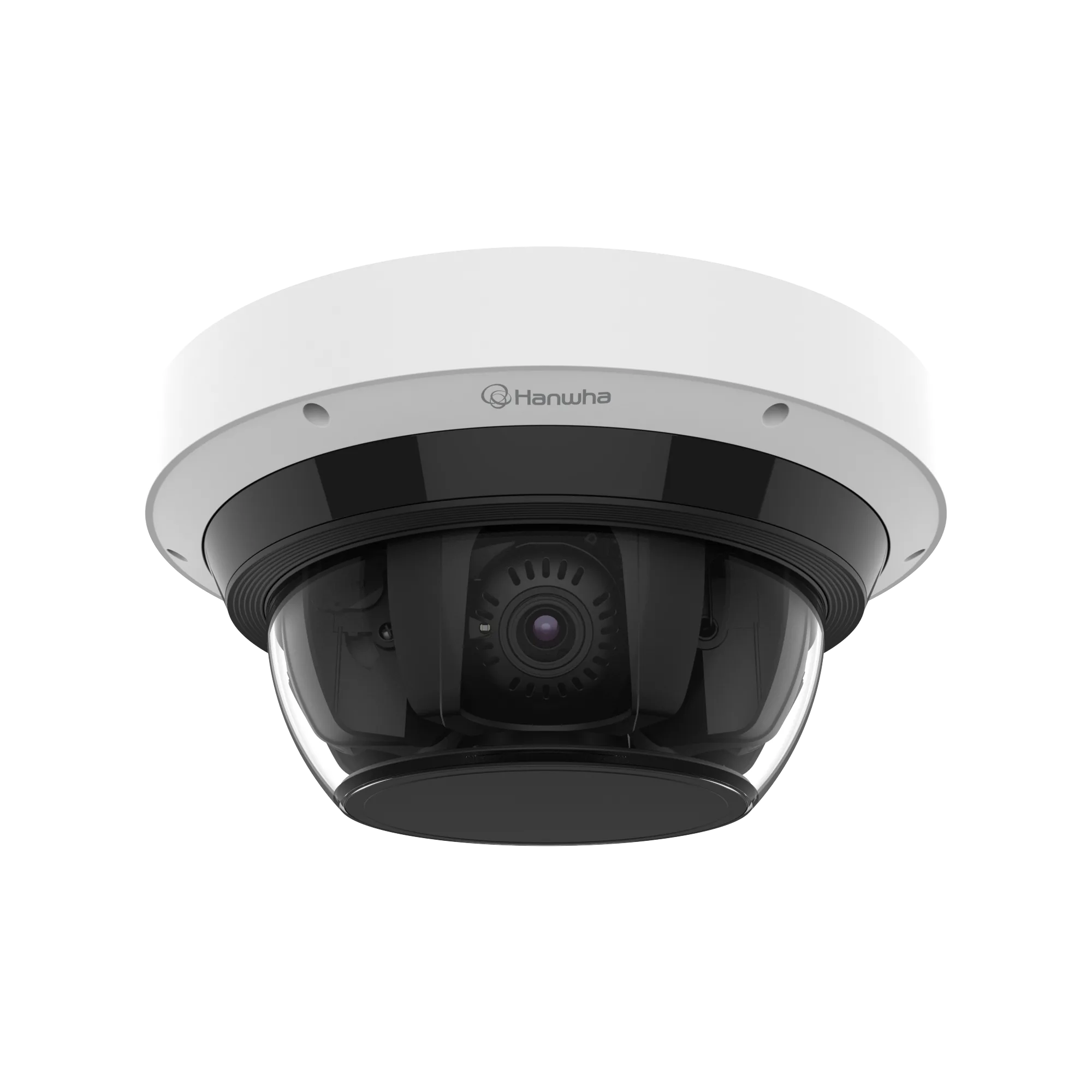

The PNM-C16083RQZ is a multi-directional camera with four 4MP channels on 1/2.8-inch CMOS sensors. Top resolution is 2592x1520 pixels, with H.265 and H.264 at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps, falling to a maximum of 5fps at 4MP. The varifocal lenses run from 3.2 to 10.2 mm with 3.2x optical zoom, open to F1.6 wide and F3.1 tele and capture 93° to 29° horizontally, using a P iris and simple focus from 1.2 m. Minimum illumination is given as 0.1 lux in colour and 0.01 lux in black and white, with automatic ICR switching. Channels pan 0° to 360°, tilt 30° to 90° and rotate 0° to 90°, and remote adjustment is rated for a maximum of 200 cycles. Four 4MP channelsMax. 2592x1520 at 30fps/25fps3.2-10.2 mm varifocal, 3.2x opticalP iris with simple focus from 1.2 mAutomatic day and night (ICR)Remote adjustment, max. 200 cycles

The SLA-T2480VA is a 2MP lens module with a 1/2.8-inch CMOS sensor and a fixed 2.4 mm lens at F2.0. Minimum illumination is 0.045 lux in colour as well as black-and-white, and the field of view spans 138° horizontally, 73° vertically and 165° diagonally. Focus is fixed and the module is tied to the main unit over RJ12. The black plastic and metal body measures 30 x 27.9 x 45 mm and weighs 328 g. Supported products are the XNB-6002, PNM-9000QB, PNM-C20000QB and XNB-A8004B. Fixed 2.4 mm focal length, F2.00.045 lux in colour and BW138° x 73° x 165° field of view30 x 27.9 x 45 mm body, 328 gRJ12 connection to the main unit1/2.8-inch CMOS sensor

The SLA-T2480V is a 2MP lens module using a 1/2.8-inch CMOS sensor with 1,945 x 1,109 effective pixels, or 2.16 megapixels. Its fixed focal length is 2.4 mm at F2.0, covering 138° horizontally, 73° vertically and 165° diagonally. Minimum illumination is 0.45 lux in colour and 0.045 lux in black-and-white. Focus is fixed and the connection to the main unit runs over RJ12. The black plastic and metal body measures 30 x 27.9 x 45 mm, weighs 328 g and is rated from -10 °C to +55 °C. 1,945 x 1,109 effective pixels (2.16 MP)Fixed 2.4 mm focal length, F2.0138° x 73° x 165° field of view0.45 lux colour, 0.045 lux BW30 x 27.9 x 45 mm body, 328 gRJ12 connection to the main unit

The SLA-T2480A is a 2MP lens module combining a 1/2.8-inch CMOS sensor with a fixed 2.4 mm lens at F2.0. Coverage amounts to 138° horizontally, 73° vertically and 165° diagonally, and minimum illumination is 0.045 lux in both colour and black-and-white. Focus is fixed and the module attaches to the main unit over RJ12. The black plastic body measures Ø24 x 49.8 mm and weighs 318 g, with an operating range of -10 °C to +55 °C. Supported products are the XNB-6002, PNM-9000QB, PNM-C20000QB and XNB-A8004B, using the SCL-150 lens module cable at 15 m. Fixed 2.4 mm focal length, F2.0138° x 73° x 165° field of view1/2.8-inch CMOS, 0.045 luxPlastic body Ø24 x 49.8 mm, 318 gRJ12 connection to the main unitSCL-150 lens module cable (15 m)

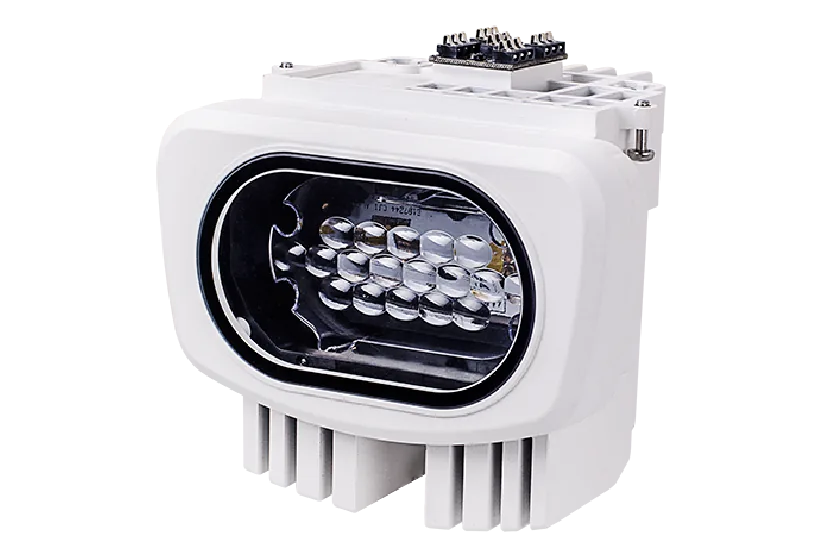

24 W infrared illuminator for the P20 and P60 camera housings, connected through the ITB touch board and drawing its power from the housing. Eighteen LEDs emit at 850 nm in an elliptical pattern with a horizontal beam angle of 10° to 30°, covering 70 to 200 m – a shape that suits long, narrow scenes such as access roads or tracks. A digital input switches the IR, and the light sensor on the digital output responds at 100 lux, read over RS-485. It weighs 1.2 kg, measures 135 x 106 x 111 mm and is rated from -40 °C to 50 °C in operation, -40 °C to 70 °C in storage.

With 26 MP and a maximum resolution of 6240x4160, the TNO-A26081 addresses tasks that demand fine detail, imaging through a CMOS sensor measuring 28.3 mm diagonally (1.8"). Every resolution is delivered at up to 30 fps in H.265, H.264 and MJPEG, dropping to a maximum of 20 fps when WiseAI is switched on. The lens is a Canon EF-S 55~250 mm F4-5.6 IS STM on an EF-S mount, giving 4.54x zoom, a field of view from 24° to 5.4° horizontally and 16° to 3.6° vertically, and a minimum object distance of 0.85 m; minimum illumination is 0.2 lux in colour and 0.02 lux in black and white, each at F4.0 and 1/30 sec. AI capabilities cover object detection, virtual lines for crossing and direction, virtual areas for loitering, intrusion, enter and exit, motion detection and a best shot per object. Hallway View, WiseStream III, auto ICR day and night switching, BLC and SSDR are also present. Power is drawn from PoE++ (IEEE802.3bt type3, Class6) or 12 V DC, and the housing carries IP66, IP67, IK10 and NEMA4X ratings. 26 MP, max. 6240x4160, CMOS with 28.3 mm diagonalCanon EF-S 55~250 mm F4-5.6 IS STM, 4.54xUp to 30 fps, max. 20 fps with WiseAI onObject detection, virtual lines and areas, best shot per objectPoE++ (IEEE802.3bt type3, Class6) or 12 V DCIP66, IP67, IK10, NEMA4X

Combining a 1/2.8" CMOS imager with a 12x zoom lens of 5.2~62.4 mm, the XNO-6123R is aimed at long capture distances. Maximum resolution is 1920x1080, with H.265 and H.264 at 120fps/100fps (60Hz/50Hz) without WDR and 60fps/50fps with WDR, and MJPEG at 30fps. The field of view runs from 55°~5° horizontally, 33°~3° vertically and 62°~6° diagonally, the aperture ratio from 1.6 wide to 3.0 tele, joined by 32x digital zoom and a DC auto iris with oneshot AF and focus save from 1.5 m. The manufacturer quotes 0.03 lux in colour (F1.6, 1/30 sec, 30 IRE), 0.003 lux in black and white and 0 lux with the IR LED on, at a WiseIR range of up to 90 m. Extreme WDR at 150 dB, WiseNR II and WiseStream III rest on the AI engine, and stabilisation uses a built-in gyro sensor. NPU-based analytics cover object detection for person, face and vehicles including licence plates plus intelligent video analytics, while 0°~360° pan, 0°~90° tilt and 0°~360° rotate assist alignment. 5.2~62.4 mm, 12x optical zoom32x digital zoomWiseIR up to 90 mExtreme WDR 150 dBOneshot AF with focus saveUp to 120fps in H.265/H.264
