Switches

Unmanaged EXPoE switch with 16 Fast Ethernet PoE ports up to 30 W and two Gigabit combo ports (RJ45 or SFP). In EX mode eight ports work as EXPoE and eight as regular PoE ports. The C11 line are unmanaged indoor switches with EXPoE: a DIP switch turns on the EX mode, which carries picture and power up to 250 m over the ports provided for it, well beyond the 100 m Ethernet over copper otherwise allows. In standard mode every port works normally to IEEE 802.3af and 802.3at. The PoE budget is 250 W and the switching capacity 7.2 Gbit/s. Surge protection is 6 kV per PoE port and 4 kV on the supply. 19-inch form, 440 × 207 × 44 mm, weight 3.6 kg, operating temperature 0 °C to 50 °C. 16 Fast Ethernet PoE ports up to 30 WTwo Gigabit combo ports, RJ45 or SFPEX mode: eight EXPoE and eight PoE ports250 W PoE budget, 7.2 Gbit/s switching capacity6 kV surge protection per PoE port, 4 kV on the supply440 × 207 × 44 mm, 3.6 kg, 19-inch form

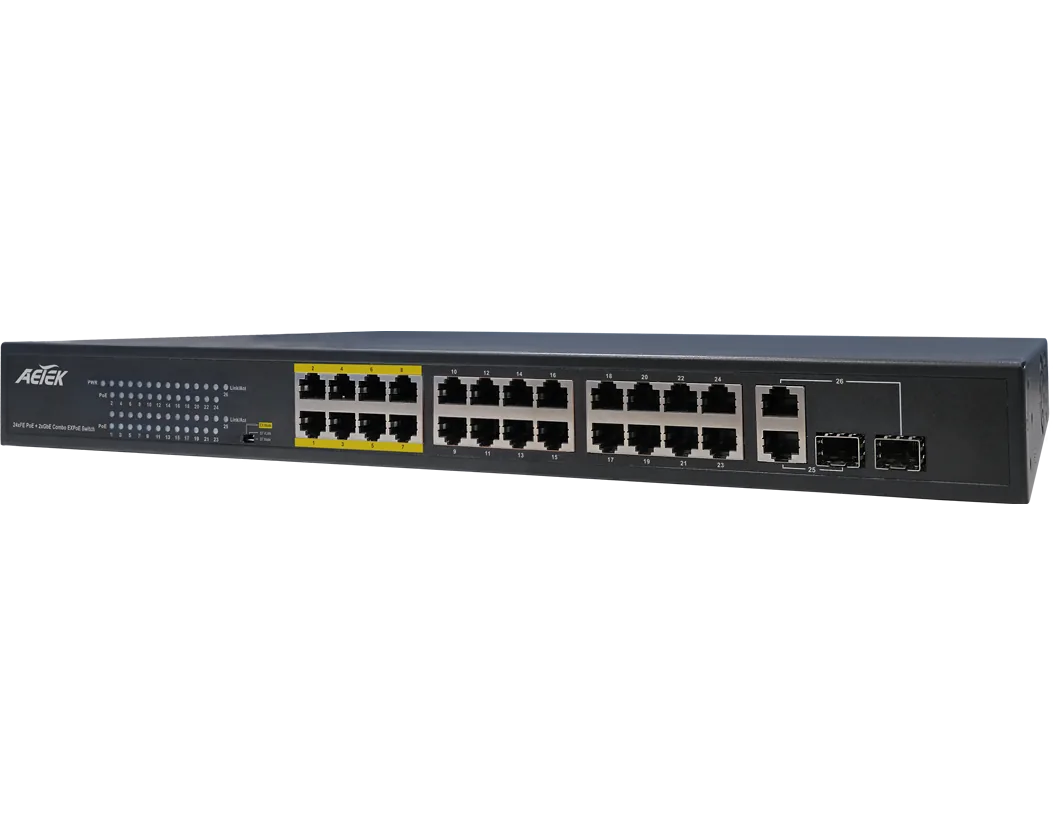

Unmanaged EXPoE switch with 24 Fast Ethernet PoE ports up to 30 W and two Gigabit combo ports (RJ45 or SFP). In EX mode eight ports work as EXPoE and 16 as regular PoE ports. The C11 line are unmanaged indoor switches with EXPoE: a DIP switch turns on the EX mode, which carries picture and power up to 250 m over the ports provided for it, well beyond the 100 m Ethernet over copper otherwise allows. In standard mode every port works normally to IEEE 802.3af and 802.3at. The PoE budget is 380 W and the switching capacity 8.8 Gbit/s. Surge protection is 6 kV per PoE port and 4 kV on the supply. 19-inch form, 440 × 207 × 44 mm, weight 3.8 kg, operating temperature 0 °C to 50 °C. 24 Fast Ethernet PoE ports up to 30 WTwo Gigabit combo ports, RJ45 or SFPEX mode: eight EXPoE and 16 PoE ports380 W PoE budget, 8.8 Gbit/s switching capacity6 kV surge protection per PoE port, 4 kV on the supply440 × 207 × 44 mm, 3.8 kg, 19-inch form

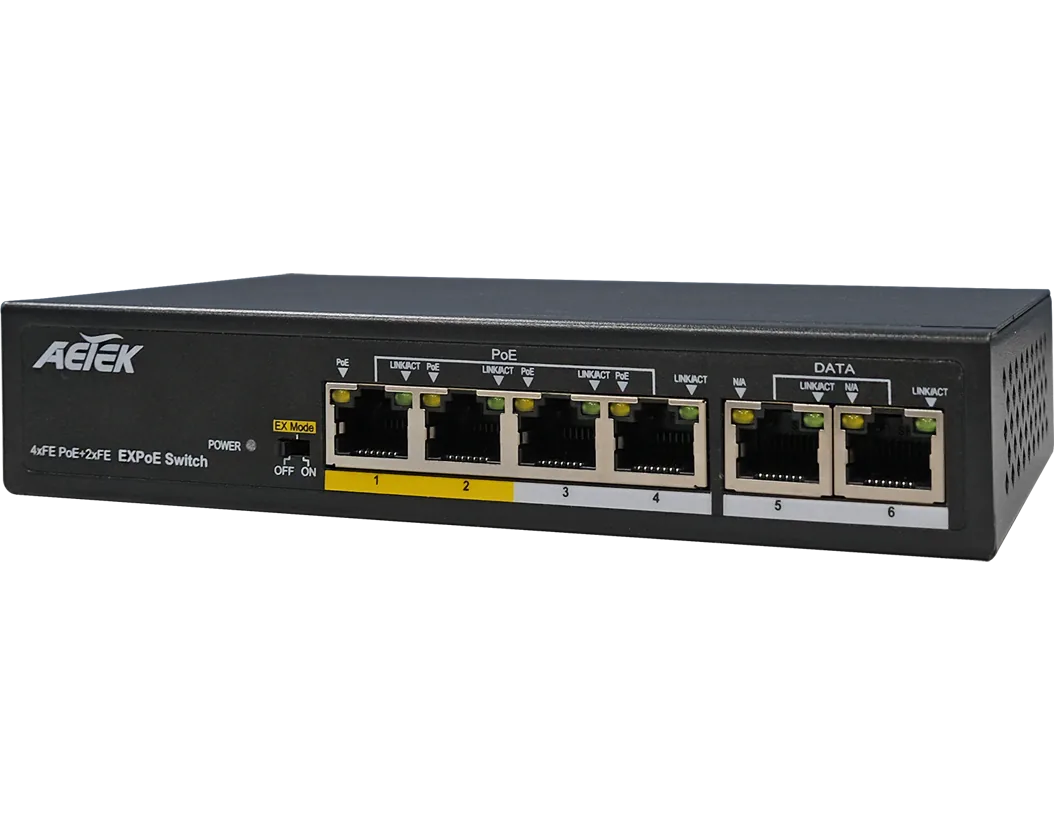

Unmanaged EXPoE switch with six Fast Ethernet ports, four of them PoE up to 30 W. In EX mode two ports work as EXPoE and two as regular PoE ports. The C11 line are unmanaged indoor switches with EXPoE: a DIP switch turns on the EX mode, which carries picture and power up to 250 m over the ports provided for it, well beyond the 100 m Ethernet over copper otherwise allows. In standard mode every port works normally to IEEE 802.3af and 802.3at. The PoE budget is 65 W and the switching capacity 1.2 Gbit/s. PoE ports carry 6 kV of surge protection, the AC supply 4 kV. Dimensions 169 × 94.1 × 32 mm, weight 0.5 kg, operating temperature 0 °C to 50 °C. Six Fast Ethernet ports, four with PoE up to 30 WEX mode: two EXPoE and two PoE ports65 W PoE budget, 1.2 Gbit/s switching capacityEXPoE carries up to 250 m instead of 100 m6 kV surge protection per PoE port, 4 kV on the supply169 × 94.1 × 32 mm, 0.5 kg, 0 °C to 50 °C

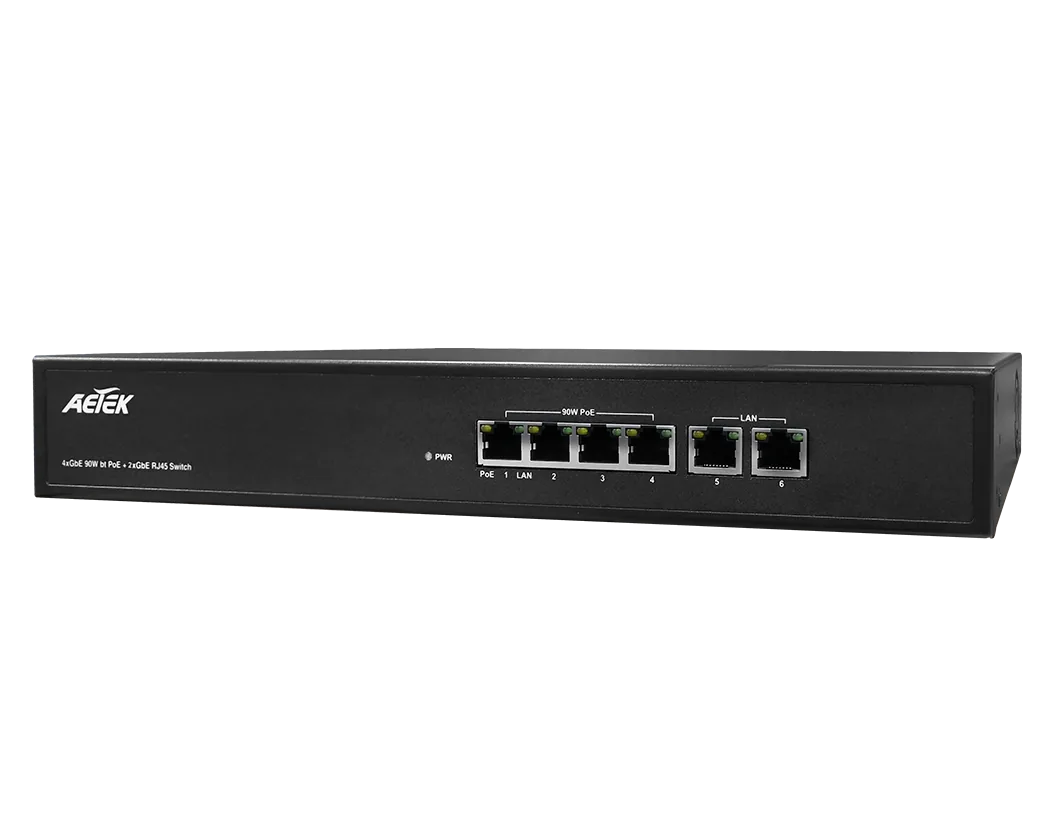

Unmanaged Gigabit switch with six ports, four of them delivering IEEE 802.3bt PoE at up to 90 W — enough for devices above the 25.5 W line such as IR PTZ cameras, multi-sensor cameras and runs with high cable loss. Two further RJ45 ports serve as uplink. Every PoE port carries 6 kV surge protection. Switching capacity is 12 Gbit/s at 11.904 Mpps, the MAC table holds 8,000 entries and jumbo frames up to 9,216 bytes are supported. The switch follows IEEE 802.3az and mounts in a 19-inch rack.

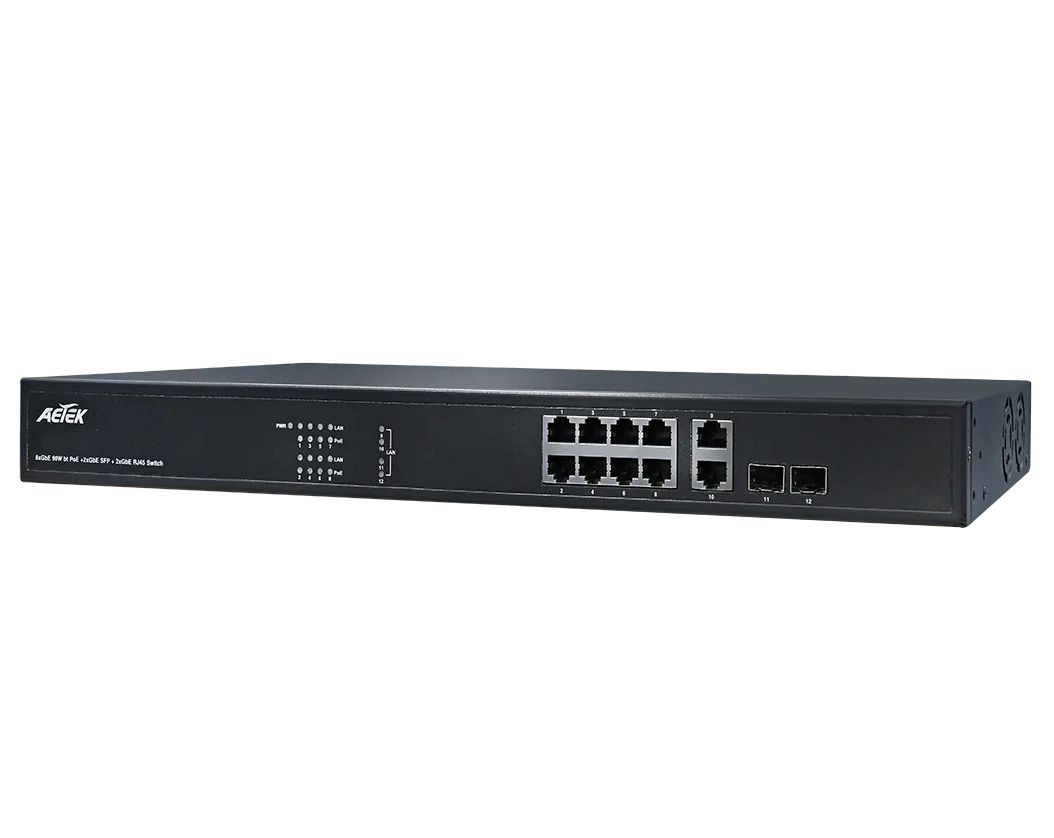

Unmanaged switch with four PoE ports to IEEE 802.3bt up to 90 W, two Gigabit RJ45 ports and two SFP slots. The 90 W per port is meant for devices that need more than the 25.5 W of an at port: IR PTZ and multi-sensor cameras, and runs with long cable. The PoE budget is 720 W and the switching capacity 24 Gbit/s. Every PoE port carries 6 kV of surge protection. Supply 100 to 240 V AC. 19-inch form, 440 × 200 × 44 mm, weight 3.5 kg. Four PoE ports to IEEE 802.3bt up to 90 WTwo Gigabit RJ45 ports and two SFP slots720 W PoE budget, 24 Gbit/s switching capacityFor IR PTZ and multi-sensor cameras6 kV surge protection per PoE port440 × 200 × 44 mm, 3.5 kg, 19-inch form

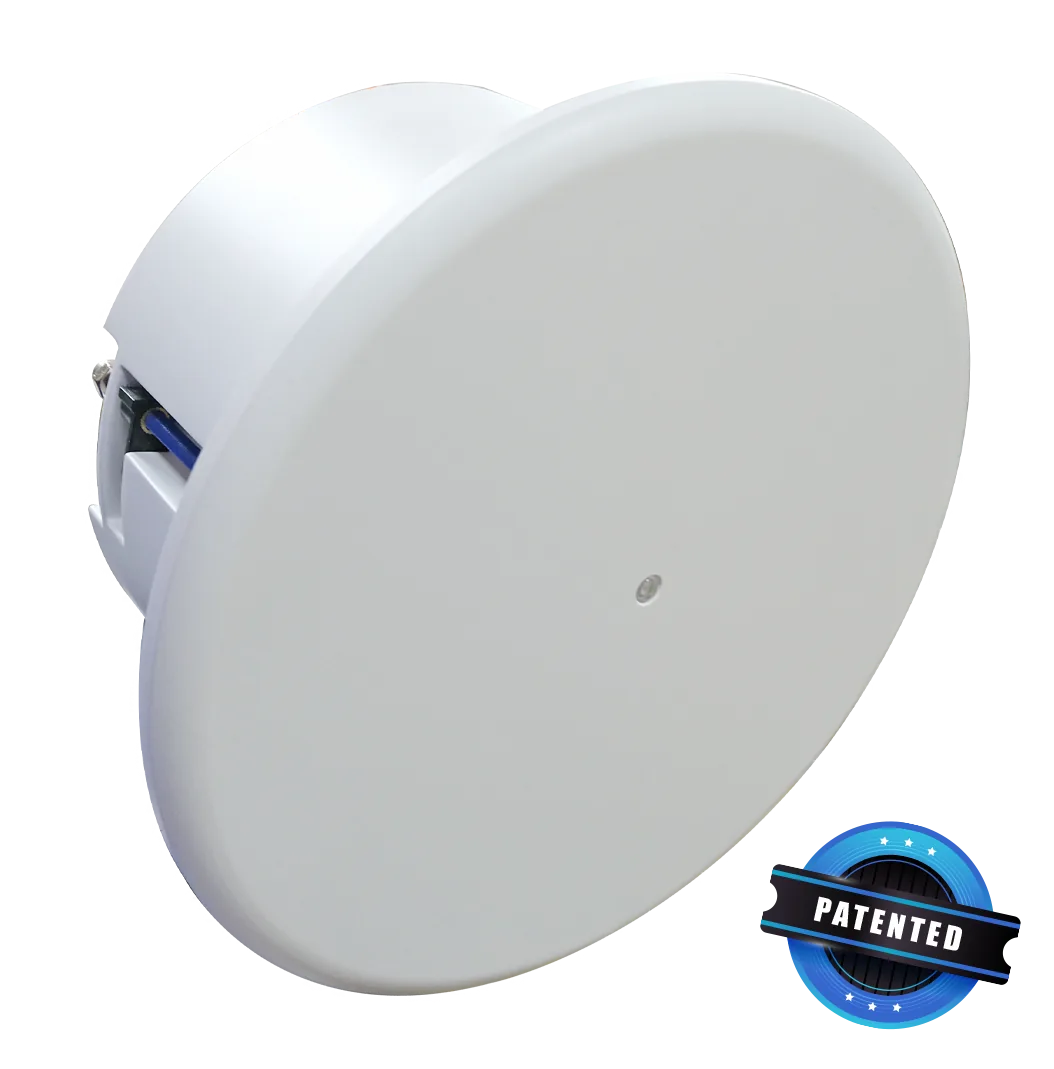

Unmanaged ceiling switch with five PoE outputs and one PoE input. The switch is itself powered over PoE class 8 (bt) and passes the power on to one bt port and four at ports, so no separate power supply is needed at the ceiling. LEDs show port state directly, which shortens commissioning overhead. Forwarding capacity is 8.928 Mpps at 12 Gbit/s switching capacity. Round housing, 185.16 mm diameter and 90 mm high, weight 0.8 kg, operating temperature 0 °C to 50 °C. Five PoE outputs, one PoE inputPowered over PoE class 8 (bt), no socket neededOne bt output and four at outputsLED per port for commissioning8.928 Mpps, 12 Gbit/s switching capacityRound, 185.16 mm diameter, 90 mm high, 0.8 kg

Unmanaged ceiling switch with five PoE outputs and one PoE input, in the version with daisy chaining and additional DC outputs. The switch is powered over PoE class 8 (bt) and passes the power on to one bt port and four at ports. The daisy-chain function carries PoE up to 300 m over Cat 5e or Cat 6, so several units can be run in series. Two terminal outputs are provided as well: 12 V / 2.5 A and 24 V / 1.25 A. Forwarding capacity 8.928 Mpps at 12 Gbit/s switching capacity. Round housing, 185.16 mm diameter, 90 mm high, weight 1 kg, operating temperature 0 °C to 50 °C. Five PoE outputs, one PoE input, bt poweredDaisy chain: PoE up to 300 m over Cat 5e/6Two terminal outputs, 12 V / 2.5 A and 24 V / 1.25 AOne bt output and four at outputs8.928 Mpps, 12 Gbit/s switching capacityRound, 185.16 mm diameter, 90 mm high, 1 kg

Montage auf DIN-Schiene Kupferports: 8x10/100/1000TX, RJ45 LWL-Ports: 8 x 100/1000 MBit/s SFP & 4 x 1000 MBit/s SFP Managebar, Layer 2/3, Ringfähig IEEE 1588 V2, PTP Speisung 12-48VDC, redundant

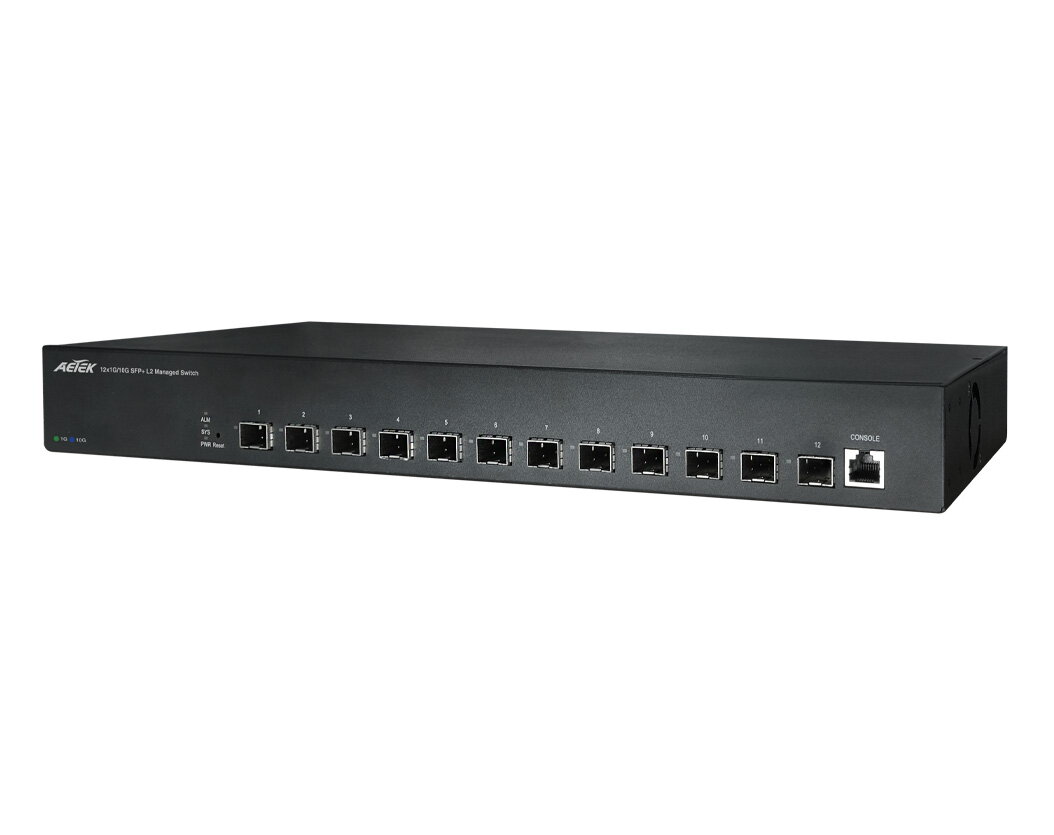

Managed L2 PRO switch with twelve SFP+ slots for 1 or 10 Gbit/s and no copper ports. It is intended as a root switch connecting the H60 outdoor switches, the D60 industrial switches and the C60 indoor switches to the surveillance network. All twelve ports are fibre, which suits star wiring over longer distances. The switch is managed through the NTS interface: it discovers ONVIF cameras by itself, draws the topology, shows state, power draw and cable diagnostics per port and allows PoE to be switched off and on. An installer therefore needs no deep knowledge of managed switch configuration. Switching capacity 240 Gbit/s, forwarding capacity 178.571 Mpps, MAC table 32 K, jumbo frames to 12 K. 19-inch form, 441 × 131 × 44 mm, weight 2.8 kg, operating temperature 0 °C to 50 °C. Twelve SFP+ slots for 1 or 10 Gbit/sRoot switch for the H60, D60 and C60 series240 Gbit/s switching capacity, 178.571 MppsNTS interface with ONVIF camera discovery32 K MAC table, jumbo frames to 12 K441 × 131 × 44 mm, 2.8 kg, 19-inch form

Managed L2 PRO switch with 16 Gigabit PoE ports up to 30 W, two SFP slots and two combo ports. The switch is managed through the NTS interface: it discovers ONVIF cameras by itself, draws the topology, shows state, power draw and cable diagnostics per port and allows PoE to be switched off and on. An installer therefore needs no deep knowledge of managed switch configuration. The PoE budget is 240 W from a 250 W supply and the switching capacity 40 Gbit/s. Every PoE port carries 6 kV common-mode surge protection and the AC supply 4 kV. At idle the switch draws 15.77 W at 110 V and 15.29 W at 240 V. 16 Gigabit PoE ports up to 30 WTwo SFP slots and two combo ports240 W PoE budget, 250 W supply40 Gbit/s switching capacity6 kV surge protection per PoE port, 4 kV on the supplyNTS interface with ONVIF camera discovery

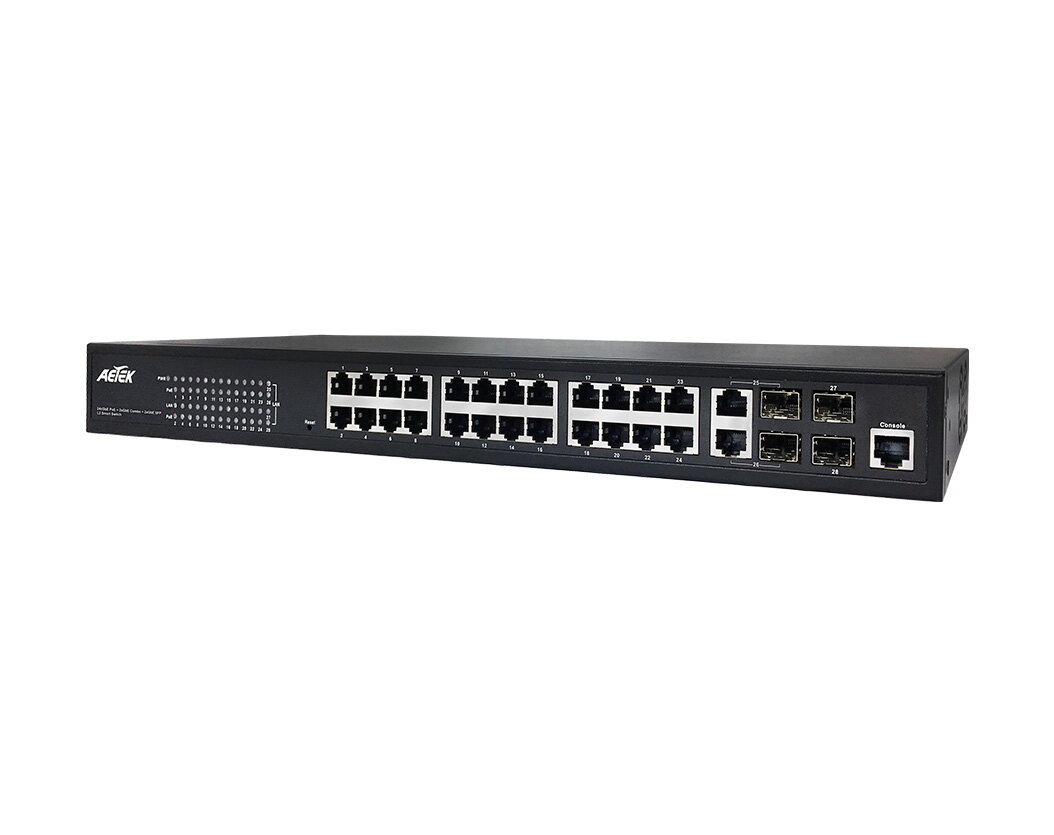

Managed L2 PRO switch with 24 Gigabit PoE ports up to 30 W, two SFP slots and two combo ports. The switch is managed through the NTS interface: it discovers ONVIF cameras by itself, draws the topology, shows state, power draw and cable diagnostics per port and allows PoE to be switched off and on. An installer therefore needs no deep knowledge of managed switch configuration. The PoE budget is 370 W from a 380 W supply and the switching capacity 56 Gbit/s. Every PoE port carries 6 kV common-mode surge protection and the AC supply 4 kV. At idle the switch draws 12.23 W at 110 V and 11.56 W at 240 V. 24 Gigabit PoE ports up to 30 WTwo SFP slots and two combo ports370 W PoE budget, 380 W supply56 Gbit/s switching capacity6 kV surge protection per PoE port, 4 kV on the supplyNTS interface with ONVIF camera discovery

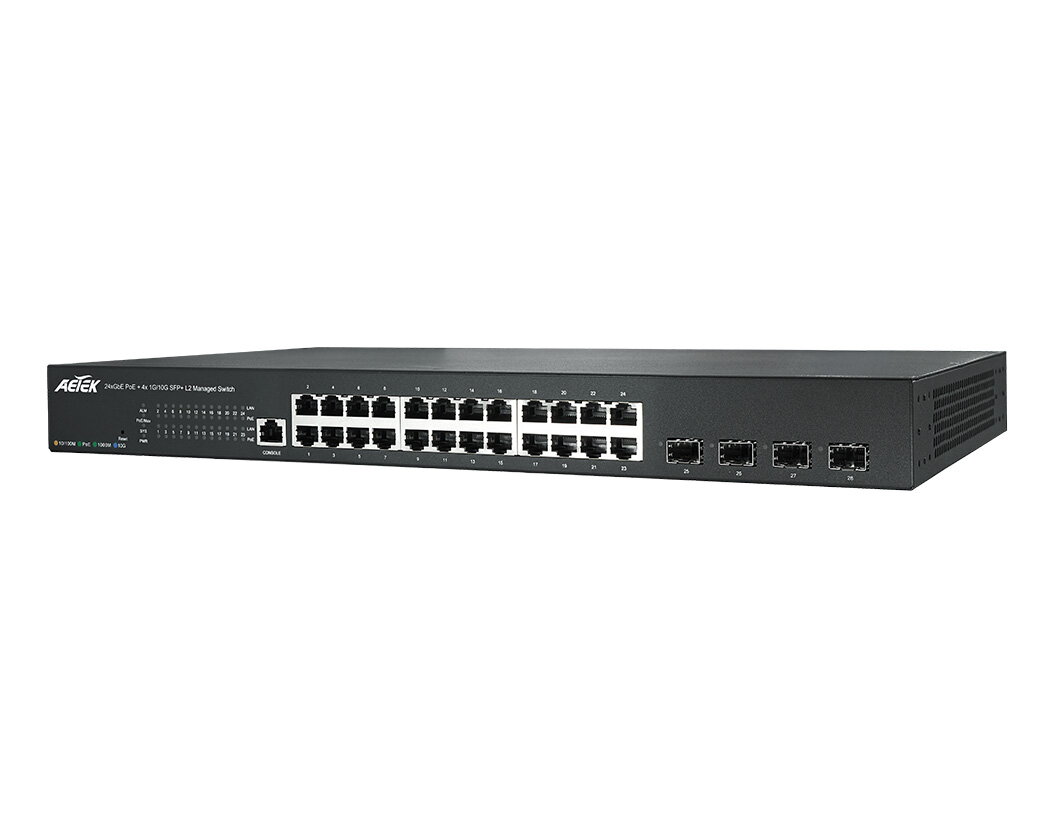

Managed L2 PRO switch with 24 Gigabit PoE ports up to 30 W and four SFP+ slots for 1 or 10 Gbit/s. Against the C60-244-30-370-V2 the difference is the uplink: four SFP+ slots instead of two SFP and two combo ports. That allows a 1 Gbit/s uplink now and a move to 10 Gbit/s fibre later without replacing the switch. The switch is managed through the NTS interface: it discovers ONVIF cameras by itself, draws the topology, shows state, power draw and cable diagnostics per port and allows PoE to be switched off and on. An installer therefore needs no deep knowledge of managed switch configuration. The PoE budget is 370 W, the switching capacity 128 Gbit/s and the forwarding capacity 95.232 Mpps. Power draw without PoE is 12.5 W. Dimensions 441 × 270 × 45 mm, weight 4.1 kg. 24 Gigabit PoE ports up to 30 WFour SFP+ slots for 1 or 10 Gbit/sMove to 10 Gbit/s fibre without replacing the switch370 W PoE budget, 128 Gbit/s switching capacity95.232 Mpps forwarding, 12.5 W without PoE441 × 270 × 45 mm, 4.1 kg

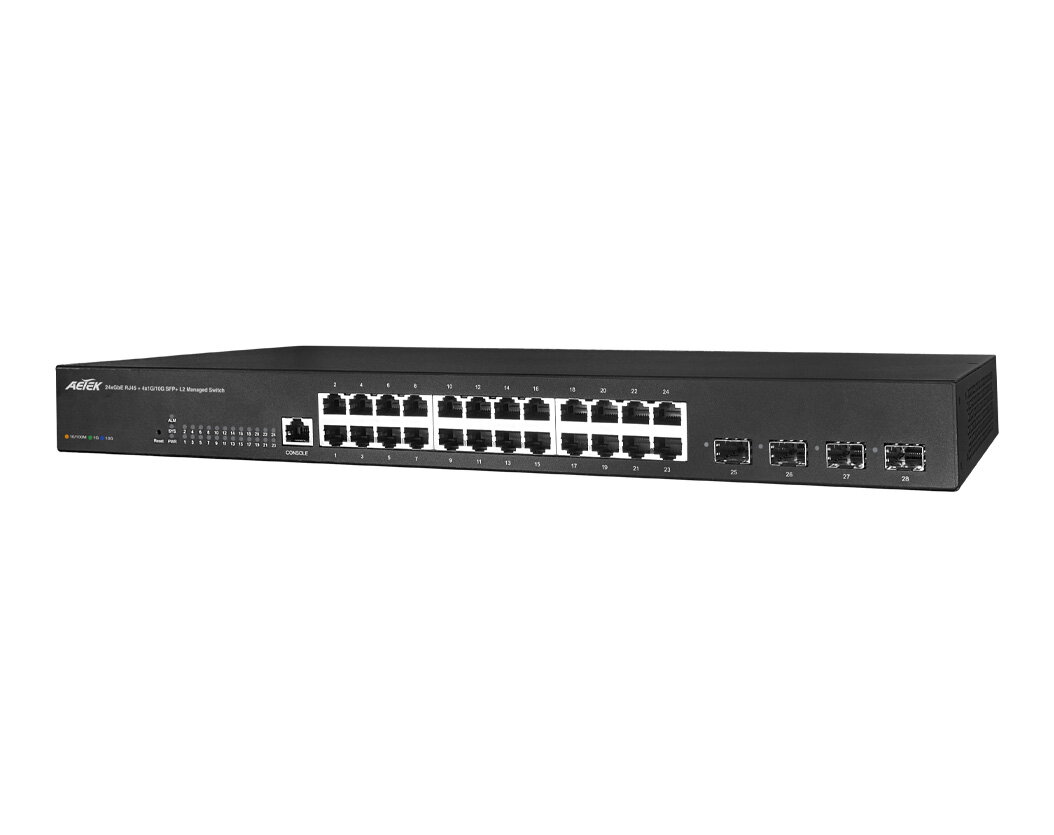

Managed L2 PRO switch with 24 Gigabit RJ45 ports and four SFP+ slots for 1 or 10 Gbit/s. Like the C60-00B-01 it is intended as a root switch for the H60, D60 and C60 series, but offers copper ports instead of fibre only and so suits distribution inside the equipment room. It does not supply PoE. The switch is managed through the NTS interface: it discovers ONVIF cameras by itself, draws the topology, shows state, power draw and cable diagnostics per port and allows PoE to be switched off and on. An installer therefore needs no deep knowledge of managed switch configuration. Switching capacity 128 Gbit/s, forwarding capacity 95.232 Mpps, power draw 10 W. 19-inch form, 441 × 196 × 44 mm, weight 3.1 kg, operating temperature 0 °C to 40 °C. 24 Gigabit RJ45 ports and four SFP+ slotsRoot switch for the H60, D60 and C60 series128 Gbit/s switching capacity, 95.232 MppsNTS interface with ONVIF camera discoveryNo PoE supply, 10 W power draw441 × 196 × 44 mm, 3.1 kg, 0 °C to 40 °C

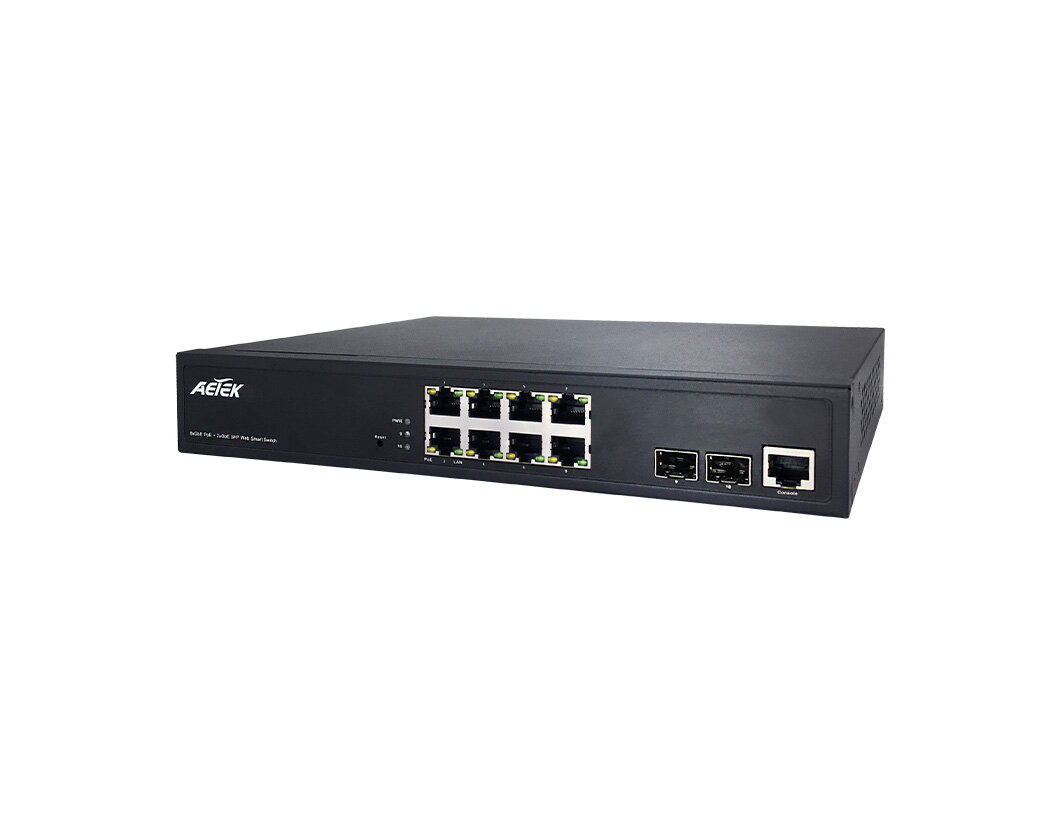

Managed L2 PRO switch with eight Gigabit PoE ports up to 30 W and two SFP slots for 100 Mbit/s or 1 Gbit/s. The switch is managed through the NTS interface: it discovers ONVIF cameras by itself, draws the topology, shows state, power draw and cable diagnostics per port and allows PoE to be switched off and on. An installer therefore needs no deep knowledge of managed switch configuration. The PoE budget is 120 W from a 130 W supply and the switching capacity 20 Gbit/s. Every PoE port carries 6 kV common-mode surge protection and the AC supply 4 kV. At idle the switch draws 3.5 W at 110 V and 3.36 W at 240 V. Dimensions 270 × 180 × 44 mm. Eight Gigabit PoE ports up to 30 WTwo SFP slots for 100 Mbit/s or 1 Gbit/s120 W PoE budget, 130 W supply20 Gbit/s switching capacity6 kV surge protection per PoE port, 4 kV on the supplyNTS interface, 270 × 180 × 44 mm

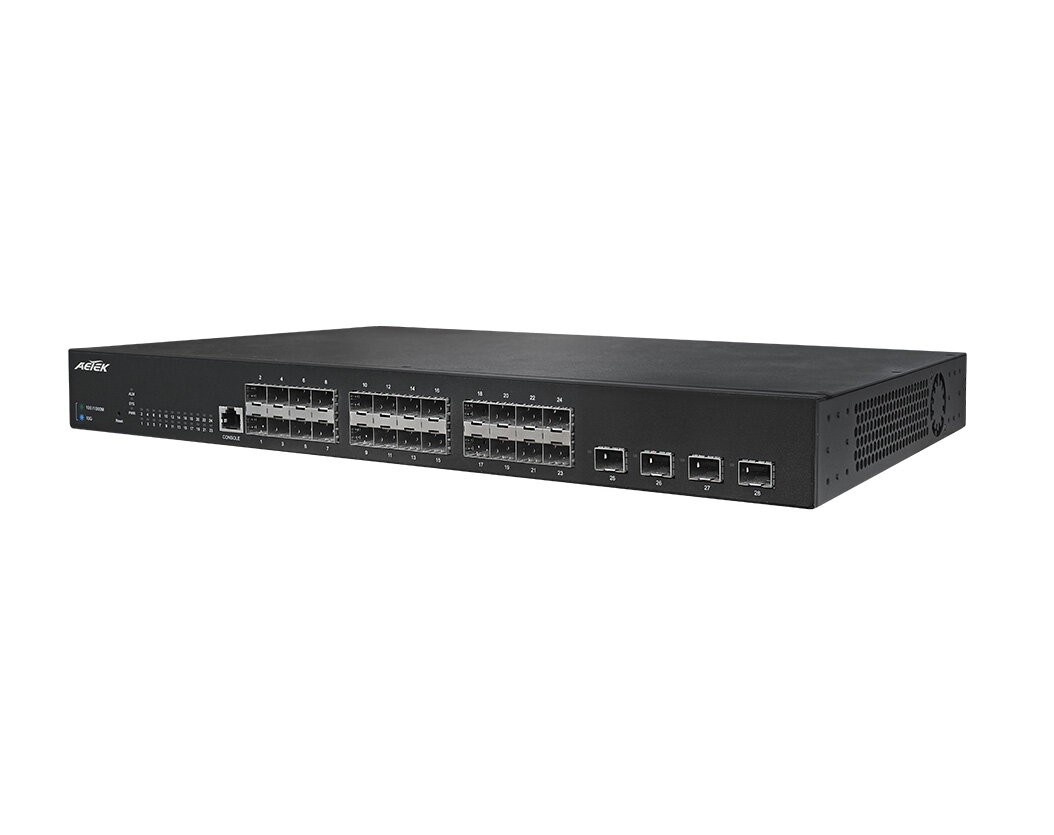

L2 PRO Plus managed switch with 24 Gigabit SFP slots and four 10-Gigabit SFP+ uplinks, intended as the root switch above the H60 outdoor series, the D60 and D62 industrial series or the C60 indoor series. Alongside the layer-2 feature set it handles static routes under IPv4 and IPv6, spanning tree in all three variants, QoS, security functions and SNMP v1/v2c/v3. As a surveillance controller it discovers ONVIF cameras on its own, builds a topology map from them and offers cable diagnostics and traffic reporting.

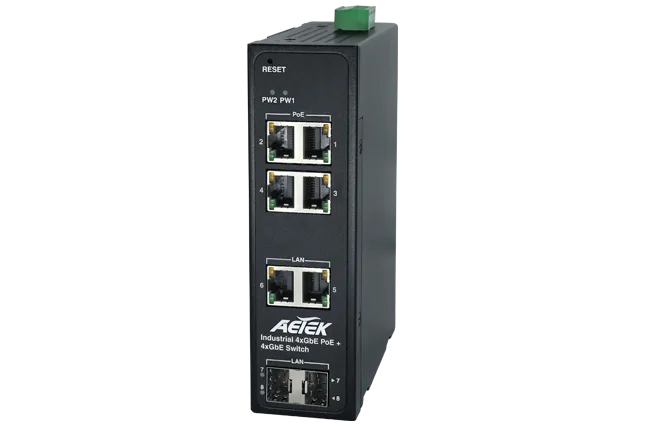

Industrial switch with eight Gigabit ports: four IEEE 802.3at PoE ports at 30 W each, two further RJ45 ports and two SFP slots for a fibre uplink. The PoE budget is 120 W. Built for use outside heated rooms: operating range -40 °C to 75 °C, IP30, 6 kV surge protection per PoE port, DIN-rail or wall mounting. Switching capacity is 16 Gbit/s at 11.904 Mpps, jumbo frames reach 9,216 bytes and IEEE 802.3az reduces idle losses.

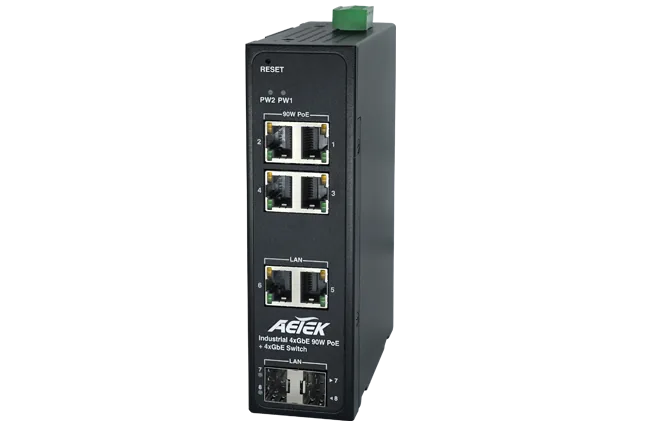

Industrial switch with eight Gigabit ports, four of them IEEE 802.3bt PoE at 60 or 90 W each. The 360 W total budget covers four power-hungry devices at once, heated PTZ housings among them. Two SFP slots and two RJ45 ports handle uplink and downlink. Power input is redundant at 54–56 V DC. Operating range -40 °C to 75 °C, IP30, 6 kV surge protection per PoE port, 16 Gbit/s backplane, DIN-rail or wall mounting.

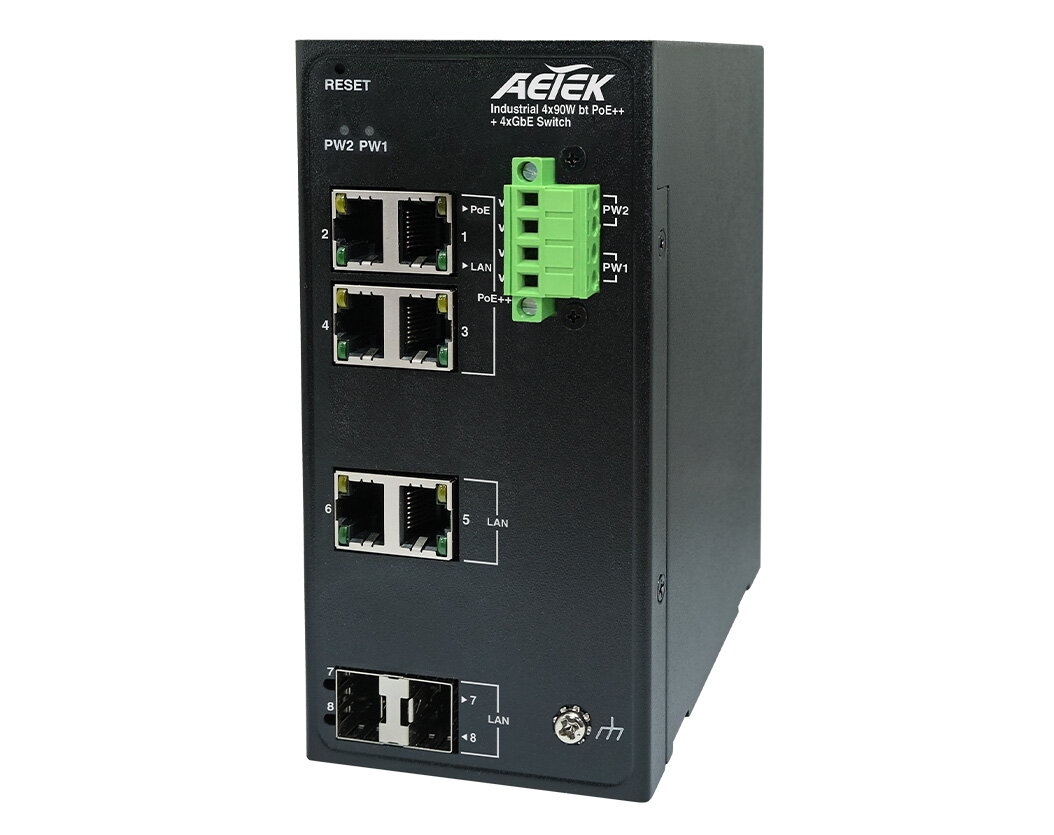

Industrial switch with eight Gigabit ports and four IEEE 802.3bt PoE ports up to 90 W. What separates it from its sister model is the input: it accepts 12 to 56 V DC and can therefore run from a vehicle, solar or battery supply. Two SFP slots and two RJ45 ports form the uplink. Operating range -40 °C to 75 °C, IP30, 16 Gbit/s backplane, DIN-rail or wall mounting, IEEE 802.3az.

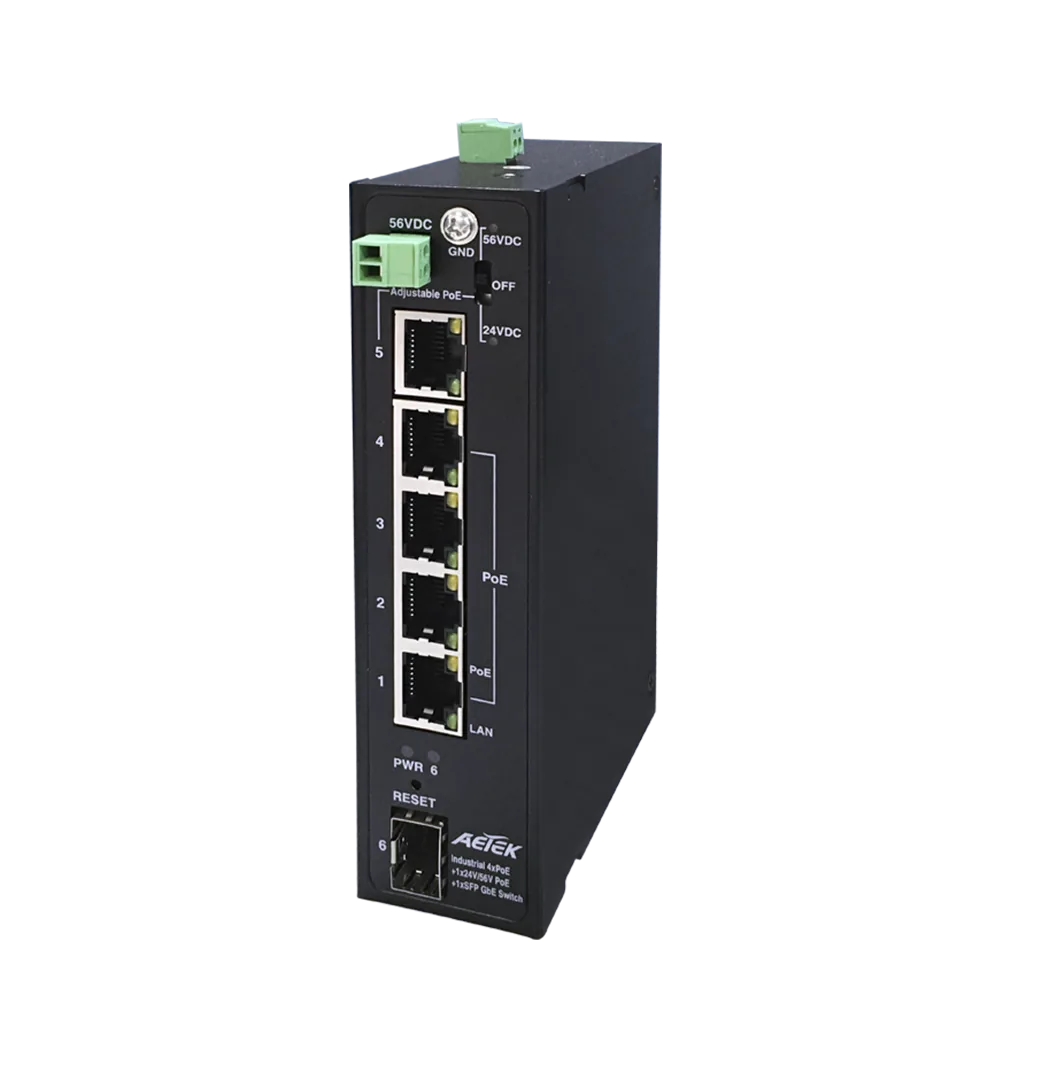

Industrial switch in an IP30 metal housing with six Gigabit ports: four PoE ports to IEEE 802.3af/at at up to 30 W, one selectable port that puts out 24 W as passive PoE at either 24 V or 56 V DC, and one SFP slot for a fibre uplink. That selectable port also feeds wireless nodes which expect no standards-based PoE. The PoE budget is 120 W, power comes from a redundant 48 to 56 V DC feed, and the switch itself draws 5 W without PoE. Forwarding 11.904 Mpps, 12 Gbps switching capacity, 4K MAC table, 9,216 byte jumbo frames, IEEE 802.3az supported. Operating temperature -40 °C to 75 °C, 6 kV surge protection per PoE port, 35.7 x 103 x 140.6 mm, 0.5 kg.

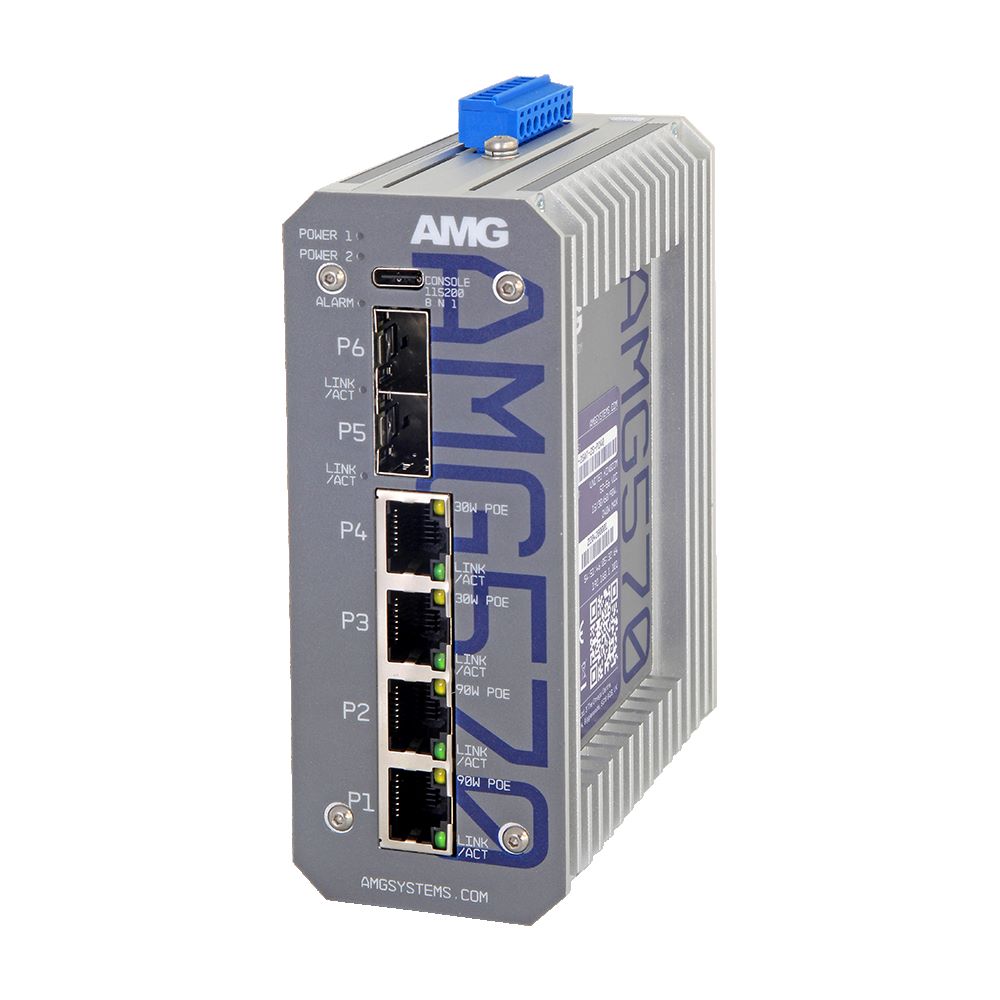

An industrial managed switch with six ports in total. Two are 10/100/1000Base-T(x) RJ45 ports carrying 802.3bt PoE at 60/90 W, and two more are 10/100/1000Base-T(x) RJ45 ports with 802.3at PoE at 30 W. Two SFP ports for 100/1000/2.5G Base-FX complete the port layout. The unit mounts on a DIN rail or on a wall. Operation covers -40 C to +75 C from a 48-56 VDC supply. Industrial 6-port managed switch2 x RJ45 with 802.3bt 60/90 W PoE2 x RJ45 with 802.3at 30 W PoE2 x SFP 100/1000/2.5G Base-FXDIN rail or wall mount-40 C to +75 C, 48-56 VDC

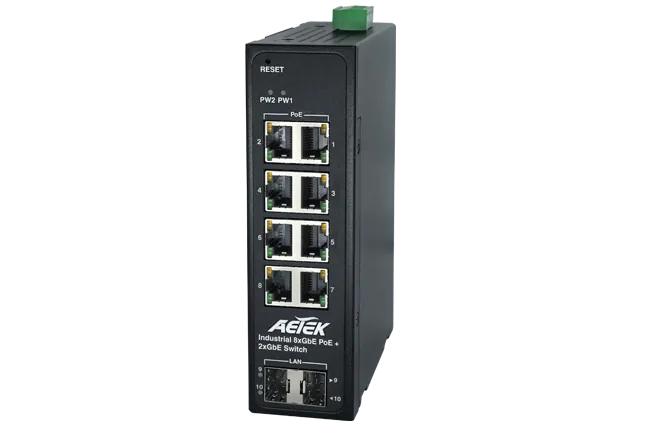

Industrial switch with ten Gigabit ports: eight IEEE 802.3at PoE ports at 30 W each and two SFP slots for a fibre uplink. A 240 W total budget powers eight cameras even when several are running their heaters at once. Input is 48 to 56 V DC, the operating range -40 °C to 75 °C, protection IP30, with 6 kV surge protection per PoE port. Switching capacity is 20 Gbit/s at 14.88 Mpps, mounting on DIN rail or wall.
