The PD-VDSL-MI1GQ is a bridge modem for long-reach Ethernet links, combining a 10/100/1000TX copper port on RJ45 with a VDSL2 extender port, likewise on RJ45. The transmission medium is twisted pair copper cable such as Cat3 telephone cable; distances of up to 2km are possible over one wire pair, and both symmetrical and asymmetrical transmission at up to roughly 100 Mbit/s are supported. Achievable data rates depend heavily on cable quality: measured on a Cat3 telephone cable, the approximate values without guarantee are 95/95 Mbit/s at 100m, 25/20 Mbit/s at 600m and 5/2 Mbit/s at 2000m downstream and upstream. The metal housing is fed at 12-24VDC through a 2.1/5.5 hollow plug with an adapter for screw terminals included, drawing 4,5W at 15 BTU/h. The operating range covers -20°C to 65°C at a net weight of 0.33 kg, and the device is not compatible with the PD-VDSL-MI1G. VDSL2 bridge modem for UTP cable10/100/1000TX copper port and VDSL2 extender port, both RJ45Distances up to 2km over one twisted wire pairSupply 12-24VDC, 2.1/5.5 hollow plug, 4,5WRobust metal housing, -20°C to 65°C

The LO-9500-R1 is a 19-inch rack of one height unit for media converters of the LO-9500 range. It takes up to four converters, and fitting the devices is straightforward. All the mounting accessories needed are supplied with it. The operating temperature range runs from -20 C to +50 C, and the rack itself produces no thermal power loss. Gross weight is 1.7 kg and net weight 1.4 kg. 19-inch rack, 1 UHolds up to four LO-9500 media convertersMounting accessories includedOperating temperature -20 C to +50 C

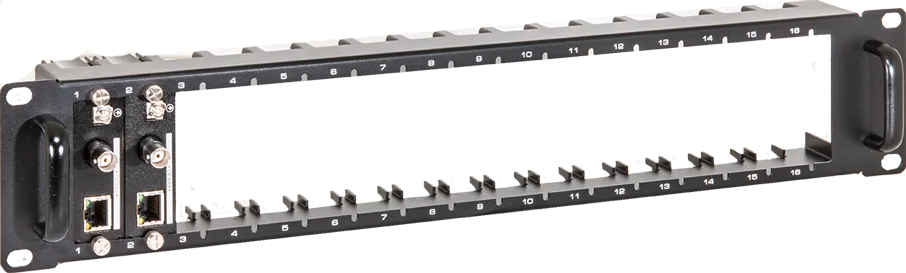

The UP-EXT-R2 is a 19-inch subrack that holds up to 16 IP and PoE extenders of the UP-EXT-SET series. It serves purely for mechanical mounting inside the cabinet and does not supply the individual extenders, whose power comes from the PoE being transmitted. Where no PoE is present, each UP-EXT-SET has to be powered individually. Fitting the media converters is straightforward, and all the mounting accessories required are included. The subrack occupies 2U at 63mm depth, weighs 0.42 kg net and is specified for -40 to +75°C. 19-inch design, 2U x 63mmHolds up to 16 UP-EXT-SET unitsMechanical mounting only, no power feedMounting accessories includedOperating temperature -40 to +75°C

As a 19-inch rack of two height units, the LO-9500-R2A accommodates up to 14 media converters of the LO-9500 range. Two redundant power supplies for 110-230 VAC each at 50-60 Hz are part of the delivery and secure availability. Fully equipped with 14 converters the rack draws a maximum of 50 W, and thermal power loss is 34 BTU/h. Fitting the converters is simple and the necessary mounting accessories are included. Dimensions are 230 x 490 x 90 mm at 5.4 kg gross and 4.8 kg net, with an operating temperature range of -20 C to +50 C. 19-inch rack, 2 UHolds up to 14 LO-9500 media convertersTwo redundant 110-230 VAC power supplies includedPower consumption max. 50 W when fully equippedOperating temperature -20 C to +50 C

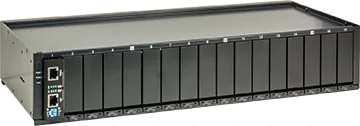

The PD-R2 is a 19-inch subrack of two height units with 17 slots for VDSL2 LAN extenders. It addresses low density installations where management functions are not required, and each extender can alternatively be run as a stand-alone device. An AC power supply is built in and feeds all modules centrally, while a fan keeps the rack temperature within the permissible working range. Connection is by IEC plug at 230VAC; the base load is 10W, each modem adds 4.5W, and the thermal loss is 34 BTU/h. The subrack measures 199mm x 476mm x 88mm (LxWxH), weighs 2.9 kg net and operates between 0°C and 50°C. 19-inch subrack, 2 height units17 slots for VDSL2 LAN extendersBuilt-in AC power supply, central feedingSupply 230VAC via IEC plugOperating temperature 0°C to 50°C, 2.9 kg net

Aktives Verbingungskabel mit 2 SFPs. Länge 2m. Das Verbindungskabel ist fertig konfektioniert und direkt einsatzbereit. Es muss kein zusätzliches Kabel verwendet werden.

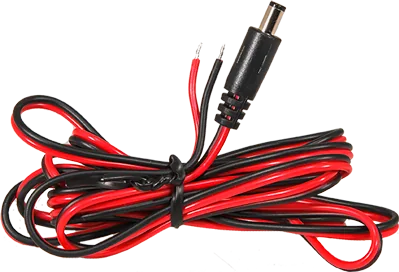

The UP-EXT-CABLE is a connection cable that powers a UP-EXT-SET wherever no PoE feed is available at the installation point. The matching PS-DIN-AC/48/40 power supply is ordered separately; in principle the cable works with any power supply whose output is 48-56VDC and which provides at least 40W. Cable length is 2m, and the weight is 0.04 kg both net and gross. The stated operating range covers -40 to +75°C. Power cable for UP-EXT-SETMatching PS-DIN-AC/48/40 power supply ordered separatelyUsable with 48-56VDC and at least 40WLength 2mOperating temperature -40 to +75°C

The VI-COAX-3205 places four 10/100BaseTX Ethernet ports with PoE and PoE+ (RJ45) behind a single coaxial uplink, which makes existing analogue video cabling usable for IP applications. The coax port is a BNC connector and the maximum transmission distance with the listed cables is 500m, with the power loss of the path to be taken into account. Cabling is 50Ohm RG6, RG58A/U, RG58C/U and RG58U or 75Ohm RG59 and equivalents, and plug-and-play operation removes the need for software configuration. For PoE at the cameras the switch always has to be powered locally, either from 48VDC or PoE, at a maximum consumption of 120W. Its table or wall mount housing measures 126 x 95 x 30mm (L x D x H) and is rated for -30°C to +70°C. 4-port PoE switch with coaxial uplink4 x 10/100BaseT, PoE, PoE+, RJ451 x coax, BNC, distances up to 500m48VDC or PoE powering, max. 120W-30°C to +70°C126 x 95 x 30mm (L x D x H)

Housed in an IP67-rated enclosure, the VI-COAX-2400WP can be mounted outdoors without an additional weatherproof box. It carries 10/100Mbps Ethernet together with PoE-af (15W) and PoE-at (30W) over coaxial cable across a maximum of approximately 500m, with pass-through technology forwarding the supply of a PoE switch as far as an IP camera. The far end of the coaxial link must be a device from the VI-COAX-24xy series, and no software configuration is needed. Power comes from PoE alone; the unit cannot be supplied locally. Cabling is 75Ohm RG59 or 50Ohm RG6, RG58A/U, RG58C/U and RG58U or equivalent. It provides one 10/100BaseT port (RJ45) and one coax port (BNC), draws 3W, dissipates 7 BTU/h, measures 174 x 40 x 47mm (L x D x H) and operates from -40 to +75°C. IP67 protected housingDistances up to 500m over coaxial cablePoE-af (15W), PoE-at (30W)PoE powered only, no local supply1 x 10/100BaseT RJ45, 1 x coax BNC174 x 40 x 47mm (L x D x H), 3W

Recommended for the camera end of a link, the single-channel VI-COAX-2400A joins one 10/100BaseT port (RJ45) to one coaxial port (BNC) and spans up to 500m. Alongside 10/100Mbps Ethernet, pass-through technology carries PoE-af (15W) or PoE-at (30W), so no separate supply is needed in PoE mode; the power loss of the run has to be accounted for. Suitable cabling is 50Ohm RG6, RG58A/U, RG58C/U and RG58U, or 75Ohm RG59 and equivalents. No software configuration is involved and diagnostic LEDs indicate the operating state. Built for table or wall mounting, the module measures 55 x 45 x 27mm (L x D x H), draws 2W, dissipates 7 BTU/h, weighs 0.09 kg net and works from -40 to +75°C. Single-channel IP/PoE extender over coaxial cable1 x 10/100BaseT RJ45, 1 x coax BNCDistances up to 500mPoE-af (15W), PoE-at (30W)2W power consumption, -40 to +75°C55 x 45 x 27mm (L x D x H)

Intended primarily for the central side but equally usable at the camera, the single-channel VI-COAX-2401A carries 10/100Mbps Ethernet plus PoE-af (15W) and PoE-at (30W) over coaxial cable across up to 500m. Pass-through technology forwards the PoE supply of a midspan, for example, so no separate feed is required in PoE mode; the power loss of the run must be taken into account. Cabling is 50Ohm RG6, RG58A/U, RG58C/U and RG58U or 75Ohm RG59 and equivalents. Software configuration is not involved, and diagnostic LEDs show the operating state. The module has one 10/100BaseT port (RJ45) and one coax port (BNC), mounts on a table, a wall or a top hat rail, measures 95 x 40 x 30mm (L x D x H), draws 2W, dissipates 7 BTU/h and is rated for -40 to +75°C. Single-channel IP/PoE extender over coaxial cableRecommended for use on the central sideTable, wall or top hat rail mountingDistances up to 500m, PoE-af (15W) and PoE-at (30W)95 x 40 x 30mm (L x D x H), 2W-40 to +75°C, 0.13 kg net weight

With sixteen channels, the VI-COAX-2416AB serves 16 separate extender lines and provides 16 10/100BaseT ports (RJ45) plus 16 coaxial ports (BNC). Each line transports 10/100Mbps Ethernet together with PoE-af (15W) and PoE-at (30W) over coaxial cable across up to 500m, and the power loss of the run must be factored in. Operating voltage is 12VDC from the separate VI-0014AB power supply included in delivery, which inserts no PoE of its own. Cables can be 50Ohm RG6, RG58A/U, RG58C/U and RG58U or 75Ohm RG59 and equivalents, and no software configuration is needed. Supplied in a 19 inch format of 1U and 250mm that also allows table or wall mounting, it draws 30W, dissipates 34 BTU/h, weighs 2.8 kg net and runs from -40 to +75°C. 16 channels for 16 separate extender lines16 x 10/100BaseT RJ45, 16 x coax BNC12VDC supply, VI-0014AB power supply included19 inch, 1U, 250mmDistances up to 500m, PoE-af (15W) and PoE-at (30W)30W, 34 BTU/h

A four-channel module for the central side, the VI-COAX-2404AB connects four separate extender lines and provides four 10/100BaseT ports (RJ45) together with four coaxial ports (BNC). Each line carries 10/100Mbps Ethernet and PoE-af (15W) or PoE-at (30W) over coaxial cable across up to 500m, with the power loss of the transmission path to be taken into account. The unit runs on 12VDC from the separate VI-0014AB power supply included in delivery, which does not insert PoE itself. Suitable cabling is 50Ohm RG6, RG58A/U, RG58C/U and RG58U or 75Ohm RG59 and equivalents, and no software configuration is required. Built for table or wall mounting, it measures 125 x 95 x 60mm (L x D x H), draws 8W, dissipates 27 BTU/h and operates from -40 to +75°C. 4 channels for four separate extender lines4 x 10/100BaseT RJ45, 4 x coax BNC12VDC supply, VI-0014AB power supply includedDistances up to 500m, PoE-af (15W) and PoE-at (30W)125 x 95 x 60mm (L x D x H), 8W-40 to +75°C, 27 BTU/h

The VI-COAX-2408AB is an eight-channel module that attaches eight separate extender lines over coaxial cable, offering eight 10/100BaseT ports (RJ45) and eight coaxial ports (BNC). Every line carries 10/100Mbps Ethernet as well as PoE-af (15W) and PoE-at (30W) across up to 500m, and the power loss of the transmission path has to be considered. Power comes from 12VDC supplied by the enclosed VI-0014AB unit, which does not itself inject PoE. Cabling can be 50Ohm RG6, RG58A/U, RG58C/U and RG58U or 75Ohm RG59 and equivalents, with no software configuration involved. The 19 inch chassis of 1U and 250mm depth also suits table or wall mounting, draws 15W, dissipates 27 BTU/h, weighs 2.0 kg net and covers -40 to +75°C. 8 channels for eight separate extender lines8 x 10/100BaseT RJ45, 8 x coax BNC12VDC supply, VI-0014AB power supply included19 inch, 1U, 250mmDistances up to 500m, PoE-af (15W) and PoE-at (30W)15W, -40 to +75°C

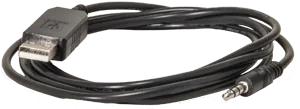

The KN-CONSCAB is a console cable for the KN-BTPMC-202M. It runs from a 3-pin 3.5 mm jack plug to a USB-A connector. Cable length is 1.5 m. The permitted temperature range extends from -40 to +75 C. Gross and net weight are 0.04 kg each. Console cable for KN-BTPMC-202M3.5 mm 3-pin jack to USB-ALength 1.5 mTemperature range -40 to +75 C

Digital video receiver, compact module Multimode 1300nm, ST connector incl. power supply 230VAC/12VDC

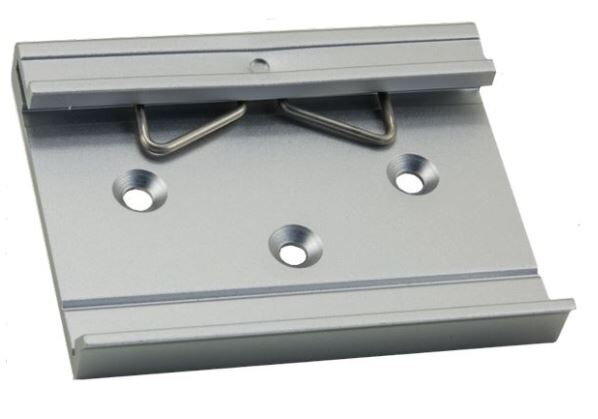

DIN rail clip for PD-VDSL-MI100https://www.barox.ch/produkte/ip-produkte/dsl-modems/item/836-pd-vdsl-mi100

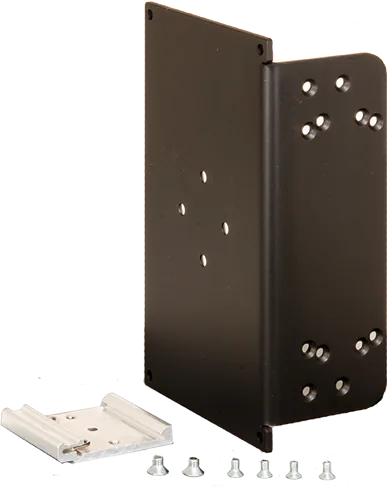

The KT-DIN-Winkel is a mounting bracket for DIN rail switches. It holds the switches rotated by 90 degrees, so that they protrude less far into the depth of a terminal box. The bracket can be fixed to a DIN rail or to a flat mounting plate and suits a range of switches, among them LT-L802GBTME, LT-L804GBTME, PC-PIGE502-GBTE and RY-804GBTME. The required mounting material is included in the delivery. Dimensions are 55 x 161 x 97 mm, with a gross weight of 0.24 kg and a net weight of 0.20 kg. Mounting bracket for DIN rail switchesSwitches held rotated by 90 degreesMounting on DIN rail or flat mounting plateMounting material includedDimensions 55 x 161 x 97 mm

This article is a special order,  no returns! Delivery time approx. 3 weeks

Industrial DSL router / Function: plug-in card 2xSFP 2xEthernet / Note: without SFP

Industrial DSL router / Function: plug-in card 4xRS232 /
