Special cameras

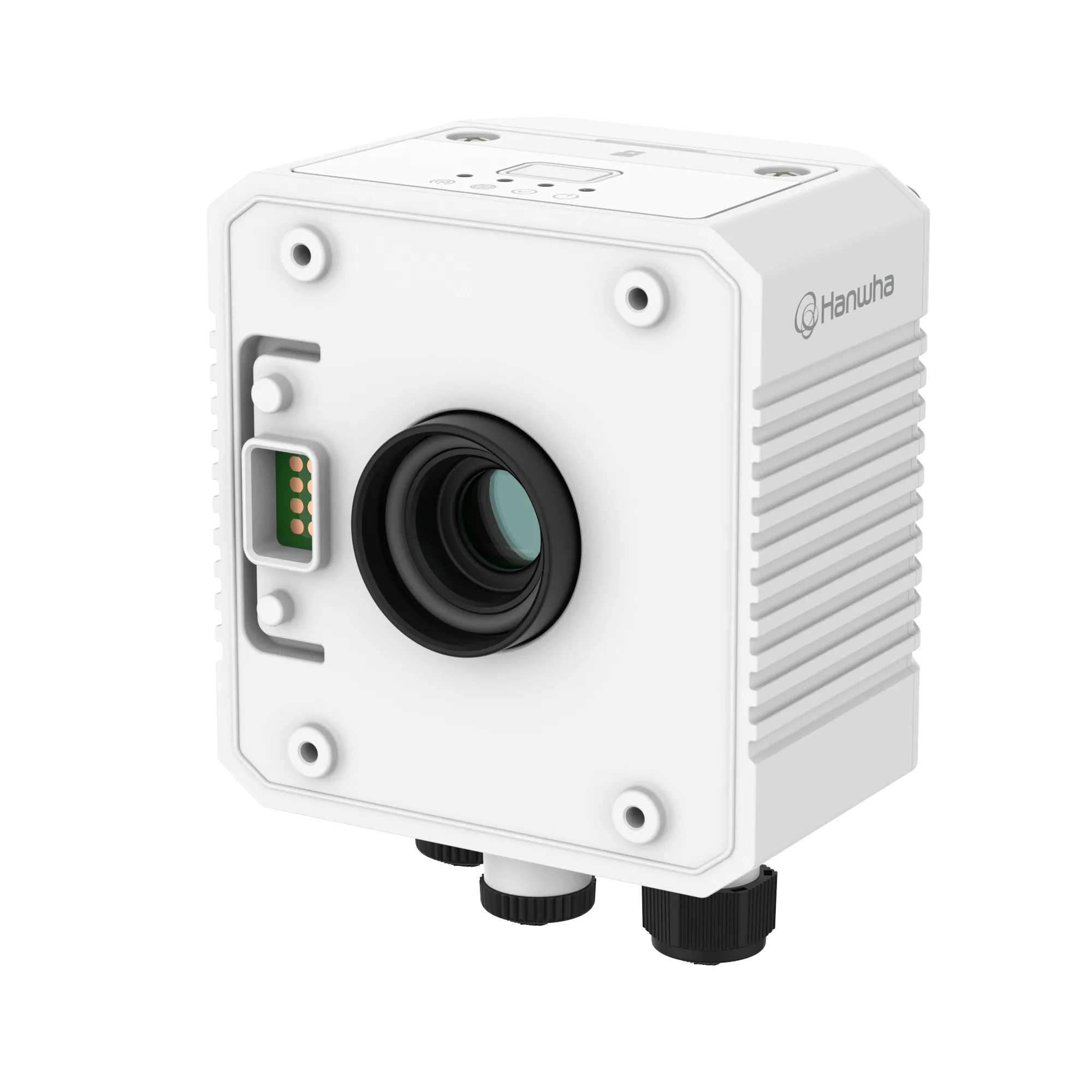

Monochrome 3MP BCR camera built for barcode capture. A 1/3" CMOS sensor with 2.25㎛ pixel size produces 2048x1536 at 50fps in H.265/H.264 (Main/High) or MJPEG. Its global shutter operates between 33.3ms and 150㎲ and is supported by HDR backlight compensation plus flip and mirror rotation. Code reading uses WiseBCR based on the AI engine and covers 1D symbologies such as Code128, CODE39, CODE93, Codabar, ITF, UPC and EAN together with the 2D types QRcode, DataMatrix, Maxicode and PDF417. Connectivity is RJ-45 (10/100/1000BASE-T) or M12, with two alarm inputs and two alarm outputs, unicast for up to 6 users and multicast support. Optional lenses are available in 6mm, 8mm, 12mm, 16mm and 25mm. 1/3" CMOS, 2048x1536 at 50fps2.25㎛ pixel size, global shutter 33.3ms to 150㎲WiseBCR barcode recognition based on AI engine1D and 2D codes including QRcode, DataMatrix, PDF417RJ-45 (10/100/1000BASE-T) and M12Optional lenses from 6mm to 25mm

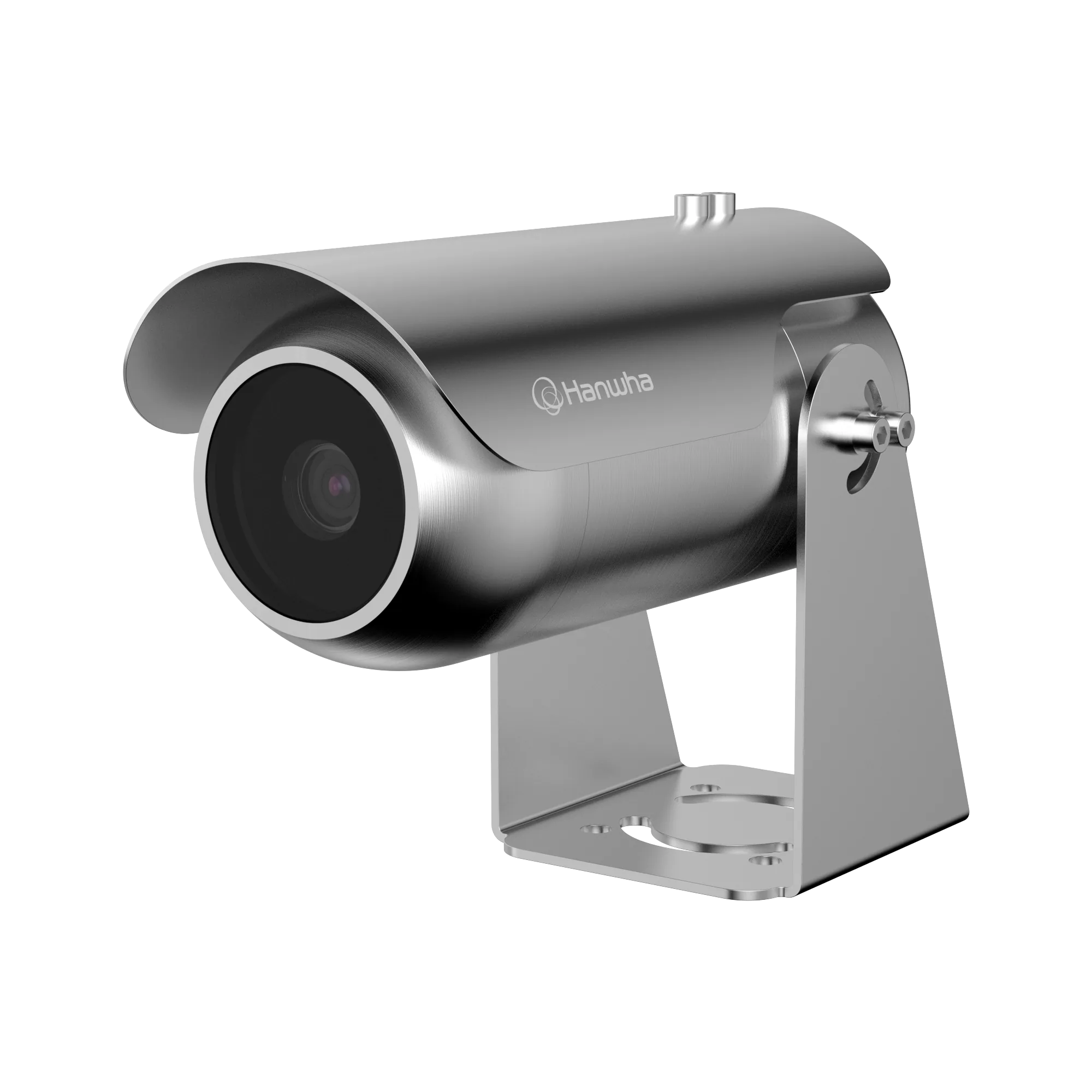

The TNO-C8083E is a compact explosion-proof bullet camera built around a 1/2.8" CMOS imager that resolves up to 2592x1944 and offers a long list of smaller formats down to 320x240. H.265 and H.264 run at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps, limited to 5fps at 5MP. Its motorised 3.2 to 10.2 mm varifocal lens gives 3.2x optical zoom, opens to F1.6 at wide and F3.1 at tele, covers 95°~29° horizontally, 69°~21° vertically and 126°~36° diagonally, and focuses from 1.2 m using simple focus. Low light is handled at 0.07 lux in colour and 0.007 lux in black and white, supported by auto ICR day and night switching, BLC, WDR and SSDR with 120 dB of dynamic range, plus WiseNR II based on the AI engine and SSNR V. The SUS316L stainless steel housing is rated IP66 and IK10 and certified explosion-proof to IECEx, ATEX, KCs and JPEx, while the LAN cable uses a flame-retardant LSZH sheath. AI object classification cuts false alarms, eight motion detection zones can be configured, and a 1/2" cable gland simplifies installation. 1/2.8" CMOS up to 2592x1944Motorised 3.2~10.2 mm lens, 3.2x optical zoom120 dB WDR, WiseNR II, SSNR VIECEx, ATEX, KCs and JPEx explosion-proofIP66/IK10, SUS316L stainless steelLAN cable with flame-retardant LSZH sheath

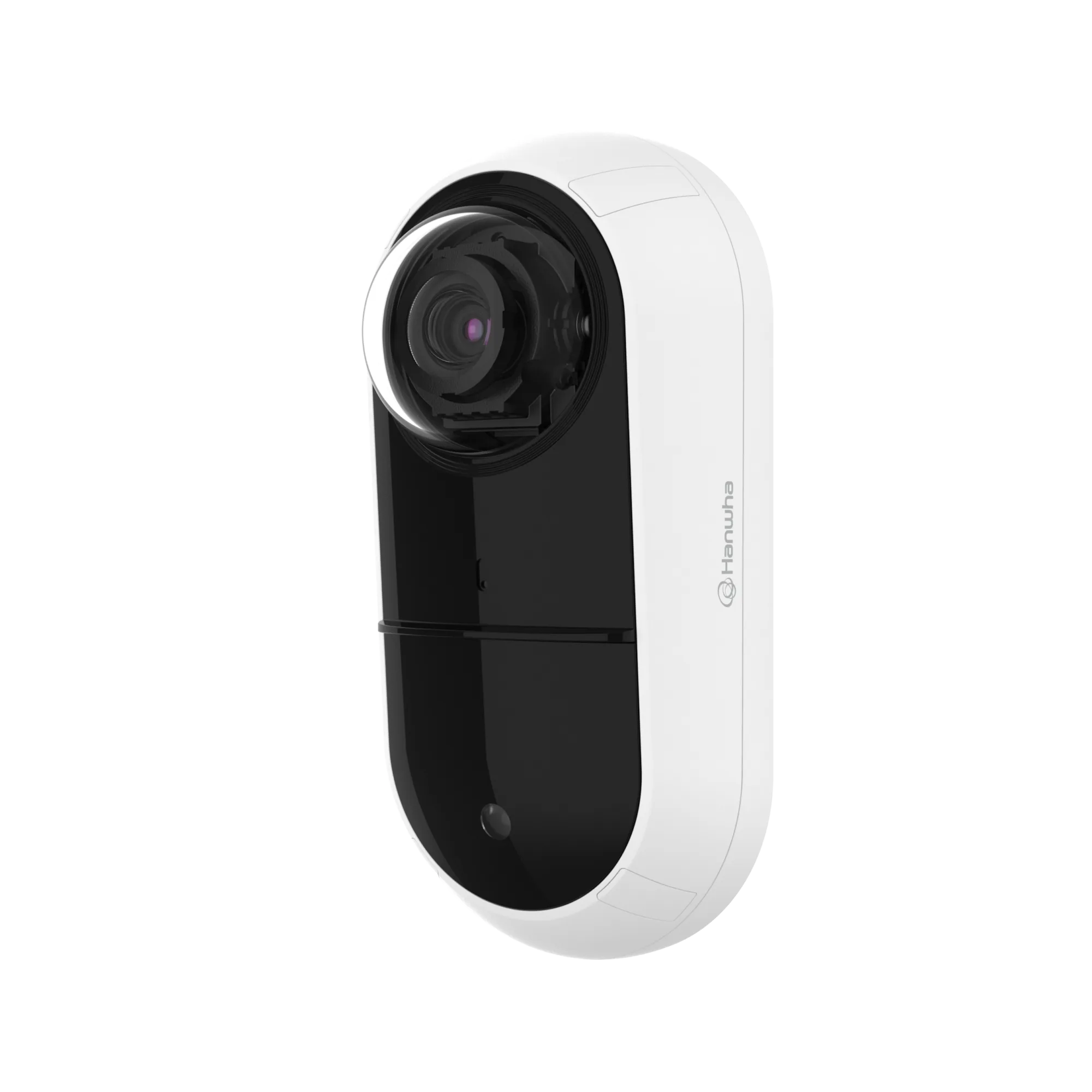

Wall mount 5MP camera with AI analytics and infrared. The 1/2.8" CMOS sensor outputs up to 2592x1944, running 30fps/25fps (60Hz/50Hz) in H.265/H.264 and 30fps in MJPEG with a 5fps maximum at 5MP. Its 1.6mm lens at F1.6 produces a panoramic view of 175° horizontally and 125° vertically at a 0.3m minimum object distance, with a 25° tilt lens for eye level monitoring and 15m IR viewable length. The AI engine drives the analytics events including loitering detection and line crossing detection, WiseNRⅡ noise reduction with SSNRⅤ, and WiseStreamⅢ. Business intelligence functions cover people counting, vehicle counting, queue management and heatmap. WDR is rated 120dB, the compact housing uses an anti-ligature rounded edge design, and tilt travel is -25°~+25°. 5MP, up to 2592x19441.6mm lens, F1.6, 175° x 125°15m IR viewable length, 25° tilt lensAI analytics with loitering and line crossing detectionPeople counting, vehicle counting, queue management, heatmap120dB WDR, WiseNRⅡ, WiseStreamⅢ

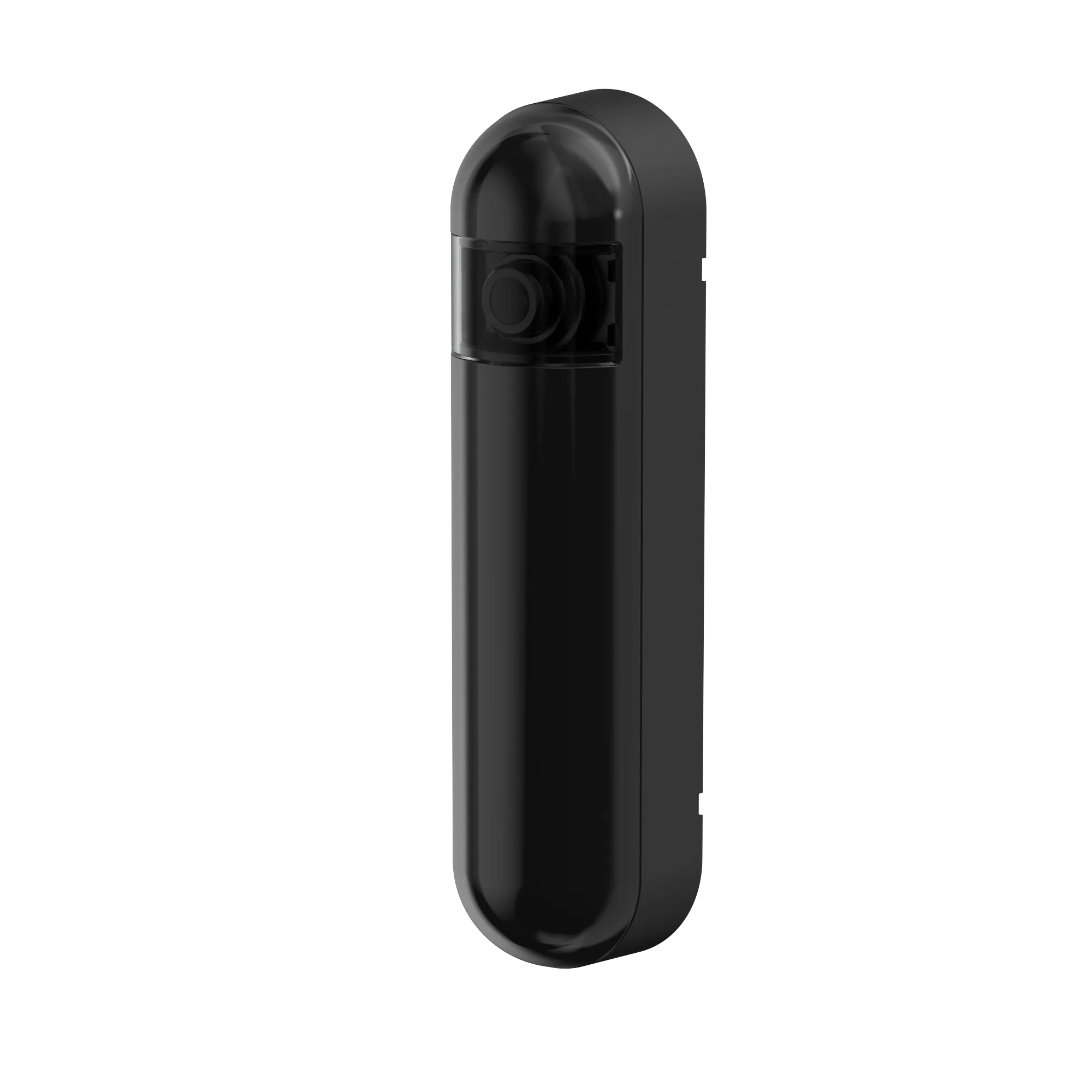

Finished in black, the SLA-F2480DA is a doorjamb lens module with 5-megapixel resolution (2560 x 1440). Imaging is handled by a 1/2.8-inch CMOS sensor behind a fixed 2.45 mm lens with a maximum aperture of F2.0, covering 123° horizontally, 91° vertically and 159° diagonally. Minimum illumination is 0.08 lux in both colour and black-and-white mode. The module links to the main unit over RJ12, an 8 m cable is supplied, and the head pans through ±30°. Lens and plastic housing are included, hidden security screws keep the installation discreet, and operation is specified from -10 °C to +55 °C at 0 to 95 % relative humidity. It is intended for use with the PNM-C20000QB. 5 megapixel (2560 x 1440), 1/2.8-inch CMOSFixed 2.45 mm focal length, F2.0123° x 91° x 159° field of view±30° panning range8 m cable, RJ12 connectionBlack plastic housing with hidden security screws

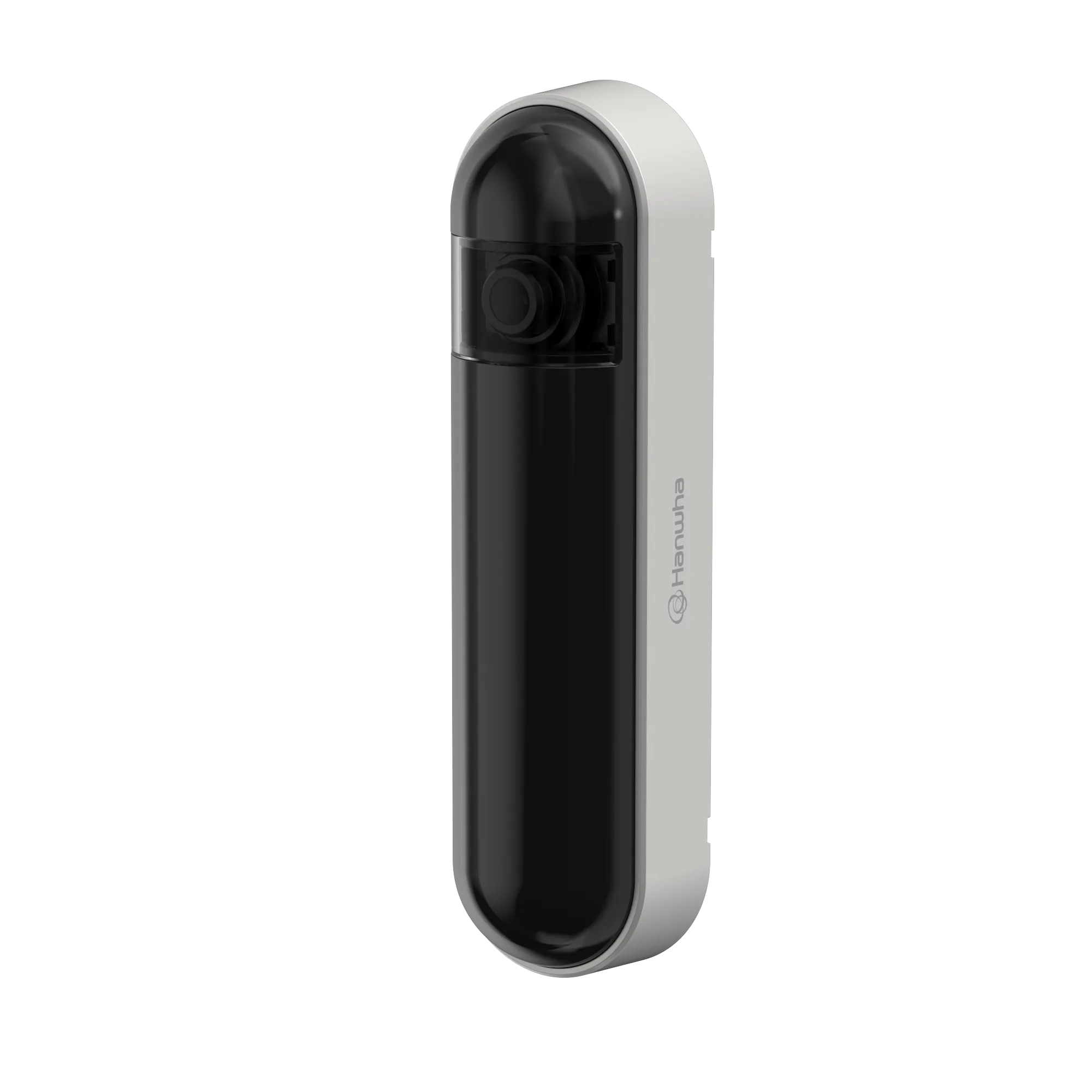

The SLA-F2480DSA is a 5MP doorjamb lens module supplied with a silver finish. A 1/2.8-inch CMOS sensor sits behind a fixed 2.45 mm lens with a maximum aperture of F2.0, giving 123° horizontal, 91° vertical and 159° diagonal coverage at a minimum illumination of 0.08 lux in colour and black-and-white alike. Connection to the main unit is made over RJ12 with an 8 m cable supplied, and the module pans through ±30°. Lens and plastic housing are included and the security screws are concealed. Operating temperature runs from -10 °C to +55 °C, and the PNM-C20000QB is the supported product. Silver finish, plastic housingFixed 2.45 mm focal length, F2.01/2.8-inch CMOS, 0.08 lux colour and BW123° x 91° x 159° field of view±30° panning range8 m cable, RJ12 connection

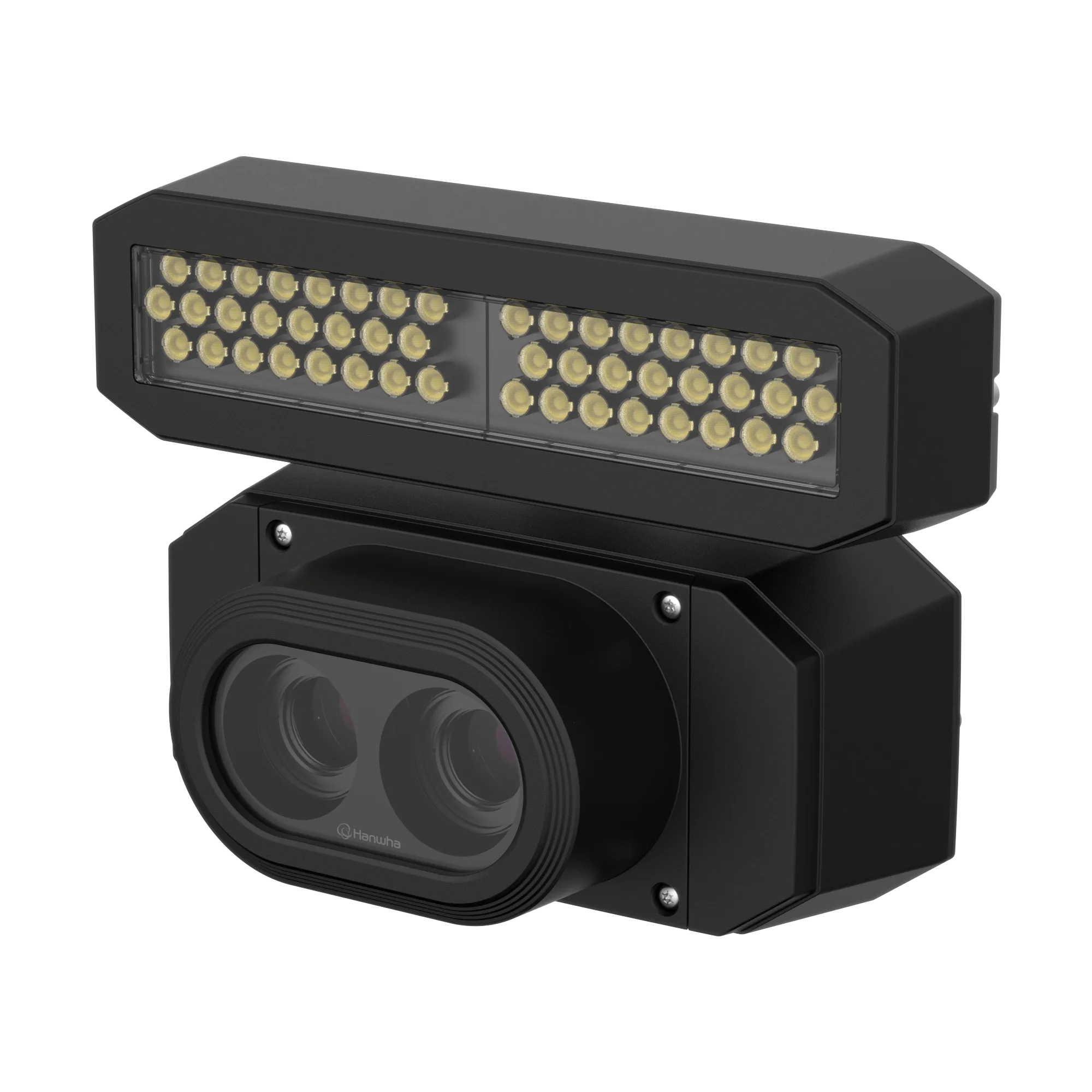

Dual sensor BCR camera with a fixed 35mm focal length (Narrow FoV). Mono and colour sensors sit in one housing, so barcode reading and video capture come from the same device, and codes can be read from multiple orientations. Pixel size is 3.45㎛ and the minimum object distance 0.2m (0.66ft), while focus and iris are set manually on a C mount. The global shutter spans 1/30~1/10,000s (33.3ms~100㎲), complemented by SSNR noise reduction, manual gain and AWC or manual white balance. Illumination comes from 48EA white LEDs at 5700K via an M12 5pin connector. Supported symbologies include the 1D codes Code128, CODE39, CODE93, Codabar, ITF, UPC and EAN plus QRcode, DataMatrix, Maxicode and PDF417; networking uses an M12 8pin connector (10/100/1000BASE-T) with H.265/H.264 and MJPEG, unicast for up to 6 users and multicast support. Fixed 35mm focal length, C mountMono and colour sensor in one deviceGlobal shutter 1/30~1/10,000s48EA white LEDs, 5700K, M12 5pin1D and 2D codes including QRcode and PDF417M12 8pin network connector (10/100/1000BASE-T)

Dual sensor BCR camera with a fixed 25mm focal length (Wide FoV). Mono and colour sensors sit in one housing, so barcode reading and video capture come from the same device, and codes can be read from multiple orientations. Pixel size is 3.45㎛ and the minimum object distance 0.15m (0.49ft), while focus and iris are set manually on a C mount. The global shutter spans 1/30~1/10,000s (33.3ms~100㎲), complemented by SSNR noise reduction, manual gain and AWC or manual white balance. Illumination comes from 32EA white LEDs at 5700K via an M12 5pin connector. Supported symbologies include the 1D codes Code128, CODE39, CODE93, Codabar, ITF, UPC and EAN plus QRcode, DataMatrix, Maxicode and PDF417; networking uses an M12 8pin connector (10/100/1000BASE-T) with H.265/H.264 and MJPEG, CBR or VBR bitrate control and unicast for up to 6 users. Fixed 25mm focal length, C mountMono and colour sensor in one deviceGlobal shutter 1/30~1/10,000s32EA white LEDs, 5700K, M12 5pin1D and 2D codes including QRcode and PDF417M12 8pin network connector (10/100/1000BASE-T)

Dual sensor BCR camera with a fixed 16mm focal length (Ultra-Wide FoV). Mono and colour sensors sit in one housing, so barcode reading and video capture come from the same device, and codes can be read from multiple orientations. Pixel size is 3.45㎛ and the minimum object distance 0.15m (0.49ft), while focus and iris are set manually on a C mount. The global shutter spans 1/30~1/10,000s (33.3ms~100㎲), complemented by SSNR noise reduction, manual gain and AWC or manual white balance. Illumination comes from 32EA white LEDs at 5700K via an M12 5pin connector. Supported symbologies include the 1D codes Code128, CODE39, CODE93, Codabar, ITF, UPC and EAN plus QRcode, DataMatrix, Maxicode and PDF417; networking uses an M12 8pin connector (10/100/1000BASE-T) with H.265/H.264 and MJPEG, CBR or VBR bitrate control and unicast for up to 6 users. Fixed 16mm focal length, C mountMono and colour sensor in one deviceGlobal shutter 1/30~1/10,000s32EA white LEDs, 5700K, M12 5pin1D and 2D codes including QRcode and PDF417M12 8pin network connector (10/100/1000BASE-T)

The CD9381 is a corner-mount dome camera with AI functions, a 1/2.7" progressive CMOS sensor and a maximum resolution of 2560x1920 (5MP). Its motorized vari-focal f = 2.8-8 mm lens with remote focus with a fixed iris at F1.8(W)~F2.78(T) covers 95° to 41° horizontally, 69° to 31° vertically and 126° to 53° diagonally, and frame rate reaches 30 fps at 2560x1920 with WDR Pro on or 60 fps at 1920x1080 with WDR Pro off. Two invisible 940nm IR LEDs with Smart IR are effective up to 10 metres, giving minimum illumination of 0.085 lux in colour at 30IRE and below 0.005 lux in black and white. H.265, H.264 and MJPEG recording runs seamlessly to a MicroSD/SDHC/SDXC card of up to 1 TB and to network-attached storage, ePTZ provides 48x digital zoom and the tilt range is 15°. Housing protection is IP6K9K/IP67 with IK10, the anti-ligature design suits correctional facilities, a microphone is built in and Trend Micro IoT Security supplies cyber protection. 2560x1920 (5MP) maximum resolutionMotorized vari-focal f = 2.8-8 mm with remote focusInvisible 940nm IR effective up to 10 mIP6K9K/IP67 weather-proof, IK10 vandal-proofAnti-ligature design with built-in microphoneTrend Micro IoT Security cyber protection

The CD9381 is a corner-mount dome camera with AI functions, a 1/2.7" progressive CMOS sensor and a maximum resolution of 2560x1920 (5MP). Its fixed-focal f = 2.4 mm lens with a fixed iris at F2.1 covers 124° horizontally, 92° vertically and 156° diagonally, and frame rate reaches 30 fps at 2560x1920 with WDR Pro on or 60 fps at 1920x1080 with WDR Pro off. Two invisible 940nm IR LEDs with Smart IR are effective up to 10 metres, giving minimum illumination of 0.07 lux in colour at 30IRE and below 0.005 lux in black and white. H.265, H.264 and MJPEG recording runs seamlessly to a MicroSD/SDHC/SDXC card of up to 1 TB and to network-attached storage, ePTZ provides 48x digital zoom and the tilt range is 0°. Housing protection is IP6K9K/IP67 with IK10, the anti-ligature design suits correctional facilities, a microphone is built in and Trend Micro IoT Security supplies cyber protection. 2560x1920 (5MP) maximum resolutionFixed-focal f = 2.4 mm lens at F2.1Invisible 940nm IR effective up to 10 mIP6K9K/IP67 weather-proof, IK10 vandal-proofAnti-ligature design with built-in microphoneTrend Micro IoT Security cyber protection

VORTEX Outdoor Panoramic camera, 5M 15fps 180° , H.264/MJPEG, f1.47, Fixed lens, Fixed-iris, SNV, WDR PRO, Smart Stream III, PoE, Built in mic, Built-in 256GB MicroSD Card (30 Days Edge Recording), IP66/K10, Working Temperature: -30°C ~ 55°C (-22°F~ 131°F)

VORTEX Outdoor Panoramic camera, 5M 15fps 180° , H.264/MJPEG, f1.47, Fixed lens, Fixed-iris, IR 20M, SNV, WDR PRO, Smart Stream III, PoE, Built in mic, Built-in 256GB MicroSD Card (30 Days Edge Recording), IP66/K10, Working Temperature: -30°C ~ 55°C (-22°F~ 131°F)

The CU9171 is a sensor unit for the VC9101 in a cylinder shape with a recessed pinhole lens. Its 1/2.7" progressive CMOS sensor resolves up to 2688x1520 (4MP), and the fixed-focal f = 3.7 mm lens with a fixed iris at F2.5 covers 93.0° horizontally, 48.0° vertically and 117.0° diagonally. Frame rate is 30 fps at 2688x1520 with WDR off and 24 fps with WDR on; of the three video streams with up to eight profiles, two run at 24 fps and 2688x1520 while the third runs at 24 fps and 1600x904. A signal-to-noise ratio of 55.9 dB, 120 dB dynamic range, WDR Pro and Smart Stream III with adjustable resolution, quality and constrained bit rate control define the imaging, and minimum illumination is 0.045 lux at F2.5 in colour. Connection is made through a USB micro b connector with a 5 m cable to RJ11, and power consumption stays below 1.25 W. Sensor unit for the VC9101Cylinder shape, discreet recessed pinhole lens2688x1520 (4MP) at 30 fpsFixed-focal f = 3.7 mm lens at F2.5Smart Stream III and 120 dB dynamic rangePower consumption below 1.25 W

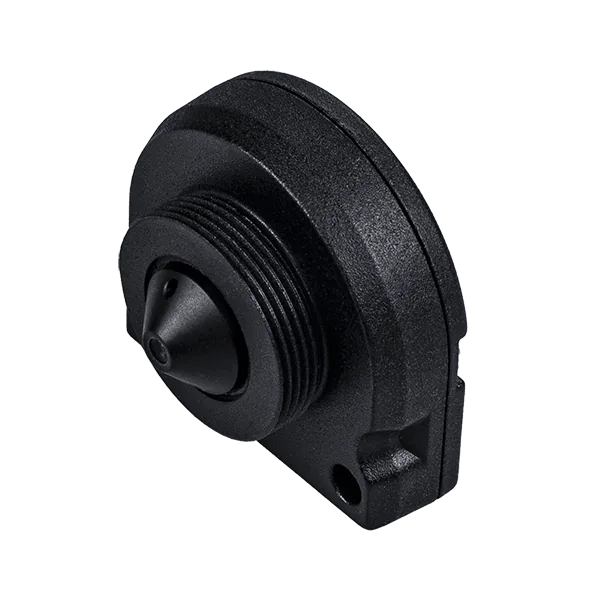

The CU9171 is a sensor unit for the VC9101 in a flat shape with a recessed pinhole lens. Its 1/2.7" progressive CMOS sensor resolves up to 2688x1520 (4MP), and the fixed-focal f = 3.7 mm lens with a fixed iris at F2.5 covers 93.0° horizontally, 48.0° vertically and 117.0° diagonally. Frame rate is 30 fps at 2688x1520 with WDR off and 24 fps with WDR on; of the three video streams with up to eight profiles, two run at 24 fps and 2688x1520 while the third runs at 24 fps and 1600x904. A signal-to-noise ratio of 55.9 dB, 120 dB dynamic range, WDR Pro and Smart Stream III with adjustable resolution, quality and constrained bit rate control define the imaging, and minimum illumination is 0.045 lux at F2.5 in colour. Connection is made through a USB micro b connector with a 5 m cable to RJ11, and power consumption stays below 1.25 W. Sensor unit for the VC9101Flat shape, discreet recessed pinhole lens2688x1520 (4MP) at 30 fpsFixed-focal f = 3.7 mm lens at F2.5Smart Stream III and 120 dB dynamic rangePower consumption below 1.25 W

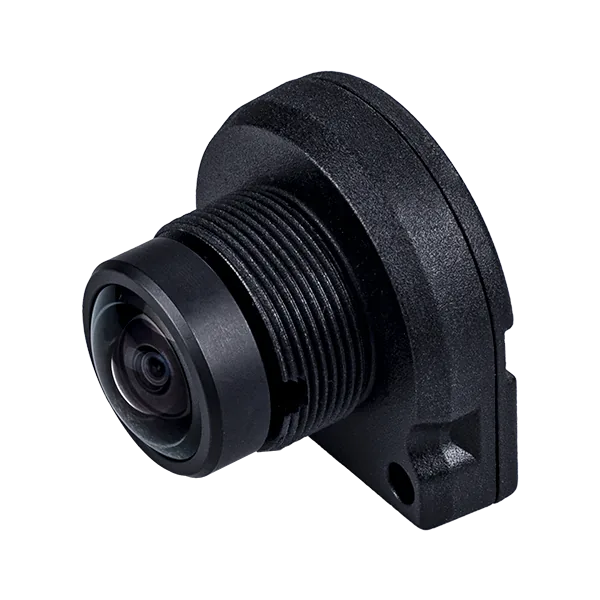

The CU9183 is a sensor unit for the VC9101 in a flat shape with a recessed fisheye lens. Its 1/2.7" progressive CMOS sensor resolves 1920x1920, while the fixed-focal f = 1.22 mm lens with a fixed iris at F2.0 covers 180.0° horizontally, vertically and diagonally. Frame rate is 30 fps at 1920x1920 with WDR on, and of the three video streams with up to eight profiles two run at 1920x1920 and the third at 1280x1280. A 56.3 dB signal-to-noise ratio, 120 dB dynamic range, WDR Pro, Smart Stream III and minimum illumination of 0.035 lux at F2.0 in colour characterise the image quality. Client dewarping in ceiling mounting offers 1O fisheye, 1P panoramic, 2P, 1R, 4R and 1O3R modes, and connection runs over USB micro b with a 5 m cable to RJ11. Sensor unit for the VC9101Flat shape, discreet recessed lens360 degree fisheye lens with local dewarp1920x1920 resolution at 30 fpsWDR Pro with 120 dB dynamic rangeMinimum illumination 0.035 lux at F2.0

The CU9183 is a sensor unit for the VC9101 in a flat shape with a recessed fisheye lens. Its 1/2.7" progressive CMOS sensor resolves 1920x1920, while the fixed-focal f = 1.22 mm lens with a fixed iris at F2.0 covers 180.0° horizontally, vertically and diagonally. Frame rate is 30 fps at 1920x1920 with WDR on, and of the three video streams with up to eight profiles two run at 1920x1920 and the third at 1280x1280. A 56.3 dB signal-to-noise ratio, 120 dB dynamic range, WDR Pro, Smart Stream III and minimum illumination of 0.035 lux at F2.0 in colour characterise the image quality. Client dewarping in ceiling mounting offers 1O fisheye, 1P panoramic, 2P, 1R, 4R and 1O3R modes, and connection runs over USB micro b with a 5 m cable to RJ11. Sensor unit for the VC9101Flat shape, discreet and recessed360 degree fisheye lens with local dewarp1920x1920 resolution at 30 fpsWDR Pro with 120 dB dynamic rangeMinimum illumination 0.035 lux at F2.0

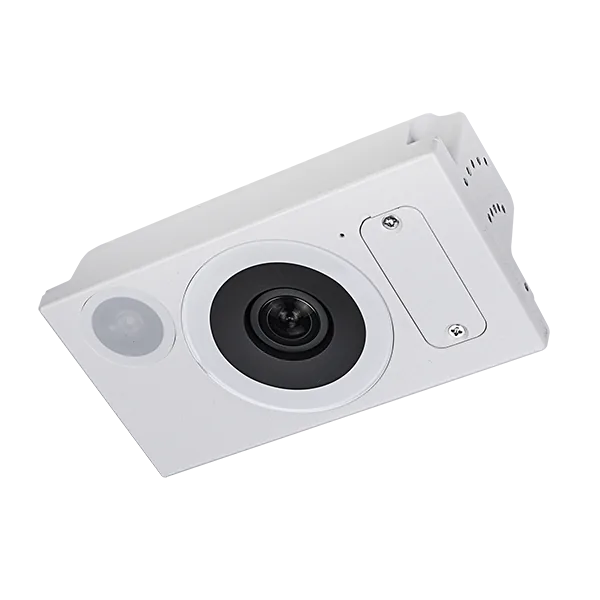

The SC9133 is an onboard AI camera for occupancy counting, built on a 1/2.8" progressive CMOS sensor with a maximum resolution of 1792x1792 (3MP). A fixed-focal f = 1.47 mm lens with a fixed iris at F2.7 covers 140.0° horizontally, vertically and diagonally, producing a wide detection area for passenger counting. Built-in white light and IR LEDs keep counting possible down to 0 lux with IR illumination on, WDR Pro handles challenging lighting, and shutter time runs from 1/60 sec. to 1/32,000 sec. Streaming uses H.265, H.264 or MJPEG with up to four simultaneous streams at 30 fps for 1792x1792, 896x896 and 448x448. Recording is seamless to a MicroSD/SDHC/SDXC card of up to 1 TB and to network-attached storage, and the tilt range is 0° to 20°. AI model for passenger detection1792x1792 (3MP) at 30 fps140.0° field of view horizontal and verticalBuilt-in white light and IR LEDsWDR Pro for challenging lightingMicroSD up to 1 TB and NAS recording

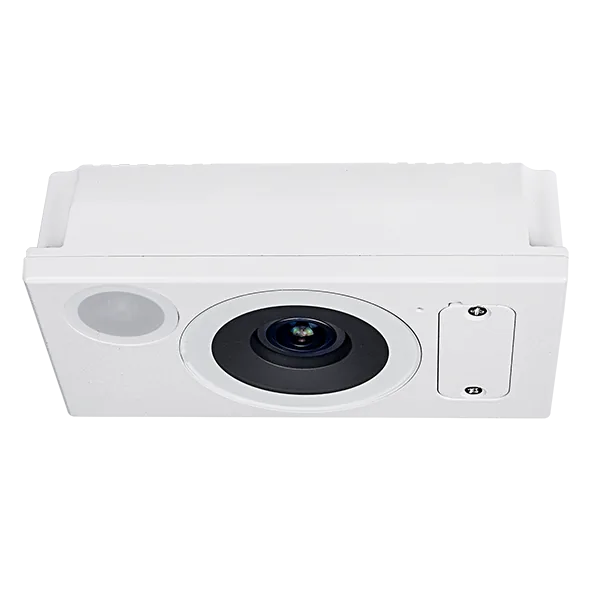

The SC9133-RTL is a counting network camera built around a 1/2.8" progressive CMOS sensor that outputs 1792x1792 pixels (3MP) at 30 fps, with 896x896 and 448x448 also available at 30 fps. Its fixed-focal f = 1.47 mm lens works at F2.7 with a fixed iris and covers 140.0° horizontally, vertically and diagonally, the fisheye optics widening the observed area at mounting heights between 1.9 and 10 m. Deep learning AI classification and stitching across up to 7 cameras handle the analysis side, while WDR Pro compensates for difficult lighting. Built-in white light and IR LEDs keep the scene usable down to 0 lux with IR illumination on, and day/night operation is provided without a removable IR-cut filter. Recording uses H.265, H.264 or MJPEG across four simultaneous streams to MicroSD/SDHC/SDXC cards up to 1TB or to network-attached storage. Tilt range is 0° ~ 20°; a multimedia SoC, 8 GB eMMC and 2 GB RAM run the camera. 1792x1792 (3MP) at 30 fpsFixed-focal f = 1.47 mm, F2.7140.0° horizontal, vertical and diagonal field of viewDeep learning AI classificationStitching up to 7 camerasMounting height 1.9 to 10 m

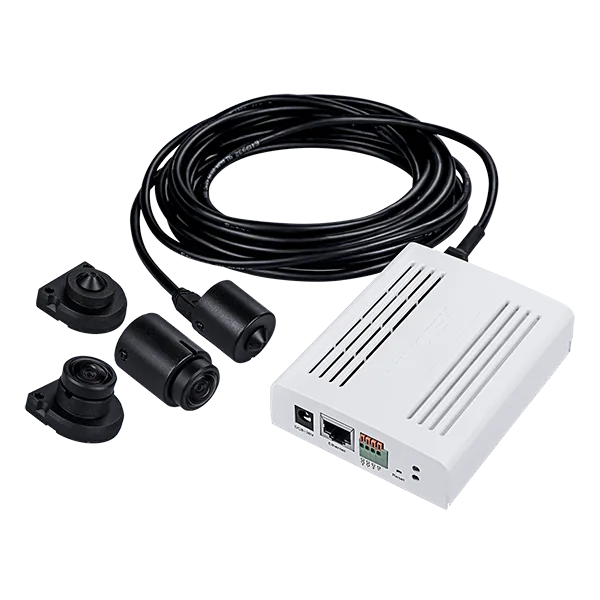

The VC9101 is the video core of a modular network camera, and its maximum resolution depends on the sensor unit fitted, reaching 2688x1520 or 1920x1920. It encodes H.265, H.264 and MJPEG, provides three video streams with up to eight configurable profiles and offers a 120 dB dynamic range with WDR Pro. Audio is full-duplex two-way using G.711 and G.726 through an external microphone input and a line output. A multimedia SoC with a built-in hardware deep learning accelerator, 8 GB flash and 2 GB RAM carries the Face Check and Smart Motion Detection analytics, while recording goes to MicroSD/SDHC/SDXC card or to network-attached storage. On the network side there is 10BASE-T/100BASE-TX Ethernet (RJ-45), ONVIF Profile G, S and T, HTTPS, IEEE 802.1x, secure boot and signed firmware, plus Trend Micro IoT Security as a VADP package for three years by default and ePTZ with 48x digital zoom. Modular video core for sensor unitsFull-duplex two-way audio (G.711, G.726)WDR Pro with 120 dB dynamic rangeFace Check and Smart Motion DetectionONVIF Profile G, S and TTrend Micro IoT Security, 3 years by default
