Fisheye

The XNF-9013RV pairs a 1/2.3" CMOS imager with a 1.08 mm fixed lens covering 187° horizontally, vertically and diagonally. Recording tops out at 3584x2688, with 30fps/25fps (60Hz/50Hz) for H.265 and H.264 and 30fps for MJPEG, dropping to a maximum of 5fps at 9MP. Alongside the original view, single panorama, double panorama and quad view can be called up, dewarped on board and cropped through digital PTZ. Processing draws on extreme WDR at 120 dB, BLC, HLC, SSDR plus WiseNR II based on the AI engine and SSNR V, while WiseStream III is likewise AI driven. Wise IR illumination reaches 8 m and minimum illumination is 0.39 lux in colour and 0.039 lux in black and white. Virtual channels are supported, the lens can be rotated, and motion detection uses 8 polygonal zones of 8 points each. Up to 3584x26881.08 mm fixed lens, 187° field of viewExtreme WDR 120 dBWiseNR II and WiseStream III, AI basedWise IR, 8 m rangeVirtual channel support

The QNF-C9010 is an AI fisheye camera built on a 1/1.6-inch 12MP CMOS sensor with a fixed stereographic lens of 1.76 mm at F1.8. Its field of view measures 185° horizontally, vertically and diagonally, the minimum object distance is 0.5 m, and digital rotation is available. The original view runs at up to 20fps at 3008x3008, double panorama at 20fps at 3584x1792, single panorama at 20fps at 3584x896, quad view at 20fps at 3584x2688 and quadrants Q1 to Q4 in 4:3 at 20fps at 1792x1344, while MJPEG runs at 5fps. Colour capture starts at 0.02 lux (F1.8, 1/30sec) and black and white at 0.001 lux, supported by ICR day/night switching, 120 dB WDR, BLC, SSDR plus WiseNR Ⅱ and SSNR Ⅴ. Analytics on the AI engine cover object detection for people and vehicles, colour attribute and BestShot, motion detection, virtual line crossing and direction, and virtual areas for loitering, intrusion, enter and exit, with H.265, H.264, MJPEG and WiseStream Ⅲ encoding. 1/1.6-inch 12MP CMOS sensor1.76 mm fixed lens, F1.8, 185° field of viewDigital rotation, 32 privacy masks120 dB WDR, WiseNR Ⅱ, ICR day/nightAI object detection for person and vehicle, colour attribute, BestShot

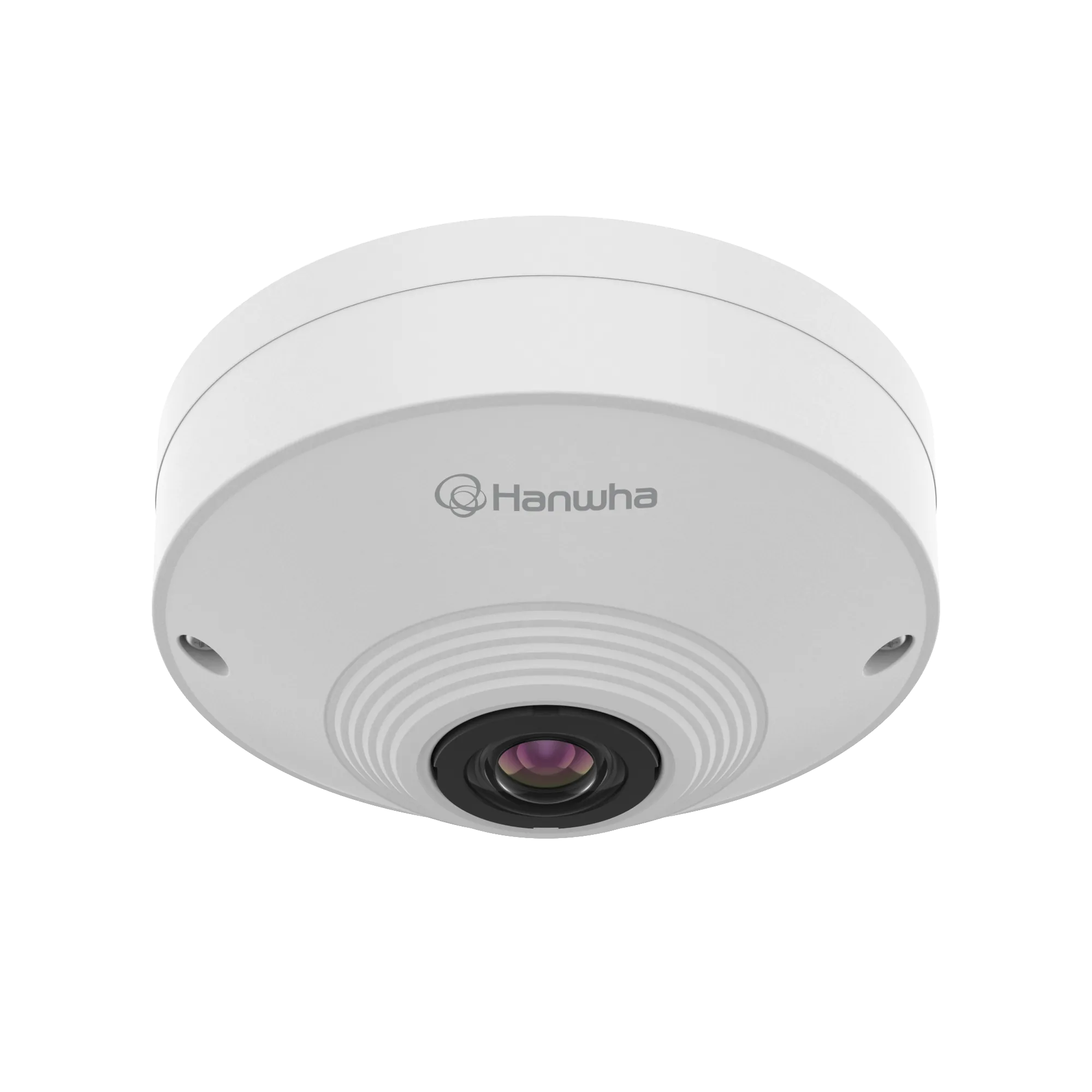

As a 12MP fisheye network camera, the QNF-9010 captures up to 3008 x 3008 pixels on a 1/2.3-inch CMOS sensor and reaches a maximum of 30fps at 9MP. Its 1.08 mm lens at F2.2 provides 187° horizontally, vertically and diagonally with a minimum object distance of 0.5 m. Available views are original fisheye, single panorama, double panorama and quad view, together with digital PTZ, and encoding uses H.265, H.264 and MJPEG with WiseStream Ⅱ. H.265 and H.264 run at 30fps/25fps (60Hz/50Hz) and MJPEG at 5fps, with minimum colour illumination of 0.39 lux. Electrical day/night switching, BLC, 120 dB WDR, SSDR, SSNR Ⅴ and three-step gain complement four polygonal motion zones and six rectangular privacy zones. Power comes over PoE and the Micro SD/SDHC/SDXC slot holds 256 GB. Resolution up to 3008 x 3008, max. 30fps at 9MP1.08 mm fisheye lens, F2.2, 187° field of viewOriginal fisheye, single and double panorama, quad viewDigital PTZ, 120 dB WDR, WiseStream ⅡMicro SD/SDHC/SDXC slot, 256 GB, PoE

The XNF-9010RV is an IR fisheye camera with a 1/2.3" CMOS imager and a stereographic 1.08 mm fixed lens that raises resolution towards the periphery and covers 187° horizontally, vertically and diagonally. Peak resolution is 3584x2688, with H.265 and H.264 at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps, capped at 5fps for 9MP. Fisheye, single panorama, double panorama and quad view are dewarped on board and can be cropped by digital PTZ. Extreme WDR at 120 dB, BLC, HLC, SSDR and SSNR V condition the image, ICR handles the day and night change automatically, and Wise IR illumination reaches 10 m. Minimum illumination is given as 0.39 lux in colour and 0.039 lux in black and white, with object distance starting at 0.5 m. Motion detection offers 8 polygonal zones of 8 points each and privacy masking covers 32 areas. Up to 3584x26881.08 mm stereographic fixed lens187° field of view horizontal, vertical, diagonalExtreme WDR 120 dBWise IR, 10 m rangeOn-board dewarping, digital PTZ

Fitted with an M12 connector, the XNF-9010RVM works with a 1/2.3" CMOS imager and a stereographic 1.08 mm fixed lens that raises resolution towards the periphery and covers 187° horizontally, vertically and diagonally. Peak resolution is 3584x2688, with H.265 and H.264 at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps, capped at 5fps for 9MP. Fisheye, single panorama, double panorama and quad view are dewarped on board and can be cropped by digital PTZ. Extreme WDR at 120 dB, BLC, HLC, SSDR and SSNR V condition the image, ICR handles the day and night change automatically, and Wise IR illumination reaches 10 m. Minimum illumination is given as 0.39 lux in colour and 0.039 lux in black and white, with object distance starting at 0.5 m. Motion detection offers 8 polygonal zones of 8 points each and privacy masking covers 32 areas. M12 connectorUp to 3584x26881.08 mm stereographic fixed lens187° field of view horizontal, vertical, diagonalExtreme WDR 120 dBWise IR, 10 m range

Rated IP66 and IK10, the QNF-C9010V is an AI fisheye camera with a 1/1.6-inch 12MP CMOS sensor. Its fixed stereographic 1.76 mm lens at F1.8 covers 185° horizontally, vertically and diagonally, the minimum object distance is 0.5 m, and the image can be rotated digitally. Original view reaches up to 20fps at 3008x3008, double panorama 20fps at 3584x1792, single panorama 20fps at 3584x896, quad view 20fps at 3584x2688 and quadrants Q1 to Q4 in 4:3 20fps at 1792x1344, with MJPEG at 5fps. Colour needs only 0.02 lux (F1.8, 1/30sec) and black and white 0.001 lux, alongside ICR day/night switching, 120 dB WDR, BLC, SSDR, WiseNR Ⅱ and SSNR Ⅴ. The AI engine classifies people, vehicles and colour, provides BestShot, and evaluates motion, virtual line crossing and direction, and virtual areas for loitering, intrusion, enter and exit, encoded with H.265, H.264, MJPEG and WiseStream Ⅲ. 1/1.6-inch 12MP CMOS sensor1.76 mm fixed lens, F1.8, 185° field of viewIP66 and IK10 ratedDigital rotation, 120 dB WDR, WiseNR ⅡAI classification of person, vehicle and colour, BestShot

The QNF-8010 is a 6MP fisheye network camera with a 1/1.8-inch CMOS sensor and a maximum resolution of 2048 x 2048. Its 1.14 mm lens at F2.5 looks out across 187° horizontally, vertically and diagonally, with a minimum object distance of 0.3 m. Besides the original fisheye view it offers single panorama, double panorama and quad view, and encodes in H.265, H.264 and MJPEG with WiseStream Ⅱ. H.265 and H.264 run at 30fps/25fps (60Hz/50Hz) and MJPEG at 15fps, while images stay usable from 0.2 lux in colour and 0.02 lux in black and white. Electrical day/night switching is backed by BLC, HLC, 120 dB WDR, SSDR and SSNR Ⅴ, with eight eight-point polygonal motion zones and six rectangular privacy zones. The camera is IP42 compliant, is powered over PoE, supports ONVIF Profile T as well as S/G according to onvif.org, and takes a 256 GB Micro SD/SDHC/SDXC card. Resolution up to 2048 x 20481.14 mm fisheye lens, F2.5, 187° field of viewOriginal fisheye, single and double panorama, quad view120 dB WDR, WiseStream Ⅱ, PoEIP42, ONVIF Profile T and S/GMicro SD/SDHC/SDXC slot, 256 GB

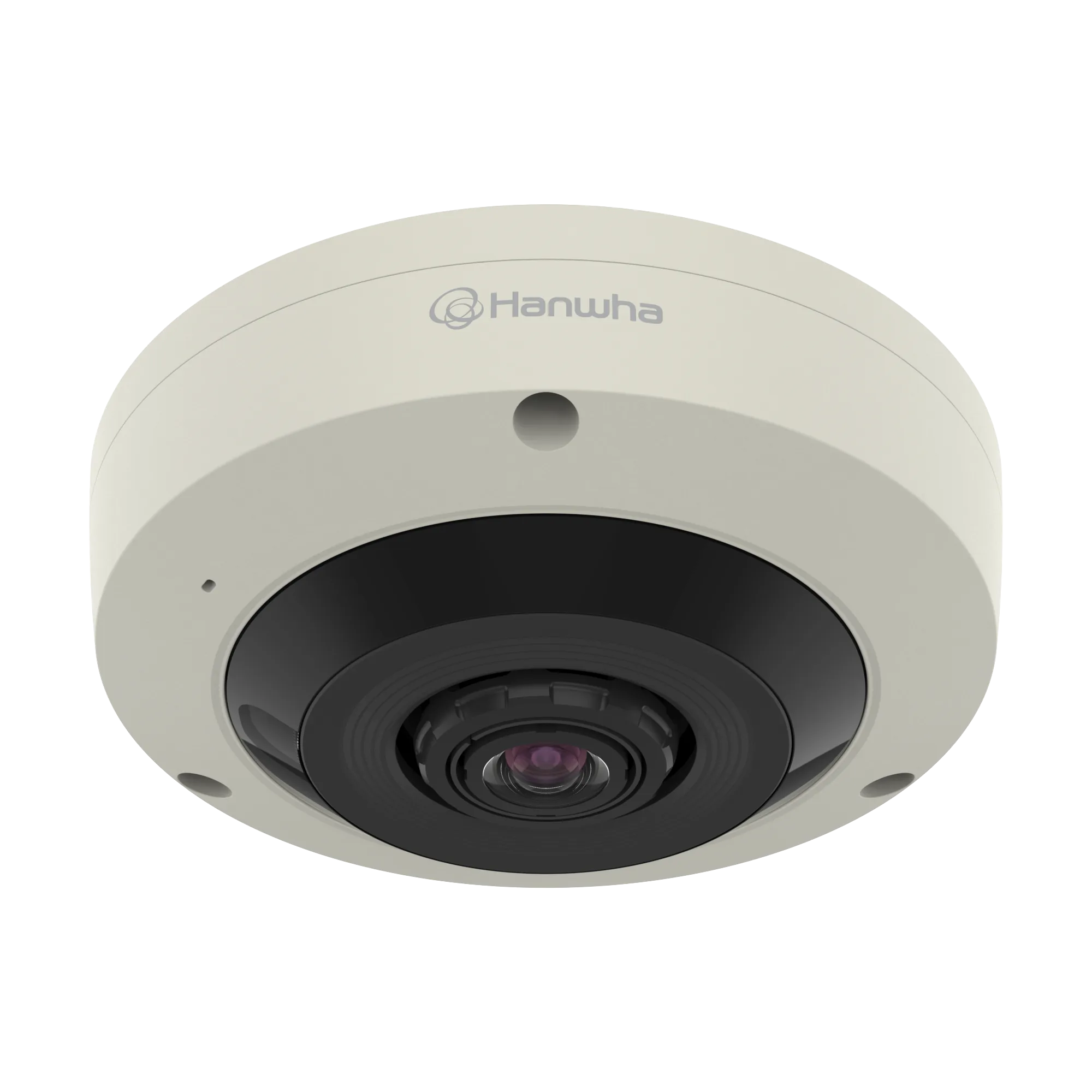

The XNF-8010R fisheye camera uses a 1/1.8" CMOS imager and takes in 192° horizontally, vertically and diagonally. Maximum resolution is 2048x2048, with H.265 and H.264 at up to 30fps/25fps (60Hz/50Hz) and MJPEG at 15fps. Its fixed 1.6 mm lens has a fixed iris, focuses from 0.3 m and is set up through simple focus. Available view modes are fisheye, single panorama, double panorama and quad view, complemented by on-board dewarping, 8x digital PTZ and two-way audio. Image processing covers true WDR at 120 dB, BLC, HLC, SSDR, SSNR V and defog, and day and night switching is automatic via ICR. Minimum illumination is 0.1 lux in colour and 0.01 lux in black and white, and motion detection provides 8 zones. Recordings are stored on an SD/SDHC/SDXC slot for up to 512 GB, and the camera is powered from 12 V DC or PoE. Up to 2048x2048192° field of view horizontal, vertical, diagonal1.6 mm fixed focal length, fixed irisWDR 120 dB, defog, SSNR V8x digital PTZ, on-board dewarpingSD/SDHC/SDXC up to 512 GB, 12 V DC / PoE

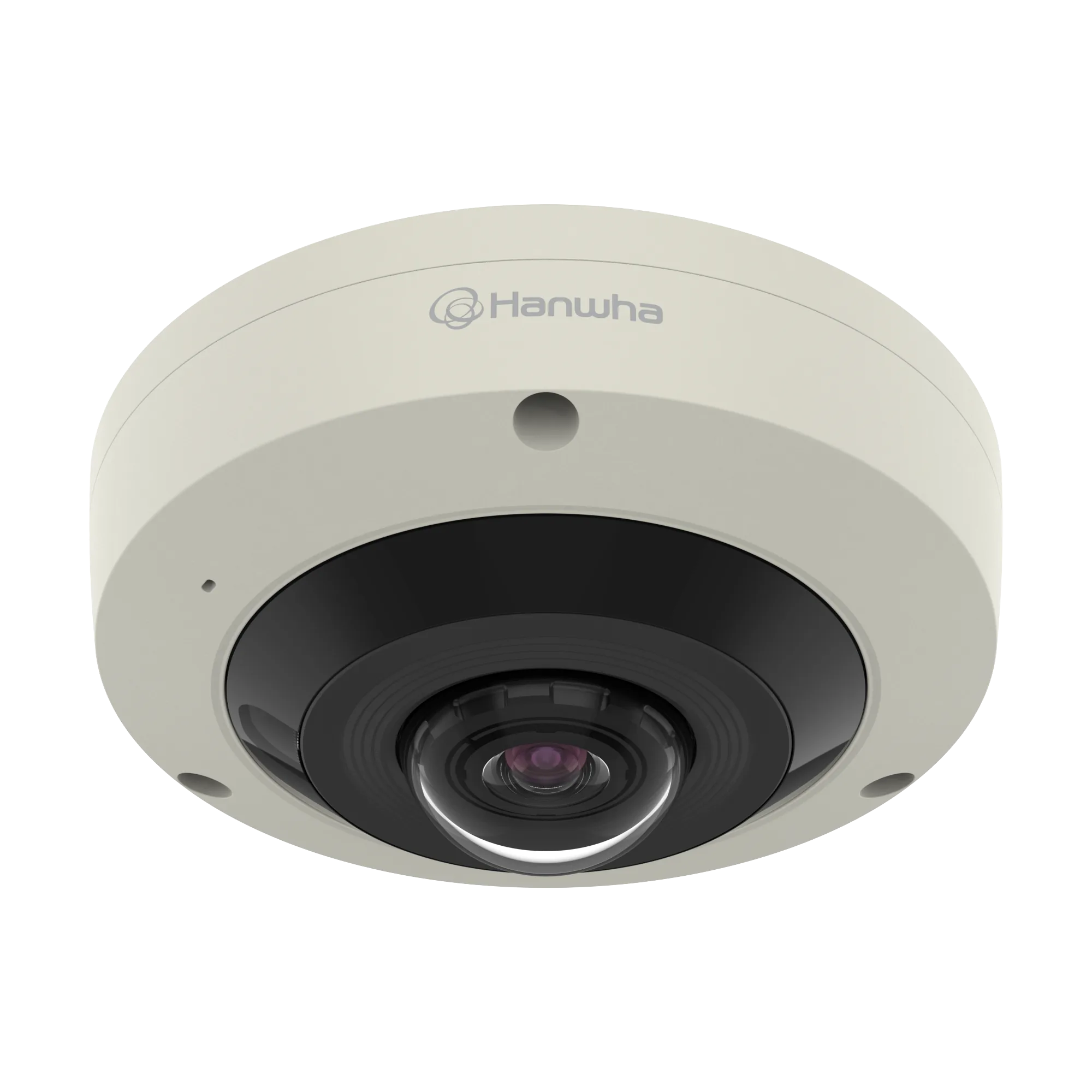

The XNF-8010RV uses a 1/1.8" CMOS imager and takes in 192° horizontally, vertically and diagonally. Maximum resolution is 2048x2048, with H.265 and H.264 at up to 30fps/25fps (60Hz/50Hz) and MJPEG at 15fps. Its fixed 1.6 mm lens has a fixed iris, focuses from 0.3 m and is set up through simple focus. Available view modes are fisheye, single panorama, double panorama and quad view, complemented by on-board dewarping, 8x digital PTZ and two-way audio. Image processing covers true WDR at 120 dB, BLC, HLC, SSDR, SSNR V and defog, and day and night switching is automatic via ICR. Minimum illumination is 0.1 lux in colour and 0.01 lux in black and white, and motion detection provides 8 zones. The housing carries an IP66 and IK10 rating. IP66 / IK10Up to 2048x2048192° field of view horizontal, vertical, diagonal1.6 mm fixed focal length, fixed irisWDR 120 dB, defog, SSNR V8x digital PTZ, on-board dewarping

The XNF-8010RVM is a fisheye camera with an M12 connector and a 1/1.8" CMOS imager whose 1.6 mm lens spans 192° horizontally, vertically and diagonally. It records at up to 2048x2048, reaching 30fps/25fps (60Hz/50Hz) in H.265 and H.264 and 15fps in MJPEG. Object distance starts at 0.3 m and setup is handled through simple focus. Fisheye, single panorama, double panorama and quad view are selectable, backed by on-board dewarping, 8x digital PTZ and two-way audio. Image handling includes WDR at 120 dB, BLC, HLC, SSDR, SSNR V and defog, while ICR switches between day and night automatically. Minimum illumination is 0.1 lux in colour and 0.01 lux in black and white, and motion detection uses 8 polygonal zones of 8 points each. M12 connectorUp to 2048x2048192° field of view horizontal, vertical, diagonal1.6 mm fixed focal lengthWDR 120 dB, defog, SSNR VMotion detection, 8 zones of 8 points

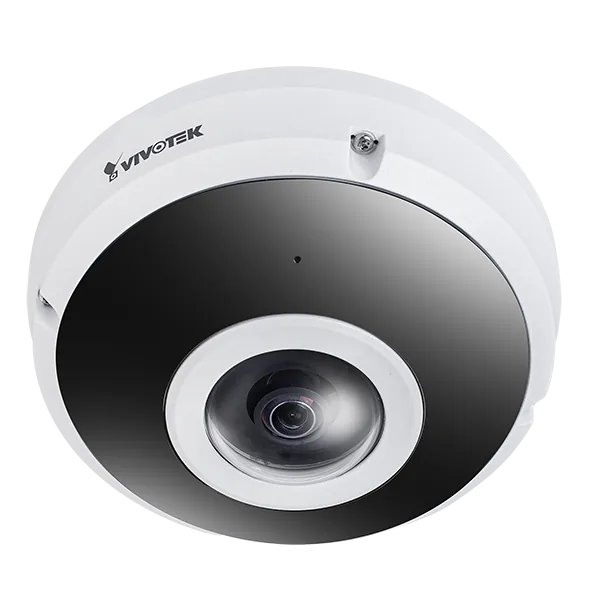

The FE9391-EHV-V2 (1.18 mm) is a 12MP fisheye panoramic camera for full-circle coverage. A 1/2.3" progressive CMOS in 4056x3040 delivers a maximum of 2816x2816, the fixed-focal f = 1.18 mm lens with fixed F2.18 iris captures 180.0° horizontally, vertically and diagonally, and shutter time ranges from 1/5 sec. to 1/32,000 sec. Built-in IR illuminators with Smart IR II (IR LED*4, 50IRE) are effective up to 20 meters, and minimum illumination is 0.1 lux @ F2.18 in colour, below 0.005 lux @ F2.18 in black and white and 0 lux with IR illumination on, alongside WDR Pro and a removable IR-cut filter. Dewarping happens on the edge, which eases integration into different systems, while Deep Search speeds up video investigation and Smart VCA improves alarm accuracy. Encoding uses H.265, H.264 and MJPEG in up to 3 video streams with up to 8 configurable profiles, at 30 fps @ 2816x2816 with WDR off and 20 fps with WDR on, and ePTZ offers 12x digital zoom. A multimedia SoC with 8 GB flash and 2 GB RAM, recording to MicroSD/SDHC/SDXC up to 1TB or to network-attached storage, a pixel calculator and Trend Micro IoT Security complete the camera. 12MP fisheye, up to 2816x2816180.0° horizontal, vertical and diagonalIR illumination up to 20 meters with Smart IR IIEdge dewarpingDeep Search and Smart VCATrend Micro IoT Security

The FE9391-EV-V2-M12 (M) is a 12MP fisheye panoramic camera designed with onboard AI in mind. A 1/2.3" progressive CMOS in 4056x3040 delivers a maximum resolution of 2816x2816, while the fixed-focal f = 1.18 mm lens with fixed F2.18 iris covers 180.0° ± 5.0° horizontally and vertically; shutter time spans 1/5 sec. to 1/32,000 sec. Built-in 940nm IR illuminators with Smart IR II are effective up to 5 meters (IR LED*4, 50IRE), and minimum illumination is 0.1 lux @ F2.18 in colour, below 0.005 lux @ F2.18 in black and white and 0 lux with IR illumination on. Encoding uses H.265, H.264 and MJPEG across 3 video streams with up to 8 configurable profiles, reaching 30 fps @ 2816x2816 with WDR off and 20 fps with WDR Pro on. A multimedia SoC is paired with eMMC 8 GB and DDR4 2 GB; footage is written to MicroSD/SDHC/SDXC cards up to 1TB capacity or to network-attached storage, and ePTZ provides 12x digital zoom. The rugged grounded and vented enclosure is rated IK10 and IP66, the camera is EN50155 OT4 compliant for mobile surveillance and Trend Micro IoT Security is included. 12MP fisheye, up to 2816x2816f = 1.18 mm, F2.18, 180.0° ± 5.0°940nm IR up to 5 meters with Smart IR IIH.265 / H.264 / MJPEG, 3 video streamsIK10 and IP66 grounded vented caseEN50155 OT4 compliant

VORTEX Recessed Indoor Fisheye, 12M (2944x2944), 15fps, f1.22mm, F1.8, WDR Pro, Local Dewarp, Built-in Mic, 512GB SD, Smart VCA, Operating Temp -10~50C (14~122F)

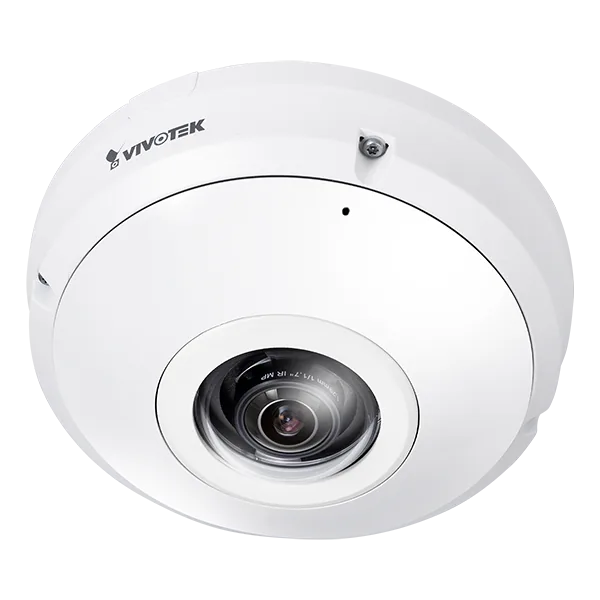

As a 12MP fisheye panoramic camera, the FE9191-H-V2 uses a 1/2.3" progressive CMOS in 4056x3040 to reach a maximum resolution of 2944x2944. The fixed-focal f = 1.22 mm lens with fixed F2.0 iris covers 180.0° horizontally, vertically and diagonally; shutter time spans 1/5 sec. to 1/32,000 sec. and minimum illumination is 0.1 lux @ F2.0 in colour and below 0.005 lux @ F2.0 in black and white, assisted by WDR Pro and a removable IR-cut filter. Compression covers H.265, H.264 and MJPEG in up to 3 video streams with up to 8 configurable profiles, at 30 fps @ 2944x2944 with WDR off and 20 fps with WDR on, at a 56.9 dB signal-to-noise ratio; ePTZ adds 12x digital zoom and dewarping is performed locally. Smart Motion Detection reduces false alarms while Smart VCA and Vision Object Analytics handle the analysis, all processed on a multimedia SoC with 8 GB flash and 2 GB RAM. A microphone is built in, recording goes to MicroSD/SDHC/SDXC up to 1TB or to network-attached storage, a pixel calculator supports installation and Trend Micro IoT Security provides cyber protection. 12MP fisheye, up to 2944x2944f = 1.22 mm, F2.0, 180.0° coverage56.9 dB signal-to-noise ratioLocal dewarp, ePTZ 12x digital zoomSmart VCA and Vision Object AnalyticsBuilt-in microphone

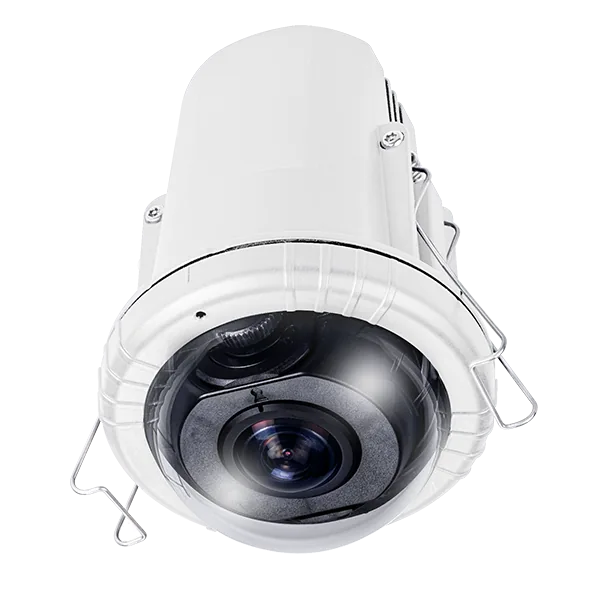

The FE9192-H is a 12MP fisheye panoramic camera with AI functions. Its 1/2.3" progressive CMOS sensor operates in 4056x3040 and outputs a maximum of 2944x2944, at 30 fps with WDR off and 20 fps with WDR on. The fixed-focal f = 1.22 mm lens with a fixed F2.0 iris spans 180.0° horizontally, vertically and diagonally, with minimum illumination of 0.1 lux @ F2.0 in color and <0.005 lux @ F2.0 in black and white and an S/N ratio of 56.9 dB. Processing runs on a multimedia SoC with 8 GB flash and 2 GB RAM, offering WDR Pro, local dewarp, ePTZ with 12x digital zoom and three video streams with up to eight configurable profiles in H.265, H.264 or MJPEG. Smart motion detection, Smart VCA with Vision Object Analytics and Trend Micro IoT Security extend the analysis, while recording goes to MicroSD/SDHC/SDXC up to 1TB or to network-attached storage. 12MP fisheye, 1/2.3" progressive CMOS in 4056x30402944x2944 maximum at 30 fps with WDR off180.0° coverage, f = 1.22 mm, F2.0S/N ratio of 56.9 dBSmart VCA with Vision Object AnalyticsLocal dewarp and ePTZ with 12x digital zoom

VORTEX Outdoor 12M Fisheye, 15fps, 1.18mm, IR 20m, WDR Pro, Built-in Mic, 512GB SD, Smart VCA, IP66/IK10/Operating Temp (-40℃ ~ 60℃/ -40℉ ~ 140℉)

VORTEX Outdoor 12M Fisheye, 15fps, 1.18mm, IR 20m, WDR Pro, Built-in Mic, 512GB SD, Smart VCA, IP66/IK10/Operating Temp (-40℃ ~ 60℃/ -40℉ ~ 140℉)

The FE9382-EHV-V2 is a 6MP fisheye panoramic network camera. Its 1/1.8" progressive CMOS sensor runs in 3840x2160 and outputs a maximum of 2048x2048 at up to 30 fps with WDR on. The fixed-focal f = 1.245 mm lens with a fixed F1.6 iris covers 180.0° horizontally, vertically and diagonally. Four IR LEDs with Smart IR II (50IRE) reach 20 meters, with minimum illumination of 0.065 lux @ F1.6 in color, <0.001 lux @ F1.6 in black and white and 0 lux under IR. Processing comes from a multimedia SoC with 8 GB flash and 2 GB RAM, complemented by WDR Pro, ePTZ with 12x digital zoom, three video streams with up to eight configurable profiles, and H.265, H.264 and MJPEG encoding. The housing is IK10 vandal-proof and IP66 weather-proof, and recording goes to MicroSD/SDHC/SDXC up to 1TB or to network-attached storage. 6MP fisheye, 1/1.8" progressive CMOS in 3840x21602048x2048 at 30 fps with WDR on180.0° coverage, f = 1.245 mm, F1.6IR illuminators up to 20 meters with Smart IR IIIK10 and IP66 housing8 GB flash, 2 GB RAM

Outdoor 360 Fisheye, 12MP 2944x2944, 30fps, H.265/H.264/MJPEG, f1.22mm lens, F1.8, WDR Pro, 20m Smart IR, Built-in Mic, DI/DO/2-way Audio Option, MicroSD/SDHC/SDXC, PoE, Smart VCA, IP66, IK10, NEMA 4X, Local Dewarp, NDAA, -40°C ~ 55°C

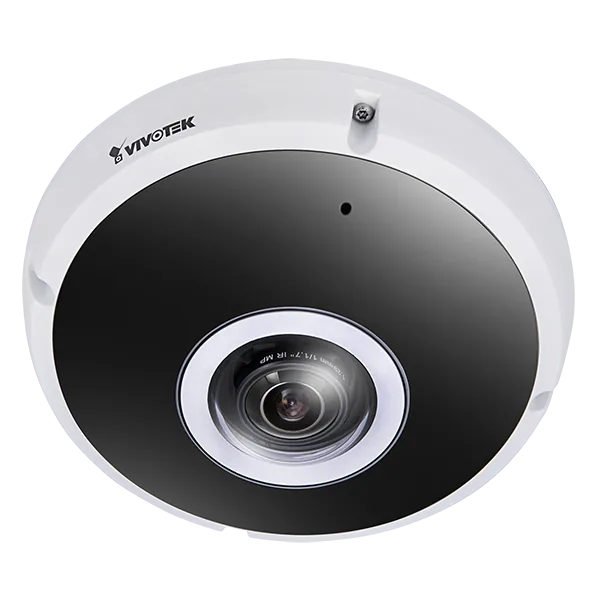

The FE9391-EV-V2-M12 is a 12MP fisheye panoramic AI camera whose 1/2.3" progressive CMOS sensor operates in 4056x3040 and outputs a maximum of 2816x2816. Its fixed-focal f = 1.18 mm lens with a fixed iris at F2.18 covers 180.0° ± 5.0° both horizontally and vertically, and frame rate is 30 fps at 2816x2816 with WDR off or 20 fps with WDR on. Four invisible 940nm IR LEDs with Smart IR II are effective up to 5 metres, giving minimum illumination of 0.1 lux in colour and below 0.005 lux in black and white at F2.18. Streaming uses H.265, H.264 or MJPEG across three video streams with up to eight configurable profiles, recording is seamless to a MicroSD/SDHC/SDXC card of up to 1 TB and to network-attached storage, and ePTZ offers 12x digital zoom. The housing is rated IP66/IP67 and IK10, works from -40°C to 70°C, meets EN50155 OT4 for mobile surveillance and is protected by Trend Micro IoT Security. Fisheye panoramic camera at 2816x2816180.0° ± 5.0° horizontal and vertical coverageInvisible 940nm IR effective up to 5 mIP66/IP67 weather-proof, IK10 vandal-proof-40°C to 70°C operating temperatureEN50155 OT4 compliance

The FE9391-EV-V2-M12 is a fisheye panoramic camera with AI functions. Its 1/2.3" progressive CMOS sensor operates at 4056x3040 and outputs a maximum of 2816x2816, at 30 fps with WDR off and 20 fps with WDR on. The fixed-focal f = 1.18 mm lens at F2.18 with fixed iris captures 180.0° ± 5.0° both horizontally and vertically, and shutter times span 1/5 sec. to 1/32,000 sec. Four 940nm IR LEDs (50IRE) reach up to 5 meters with Smart IR II, giving minimum illumination of 0.1 lux @ F2.18 (Color), <0.005 lux @ F2.18 (B/W) and 0 lux with IR illumination on. The housing is rated IP66/IP67 and IK10, the operating temperature range is -40°C to 70°C, and the camera complies with EN50155 OT4 for mobile surveillance. Encoding uses H.265, H.264 and MJPEG across 3 video streams with up to 8 profiles, recorded to MicroSD/SDHC/SDXC cards up to 1TB or to network-attached storage. Maximum resolution 2816x2816Fixed-focal f = 1.18 mm, F2.18180.0° ± 5.0° horizontal and vertical field of viewIP66/IP67 and IK10 protectionEN50155 OT4 compliance for mobile surveillanceOperating temperature -40°C ~ 70°C

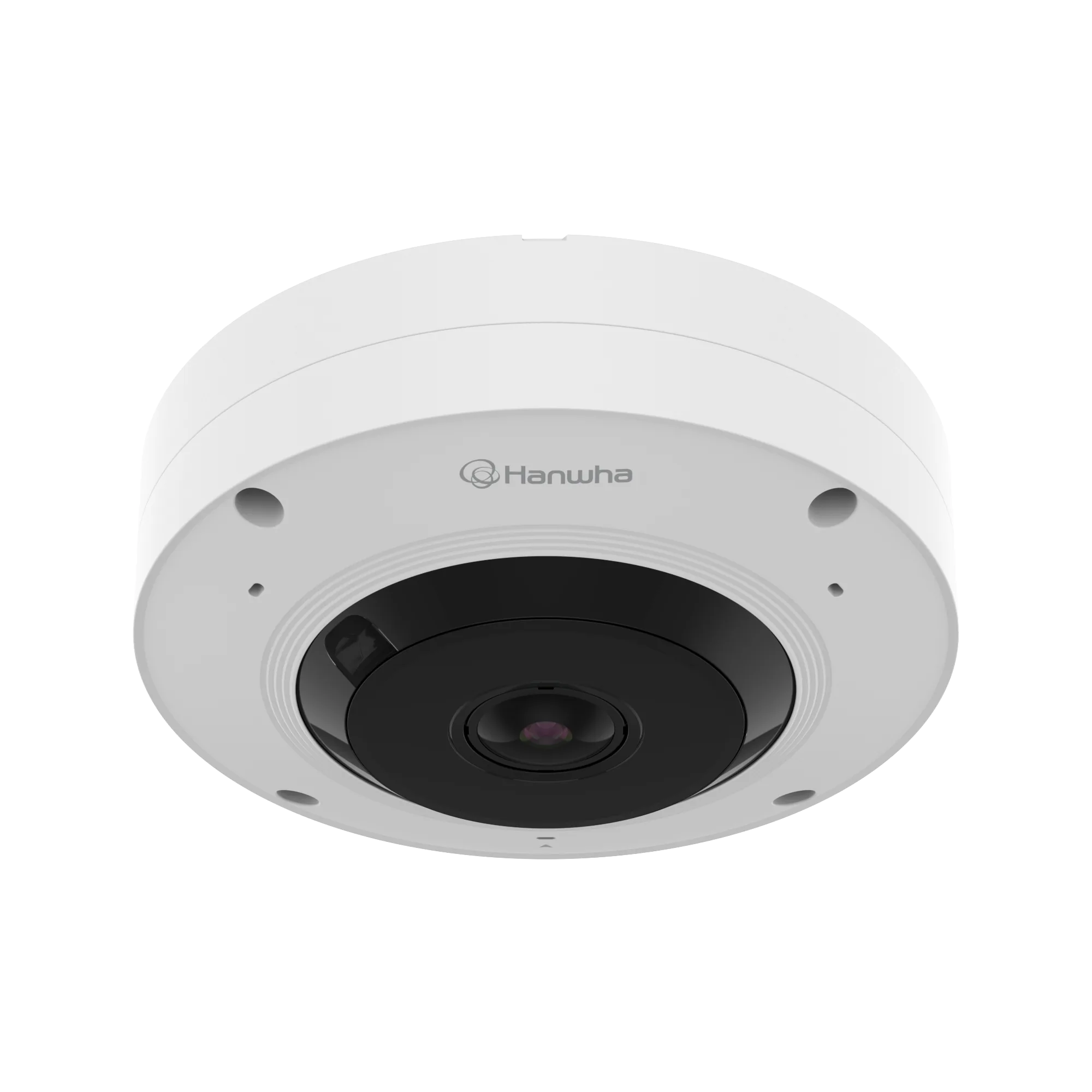

The XNF-A9014R works with a 1/1.6" CMOS imager and a fixed stereographic 1.76 mm lens covering 185° horizontally, vertically and diagonally. Top resolution is 3584x2688, encoded at 30fps/25fps (60Hz/50Hz) in H.265 and H.264 and at 5fps in MJPEG, with a maximum of 20fps in PoE mode. The aperture ratio is 1.8 at the wide and the tele end, object distance begins at 0.5 m, and the image can be rotated digitally. Stated sensitivity is 0.02 lux in colour and 0.001 lux in black and white (1/30 sec, 30 IRE), with ICR taking care of day and night switching. Extreme WDR at 120 dB, BLC, HLC, SSDR, WiseNR II based on the AI engine, SSNR V, digital image stabilisation and defog condition the picture. The manufacturer additionally states a 20 m IR range, an IP42 rating, a dual NPU for AI-based image enhancement and support for object detection, intelligent video analytics and motion detection. Up to 3584x26881.76 mm fixed stereographic lens20 m IR rangeIP42 ratedDual NPU for AI-based image enhancementObject detection, intelligent video analytics

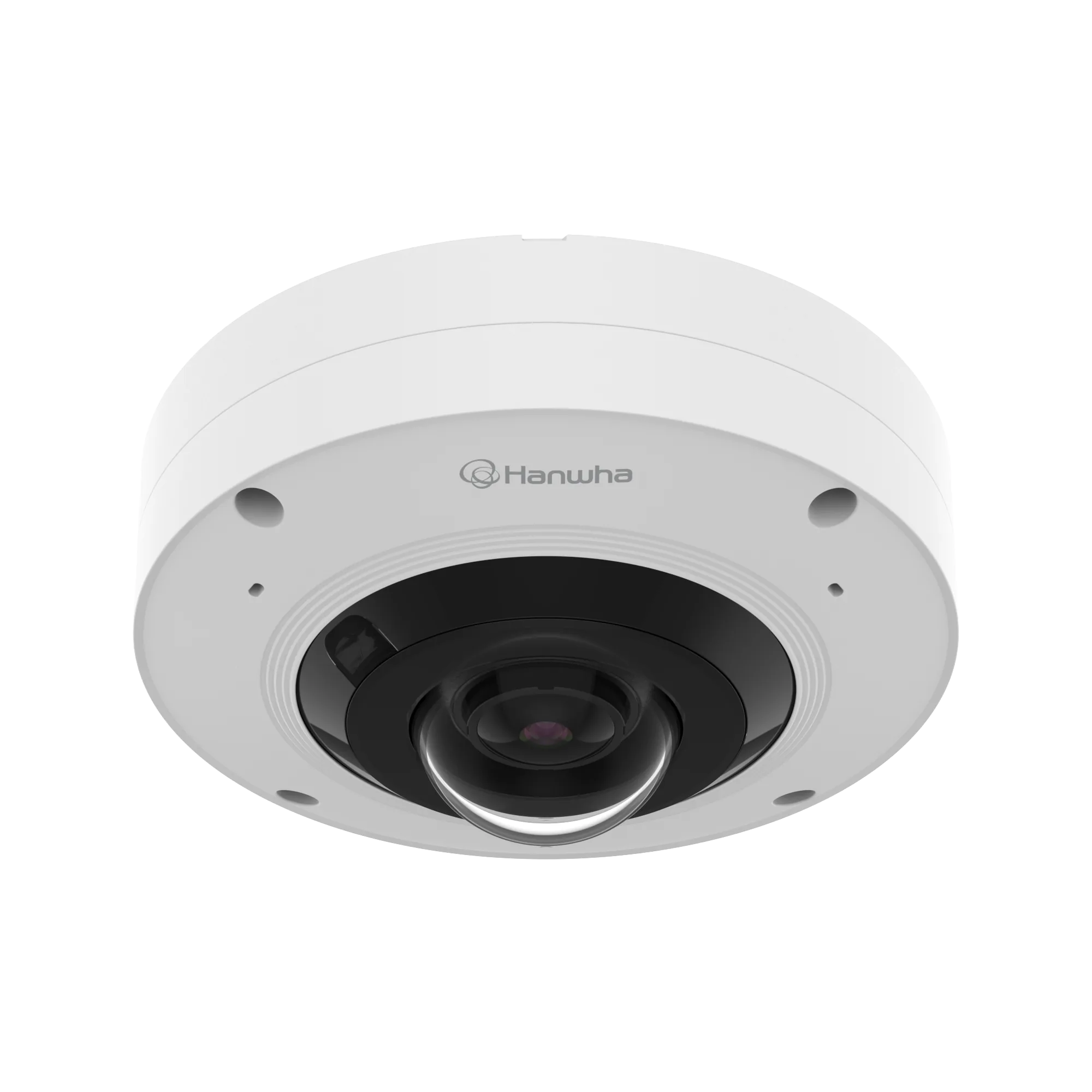

As an AI IR fisheye camera, the XNF-A9014RV works with a 1/1.6" CMOS imager and a fixed stereographic 1.76 mm lens covering 185° horizontally, vertically and diagonally. Top resolution is 3584x2688, encoded at 30fps/25fps (60Hz/50Hz) in H.265 and H.264 and at 5fps in MJPEG, with a maximum of 20fps in PoE mode. The aperture ratio is 1.8 at the wide and the tele end, object distance begins at 0.5 m, and the image can be rotated digitally. Stated sensitivity is 0.02 lux in colour and 0.001 lux in black and white (1/30 sec, 30 IRE), with ICR taking care of day and night switching. Extreme WDR at 120 dB, BLC, HLC, SSDR, WiseNR II based on the AI engine, SSNR V, digital image stabilisation and defog condition the picture. 1/1.6" CMOS sensorUp to 3584x26881.76 mm lens, 185° field of viewDigital rotationExtreme WDR 120 dB, WiseNR IIDigital image stabilisation, defog

The XNF-A8014R AI fisheye camera relies on a 1/1.6" CMOS imager and a 1.76 mm lens spanning 185° horizontally, vertically and diagonally. Maximum resolution is 2560x2560, with H.265 and H.264 at 30fps/25fps (60Hz/50Hz), MJPEG at 5fps and a ceiling of 20fps in PoE mode. The aperture ratio is 1.8 at both the wide and the tele end, and object distance starts at 0.5 m. Minimum illumination is 0.02 lux in colour and 0.001 lux in black and white (1/30 sec, 30 IRE), and ICR switches between day and night automatically. Image conditioning includes extreme WDR at 120 dB, BLC, HLC, SSDR, WiseNR II based on the AI engine, SSNR V, digital image stabilisation and defog. The image can also be rotated digitally. 1/1.6" CMOS sensorUp to 2560x25601.76 mm lens, 185° field of viewExtreme WDR 120 dBWiseNR II, AI basedDigital image stabilisation, defog
