One-channel surge protector for equipment inside a building, rated to 10 Gbps: it passes 10M/100M/1G/2.5G/10G over Cat 5e or Cat 6, UTP or STP. Data and power are protected across all eight conductors, at 20 kV common mode and 4 kV differential mode, with up to 10 kA discharge current, 5 ns response and clamping of 600 V to ground and 20 V line to line. PoE support covers 802.3af, 802.3at, 802.3bt and UPoE at no more than 60 V DC, 1 A over two pairs, 2 A over four pairs and 95 W. Insertion loss is 1 dB and return loss -20 dB at 10 and 100 MHz. Nothing has to be configured, and an LED marks a spent protector. Temperature range -40 °C to 85 °C, 80 x 40 x 25 mm, 0.18 kg, two RJ45 sockets.

Single-channel PoE surge protector for indoor positions: next to the PoE switch, or inside a junction or power box. Data and PoE feed are covered on all eight conductors, with a 20 kV common-mode and 4 kV differential-mode level, 10 kA discharge capability, 5 ns response and clamping at 600 V to ground and 20 V between lines. It passes 10M/100M/1G/2.5G over Cat 5e or Cat 6 UTP/STP and supports 802.3af, 802.3at, 802.3bt and UPoE up to 60 V DC, with 1 A over two pairs, 2 A over four pairs and 95 W maximum. An LED shows when the protector has reached the end of its life. Working range -40 °C to 85 °C, 80 x 40 x 25 mm, 0.18 kg, two RJ45 sockets, EMC to CE, FCC, VCCI and C-Tick.

Indoor PoE++ injector to IEEE 802.3bt, backward compatible with 802.3at and 802.3af. It supplies one Gigabit port with up to 90 W across four pairs at 54 V DC, pinned 1/2 (-) with 3/6 (+), then 4/5 (+) with 7/8 (-), over a cable run of 100 m. It suits loads that draw heavily, such as speed domes or housings with heater, blower, wiper and illuminator. Terminals outside the standard are detected and protected. Mains input 100–240 V AC, rated to 280 V AC for four hours and 300 V AC for one minute. Surge protection: 6 kV at the data and PoE port, 4 kV at the mains input. Case 182 x 78.6 x 41.9 mm, 0.58 kg, -10 °C to 50 °C, humidity 10–90 % non-condensing.

Mid-span injector for a single Gigabit run indoors. It puts power onto an existing 10/100/1000Base-T line and so feeds devices a plain switch port cannot: speed domes, or camera housings carrying a blower, heater, illuminator and wiper. Power leaves as 95 W PoH on all four pairs at 54 V DC, pinned 1/2 (-) with 3/6 (+), then 4/5 (+) with 7/8 (-), and reaches 100 m. It works with IEEE 802.3at/af and recognises non-standard terminals, protecting them. Input 100–240 V AC, briefly 280 V AC for four hours and 300 V AC for one minute. Surge protection is 6 kV at the data/PoE port and 4 kV on the mains side. 182 x 78.6 x 41.9 mm, 0.58 kg, LEDs for power and PoE, -10 °C to 50 °C.

The UP-EXT-R2 is a 19-inch subrack that holds up to 16 IP and PoE extenders of the UP-EXT-SET series. It serves purely for mechanical mounting inside the cabinet and does not supply the individual extenders, whose power comes from the PoE being transmitted. Where no PoE is present, each UP-EXT-SET has to be powered individually. Fitting the media converters is straightforward, and all the mounting accessories required are included. The subrack occupies 2U at 63mm depth, weighs 0.42 kg net and is specified for -40 to +75°C. 19-inch design, 2U x 63mmHolds up to 16 UP-EXT-SET unitsMechanical mounting only, no power feedMounting accessories includedOperating temperature -40 to +75°C

PoE Injector 30 Watt incl. power cable, 802.3af/at 30W, 10/100/1000Mbps Ethernet

PoE Injector 60 Watt incl. power cable, 802.3af/at/bt 60W, 10/100/1000Mbps Ethernet

90 watt 802.3bt Gigabit PoE ++ injector, IEEE802.3bt / 802.3af / 802.3at compatible. 1 Gigabit Ethernet port input and 1 PoE / PoE + / PoE ++ Gigabit Ethernet port output provide full-duplex Ethernet speeds of 2 Gbit/s Converts a non-PoE Gigabit port into a PoE / PoE + / PoE ++ Gigabit port and connects a PoE device at a distance of up to 100 metres. Ideal for small installations of high-power PTZ PoE surveillance cameras or wireless PoE access points Good compatibility. With auto-sensing technology, this Gigabit PoE adapter delivers up to 90 W to a PoE ++ device, with backward compatibility for 802.3 bt / at 4 Pair (60 W), 802.3at 2 Pair (30 W) PoE + devices and 802.3af PoE (15.4 W) devices The wall-mount design covers most installation scenarios. Plug & Play, no configuration required, simply connect a PoE network device, suitable for most installation scenarios. High-quality metal housing design, strong and durable. Equipped with LED lights that clearly indicate the output power. Pin assignment and polarity:1/2 (-), 3/6 (+),4/5 (+), 7/8 (-)

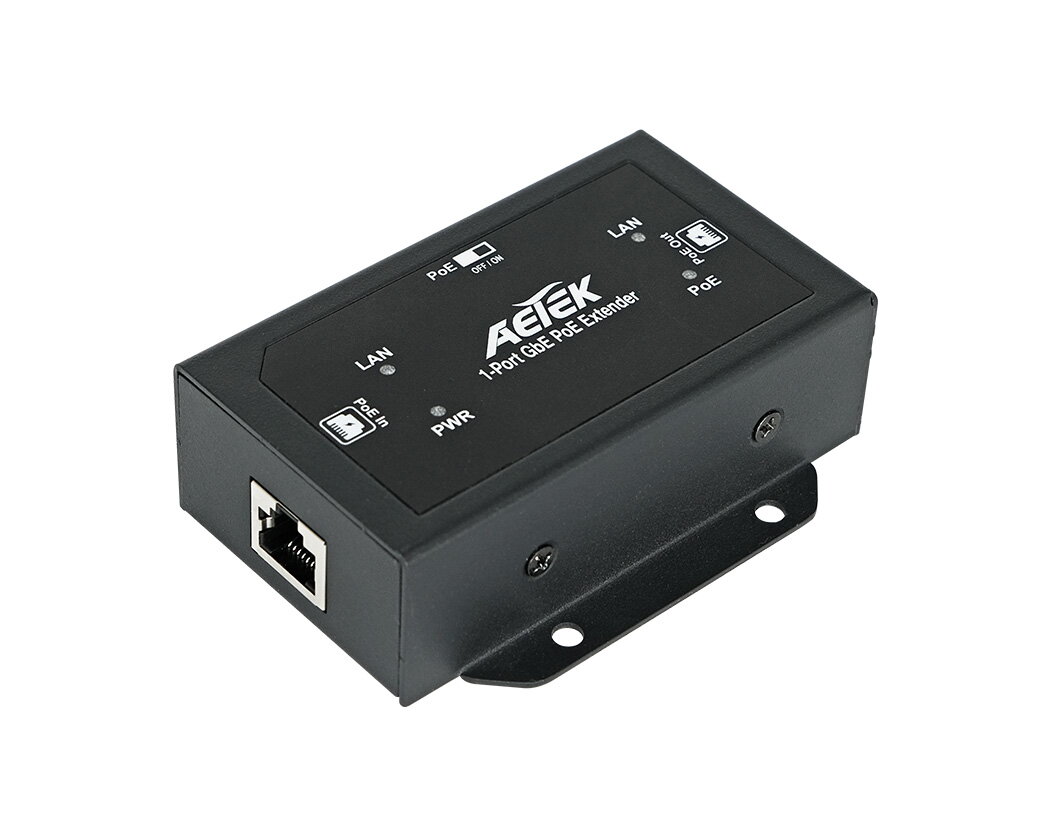

Indoor PoE extender: one RJ45 port takes data and power from an injector, midspan hub or switch, the second passes both on as passive PoE compliant with IEEE 802.3af to a camera or access point. No local power supply is needed. Two units in a chain bridge up to 300 m; a speed dome drawing 48 W still reaches 200 m. The input accepts 50 to 57 V DC and at most 70 W, the output runs 44 to 55 V DC and at most 68 W, and PSEs rated 30 W, 60 W or 90 W are supported. Both ports run 10/100/1000 Mbit/s with 4 Gbps switching capacity and a 2K MAC table. A DIP switch turns the PSE power off. 6 kV surge protection per PoE port, -40 °C to 75 °C, 90 x 69.4 x 28.5 mm, 0.19 kg.

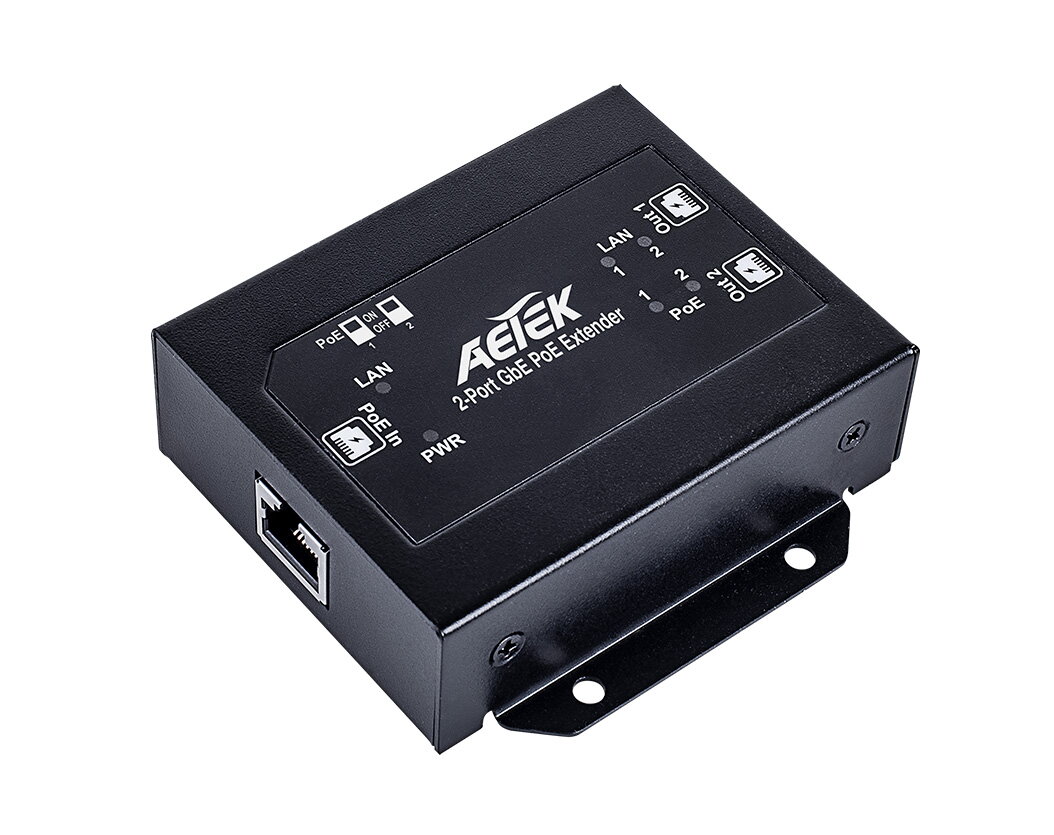

Indoor PoE extender with one input and two output ports: power arrives at the PD port from an injector, midspan hub or switch and is handed on to two devices as passive PoE compliant with IEEE 802.3af. No local power supply is required. Two units in a star reach up to 500 m, and a speed dome drawing 48 W still gets 200 m. The input takes 50 to 57 V DC at no more than 70 W; the outputs run 48 to 55 V DC at no more than 68 W. PSEs rated 30 W, 60 W or 90 W are supported. All three ports run 10/100/1000 Mbit/s, switching capacity is 6 Gbps, the MAC table holds 2K, and a DIP switch cuts PSE power. 6 kV surge protection per PoE port, -40 °C to 75 °C, 89 x 86.5 x 28 mm, 0.21 kg.

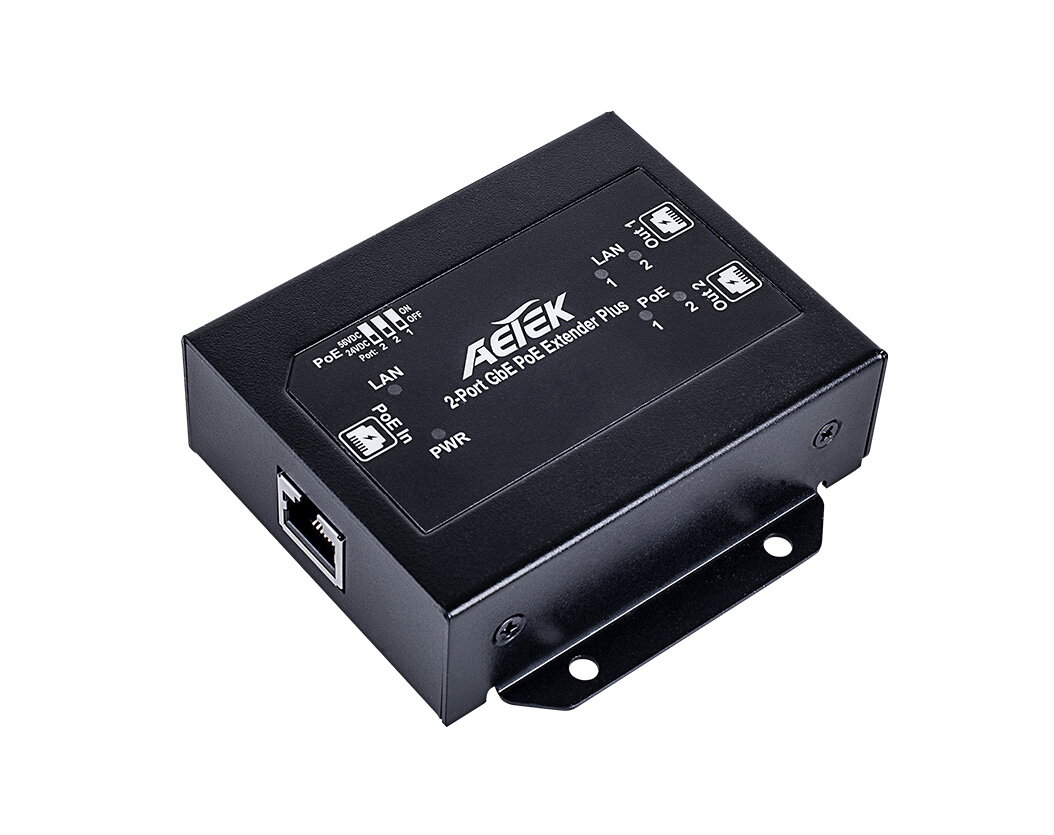

Indoor PoE extender with a built-in voltage booster that holds the output steady at the far end of a long run. Three RJ45 ports: one input takes data and power from an injector, midspan hub or switch and two outputs pass them on. Port 1 supplies 54 V DC compliant with IEEE 802.3af; port 2 can be set to 24 V DC or 54 V DC passive PoE, with 68 W available in total. The input accepts 50 to 57 V DC and up to 72 W, and PSEs of 30 W, 60 W or 90 W are supported. Up to four units chain together for 500 m without local power. The unit itself draws 4 W. 4K MAC table, 6 Gbps switching capacity, 9,216 byte jumbo frames, flow control. -40 °C to 65 °C, 87 x 86.5 x 28 mm, 0.2 kg.

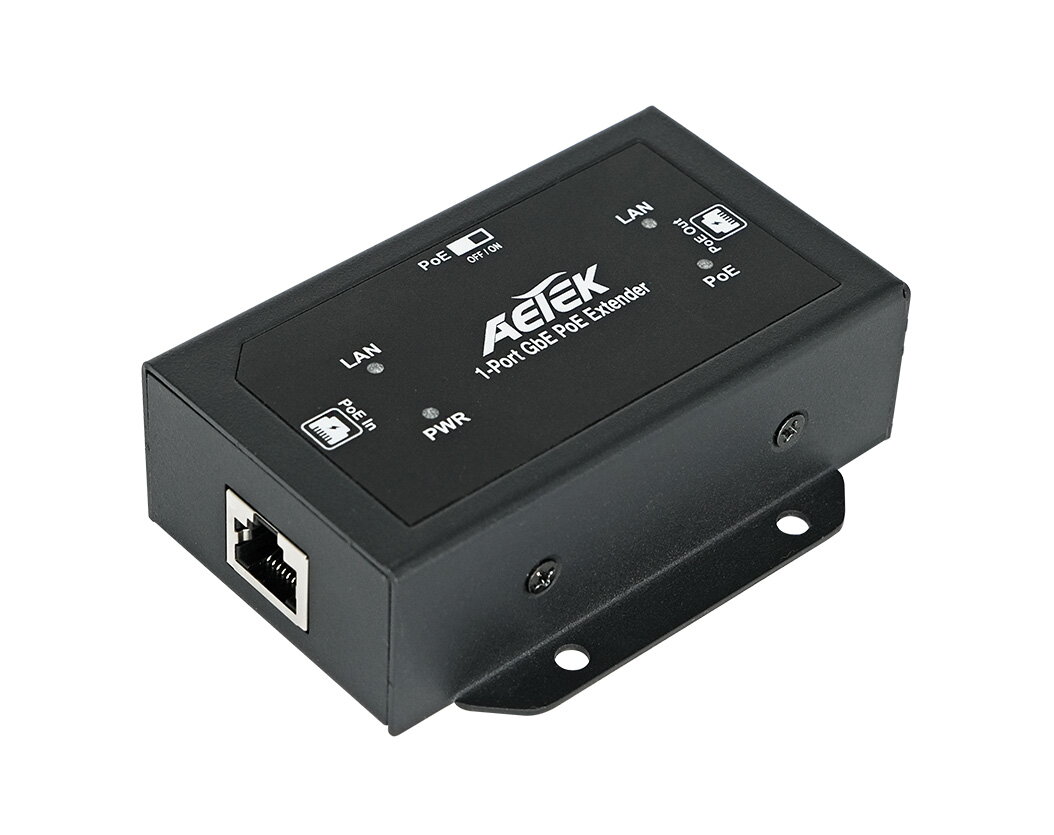

Indoor PoE extender that re-powers to the standard rather than passively. The input behaves as an IEEE 802.3bt PoE++ Type 4 PD and takes in up to 90 W; the output acts as an 802.3bt Type 3, 802.3at or 802.3af PSE and detects the attached device on its own. That adds another 100 m to a PoE run, and two units chained together reach up to 300 m. No local power supply is needed — installation is a matter of plugging in both leads. Both Gigabit ports handle auto-MDI/MDI-X and auto-negotiation, switching capacity is 4 Gbps and the MAC table holds 2K. A DIP switch disables output power. 6 kV surge protection per PoE port, -40 °C to 65 °C, 90 x 69.4 x 28.5 mm, 0.19 kg.

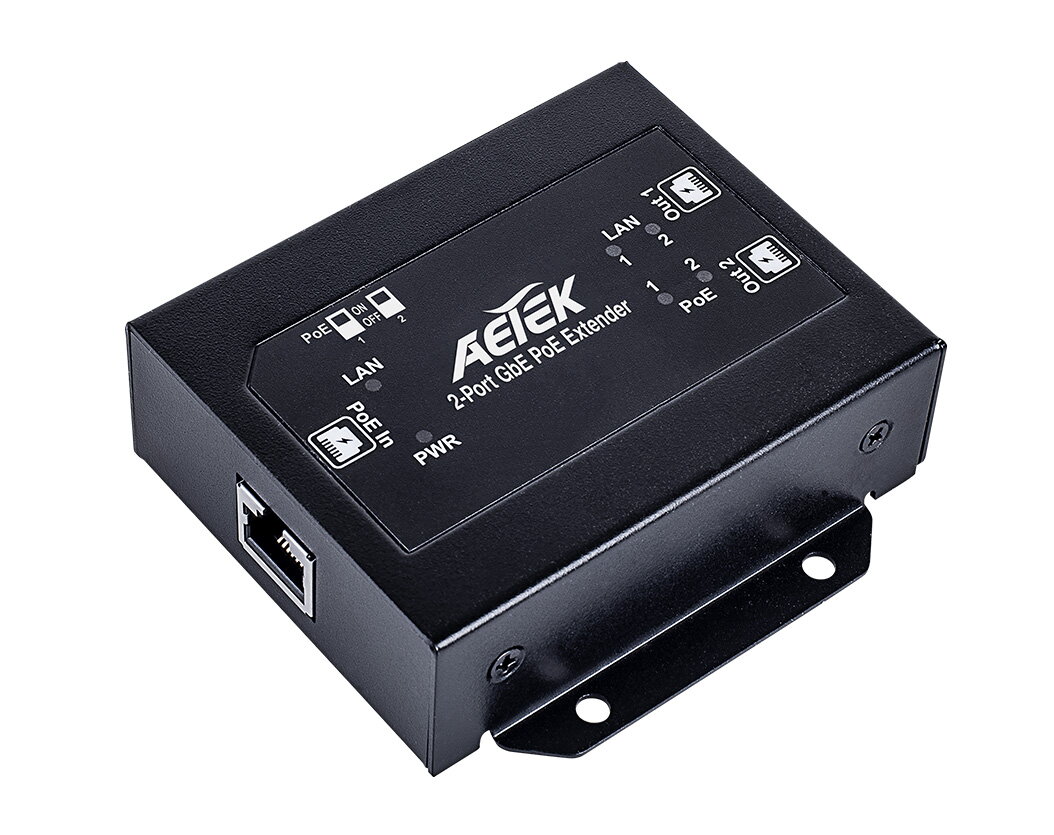

Indoor PoE extender with one input and two output ports. The input works as an IEEE 802.3bt PoE++ Type 4 PD; both outputs act as 802.3bt Type 3, 802.3at or 802.3af PSEs, so two cameras or access points are powered to the standard. Two units in a star topology bridge up to 500 m, and PSEs rated 30 W, 60 W or 90 W are supported. No local power supply is needed, and a speed dome drawing 48 W still reaches 200 m. All three Gigabit ports do auto-MDI/MDI-X and auto-negotiation; switching capacity is 6 Gbps with a 2K MAC table, and a DIP switch cuts output power. 6 kV surge protection per PoE port, -40 °C to 65 °C, 89 x 86.5 x 28 mm, 0.21 kg.

Industrial 1 Port PoE Injector, 1 x 10/100/1000Base-T(x) RJ45 Port (Input), 1 x 10/100/1000Base-T(x) RJ45 Port With 802.3bt 60/90W PoE (Output), DIN Rail / Wall Mount, -40°C to +75°C, 52-56 VDC Power Input (Power supply not included)

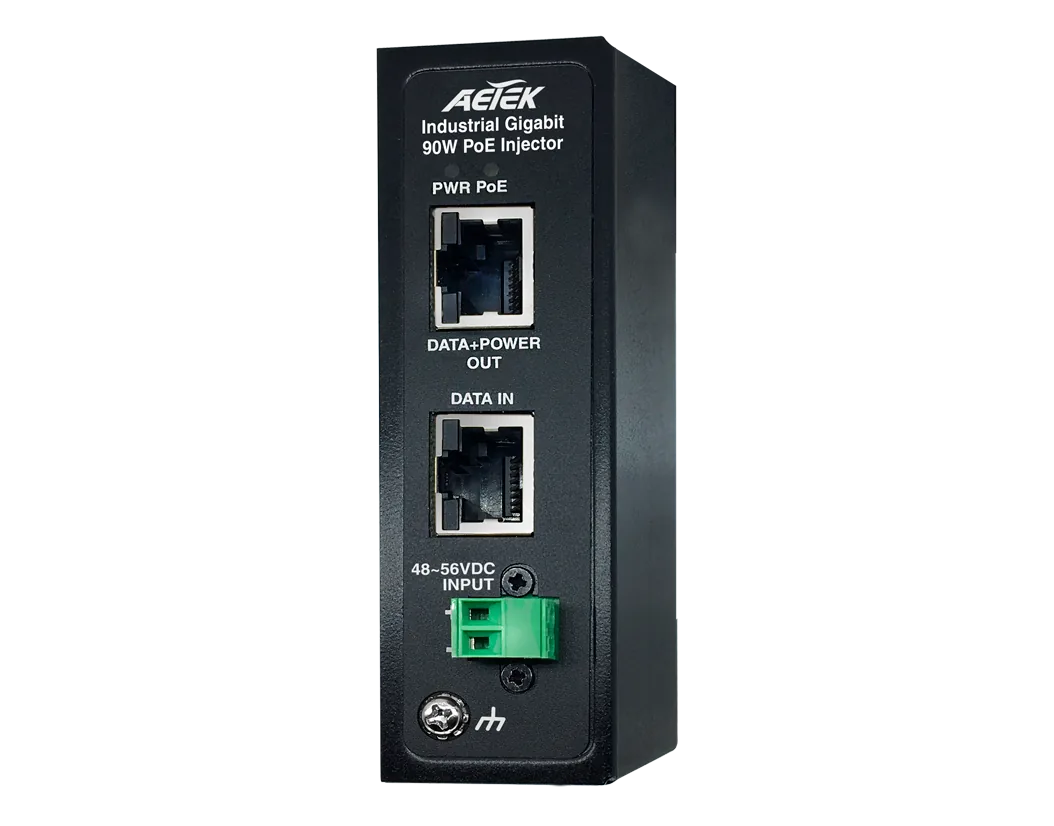

Industrial PoE++ injector to IEEE 802.3bt for DIN-rail mounting, backward compatible with 802.3at and 802.3af. One Gigabit port puts out a maximum of 90 W over four pairs, pinned 1/2 (-) with 3/6 (+), then 4/5 (+) with 7/8 (-), from an input of 48 to 56 V DC and across a cable run of up to 100 m. It powers devices that draw heavily, such as speed domes or housings with heater, blower, wiper and illuminator. Terminals outside the standard are detected and protected, and the data/PoE port has 6 kV of surge protection. Working range -40 °C to 75 °C, humidity 10 to 90 % non-condensing, 100 x 81.5 x 30 mm, 0.2 kg.

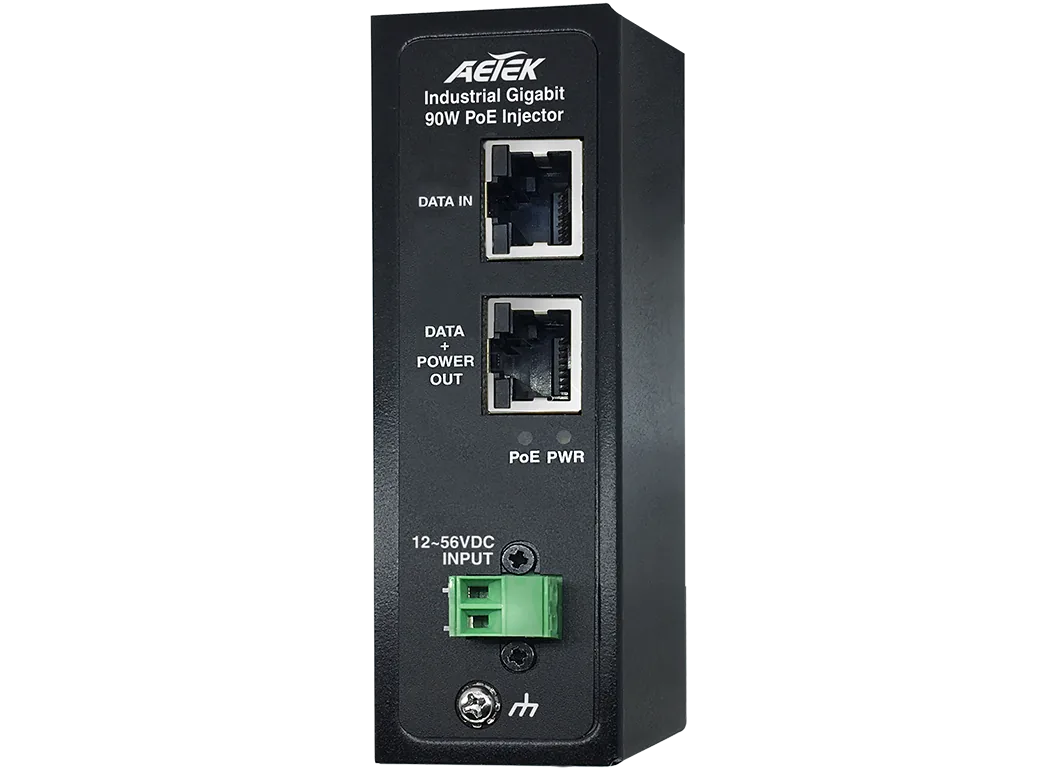

PoE++ injector to IEEE 802.3bt in an industrial DIN-rail case, backward compatible with 802.3at and 802.3af. Its input spans 12 to 56 V DC and the Gigabit port offers at most 90 W over four pairs, pinned 1/2 (-) with 3/6 (+), then 4/5 (+) with 7/8 (-), across a run of up to 100 m. The wide input suits a location where only low DC voltage is available; typical loads are speed domes or camera housings with blower, heater, illuminator and wiper. Terminals outside the standard are detected and protected, and the data/PoE port carries 6 kV surge protection. Working range -40 °C to 75 °C, 120 x 102 x 38.2 mm, 0.3 kg.

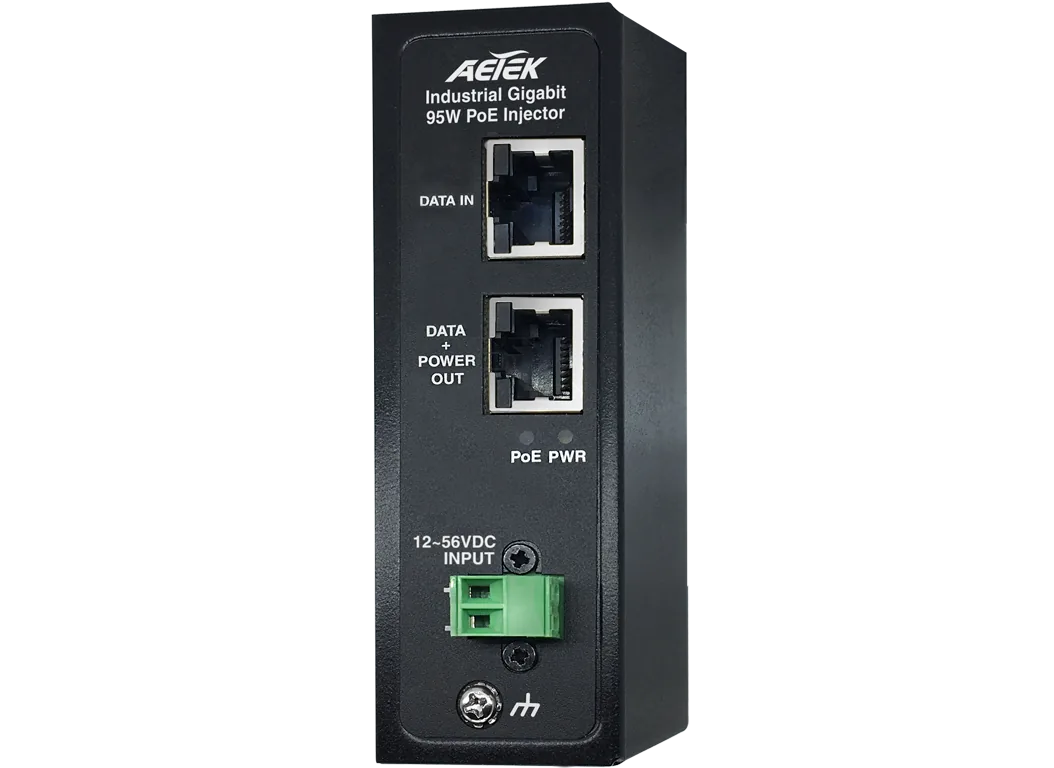

DIN-rail injector with a wide input window: 12 to 56 V DC is enough to feed one Gigabit port with up to 95 W across all four pairs, pinned 1/2 (-) with 3/6 (+), then 4/5 (+) with 7/8 (-). That allows a feed where only a low DC voltage is present. The run to the device may be 100 m, and it suits a speed dome or a camera housing with blower, heater, illuminator and wiper. Compatible with IEEE 802.3at/af, detecting and protecting terminals outside the standard, with 6 kV surge protection at the data/PoE port. Working range -40 °C to 75 °C, 120 x 102 x 38.2 mm, 0.3 kg, LEDs for power and PoE.

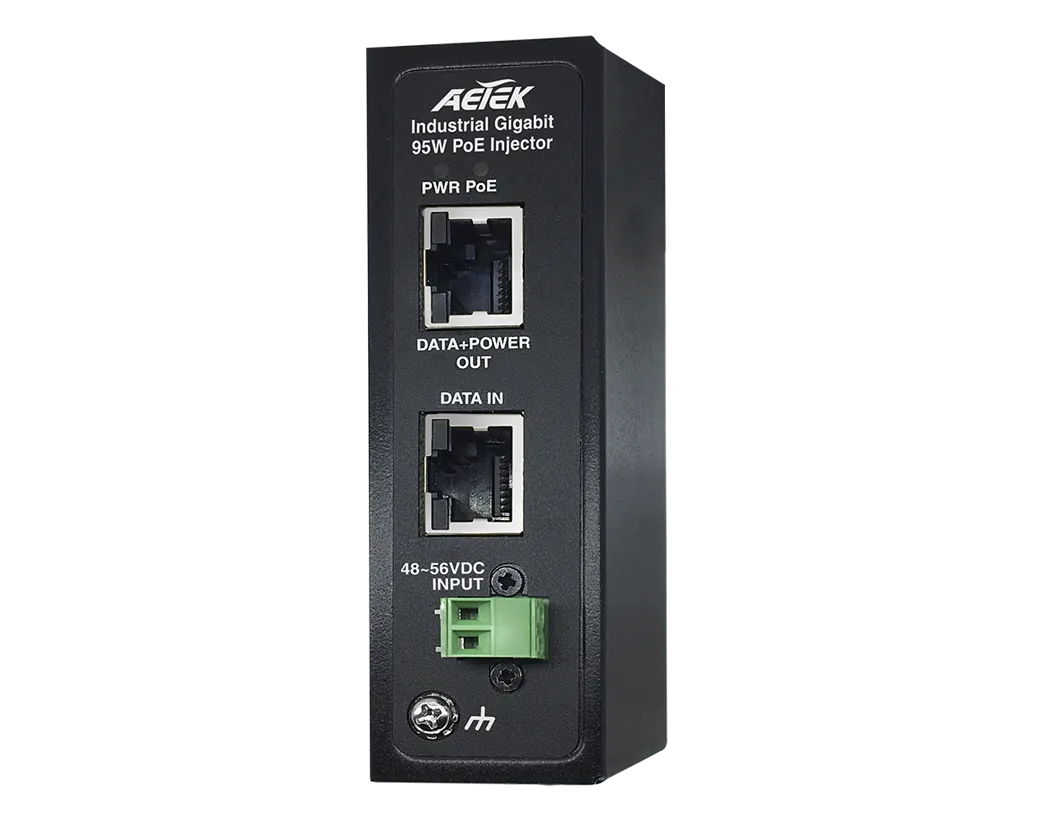

Industrial DIN-rail injector that feeds one Gigabit port with up to 95 W PoH over all four pairs. Pins are 1/2 (-) with 3/6 (+), then 4/5 (+) with 7/8 (-), the run may be 100 m, and the input takes 48 to 56 V DC. It is aimed at heavy loads: speed domes, or a camera housing whose blower, heater, illuminator and wiper draw from the same feed. Compatible with IEEE 802.3at/af, terminals outside the standard are detected and protected, and the data/PoE port carries 6 kV surge protection. Working range -40 °C to 75 °C, storage -40 °C to 85 °C, humidity 10 to 90 % non-condensing. Small format at 100 x 81.5 x 30 mm and 0.2 kg, with LEDs for power and PoE.

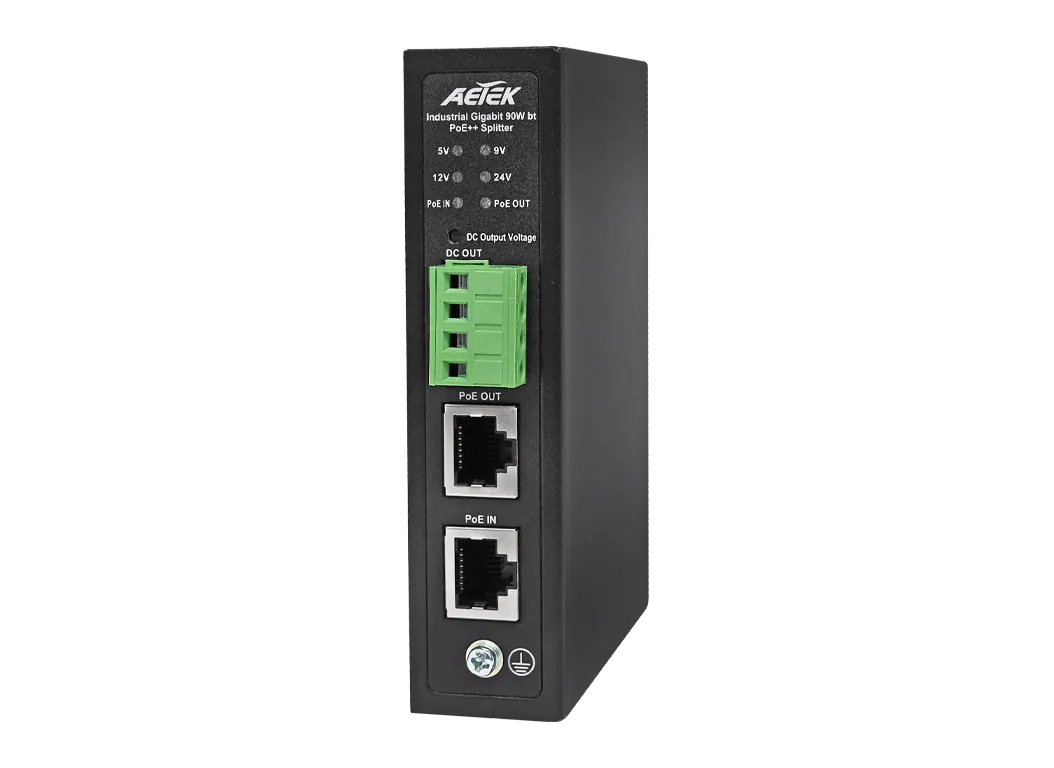

Industrial PoE splitter that turns one PoE feed into two supply forms at once: 802.3af/at/bt PoE for devices with a PoE input, plus a DC rail for devices without one. The DC voltage is selectable at 5, 9, 12 or 24 V. Fed from an 802.3bt source, 70 W is available (5 V/14 A, 9 V/7.7 A, 12 V/5.8 A, 24 V/2.9 A); from an 802.3at source, 24 W (5 V/4.8 A, 9 V/2.6 A, 12 V/2 A, 24 V/1 A). Its two RJ45 ports run at 10/100/1000 Mbps over Cat 5e or Cat 6 up to 100 m. Operating range -40 °C to 75 °C, storage -40 °C to 80 °C, 6 kV surge protection, 120 x 100 x 32 mm. LEDs cover power, PoE and each of the four DC voltages.

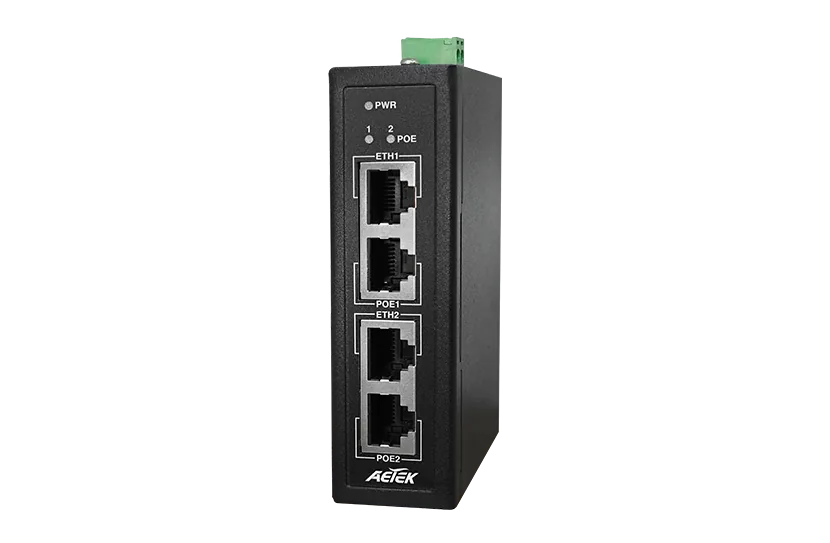

Industrial injector for two Gigabit runs, mounted on a DIN rail. Each port puts out 30 W to IEEE 802.3at over pairs 45(+) and 78(-), powering a camera or an access point on the same cable that carries its data, over a run of up to 100 m. The input accepts 12 to 48 V DC: a built-in boost stage lifts a low input to the voltage PoE needs, so a site with nothing but low-voltage power available, in transport for instance, needs no special supply. Surge protection at the data/PoE port is 6 kV, non-standard terminals are detected and protected, and LEDs show power and PoE. Working range -40 °C to 75 °C, 30 x 70.1 x 104 mm, 0.3 kg.

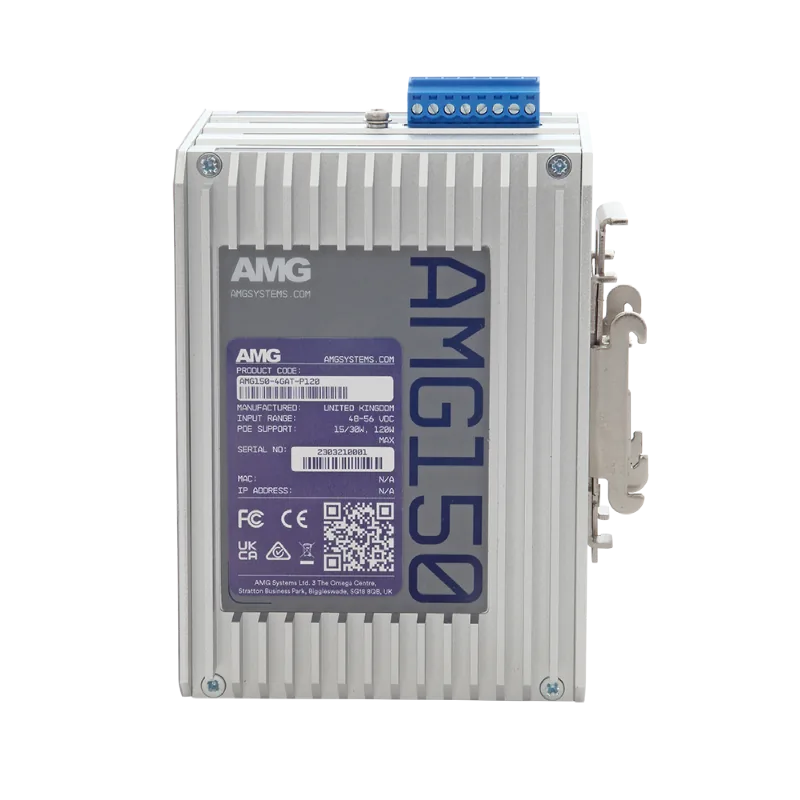

An industrial PoE injector serving four ports. The input side offers 4 x 10/100/1000Base-T(x) RJ45, and the output side the same 4 x 10/100/1000Base-T(x) RJ45, there with 802.3at PoE rated at 30 W. Mounting is on a DIN rail or on a wall. It operates from -40 C to +75 C and is powered from a 48-56 VDC input. Industrial 4-port PoE injector4 x 10/100/1000Base-T(x) RJ45 input4 x 802.3at 30 W PoE outputDIN rail or wall mount-40 C to +75 C48-56 VDC power input

Industrial 1 Port PoE Injector, 1 x 10/100/1000Base-T(x) RJ45 Port (Input), 1 x 10/100/1000Base-T(x) RJ45 Port With 802.3bt 30/60/90W PoE (Output), Internal 90W PSU, Passive Cooling, IP40 rating. Includes wall/surface mount plate, 2 x magnetic mounts, DIN rail clip and region specific down angle IEC EU line cord, PoE injector is compatible with SBP-400WMW Mount

Industrial 1 Port PoE Injector, 1 x 10/100/1000Base-T(x) RJ45 Port (Input), 1 x 10/100/1000Base-T(x) RJ45 Port With 802.3bt 30/60/90W PoE (Output), Internal 90W PSU, Passive Cooling, IP40 rating. Includes wall/surface mount plate, 2 x magnetic mounts, DIN rail clip and region specific down angle IEC UK line cord, PoE injector is compatible with SBP-400WMW Mount

Smart Hybrid Industrial PoE Injector and Media Converter, 1 x 10/100/1000BaseT(x) RJ45 with 30/60/90W PoE, 1 x 10/100/1000BaseT(x) RJ45, 1 x 100/1000BaseFx SFP, Operating Temp. -40 to +75°C, Internal 90W PSU, Passive Cooling, IP40 rating, DIP Switch enabled features: Local/Remote Mode, Link Fault Pass-Through Mode, Remote Reset Mode, Extended Distance Mode, Directed Traffic Mode, 2 Port Isolation Mode. Includes wall/surface mount plate, 2 x magnetic mounts, DIN rail clip and region specific down angle IEC EU line cord, PoE injector is compatible with SBP-400WMW Mount
