Fibre optic

10G SFP,SMF Bi-Di, TX:1270NM / RX:1330NM,40KM

10G SFP,SMF Bi-Di, TX:1270NM / RX:1330NM,20KM

10G SFP,SMF Bi-Di, TX:1330NM / RX:1270NM,20KM

10G SFP,SMF Bi-Di, TX:1330NM / RX:1270NM,40KM

SFP+ module with an RJ45 socket that puts a 10 Gbps slot onto copper: 10GBASE-T to IEEE 802.3an with a 30 m reach over Cat.6a. Auto-negotiation and auto-MDI/MDI-X are supported and the module draws 3.3 V. Operating range 0 °C to 70 °C, storage -40 °C to 85 °C, humidity 5 to 90 % non-condensing. Body size 68.3 x 13.7 x 13.8 mm, MSA compliant.

SFP+ module for 10 Gbps on 9/125 μm single-mode fibre with a 10 km reach, typically an uplink between buildings on one site. The FP laser diode works at 1310 nm and transmits at -8.2 to 0.5 dBm, the receiver from -14.4 dBm downward, and the link budget is 6.2 to 14.9 dB. LC connector, 3.3 V supply, operating range 0 °C to 70 °C, storage -40 °C to 85 °C, humidity 5 to 90 % non-condensing. Size 68 x 13.7 x 8.5 mm, MSA compliant, approvals CE, FCC, LVD, ROHS, TUV and UL.

SFP+ module carrying 10 Gbps over single-mode spans of up to 40 km on 9/125 μm fibre. Its DFB laser diode works at 1550 nm and transmits at -3 to 3 dBm; the receiver needs no more than -15.8 dBm, and the permitted link budget runs 12.8 to 18.8 dB. Connector LC, supply voltage 3.3 V. Operating range 0 °C to 70 °C, storage -40 °C to 85 °C, humidity 5 to 90 % non-condensing. Size 68 x 13.7 x 8.5 mm, MSA compliant, approvals CE, FCC, LVD, ROHS, TUV and UL.

SFP+ module for short 10 Gbps hops on 50/125 μm multimode fibre up to 300 m, so for links inside a building or between floor distributors. A VCSEL transmits at 850 nm with -6.5 to -1 dBm, the receiver works from -11.1 dBm downward, and the link budget sits between 4.6 and 10.1 dB. LC connector, 3.3 V supply, operating range 0 °C to 70 °C, storage -40 °C to 85 °C, humidity 5 to 90 % non-condensing. Size 68 x 13.7 x 8.5 mm, MSA compliant, approvals CE, FCC, LVD, ROHS, TUV and UL.

SFP+ module for 10 Gbps on 9/125 μm single-mode fibre reaching 80 km. The 1550 nm DFB laser diode transmits at 0 to 4 dBm, the receiver works from -24 dBm downward and the permitted link budget spans 24 to 28 dB, which suits routes with no active site between the endpoints. LC connector, 3.3 V supply, operating range 0 °C to 70 °C, storage -40 °C to 85 °C, humidity 5 to 90 % non-condensing. Size 68 x 13.7 x 8.5 mm, MSA compliant, approvals CE, FCC, LVD, ROHS, TUV and UL.

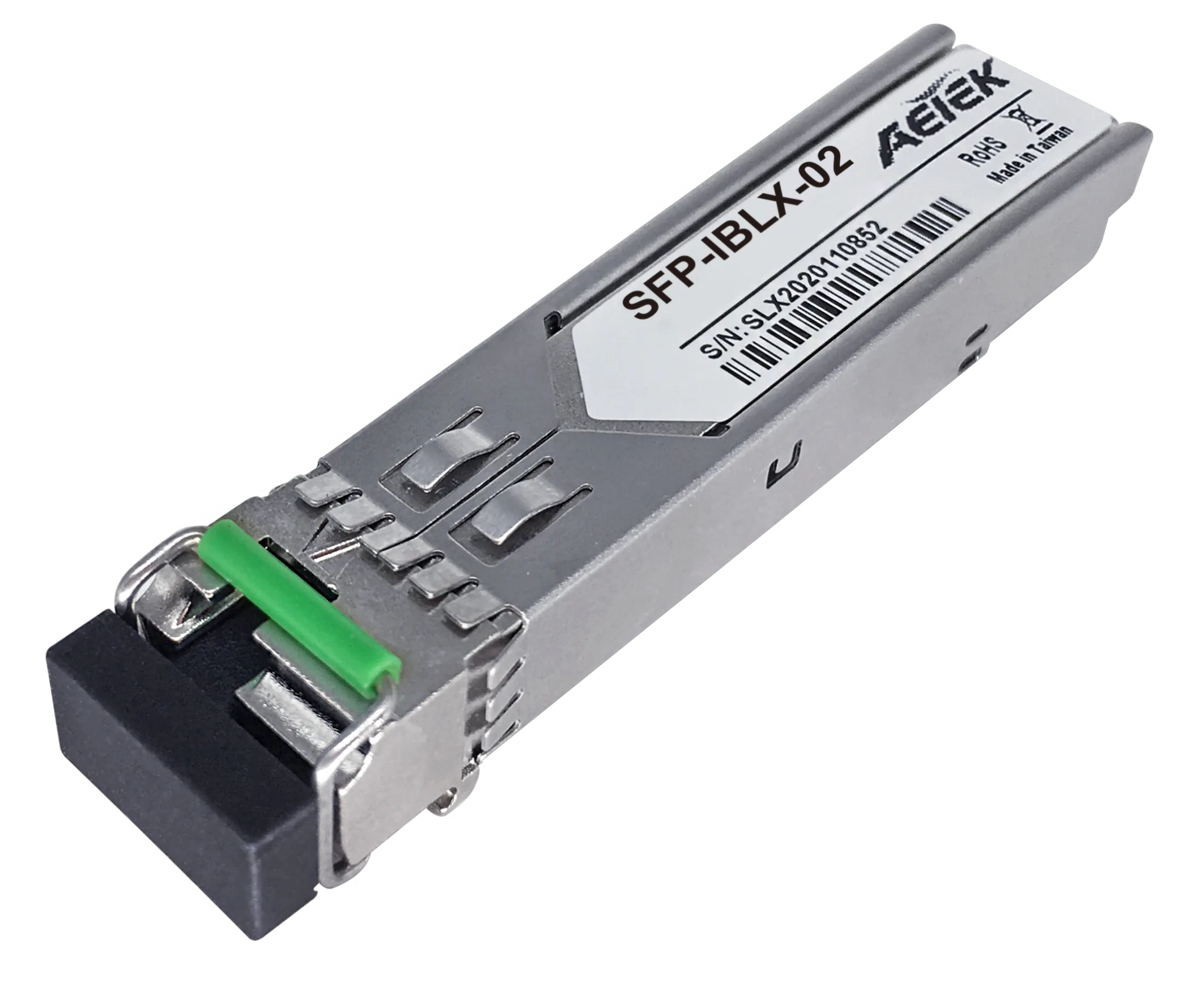

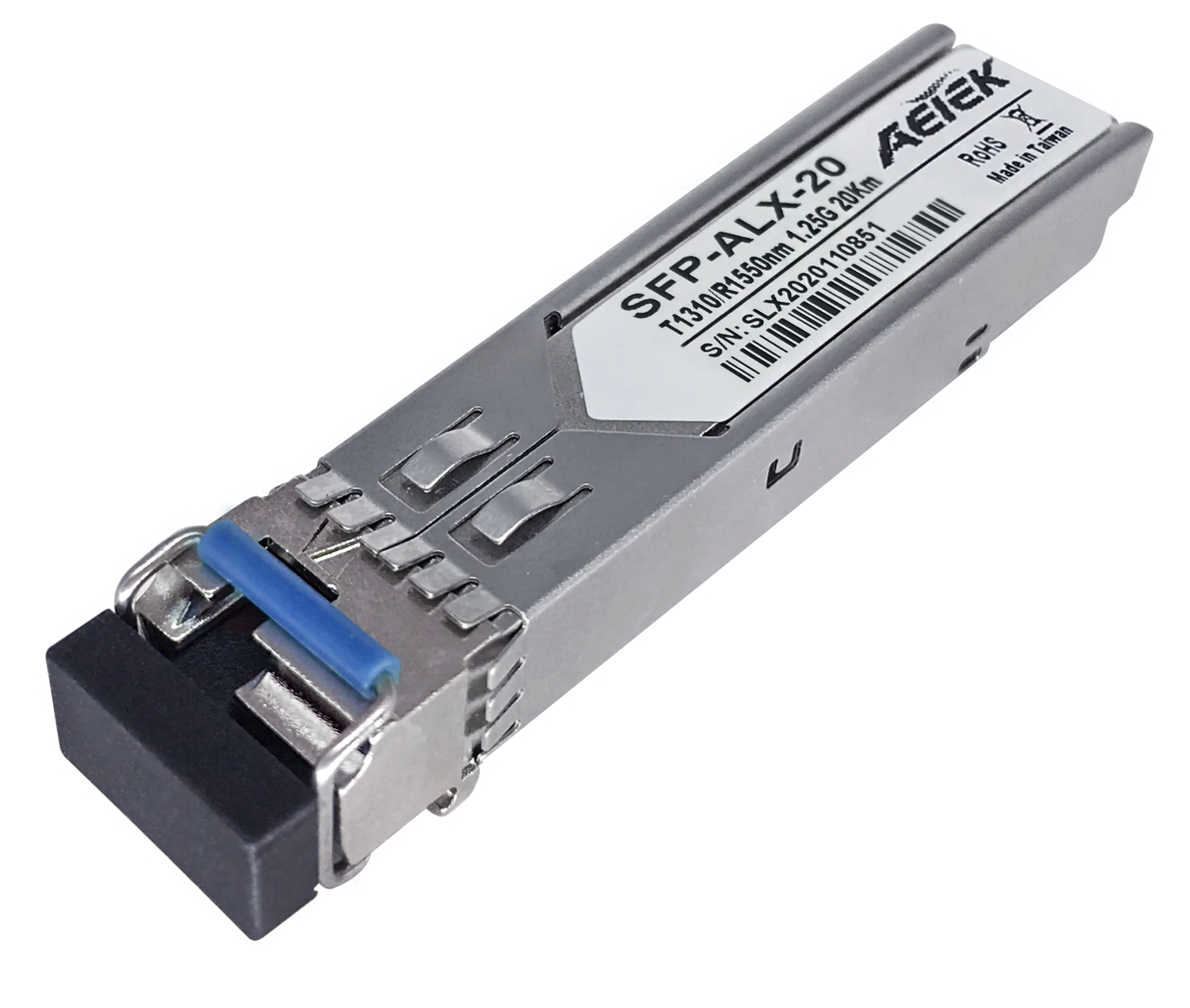

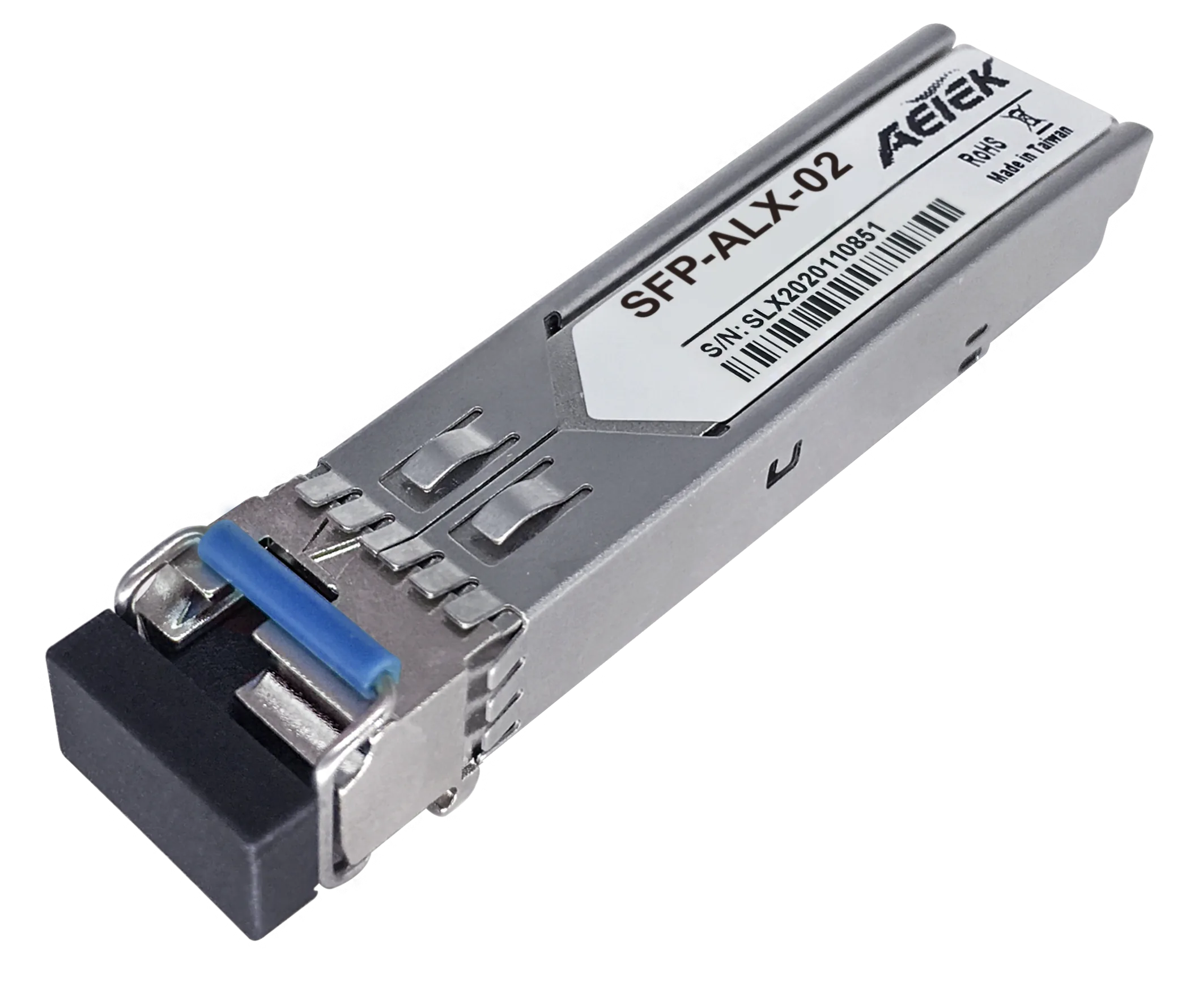

1.25G SFP,SMF Bi-Di, TX:1310NM / RX:1550NM,20KM

1.25G SFP,SMF Bi-Di, TX:1550NM / RX:1310NM,40KM

1.25G SFP,SMF Bi-Di, TX:1310NM / RX:1550NM,40KM

1.25G SFP,MMF Bi-Di, TX:1310NM / RX:1550NM,2KM

Industrial1.25G SFP,MMF Bi-Di, TX:1310NM / RX:1550NM,2KM

1.25G SFP,SMF Bi-Di, TX:1550NM / RX:1310NM,20KM

Industrial 1.25G SFP,MMF Bi-Di, TX:1550NM / RX:1310NM,2KM

1.25G SFP,MMF Bi-Di, TX:1550NM / RX:1310NM,2KM

for singlemode or multimode

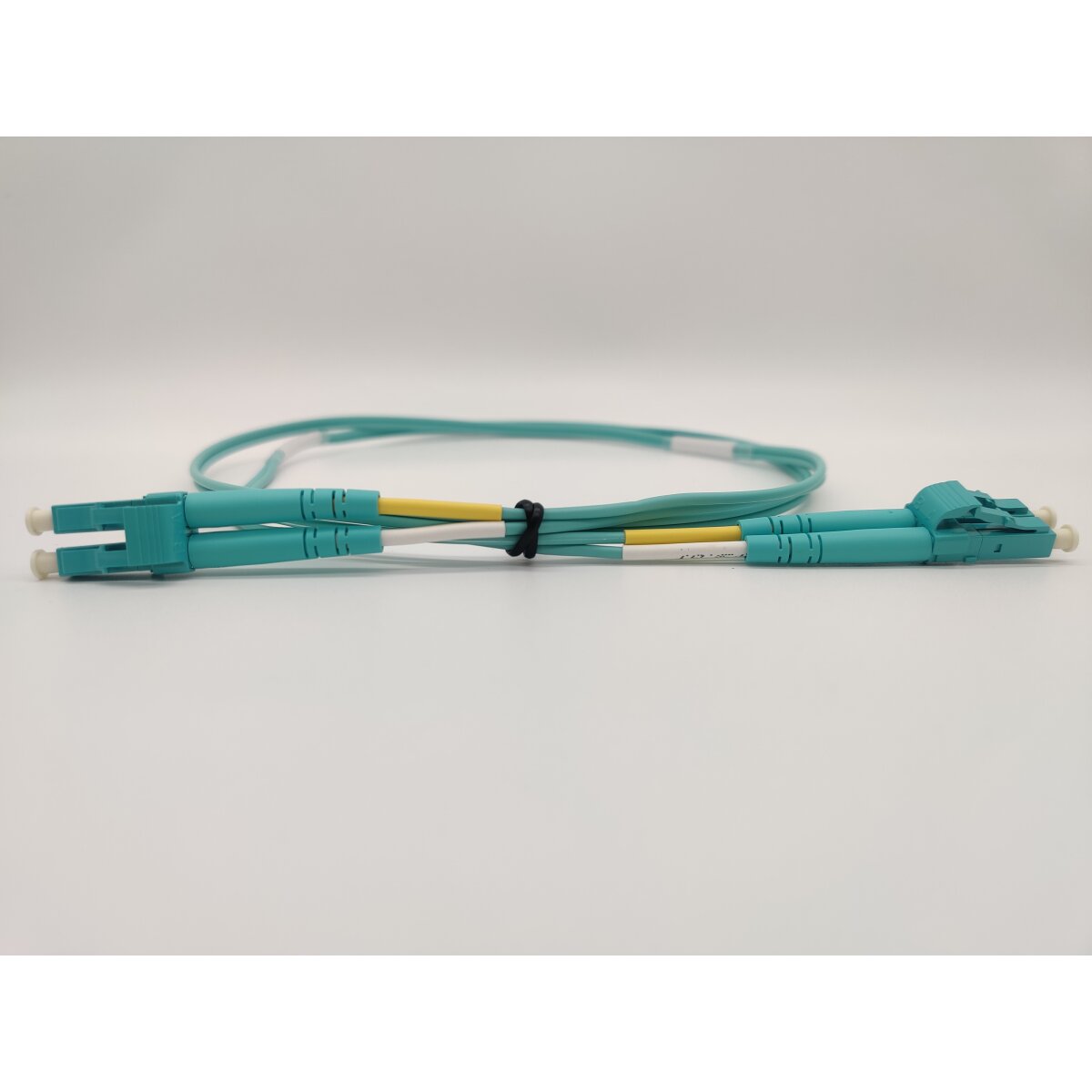

This patch cable links components over a 50/125 multimode fibre and is rated to class OM3. Its construction is duplex, the connectors are LC/PC, and the length is 7.5 m. An LSZH jacket encloses the cable, whose diameter comes to 1.8 mm. The design provides low insertion loss together with high return loss and high temperature stability. Every cable leaves production with its own serial number and an enclosed measurement report; custom lengths can be manufactured. Fields of use named include storage and data processing networks, switch connections, ATM, cable TV and multimedia as well as medical and industrial environments. Duplex construction, class multimode OM3Multimode 50/125 fibreLC/PC connectorsLSZH jacket, 1.8 mm cable diameterLength 7.5 mCustom lengths possible

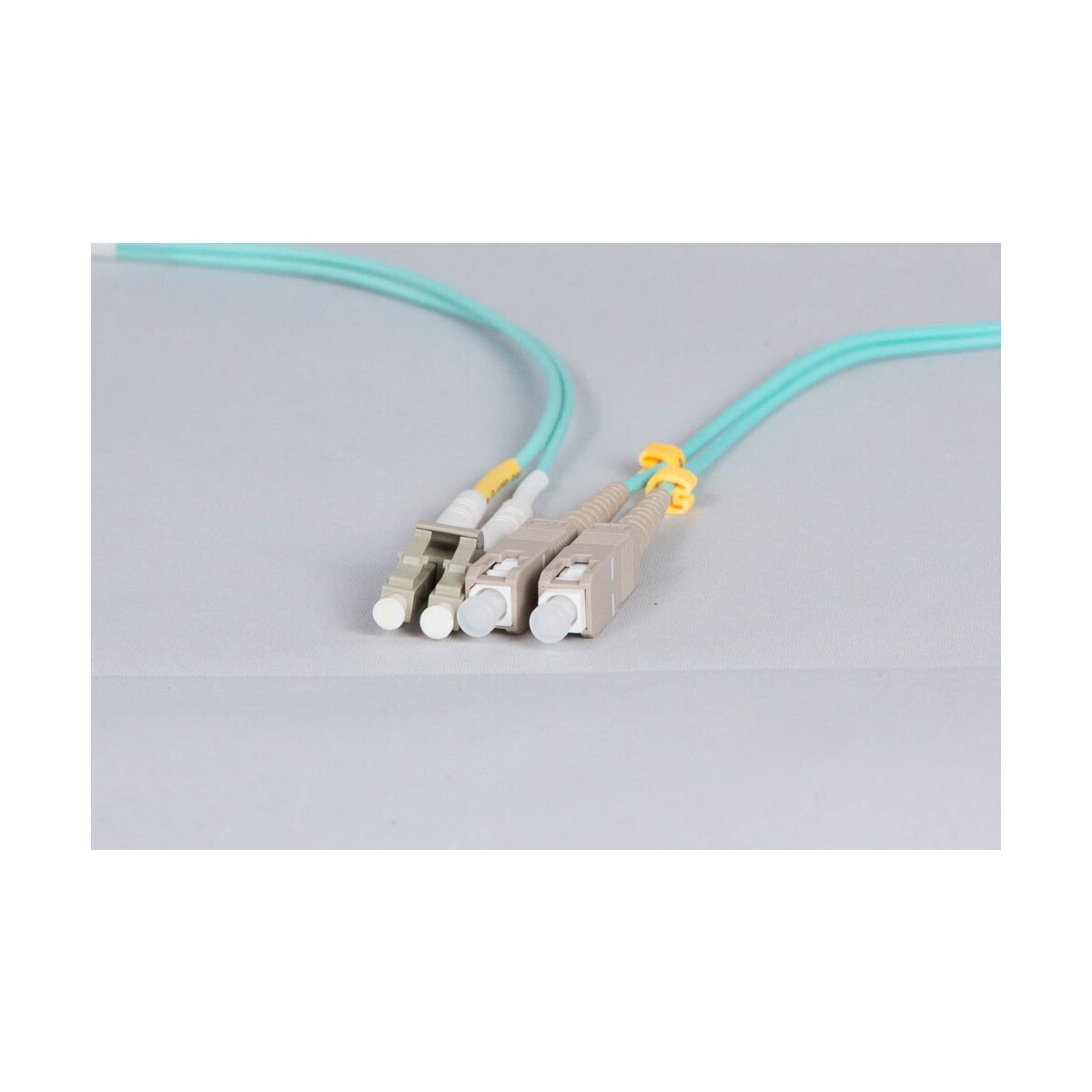

Designed for class OM3 multimode connections, this duplex patch cable carries a fibre in the 50/125 profile. It is terminated with LC/PC and SC/PC connectors. The cable is 20 m long, measures 1.8 mm in diameter and is enclosed by an LSZH jacket. Described properties include low insertion loss, high return loss and high temperature stability. An individual serial number and an enclosed measurement report accompany every cable produced, and custom lengths are possible. Intended areas of use cover telecommunications networks, storage networks, switch connections, on-site installations, industrial and medical areas as well as FTTH. Duplex construction, class multimode OM3Multimode 50/125 fibreLC/PC and SC/PC connectorsLSZH jacket, 1.8 mm cable diameterLength 20 mIndividual serial number, measurement report enclosed

As a duplex version with an LSZH jacket, this fibre optic patch cable is meant for multimode connections of class OM3 with a 50/125 fibre profile. Termination is with LC/PC and SC/PC connectors. With a cable diameter of 1.8 mm, the length amounts to 7.5 m. Stated properties are low insertion loss, high return loss and high temperature stability; custom lengths are possible. Each cable produced ships with an individual serial number and an enclosed measurement report. Intended applications include data processing and storage networks, cable TV and multimedia, industrial and medical areas, and FTTH. Duplex construction, class multimode OM3Multimode 50/125 fibreLC/PC and SC/PC connectorsLSZH jacket, 1.8 mm cable diameterLength 7.5 mCustom lengths possible

Supplied at an assembled length of 8 m, this duplex patch cable serves multimode links of class OM3 and uses a fibre with a 50/125 profile. Both ends are terminated with LC/PC connectors. The jacket material is LSZH and the diameter is stated as 1.8 mm. Low insertion loss, high return loss and high temperature stability are listed for it. A measurement report accompanies each cable, which can be identified by an individual serial number, and deviating lengths are possible. Intended areas of use include telecommunications networks, switch connections, active device interface, on-site installations, ATM and FTTH. Duplex construction, class multimode OM3Multimode 50/125 fibreLC/PC connectorsLSZH jacket, 1.8 mm cable diameterLength 8 mIndividual serial number, measurement report enclosed

This duplex patch cable carries two Multimode 50/125 fibres and is classified as Multimode OM3. Connectors of the LC/PC type terminate both ends, the jacket material is LSZH and the cable diameter is 1,8 mm, with a length of 3 m. Low insertion loss together with high return loss and high temperature stability are the properties named by the manufacturer. Applications listed include telecommunications, data processing and storage networks, cable TV and multimedia, active device interface, switch links, ATM, FTTH, on-site installations and industrial or medical environments. Every cable receives an individual serial number and is supplied with a measurement protocol, and custom lengths are possible. Multimode OM3 classMultimode 50/125 fibre typeDuplex cable constructionLC/PC connector typeLSZH jacket, 1,8 mm diameterLength 3 m

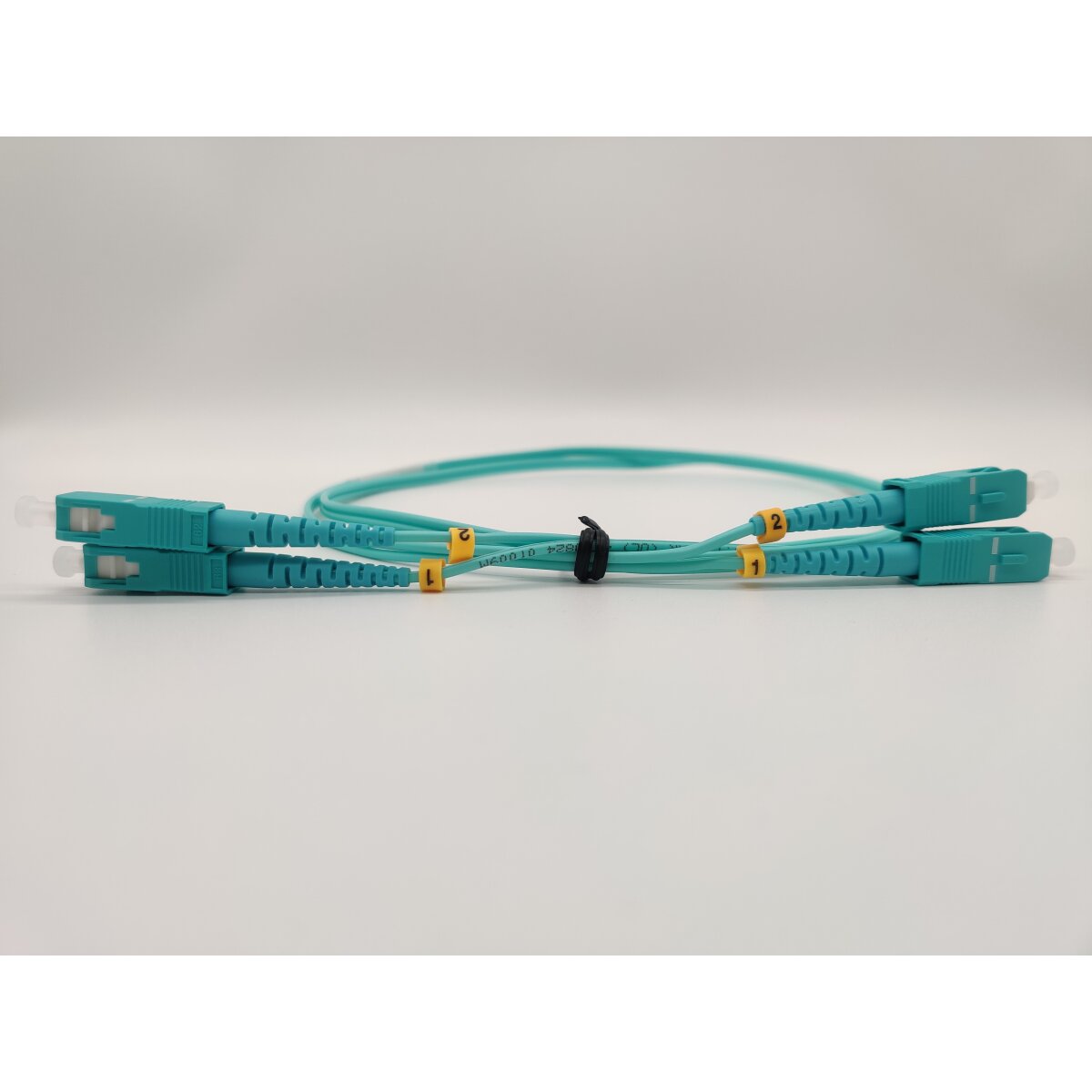

Over a multimode fibre with a 50/125 profile, this duplex patch cable establishes class OM3 links and is terminated with SC/PC connectors at both ends. The assembled length is 6 m and the cable diameter 1.8 mm, with LSZH forming the jacket. The manufacturer states low insertion loss, high return loss and high temperature stability. Every unit receives an individual serial number, the measurement report is enclosed, and custom lengths can be manufactured. Fields of use listed are telecommunications, data processing and storage networks, switch connections, cable TV and multimedia, ATM and FTTH. Duplex construction, class multimode OM3Multimode 50/125 fibreSC/PC connectorsLSZH jacket, 1.8 mm cable diameterLength 6 mCustom lengths possible
