Outdoor IP67/IK10 1-Port EPoC TX Adapter with 802.3af/at/bt PoE++ Output
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 weeks
Product data
- Manufacturer
- AETEK
- Article number
- XE22-110-TX-V2
- EAN / GTIN
- 4711502643355
Description

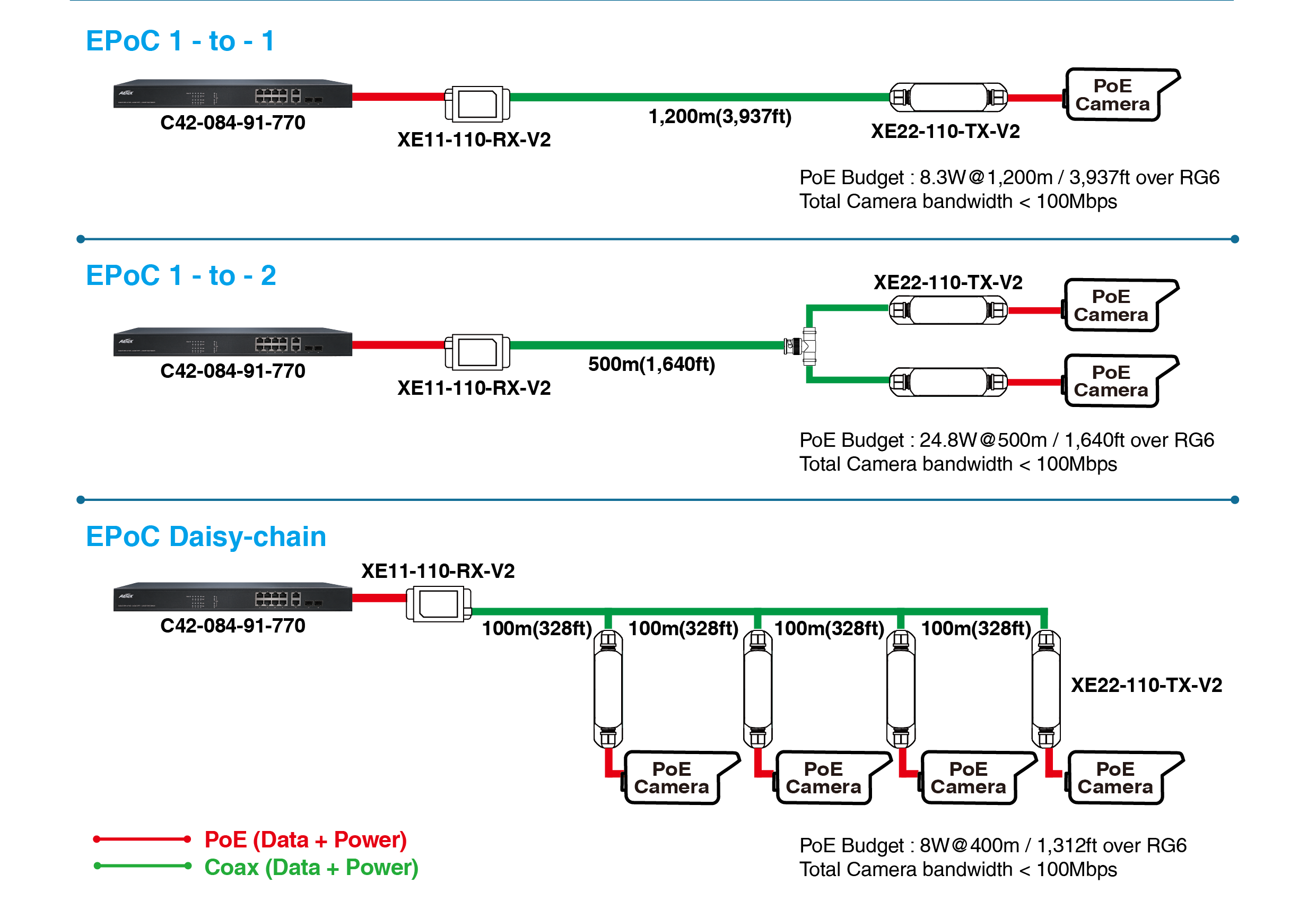

Outdoor EPoC transmit adapter, mounted on a wall or pole next to the camera. It provides one 75 Ω BNC port and one RJ45 PoE output acting as PSE for IEEE 802.3af, 802.3at and 802.3bt, with a voltage booster on the output; no local power supply is required because the unit is fed by PoE over the coax. Across RG59, RG6 or RG11, up to 9.7 W remain available at 1,200 m while running 100 Mbps, and data alone reaches 2,400 m, so the coax of an existing CCTV installation can keep serving PoE IP cameras. The aluminium case is rated IP67 and IK10, surge protection is 6 kV, and it works from -30 °C to 60 °C, is stored between -40 °C and 85 °C and tolerates 5 to 95 % non-condensing humidity. Cable entry is one M25 gland each for BNC and RJ45, a DIP switch disables the PoE output, and the unit draws 3 W. Size 193.6 x 55.8 x 39.76 mm, 0.3 kg, wall mounting, EN62368-1.
Made by
AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Certifications (2)
- Certifications EMC
- CE, FCC, VCCI, C-Tick
- Safety
- EN62368-1
Environmental Specifications (5)
- Environmental Specifications – IK Rating
- IK10
- Environmental Specifications – IP Rating
- IP67
- Environmental Specifications – Operating Humidity
- 5% ~ 95% non-condensing
- Environmental Specifications – Operating Temperature
- -30°C ~ 60°C (-22°F ~ 140°F)
- Environmental Specifications – Storage Temperature
- -40°C ~ 85°C (-40°F ~ 185°F)
Interface (4)
- Distance 10/100 Mbps Ethernet
- PoE PSE RJ45 x1
- Distance Coaxial BNC
- 75 ohm x1
- Distance Transmission mode
- Transmitter TX mode
- Interface / Distance – MAX.(Power+Data) Distance 100Mbps, 9.7W@1,200m(3,937ft) 100Mbps@2,400m(7,874ft) Data only Cable reference: RG6 Coax Cable Type
- 75 ohm RG59/RG6/RG11 Coax
LEDs (4)
- LEDs LAN
- Ethernet status
- LEDs POE
- PoE status
- LINK
- EPoC RX and TX connection status
- PWR
- Power status
Mechanical (6)
- DIP Switch
- PoE On/Off switch
- Dimensions (W x D x H)
- 193.6 x 55.8 x 39.76 mm (7.62x2.2x1.56")
- Mechanical Casing
- Aluminum
- Mechanical Connectors
- M25 x1(BNC), M25 x1(RJ45), PoE On/Off Switch x1
- Mechanical Mounting Type
- Wall mount
- Mechanical Weight
- 0.3 kg (0.66 lb)
Power (3)
- EPoC Surge Protection
- 6KV
- Power Input
- PoE over Coax
- Power – Power Output IEEE 802.3bt PoE++ PSE IEEE 802.3at PoE+ PSE IEEE 802.3af PoE PSE Voltage Booster Unit Power Consumption
- 3W
