Thermal

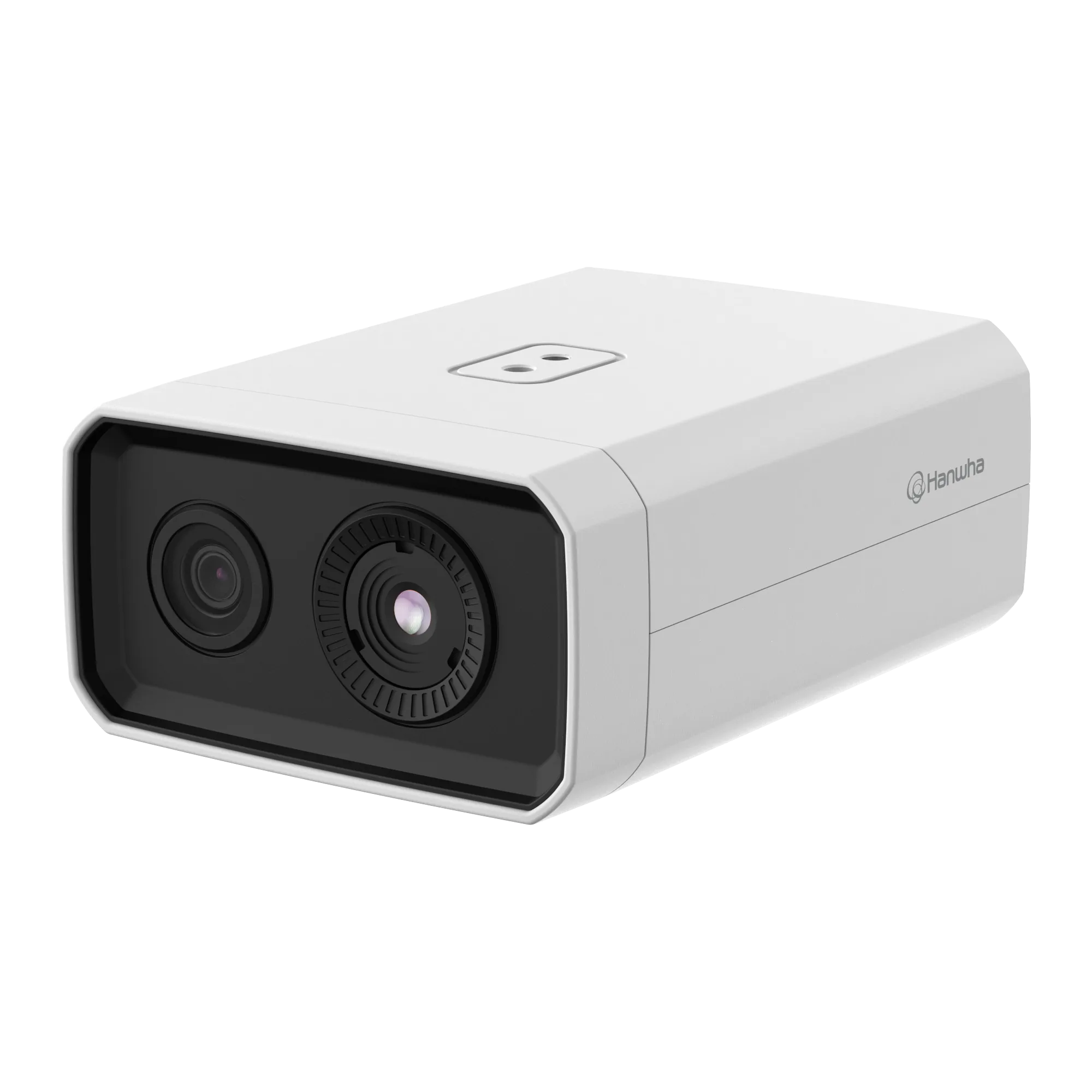

The TNM-C3620TDR pairs a 2MP visible channel with a QVGA thermal channel in a compact, lightweight housing intended for indoor use. AI-based object classification runs on the visible channel only and identifies persons, while temperature is monitored remotely across the -20 ~ 130°C range and evaluated through six quadrangle ROI areas. H.265/H.264 reaches 30fps/25fps(60Hz/50Hz) and MJPEG 30fps, with Main, Baseline and High profiles, MJPEG, WiseStreamⅡ and CBR or VBR bitrate control. Analysis and privacy tools include eight motion detection zones as 8-point polygons, 24 polygonal privacy masks in gray, green, red, blue, black, white or mosaic, flip and mirror, and digital image stabilization using a built-in gyro sensor. Connectivity is metal shielded RJ-45(10/100BASE-T) with unicast for up to 20 users and multicast support, complemented by one alarm input and two alarm outputs, a selectable audio input, line out, and video out via CVBS and micro USB Type B for installation. Bi-spectrum 2MP visible and QVGA thermalAI object classification (person), visible channel onlyRemote temperature monitoring -20 ~ 130°CSix quadrangle ROI areas24 privacy masks and eight motion detection zonesRJ-45(10/100BASE-T), unicast for up to 20 users

The TNM-C3622TDR is a compact, lightweight bi-spectrum camera for indoor use, combining a 2MP visible channel with a QVGA thermal channel. Maximum frame rate is stated as 8fps, and AI processing is available for the visible image only, where it classifies persons. Temperature is monitored remotely within the -20 ~ 130°C range, evaluated through six quadrangle ROI areas and checked for abnormal readings so that heat-related risks can be observed. Compression covers H.265/H.264 Main/Baseline/High and MJPEG with WiseStreamⅡ and CBR or VBR control, while streaming supports unicast for up to 20 users, multicast and up to six profiles. Further equipment includes eight motion detection zones as 8-point polygons, 24 polygonal privacy masks in seven variants including mosaic, digital image stabilization with a gyro sensor, one alarm input and two alarm outputs, a selectable audio input with line out, and metal shielded RJ-45(10/100BASE-T). QVGA thermal and 2MP visible resolutionMax. framerate 8fpsTemperature detection range -20 ~ 130°CAbnormal temperature detectionAI available for the visible image onlySix quadrangle ROI areas for temperature monitoring

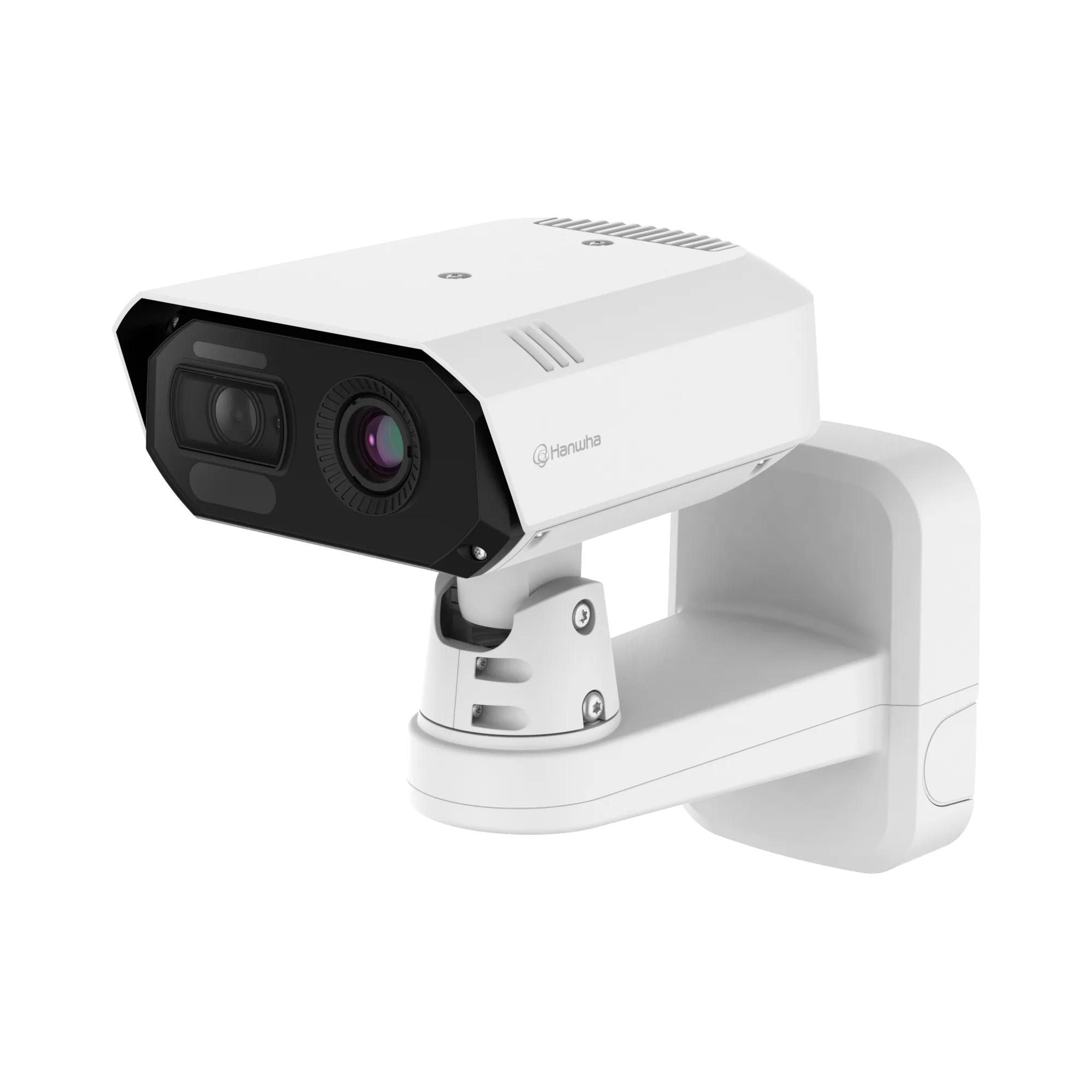

The TNM-C4940TDR is a radiometric AI bi-spectrum camera for outdoor environments, combining an 8MP visible channel with a VGA thermal channel. AI-based object classification works on both channels and distinguishes persons and vehicles, while temperature is monitored remotely across -20 ~ 130°C and evaluated through ten polygonal ROI areas. Illumination comes from IR LEDs at an 850nm wavelength with a viewable length of 30m(98.42ft). Pan covers -170° ~+170° and tilt -40°~50°, supplemented by digital image stabilization with a built-in gyro sensor, eight motion detection zones as 8-point polygons, six rectangular privacy masks in gray, black or white and four configurable I/O ports. Triggered events can upload files by e-mail or FTP, send notifications and record to SD/SDHC/SDXC or NAS, while the network interface is metal shielded RJ-45(10/100/1000BASE-T) with H.265/H.264 Main/High and MJPEG, CBR or VBR control and unicast for up to six users. Installation is served by an all-in-one solution for wall and pole. Radiometric AI bi-spectrum camera for outdoor use8MP visible and VGA thermal channelAI object classification on both channels (person/vehicle)Remote temperature monitoring -20 ~ 130°CTen polygonal ROI areasIR LED at 850nm, 30m(98.42ft) viewable length

The TNM-C4942TDR is a radiometric AI bi-spectrum camera for outdoor environments that combines an 8MP visible channel with a VGA thermal channel. AI-based object classification distinguishes persons and vehicles on both channels, and temperature is monitored remotely within -20 ~ 130°C and evaluated through ten polygonal ROI areas. Mechanically it offers a pan range of -170° ~ +170°, a tilt range of -40° ~ 50° and up to 255 presets, with an all-in-one installation solution for wall and pole mounting. Transmission runs over metal shielded RJ-45(10/100/1000BASE-T) using H.265/H.264 Main/High and MJPEG with CBR or VBR control, unicast for up to six users, multicast and up to three profiles. Interfaces include ONVIF S, T and M as well as SUNAPI(HTTP API) and the Hanwha Vision Open Platform. Security covers encrypted and signed firmware with secure boot, digest authentication, IEEE 802.1X, HTTPS and WSS, IP-based access control, encrypted credentials and access, system and event log management. Radiometric AI bi-spectrum camera for outdoor use8MP visible and VGA thermal channelAI object classification on both channels (person/vehicle)Remote temperature monitoring -20 ~ 130°C, ten polygonal ROI areasPan -170° ~ +170°, tilt -40° ~ 50°, 255 presetsONVIF S, T, M and SUNAPI(HTTP API)

The TNM-C4952TD provides a VGA thermal channel and an 8MP visible channel from a single device on one IP address, running at 8 frames per second. Its optics consist of a 13.5mm fixed thermal lens and a 10.9~29mm motorized varifocal visible lens. The housing is rated IP66, IP67 and IK10. WiseNR II noise reduction is AI-based and applies to the visible channel only, while smart coding uses WiseStream III for the visible channel and WiseStream II for the thermal channel, with compression in H.265/H.264 Main/High and MJPEG under CBR or VBR control. Mechanically the camera covers a pan range of -170°~+170°, a tilt range of -40° ~ 50° and 255 presets. It is rounded out by eight motion detection zones, six rectangular privacy masks, four configurable I/O ports, a selectable mic or line input with line out, and metal shielded RJ-45(10/100/1000BASE-T) with unicast for up to six users. VGA thermal resolution, 8MP visible resolution8 frames per secondIP66, IP67 and IK10 ratedDual channel through one device, one IP13.5mm fixed thermal and 10.9~29mm motorized varifocal visible lensWiseNR II noise reduction, WiseStream III and II codecs

The TNM-C4962TD combines a VGA-resolution thermal channel and an 8 MP visible channel in a single housing. Its thermal path uses a 25 mm fixed lens, while the visible path relies on a motorised 10.9~29 mm varifocal lens; both run at 8 frames per second. Image processing covers ICR-based day and night switching, 120 dB wide dynamic range, AI-driven WiseNR II noise reduction on the visible channel and smart codec support through WiseStream III (visible) and WiseStream II (thermal). Mechanically the camera spans -170°~+170° in pan and -40°~50° in tilt and stores up to 255 presets. Networking is handled by a metal-shielded RJ-45 port (10/100/1000 BASE-T) with H.265/H.264 in Main and High profile plus MJPEG, up to three streaming profiles and four configurable I/O ports; the enclosure is rated IP66, IP67 and IK10. VGA thermal resolution, 8 MP visible resolution25 mm fixed thermal lens, 10.9~29 mm motorised visible lens8 frames per second120 dB WDR, ICR day and night switchingPan range -170°~+170°, tilt range -40°~50°IP66, IP67, IK10

The TNM-C2722TDR brings a QQVGA thermal channel and a 3MP visible sensor together in a single device. The visible channel delivers up to 30fps and the thermal channel 8fps, with a field of view of H: 57° / V: 44° / D: 71° thermal and H: 69° / V: 50.8° / D: 88.9° visible. An AI engine handles early fire detection, temperature measurement across -10°C~450°C and temperature difference detection. Mechanically, pan and rotate span 0°~360° and tilt spans 0°~70°, while the housing is rated IP66/IP67 and IK09 except for the lenses in front. Operation runs from -30°C~+55°C(-22°F~+131°F) at 0~95% RH(non-condensing) with start-up above -10°C, powered by PoE(IEEE802.3af, Class3) at max 10.8W, typical 6.2W. Resources include 2GB RAM, 512MB flash, a microSD slot for up to 512GB and security features from signed firmware and IEEE 802.1X through to AES-256 encryption of the SD card partition. Bi-spectrum QQVGA thermal and 3MP visible sensorThermal field of view H: 57° / V: 44° / D: 71°AI-engine based early fire detectionTemperature detect range -10°C~450°CIP66/IP67, IK09 except lenses in frontPoE, max 10.8W, typical 6.2W

The TNM-C2712TDR combines a QQVGA thermal channel and a 3MP visible sensor in one housing. The visible channel runs at a maximum of 30fps and the thermal channel at 8fps, with an angular field of view of H: 95° / V: 69° / D: 119° thermal and H: 100° / V: 73° / D: 129° visible. An AI engine provides early fire detection, temperature measurement across -10°C~450°C and temperature difference detection. The housing is rated IP66/IP67 and IK09 except for the lenses in front, and pan and rotate cover 0°~360° while tilt covers 0°~70°. Operation is specified from -30°C~+55°C(-22°F~+131°F) at 0~95% RH(non-condensing) with start-up required above -10°C, and power comes from PoE(IEEE802.3af, Class3) at max 10.8W, typical 6.2W. The camera provides 2GB RAM, 512MB flash, a microSD slot for up to 512GB and security functions including encrypted and signed firmware, secure boot, IEEE 802.1X, HTTPS, WSS and SRTP. Bi-spectrum QQVGA thermal and 3MP visible sensorThermal field of view H: 95° / V: 69° / D: 119°AI-engine based early fire detectionTemperature detect range -10°C~450°CIP66/IP67, IK09 except lenses in frontPoE, max 10.8W, typical 6.2W

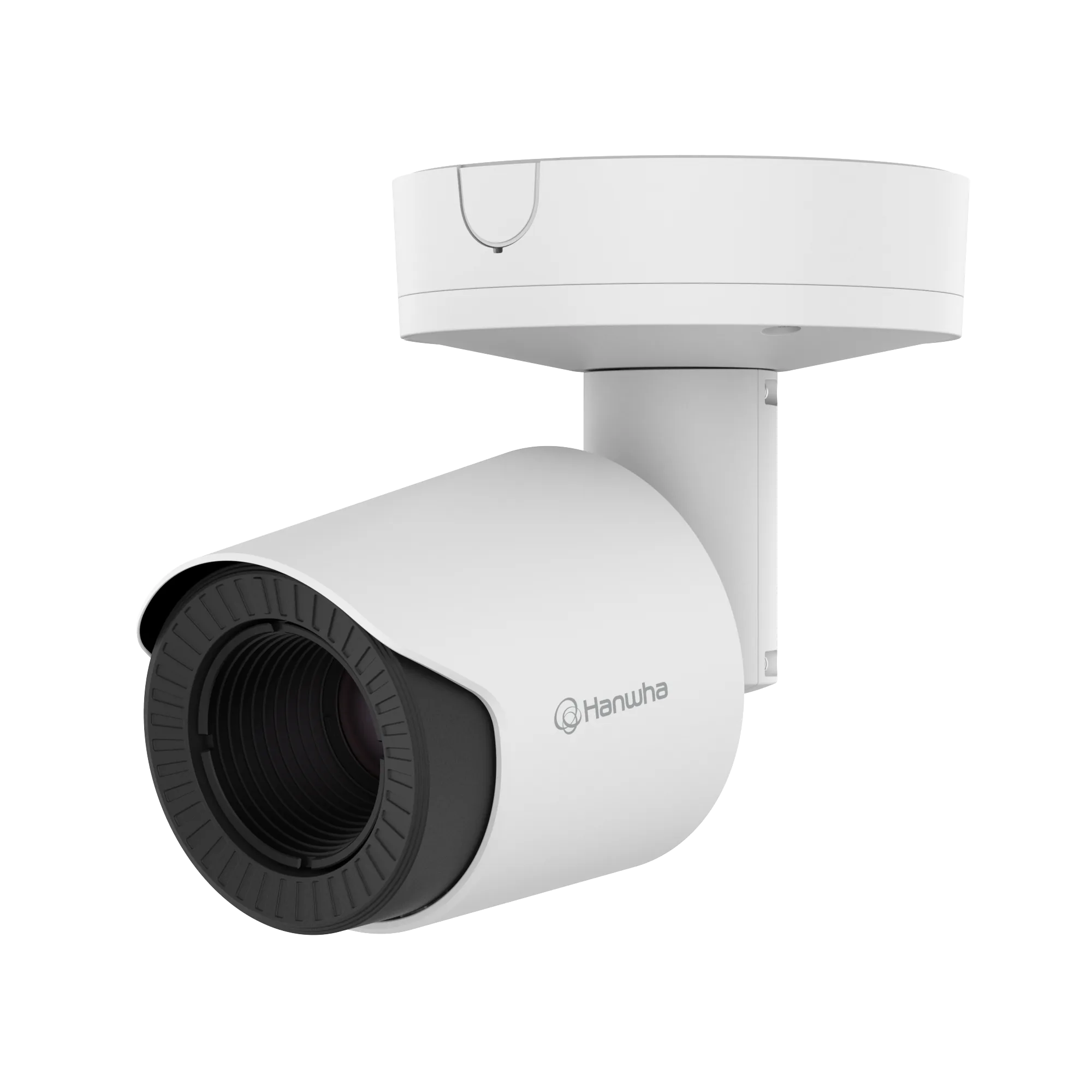

The TNO-C3060T images through an uncooled micro bolometer of 384x288 with a pixel size of 17 µm and streams either 768x576 or 384x288. Its spectral range covers 8–14 µm, and sensitivity is stated as NETD ≤20 mK at 25 °C, F1.0. The athermalized fixed lens has a focal length of 35 mm at F1.0 and takes in 10.7° horizontally, 8.0° vertically and 13.3° diagonally, with an iFoV of 0.486 mRad and a minimum object distance of 36.1 m (118.4 ft). H.265, H.264 and MJPEG are each encoded at up to 30 fps, and AI-based classification separates persons from vehicles. Eight motion zones can be drawn as 8-point polygons, and the mount permits 0°~350° of pan, 0°~90° of tilt and 0°~350° of rotation. Uncooled micro bolometer 384x288Athermalized 35 mm fixed lens, F1.0NETD ≤20 mK at 25 °CUp to 30 fps (H.265/H.264/MJPEG)AI object classification for persons and vehiclesIP66/67, IK10, NEMA4X, NEMA-TS2, MIL-STD-810H

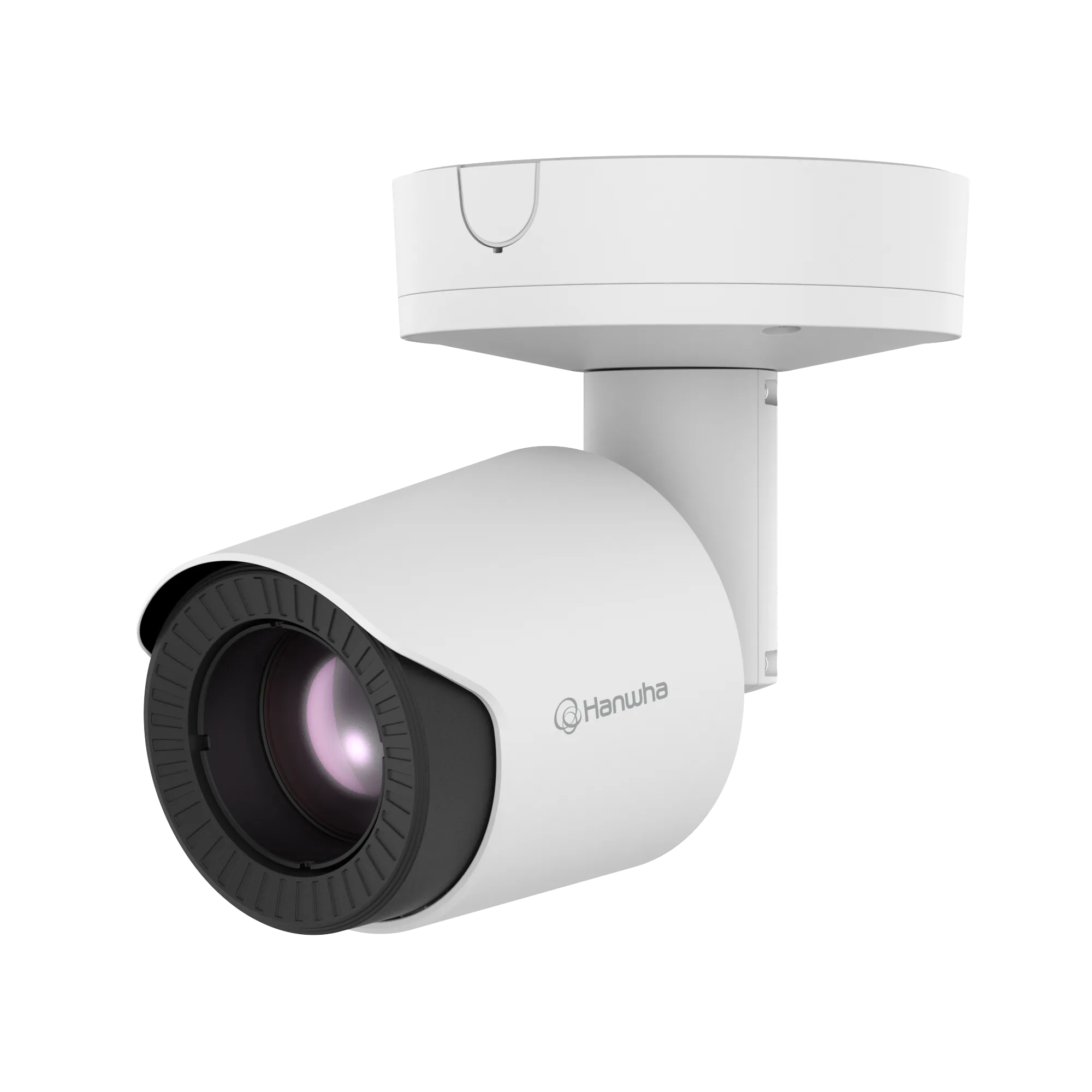

The TNO-C3080T images through an uncooled micro bolometer of 384x288 with a pixel size of 17 µm and streams either 768x576 or 384x288. Its spectral range covers 8–14 µm, and sensitivity is stated as NETD ≤20 mK at 25 °C, F1.0. The athermalized fixed lens has a focal length of 60 mm at F1.2 and takes in 6.2° horizontally, 4.7° vertically and 7.7° diagonally, with an iFoV of 0.283 mRad and a minimum object distance of 88.3 m (289.7 ft). H.265, H.264 and MJPEG are each encoded at up to 30 fps, and AI-based classification separates persons from vehicles. Eight motion zones can be drawn as 8-point polygons, and the mount permits 0°~350° of pan, 0°~90° of tilt and 0°~350° of rotation. Uncooled micro bolometer 384x288Athermalized 60 mm fixed lens, F1.2NETD ≤20 mK at 25 °CUp to 30 fps (H.265/H.264/MJPEG)AI object classification for persons and vehiclesIP66/67, IK10, NEMA4X, NEMA-TS2, MIL-STD-810H

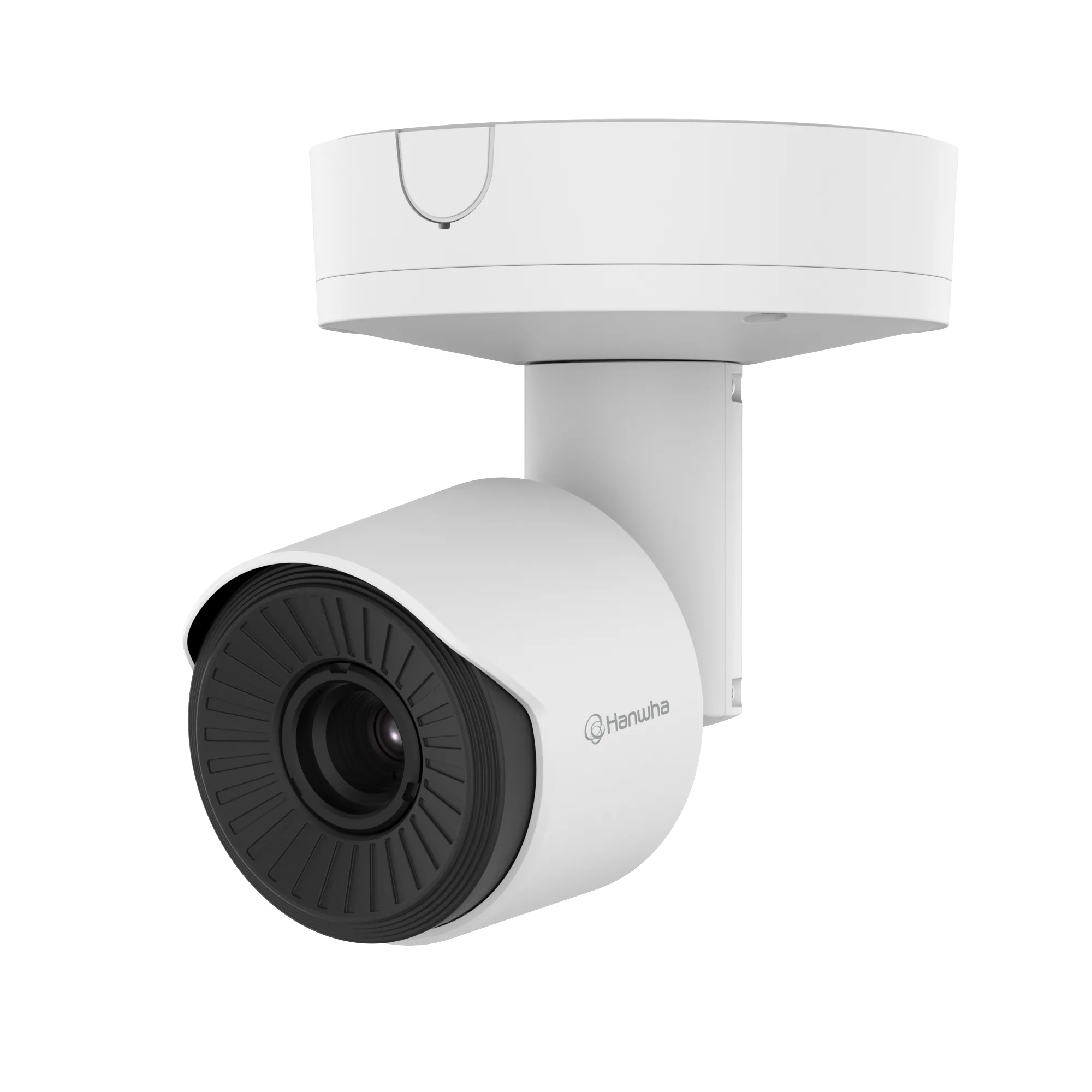

The TNO-C3040T is a thermal camera with a tele lens and AI capability. Its uncooled micro bolometer carries 384x288 pixels at a 17 µm pitch and works in the 8~14 µm band, with thermal sensitivity quoted as ≤20 mK at 25 °C and F1.0. Images are output at 768x576 and 384x288 with up to 30 frames per second in H.265, H.264 and MJPEG, and a micro USB type B connector serves preview and installation. In front of the sensor sits an athermalised 13 mm fixed lens at F1.0 covering 28.5° horizontally, 21.4° vertically and 35.5° diagonally, for an iFoV of 1.308 mRad and a minimum object distance of 5 m. During installation the camera can be panned 0°~350°, tilted 0°~90° and rotated 0°~350°, and eight 8-point polygonal motion detection zones are available for analysis. Uncooled micro bolometer, 384x288, 17 µmNETD ≤20 mK at 25 °C, F1.0Athermalised 13 mm fixed lens, F1.0Field of view 28.5° x 21.4°, iFoV 1.308 mRadUp to 30 fps in H.265, H.264 and MJPEGEight 8-point polygonal motion detection zones

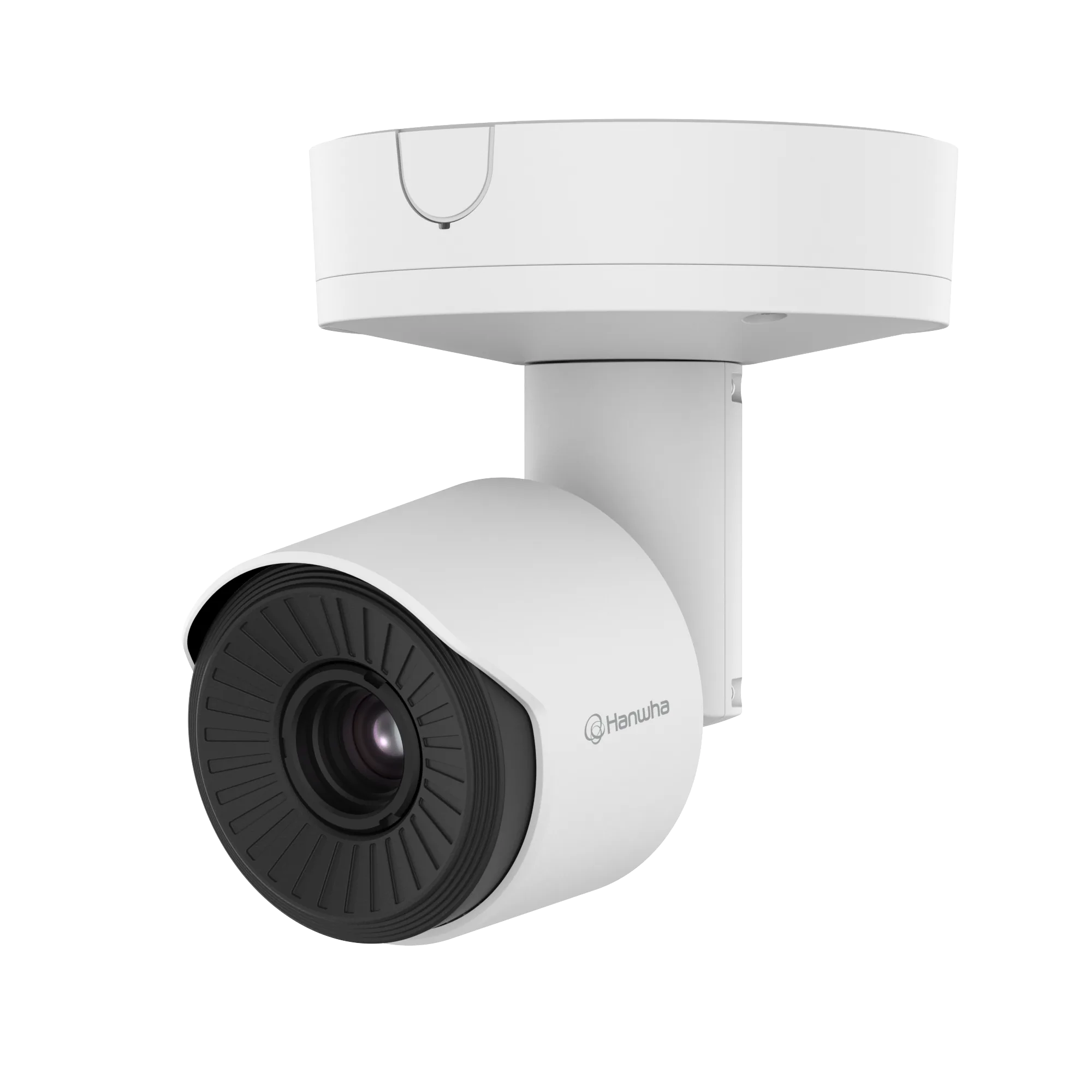

The TNO-C3050T images through an uncooled micro bolometer of 384x288 with a pixel size of 17 µm and streams either 768x576 or 384x288. Its spectral range covers 8–14 µm, and sensitivity is stated as NETD ≤20 mK at 25 °C, F1.0. The athermalized fixed lens has a focal length of 19 mm at F1.0 and takes in 19.3° horizontally, 14.6° vertically and 23.9° diagonally, with an iFoV of 0.895 mRad and a minimum object distance of 10.6 m (34.8 ft). H.265, H.264 and MJPEG are each encoded at up to 30 fps, and AI-based classification separates persons from vehicles. Eight motion zones can be drawn as 8-point polygons, and the mount permits 0°~350° of pan, 0°~90° of tilt and 0°~350° of rotation. Uncooled micro bolometer 384x288Athermalized 19 mm fixed lens, F1.0NETD ≤20 mK at 25 °CUp to 30 fps (H.265/H.264/MJPEG)AI object classification for persons and vehiclesIP66/67, IK10, NEMA4X, NEMA-TS2, MIL-STD-810H

The TNO-C3052T images through an uncooled micro bolometer of 384x288 with a pixel size of 17 µm and streams either 768x576 or 384x288. Its spectral range covers 8–14 µm, and sensitivity is stated as NETD ≤20 mK at 25 °C, F1.0. The athermalized fixed lens has a focal length of 19 mm at F1.0 and takes in 19.3° horizontally, 14.6° vertically and 23.9° diagonally, with an iFoV of 0.895 mRad and a minimum object distance of 10.6 m (34.8 ft). H.265, H.264 and MJPEG are each encoded at up to 8 fps, and AI-based classification separates persons from vehicles. Eight motion zones can be drawn as 8-point polygons, and the mount permits 0°~350° of pan, 0°~90° of tilt and 0°~350° of rotation. Uncooled micro bolometer 384x288Athermalized 19 mm fixed lens, F1.0NETD ≤20 mK at 25 °CUp to 8 fps (H.265/H.264/MJPEG)AI object classification for persons and vehiclesIP66/67, IK10, NEMA4X, NEMA-TS2, MIL-STD-810H

The TNO-C3062T images through an uncooled micro bolometer of 384x288 with a pixel size of 17 µm and streams either 768x576 or 384x288. Its spectral range covers 8–14 µm, and sensitivity is stated as NETD ≤20 mK at 25 °C, F1.0. The athermalized fixed lens has a focal length of 35 mm at F1.0 and takes in 10.7° horizontally, 8.0° vertically and 13.3° diagonally, with an iFoV of 0.486 mRad and a minimum object distance of 36.1 m (118.4 ft). H.265, H.264 and MJPEG are each encoded at up to 8 fps, and AI-based classification separates persons from vehicles. Eight motion zones can be drawn as 8-point polygons, and the mount permits 0°~350° of pan, 0°~90° of tilt and 0°~350° of rotation. Uncooled micro bolometer 384x288Athermalized 35 mm fixed lens, F1.0NETD ≤20 mK at 25 °CUp to 8 fps (H.265/H.264/MJPEG)AI object classification for persons and vehiclesIP66/67, IK10, NEMA4X, NEMA-TS2, MIL-STD-810H

The TNO-C3082T images through an uncooled micro bolometer of 384x288 with a pixel size of 17 µm and streams either 768x576 or 384x288. Its spectral range covers 8–14 µm, and sensitivity is stated as NETD ≤20 mK at 25 °C, F1.0. The athermalized fixed lens has a focal length of 60 mm at F1.2 and takes in 6.2° horizontally, 4.7° vertically and 7.7° diagonally, with an iFoV of 0.283 mRad and a minimum object distance of 88.3 m (289.7 ft). H.265, H.264 and MJPEG are each encoded at up to 8 fps. Eight motion zones can be drawn as 8-point polygons, and the mount permits 0°~350° of pan, 0°~90° of tilt and 0°~350° of rotation. Uncooled micro bolometer 384x288Athermalized 60 mm fixed lens, F1.2NETD ≤20 mK at 25 °CUp to 8 fps (H.265/H.264/MJPEG)Field of view 6.2° x 4.7°Minimum object distance 88.3 m (289.7 ft)

The TNO-C3042T pairs an athermalised 13 mm tele lens at F1.0 with an uncooled micro bolometer of 384x288 pixels and a 17 µm pixel pitch, reaching a thermal sensitivity of ≤20 mK at 25 °C and F1.0 within the 8~14 µm band. Output resolutions are 768x576 and 384x288 at up to 8 frames per second in H.265, H.264 and MJPEG. The field of view measures 28.5° horizontally, 21.4° vertically and 35.5° diagonally, with an iFoV of 1.308 mRad and a minimum object distance of 5 m. Detected objects are classified as person or vehicle by an AI engine. The housing is rated IP66/67, IK10, NEMA4X, NEMA-TS2 and MIL-STD-810H, and a secure element certified to FIPS 140-3 level 3 and CC EAL6+ protects the camera. Uncooled micro bolometer, 384x288, 17 µmNETD ≤20 mK at 25 °C, F1.0Athermalised 13 mm tele lens, F1.0Max. 8 fps in H.265, H.264 and MJPEGAI classification of person and vehicleIP66/67, IK10, NEMA4X, NEMA-TS2, MIL-STD-810H

Working radiometrically, the TNO-C3030TRA measures temperatures from -40 °C to 550 °C using an uncooled micro bolometer of 384x288 pixels with a 17 µm pixel pitch and a thermal sensitivity of ≤30 mK in the 8~14 µm band. Output resolutions are 768x576 and 384x288 at up to 30 frames per second in H.265, H.264 and MJPEG. A fixed 9.7 mm F1.0 lens spans 38° horizontally, 29° vertically and 47° diagonally, producing an iFoV of 1.8 mRad and a minimum object distance of 2.8 m. Objects are classified as person or vehicle by an AI engine, backed by WiseMD motion detection, and eight colour palettes are selectable for display: White hot, Black hot, Rainbow, Sepia, Red, Iron, Custom and Hybrid. The bullet housing measures 147 x 233.5 mm at 1.7 kg, and the camera supports Open Platform, ONVIF Profile S, G, T and M as well as MQTT. Radiometric measurement from -40 °C to 550 °C384x288 sensor, 17 µm, NETD ≤30 mK9.7 mm fixed lens, F1.0, field of view 38° x 29°Up to 30 fps at 768x576 and 384x288AI classification of person and vehicle, WiseMDONVIF Profile S/G/T/M, MQTT, Open Platform

Working radiometrically, the TNO-C3010TRA measures temperatures from -40 °C to 550 °C using an uncooled micro bolometer of 384x288 pixels with a 17 µm pixel pitch and a thermal sensitivity of ≤30 mK in the 8~14 µm band. Output resolutions are 768x576 and 384x288 at up to 30 frames per second in H.265, H.264 and MJPEG. A fixed 4.4 mm F1.0 lens spans 90° horizontally, 65.3° vertically and 118.6° diagonally, producing an iFoV of 3.9 mRad and a minimum object distance of 0.6 m. Objects are classified as person or vehicle by an AI engine, backed by WiseMD motion detection, and eight colour palettes are selectable for display: White hot, Black hot, Rainbow, Sepia, Red, Iron, Custom and Hybrid. The bullet housing measures 147 x 233.5 mm at 1.7 kg, and the camera supports Open Platform, ONVIF Profile S, G, T and M as well as MQTT. Radiometric measurement from -40 °C to 550 °C384x288 sensor, 17 µm, NETD ≤30 mK4.4 mm fixed lens, F1.0, field of view 90° x 65.3°Up to 30 fps at 768x576 and 384x288AI classification of person and vehicle, WiseMDONVIF Profile S/G/T/M, MQTT, Open Platform

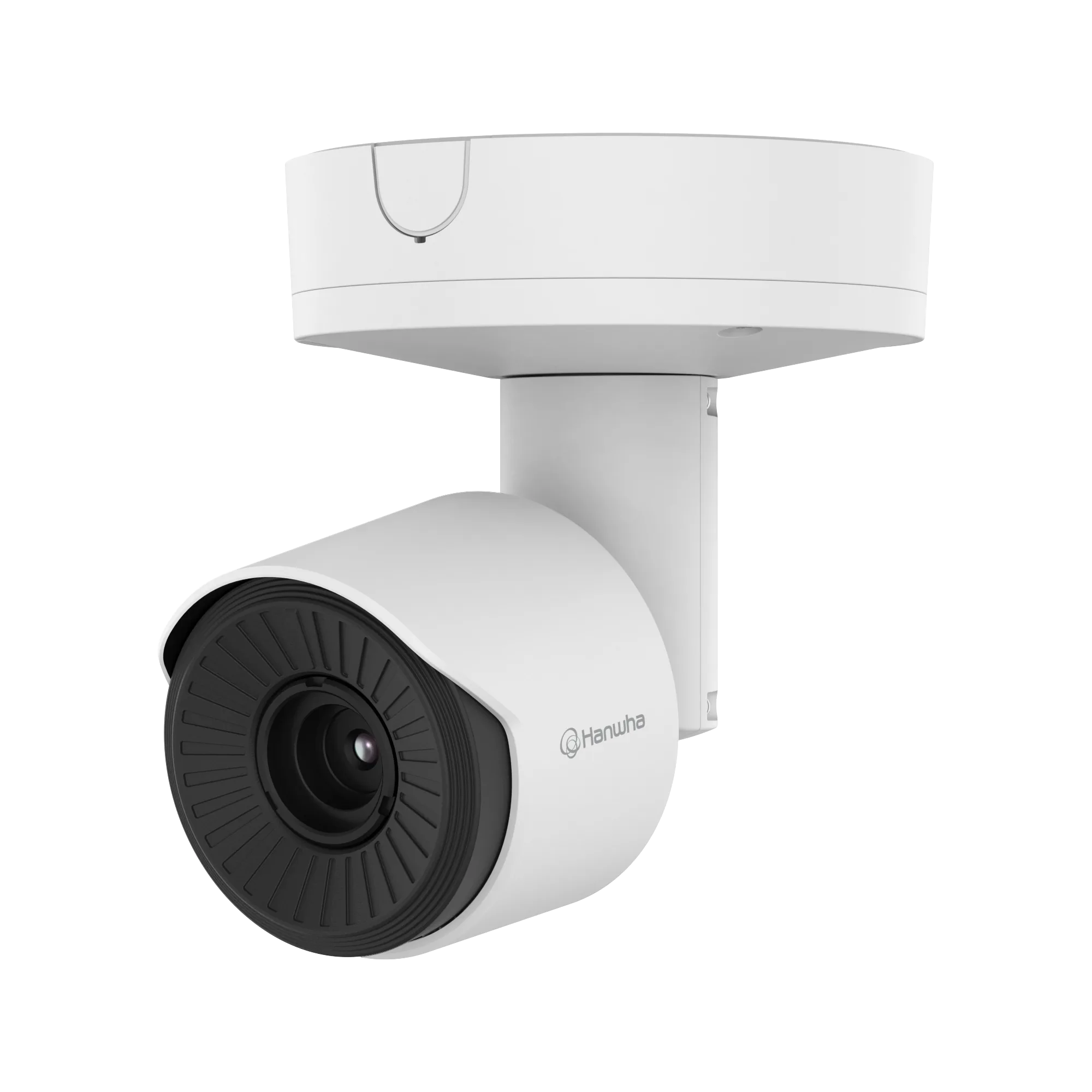

Working radiometrically, the TNO-C3020TRA measures temperatures from -40 °C to 550 °C using an uncooled micro bolometer of 384x288 pixels with a 17 µm pixel pitch and a thermal sensitivity of ≤30 mK in the 8~14 µm band. Output resolutions are 768x576 and 384x288 at up to 30 frames per second in H.265, H.264 and MJPEG. A fixed 6.6 mm F1.0 lens spans 60° horizontally, 44° vertically and 78° diagonally, producing an iFoV of 2.6 mRad and a minimum object distance of 1.4 m. Objects are classified as person or vehicle by an AI engine, backed by WiseMD motion detection, and eight colour palettes are selectable for display: White hot, Black hot, Rainbow, Sepia, Red, Iron, Custom and Hybrid. The bullet housing measures 147 x 233.5 mm at 1.7 kg, and the camera supports Open Platform, ONVIF Profile S, G, T and M as well as MQTT. Radiometric measurement from -40 °C to 550 °C384x288 sensor, 17 µm, NETD ≤30 mK6.6 mm fixed lens, F1.0, field of view 60° x 44°Up to 30 fps at 768x576 and 384x288AI classification of person and vehicle, WiseMDONVIF Profile S/G/T/M, MQTT, Open Platform

Working radiometrically, the TNO-C3022TRA measures temperatures from -40 °C to 550 °C using an uncooled micro bolometer of 384x288 pixels with a 17 µm pixel pitch and a thermal sensitivity of ≤30 mK in the 8~14 µm band. Output resolutions are 768x576 and 384x288 at up to 8 frames per second in H.265, H.264 and MJPEG. A fixed 6.6 mm F1.0 lens spans 60° horizontally, 43.8° vertically and 77.8° diagonally, producing an iFoV of 2.6 mRad and a minimum object distance of 1.4 m. Objects are classified as person or vehicle by an AI engine, backed by WiseMD motion detection, and eight colour palettes are selectable for display: White hot, Black hot, Rainbow, Sepia, Red, Iron, Custom and Hybrid. The bullet housing measures 147 x 233.5 mm at 1.7 kg, and the camera supports Open Platform, ONVIF Profile S, G, T and M as well as MQTT. Radiometric measurement from -40 °C to 550 °C384x288 sensor, 17 µm, NETD ≤30 mK6.6 mm fixed lens, F1.0, field of view 60° x 43.8°Up to 8 fps at 768x576 and 384x288AI classification of person and vehicle, WiseMDONVIF Profile S/G/T/M, MQTT, Open Platform

Working radiometrically, the TNO-C3012TRA measures temperatures from -40 °C to 550 °C using an uncooled micro bolometer of 384x288 pixels with a 17 µm pixel pitch and a thermal sensitivity of ≤30 mK in the 8~14 µm band. Output resolutions are 768x576 and 384x288 at up to 8 frames per second in H.265, H.264 and MJPEG. A fixed 4.4 mm F1.0 lens spans 90° horizontally, 65° vertically and 119° diagonally, producing an iFoV of 3.9 mRad and a minimum object distance of 0.6 m. Objects are classified as person or vehicle by an AI engine, backed by WiseMD motion detection, and eight colour palettes are selectable for display: White hot, Black hot, Rainbow, Sepia, Red, Iron, Custom and Hybrid. The bullet housing measures 147 x 233.5 mm at 1.7 kg, and the camera supports Open Platform, ONVIF Profile S, G, T and M as well as MQTT. Radiometric measurement from -40 °C to 550 °C384x288 sensor, 17 µm, NETD ≤30 mK4.4 mm fixed lens, F1.0, field of view 90° x 65°Up to 8 fps at 768x576 and 384x288AI classification of person and vehicle, WiseMDONVIF Profile S/G/T/M, MQTT, Open Platform

Working radiometrically, the TNO-C3032TRA measures temperatures from -40 °C to 550 °C using an uncooled micro bolometer of 384x288 pixels with a 17 µm pixel pitch and a thermal sensitivity of ≤30 mK in the 8~14 µm band. Output resolutions are 768x576 and 384x288 at up to 8 frames per second in H.265, H.264 and MJPEG. A fixed 9.7 mm F1.0 lens spans 38° horizontally, 29° vertically and 47° diagonally, producing an iFoV of 1.8 mRad and a minimum object distance of 2.8 m. Objects are classified as person or vehicle by an AI engine, backed by WiseMD motion detection, and eight colour palettes are selectable for display: White hot, Black hot, Rainbow, Sepia, Red, Iron, Custom and Hybrid. The bullet housing measures 147 x 233.5 mm at 1.7 kg, and the camera supports Open Platform, ONVIF Profile S, G, T and M as well as MQTT. Radiometric measurement from -40 °C to 550 °C384x288 sensor, 17 µm, NETD ≤30 mK9.7 mm fixed lens, F1.0, field of view 38° x 29°Up to 8 fps at 768x576 and 384x288AI classification of person and vehicle, WiseMDONVIF Profile S/G/T/M, MQTT, Open Platform

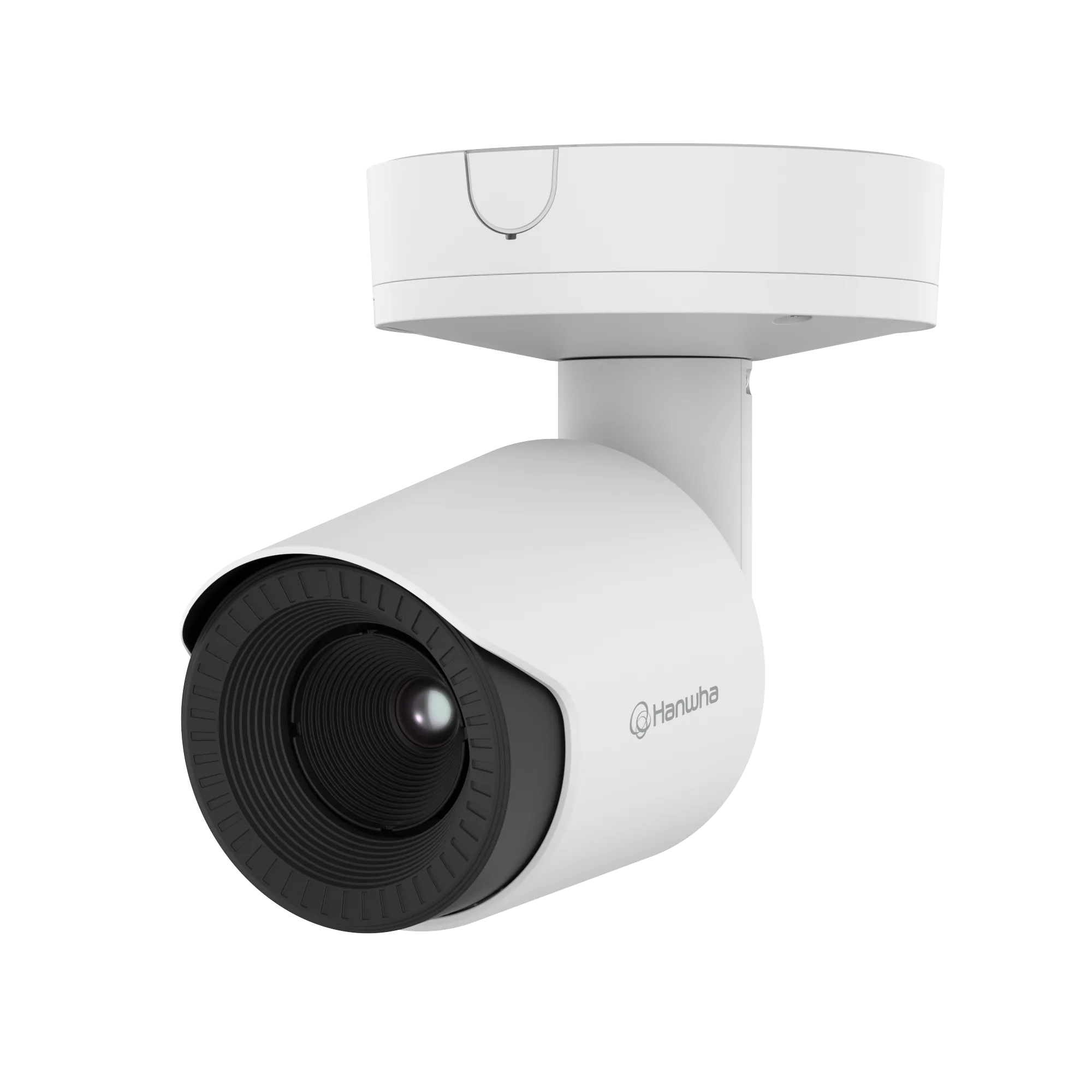

A 640x480 uncooled micro bolometer with a 17 µm pixel size drives the TNO-C4040T, which outputs 1280x960, 640x480, 640x360 or 320x240. Across the 8–14 µm spectral range, sensitivity is specified as NETD ≤16 mK at 25 °C, F1.0. The athermalized 13 mm fixed lens at F1.0 spans 49.1° horizontally and 36.4° vertically, 62.3° on the diagonal, with an iFoV of 1.31 mRad and a minimum object distance of 5 m (16.4 ft). H.265 and H.264 reach 30fps/25fps (60Hz/50Hz) and MJPEG 30fps. WiseNR digital noise reduction conditions the image, and eight zones are available for motion detection. An SD/SDHC/SDXC slot takes cards of up to 256 GB, Hallway View and WiseStream II are supported, power comes from PoE, 24 V AC or 12 V DC, and the housing is rated IP66, NEMA4X and IK10. Uncooled micro bolometer 640x480Athermalized 13 mm fixed lens, F1.0NETD ≤16 mK at 25 °CUp to 30fps/25fps (60Hz/50Hz) (H.265/H.264)SD/SDHC/SDXC slot up to 256 GBIP66, NEMA4X, IK10

A 640x480 uncooled micro bolometer with a 17 µm pixel size drives the TNO-C4050T, which outputs 1280x960, 640x480, 640x360 or 320x240. Across the 8–14 µm spectral range, sensitivity is specified as NETD ≤16 mK at 25 °C, F1.0. The athermalized 19 mm fixed lens at F1.0 spans 32.8° horizontally and 24.6° vertically, 41.1° on the diagonal, with an iFoV of 0.89 mRad and a minimum object distance of 11 m (36.1 ft). H.265 and H.264 reach 30fps/25fps (60Hz/50Hz) and MJPEG 30fps. WiseNR digital noise reduction conditions the image, and eight zones are available for motion detection. The image can be upscaled to 1280x960, and the camera carries MIL-STD, NEMA 4X and NEMA TS ratings. Uncooled micro bolometer 640x480Athermalized 19 mm fixed lens, F1.0NETD ≤16 mK at 25 °CUp to 30fps/25fps (60Hz/50Hz) (H.265/H.264)Upscaling to 1280x960MIL-STD, NEMA 4X, NEMA TS rated
