Network accessories
What a network cable needs at both of its ends: field-assembled RJ45 plugs, keystone jacks and outlets for Cat. 6A and Cat. 7 from CableDoc and KeLine. Toolless variants need no crimping tool, and the short 39 mm plugs also fit inside tight housings and cable ducts.
What matters when choosing is the category of the cable, its shielding and the shape of the receptacle – keystone for a patch panel or an outlet, a plug for terminating at the device. The matching cables are under Cable and Fibre optic.
12 products from CableDoc, Keline, Other
The Cabledoc keystone jack is a screened connection module for twisted pair cabling (STP). Its transmission class is category 6A / class EA according to ISO/IEC 11801 and EN 50173. The module is specified up to 500 MHz and for 10GBASE-T across a distance of 100 m. It is supplied in the keystone form factor. Category 6A / class EA (ISO/IEC 11801, EN 50173)Specified up to 500 MHz10GBASE-T over 100 mScreened (STP)Keystone module
In stock, ships immediately · delivery 1-2 days
CAT6A STP keystone jack, toolless Packaging unit: 24 pcs. per carton
In stock, ships immediately · delivery 1-2 days
Network outlet Cat.6A fully shielded Cat 6A permanent link according to ISO/IEC 11801 Vertical cable entry with strain relief LSA insulation displacement connection for 22-24 AWG 2 shielded R45 jacks angled at 40° Compatible with other switch ranges Flush-mounted or cable duct installation Colour: signal white, RAL 9003 Matching surface-mount housing: NP0223 Supports PoE, PoE+ and PoE++
Not in stock · delivery 3-4 days
Network outlet Cat.6A fully shielded Cat 6A permanent link according to ISO/IEC 11801 Horizontal cable entry with strain relief LSA insulation displacement connection for 22-24 AWG 2 shielded R45 jacks angled at 40° Compatible with other switch ranges Flush-mounted or cable duct installation Colour: signal white, RAL 9003 Matching surface-mount housing: NP0223 Supports PoE, PoE+ and PoE++
Not in stock · delivery 3-4 days

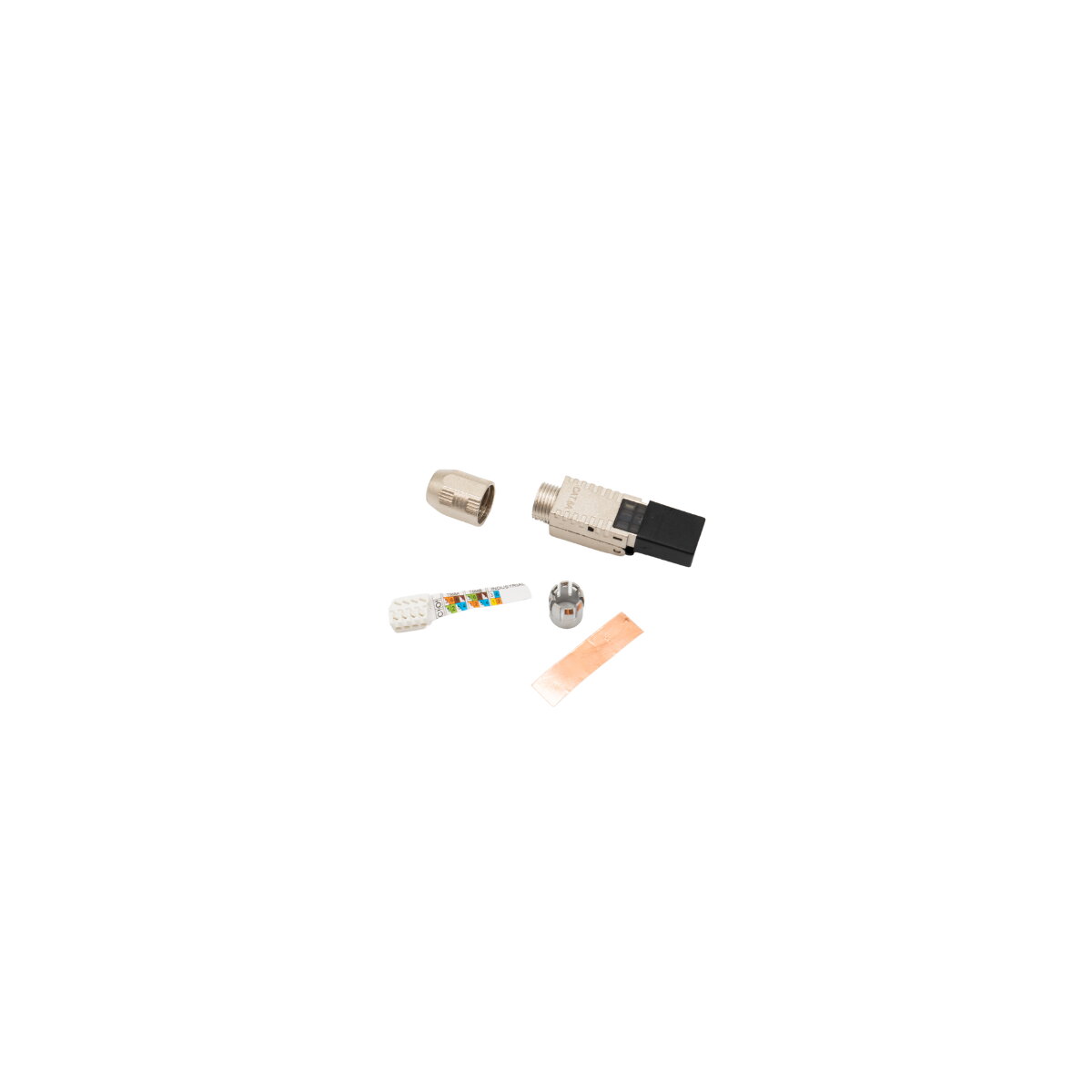

This category 6A RJ45 plug is designed for field termination and is assigned to class EA. The version is screened and specified up to 500 MHz. Copper conductors of AWG 23, AWG 27 and AWG 22 can be terminated in it. PoE type 2, PoE+ and PoE++ are supported. The stated operating temperature runs from -10 °C to +60 °C. Field-terminableCategory 6A, class EAScreened design500 MHz bandwidthAWG 23, AWG 27 and AWG 22 copper conductorsOperating temperature -10 °C to +60 °C
In stock, ships immediately · delivery 1-2 days
Not in stock · delivery 4-5 days

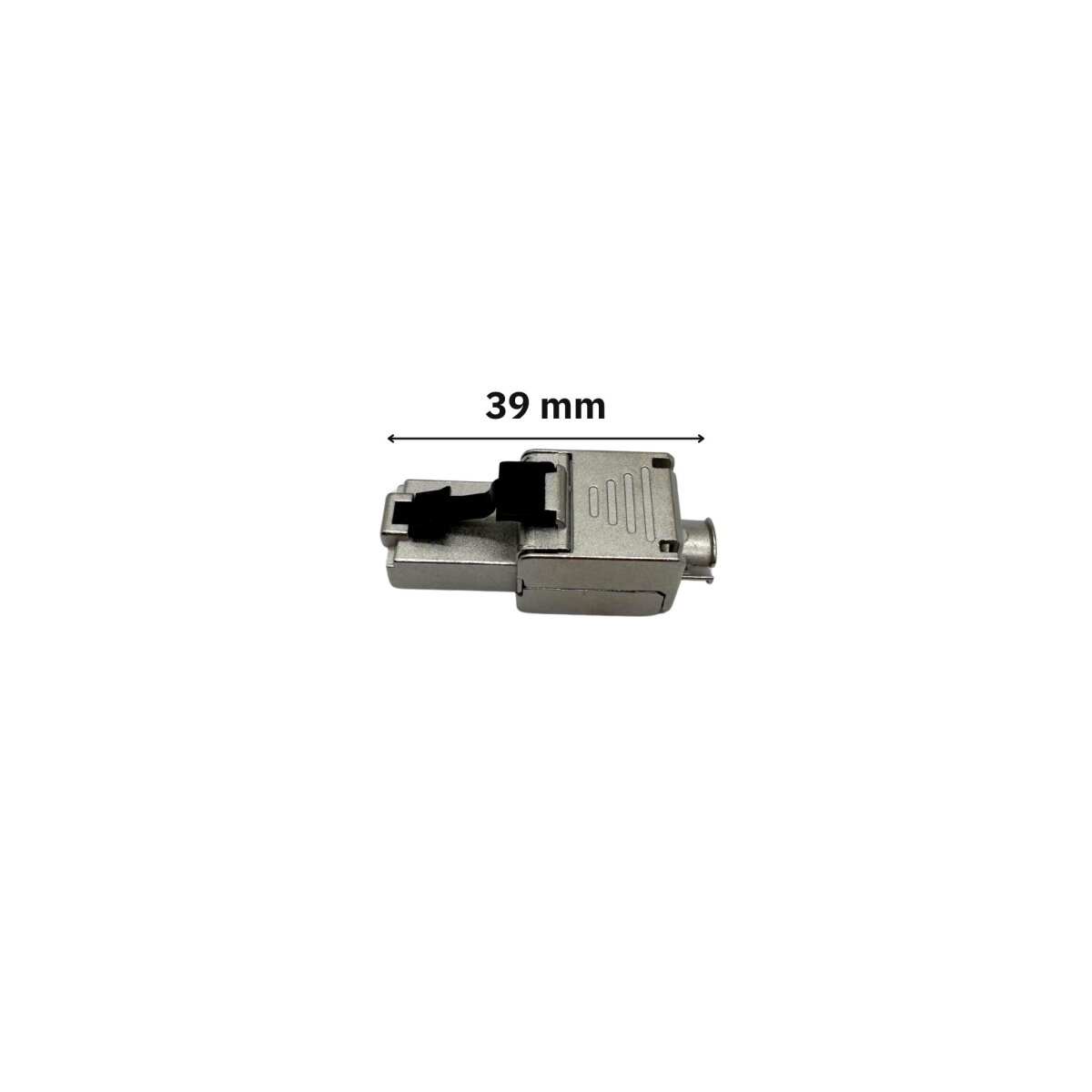

This CableDoc RJ45 connector is terminated in the field, directly on the installed cable, and its extra short body measures 39 mm. Cables from Cat. 5E through Cat. 7A are within its intended range. The transmission class is stated as CAT 6A EA. Powering of connected equipment follows PoE Type 2. Field-terminated RJ45 connectorExtra short 39 mm bodyFor Cat. 5E to Cat. 7A cablesCAT 6A EA classPoE Type 2
In stock, ships immediately · delivery 1-2 days
Carrying the type designation 90, this HD keystone jack variant offers a screened RJ45 interface in keystone format. The module belongs to category 6A / class EA and supports bandwidths up to 500 MHz. Per ISO/IEC 11801 and EN 50173 it is specified for 10GBASE-T over 100 m. Its connector complies with RJ45 8P8C to IEC 60603-7. Category 6A / class EA, up to 500 MHzSpecified for 10GBASE-T over 100 m (ISO/IEC 11801, EN 50173)RJ45 8P8C per IEC 60603-7Screened versionKeystone format, HD design 90
Not in stock · delivery 4-5 days
This HD keystone jack provides a screened RJ45 outlet in keystone format. In transmission terms the module is category 6A / class EA and therefore usable up to 500 MHz. It is specified for 10GBASE-T over 100 m to ISO/IEC 11801 and EN 50173. The interface follows the RJ45 8P8C standard per IEC 60603-7. The keystone format allows the module to be fitted into matching mounts. Category 6A / class EA, up to 500 MHzSpecified for 10GBASE-T over 100 m (ISO/IEC 11801, EN 50173)RJ45 8P8C per IEC 60603-7Screened versionKeystone format, HD design
Not in stock · delivery 4-5 days
Minimum order quantity for this connector = 20 pcs.!
Not in stock · delivery 4-5 days
Not in stock · delivery 4-5 days
