Decoder
Video decoders from Hanwha Vision: up to 64 IP camera streams are put on monitors and video walls in the control room without a PC – as picture-in-picture, sequence or multi-view, controlled from the video management system.
What counts is the number of streams decoded at once, output resolution (up to 4K) and the supported codecs H.264, H.265 and MJPEG.
2 products from Hanwha Vision, Vivotek

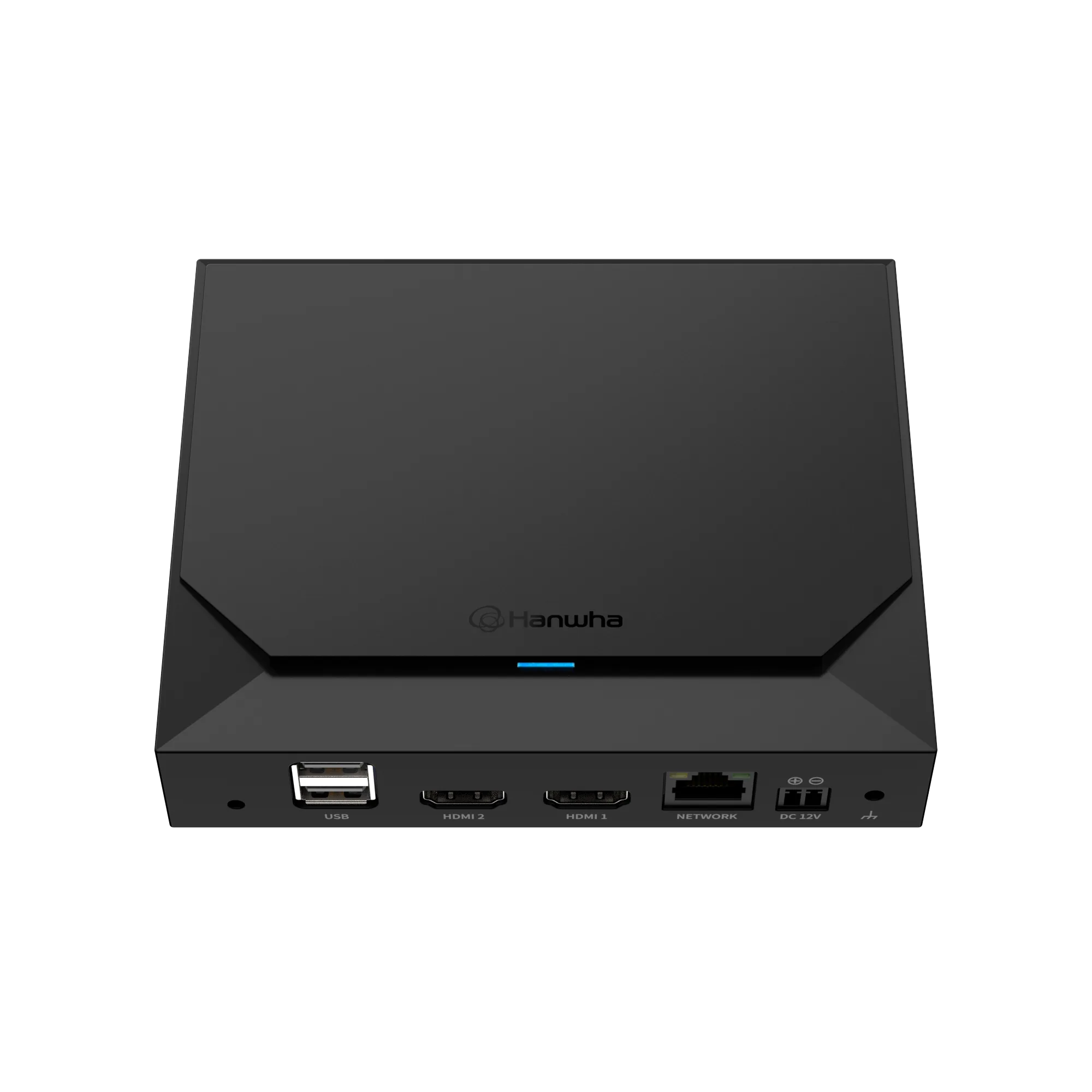

The SPD-152 is a network video decoder built around an embedded CPU and embedded Linux for operation on one monitor. It decodes H.265, H.264 and MJPEG at up to 8M@60fps or 12ch*2MP@30fps; in clone mode HDMI#1 shows up to 64 channels, while expand mode allows a maximum of 36 on HDMI#1 and 25 on HDMI#2. HDMI#1 outputs up to 4K with audio and HDMI#2 up to 1080p without audio, and the output formats include 3840 X 2160@30Hz, 2560 X 1440@30Hz, 1920 X 1080@60Hz and 1280 X 1024@60Hz. Up to 20 layouts with sequence support are possible, audio is handled as G.711, G.726 or AAC, and management runs through the local UI, web viewer or SSM; connectivity is one 10/100/1000BASE-T port with a maximum of 150Mbps plus ONVIF, SUNAPI and RTSP. Power can be supplied as 12VDC (max. 11.0W) or PoE to IEEE802.3af (max. 12.95W). The black metal and plastic housing measures 140.0 x 29.5 x 115.4mm (5.51 x 1.16 x 4.54") at 260g (0.58 lb) and provides two USB 2.0 ports plus power and network LEDs; installation is monitor-back or pole mount. Permitted operation is 0°C to +40°C at 20% to 85% RH. Network video decoder on embedded LinuxH.265, H.264, MJPEG, up to 8M@60fpsDual HDMI output, HDMI#1 up to 4KClone mode up to 64 channels on HDMI#1ONVIF, SUNAPI, RTSP, max. 150Mbps12VDC or PoE (IEEE802.3af)
In stock, ships immediately · delivery 1-2 days

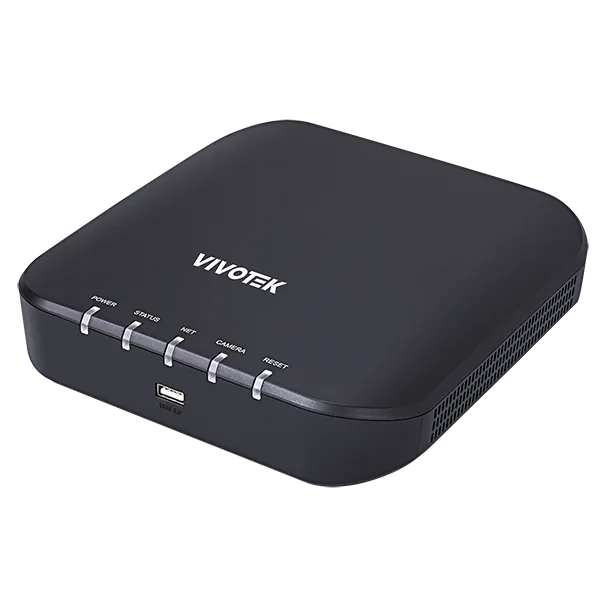

The RX9502 is a 32-channel embedded video receiver that works as a video decoder under Embedded Linux and supports cameras up to 20MP. Its build is compact and fanless, a hardware and software watchdog supervises operation, and the unit restarts automatically once power returns. Live view covers 32 channels in the 1x1, 1M+5, 1M+12, 1M+31, 1P+3, 1P+6, 2x2, 2P+3, 3x3, 3V and 4x4 layouts over HDMI x1 at 3840x2160, 1920x1080 or 1280x720, with fisheye dewarp and PTZ operation. Hardware decoding reaches 7680x2560 and delivers 3840x2160 @ 90 fps (3-CH) and 1920x1080 @ 360 fps (12-CH) for H.264, H.265 and MJPEG, with G.711 and G.726 audio. Connection is via 10/100/1000Mbps Ethernet (RJ-45) x1 with 192 Mbps total throughput, ONVIF Profile S and protocols from IPv4/IPv6 through to DDNS; USB is available at the front as USB 2.0 and at the back as USB 3.0. 32 channels, Embedded LinuxCameras up to 20MP supportedCompact fanless designHDMI x1 up to 3840x216010/100/1000Mbps Ethernet, 192 Mbps total throughputONVIF Profile S
In stock, ships immediately · delivery 1-2 days
