Audio

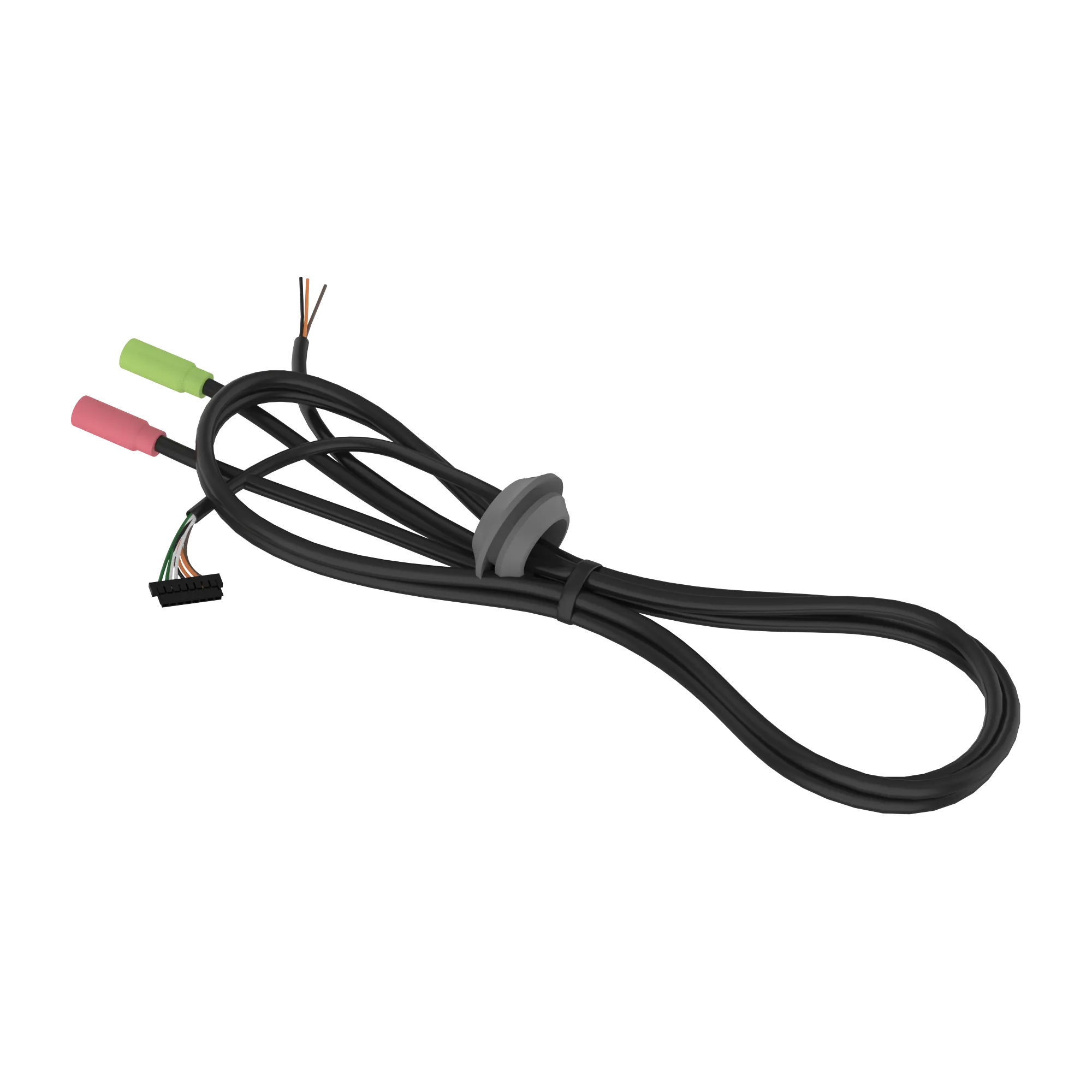

The SPP-C7400 is a cable for audio and alarm connections. The listed materials are a plastic sheath and a copper coil, with the cable supplied in black. It measures 700mm(27.56 inches) and weighs 40g(0.09lb). The accessory therefore covers the wiring of the audio and alarm interface. Cable for audio and alarmBlack finishPlastic sheath, copper coilLength 700mm(27.56 inches)Weight 40g(0.09lb)

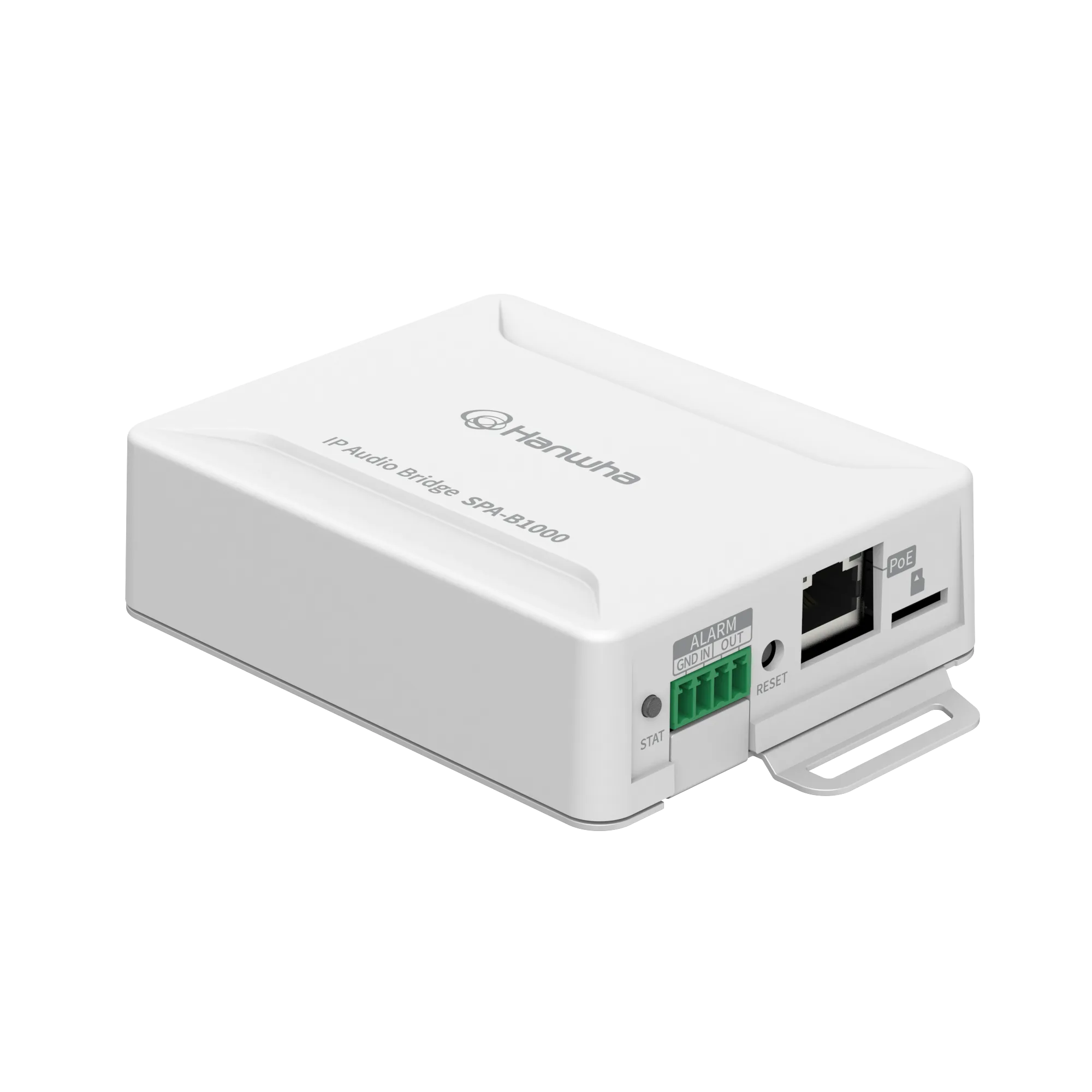

The SPA-B1000 is an IP audio module that bridges analogue audio sources into an IP network. Its line input accepts a maximum of +6 dBV on left and right, amplification is handled by a built-in 10 W Class D stage, and the network side uses 10/100 Base-T. Announcements can be stored in 1 GByte of internal memory or on a micro SD card, SDHC up to 32 GB (SANDISK), with WAV and MP3 in mono or stereo from 64 to 320 kbps and sampling rates from 16 kHz to 48 kHz. One dry contact input and one dry contact output are provided, and integration runs over SUNAPI as an HTTP API with connection verification and built-in system logging. Supported protocols are IPv4, HTTP, HTTPS, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP and ICMP, protected by passwords for admin, setup, user and guest using SHA-2, digest authentication and a user access log. Power is PoE per IEEE 802.3af Type 1 Class 3 at up to 10 W, or DC24V. The white housing measures 123 x 80 x 30.6 mm, weighs 0.24 kg and works from -20 to +50 C at 10 to 95 percent non-condensing humidity. Built-in 10 W Class D amplifier1 GByte internal memoryMicro SD up to 32 GB SDHCPoE IEEE 802.3af or DC24VOne dry contact input and outputSUNAPI HTTP API

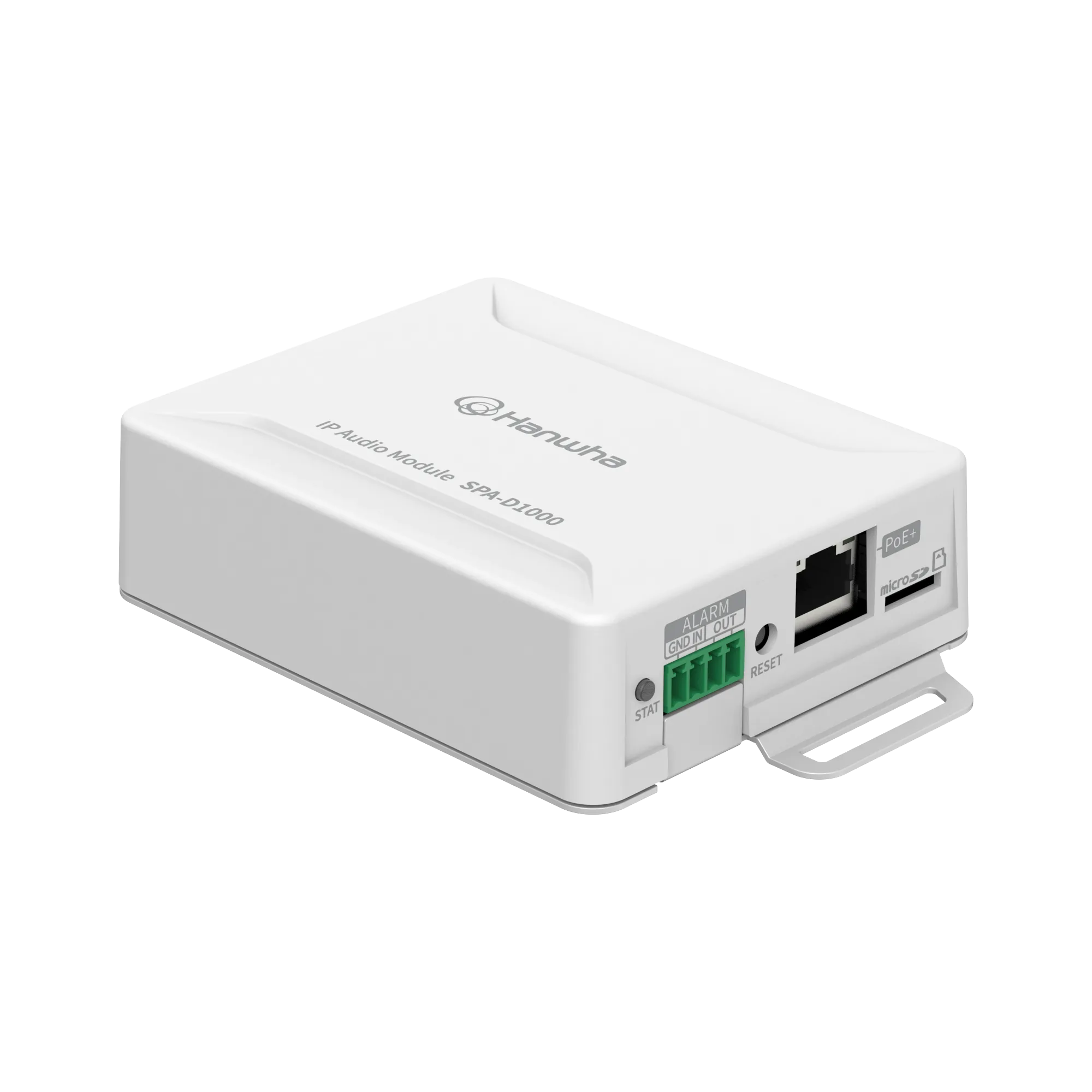

The SPA-D1000 is an IP audio module with an integrated 10 W Class D amplifier and a 10/100 Base-T network port. Its line output delivers +6 dBV within 3 dB, frequency response runs from 20 Hz to 20 kHz, distortion remains under 0.1 percent and the signal-to-noise ratio is above 91 dB. Announcements and tones are stored in 1 GByte of internal memory or on a micro SD card with SDHC up to 32 GB (SANDISK), and one dry contact input and one dry contact output are fitted. Text-to-speech output is offered in English (US and UK), German, French, Spanish and Russian, while audio monitoring covers speaker and connection tests. Supported protocols include IPv4, HTTP, HTTPS, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP and SNMP v3. Power comes from PoE per IEEE 802.3af Type 1 Class 3 or PoE+ per IEEE 802.3at Type 2 Class 4. The white housing measures 123 x 80 x 30.6 mm, weighs 0.24 kg and is rated from -20 to +50 C. Built-in 10 W Class D amplifierOutput level +6 dBV, 20 Hz to 20 kHzText-to-speech in five language variantsSIP supportPoE 802.3af or PoE+ 802.3at1 GByte internal memory

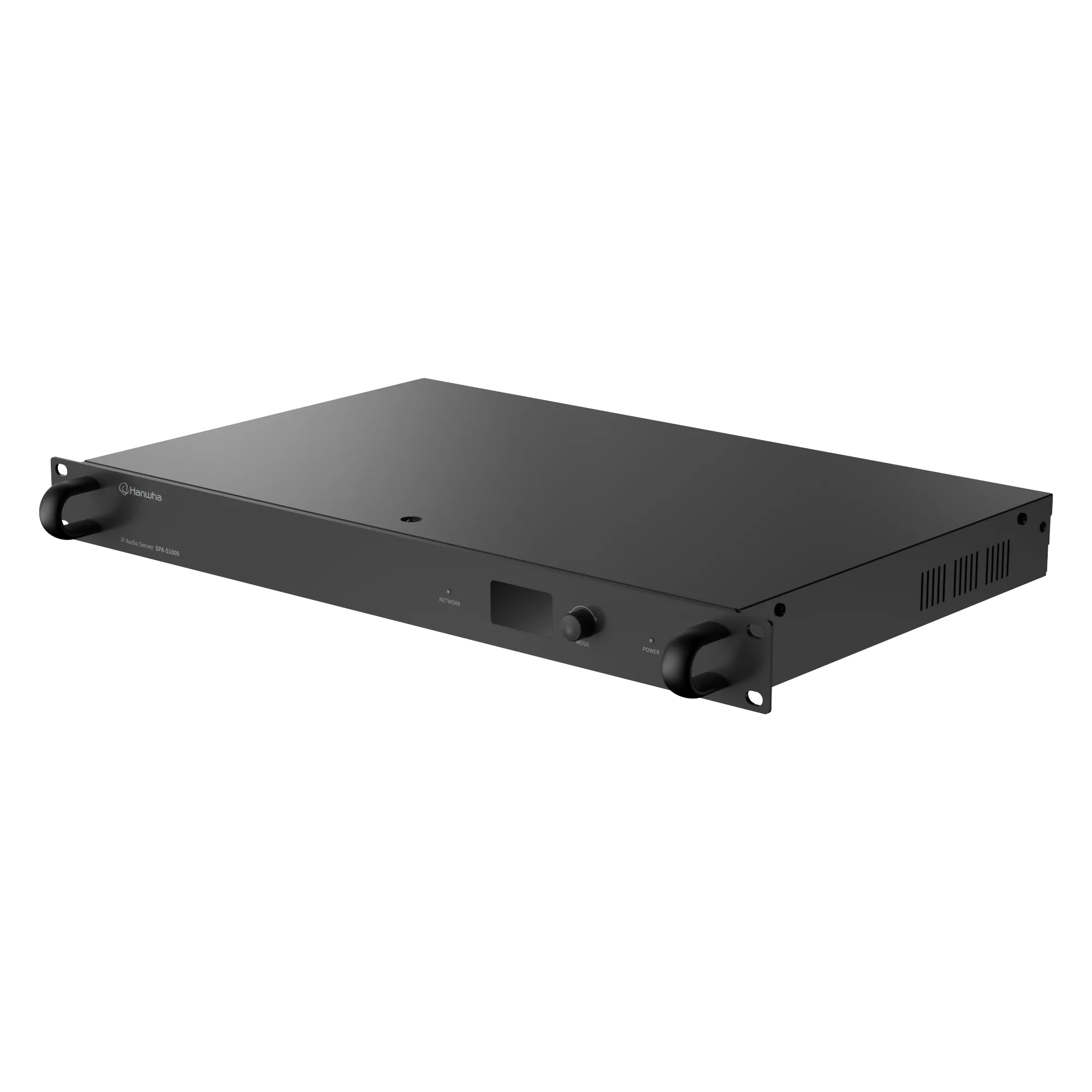

The SPA-S1000 is an IP audio server for network-based public address installations. System expansion covers up to 512 speakers, and multi-source dynamic PA control handles up to 48 multicast sources (24 audio channels plus 24 microphone channels) across up to 512 multicast zones and up to 20 unicast zones. Supported protocols are IPv4, HTTP, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP and ICMP, with SUNAPI (HTTP API) provided for integration. Text-to-speech output is available in English (US, UK), German, French, Spanish and Russian. The network interface is 10/100 Base-T, operation is rated for -10°~+40°C at 10~85%RH (non-condensing), and functional monitoring consists of connection verification and built-in system logging. IP audio serverExpansion to 512 speakersSUNAPI (HTTP API)TTS in five languages10/100 Base-T EthernetOperating range -10°~+40°C

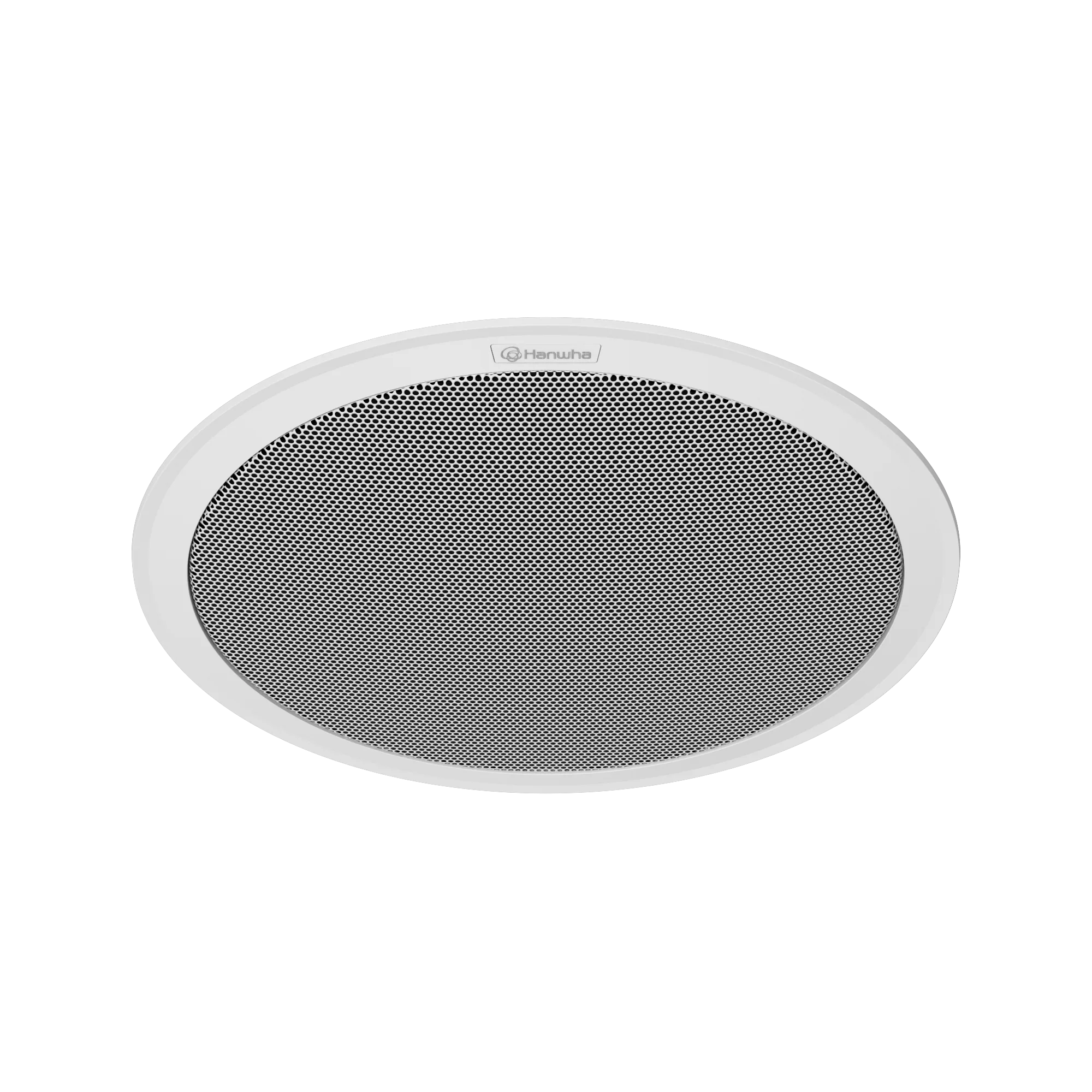

The SPA-C100W is an IP ceiling speaker in white with a built-in 10 W Class D amplifier and a 10/100 Base-T network connection. The line output provides +6 dBV within a 3 dB tolerance, frequency response covers 20 Hz to 20 kHz, distortion stays below 0.1 percent and the signal-to-noise ratio exceeds 91 dB. Acoustic figures are given as a maximum sound pressure level of 99 dB, a frequency range of 120 Hz to 20 kHz at -10 dB and a sensitivity of 90 dB at 1 watt. Audio files can be held in 1 GByte of internal memory or on a micro SD card, SDHC up to 32 GB (SANDISK), and one dry contact input plus one dry contact output are available. Power is supplied by PoE per IEEE 802.3af Type 1 Class 3 or PoE+ per IEEE 802.3at Type 2 Class 4. The enclosure measures 269 mm in diameter by 142.5 mm high, weighs 1.8 kg and is specified from -20 to +50 C at 10 to 85 percent non-condensing humidity. Built-in 10 W Class D amplifierFrequency response 20 Hz to 20 kHzMax. sound pressure level 99 dBSensitivity 90 dB at 1 wattPoE 802.3af or PoE+ 802.3at1 GByte internal memory

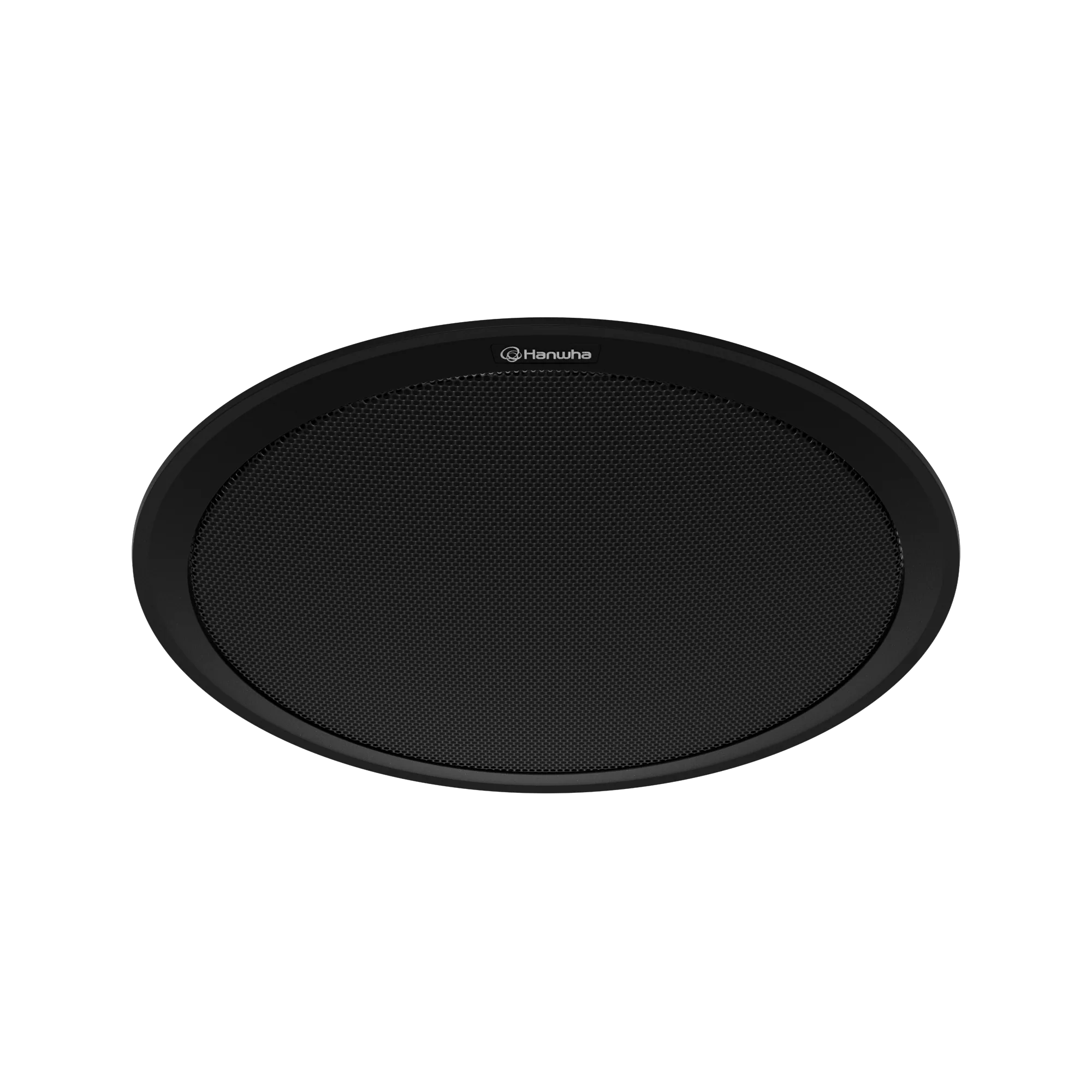

The SPA-C100B is an IP ceiling speaker in black with a built-in 10 W Class D amplifier and a 10/100 Base-T network connection. The line output provides +6 dBV within a 3 dB tolerance, frequency response covers 20 Hz to 20 kHz, distortion stays below 0.1 percent and the signal-to-noise ratio exceeds 91 dB. Acoustic figures are given as a maximum sound pressure level of 99 dB, a frequency range of 120 Hz to 20 kHz at -10 dB and a sensitivity of 90 dB at 1 watt. Audio files can be held in 1 GByte of internal memory or on a micro SD card, SDHC up to 32 GB (SANDISK), and one dry contact input plus one dry contact output are available. Power is supplied by PoE per IEEE 802.3af Type 1 Class 3 or PoE+ per IEEE 802.3at Type 2 Class 4. The enclosure measures 269 mm in diameter by 142.5 mm high, weighs 1.8 kg and is specified from -20 to +50 C at 10 to 85 percent non-condensing humidity. Built-in 10 W Class D amplifierFrequency response 20 Hz to 20 kHzMax. sound pressure level 99 dBSensitivity 90 dB at 1 wattPoE 802.3af or PoE+ 802.3at1 GByte internal memory

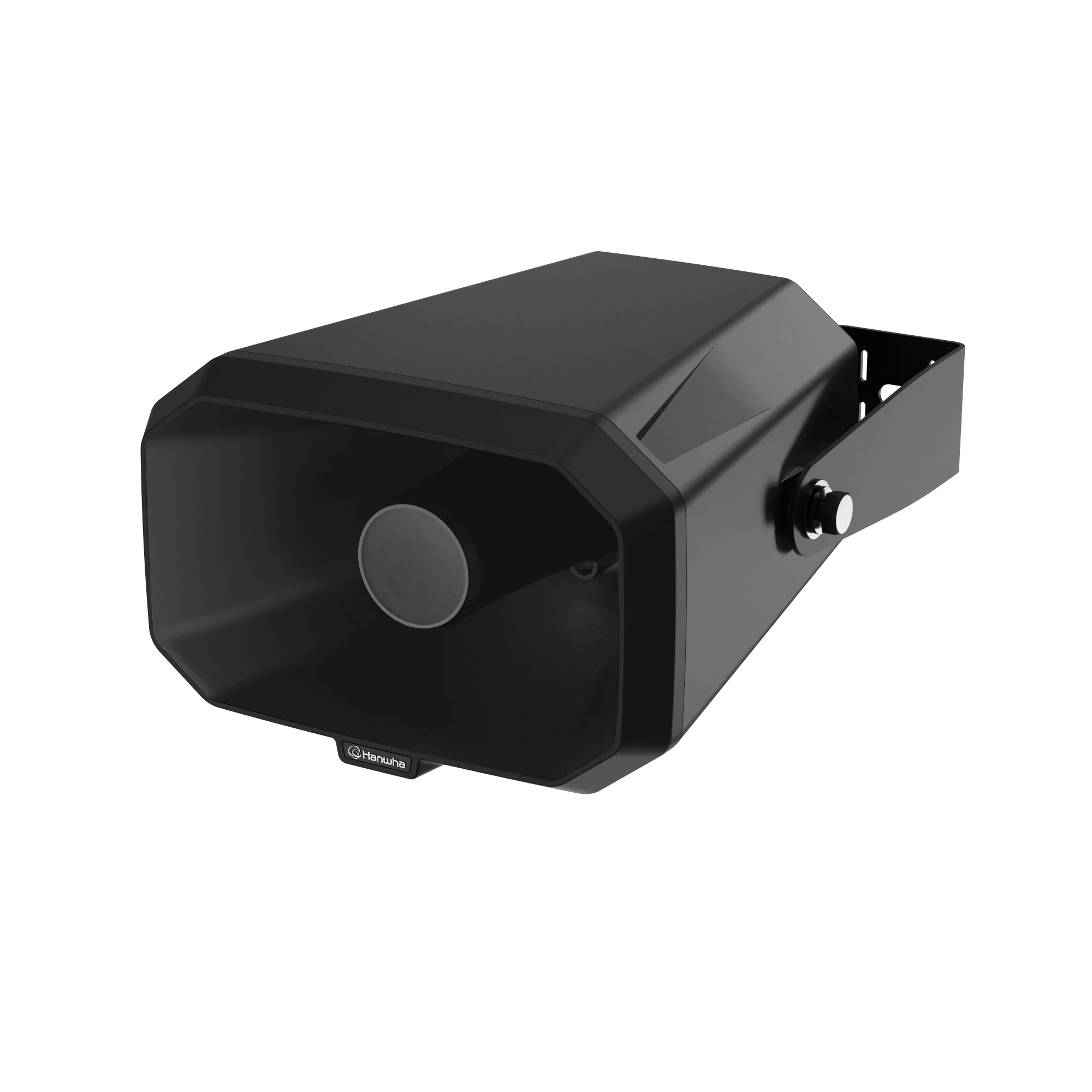

The SPA-H100B is an IP horn speaker in black rated IP66 for outdoor and industrial use. Amplification comes from a built-in 10 W Class D stage and the network side runs on 10/100 Base-T. The frequency range at -10 dB spans 650 Hz to 5.3 kHz, sensitivity is 111 dB at 1 watt, and maximum sound pressure level is stated as 121 dB on PoE and 124 dB on PoE+, produced by a 1-inch dome type HF driver. Announcements are held in 1 GByte of internal memory, with WAV and MP3 in mono or stereo from 64 to 320 kbps at sampling rates of 16 kHz to 48 kHz, and text-to-speech is available in English (US and UK), German, French, Spanish and Russian. Supported protocols are IPv4, HTTP, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP and ICMP, complemented by one dry contact input and one dry contact output. Power is PoE per IEEE 802.3af Type 1 Class 3 or PoE+ per IEEE 802.3at Type 2 Class 4; the housing measures 241 x 155 x 307 mm, weighs 3.7 kg and operates from -40 to +55 C with cold start from -35 C. IP66 ratedBuilt-in 10 W Class D amplifierSensitivity 111 dB at 1 wattMax. SPL 121 dB on PoE, 124 dB on PoE+Frequency range 650 Hz to 5.3 kHzOperation from -40 to +55 C

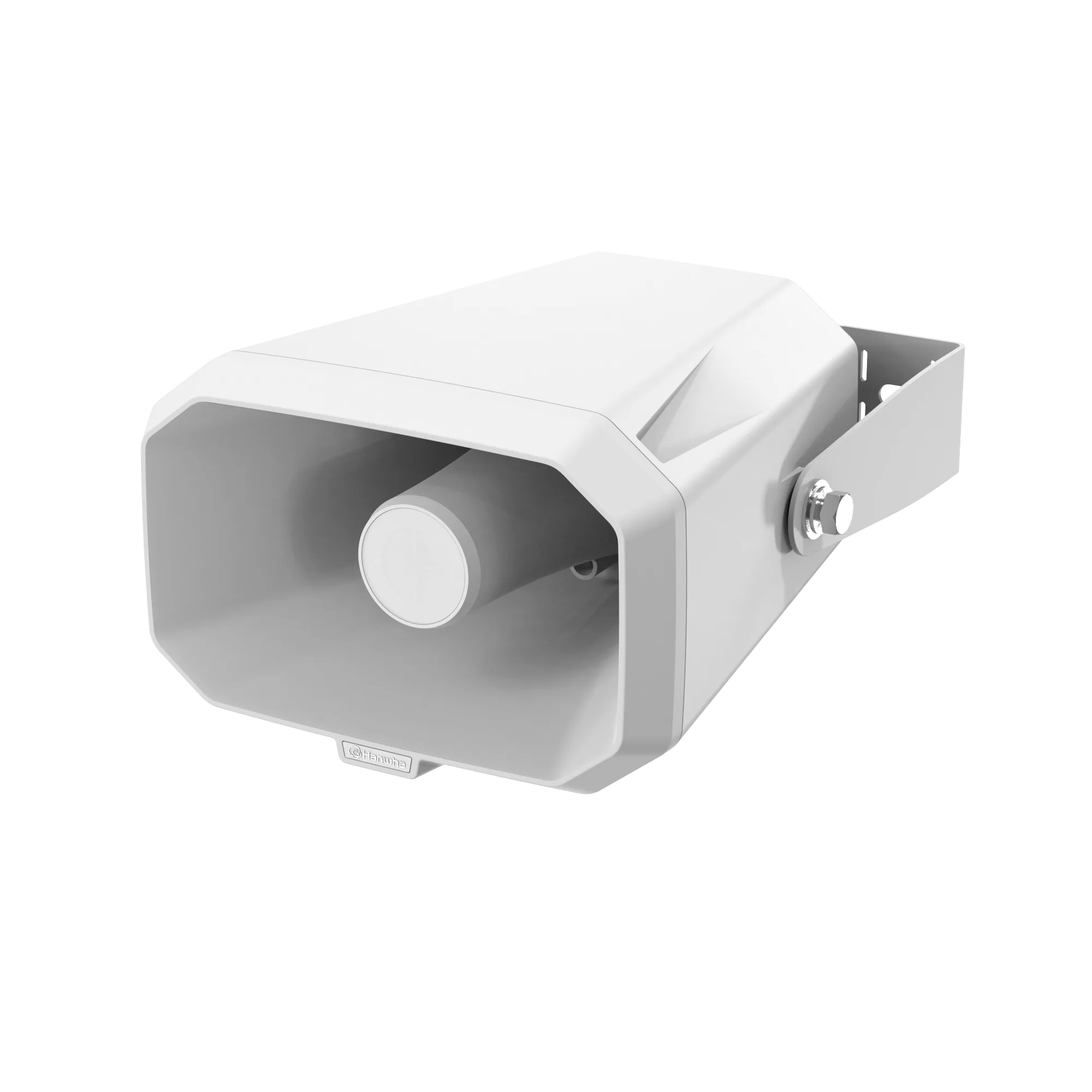

The SPA-H100W is an IP horn speaker in white rated IP66 for outdoor and industrial use. Amplification comes from a built-in 10 W Class D stage and the network side runs on 10/100 Base-T. The frequency range at -10 dB spans 650 Hz to 5.3 kHz, sensitivity is 111 dB at 1 watt, and maximum sound pressure level is stated as 121 dB on PoE and 124 dB on PoE+, produced by a 1-inch dome type HF driver. Announcements are held in 1 GByte of internal memory, with WAV and MP3 in mono or stereo from 64 to 320 kbps at sampling rates of 16 kHz to 48 kHz, and text-to-speech is available in English (US and UK), German, French, Spanish and Russian. Supported protocols are IPv4, HTTP, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP and ICMP, complemented by one dry contact input and one dry contact output. Power is PoE per IEEE 802.3af Type 1 Class 3 or PoE+ per IEEE 802.3at Type 2 Class 4; the housing measures 241 x 155 x 307 mm, weighs 3.7 kg and operates from -40 to +55 C with cold start from -35 C. IP66 ratedBuilt-in 10 W Class D amplifierSensitivity 111 dB at 1 wattMax. SPL 121 dB on PoE, 124 dB on PoE+Frequency range 650 Hz to 5.3 kHzOperation from -40 to +55 C

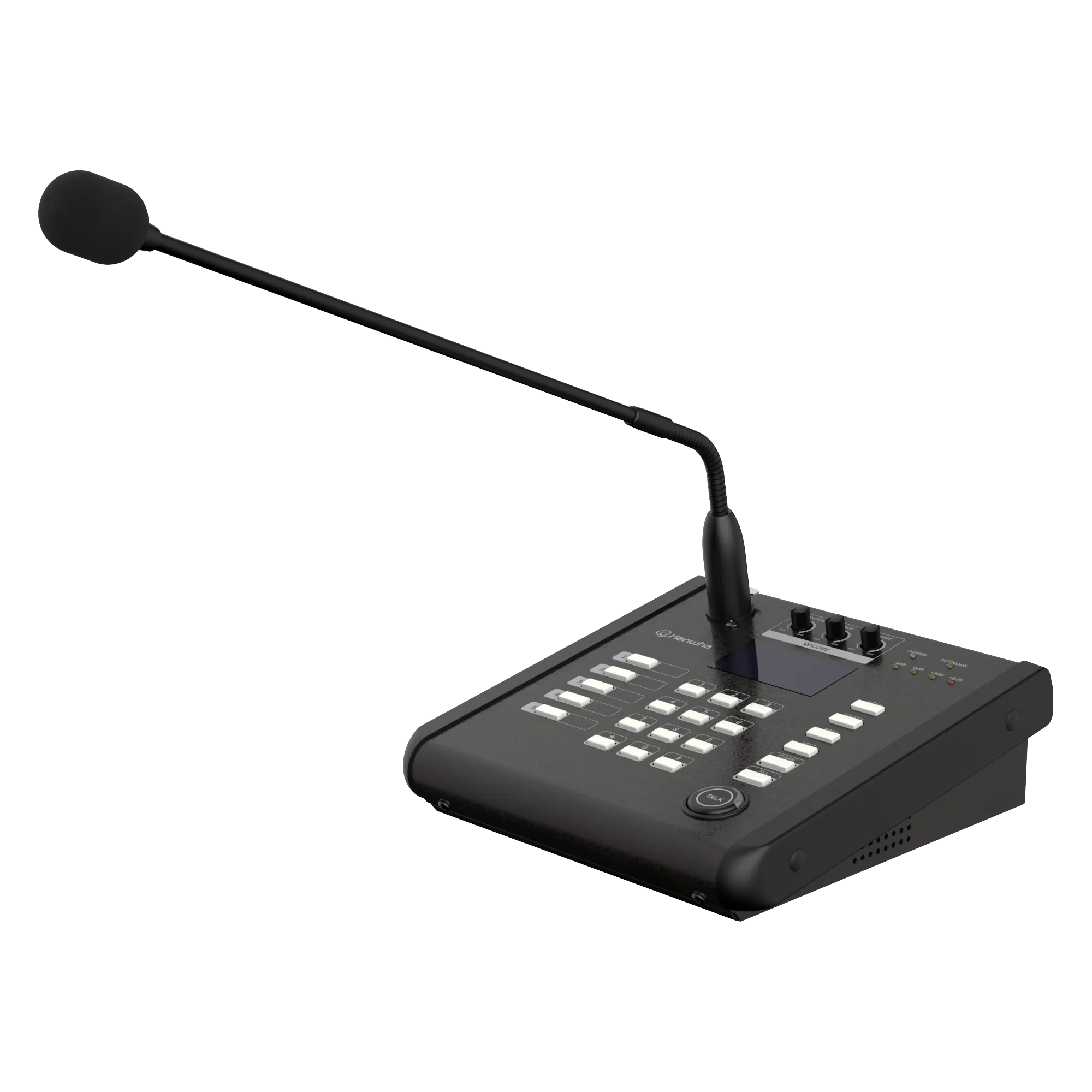

The SPA-M2000 is a SIP microphone for IP audio systems, connected to the network over 10/100 Base-T. Its embedded microphone has an input sensitivity of -50 dBV within 3 dB at maximum mic volume and covers 100 Hz to 6 kHz, while the line input accepts up to -7 dBV at maximum aux input volume. A monitor amplifier rated 1 W into 8 ohm is integrated. Supported protocols are IPv4, HTTP, HTTPS, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP and ICMP, and integration is handled through SUNAPI as an HTTP API with connection verification and built-in system logging. Access is protected by passwords for admin, setup, user and guest with SHA-2 and digest authentication, and the VoIP function has been tested with SIP clients such as Grandstream, Yealink, Cisco and MicroSIP as well as PBX systems such as Asterisk. Power is PoE per IEEE 802.3af Type 1 Class 3 or DC24V at up to 12 W. The black housing measures 200 x 73 x 206 mm, weighs 1.3 kg and is rated from -10 to +40 C. SIP microphone for IP audioFrequency response 100 Hz to 6 kHzMonitor amplifier 1 W into 8 ohmPoE 802.3af or DC24V, max. 12 WSUNAPI HTTP API10/100 Base-T network

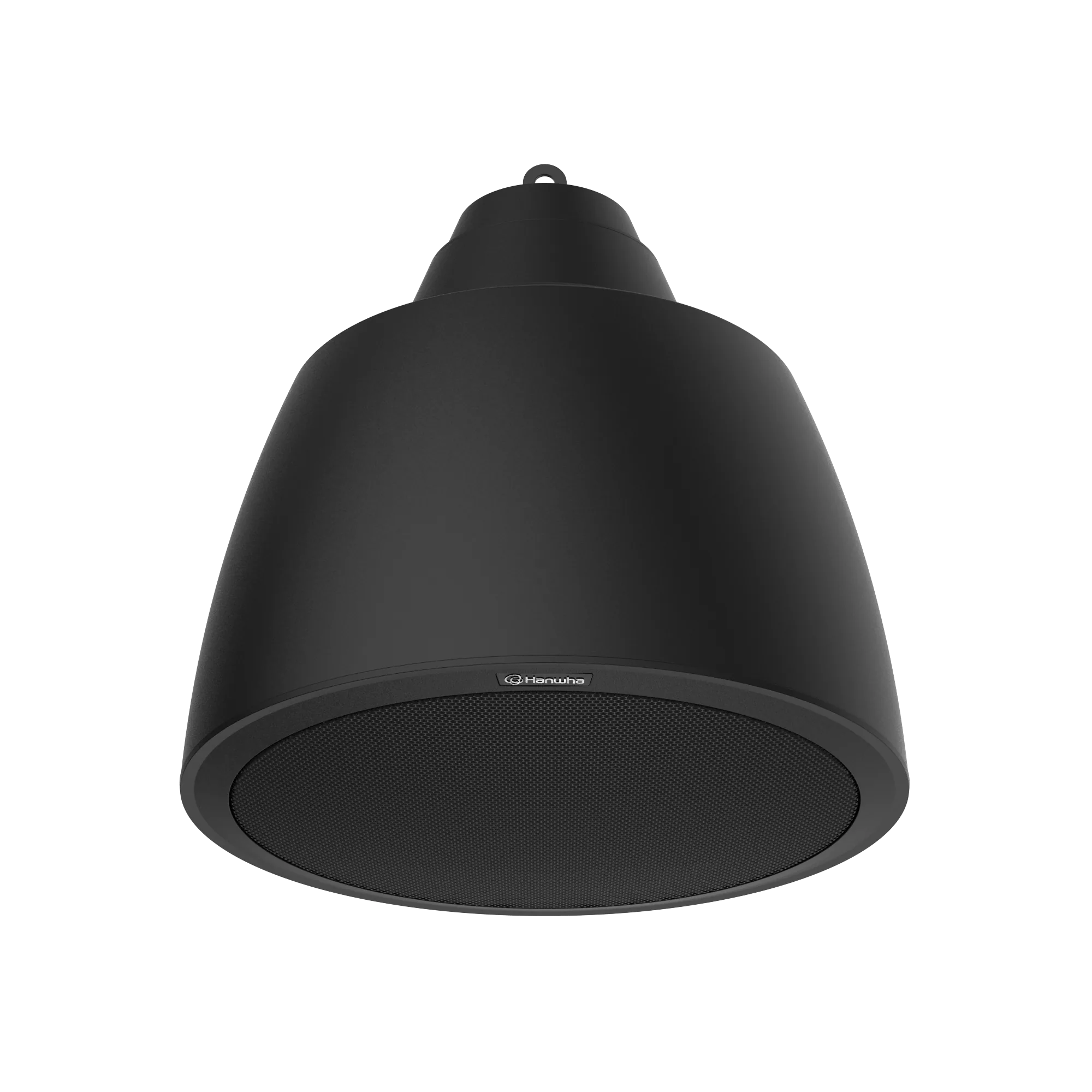

The SPA-P100B is an IP pendant speaker in black with an integrated 10 W Class D amplifier and a 10/100 Base-T network connection. It uses a passive two-way arrangement with an 8-inch LF driver and a 2-inch HF driver; the frequency range at -10 dB runs from 130 Hz to 20 kHz and sensitivity is 91 dB at 1 watt. Maximum sound pressure level is 97 dB on PoE and 101 dB on PoE+. Announcements can use 1 GByte of internal memory or a micro SD card with SDHC up to 32 GB (SANDISK), handling WAV and MP3 in mono or stereo from 64 to 320 kbps at sampling rates of 16 kHz to 48 kHz, and text-to-speech is provided in English (US and UK), German, French, Spanish and Russian. Supported protocols are IPv4, HTTP, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP and ICMP, together with one dry contact input and one dry contact output. Power is PoE per IEEE 802.3af Type 1 Class 3 or PoE+ per IEEE 802.3at Type 2 Class 4; the enclosure measures 269 mm in diameter by 256 mm high, weighs 2.1 kg and operates from -20 to +50 C. Passive two-way design, 8-inch and 2-inch driversBuilt-in 10 W Class D amplifierFrequency range 130 Hz to 20 kHzSensitivity 91 dB at 1 wattMax. SPL 97 dB on PoE, 101 dB on PoE+PoE 802.3af or PoE+ 802.3at

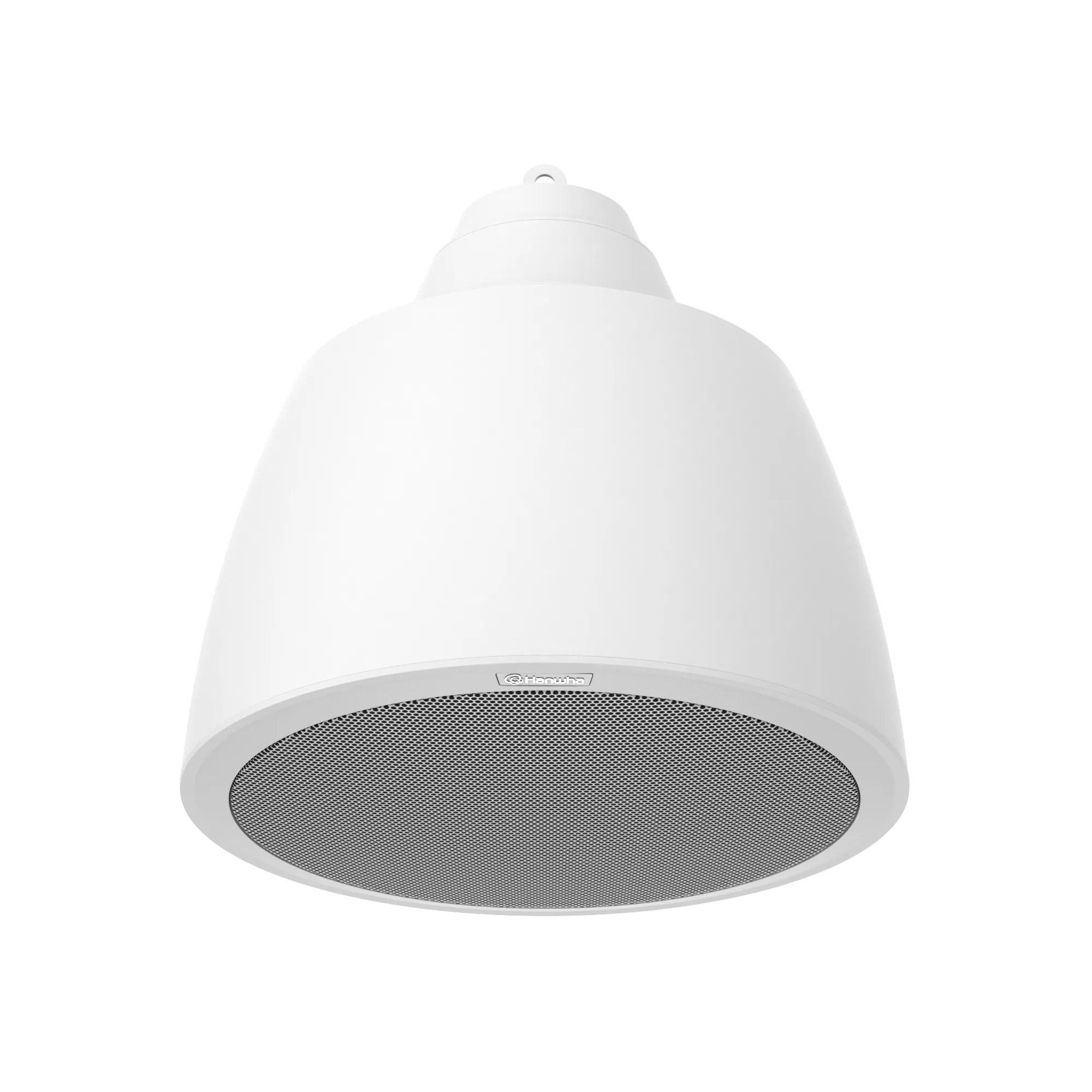

The SPA-P100W is an IP pendant speaker in white with an integrated 10 W Class D amplifier and a 10/100 Base-T network connection. It uses a passive two-way arrangement with an 8-inch LF driver and a 2-inch HF driver; the frequency range at -10 dB runs from 130 Hz to 20 kHz and sensitivity is 91 dB at 1 watt. Maximum sound pressure level is 97 dB on PoE and 101 dB on PoE+. Announcements can use 1 GByte of internal memory or a micro SD card with SDHC up to 32 GB (SANDISK), handling WAV and MP3 in mono or stereo from 64 to 320 kbps at sampling rates of 16 kHz to 48 kHz, and text-to-speech is provided in English (US and UK), German, French, Spanish and Russian. Supported protocols are IPv4, HTTP, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP and ICMP, together with one dry contact input and one dry contact output. Power is PoE per IEEE 802.3af Type 1 Class 3 or PoE+ per IEEE 802.3at Type 2 Class 4; the enclosure measures 269 mm in diameter by 256 mm high, weighs 2.1 kg and operates from -20 to +50 C. Passive two-way design, 8-inch and 2-inch driversBuilt-in 10 W Class D amplifierFrequency range 130 Hz to 20 kHzSensitivity 91 dB at 1 wattMax. SPL 97 dB on PoE, 101 dB on PoE+PoE 802.3af or PoE+ 802.3at

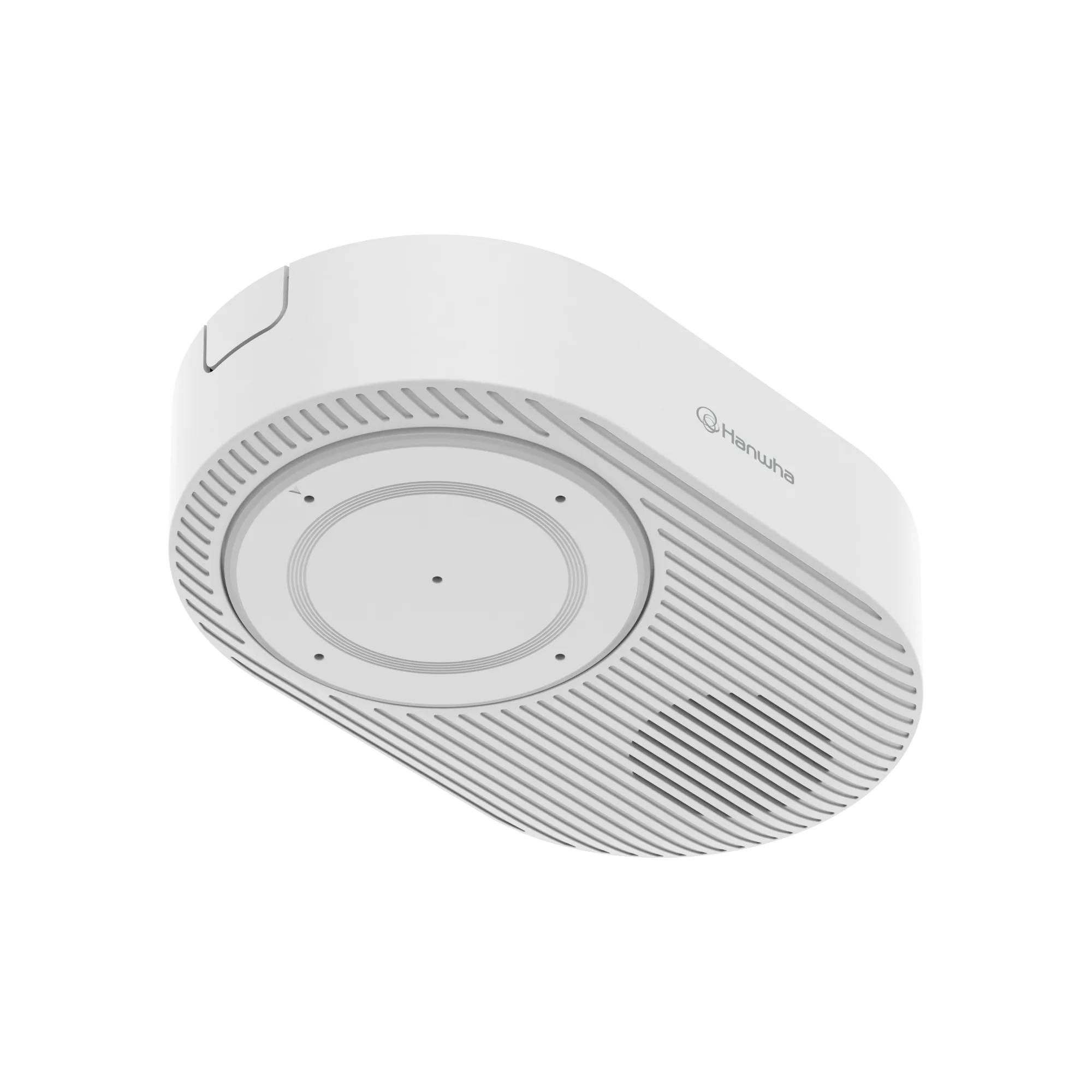

The SPS-A100M is an audio beacon fitted with five built-in MEMS microphones and a speaker rated at a maximum sound pressure level of 90dB at 1m(3.28ft) across a frequency range of 144Hz~20kHz. Audio streaming is selectable between two-way and one-way, runs full duplex and applies echo cancellation and noise reduction. AI-based sound classification distinguishes crashing glass, screaming, vehicle horn and tire screech, returning metadata for sound type, sound direction, confidence, timestamp, best sound audio file and dB(±10dB); ceiling mounting resolves direction to ±15 degrees. Alarm triggers include analytics, network disconnect, alarm input, app event, time schedule and MQTT subscription, and a triggered event can upload audio by e-mail or FTP, send an e-mail notification, drive the alarm output or hand over to a PTZ preset. Two configurable I/O ports, an LED ring in green, blue, red, pink, sky blue and purple for event actions and RJ-45(10/100 BASE-T) with unicast for up to six users complete the device. Full-duplex two-way audio, one-way selectableFive built-in MEMS microphonesSpeaker with max. 90dB at 1m(3.28ft)AI-based sound classification with event metadataSound direction ±15 degrees at ceiling mountingSix-colour LED ring for event action

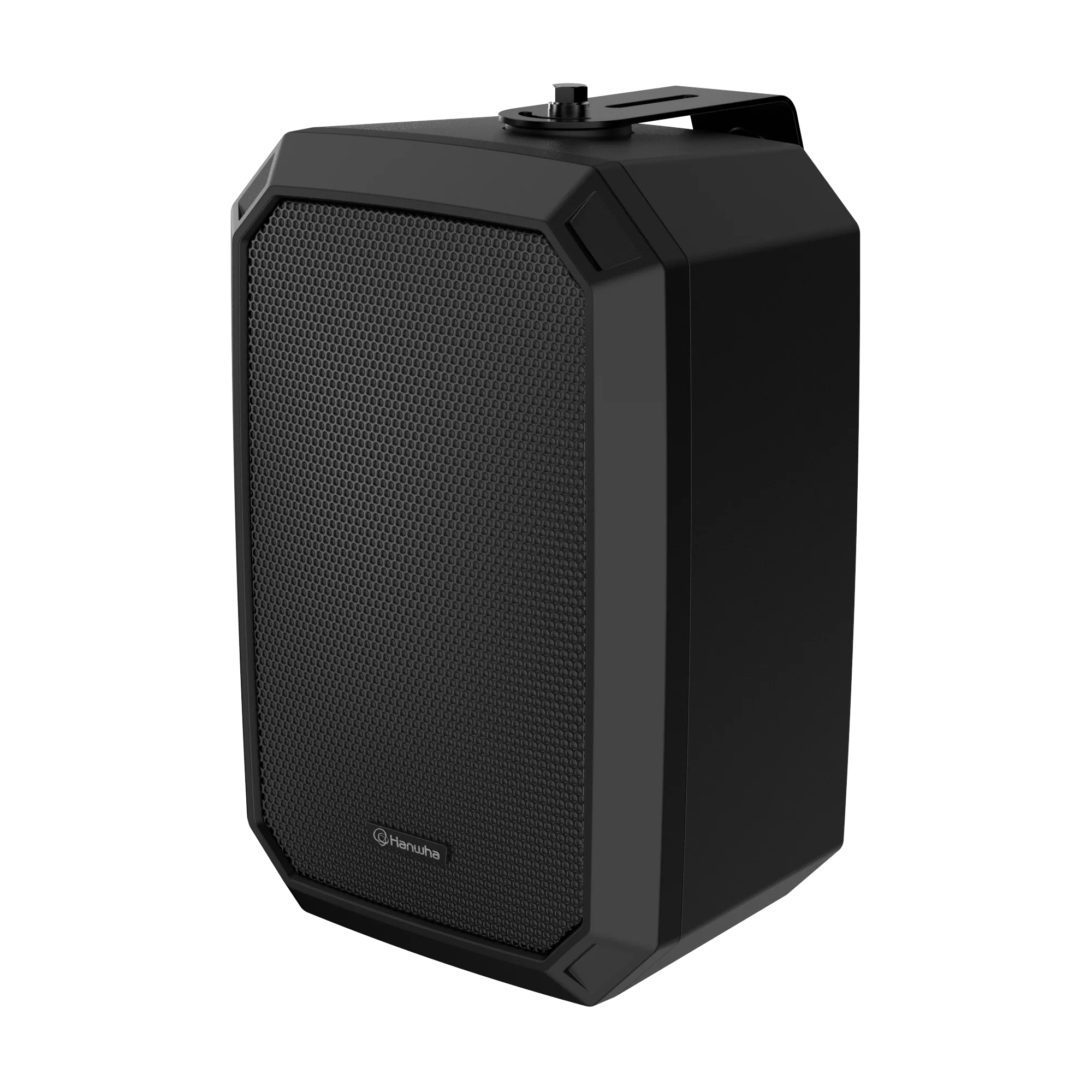

The SPA-W100B is a black IP wall speaker with a built-in 10W Class D amplifier. Its line output is specified at +6 dBV ±3 dB with a frequency response of 20Hz~20kHz, THD+N below 0.1% and a signal-to-noise ratio greater than 91 dB; maximum sound pressure level is 99dB, frequency range (-10dB) is 120Hz~20kHz and sensitivity (1 Watt) is 90dB. Audio storage comprises 1 GByte of internal memory plus a micro SD slot for SDHC up to 32GB, and WAV and MP3 files are supported in mono/stereo from 64 kbps to 320 kbps at sampling rates from 16kHz up to 48 kHz. One dry contact input and one dry contact output (NO) are provided, and the unit connects over 10/100 Base-T with PoE (IEEE 802.3 af type 1 Class 3) or PoE+ (IEEE 802.3 at type 2 Class 4). The housing measures 170(W) x 250(H) x 134(D)mm, weighs 2.5Kg, carries an IP54 rating and operates from -20°~+50°C at 10~85%RH (non-condensing). Black IP wall speakerBuilt-in 10W Class DPoE and PoE+ powering1 GByte internal memoryMicro SD SDHC up to 32GBIP54, 170 x 250 x 134mm

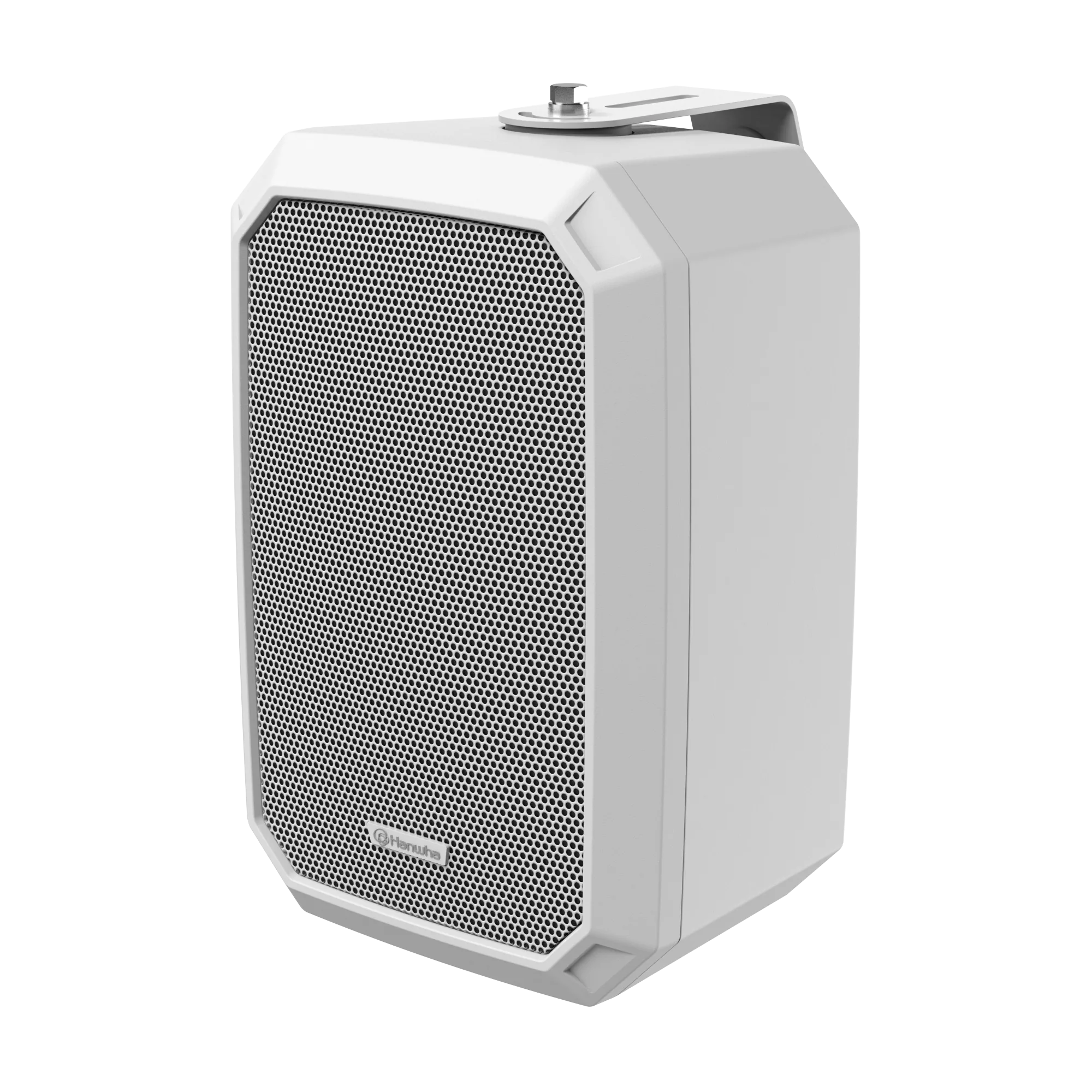

The SPA-W100W is a white IP wall speaker with an integrated 10W Class D amplifier. The line output is rated at +6 dBV ±3 dB across a frequency response of 20Hz~20kHz, with THD+N of less than 0.1% and a signal-to-noise ratio greater than 91 dB; maximum sound pressure level is 99dB, frequency range (-10dB) is 120Hz~20kHz and sensitivity (1 Watt) is 90dB. Storage consists of 1 GByte internal memory and a micro SD slot taking SDHC up to 32GB, with WAV and MP3 playback in mono/stereo from 64 kbps to 320 kbps at sampling rates from 16kHz up to 48 kHz. Single-channel dry contact input and dry contact output (NO) are available, networking is 10/100 Base-T and power comes from PoE (IEEE 802.3 af type 1 Class 3) or PoE+ (IEEE 802.3 at type 2 Class 4). Measuring 170(W) x 250(H) x 134(D)mm at 2.5Kg, the enclosure is rated IP54 and specified for -20°~+50°C at 10~85%RH (non-condensing). White IP wall speakerBuilt-in 10W Class DPoE and PoE+ powering1 GByte internal memoryMicro SD SDHC up to 32GBIP54, 170 x 250 x 134mm
