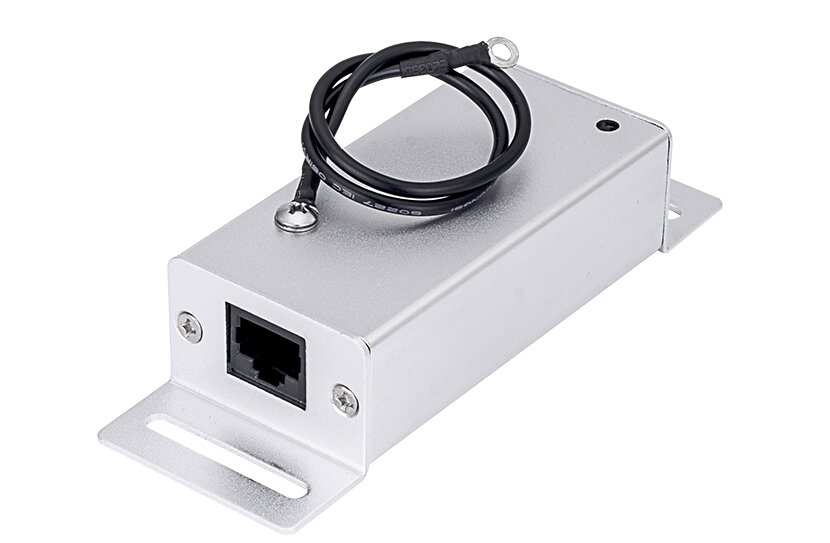

One-channel surge protector for equipment inside a building, rated to 10 Gbps: it passes 10M/100M/1G/2.5G/10G over Cat 5e or Cat 6, UTP or STP. Data and power are protected across all eight conductors, at 20 kV common mode and 4 kV differential mode, with up to 10 kA discharge current, 5 ns response and clamping of 600 V to ground and 20 V line to line. PoE support covers 802.3af, 802.3at, 802.3bt and UPoE at no more than 60 V DC, 1 A over two pairs, 2 A over four pairs and 95 W. Insertion loss is 1 dB and return loss -20 dB at 10 and 100 MHz. Nothing has to be configured, and an LED marks a spent protector. Temperature range -40 °C to 85 °C, 80 x 40 x 25 mm, 0.18 kg, two RJ45 sockets.

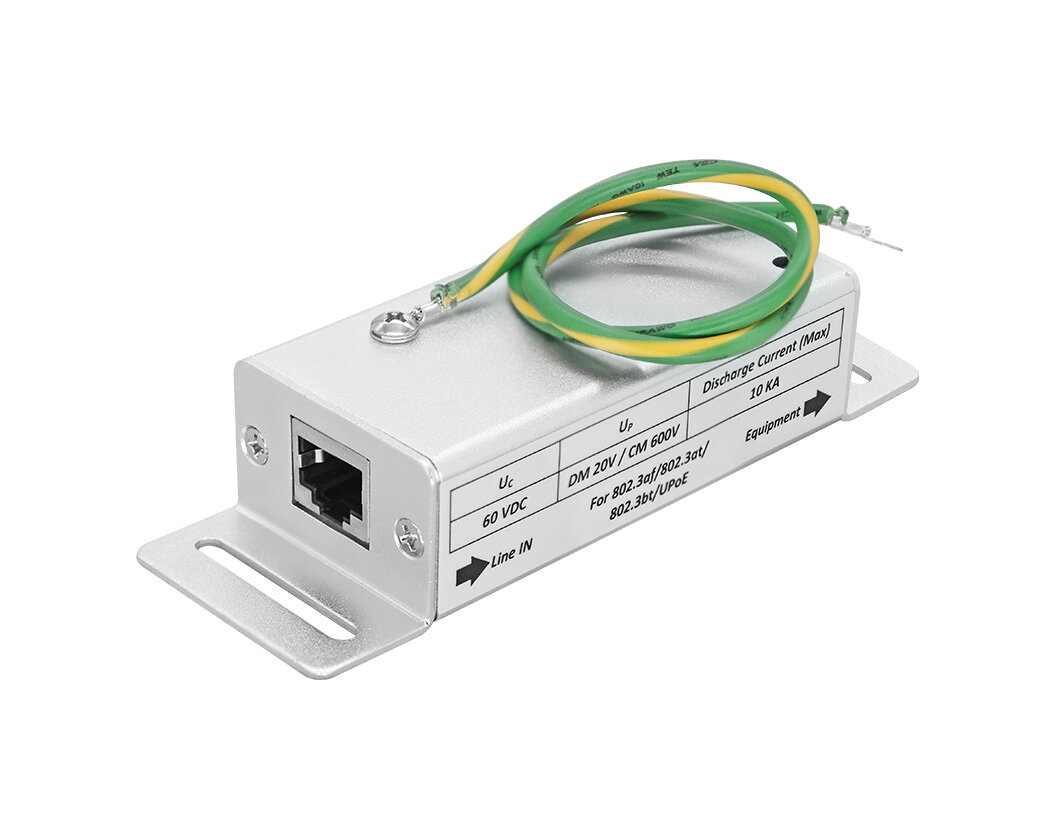

Single-channel PoE surge protector for indoor positions: next to the PoE switch, or inside a junction or power box. Data and PoE feed are covered on all eight conductors, with a 20 kV common-mode and 4 kV differential-mode level, 10 kA discharge capability, 5 ns response and clamping at 600 V to ground and 20 V between lines. It passes 10M/100M/1G/2.5G over Cat 5e or Cat 6 UTP/STP and supports 802.3af, 802.3at, 802.3bt and UPoE up to 60 V DC, with 1 A over two pairs, 2 A over four pairs and 95 W maximum. An LED shows when the protector has reached the end of its life. Working range -40 °C to 85 °C, 80 x 40 x 25 mm, 0.18 kg, two RJ45 sockets, EMC to CE, FCC, VCCI and C-Tick.

1-Port bt PoE PD EPo2 RX Adapter1-Port EPo2 TX Adapter

1-Port bt PoE PD EPoC RX Adapter1-Port EPoC TX Adapter

1-Port bt PoE PD EPoT RX Adapter1-Port EPoT TX Adapter

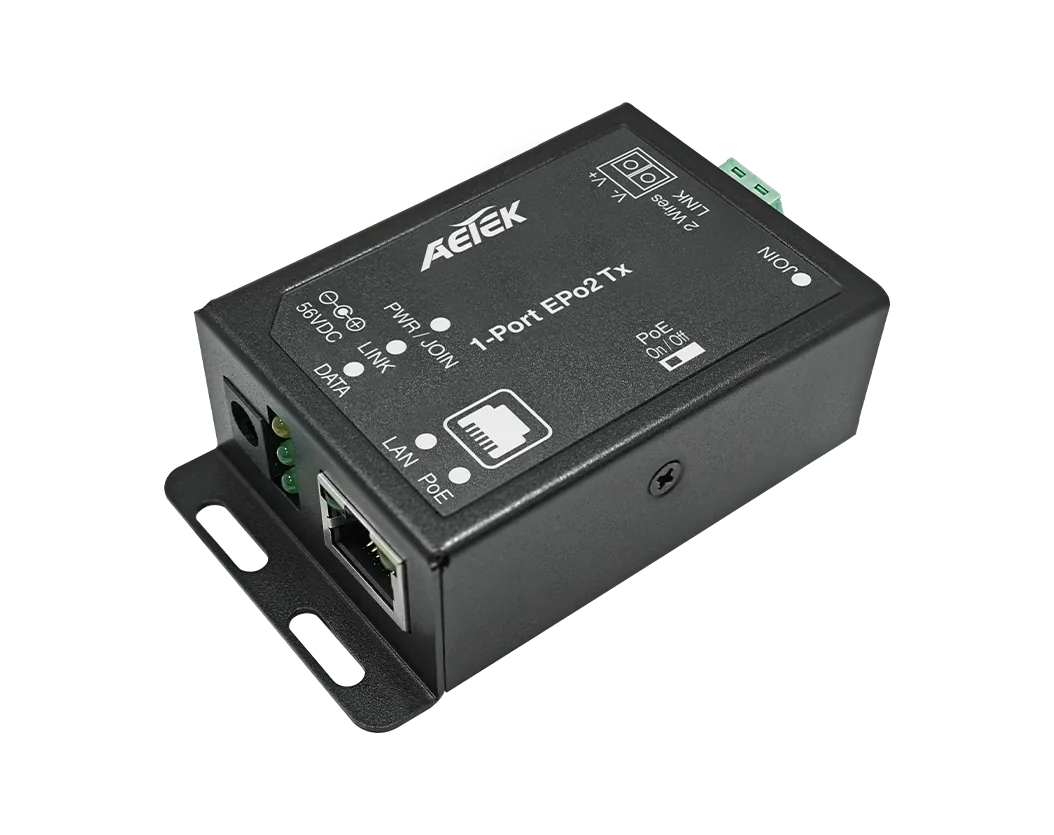

The 2E10-110-TX-V2 is the transmitting half of an EPo2 pair and carries Ethernet and PoE together over a single two-wire line. Existing doorbell, telephone or other two-conductor wiring in the building can therefore be kept instead of being replaced — for door stations, access readers, speakers, sensors or cameras. It feeds in through one 10/100 Mbit/s RJ45 port as PSE and supplies power to IEEE 802.3af, 802.3at and 802.3bt. The unit needs no configuration, draws 2 W and comes in a metal housing for wall or optional DIN-rail mounting.

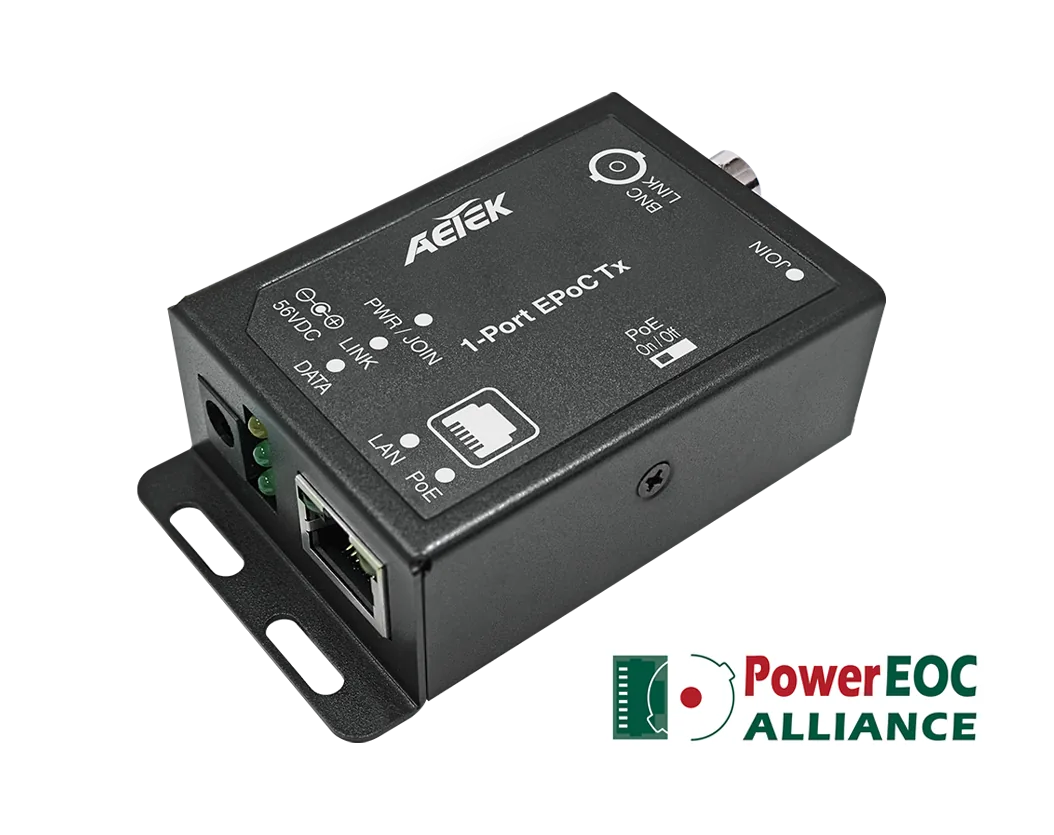

EPoC transmit adapter with one 75 Ω BNC port and one RJ45 PoE output that feeds as PSE under IEEE 802.3af, 802.3at and 802.3bt. It sits at the camera end of a coaxial run and powers the camera with no local supply: over RG59, RG6 or RG11 the link is rated for 9.7 W at 1,200 m with 100 Mbps, a PoE IP camera is given up to 8.3 W, and data alone travels 2,400 m. Existing coax can therefore keep serving PoE IP cameras. Power arrives either as PoE on the coax or as 56 VDC at the DC jack; the unit draws 2 W and a DIP switch turns the PoE output off. An SD-301 surge protector is available as an option. Metal case 86.6 x 47.1 x 27.0 mm, 0.2 kg, wall or optional DIN-rail mounting, operating range -20 °C to 60 °C, humidity 5 to 95 % non-condensing, EN62368-1.

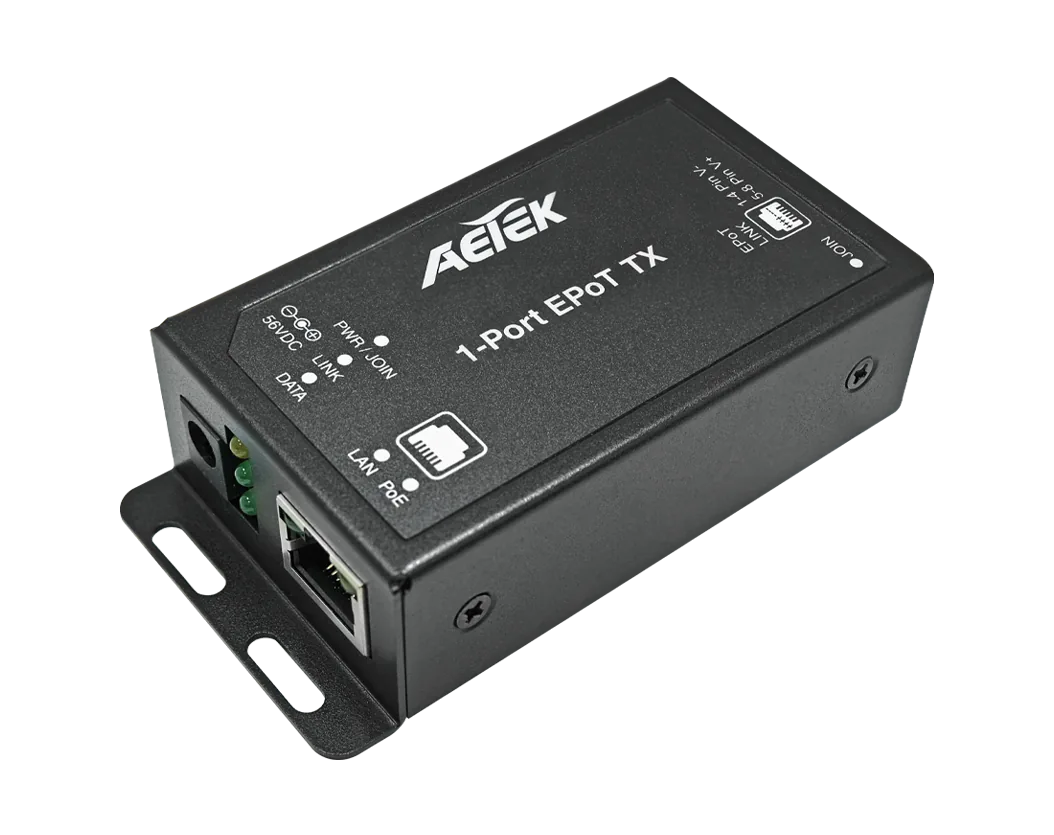

Transmit end of an EPoT link, where data and power share one shielded Cat5e/6 STP/FTP cable wired on four pairs, two pairs or a single pair. It carries one EPoT port on RJ45 and one RJ45 PoE output acting as PSE for IEEE 802.3af, 802.3at and 802.3bt; the link is rated for 16 W at 1,200 m with 100 Mbps, at that length a PoE IP camera is given up to 9.7 W, and data alone travels 2,400 m. No intermediate switch or power supply is needed along the run. Power comes in over EPoT at 50 to 56 VDC or through the DC jack at 56 VDC, the unit itself draws 2 W, and a DIP switch turns the PoE output off. Peer-to-peer, daisy-chain and failover ring topologies are supported. Surge protection is 6 kV, ESD ±4 kV contact and ±8 kV air. Metal case 102.9 x 48.9 x 27.0 mm, 0.2 kg, wall mounted or on an optional DIN rail, operating range -20 °C to 60 °C, humidity 5 to 95 % non-condensing, EN62368-1, MTBF above 50,000 hours.

Indoor PoE++ injector to IEEE 802.3bt, backward compatible with 802.3at and 802.3af. It supplies one Gigabit port with up to 90 W across four pairs at 54 V DC, pinned 1/2 (-) with 3/6 (+), then 4/5 (+) with 7/8 (-), over a cable run of 100 m. It suits loads that draw heavily, such as speed domes or housings with heater, blower, wiper and illuminator. Terminals outside the standard are detected and protected. Mains input 100–240 V AC, rated to 280 V AC for four hours and 300 V AC for one minute. Surge protection: 6 kV at the data and PoE port, 4 kV at the mains input. Case 182 x 78.6 x 41.9 mm, 0.58 kg, -10 °C to 50 °C, humidity 10–90 % non-condensing.

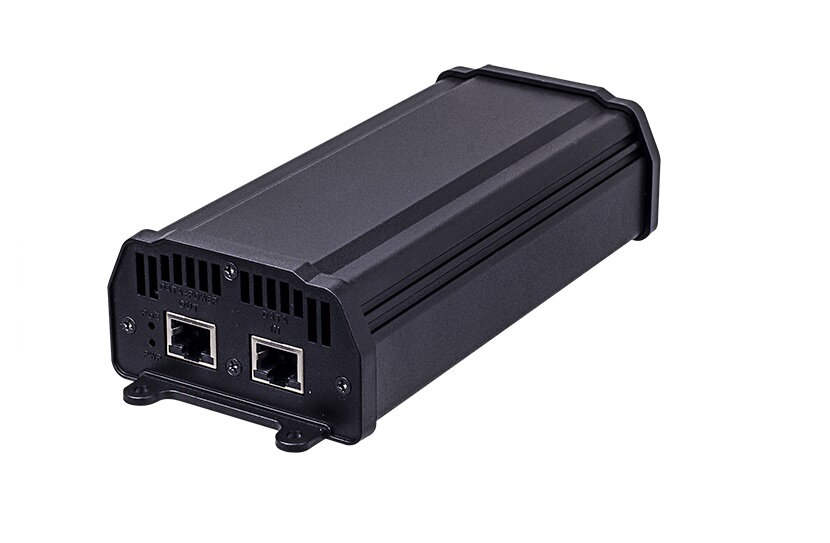

Mid-span injector for a single Gigabit run indoors. It puts power onto an existing 10/100/1000Base-T line and so feeds devices a plain switch port cannot: speed domes, or camera housings carrying a blower, heater, illuminator and wiper. Power leaves as 95 W PoH on all four pairs at 54 V DC, pinned 1/2 (-) with 3/6 (+), then 4/5 (+) with 7/8 (-), and reaches 100 m. It works with IEEE 802.3at/af and recognises non-standard terminals, protecting them. Input 100–240 V AC, briefly 280 V AC for four hours and 300 V AC for one minute. Surge protection is 6 kV at the data/PoE port and 4 kV on the mains side. 182 x 78.6 x 41.9 mm, 0.58 kg, LEDs for power and PoE, -10 °C to 50 °C.

The 2E11-110-RX-V2 is the receiving half of an EPo2 pair: it takes data and power off the two-wire run and presents them at a 10/100 Mbit/s RJ45 port as a powered device. It can be fed from the two-wire line itself or from 48 to 56 V DC, and passes PoE through to the connected device. IP equipment can therefore reach the network where only old two-conductor wiring exists. No configuration is required and the unit itself draws 2 W.

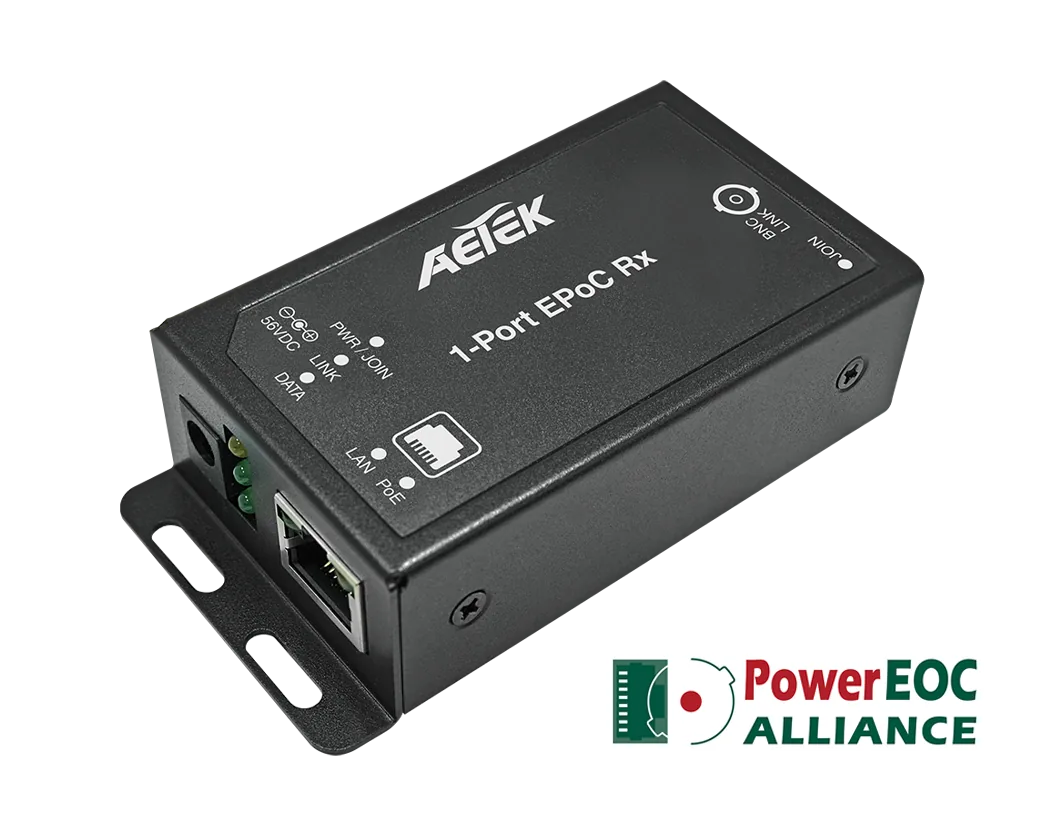

EPoC receive adapter carrying one 75 Ω BNC port and one 10/100 Mbps PoE PD port, placed at the head end of a coaxial run. All power for the link is sourced from a PoE switch or injector: it accepts IEEE 802.3bt at 90 W, 802.3at at 30 W and 802.3af at 15.4 W as end-span or mid-span, or 48 to 56 VDC, and the manufacturer recommends 802.3bt with 90 W for long runs. Over RG59, RG6 or RG11 it passes data and PoE to the TX adapter and the camera as far as 1,200 m at 100 Mbps, with data alone reaching 2,400 m, so older CCTV cabling can move to IP without new cable. The unit draws 2 W. An eight-bay 19-inch chassis (CH-110-V2) and the SD-301 surge protector are optional. Metal case 103.4 x 48.9 x 27 mm, 0.2 kg, wall or optional DIN-rail mounting, operating range -20 °C to 60 °C, EN62368-1.

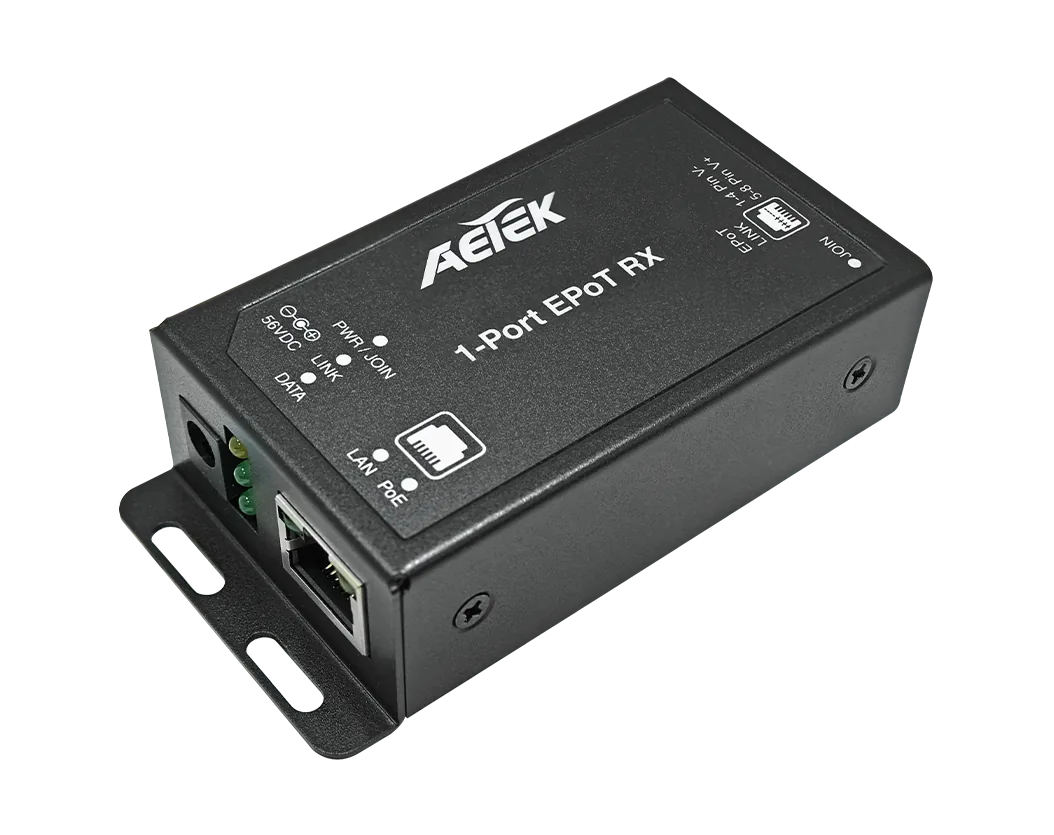

Receive end of an EPoT link, sitting at the head of the run: one EPoT port on RJ45 and one 10/100 Mbps PoE PD port. Every watt for the link is drawn from a PoE switch or injector – IEEE 802.3bt at 90 W is the recommendation – and 30 W, 60 W or 48 to 56 VDC at the DC jack are accepted as well. Data and power travel over shielded Cat5e/6 STP/FTP cable on four pairs, two pairs or one pair for as far as 1,200 m, with data alone reaching 2,400 m at 100 Mbps. That feeds both the TX adapter and the camera at the far end with no switch or power supply in between. Peer-to-peer, daisy-chain and failover ring topologies work, and an eight-bay 19-inch chassis (CH-110-V2) is available as an option. The unit draws 2 W; surge protection is 6 kV, ESD ±4 kV contact and ±8 kV air. Metal case 102.9 x 48.9 x 27.0 mm, 0.2 kg, wall or optional DIN-rail mounting, operating range -20 °C to 60 °C, EN62368-1.

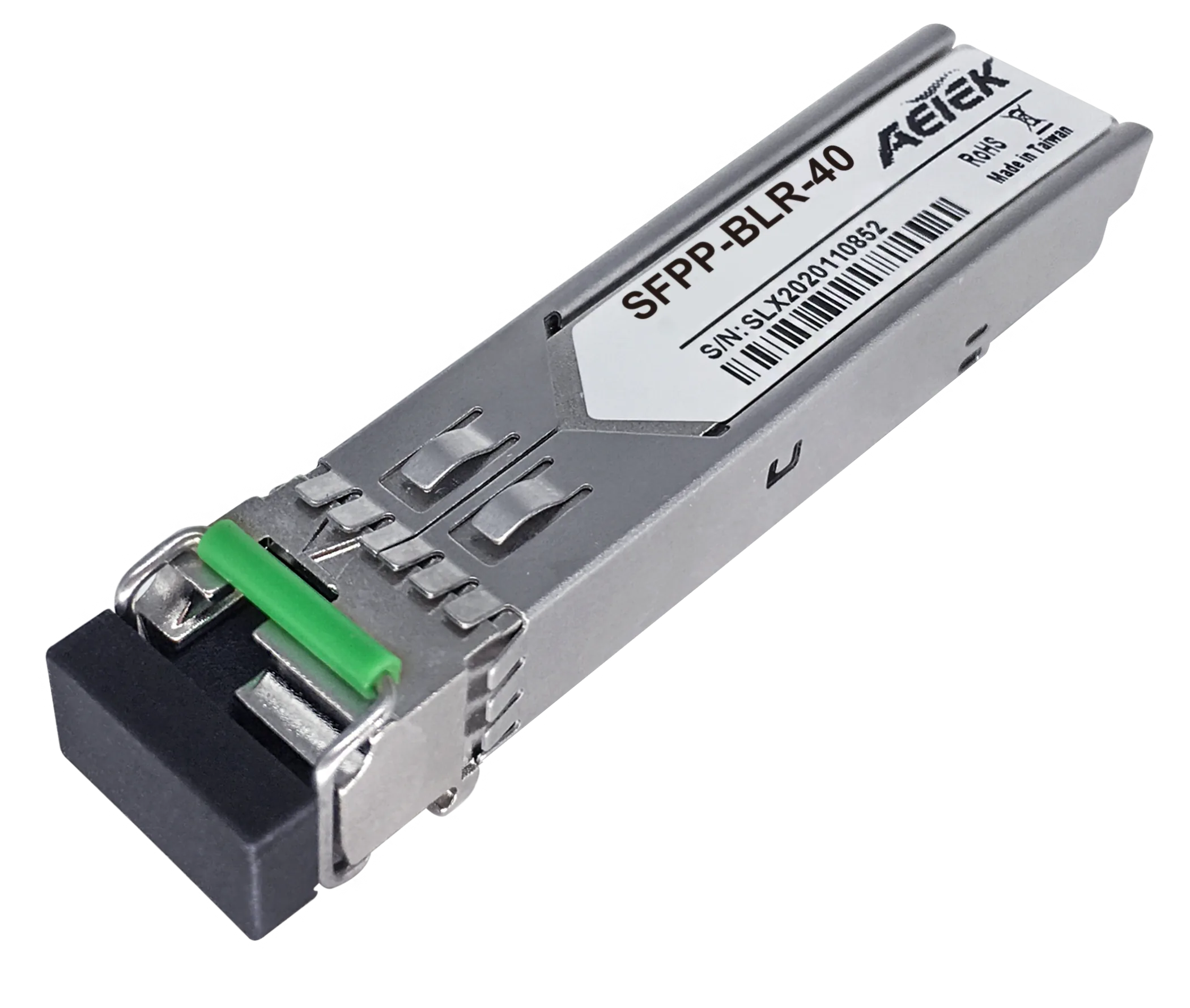

10G SFP,SMF Bi-Di, TX:1270NM / RX:1330NM,40KM

10G SFP,SMF Bi-Di, TX:1270NM / RX:1330NM,20KM

10G SFP,SMF Bi-Di, TX:1330NM / RX:1270NM,20KM

10G SFP,SMF Bi-Di, TX:1330NM / RX:1270NM,40KM

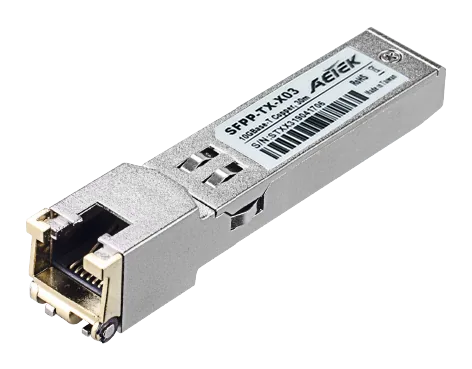

SFP+ module with an RJ45 socket that puts a 10 Gbps slot onto copper: 10GBASE-T to IEEE 802.3an with a 30 m reach over Cat.6a. Auto-negotiation and auto-MDI/MDI-X are supported and the module draws 3.3 V. Operating range 0 °C to 70 °C, storage -40 °C to 85 °C, humidity 5 to 90 % non-condensing. Body size 68.3 x 13.7 x 13.8 mm, MSA compliant.

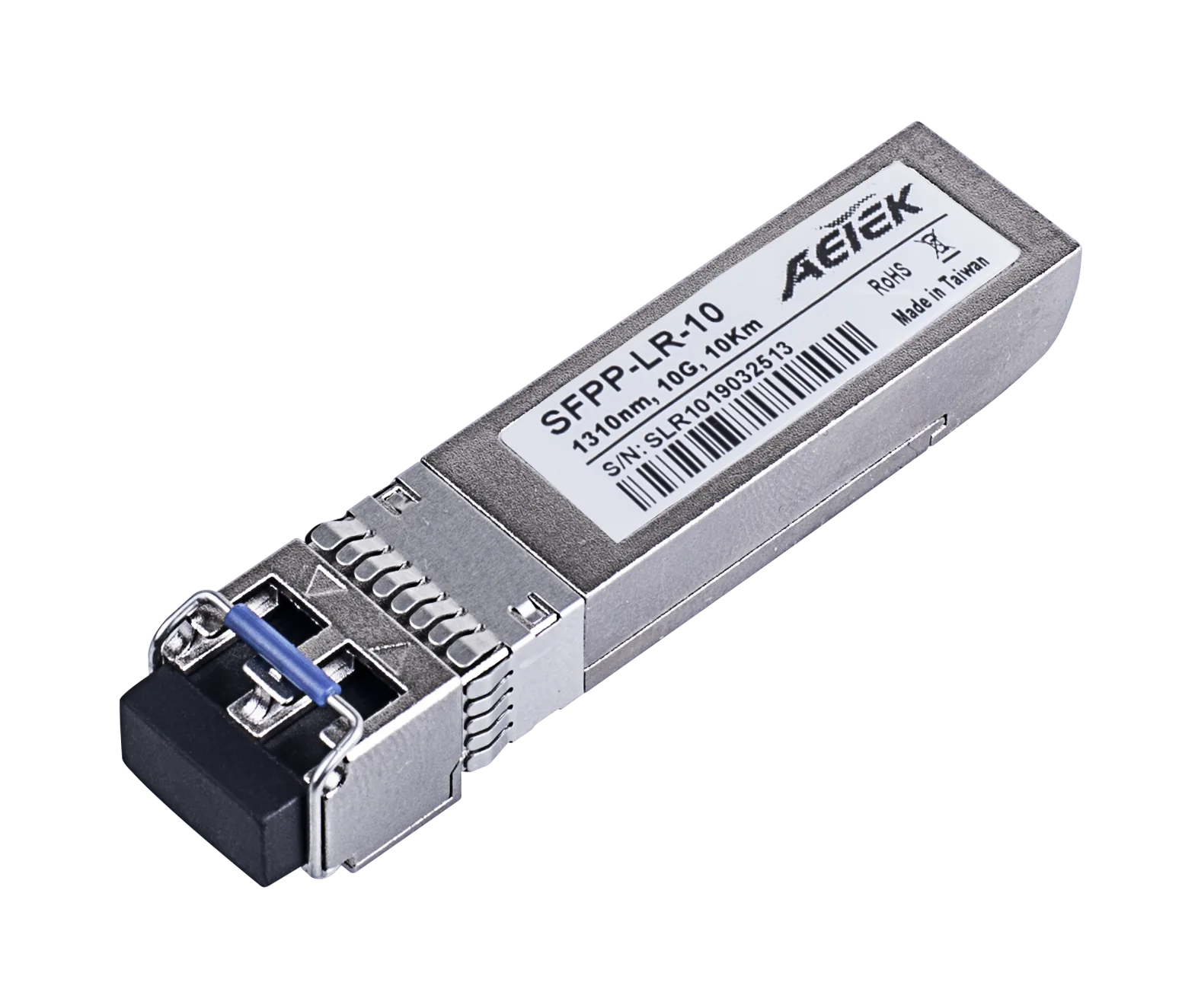

SFP+ module for 10 Gbps on 9/125 μm single-mode fibre with a 10 km reach, typically an uplink between buildings on one site. The FP laser diode works at 1310 nm and transmits at -8.2 to 0.5 dBm, the receiver from -14.4 dBm downward, and the link budget is 6.2 to 14.9 dB. LC connector, 3.3 V supply, operating range 0 °C to 70 °C, storage -40 °C to 85 °C, humidity 5 to 90 % non-condensing. Size 68 x 13.7 x 8.5 mm, MSA compliant, approvals CE, FCC, LVD, ROHS, TUV and UL.

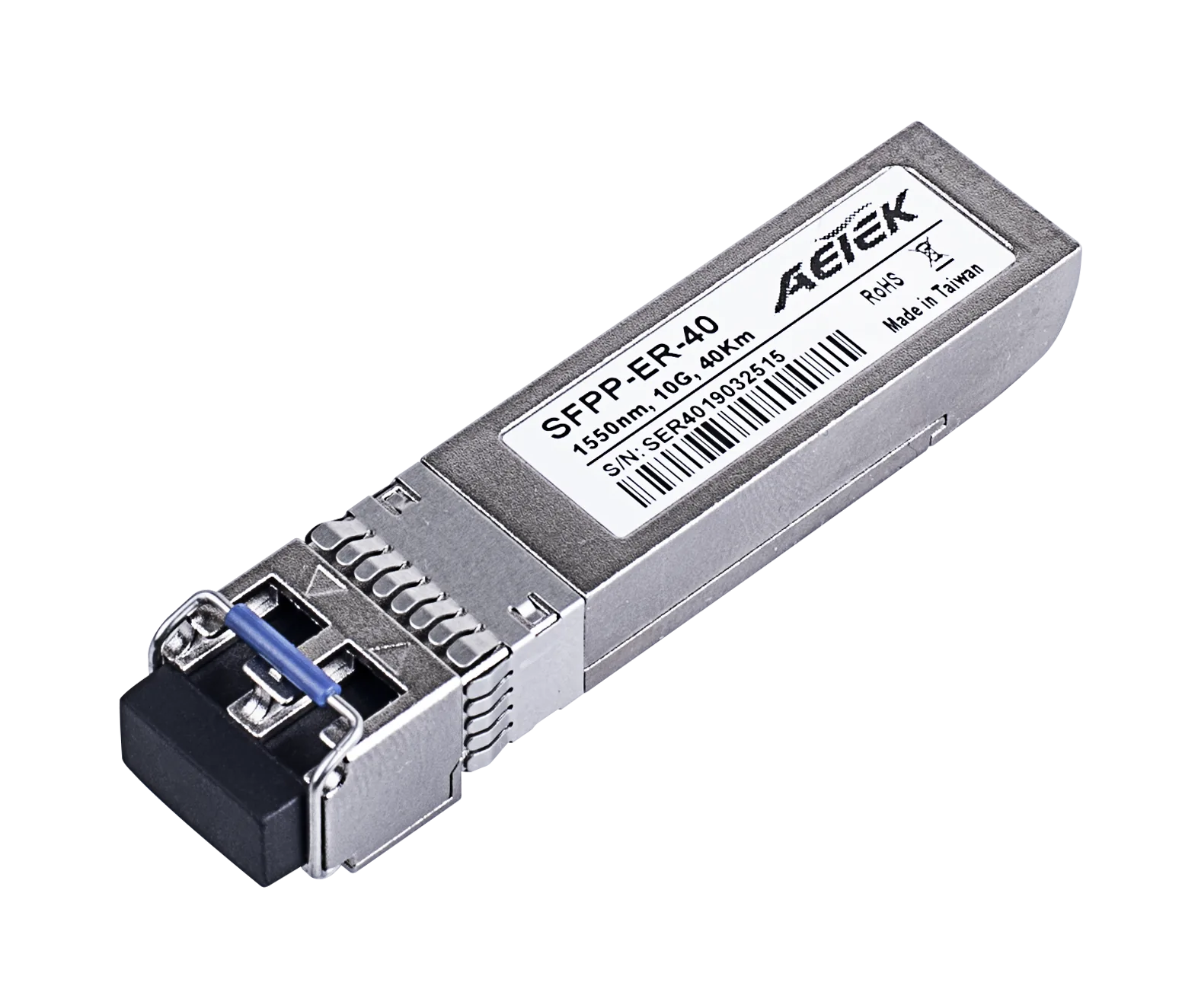

SFP+ module carrying 10 Gbps over single-mode spans of up to 40 km on 9/125 μm fibre. Its DFB laser diode works at 1550 nm and transmits at -3 to 3 dBm; the receiver needs no more than -15.8 dBm, and the permitted link budget runs 12.8 to 18.8 dB. Connector LC, supply voltage 3.3 V. Operating range 0 °C to 70 °C, storage -40 °C to 85 °C, humidity 5 to 90 % non-condensing. Size 68 x 13.7 x 8.5 mm, MSA compliant, approvals CE, FCC, LVD, ROHS, TUV and UL.

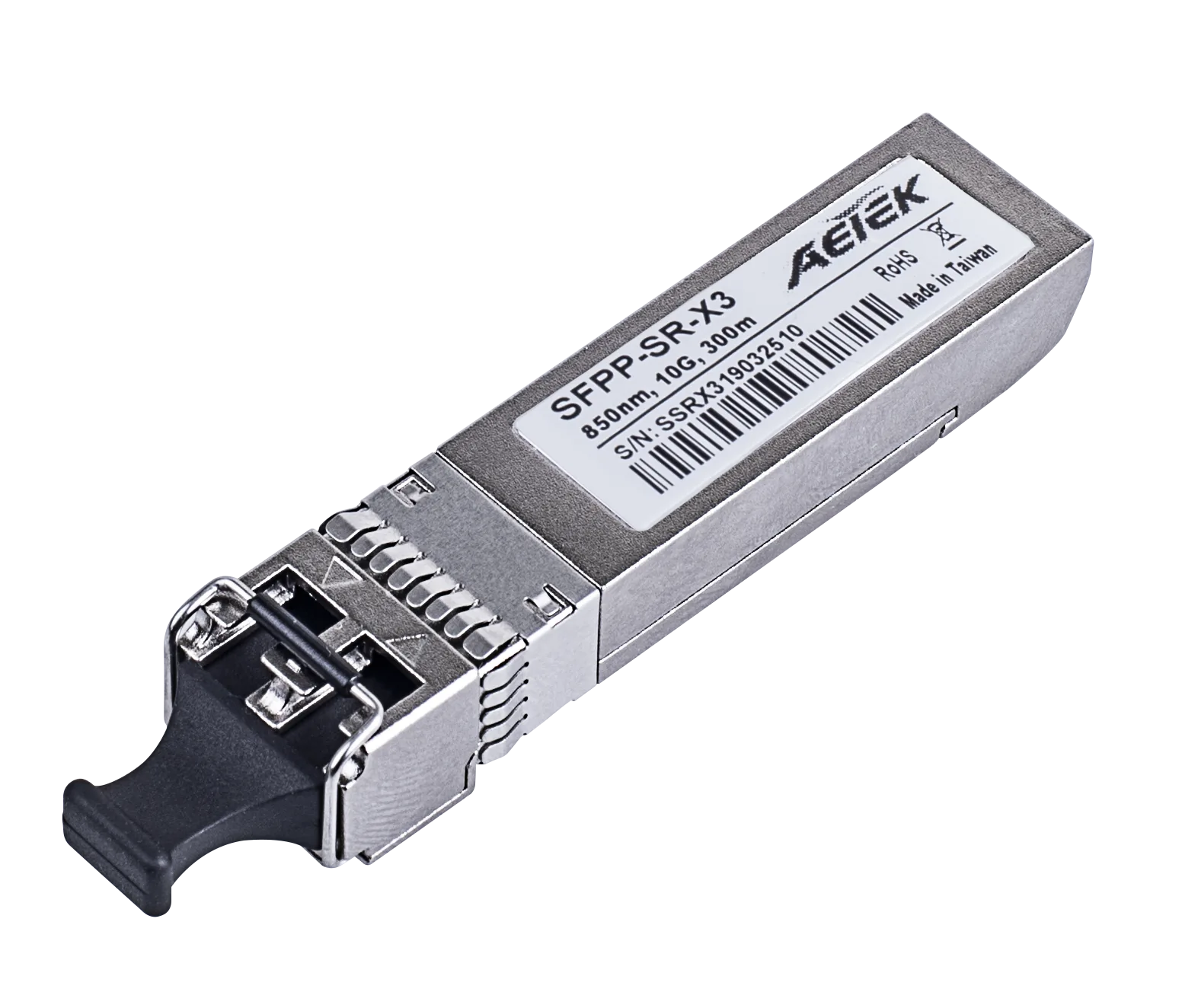

SFP+ module for short 10 Gbps hops on 50/125 μm multimode fibre up to 300 m, so for links inside a building or between floor distributors. A VCSEL transmits at 850 nm with -6.5 to -1 dBm, the receiver works from -11.1 dBm downward, and the link budget sits between 4.6 and 10.1 dB. LC connector, 3.3 V supply, operating range 0 °C to 70 °C, storage -40 °C to 85 °C, humidity 5 to 90 % non-condensing. Size 68 x 13.7 x 8.5 mm, MSA compliant, approvals CE, FCC, LVD, ROHS, TUV and UL.

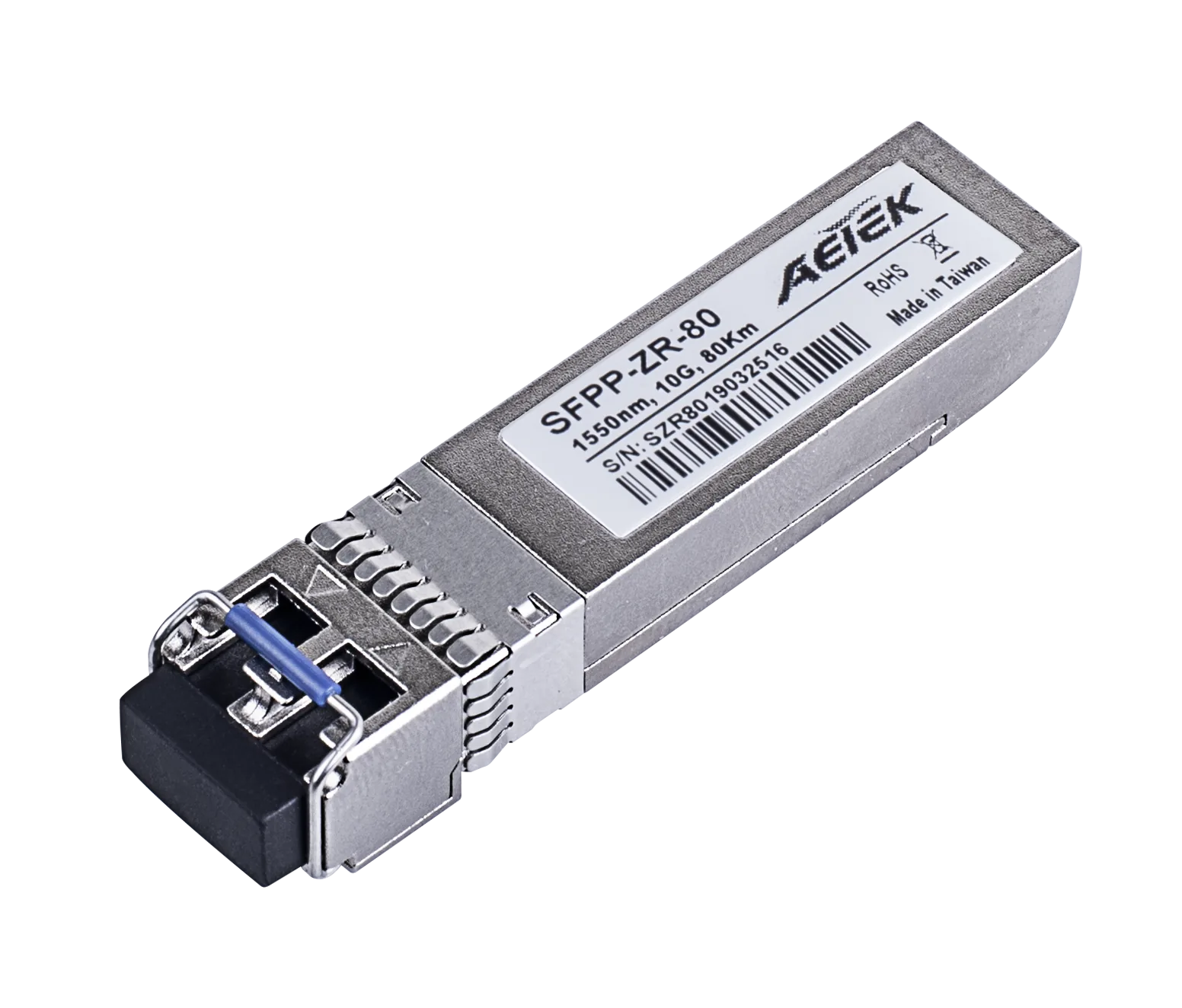

SFP+ module for 10 Gbps on 9/125 μm single-mode fibre reaching 80 km. The 1550 nm DFB laser diode transmits at 0 to 4 dBm, the receiver works from -24 dBm downward and the permitted link budget spans 24 to 28 dB, which suits routes with no active site between the endpoints. LC connector, 3.3 V supply, operating range 0 °C to 70 °C, storage -40 °C to 85 °C, humidity 5 to 90 % non-condensing. Size 68 x 13.7 x 8.5 mm, MSA compliant, approvals CE, FCC, LVD, ROHS, TUV and UL.

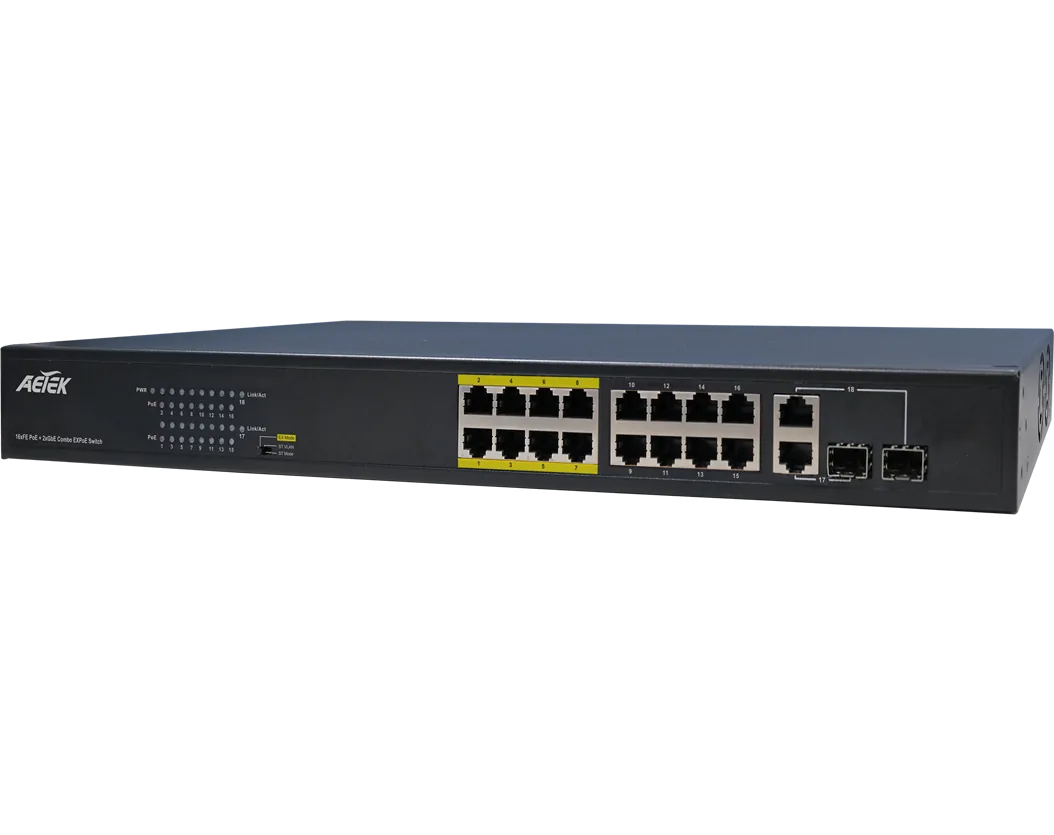

Unmanaged EXPoE switch with 16 Fast Ethernet PoE ports up to 30 W and two Gigabit combo ports (RJ45 or SFP). In EX mode eight ports work as EXPoE and eight as regular PoE ports. The C11 line are unmanaged indoor switches with EXPoE: a DIP switch turns on the EX mode, which carries picture and power up to 250 m over the ports provided for it, well beyond the 100 m Ethernet over copper otherwise allows. In standard mode every port works normally to IEEE 802.3af and 802.3at. The PoE budget is 250 W and the switching capacity 7.2 Gbit/s. Surge protection is 6 kV per PoE port and 4 kV on the supply. 19-inch form, 440 × 207 × 44 mm, weight 3.6 kg, operating temperature 0 °C to 50 °C. 16 Fast Ethernet PoE ports up to 30 WTwo Gigabit combo ports, RJ45 or SFPEX mode: eight EXPoE and eight PoE ports250 W PoE budget, 7.2 Gbit/s switching capacity6 kV surge protection per PoE port, 4 kV on the supply440 × 207 × 44 mm, 3.6 kg, 19-inch form
