1-Port EPo2 TX Adapter with 802.3af/at/bt PoE++ Output
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 weeks
Product data
- Manufacturer
- AETEK
- Article number
- 2E10-110-TX-V2
- EAN / GTIN
- 4711502643386
Description

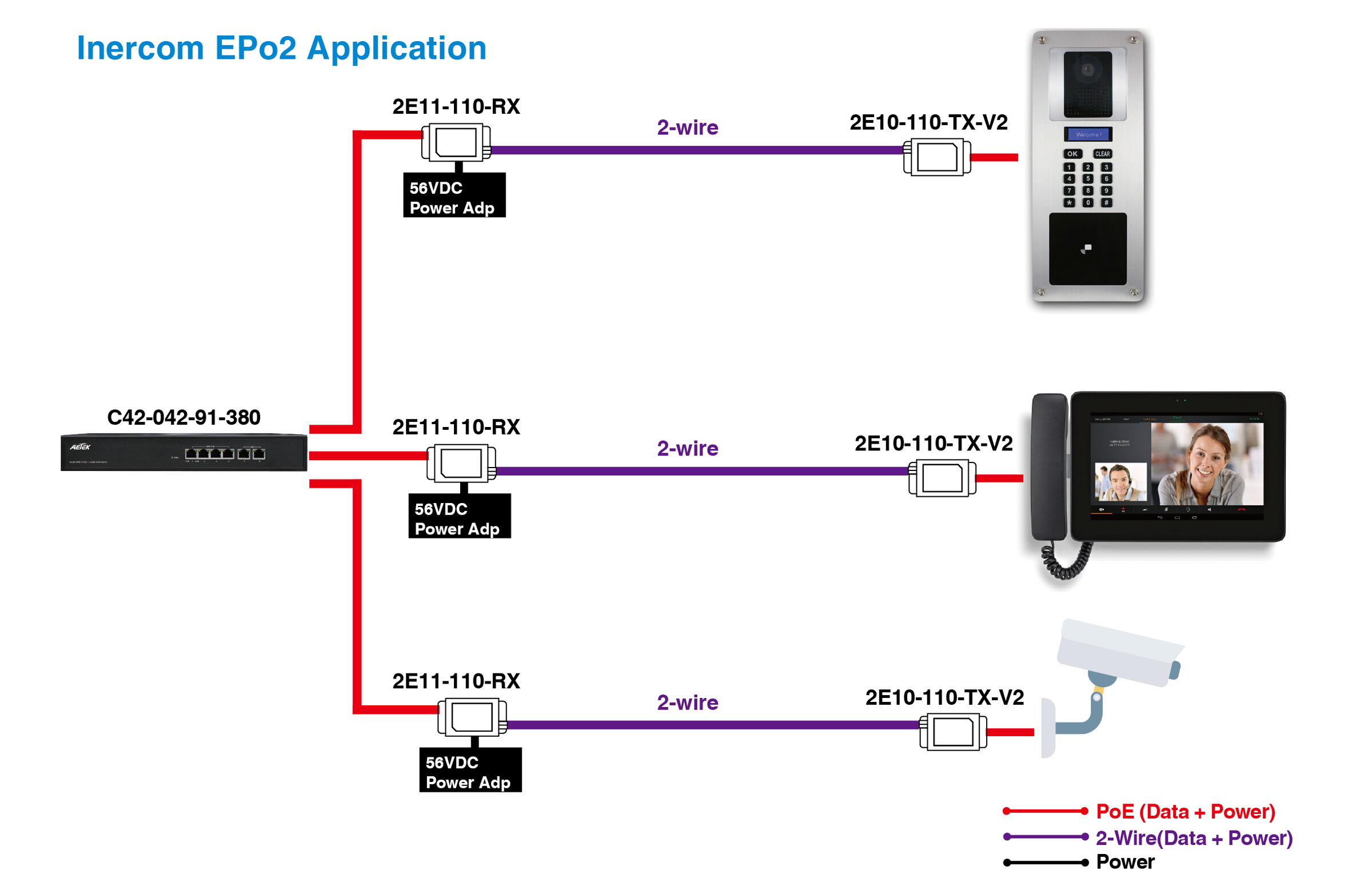

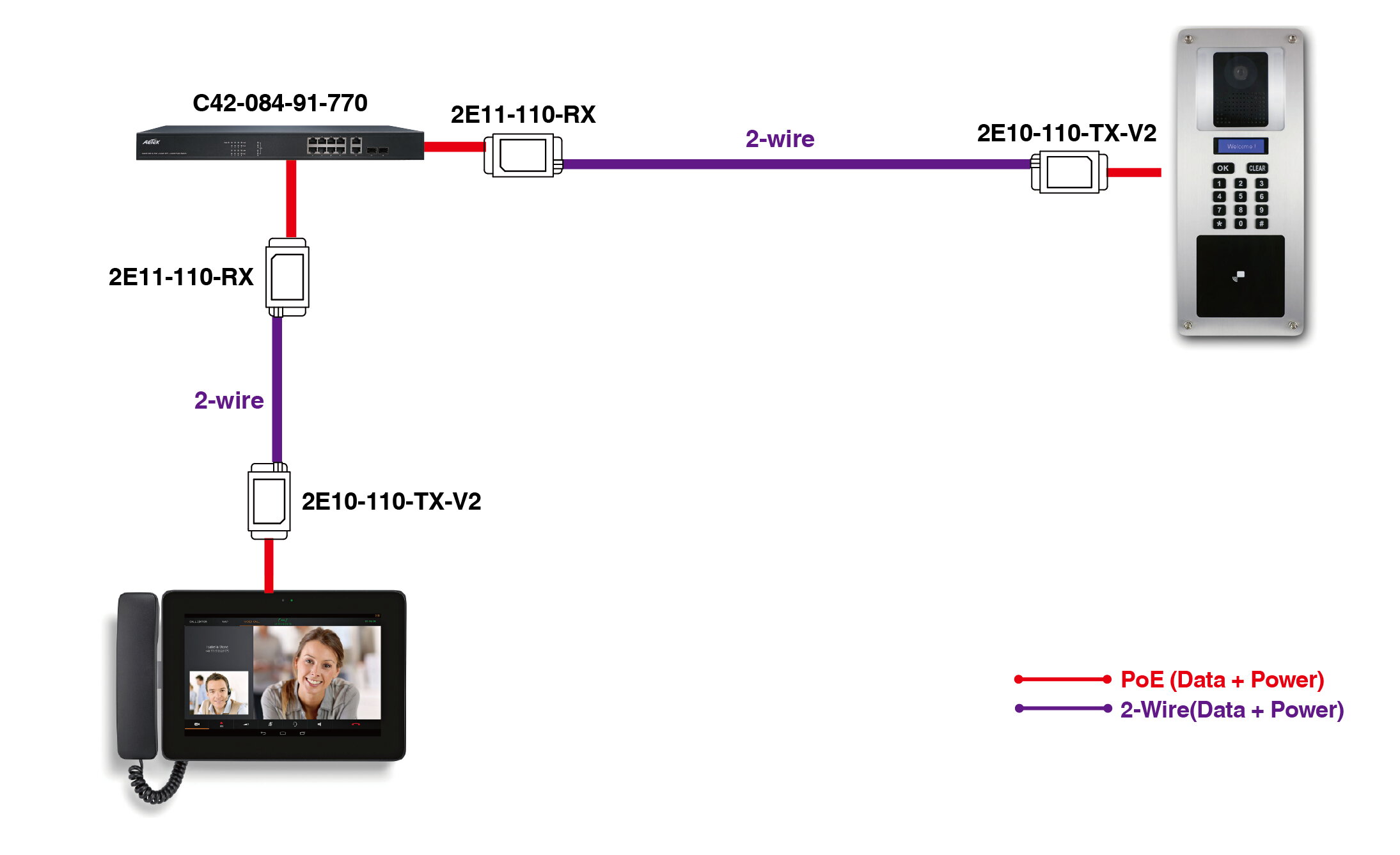

The 2E10-110-TX-V2 is the transmitting half of an EPo2 pair and carries Ethernet and PoE together over a single two-wire line. Existing doorbell, telephone or other two-conductor wiring in the building can therefore be kept instead of being replaced — for door stations, access readers, speakers, sensors or cameras. It feeds in through one 10/100 Mbit/s RJ45 port as PSE and supplies power to IEEE 802.3af, 802.3at and 802.3bt. The unit needs no configuration, draws 2 W and comes in a metal housing for wall or optional DIN-rail mounting.
Made by
AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Certifications (2)
- Certifications EMC
- CE, FCC, VCCI, C-Tick
- Safety
- EN62368-1
Environmental (3)
- Environmental – Operating Humidity
- 5% ~ 95% non-condensing
- Environmental – Operating Temperature
- -20°C ~ 60°C (-4°F ~ 140°F)
- Environmental – Storage Temperature
- -20°C ~ 85°C (-4°F ~ 185°F)
Interface (3)
- Distance 10/100 Mbps Ethernet
- PoE PSE RJ45 x 1
- Distance EPo2 Ports
- 2-Pin Terminal Block x1
- Distance Transmission mode
- Transmitter TX mode
LEDs (4)
- LEDs LAN
- Ethernet status
- LEDs POE
- PoE status
- LINK
- EPo2 RX and TX connection status
- PWR
- Power status
Mechanical (5)
- Dimensions (W x D x H)
- 85.4 x 47.1 x 27.0 mm (3.36 x 1.85 x 1.06")
- Mechanical Casing
- Metal
- Mechanical Connectors
- 2P Terminal Blockx1, RJ45 x1, DC Jack x1, PoE On/Off Switch x1
- Mechanical Mounting Type
- Wall mount, Din-rail (optional)
- Mechanical Weight
- 0.2 kg (0.44 lb)
Power (1)
- Power – Power Input PoE over 2 wires shielded cable DC power jack: 56VDC PoE Output IEEE 802.3bt PoE++ PSE IEEE 802.3at PoE+ PSE IEEE 802.3af PoE PSE Unit Power Consumption
- 2W
