Power supply

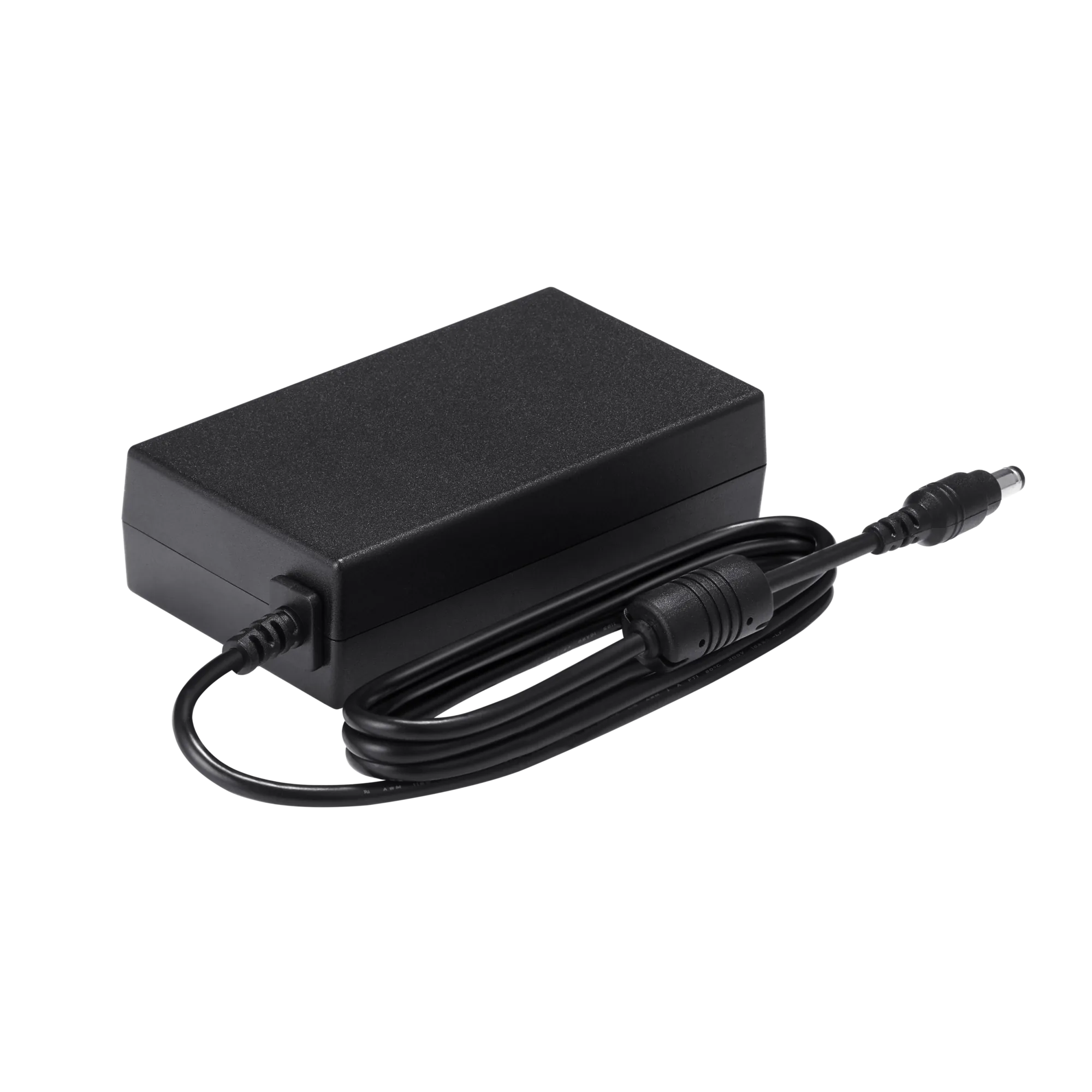

The SPU-60241 is a power adapter supplying DC 24V/2.5A at 60W. It is listed as compatible with SMT-3231PV/SMT-3221PV, SMT-2731PV/SMT-2721PV and SMT-1031PV/SMT-1031PVW. A power cord is included with the unit. No further technical values are published for this accessory. DC 24V/2.5A, 60W adapterCompatible with SMT-3231PV/SMT-3221PVCompatible with SMT-2731PV/SMT-2721PVCompatible with SMT-1031PV/SMT-1031PVWPower cord included

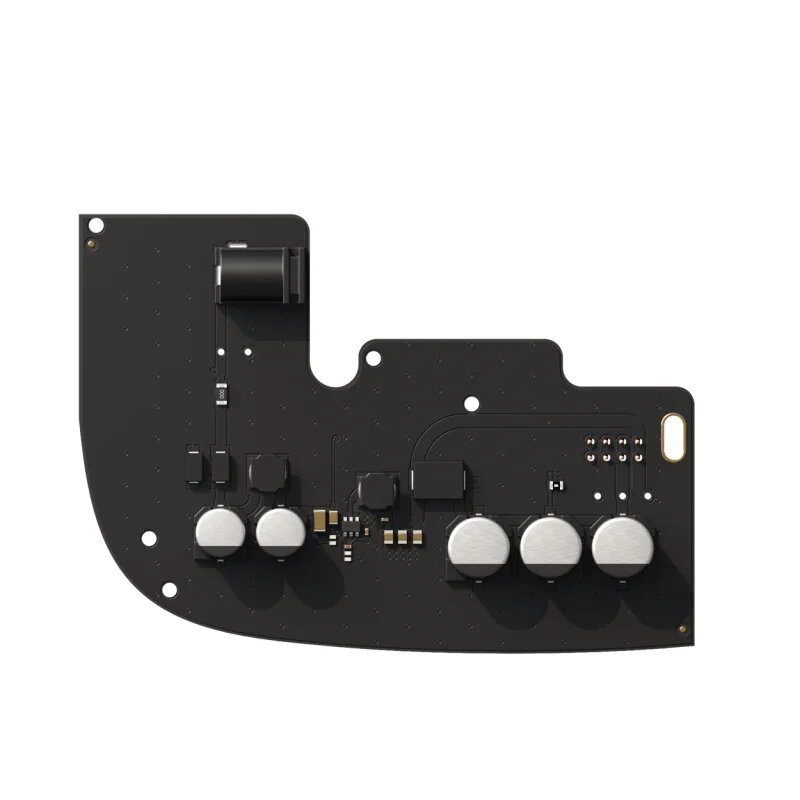

This power supply accepts a DC input between 12 and 24 V and feeds Hub 2, Hub 2 Plus and ReX 2. Its compact construction keeps the space requirement small and installation straightforward. Should the regular power source fail, the connected panel stays supplied. That also makes the unit usable in mobile or off-grid applications. 12-24 V DC inputcompatible with Hub 2, Hub 2 Plus and ReX 2compact constructionstraightforward installationprotection against power failurefor mobile and off-grid applications

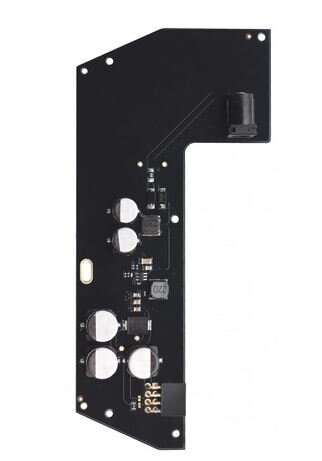

This AJAX power supply delivers 12 V and is intended for operating the Hub, Hub Plus and ReX. It allows the control units to be fed from low voltage, which the manufacturer names for vehicles or alternative energy sources among other cases. Installation is kept simple. The power supply protects the system against voltage fluctuations. Its form factor and performance are described as compact and reliable. 12 V power supplyCompatible with Ajax Hub, Hub Plus and ReXLow-voltage operationFor vehicles or alternative energy sourcesProtection against voltage fluctuationsCompact design

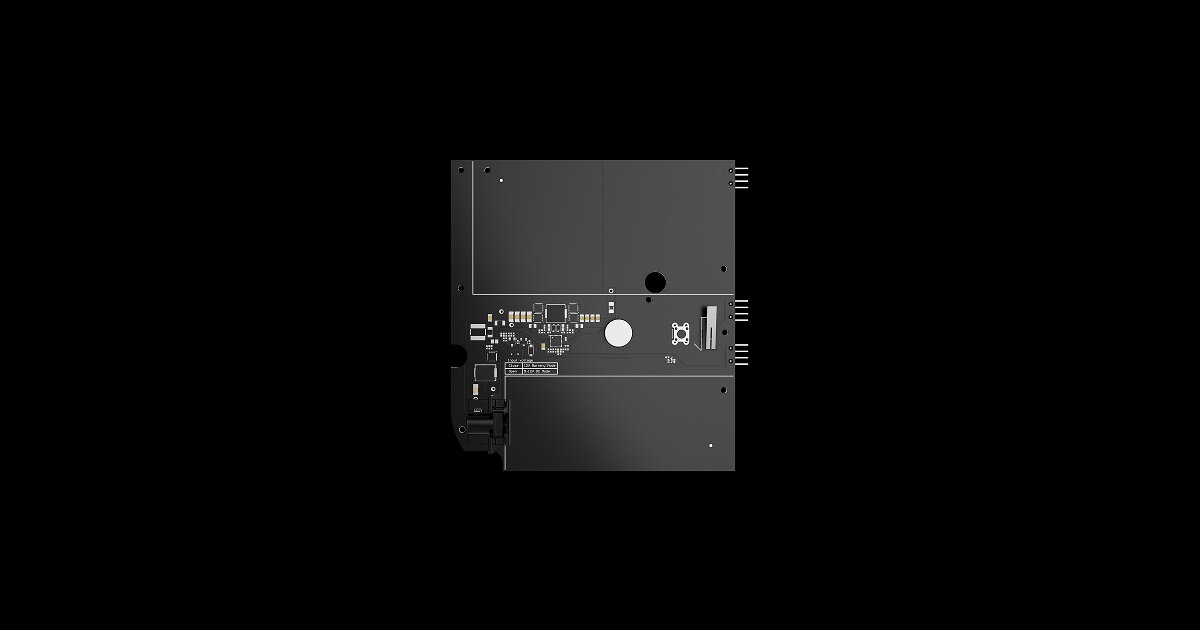

The board is fitted into the NVR enclosure in place of the bundled power supply board, so the NVR can run from a low-voltage source. Without an installed jumper the device operating voltage range is 8–16 V⎓, with a turn-on threshold of 8 V⎓ and a turn-off threshold of 6.5 V⎓; with the jumper installed the figures are 12.1–16 V⎓, 12.1 V⎓ and 10.35 V⎓, and maximum current consumption is up to 4 A in both cases. The output is rated 12 V⎓ ± 3%, with a current consumption of 110 μA when shut down, 65 mA quiescent and 2 A maximum. Power is connected through a 0.26″ × 0.08″ connector slot and a 0.22″ × 0.08″ connector, for cable cross-sections of AWG 12–14. The board measures 4.64″ × 4.84″ × 0.67″ and weighs 1.80 oz, carries protection class IP20 and operates from 32 °F to 104 °F at up to 75% humidity. Operating voltage 8–16 V⎓ without jumperOperating voltage 12.1–16 V⎓ with jumperOutput 12 V⎓ ± 3%, 2 A maximumMaximum current consumption up to 4 AProtection class IP20, 32 °F to 104 °FDimensions 4.64″ × 4.84″ × 0.67″, 1.80 oz

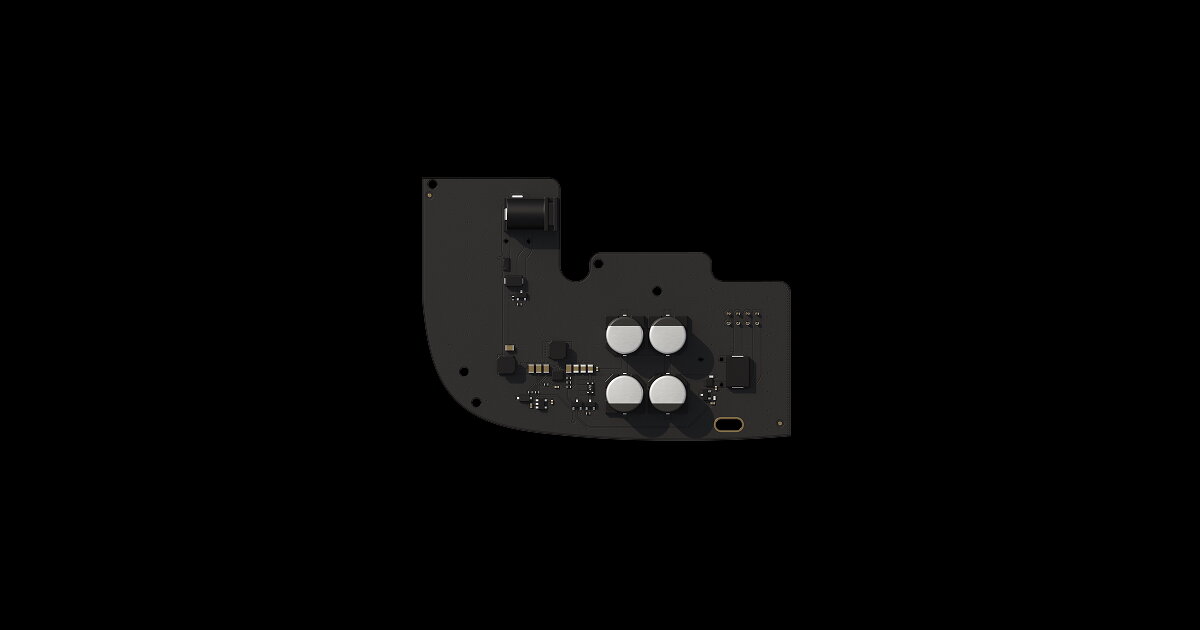

6V PSU is a power supply board for Hub 2, Hub 2 Plus and ReX. With it, the control panel can run from an external battery for years. 6 V power supply boardFor Hub 2, Hub 2 Plus and ReXOperation from an external battery

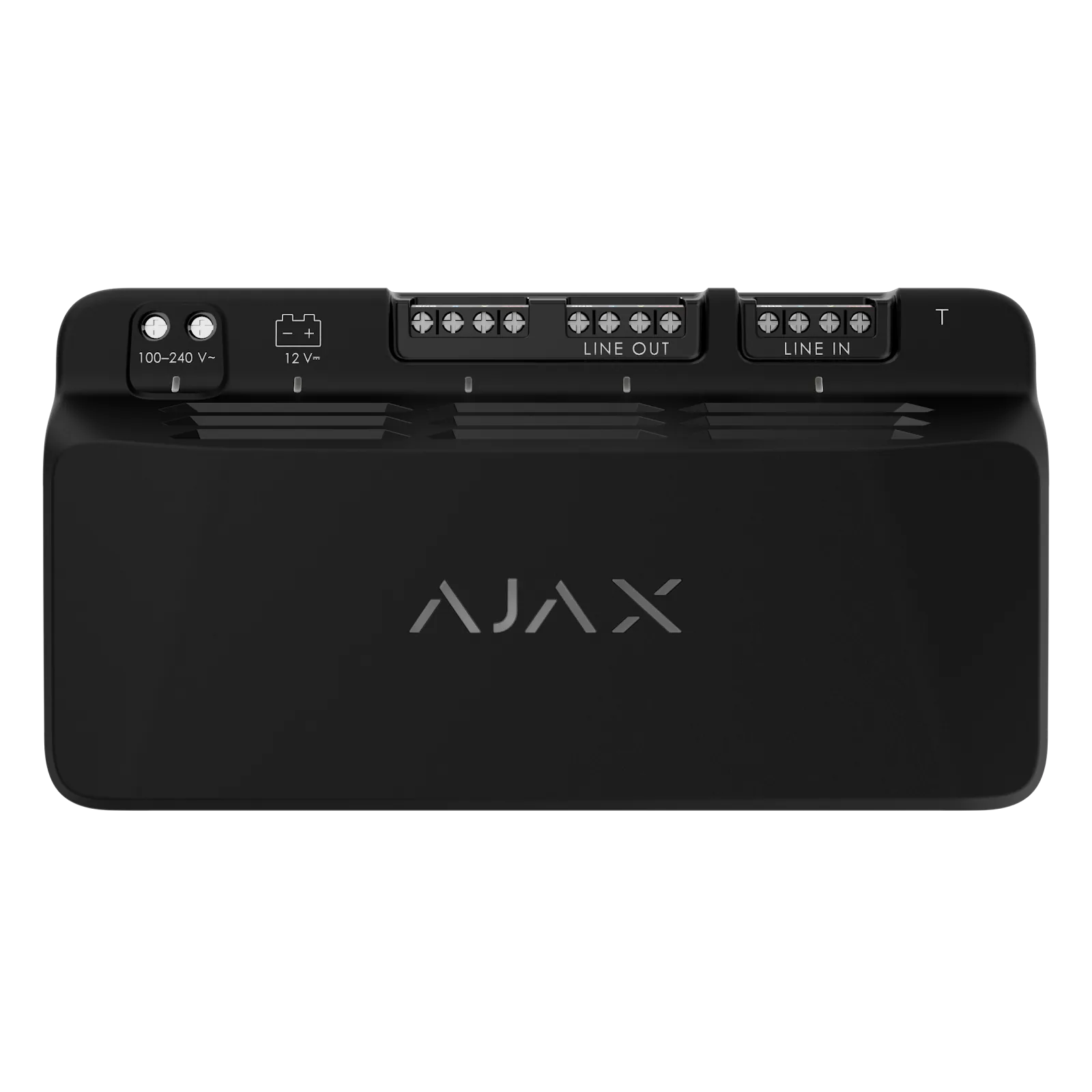

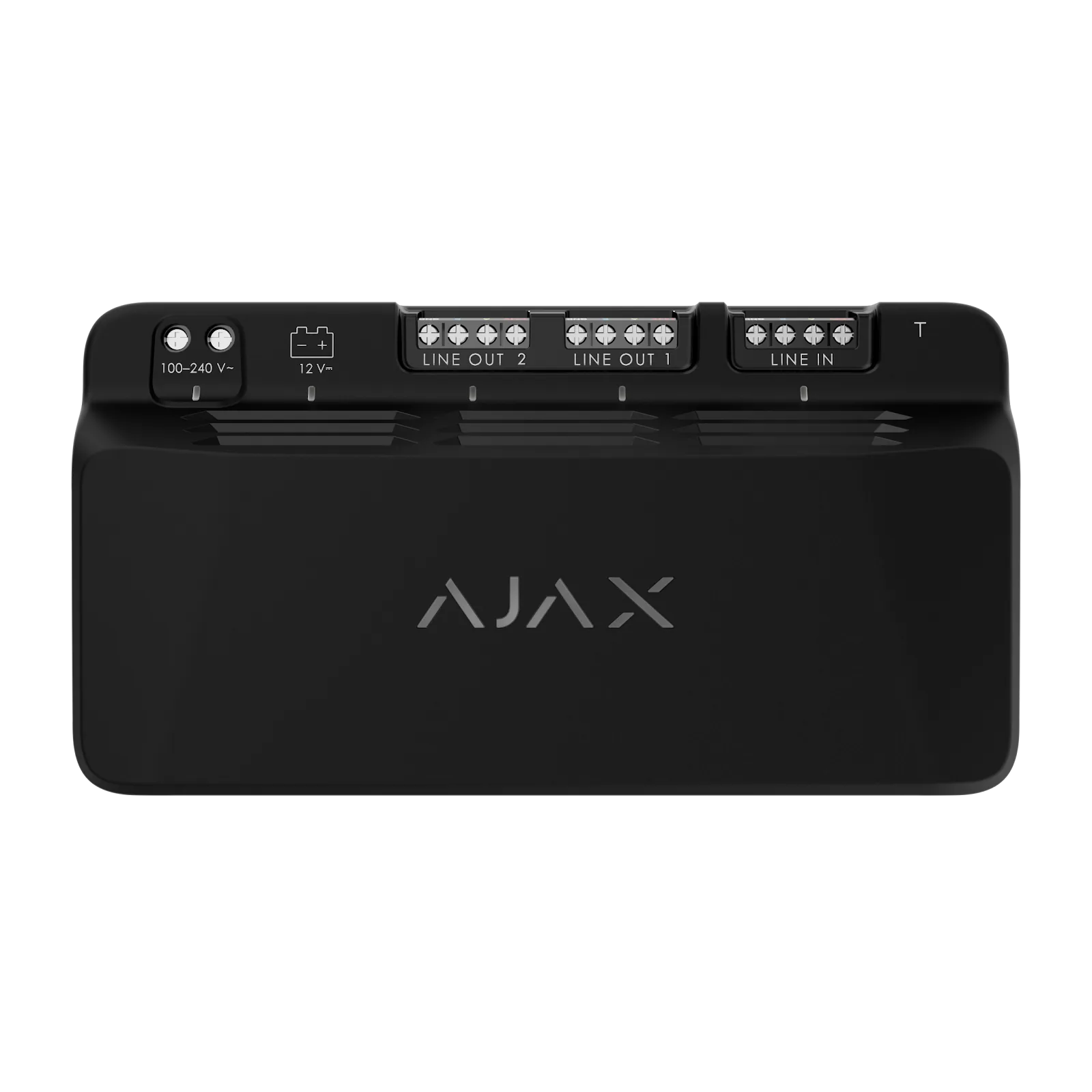

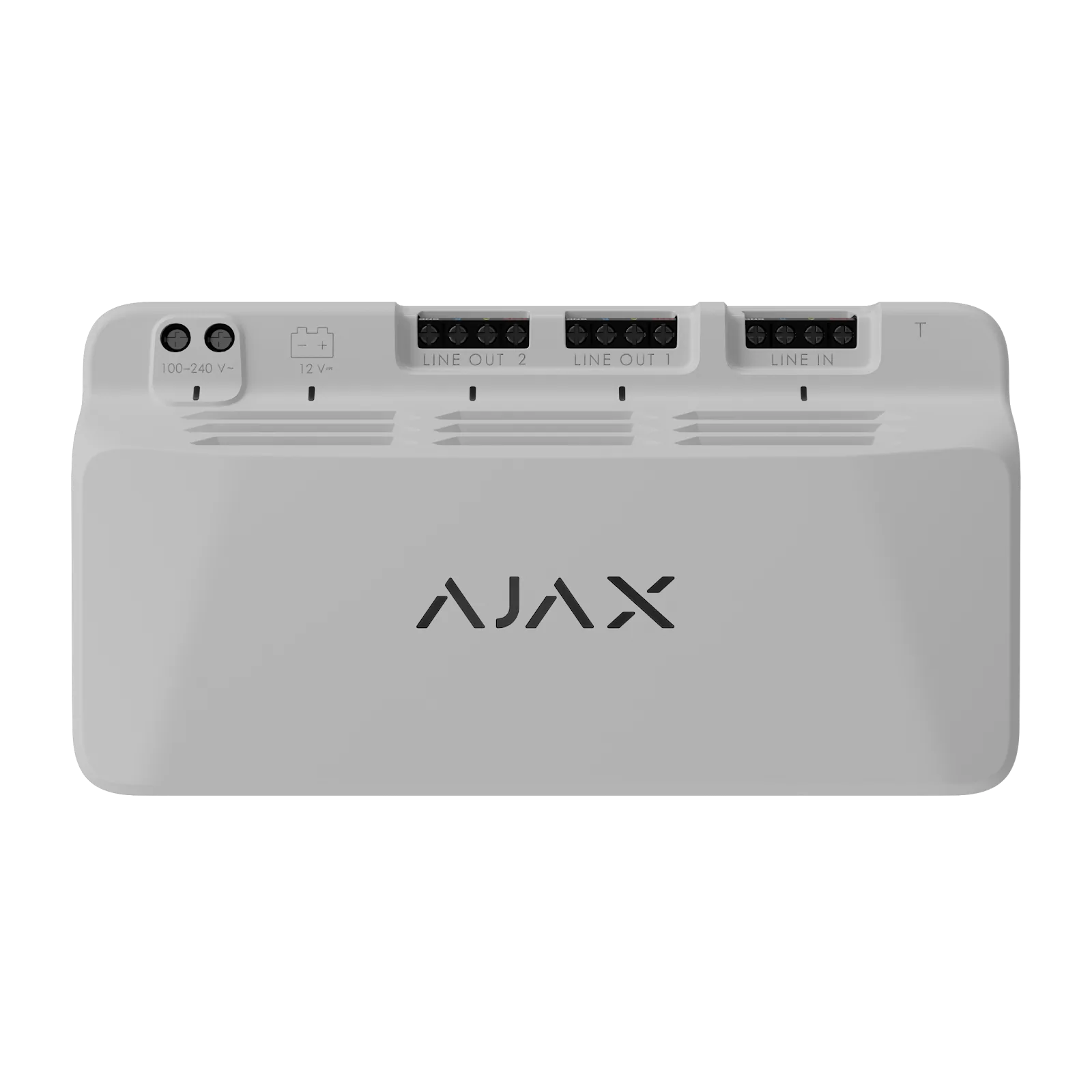

The Superior LineSupply Fibra adds power to security devices on a Fibra line and can be inserted at any point of that line. Wiring uses a 4-core cable, and the run between the module and the hub may reach up to 6,500 ft. Mains input is 100–240 V~, 50/60 Hz at a device nominal voltage of 12 V⎓, backed up by a 12 V⎓ battery with a capacity from 7 to 17 Ah that recharges to 80% within 24 hours. Power output amounts to 30 W per output line plus 15 W for charging the backup battery. Low battery voltage is 11.3 V⎓, recovery voltage 14.3 V⎓ and end-of-life voltage 10.5 V⎓, with a maximum peak-to-peak ripple of 5% compliant with EN 50131-6. Sabotage protection covers overvoltage on the Fibra signal lines, device authentication against spoofing and communication loss detection after 36 s. connection at any point of the Fibra line4-core cable, up to 6,500 ftmains supply 100–240 V~, 50/60 Hz12 V⎓ backup battery, 7 to 17 Ah30 W power output per output linecommunication loss detection after 36 s

The Superior LineSupply Fibra adds power to security devices on a Fibra line and can be inserted at any point of that line. Wiring uses a 4-core cable, and the run between the module and the hub may reach up to 6,500 ft. Mains input is 100–240 V~, 50/60 Hz at a device nominal voltage of 12 V⎓, backed up by a 12 V⎓ battery with a capacity from 7 to 17 Ah that recharges to 80% within 24 hours. Power output amounts to 30 W per output line plus 15 W for charging the backup battery. Low battery voltage is 11.3 V⎓, recovery voltage 14.3 V⎓ and end-of-life voltage 10.5 V⎓, with a maximum peak-to-peak ripple of 5% compliant with EN 50131-6. Sabotage protection covers overvoltage on the Fibra signal lines, device authentication against spoofing and communication loss detection after 36 s. connection at any point of the Fibra line4-core cable, up to 6,500 ftmains supply 100–240 V~, 50/60 Hz12 V⎓ backup battery, 7 to 17 Ah30 W power output per output linecommunication loss detection after 36 s

The NB internal battery provides 7.2 V at a capacity of 190 Ah using lithium technology. It is mounted inside a compatible Ajax enclosure. The unit comes in black and keeps a compact footprint. Long service life, safe power delivery and reliable operation define its design. Lithium technology7.2 V / 190 AhFits compatible Ajax enclosureCompact designBlack finish

Built on lithium technology, this internal RB battery delivers 6.4 V at 78 Ah. It is intended for installation in a compatible Ajax enclosure. A compact design and a blue finish characterise the unit. Its specification is aimed at a long service life, safe power delivery and reliable operation. Lithium technology6.4 V / 78 AhFor compatible Ajax enclosureCompact designBlue finish

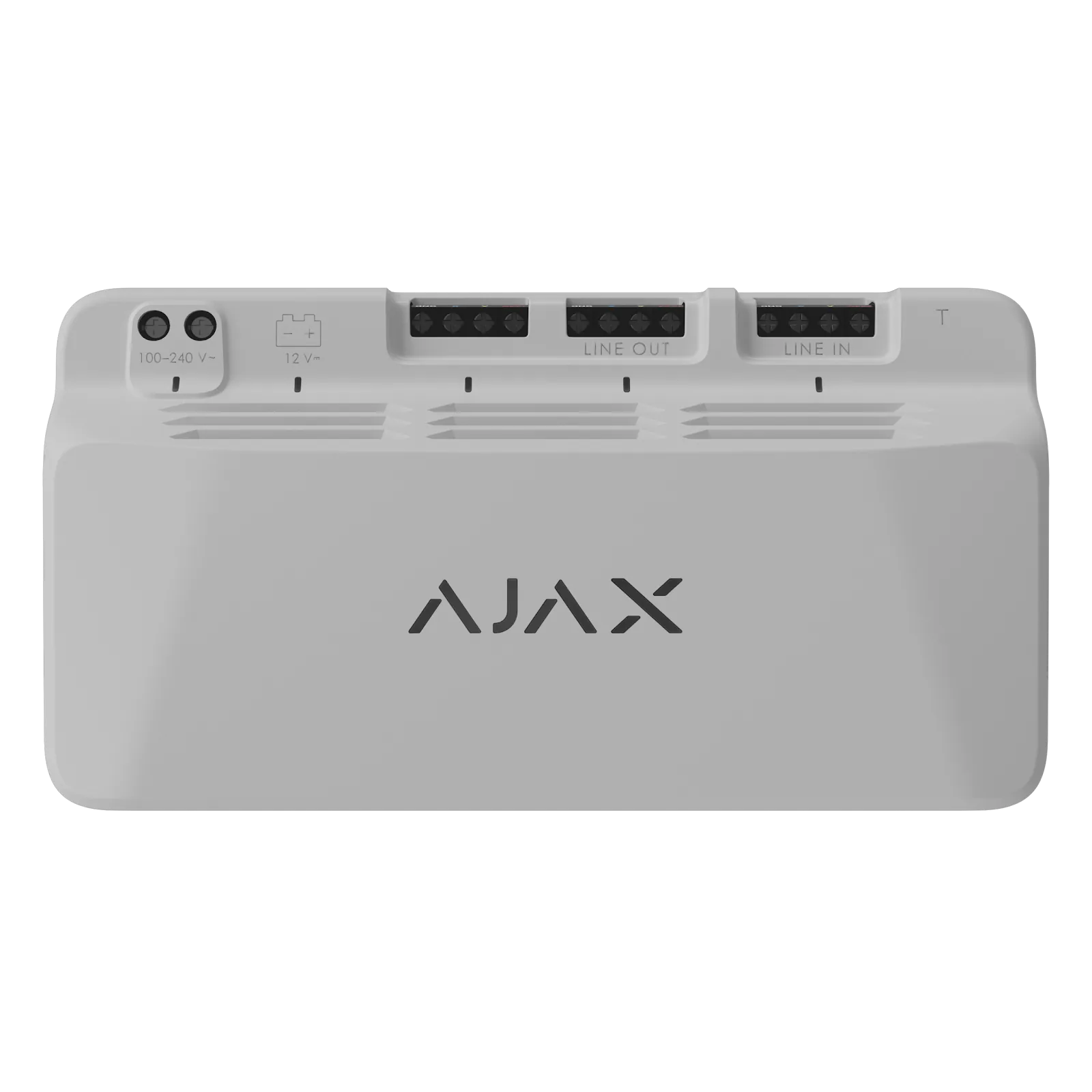

The module supplies additional power to security devices on the Fibra line and is wired in with a 4-core cable at any point of that line. Up to 6,500 ft are permitted between the module and the hub as well as between the module and the last Fibra device on each line, and one input line is provided. Mains supply is 100–240 V~, 50/60 Hz, with a device nominal voltage of 12 V⎓ and type A classification. Backup power comes from a 12 V⎓ battery of 7 to 17 Ah capacity, recharged to 80% in up to 24 hours; low battery voltage is 11.3 V⎓, recovery voltage 14.3 V⎓, end-of-life voltage 10.5 V⎓, and the minimum energy level in the charged state is 100%. Maximum peak-to-peak ripple battery voltage is 5%, compliant with EN 50131-6. Power output is 30 W per output line and 15 W for charging the backup battery, complemented by overvoltage protection on the Fibra signal lines, device authentication and communication loss detection after 36 s. Mains input 100–240 V~, 50/60 HzDevice nominal voltage 12 V⎓, type ABackup battery 12 V⎓ with 7 to 17 AhPower output 30 W per output lineOvervoltage protection on the Fibra signal linesRipple 5%, compliant with EN 50131-6

The module supplies additional power to security devices on the Fibra line and is wired in with a 4-core cable at any point of that line. Up to 6,500 ft are permitted between the module and the hub as well as between the module and the last Fibra device on each line, and one input line is provided. Mains supply is 100–240 V~, 50/60 Hz, with a device nominal voltage of 12 V⎓ and type A classification. Backup power comes from a 12 V⎓ battery of 7 to 17 Ah capacity, recharged to 80% in up to 24 hours; low battery voltage is 11.3 V⎓, recovery voltage 14.3 V⎓, end-of-life voltage 10.5 V⎓, and the minimum energy level in the charged state is 100%. Maximum peak-to-peak ripple battery voltage is 5%, compliant with EN 50131-6. Power output is 30 W per output line and 15 W for charging the backup battery, complemented by overvoltage protection on the Fibra signal lines, device authentication and communication loss detection after 36 s. Mains input 100–240 V~, 50/60 HzDevice nominal voltage 12 V⎓, type ABackup battery 12 V⎓ with 7 to 17 AhPower output 30 W per output lineOvervoltage protection on the Fibra signal linesRipple 5%, compliant with EN 50131-6

Buffered uninterruptible power supply with 12V DC output for backup power of small security devices. Integrated lithium-ion battery for uninterrupted operation even during a power failure.- Output voltage: 12V DC- Output power: 12W / 12VA- Backup capacity: 6 Wh lithium-ion battery- Runtime at full load: 25 minutes- Runtime at half load: 50 minutes- Input voltage: 90-264V AC, 50/60Hz automatic- Output connector: DC coaxial plug 5.5/2.5mm- LED status indicators for operating state- Voltage regulation in battery mode: ±5%- Charging time: 3h to 90%- Noise level: <30dB (fanless)- Operating temperature: 0°C to +40°C- Protection class: IP51- Dimensions: 74 x 68 x 42 mm- Weight: 200g

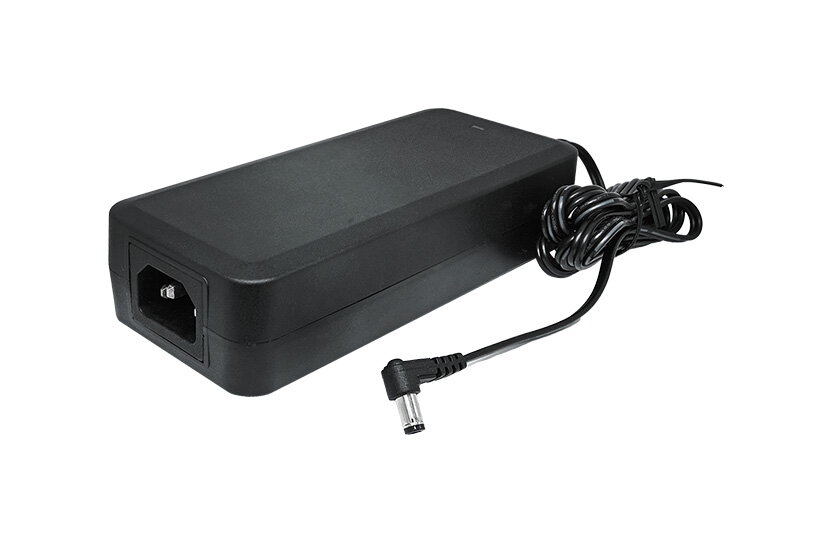

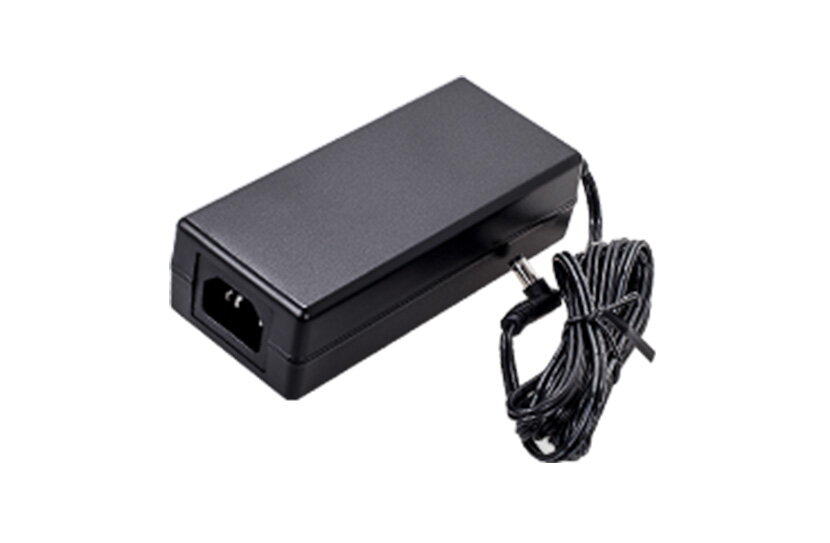

Power supply in desktop format for external mounting. Its input covers mains voltage from 100 to 240 V AC, and its output supplies 56 V DC rated at 120 W.

External power supply in desktop format. On the input side it takes mains voltage between 100 and 240 V AC; on the output side it provides 56 V DC rated at 65 W.

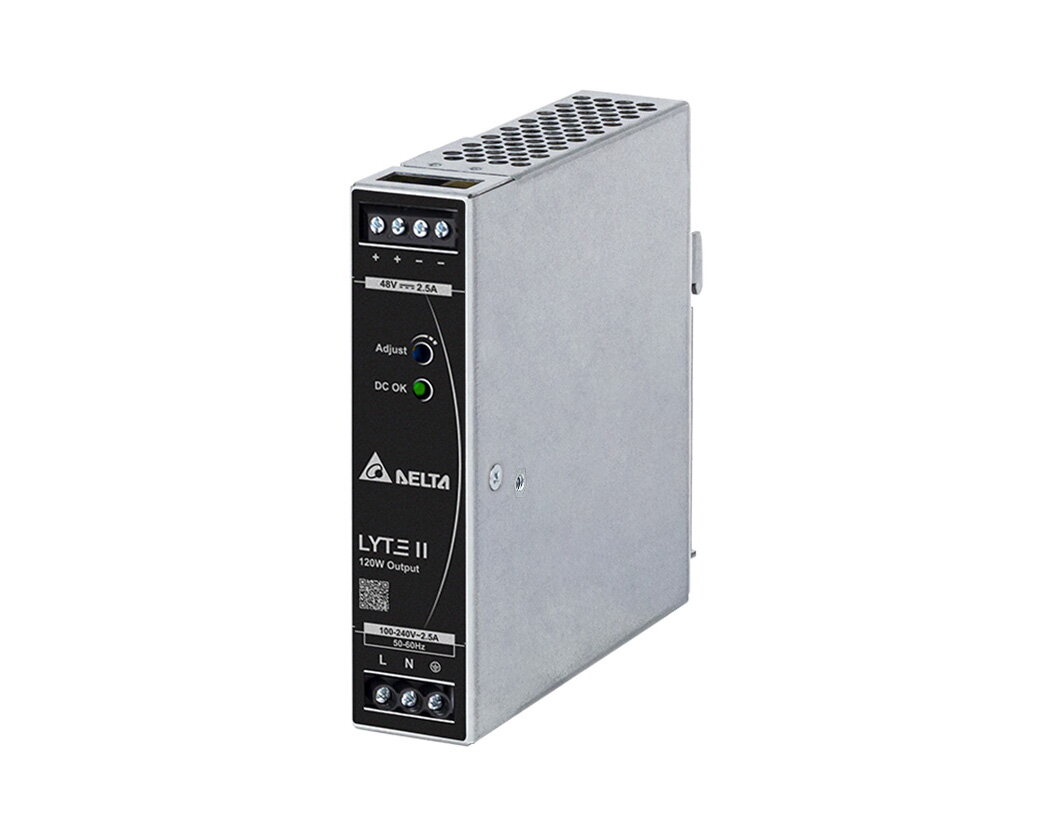

DIN-rail power supply matched to the AETEK H32, H36, D40, D42 and D60 series. It accepts 90 to 264 V AC at 47 to 63 Hz, drawing typically 2.1 A at 115 V AC and 1.3 A at 230 V AC. Output voltage adjusts between 43.2 and 52.8 V DC and the output current is 2.5 A. It runs from -40 °C to +70 °C at 20 to 90 % relative humidity, non-condensing, and measures 30 x 115.2 x 123.6 mm. Approvals: CE and UKCA, CB, UL, BIS, BSMI, EAC. Warranty is three years.

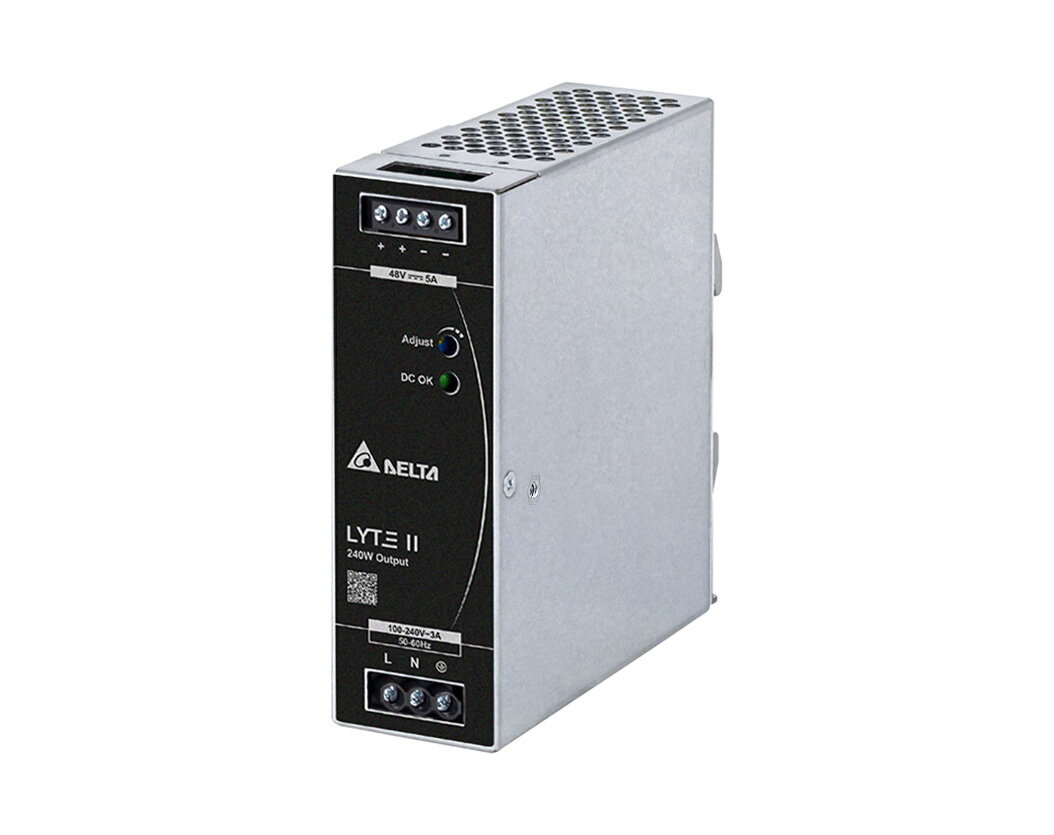

DIN-rail power supply rated 240 W maximum, matched to the AETEK H32, H36, D40, D42 and D60 series. The input takes 90 to 264 V AC at 47 to 63 Hz and draws typically 2.5 A at 115 V AC or 1.3 A at 230 V AC. Output current is 5 A, with the voltage adjustable from 43.2 to 52.8 V DC. Operating range is -30 °C to +70 °C at 20 to 90 % relative humidity, non-condensing. It measures 40 x 123.4 x 123.6 mm and holds CE, UKCA, CB, TUV, UL, BIS and BSMI approvals. Three-year warranty.

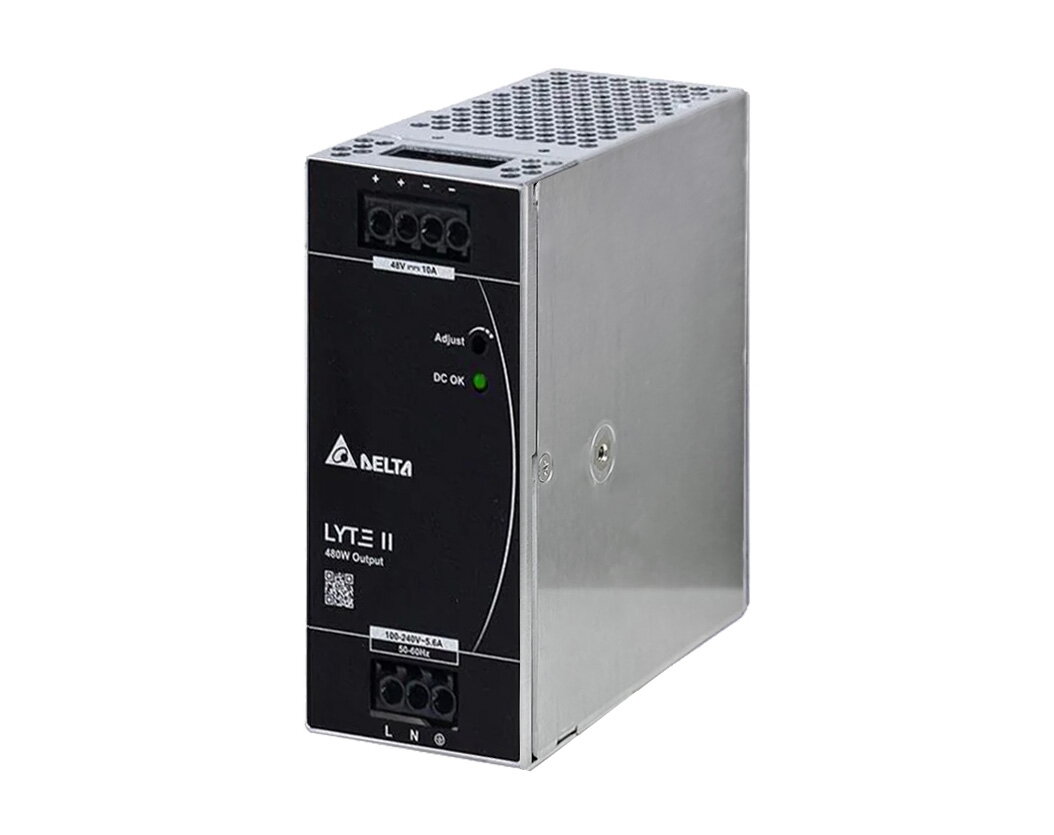

DIN-rail power supply rated 480 W maximum for the AETEK H32, H36, D40, D42 and D60 series. Its wide-range input covers 90 to 264 V AC at 47 to 63 Hz and draws typically 4.7 A at 115 V AC or 2.4 A at 230 V AC. The output provides 10 A at a voltage adjustable between 48 and 55 V DC. Operating range is -40 °C to +70 °C at 20 to 95 % relative humidity, non-condensing. It measures 56 x 123.4 x 123.6 mm and carries CE, UKCA, CB, TUV, UL, EAC and BSMI approvals. Three-year warranty.

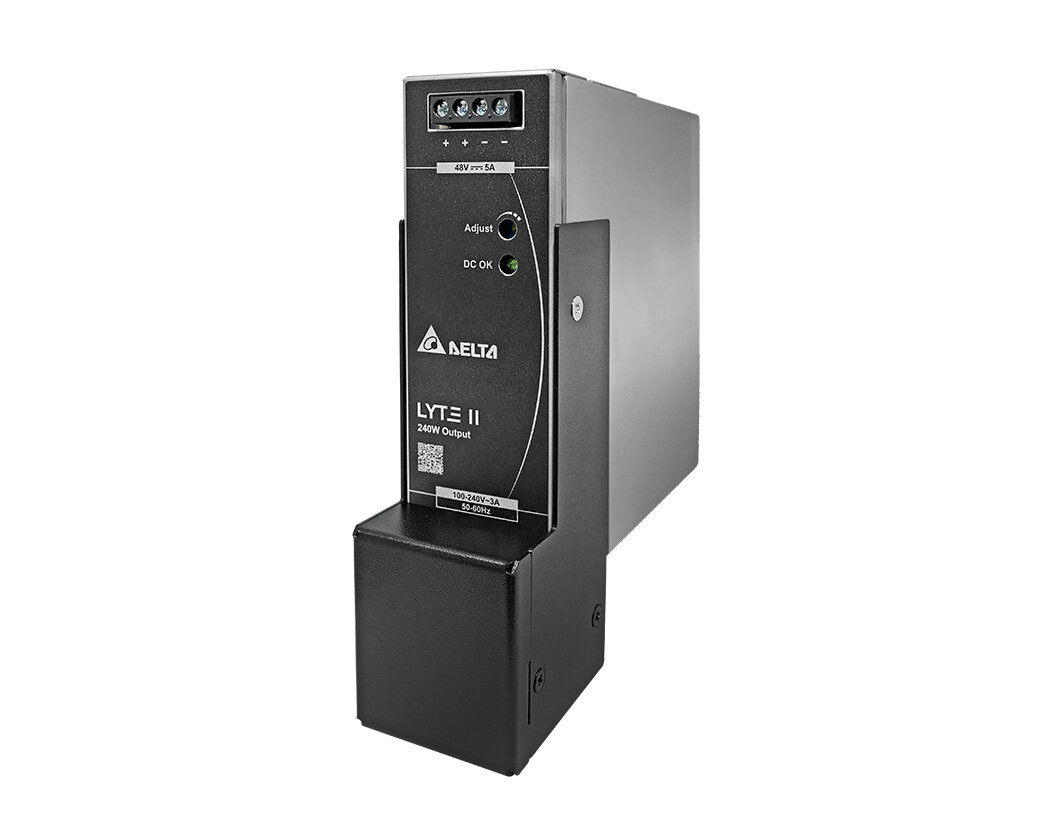

DIN-rail power supply with a built-in AC socket, rated 240 W maximum and matched to the AETEK H32, H36, D40, D42 and D60 series. The mains lead plugs straight in rather than landing on terminals. Input is 90 to 264 V AC at 47 to 63 Hz, drawing typically 2.5 A at 115 V AC and 1.3 A at 230 V AC; the output supplies 5 A at a voltage adjustable between 43.2 and 52.8 V DC. Operating range -30 °C to +70 °C, 20 to 90 % relative humidity, non-condensing. Dimensions 42.1 x 135.2 x 159 mm. CE, UKCA, CB, TUV, UL, BIS and BSMI approvals, three-year warranty.

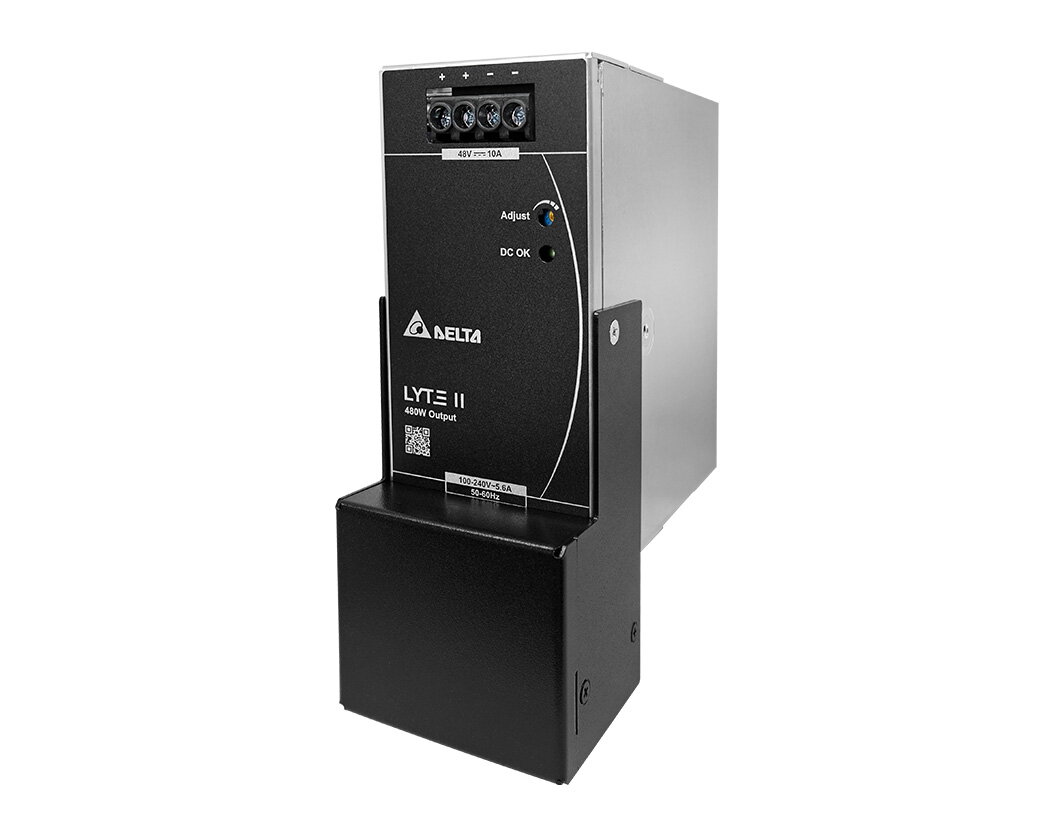

DIN-rail power supply with an AC socket, rated 480 W maximum and intended for the AETEK H32, H36, D40, D42 and D60 series. The mains lead plugs in directly instead of landing on terminals. Input covers 90 to 264 V AC at 47 to 63 Hz, drawing typically 4.7 A at 115 V AC and 2.4 A at 230 V AC. The output gives 10 A at a voltage adjustable from 48 to 55 V DC. It runs between -40 °C and +70 °C at 20 to 90 % relative humidity, non-condensing, and measures 58.1 x 135.2 x 159 mm. Approvals: CE, UKCA, CB, TUV, UL, EAC, BSMI. Three-year warranty.

Commercial Grade Desktop Power Supply, 24V Output, 60W (2.5A), 2.1mm DC Plug, UK Power Plug. Compatible with TNS-9040IBC, TNS-9050IBC, TNS-9060IBC

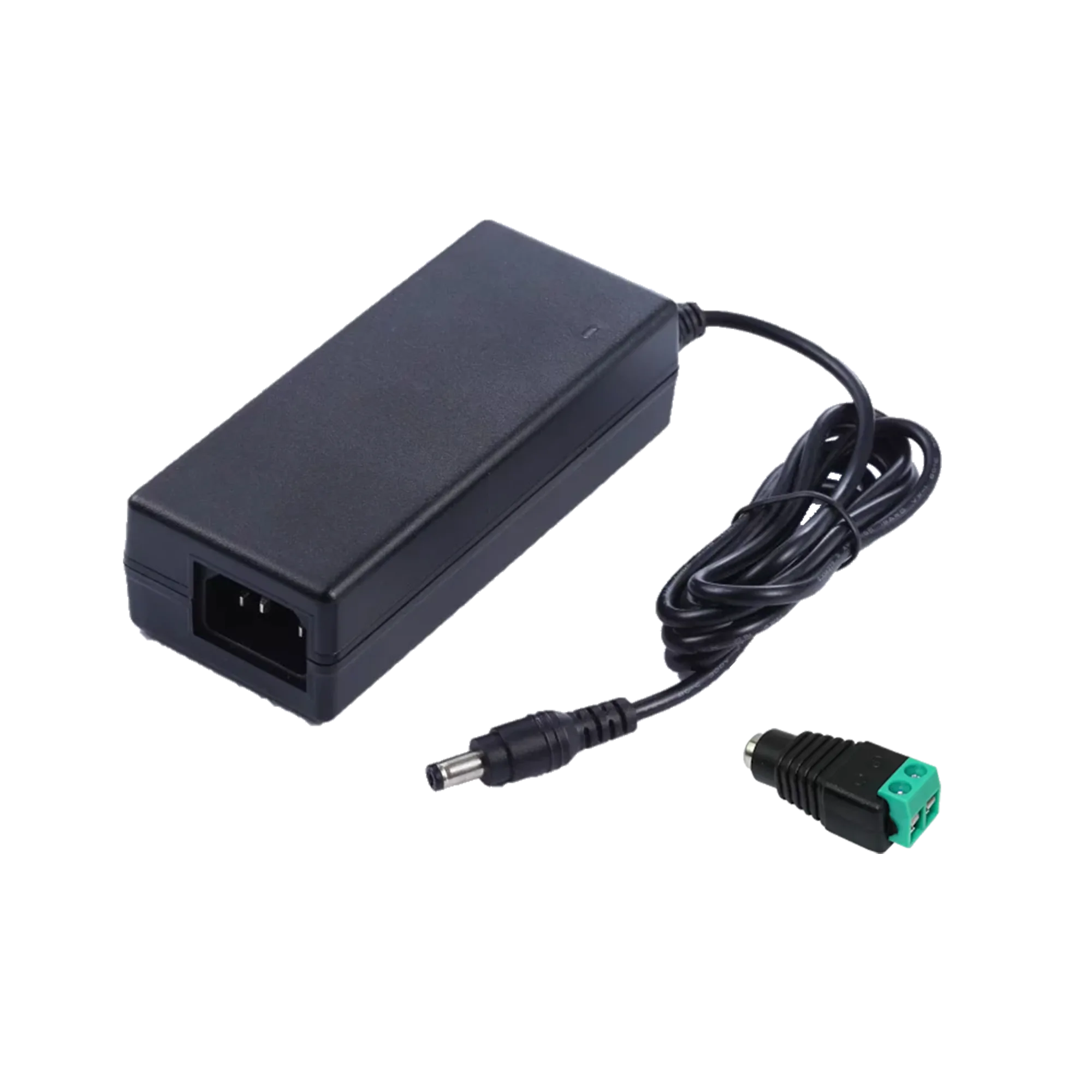

The SNC-PS-60-EU is a power supply unit with an EU plug, intended to feed barcode reader cameras. It provides a 24 VDC output rated at 60 W, equivalent to 2.5 A, and reaches a typical efficiency of up to 84 percent. Its compact format suits confined installation spaces, and the desktop housing is quick to commission using industry standard IEC mains cables. Output short circuit protection and over current protection are included as standard. Safety approvals are stated as EN62368 and UL. Supplied with the unit are an EU power cord and an adapter from a 2.1 mm female DC plug to a two-pin screw terminal. 24 VDC output, 60 W (2.5 A)Typical efficiency up to 84 percentShort circuit and over current protectionEN62368 and UL safety approvedDesktop housing for IEC mains cablesEU power cord and screw terminal adapter included

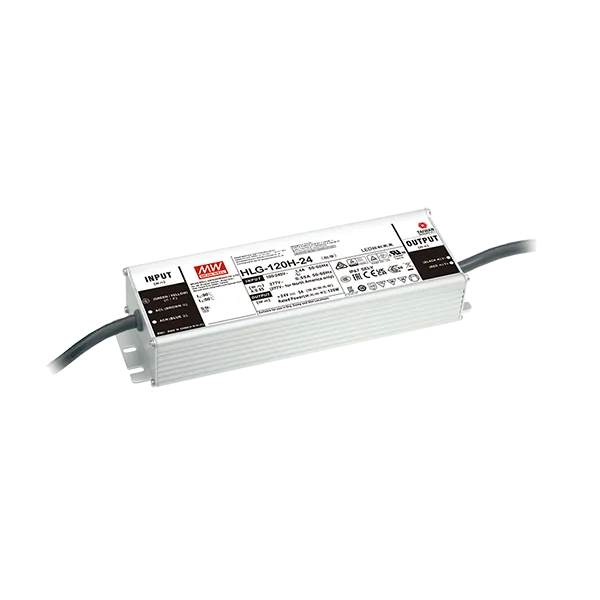

With 24VDC at the output and 5A of output current, the HLG-120H-24 covers the 120W class. Maximum output power is 120W. On the input side this single output switching power supply runs on 90~305VAC at 47~63 Hz, drawing 1.4A at 115VAC or 0.6A at 230VAC. The operating temperature range extends from -40°C to +80°C at 20 to 90% RH, non-condensing. The enclosure measures 220 (L) x 68 (W) x 38.8(H) mm, and the certifications on record are CE/CB/TUV/UL/BIS/PSE/KC/EAC. 120W single output switching power supply24VDC output at 5A120W max output powerInput 90~305VAC, 47~63 HzOperating temperature -40°C to +80°CCE/CB/TUV/UL/BIS/PSE/KC/EAC

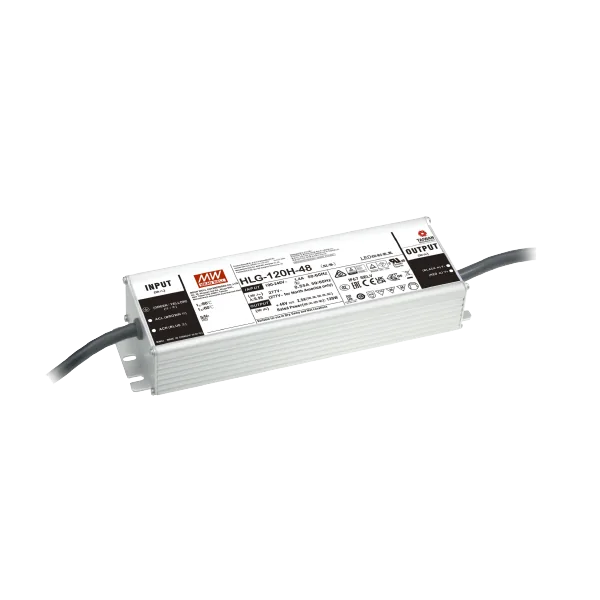

The HLG-120H-48 is a 120W class single output switching power supply. Its wide input takes 90~305VAC at 47~63 Hz, drawing 1.4A at 115VAC and 0.6A at 230VAC. The output provides 48VDC at 2.5A, with maximum output power of 120W. Operation is cleared from -40°C to +80°C at 20 to 90% RH, non-condensing. The enclosure measures 220 (L) x 68 (W) x 38.8(H) mm and certifications include CE/CB/TUV/UL/BIS/PSE/KC/EAC. 120W single output switching power supplyInput 90~305VAC, 47~63 Hz48VDC output at 2.5A120W max output powerOperating temperature -40°C to +80°CCE/CB/TUV/UL/BIS/PSE/KC/EAC

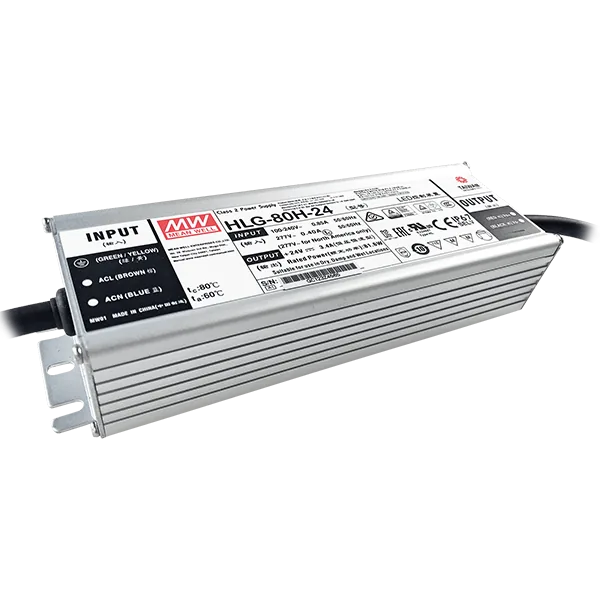

The HLG-80H-24 delivers 24VDC and belongs to the 80W class of single output switching power supplies. Its input handles 90~305VAC at 47~63 Hz, drawing 0.85A at 115VAC or 0.425A at 230VAC. Output current is 3.4A and maximum output power is 81.6W. Operation from -40°C to +80°C at 20 to 90% RH, non-condensing, is permitted. Dimensions are 195.6 (L) x 61.5 (W) x 38.8(H) mm, and the supply is certified to CE/CB/TUV/UL/BIS/PSE/KC/EAC. 80W single output switching power supplyInput 90~305VAC, 47~63 Hz24VDC output at 3.4A81.6W max output power195.6 x 61.5 x 38.8 mm enclosureCE/CB/TUV/UL/BIS/PSE/KC/EAC
