Video management

The SMT-1031PV is a public view monitor in black that combines a 10-inch LED panel with a built-in 2 MP AI camera (f1.6). The display runs at 1024x600, delivers 500 cd/m2 with a 500:1 contrast ratio in 16:9, renders 16.7 million colours, responds in 20 ms and is rated for 50,000 hours; viewing angles are 140 degrees horizontal and 120 degrees vertical. AI analytics classify objects, a face detection box is shown on screen, and motion or event triggers activate the LED and audio alarm. Operators can add a customisable text overlay defaulting to "Recording in progress", an on-screen logo image and an image slide show that needs no additional storage. Integration uses SUNAPI and ONVIF Profile S/G/T/M over one RJ-45 10/100BASE-T port, with one alarm input, one alarm output and a micro SD/SDHC/SDXC slot up to 256 GB; the two speakers are rated 8 ohm 1 W each. Power comes from DC24V or PoE+ per 802.3at at 14 W, and the unit operates from 0 to +40 C at 10 to 80 percent non-condensing humidity. 10-inch LED panel at 1024x600Built-in 2 MP AI camera, f1.6AI object classification and face detection boxSUNAPI and ONVIF Profile S/G/T/MDC24V or PoE+ 802.3at, 14 WMicro SD slot up to 256 GB

The SMT-1031PV is a public view monitor in white that combines a 10-inch LED panel with a built-in 2 MP AI camera (f1.6). The display runs at 1024x600, delivers 500 cd/m2 with a 500:1 contrast ratio in 16:9, renders 16.7 million colours, responds in 20 ms and is rated for 50,000 hours; viewing angles are 140 degrees horizontal and 120 degrees vertical. AI analytics classify objects, a face detection box is shown on screen, and motion or event triggers activate the LED and audio alarm. Operators can add a customisable text overlay defaulting to "Recording in progress", an on-screen logo image and an image slide show that needs no additional storage. Integration uses SUNAPI and ONVIF Profile S/G/T/M over one RJ-45 10/100BASE-T port, with one alarm input, one alarm output and a micro SD/SDHC/SDXC slot up to 256 GB; the two speakers are rated 8 ohm 1 W each. Power comes from DC24V or PoE+ per 802.3at at 14 W, and the unit operates from 0 to +40 C at 10 to 80 percent non-condensing humidity. 10-inch LED panel at 1024x600Built-in 2 MP AI camera, f1.6AI object classification and face detection boxSUNAPI and ONVIF Profile S/G/T/MDC24V or PoE+ 802.3at, 14 WMicro SD slot up to 256 GB

The N1651 is a portable monitor with a 15.6 inch OLED panel and 4K resolution. Viewing angles are 170°/170°, contrast is 100000:1 and brightness is quoted as 350~499 cd/㎡, with a blue light filter included. The surface uses a glare finish with 3H hard coating and AF treatment, giving a reflection rate below 1% and haze under 2%. Two Type-C ports with PD 60W and one Mini HDMI 1.4 input handle connectivity, and two 1 W speakers are built in. Power comes from an external supply at 5-20V, 3A, drawing 11W in on mode and less than 0.5W in standby. The housing is rated IK03, the unit weighs 0.7 kg, and approvals cover CE, LVD, FCC, ICES-003 Issue 7, WEEE, RoHS, REACH and BSMI. 15.6 inch OLED panel100000:1 contrast, 350~499 cd/㎡170°/170° viewing anglesTwo Type-C ports (PD 60W)Mini HDMI 1.4 input0.7 kg, IK03 rated

The QRN-1630S records up to 16 network cameras at resolutions from CIF to 8 MP and speaks both SUNAPI and ONVIF. Recording uses H.265, H.264 or MJPEG at a maximum of 128 Mbps, with playback bandwidth of up to 32 Mbps. Two SATA bays take a combined 20 TB and individual drives of up to 10 TB. Sixteen PoE ports (LAN, 10/100) plus a PoE connection on the WAN side at 1 Gbps bring cameras online by plug and play. Locally HDMI1 outputs 3840x2160 at 30 Hz and HDMI2 1920x1080 at 60 Hz, and simultaneous playback covers up to 40 channels, 16 locally and 8 per remote user across a maximum of four users. The embedded Linux system supports ARB and P2P connection by QR code. Up to 16 channels, 8 MP down to CIFRecording bandwidth max. 128 Mbps, playback 32 Mbps16 PoE ports (LAN, 10/100) and PoE on WAN at 1 GbpsTwo SATA bays, 20 TB combinedHDMI1 at 3840x2160 30 Hz, HDMI2 at 1920x1080ARB and P2P connection by QR code

The XRN-1620SB1 records up to 16 network cameras with resolutions from CIF to 32MP, integrating them over SUNAPI and ONVIF. Recording is performed in H.265, H.264 and MJPEG at up to 140Mbps, and playback reaches 32Mbps across a maximum of 64 simultaneous channels split into 16 local and 16 per remote user. Local viewing supports two FHD monitors over HDMI and VGA or one UHD monitor over HDMI, together with dynamic layout and virtual channel view. Events can be triggered by alarm inputs, video loss, camera events such as sensor, motion detection, video analytics, defocus and audio, as well as dynamic and user events, with actions including e-mail, event push, PTZ preset, alarm out, buzzer, monitor out and FTP. Storage uses four SATA bays for up to 24TB with drives of up to 6TB, and the unit runs on embedded Linux. Up to 16 channels, CIF to 32MPMax. 140Mbps recording bandwidth4 SATA bays, up to 24TBDrives up to 6TBSUNAPI and ONVIFTime, event, text and smart search

The XRN-1620B2 is a network video recorder for up to 16 channels that connects cameras from CIF to 32MP over SUNAPI and ONVIF. Recording uses H.265, H.264 and MJPEG at a bandwidth of up to 140Mbps, while playback runs at up to 32Mbps across a maximum of 64 simultaneous channels, comprising 16 local and 16 per remote user. Locally the unit drives two FHD monitors via HDMI and VGA or a single UHD monitor via HDMI, with dynamic layout and virtual channel view available. Recording modes include normal, dual stream, schedule, event with pre- and post-recording and bookmarks, triggered by alarm inputs, video loss, camera events and dynamic events, so new camera functions can be used without a software update. AI search becomes available when Wisenet AI cameras are deployed; storage is provided by eight SATA bays for up to 80TB with drives of up to 10TB, and the recorder runs embedded Linux. Up to 16 channels, CIF to 32MPMax. 140Mbps recording bandwidthH.265, H.264, MJPEG8 SATA bays, up to 80TBAI search with Wisenet AI camerasDynamic events without software update

The HRX-1635 takes 16 analog channels over BNC (1Vp-p, 75ohm) and handles AHD, HDTVI, HDCVI, CVBS and IP signals of up to 8MP, with two extra network channels bringing the total to 18. Network cameras connect through SUNAPI (Wisenet) and ONVIF at resolutions from 8MP to CIF. Recording is done in H.265, H.264 or MJPEG at a maximum of 128Mbps in normal, dual stream, schedule, event or bookmark mode, with analog rates of 8/8fps at 8MP and 12/12fps at 5MP. Eight SATA bays accept drives of up to 6TB each for a maximum of 48TB. Playback reaches 32Mbps across 18 simultaneous channels for up to four users (1 local, 3 remote) and is displayed via 1 x HDMI and 1 x VGA in dual monitor mode. Events can trigger e-mail, event push, PTZ preset, alarm out, buzzer, monitor out, FTP, a SUNAPI command or shutdown, and backups are stored as recorder, SEC or AVI files. 16 analog channels, 18 channels in totalAHD, HDTVI, HDCVI, CVBS and IP inputs up to 8MPEight SATA bays, maximum 48TBH.265, H.264 and MJPEG at up to 128MbpsCoaxial control and smart search for network cameras18-channel playback at up to 32Mbps

The HRX-1634 is a pentabrid recorder with 16 analog BNC inputs (1Vp-p, 75ohm) that accepts AHD, HDTVI, HDCVI and CVBS signals up to 8MP and expands by two network channels to 18 channels in total. Network cameras are integrated over SUNAPI (Wisenet) and ONVIF at resolutions from 8MP down to CIF. Recording uses H.265, H.264 or MJPEG at up to 128Mbps in normal, dual stream, schedule, event or bookmark mode, with analog rates of 8/8fps at 8MP, 12/12fps at 5MP, 15/12fps at 4MP and 30/25fps at 2MP. Event actions include e-mail, event push, PTZ preset, alarm out, buzzer, monitor out, FTP, SUNAPI command and shutdown. Playback runs at up to 32Mbps across 18 channels simultaneously for a maximum of four users (1 local, 3 remote), shown on 1 x HDMI and 1 x VGA in dual monitor mode. Two SATA bays take drives of up to 6TB for a maximum of 12TB, and backups are written as recorder, SEC or AVI files. 16 analog channels, 18 channels in totalAHD, HDTVI, HDCVI, CVBS and IP inputs up to 8MPH.265, H.264 and MJPEG at up to 128MbpsTwo SATA bays, maximum 12TBCoaxial control and smart search for network cameras1 x HDMI and 1 x VGA dual monitor output

The ARN-1610S is a network video recorder for up to 16 channels at resolutions from CIF to 8 megapixel, connected through SUNAPI and ONVIF. Sixteen PoE ports take the cameras directly for plug and play setup, and recording bandwidth reaches a maximum of 80Mbps in H.265, H.264 and MJPEG. Two SATA bays accept hard disks of up to 6TB each for a maximum of 12TB. The embedded Linux system drives a local monitor over HDMI and VGA in clone mode and serves up to four users, one local and three remote, at up to 32Mbps playback bandwidth. Event triggers such as alarm input, video loss and camera events, actions including e-mail, event push, PTZ preset, alarm out, buzzer and monitor out, smart search and P2P access by QR code for Wisenet Viewer and Wisenet Mobile are all supported. Up to 16 channels, CIF to 8MP16 PoE ports with plug and playRecording bandwidth up to 80Mbps2 SATA bays, up to 6TB per driveHDMI and VGA local monitor outputP2P QR code access for Wisenet Viewer and Wisenet Mobile

The SPE-1630 is a video encoder with 16 BNC inputs (1.0 Vp-p / 75Ω composite NTSC/PAL) that auto-detects CVBS as well as AHD, CVI and TVI at 1, 2, 4 and 5MP. Encoding uses H.265, H.264 (MPEG-4 Part 10/AVC, Main/Baseline/High) and MJPEG with up to 3 profiles per channel; the main stream reaches 12fps/CH at 5MP, 15fps/CH (N) or 12fps/CH (P) at 4MP, and 30fps/CH (N) or 25fps/CH (P) for 1080p, 720p, WD1, 4CIF and CIF. Bitrate for H.265 and H.264 can be run as CBR or VBR, and audio is compressed as G.711 u-law. Operational functions include motion detection, privacy masking with four rectangular zones, de-interlacing, 16 alarm inputs and 4 alarm outputs (1 NO/COM/NC, 3 NO/COM), plus 4 line inputs and 1 line output; alarms are reported by FTP file upload or e-mail. Remote control runs over 1x RS-485 (half duplex) with SAMSUNG-T and PELCO-P/D as well as coaxial control, and the network side offers 1 RJ-45 10/100/1000 Base-T with IPv4 and IPv6. One HDMI output shows 16 images at 1920x1080. 16 BNC inputs, CVBS/AHD/CVI/TVI auto detectionH.265, H.264 and MJPEGUp to 3 profiles per channel16 alarm inputs, 4 alarm outputs1 RJ-45 10/100/1000 Base-T, IPv4 and IPv6HDMI output with 16 images at 1920x1080

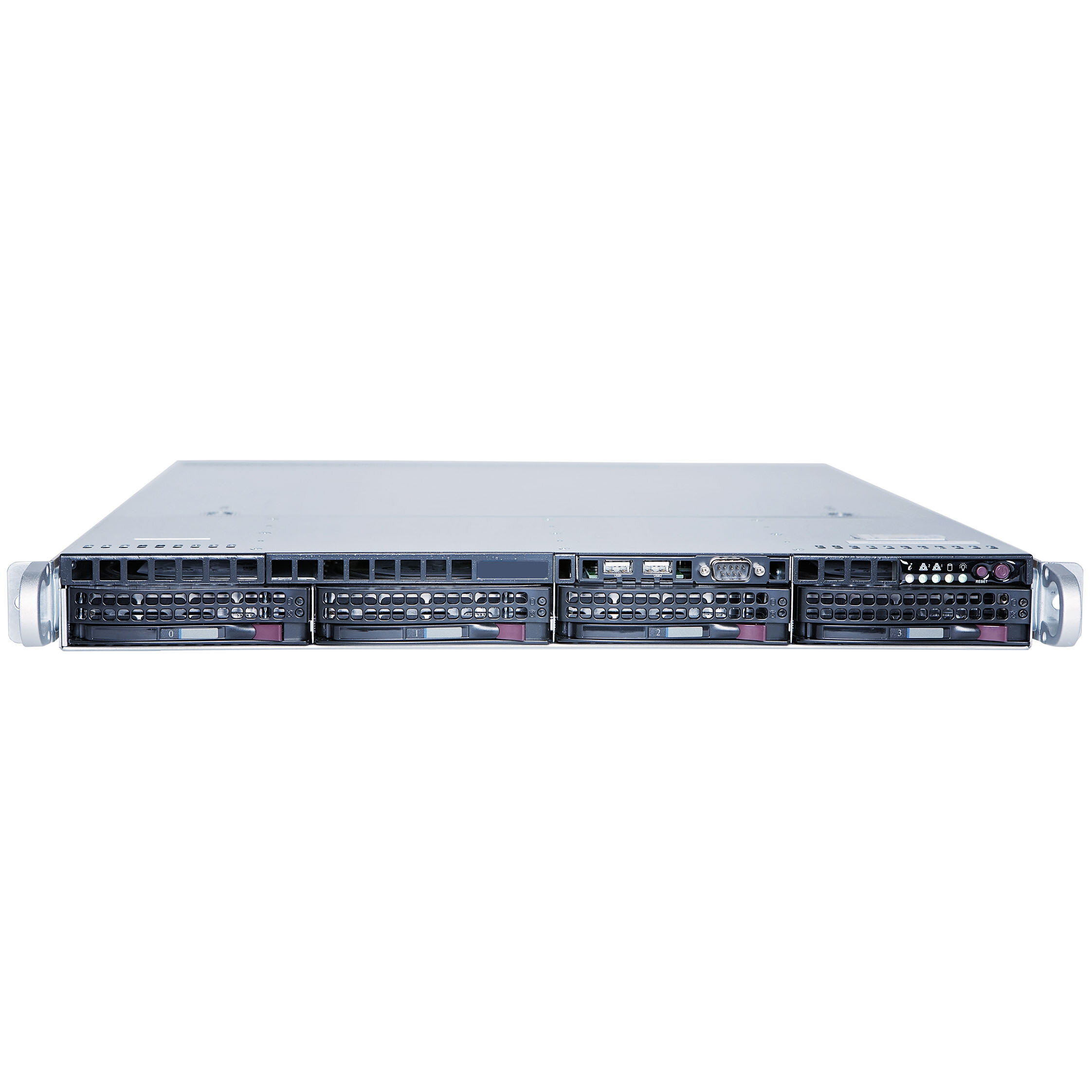

The 1U-MSERVER acts as the SSM management server and is built as an enterprise grade machine, soak tested for continuous 24x7 duty. Its operating system ships pre-installed together with the current security updates. A redundant power supply and RAID across the system drives back up availability, while IPMI takes care of remote administration. A rack-mount kit plus a keyboard and mouse set are included to simplify installation. The stated warranty covers five years with next business day response. SSM management serverBuilt and soak tested for 24x7 operationRedundant power supply, RAID on system drivesIPMI remote managementRack-mount kit with keyboard and mouse set5 year next business day warranty

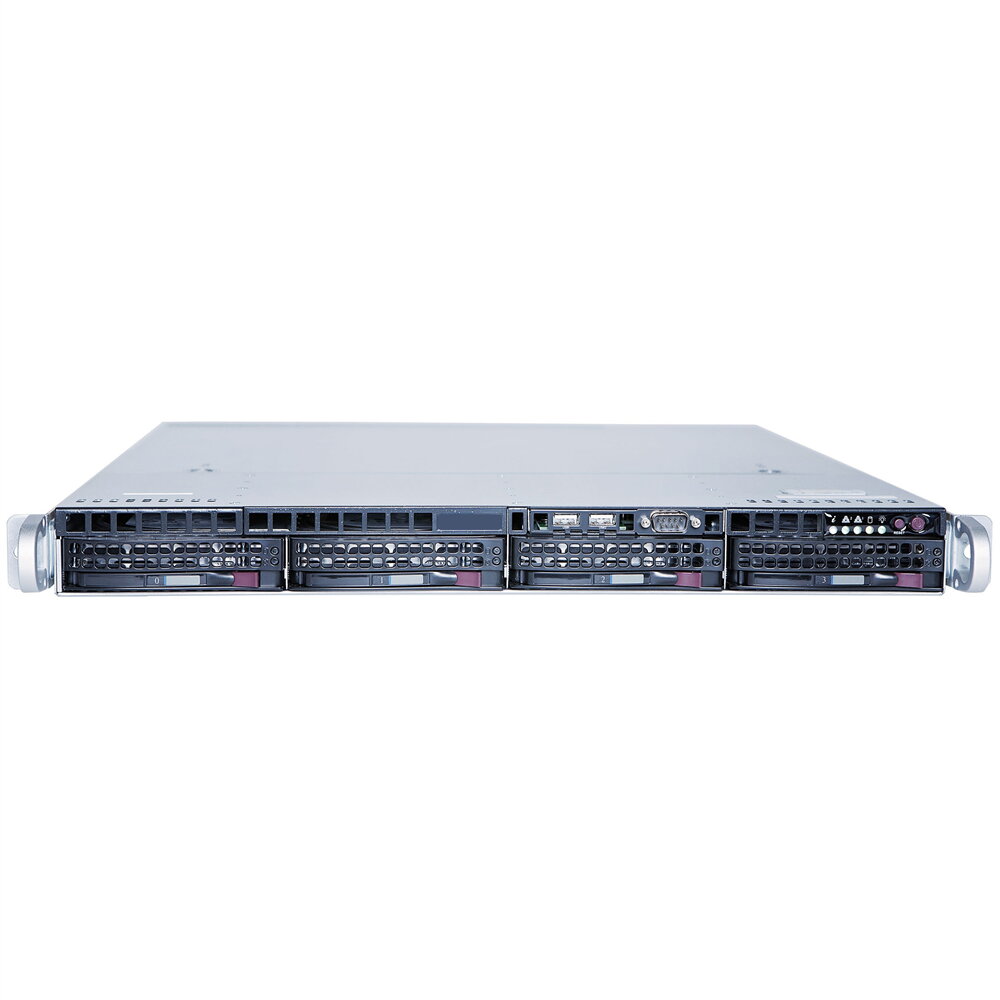

The BLAZE BRS-4BAY-SERVER-48TB-WS25 is a 1U rack server with four drive bays. Raw capacity is 48 TB, of which 36 TB remain under RAID 5. The configuration comprises a Xeon E6, 16 GB of RAM, onboard graphics and two 1 Gbit/s network ports. Windows Server 2025 is installed on two 256 GB M.2 SSDs in RAID 1, backed by a redundant 300 W power supply. A five-year warranty with next business day response is stated, and two power cables, a rack-mount kit and a keyboard/mouse set are included. 1U rack server with four bays48 TB raw, 36 TB with RAID 5Xeon E6 with 16 GB RAM2 x 1 Gbit/s networkingWindows Server 2025 on 2 x 256 GB M.2 SSD in RAID 1Redundant 300 W power supply

The BLAZE BRS-4BAY-SERVER-32TB-WS25 is a 1U rack server with four drive bays. Raw capacity is 32 TB, of which 24 TB remain under RAID 5. The configuration comprises a Xeon E6, 16 GB of RAM, onboard graphics and two 1 Gbit/s network ports. Windows Server 2025 is installed on two 256 GB M.2 SSDs in RAID 1, backed by a redundant 300 W power supply. A five-year warranty with next business day response is stated, and two power cables, a rack-mount kit and a keyboard/mouse set are included. 1U rack server with four bays32 TB raw, 24 TB with RAID 5Xeon E6 with 16 GB RAM2 x 1 Gbit/s networkingWindows Server 2025 on 2 x 256 GB M.2 SSD in RAID 1Redundant 300 W power supply

The BLAZE BRS-4BAY-SERVER-24TB-WS25 is a 1U rack server with four drive bays. Raw capacity is 24 TB, of which 16 TB remain under RAID 5. The configuration comprises a Xeon E6, 16 GB of RAM, onboard graphics and two 1 Gbit/s network ports. Windows Server 2025 is installed on two 256 GB M.2 SSDs in RAID 1, backed by a redundant 300 W power supply. A five-year warranty with next business day response is stated, and two power cables, a rack-mount kit and a keyboard/mouse set are included. 1U rack server with four bays24 TB raw, 16 TB with RAID 5Xeon E6 with 16 GB RAM2 x 1 Gbit/s networkingWindows Server 2025 on 2 x 256 GB M.2 SSD in RAID 1Redundant 300 W power supply

The BLAZE BRS-4BAY-SERVER-12TB-WS25 is a 1U rack server with four drive bays. Raw capacity is 12 TB, of which 8 TB remain under RAID 5. The configuration comprises a Xeon E6, 16 GB of RAM, onboard graphics and two 1 Gbit/s network ports. Windows Server 2025 is installed on two 256 GB M.2 SSDs in RAID 1, backed by a redundant 300 W power supply. A five-year warranty with next business day response is stated, and two power cables, a rack-mount kit and a keyboard/mouse set are included. 1U rack server with four bays12 TB raw, 8 TB with RAID 5Xeon E6 with 16 GB RAM2 x 1 Gbit/s networkingWindows Server 2025 on 2 x 256 GB M.2 SSD in RAID 1Redundant 300 W power supply

The BRS-4BAY-SERVER-56TB-WS25 is a 1U rack server built around four hot-swap bays. Raw storage is quoted at 56 TB, leaving 42 TB when RAID 5 is applied. Inside are a six-core Intel Xeon E, 16 GB of RAM, on-board VGA and two 1 Gbit/s network ports. Windows Server 2025 runs from two 256 GB M.2 SSDs in RAID 1, and a redundant 300 W supply provides power. The stated warranty is five years with next business day response; two power cables, a rack-mount kit and a keyboard/mouse set are supplied. 1U rack server with four hot-swap bays56 TB raw, 42 TB with RAID 5Six-core Intel Xeon E16 GB RAM and 2 x 1 Gbit/sWindows Server 2025 on 2 x 256 GB M.2 SSD in RAID 1Redundant 300 W power supply

The BLAZE BRS-4BAY-SERVER-40TB-WS25 is a 1U rack server with four drive bays. Raw capacity is 40 TB, of which 30 TB remain under RAID 5. The configuration comprises a Xeon E6, 16 GB of RAM, onboard graphics and two 1 Gbit/s network ports. Windows Server 2025 is installed on two 256 GB M.2 SSDs in RAID 1, backed by a redundant 300 W power supply. A five-year warranty with next business day response is stated, and two power cables, a rack-mount kit and a keyboard/mouse set are included. 1U rack server with four bays40 TB raw, 30 TB with RAID 5Xeon E6 with 16 GB RAM2 x 1 Gbit/s networkingWindows Server 2025 on 2 x 256 GB M.2 SSD in RAID 1Redundant 300 W power supply

X-2202 is a semi-industrial 22-inch monitor with Full HD resolution of 1920 x 1080 pixels in 16:9, 250 cd/m², 16.7 million colours, a dynamic contrast ratio of 20,000,000:1 and 178/178 degree viewing angles. Its 3.0 mm NeoV Optical Glass reflects under 1 percent, transmits over 97 percent of the light and withstands chemical exposure in light industrial environments. The feature set spans 24/7 operation, EcoSmart, PbP, PiP, a speaker and the patented anti-burn-in technology with gamma selection and black-level adjustment. DisplayPort, DVI-D, HDMI and VGA are available for connection. The metal casing accepts VESA patterns of 100 x 100 and 75 x 75 mm, the HDL-02 handle is available, and operation is rated for 0 °C to 40 °C at 10 to 90 percent non-condensing humidity. 22-inch Full HD 1920 x 1080 (16:9), 250 cd/m²3.0 mm NeoV Optical Glass, under 1 percent reflectionAnti-burn-in technology, gamma selection24/7, EcoSmart, PbP, PiP, speakerDisplayPort, DVI-D, HDMI, VGAMetal casing, VESA 100 x 100 and 75 x 75 mm

The LA-2203 is a 22-inch monitor built on a 21.5" IPS panel with FHD 1920 x 1080 (16:9) resolution, 250 cd/m² brightness and a 20,000,000:1 (DCR) dynamic contrast ratio. Its 178/178 viewing angles keep colours and detail consistent from any direction, response time is 5 ms and 16.7M colours are reproduced. A blue light filter and flicker-free backlight reduce eyestrain over long sessions, while the surface carries anti-glare treatment (Haze 25%) with 3H hard coating. Connectivity covers HDMI, VGA and Audio, and integrated speakers handle sound. Cable management on the stand gathers the cables, and mounting options are the DMC-01, DMC-02D, DMS-01D and ES-02 desk mounts plus the PMK-01 and WMK-01 wall mounts. An HDMI cable, power adaptor and quick start guide are supplied. 21.5" IPS panel, FHD 1920 x 1080 (16:9)250 cd/m² brightness, 20,000,000:1 (DCR) contrast178/178 viewing angles, 5 ms response timeBlue light filter and flicker-freeHDMI, VGA and Audio inputsIntegrated speakers and cable management

The LA-2204 is a 22-inch monitor using a 21.5" VA panel with FHD 1920 x 1080 resolution, a 0.241 mm pixel pitch and 250 cd/m² brightness. Dynamic contrast is 20,000,000:1 (DCR), viewing angles are 178°/178°, and the panel shows 16.7M colours across an NTSC 72% gamut at a 5 ms response time. The surface combines anti-glare treatment (Haze 25%) with a 3H hard coating, while a flicker-free backlight and blue light filter ease eyestrain. Connections are HDMI 1.4 x 1 and VGA (15-Pin D-Sub x 1), with 2W x 2 speakers built in. The internal power supply draws 16W when on, 25W at maximum, < 0.5W in standby and < 0.3W when off, and wall mounting follows VESA 100 x 100 mm. 21.5" VA panel, FHD 1920 x 10800.241 mm pixel pitch, 5 ms response time20,000,000:1 (DCR) contrast, 178°/178° viewing angleNTSC 72% colour gamut, 16.7M coloursHDMI 1.4 x 1 and VGA, 2W x 2 speakersVESA FPMPMI 100 x 100 mm

The 21.5-inch VA panel in this surveillance display resolves FHD 1920 x 1080 with a 0.241 mm pixel pitch and 178-degree viewing angles in both axes. Brightness is 280 cd/m², the dynamic contrast ratio 20,000,000:1 (DCR), colour depth 16.7M and response time 5 ms. Anti-glare treatment at haze 25% and a 3H hard coating finish the surface, and the frequency range runs from 30 kHz to 85 kHz and 23 Hz to 75 Hz. Video arrives on one composite BNC input and loops out through one composite BNC output. Ceiling, desk and wall mounting is covered by CMP-01 with WMK-03, DMC-01, DMC-02D, DMS-01D, ES-02, PMK-01, WMA-01, WMK-01 and WMK-03; an HDMI cable, power cord and quick start guide are supplied. 21.5-inch VA panel, FHD 1920 x 1080280 cd/m² brightness, 20,000,000:1 (DCR) contrast5 ms response time, 178/178 viewing anglesComposite (BNC) input and outputAnti-glare haze 25% with 3H hard coatingCeiling, desk and wall mount options

Intended for video surveillance, this 22-inch monitor pairs FHD 1920 x 1080 resolution in 16:9 with 178/178 viewing angles and round-the-clock operation. Its construction relies on anti-burn-in technology, a metal casing and NeoV Optical Glass rated below 1% reflection and above 97% transmission. Inputs cover audio, composite (BNC), DisplayPort, DVI-D, HDMI, RS232 and VGA, with a composite (BNC) output, and external control runs over RS232 on a 2.5 mm phone jack. Image tuning includes black-level adjustment and gamma selection, and the unit handles 24 kHz to 83 kHz and 50 Hz to 75 Hz. Without base it measures 513.2 x 324.3 x 56.2 mm, mounts to VESA 100 x 100 mm and 75 x 75 mm, and operates from 0 to 40 degrees Celsius at 10% to 90% non-condensing humidity. FHD 1920 x 1080 (16:9), 178/178 viewing anglesNeoV Optical Glass, reflection below 1%Anti-burn-in technology and metal casingComposite (BNC), DisplayPort, DVI-D, HDMI and VGA inputsBlack-level adjustment and gamma selectionVESA 100 x 100 mm and 75 x 75 mm

The SMT-2212 is a 22-inch LED monitor for Full HD content, supporting up to 1920x1080 at 60 Hz in 16:9. Brightness is 250 cd/m2, the contrast ratio 3000:1 and the response time 6.5 ms, with 178-degree viewing angles both horizontally and vertically and 16.7 million colours. Video reaches the panel through one VGA and one HDMI input, each accepting 1920x1080 at 60 Hz. The frameless housing ships with a monitor stand and measures 491.9x186.7x371.4 mm including that stand. Panel life is stated as 30,000 hours, and the on-screen display is VESA DPMS compatible and available in several languages. Power is DC 12V 5A from the included adapter at 30 W, with operation from 0 to +40 C at 10 to 80 percent non-condensing humidity. 22 inch, 1920x1080 at 60 Hz250 cd/m2 brightness, 3000:1 contrast6.5 ms response timeVGA and HDMI inputs30,000 hour panel lifeFrameless design with stand

The LA-2404 is a 24-inch-class monitor built around a 23.8" IPS panel with FHD 1920 x 1080 resolution in 16:9, a 0.275 mm pixel pitch and 250 cd/m² brightness. It is rated for 24/7 operation and can be used in landscape or portrait orientation. Dynamic contrast reaches 20,000,000:1 (DCR) and viewing angles are 178°/178°; the panel shows 16.7M colours across an NTSC 72% gamut with a 5 ms response time and a vertical frequency of 48 Hz-120 Hz. A 3H hard coating with anti-glare treatment (Haze 25%) protects the surface, and a flicker-free backlight with blue light filter eases eyestrain over long sessions. Inputs are DisplayPort x 1 and HDMI 1.4 x 1, with 2W x 2 speakers built in. Power comes from an external adaptor (DC 12V, 2.5A); consumption is 16W when on, 30W at maximum, < 0.5W in standby and < 0.3W when off. The stand tilts the black housing by -5° ~ 20° and keeps cables tidy, wall mounting follows VESA 100 x 100 mm, and a Kensington lock can be attached. An HDMI cable and the power adaptor are included. 23.8" IPS panel, FHD 1920 x 1080, 16:90.275 mm pixel pitch, 5 ms response time20,000,000:1 (DCR) contrast, 178°/178° viewing angleNTSC 72% colour gamut, 16.7M coloursDisplayPort x 1 and HDMI 1.4 x 1, 2W x 2 speakersRated for 24/7 operation, VESA 100 x 100 mm
