Dome

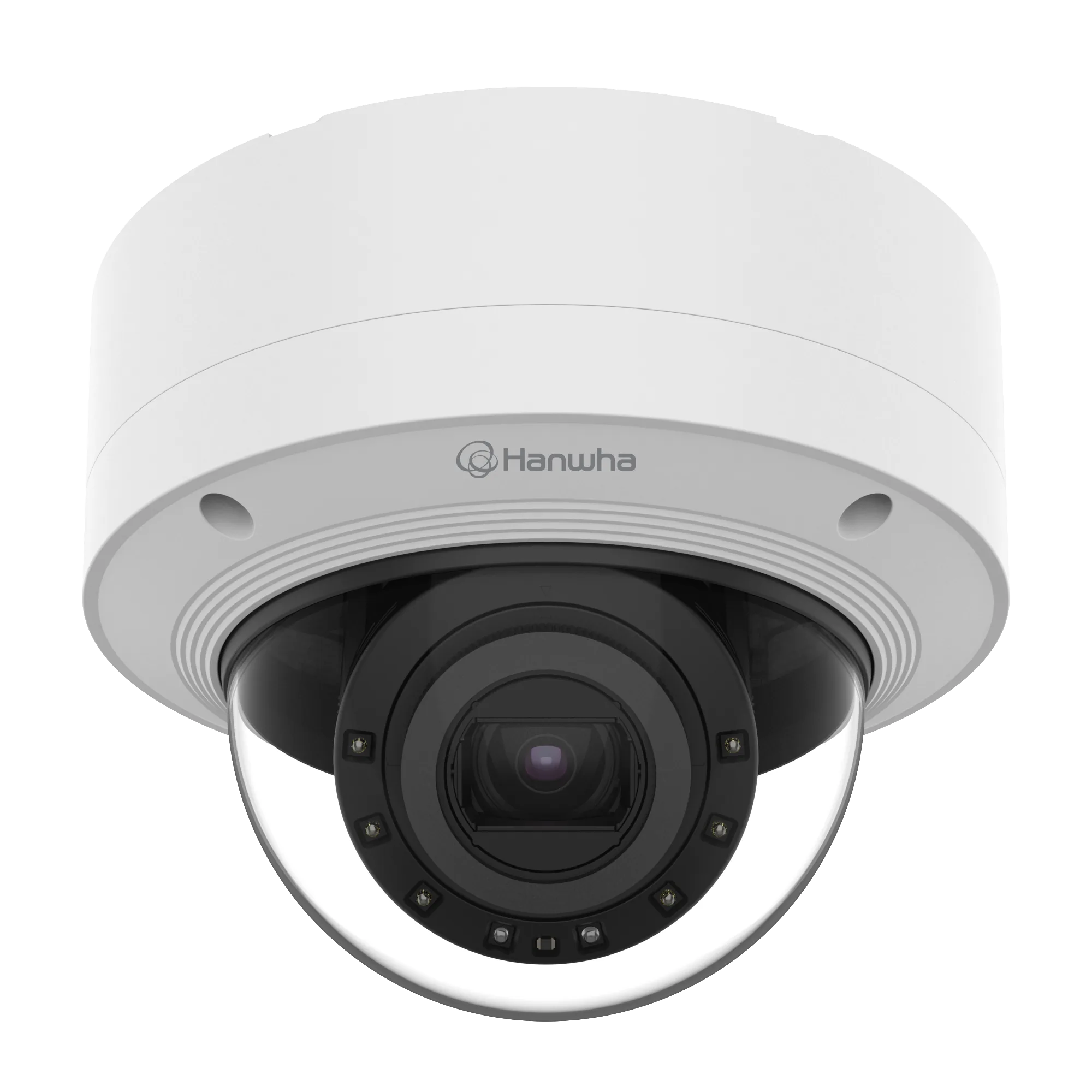

The XNV-6123R is a vandal-resistant AI IR dome camera with a 1/2.8" CMOS sensor and a maximum of 1920 x 1080 pixels (2 MP). Its motorised 5.2 to 62.4 mm varifocal lens offers 12x optical and 32x digital zoom at F1.6 wide and F3.0 tele, covering 55°~5° horizontally, 33°~3° vertically and 62°~6° diagonally, and focuses from 2.1 m using one-shot AF with focus save and a DC auto iris. With WDR off, H.265 and H.264 reach up to 120 fps or 100 fps, and 60 fps or 50 fps with WDR on, while MJPEG runs at 30 fps; minimum illumination is 0.03 lux in colour and 0.003 lux in black and white. The NPU-based AI engine detects people, faces, vehicles including cars, trucks, buses, bicycles and motorcycles as well as licence plates, and adds defocus, motion, tampering, fog, audio, shock and appear/disappear events plus sound classification. The housing is rated IP66, IP67, IP6K9K, NEMA4X and IK10+, with power from PoE or 12 V DC. 2 MP resolution (1920 x 1080)5.2~62.4 mm varifocal lens, 12x optical and 32x digital zoomNPU-based AI object detection (person, face, vehicle, licence plate)IP66, IP67, IP6K9K, NEMA4X, IK10+150 dB wide dynamic range with day/night (ICR)PoE or 12 V DC

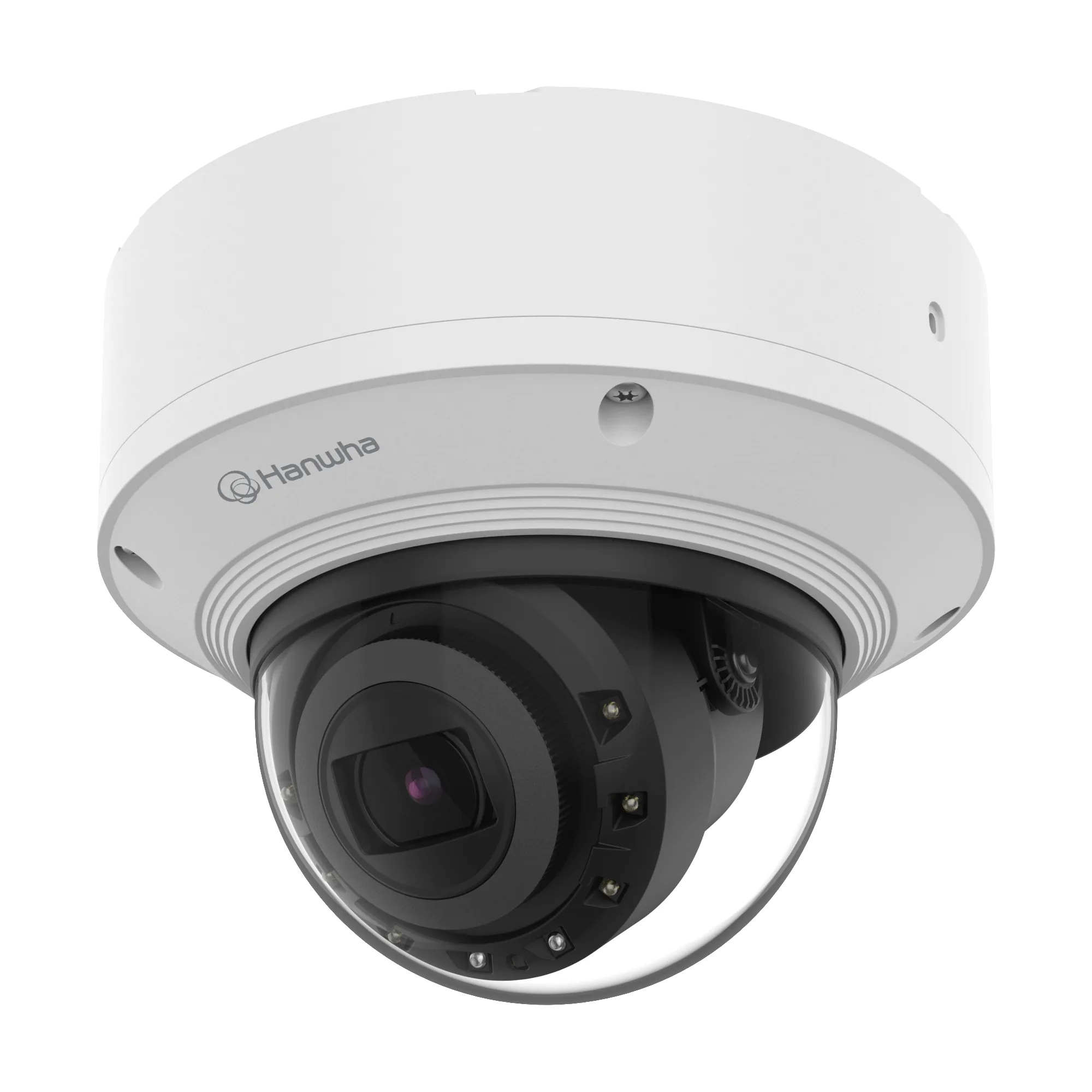

The XND-6083RV is a 2MP AI IR dome camera using a 1/2.8" CMOS sensor with a maximum resolution of 1920x1080. H.265 and H.264 run at 120fps/100fps (60Hz/50Hz) with WDR off and 60fps/50fps with WDR on, while MJPEG stays at 30fps. Its motorised 2.8 to 12 mm varifocal lens with 4.3x zoom opens from F1.4 at the wide end to F3.6 at tele and covers 120° to 27° horizontally, 63° to 15° vertically and 143° to 32° diagonally from a 0.5 m minimum object distance. Minimum illumination is quoted as 0.01 lux in colour and 0.001 lux in black-and-white, with day and night switching handled automatically by ICR. Focus can be set by simple focus or manually, and the camera is aligned through 0° to 360° pan, 0° to 85° tilt and 0° to 355° rotation. 1/2.8" CMOS, up to 1920x1080Motorised 2.8–12 mm varifocal lens, 4.3x120fps/100fps WDR off, 60fps/50fps WDR on0.01 lux colour, 0.001 lux B/WAutomatic ICR day and night switchingSimple focus or manual focus

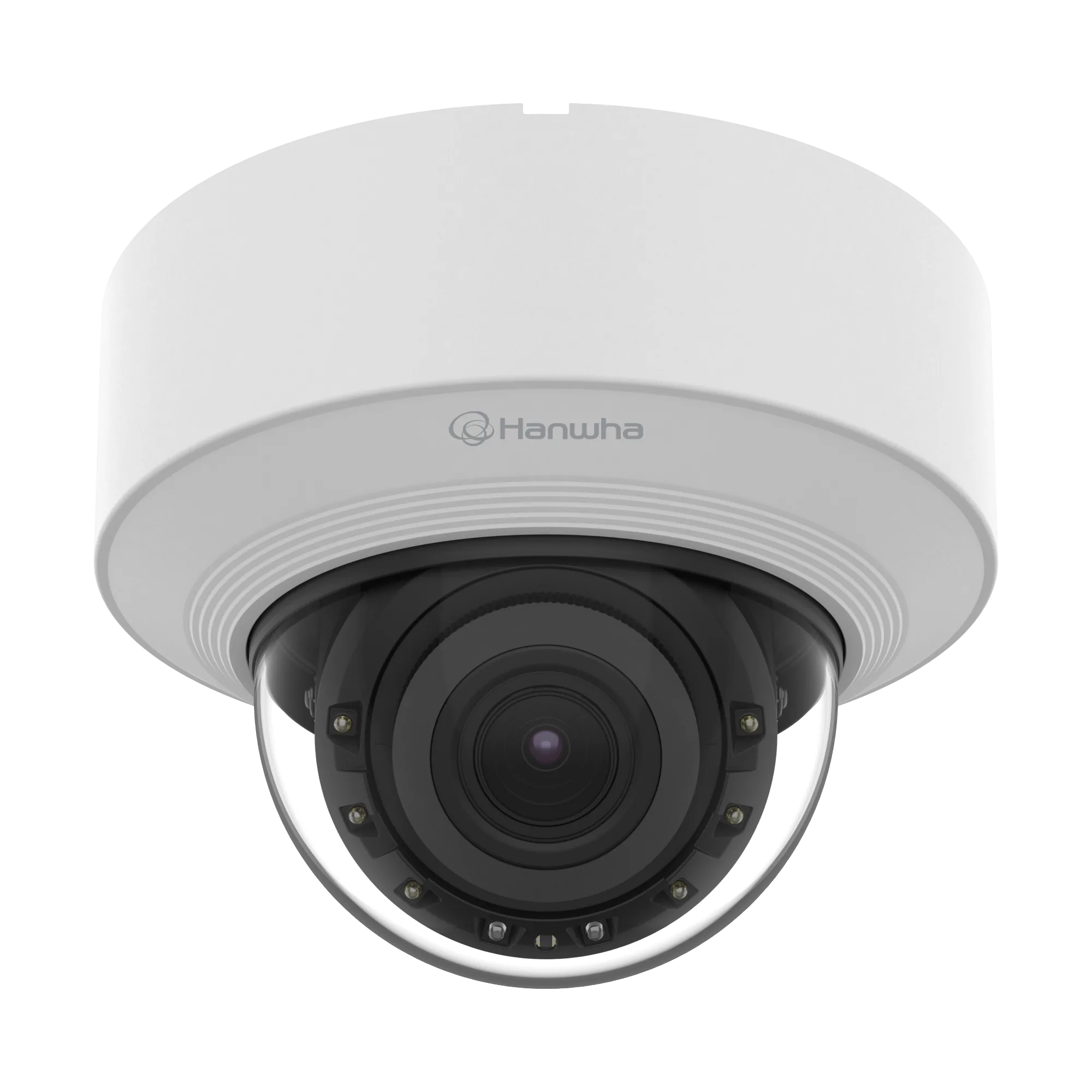

The XND-C6083RV is a 2MP AI IR dome camera whose 1/2.8" CMOS sensor outputs a maximum of 1920x1080. A motorised 2.8 to 12 mm varifocal lens opens from F1.4 wide to F3.6 tele and takes in 120° to 27° horizontally, 63° to 15° vertically and 143° to 32° diagonally from a 0.5 m minimum object distance. H.265 and H.264 reach 60fps/50fps (60Hz/50Hz) while MJPEG stays at 30fps, and minimum illumination is stated as 0.01 lux in colour and 0.001 lux in black-and-white. Image conditioning offers BLC, HLC, WDR and SSDR alongside automatic ICR day and night switching. Focus is available as simple focus or manual, alignment spans 0° to 360° pan, 0° to 75° tilt and 0° to 355° rotation, and preview and installation run over Micro USB Type B. 1/2.8" CMOS, up to 1920x1080Motorised 2.8–12 mm varifocal lens, F1.4 to F3.660fps/50fps in H.265 and H.2640.01 lux colour, 0.001 lux B/WBLC, HLC, WDR and SSDR0°–360° pan, 0°–75° tilt

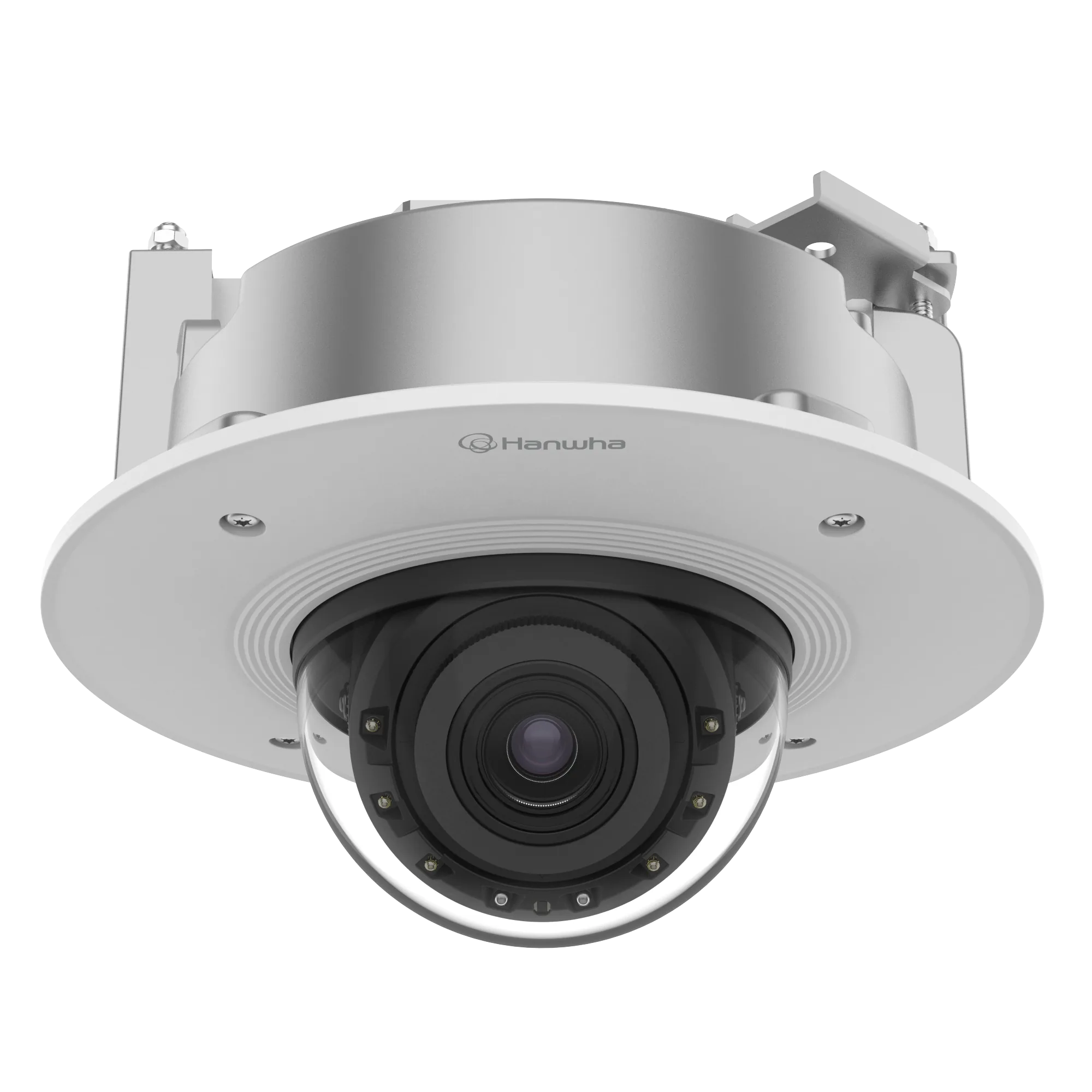

The PND-A6081RF is an AI-assisted IR network dome camera built on a 1/2-inch CMOS sensor with 2 megapixels and a maximum resolution of 1920x1080. H.265 and H.264 reach 120fps at 60Hz or 100fps at 50Hz, dropping to a maximum of 60fps or 50fps when AI is enabled, while MJPEG runs at 15fps. Object detection distinguishes people, faces, vehicles and licence plates and filters motion events so that event lists stay shorter and more relevant. Intelligent video analytics covers virtual lines and virtual areas for intrusion, entering, exiting, appearing and loitering, along with social distancing measurement and face mask detection. The varifocal lens runs from 4.38 to 9.33mm with 2.13x optical zoom, F1.3 at wide angle and F2.15 at telephoto, covering 103.1° to 44.5° horizontally through an IR-corrected P iris with simple focus from 0.5m. Sensitivity is 0.007 lux in colour and 0.0007 lux in black and white, and the camera head pans 0° to 360°, tilts -45° to 85° and rotates 0° to 355°. 2 megapixel resolution up to 1920x1080AI object detection for person, face, vehicle and licence plateIntelligent video analytics with virtual line and virtual area4.38 to 9.33mm varifocal lens with 2.13x zoom0.007 lux in colour, 0.0007 lux in black and whiteUp to 120/100fps in H.265 and H.264

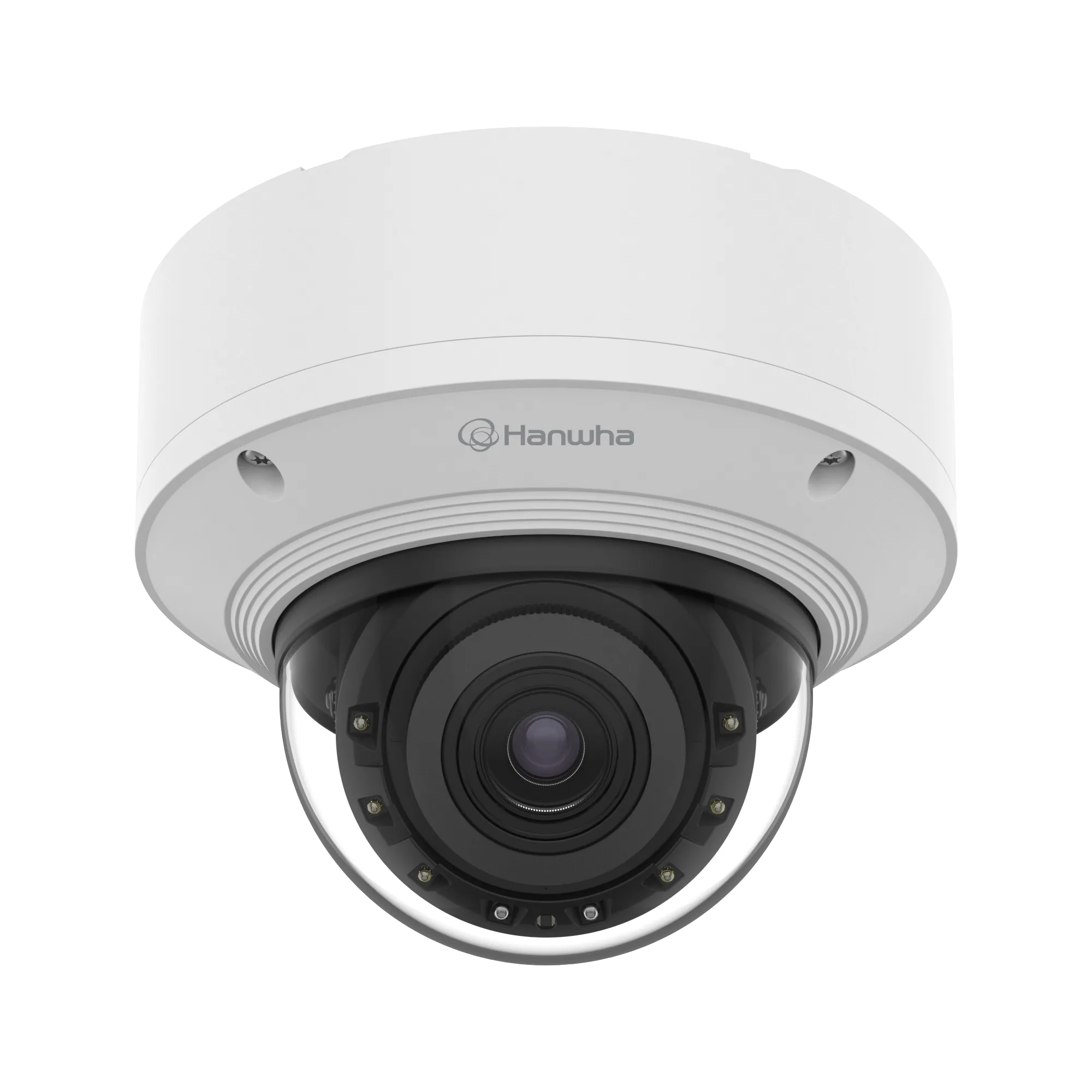

The PND-A6081RV is a 2 megapixel network dome camera with infrared illumination and AI analytics, capturing up to 1920x1080 from a 1/2-inch CMOS sensor. It detects people, faces, vehicles and licence plates, narrowing motion events down to the relevant alerts and keeping event lists shorter. Intelligent video analytics uses virtual lines and virtual areas for intrusion, entering, exiting, appearing and loitering, and adds social distancing measurement in crowds as well as face mask detection. Frame rates reach 120fps at 60Hz or 100fps at 50Hz in H.265 and H.264, a maximum of 60 or 50fps with AI enabled, and 15fps in MJPEG. The lens spans 4.38 to 9.33mm with 2.13x optical zoom, opens to F1.3 at wide angle and F2.15 at telephoto and focuses by simple focus from 0.5m through an IR-corrected P iris. Images are still produced at 0.007 lux in colour and 0.0007 lux in black and white, with 0° to 360° pan, -45° to 85° tilt and 0° to 355° rotation. 2 megapixel resolution up to 1920x1080AI object detection for person, face, vehicle and licence plateVideo analytics with virtual line and virtual area4.38 to 9.33mm varifocal lens, F1.3 to F2.150.007 lux in colour, 0.0007 lux in black and white0° to 360° pan and 0° to 355° rotation

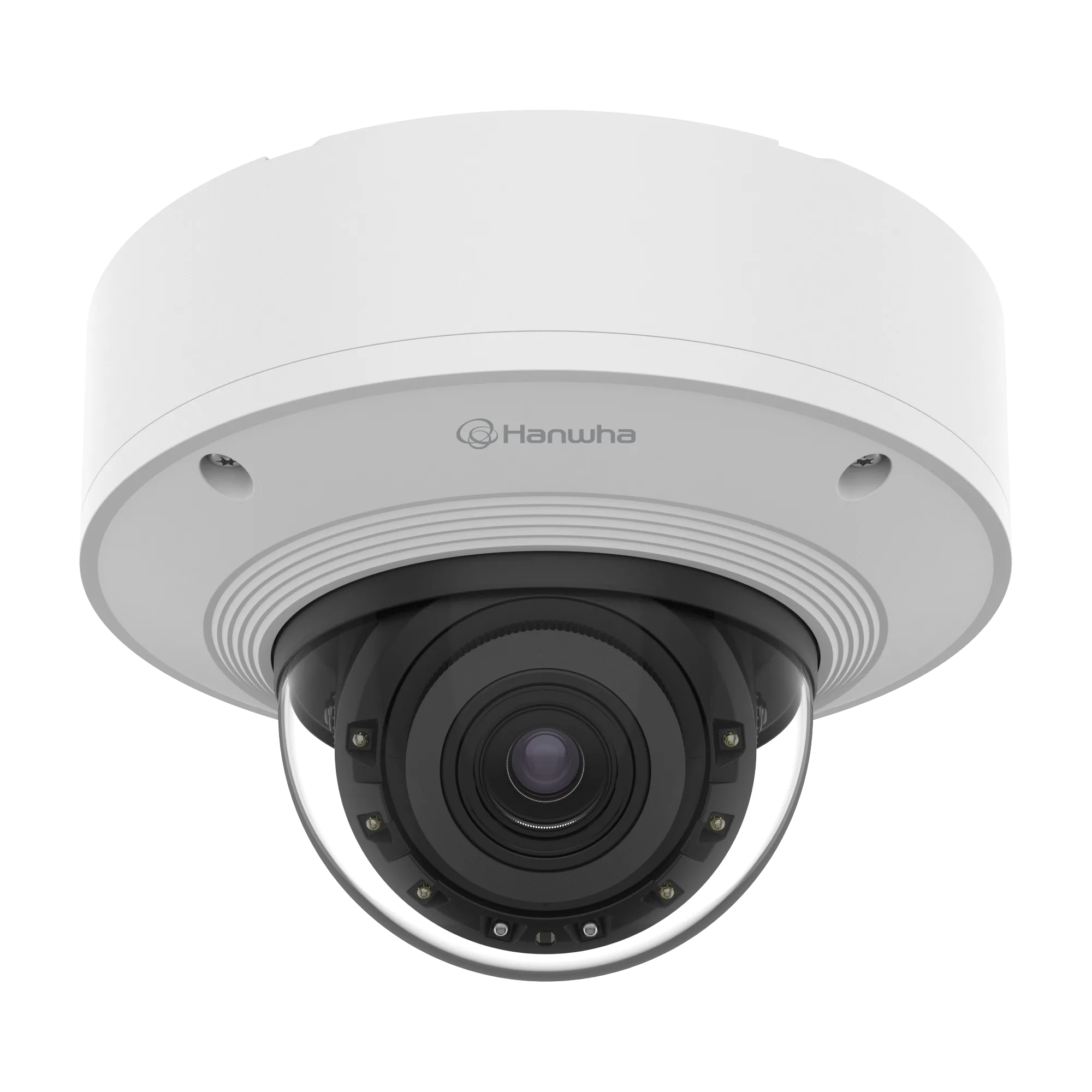

The PNV-A6081R is a vandal resistant IR dome camera delivering 2MP (1920x1080) from a 1/2-inch CMOS sensor. Its AI engine identifies people, faces, vehicles and licence plates and filters motion events down to shorter, more relevant event lists, complemented by video analytics using virtual line and virtual area rules for intrusion, entering, exiting, appearing and loitering, plus social distancing checks and face mask detection. H.265 and H.264 reach up to 120fps/100fps (60Hz/50Hz), dropping to a maximum of 60/50fps with AI enabled, while MJPEG runs at 15fps. Minimum illumination is 0.007 lux in colour and 0.0007 lux in black and white. The IR corrected P iris lens spans 4.38~9.33mm with 2.13x zoom at F1.3 to F2.15 and covers 103.1°~44.5° horizontally. 2MP (1920x1080) on a 1/2-inch CMOS sensorAI detection of person, face, vehicle and licence plateVirtual line and virtual area video analyticsUp to 120/100fps, 60/50fps maximum with AI on4.38~9.33mm lens with 2.13x zoomMinimum illumination 0.007 lux colour / 0.0007 lux BW

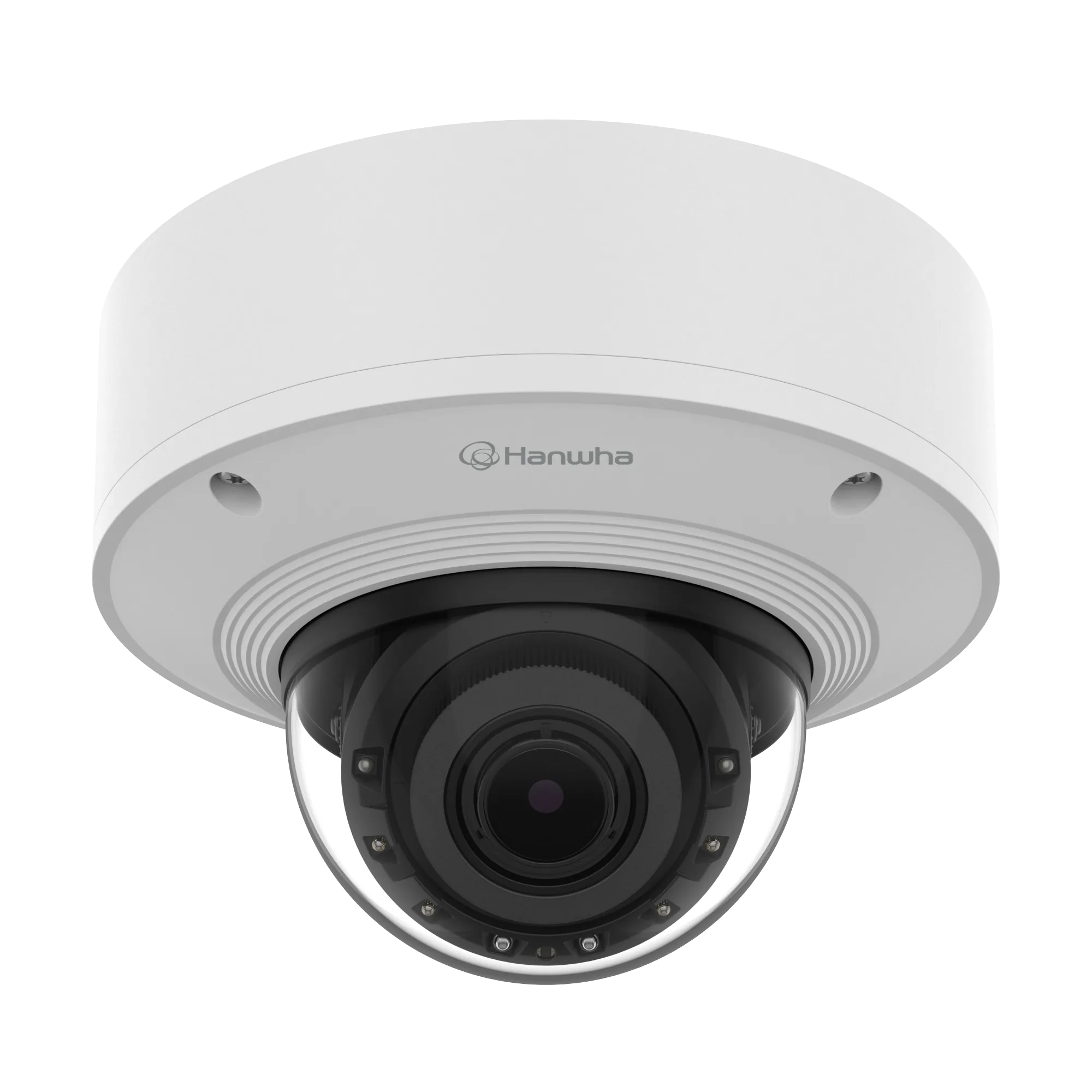

The PNV-A6081R-E2T is a 2MP dome camera with a built-in 2TB rugged SSD, so recordings are stored inside the camera itself. Its 1/2-inch CMOS sensor produces 1920x1080 images; H.265 and H.264 run at up to 120fps/100fps (60Hz/50Hz), falling to a maximum of 60/50fps when AI is active, and MJPEG delivers 15fps. In poor light the camera operates down to 0.007 lux in colour and 0.0007 lux in black and white. The IR corrected P iris lens covers 4.38~9.33mm with 2.13x optical zoom at F1.3 wide and F2.15 tele, spanning 104°~44° horizontally, and focusing can be handled by simple focus or manually. Alignment ranges are 0°~360° pan, 0°~85° tilt and 0°~355° rotation, with a CVBS output available for installation. Built-in 2TB rugged SSD2MP (1920x1080) on a 1/2-inch CMOS sensor4.38~9.33mm lens with 2.13x optical zoomMinimum illumination 0.007 lux colour / 0.0007 lux BWSimple focus and manual focusPan 0°~360°, tilt 0°~85°, rotate 0°~355°

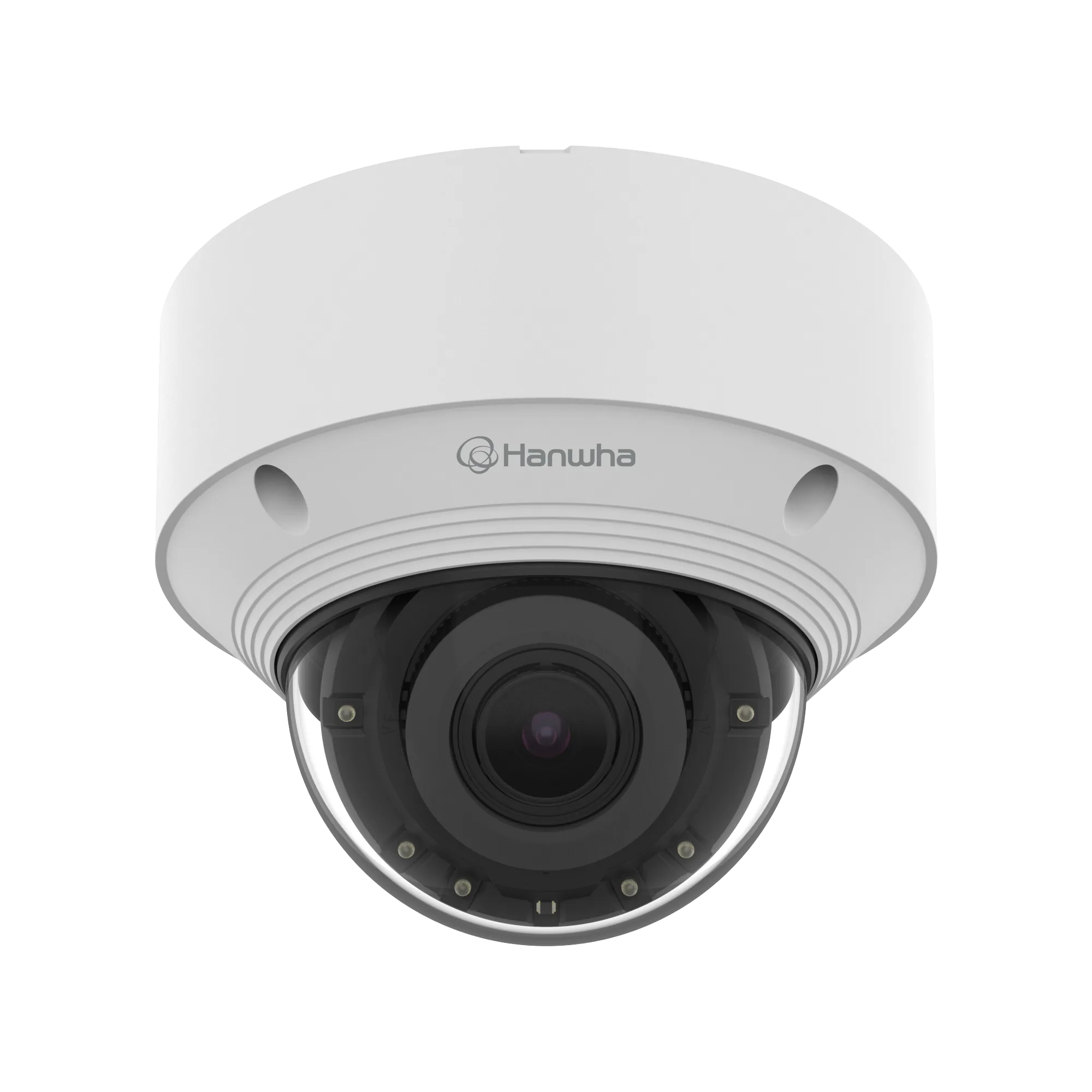

The QNV-C6083R is a vandal resistant AI dome camera with a 1/2.8 inch CMOS sensor and a maximum resolution of 1920x1080 pixels. Its motorised varifocal lens covers 3.2 to 10.2 mm at 3.2x zoom, F1.6 to F3.1 and a horizontal angle of view from 102° to 32°, with a minimum object distance of 1.2 m, Simple Focus control and an IR corrected DC auto iris. H.265, H.264 and MJPEG are available, the first two at 30 fps on 60 Hz or 25 fps on 50 Hz and MJPEG at 30 fps, dropping to 5 fps at 2 MP. Up to five streaming profiles can be delivered in parallel. IR illumination is rated for 40 m, and minimum illumination is quoted as 0.04 lux in colour and 0.004 lux in black and white. ICR day and night switching, 120 dB WDR and an HDMI output at 1080p with 30/25 fps are also provided. Motorised varifocal 3.2 to 10.2 mm, 3.2xMax. 1920x1080 pixels, 30/25 fpsIR viewable length 40 m0.04 lux colour, 0.004 lux black and white120 dB WDR, ICR day and night switchingUp to five streaming profiles

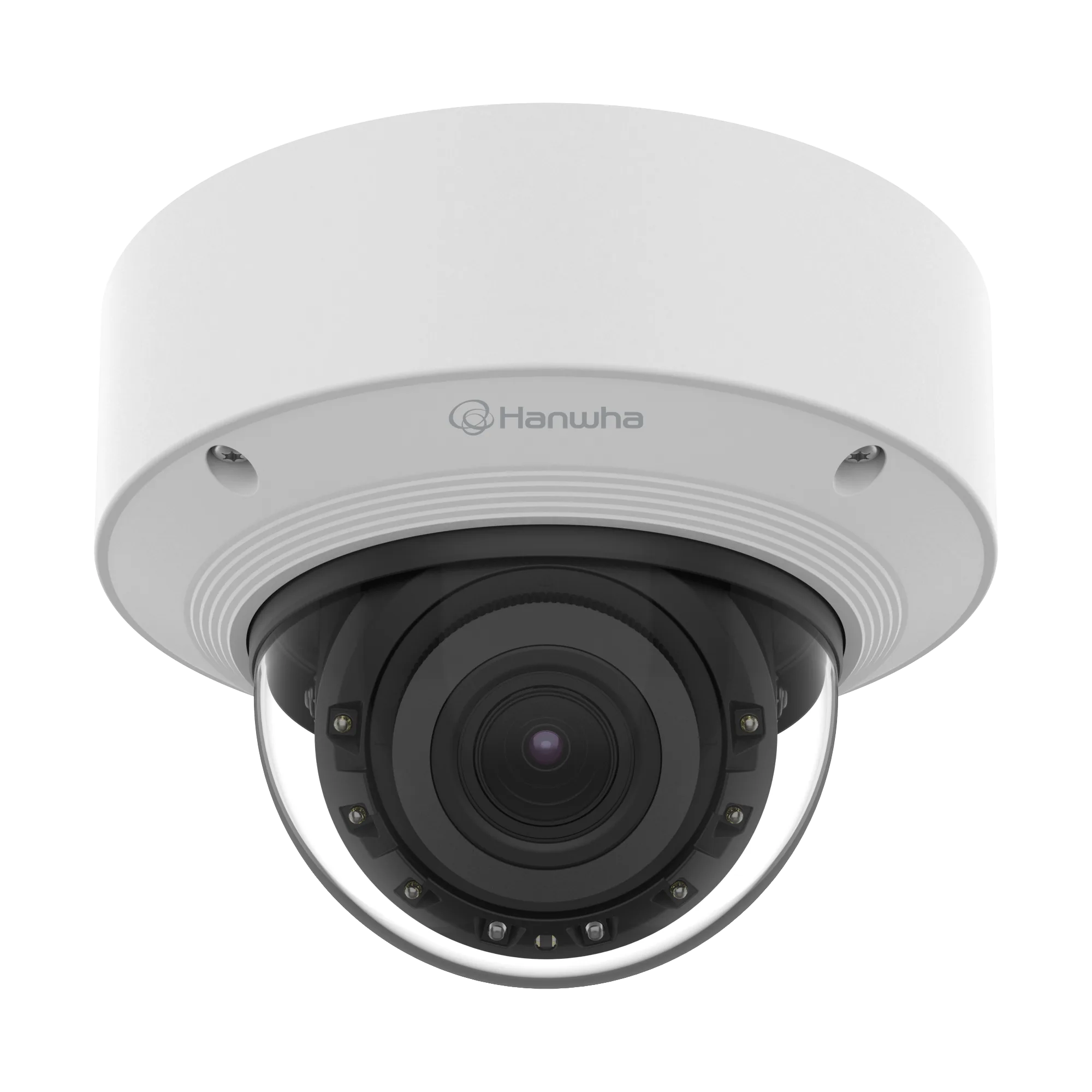

The XNV-C6083R is the infrared version of the vandal-resistant 2MP AI dome range. Its 1/2.8-inch CMOS sensor works at up to 1920x1080 pixels and delivers as much as 60fps at 60Hz or 50fps at 50Hz in H.265 and H.264, with MJPEG running at 30fps. The varifocal lens covers 2.8 to 12mm with 4.3x optical zoom and uses an IR-corrected DC auto iris with Hall sensor, opening from F1.4 to F3.6. Field of view measures 120 to 27 degrees horizontally, 63 to 15 degrees vertically and 143 to 32 degrees diagonally, with a minimum object distance of 0.5m. Usable images are produced down to 0.01 lux in colour and 0.001 lux in black and white, supported by automatic ICR day/night switching plus 0 to 360 degrees of pan, 0 to 75 degrees of tilt and 0 to 355 degrees of rotation. 2MP, 1920x1080 pixelsVarifocal 2.8-12mm, 4.3x optical zoomUp to 60fps in H.265/H.264DC auto iris with Hall sensor, IR corrected0.01 lux colour / 0.001 lux BWDay & Night Auto (ICR)

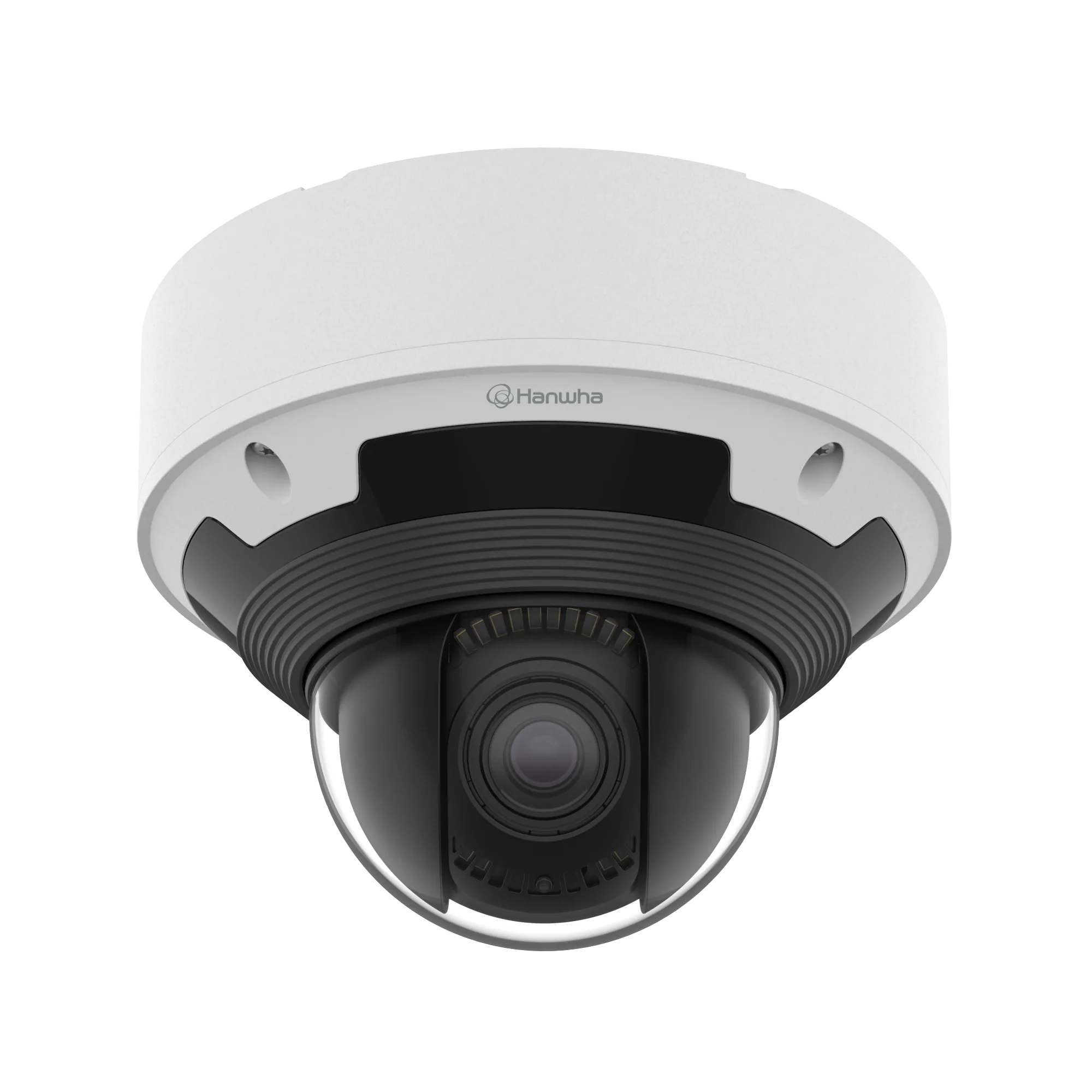

The XNV-6083RZ is a vandal-resistant AI IR dome camera capturing up to 1920 x 1080 pixels (2 MP) on a 1/2.8" CMOS sensor. Its motorised varifocal lens runs from 2.8 to 12 mm with 4.3x optical zoom, F1.4 at the wide end and F3.6 at tele, giving 120°~27° horizontal, 63°~15° vertical and 143°~32° diagonal coverage from a minimum object distance of 0.5 m. Alignment and lens settings can be adjusted remotely for a maximum of 200 cycles, with mechanical travel of 0°~350° pan, 0°~85° tilt and 0°~340° rotation. H.265 and H.264 offer up to 120 fps or 100 fps with WDR off and 60 fps or 50 fps with WDR on, while MJPEG delivers 30 fps. Minimum illumination is quoted as 0.01 lux in colour and 0.001 lux in black and white, supported by simple focus, an IR-corrected adaptive P iris and ICR switching. 2 MP resolution (1920 x 1080)Remote pan, tilt and rotate adjustment (max. 200 cycles)2.8~12 mm motorised varifocal lens (4.3x)Up to 120 fps with WDR offIR-corrected adaptive P iris0.01 lux colour, 0.001 lux black and white

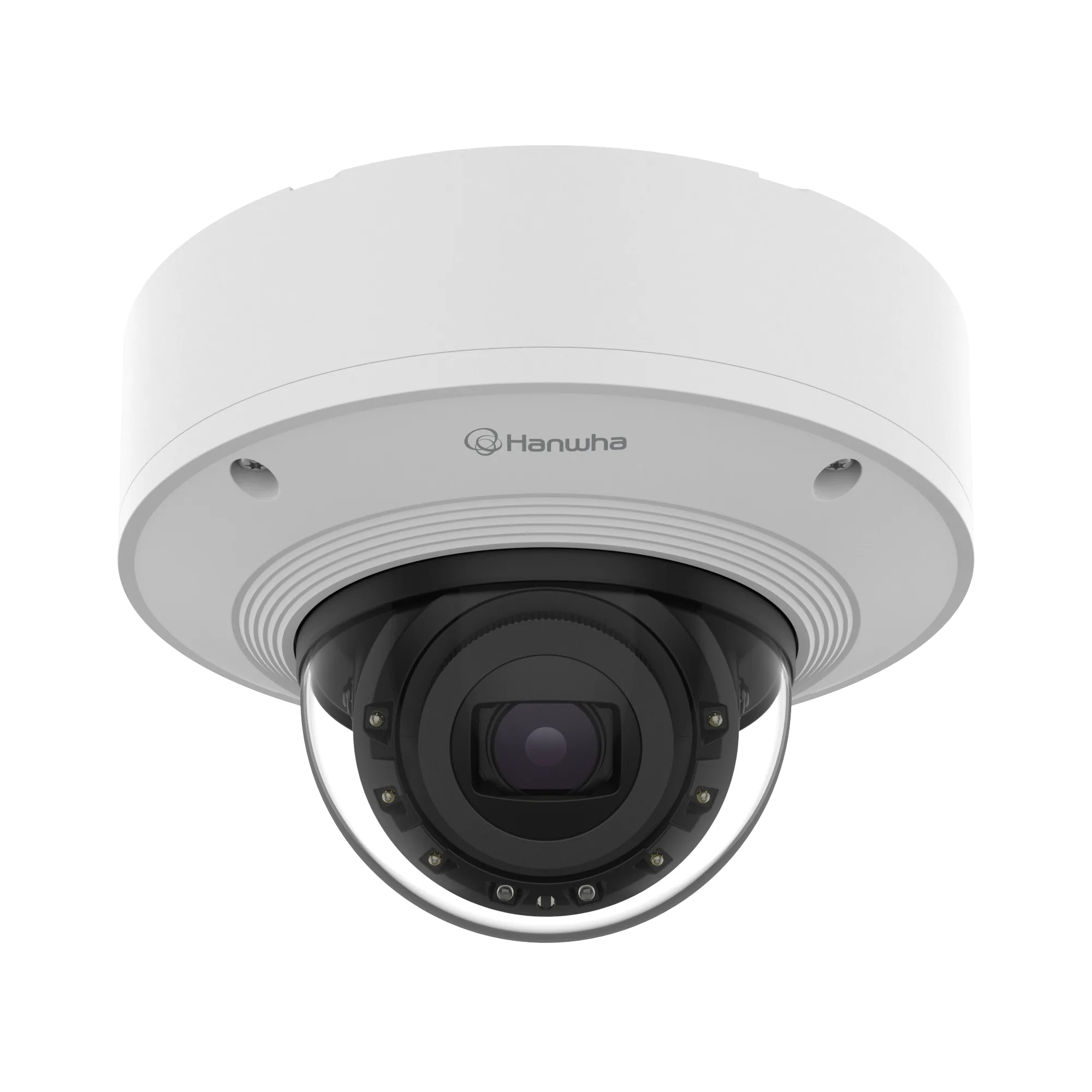

The XNV-6083R is a vandal-resistant AI IR dome camera built on a 1/2.8" CMOS sensor with a maximum resolution of 1920 x 1080 pixels (2 MP). With WDR off, H.265 and H.264 reach 120 fps or 100 fps depending on the mains frequency, dropping to 60 fps or 50 fps with WDR on, while MJPEG runs at 30 fps. Its motorised 2.8~12 mm varifocal lens with 4.3x optical zoom opens to F1.4 wide and F3.6 tele and covers 120°~27° horizontally, 63°~15° vertically and 143°~32° diagonally from an object distance of 0.5 m. Simple focus, manual focus, an IR-corrected adaptive P iris and ICR day and night switching govern sharpness and exposure. Minimum illumination is 0.01 lux in colour and 0.001 lux in black and white, and adjustment covers 0°~360° pan, 0°~85° tilt and 0°~355° rotation. 2 MP resolution (1920 x 1080)Up to 120 fps with WDR off2.8~12 mm motorised varifocal lens (4.3x)IR-corrected adaptive P iris0.01 lux colour, 0.001 lux black and whiteDay and night (ICR)

The XNV-6083Z is a vandal-resistant AI dome camera whose 1/2.8" CMOS sensor delivers a maximum of 1920 x 1080 pixels (2 MP). A motorised 2.8 to 12 mm varifocal lens provides 4.3x optical zoom, opens to F1.4 wide and F3.6 tele and covers 120°~27° horizontally, 63°~15° vertically and 143°~32° diagonally from 0.5 m. Pan, tilt and rotate can be trimmed remotely for up to 200 cycles across ranges of 0°~350°, 0°~85° and 0°~340°. With WDR off, H.265 and H.264 support up to 120 fps or 100 fps, falling to 60 fps or 50 fps with WDR on, and MJPEG reaches 30 fps. Simple focus and manual focus, an IR-corrected adaptive P iris and ICR switching accompany minimum illumination of 0.01 lux in colour and 0.001 lux in black and white. 2 MP resolution (1920 x 1080)2.8~12 mm motorised varifocal lens (4.3x)Remote pan, tilt and rotate adjustment (max. 200 cycles)Up to 120 fps with WDR offIR-corrected adaptive P irisDay and night (ICR)

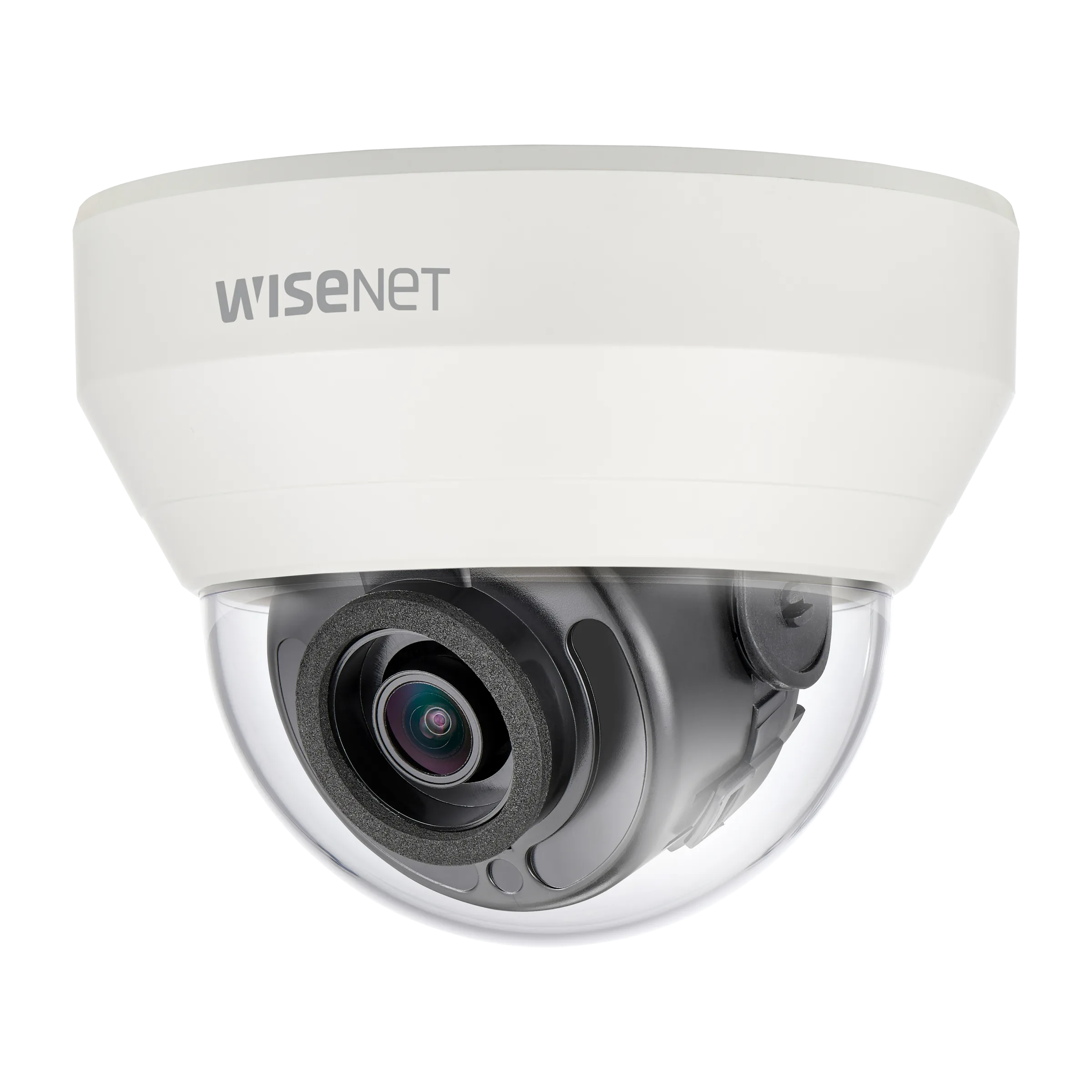

The HCD-6010 is an analog dome camera with a 1/2.8-inch CMOS sensor recording 2 megapixels, or 1920x1080, at 30fps (NTSC) or 25fps (PAL). A fixed 2.8mm F2.0 lens covers 113.7° horizontally, 61.5° vertically and 134.5° diagonally, focus is set manually and the minimum object distance is 0.5m. The BNC output can be switched between AHD, TVI, CVI and CVBS, with cable runs of up to 500m on 5C2V coaxial cable. Low-light performance is quoted as 0.27 lux in colour and 0.017 lux in black and white, and an automatic ICR filter decides the switching point. BLC, HLC and 120dB WDR balance backlit scenes while SSNRⅣ reduces noise. Inside the housing the camera can be aligned across 0° to 350° pan, 0° to 67° tilt and 0° to 355° rotation. 1/2.8-inch CMOS sensor, 1920x1080Fixed 2.8mm F2.0 lensSelectable AHD/TVI/CVI/CVBS BNC output0.27 lux colour, 0.017 lux black and white120dB WDR and SSNRⅣ113.7° horizontal field of view

The HCD-6070R is an analog HD dome camera with infrared illumination whose 1/2.8-inch CMOS sensor delivers 1920x1080 at 30fps (NTSC) or 25fps (PAL). The varifocal lens covers 3.2 to 10mm, equivalent to 3.1x optical zoom, and takes in 110.2° to 32° horizontally, 55.4° to 18° vertically and 128.4° to 36.6° diagonally. Minimum illumination is 0.11 lux in colour at F1.6 and 0.011 lux in black and white; with the IR LED active the camera works down to 0 lux and lights the scene to 20m. Its BNC output switches between AHD, TVI, CVI and CVBS and reaches up to 500m over 5C2V coaxial cable. Day and night operation is governed by an automatic ICR filter, supported by BLC, HLC, 120dB WDR, SSNRⅣ and motion detection. Focus is manual through a DC auto iris with IR correction, and the module aligns across 0° to 350° pan, 0° to 67° tilt and 0° to 355° rotation, with plug-and-play installation and dual power. 3.2 to 10mm varifocal lens, 3.1x optical zoom1/2.8-inch CMOS sensor, 1920x10800.11 lux at F1.6 in colour, 0 lux with IR LED20m IR viewable length120dB WDR, SSNRⅣ, motion detectionAHD/TVI/CVI/CVBS BNC output up to 500m

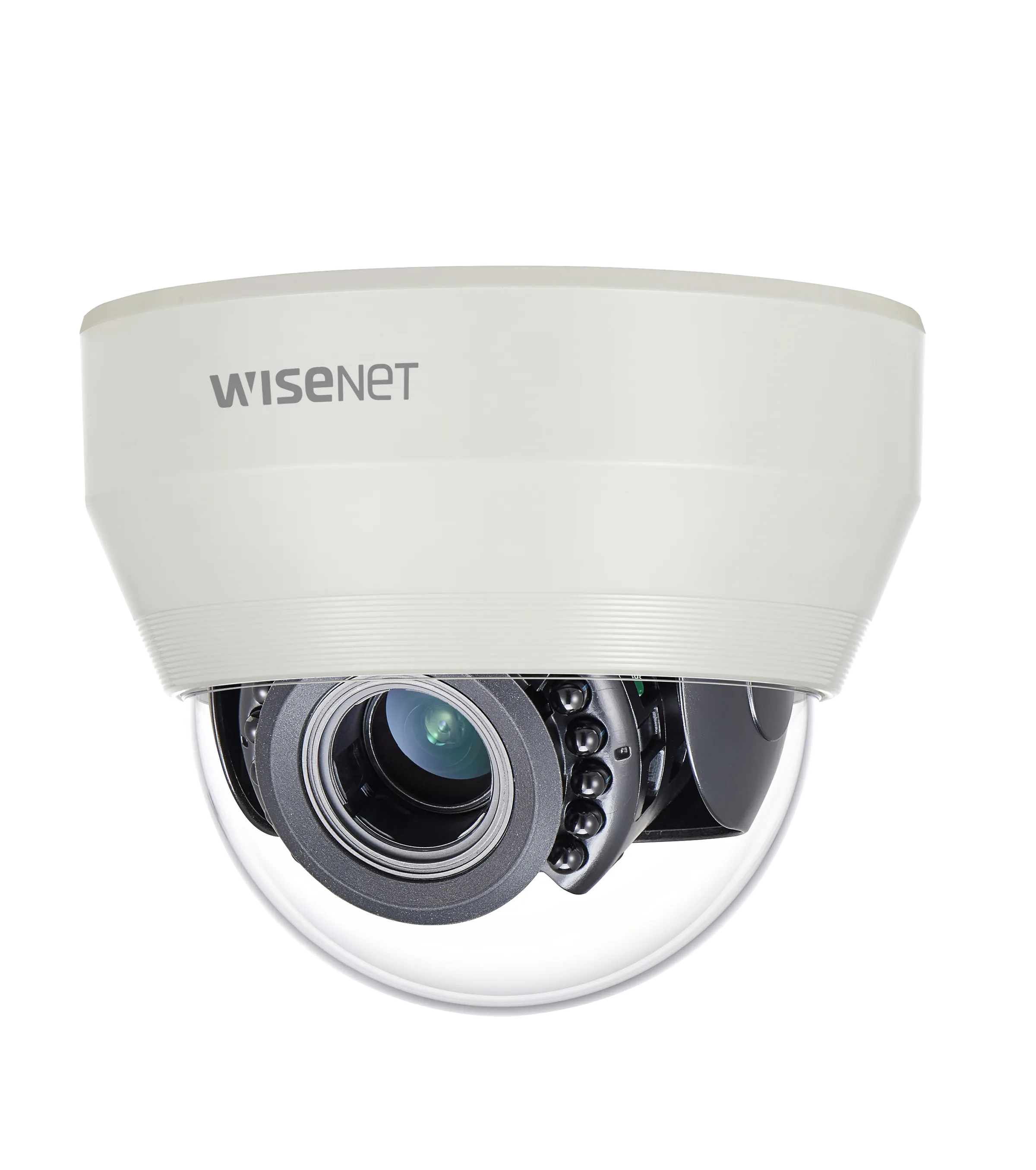

The HCD-6080R is an analog HD dome camera with IR LEDs and a motorised varifocal lens covering 3.2 to 10mm, a 3.1x optical zoom range. Its 1/2.8-inch CMOS sensor records 1920x1080 at 30fps (NTSC) or 25fps (PAL), with a field of view from 110.2° to 32° horizontally, 55.4° to 18° vertically and 128.4° to 36.6° diagonally. The camera is rated at 0.11 lux in colour at F1.6 and 0.011 lux in black and white; with the IR illumination on it operates down to 0 lux and reaches 20m. Video leaves the camera over BNC as AHD, TVI, CVI or CVBS and travels up to 500m on 5C2V coaxial cable. Image handling includes an automatic ICR filter, BLC, HLC, 120dB WDR, SSNRⅣ and motion detection. The DC auto iris is IR corrected, the camera head moves across 0° to 350° pan, 0° to 67° tilt and 0° to 355° rotation, and installation is plug and play with dual power. Motorised 3.2 to 10mm varifocal lens (3.1x)1/2.8-inch CMOS sensor, 1920x10800.11 lux at F1.6 in colour, 0 lux with IR LED20m IR viewable length120dB WDR, SSNRⅣ, motion detectionAHD/TVI/CVI/CVBS BNC output up to 500m

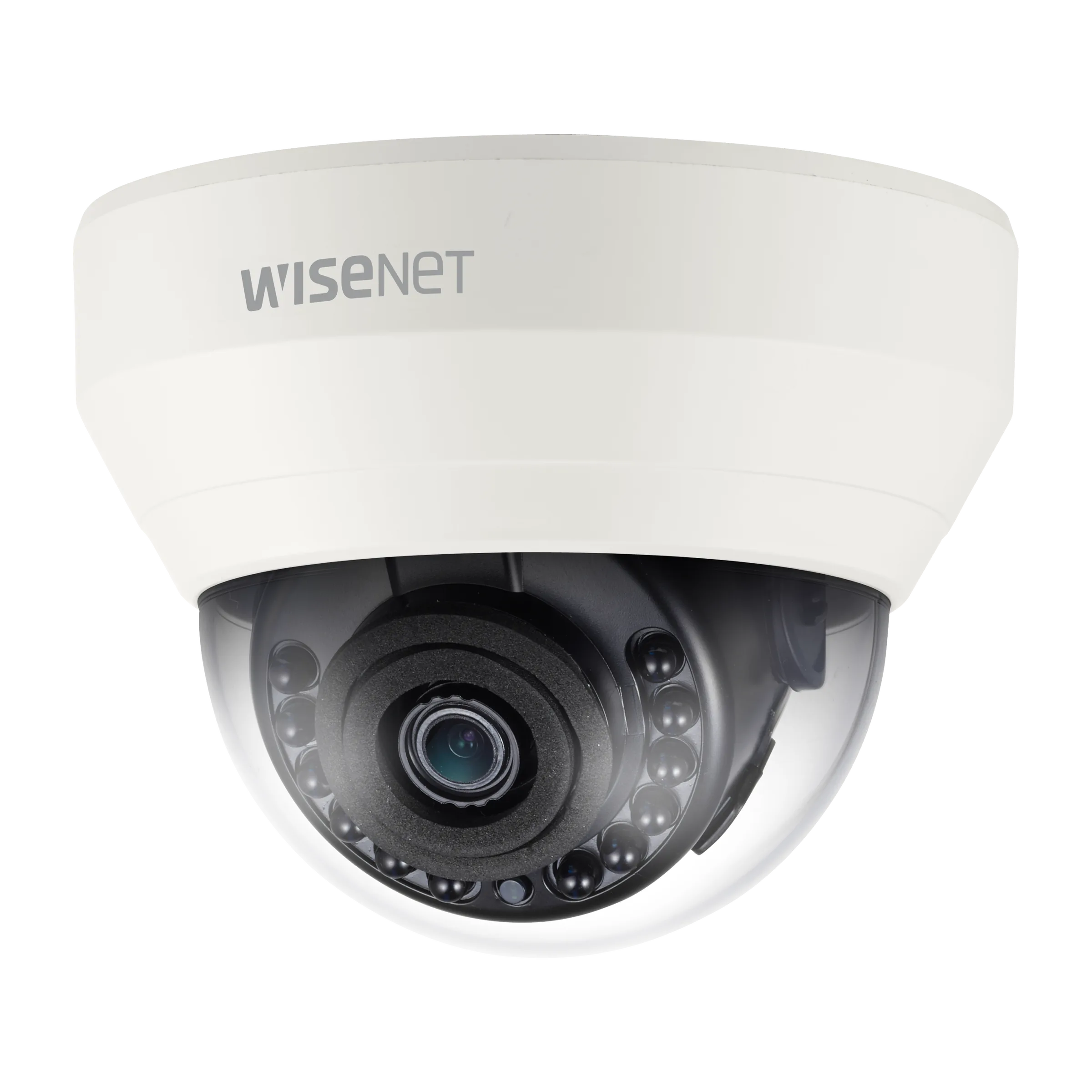

The HCD-6020R is an analog IR dome camera that captures 1920x1080 from a 1/2.8-inch CMOS sensor at 30fps (NTSC) or 25fps (PAL). Its fixed 4mm F1.6 lens spans 87.6° horizontally, 46.4° vertically and 104.5° diagonally, focus is manual and the minimum object distance is 0.5m. Low-light ratings are 0.17 lux in colour and 0.017 lux in black and white, with an automatic ICR filter controlling the move to night mode. The BNC connector supplies AHD, TVI, CVI or CVBS as required and drives up to 500m of 5C2V coaxial cable. High-contrast scenes are handled by BLC, HLC and 120dB WDR, while SSNRⅣ keeps noise down. The camera module pans across 0° to 350°, tilts from 0° to 67° and rotates through 0° to 355°. 1/2.8-inch CMOS sensor, 1920x1080Fixed 4mm F1.6 lens0.17 lux colour, 0.017 lux black and whiteSelectable AHD/TVI/CVI/CVBS BNC output120dB WDR and SSNRⅣUp to 500m over 5C2V coaxial cable

The HCV-6070R is a vandal-resistant analog HD dome camera with infrared illumination, built to IP66 and IK10. Its 1/2.8-inch CMOS sensor produces 1920x1080 at 30fps (NTSC) or 25fps (PAL), and the 3.2 to 10mm varifocal lens with 3.1x optical zoom covers 110.2° to 32° horizontally, 55.4° to 18° vertically and 128.4° to 36.6° diagonally. Focus is manual by way of an IR-corrected DC auto iris from a minimum object distance of 0.5m. At F1.6 the camera is rated 0.11 lux in colour and 0.011 lux in black and white, reaching 0 lux with the IR LED on and a 30m viewable length. The BNC output supplies AHD, TVI, CVI or CVBS over up to 500m of 5C2V coaxial cable, an automatic ICR filter handles day and night switching, and 120dB WDR, SSNRⅣ and motion detection support the image. Within the housing the module pans 0° to 350°, tilts 0° to 67° and rotates 0° to 355°, with plug-and-play installation and dual power. Vandal-resistant IP66 and IK10 housing3.2 to 10mm varifocal lens (3.1x)1/2.8-inch CMOS sensor, 1920x108030m IR viewable length, 0 lux with IR LED120dB WDR, SSNRⅣ, motion detectionAHD/TVI/CVI/CVBS BNC output up to 500m

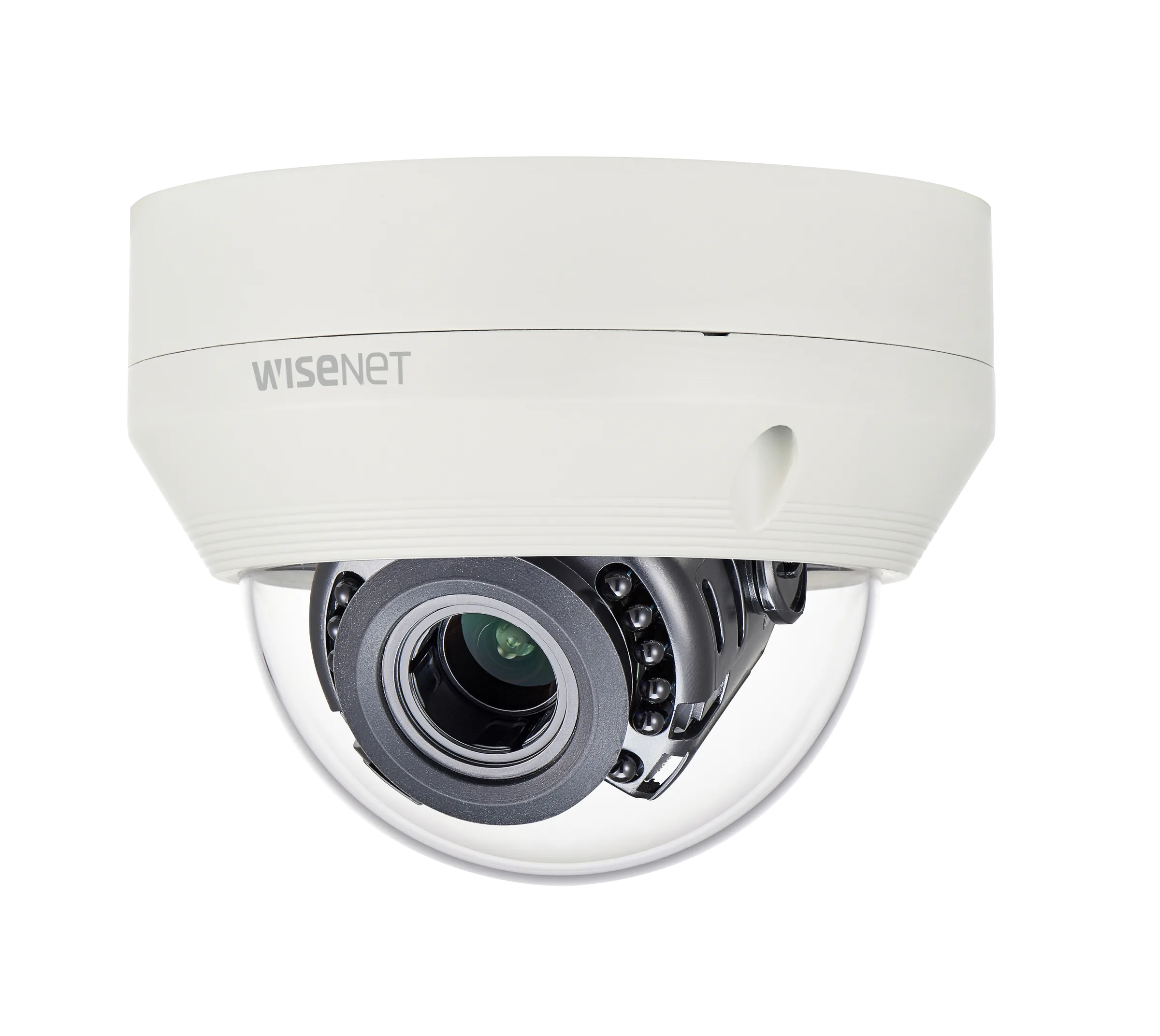

The HCV-6080R is a vandal-resistant analog HD dome camera to IP66 and IK10 with infrared illumination. A motorised varifocal lens runs from 3.2 to 10mm with 3.1x optical zoom and simple focus, covering 110.2° to 32° horizontally, 55.4° to 18° vertically and 128.4° to 36.6° diagonally. The 1/2.8-inch CMOS sensor records 1920x1080 at 30fps (NTSC) or 25fps (PAL); ratings are 0.11 lux in colour at F1.6, 0.011 lux in black and white, and 0 lux with the IR LED on at a 30m viewable length. Its IR-corrected DC auto iris allows capture from a 0.5m object distance. AHD, TVI, CVI and CVBS are selectable at the BNC output, 5C2V coaxial cable carries up to 500m, and an automatic ICR filter, BLC, HLC, 120dB WDR, SSNRⅣ and motion detection process the image. The module pans 0° to 350°, tilts 0° to 67° and rotates 0° to 355°, with plug-and-play installation and dual power. Vandal-resistant IP66 and IK10 housingMotorised 3.2 to 10mm varifocal lens (3.1x)Simple focus with IR-corrected DC auto iris1/2.8-inch CMOS sensor, 1920x108030m IR viewable length, 120dB WDR, SSNRⅣAHD/TVI/CVI/CVBS BNC output up to 500m

The HCV-6080 is a dome camera with an HDTVI output and a 1/2.8 inch CMOS sensor. Images are captured at 1920 x 1080 pixels and 30 frames per second through a 2.8 to 12 mm lens. Infrared illumination works up to 30 m, a microphone is fitted and the alarm interfaces are quoted as 1/1. Wide dynamic range is given as 120 dB. The enclosure meets IP66 and operates on 12 V DC. HDTVI dome with 1/2.8 inch CMOS1920 x 1080 at 30 fps2.8 to 12 mm lens30 m IR range, microphone120 dB WDRIP66, 12 V DC

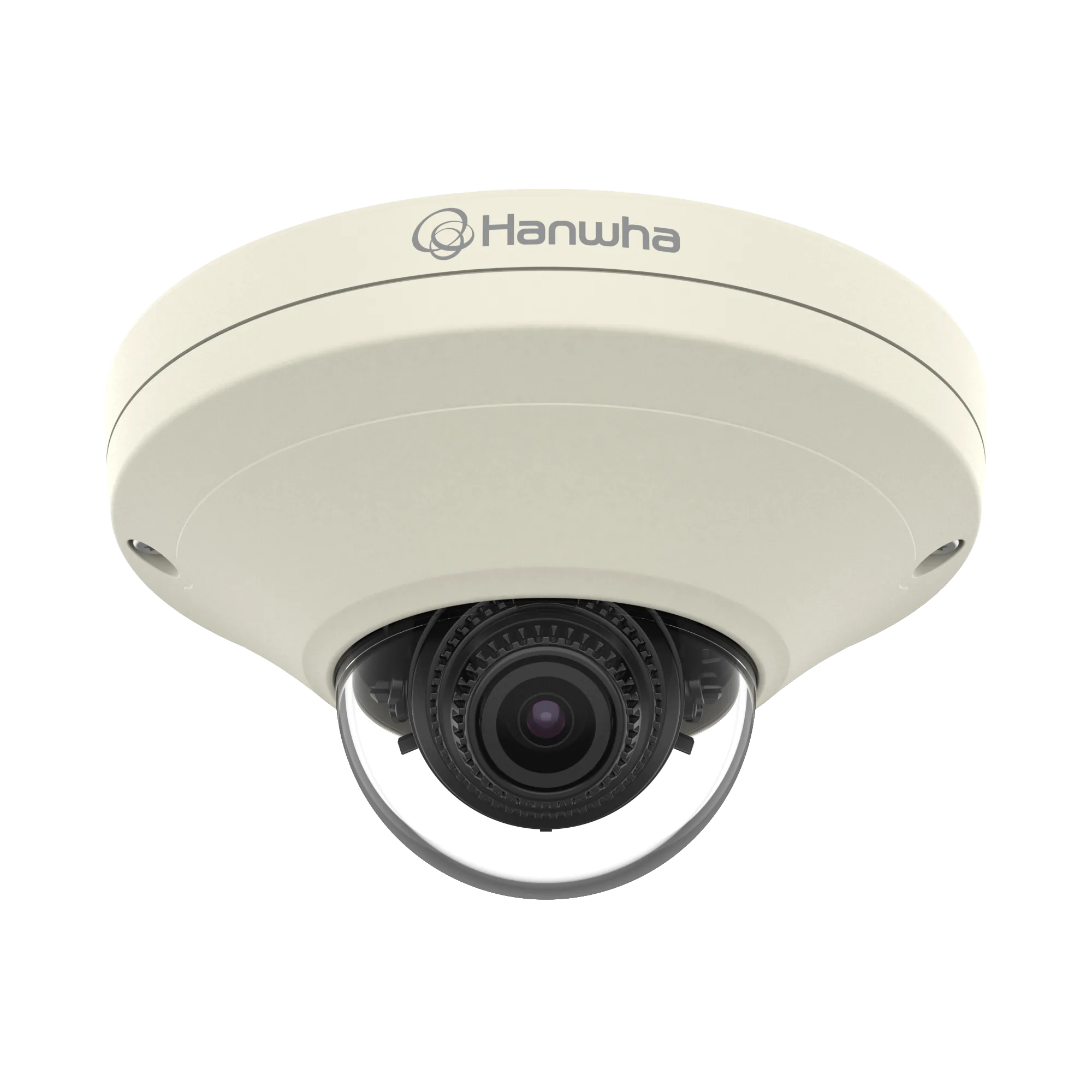

In this vandal-resistant dome camera a built-in 2.8 mm lens with a fixed F2.0 iris sits in front of a 1/2.8 inch CMOS sensor delivering up to 1920x1080. The field of view measures 112 degrees horizontally, 62 degrees vertically and 130 degrees diagonally, with a minimum object distance of 0.2 m (0.66ft). H.265 and H.264 achieve 60fps/50fps (60Hz/50Hz) at all resolutions and MJPEG 30fps, while minimum illumination is quoted as 0.055 lux for both colour and black and white. Day to night switching is electrical, supported by BLC, HLC, WDR at 150 dB, SSDR, SSNR V noise reduction and a defog function. The adjustment range covers 0 to 353 degrees pan, 0 to 59 degrees tilt and 0 to 353 degrees rotation, and analytics include loitering, direction, fog and defocus detection, digital auto tracking, heatmap, people counting, queue detection, tampering, motion detection and alarm handover, plus an SD/SDHC/SDXC slot for up to 256 GB and PoE power. 2.8 mm fixed lens, F2.0, 112 degrees horizontal1920x1080, 60fps/50fps in H.265/H.2640.055 lux in colour and black and whiteWDR 150 dB, SSNR V, defogHeatmap, people counting, queue detectionSD/SDHC/SDXC up to 256 GB, PoE

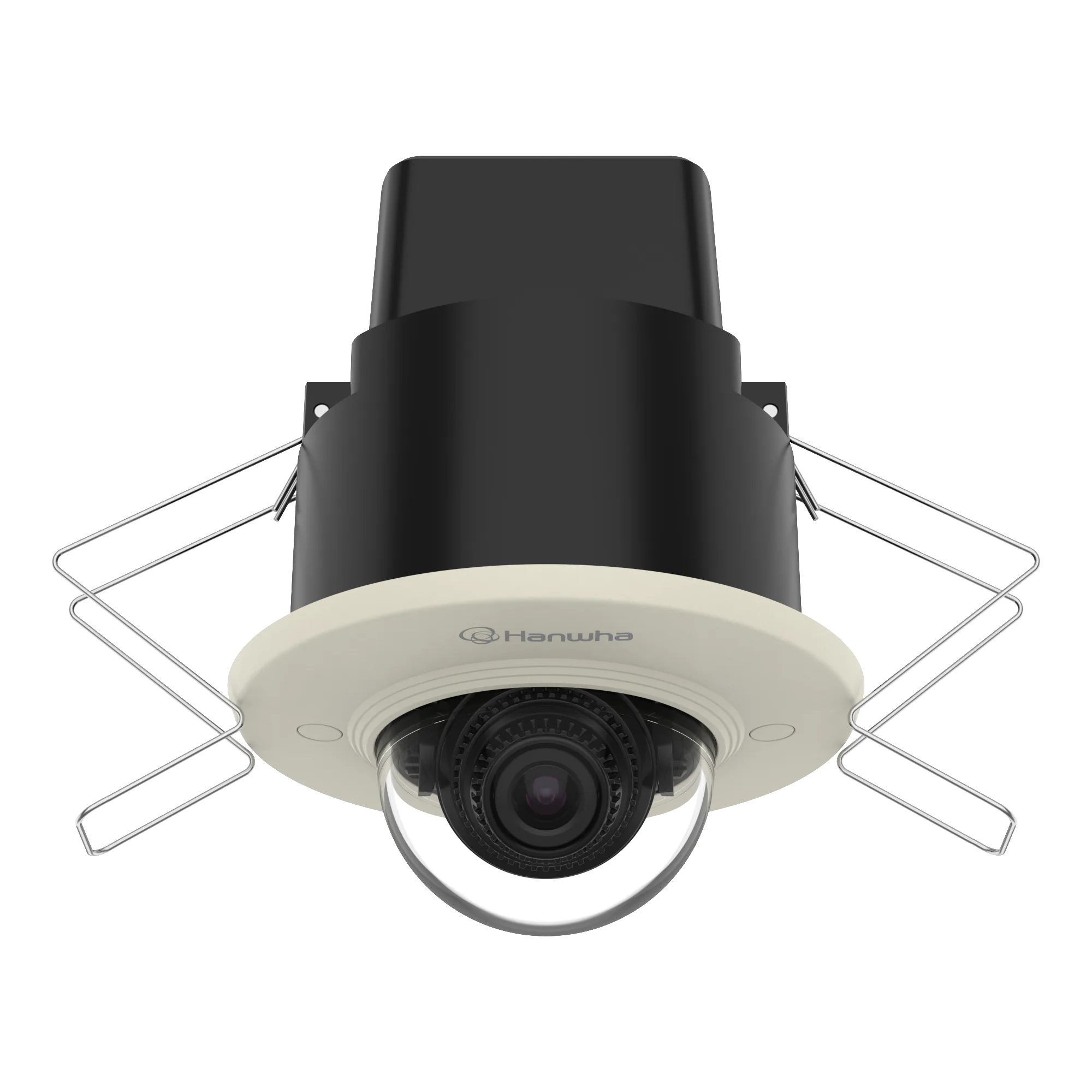

Built on a 1/2.8" CMOS sensor, the XND-6011F is a 2MP network dome camera delivering a maximum of 1920x1080. Its fixed 2.8 mm F2.0 lens with fixed iris covers 107.4° horizontally, 62.2° vertically and 122° diagonally, focusing from 0.2 m. H.265 and H.264 reach 60fps/50fps (60Hz/50Hz), MJPEG runs at 30fps, and minimum illumination is 0.55 lux for both colour and black-and-white. High-contrast scenes are addressed with ICR day and night switching, 150 dB WDR, BLC, HLC, SSDR, SSNRⅤ noise reduction and defog. The camera also provides loitering, directional, fog and audio detection, digital auto tracking, sound classification, heatmap, people counting, queue management, tampering and motion detection, plus Hallway View, WiseStreamII, an SD/SDHC/SDXC slot for up to 256 GB and PoE or 12V DC supply. 1/2.8" CMOS, up to 1920x1080Fixed 2.8 mm F2.0 lens, fixed iris150 dB WDR, defog, day/night (ICR)Hallway View and WiseStreamIISD/SDHC/SDXC up to 256 GBPoE or 12V DC power

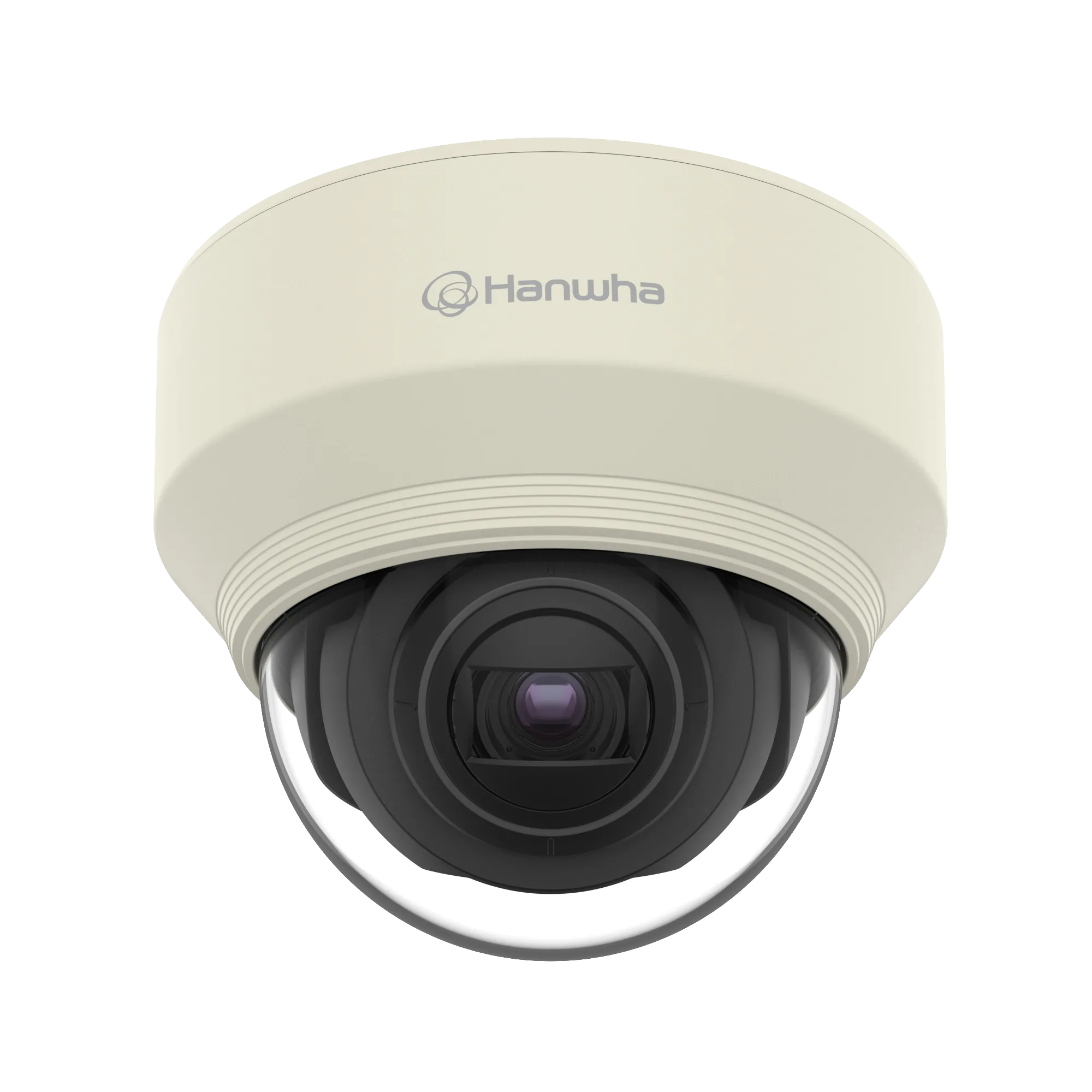

The XND-6080 is a 2MP network dome camera whose motorised 2.8 to 12 mm varifocal lens provides 4.3x optical zoom for areas where the framing has to change. Aperture ranges from F1.4 at the wide end to F3.6 at tele, and the field of view spans 119.5° to 27.9° horizontally, 62.8° to 15.7° vertically and 142.1° to 32.0° diagonally from 0.5 m. A 1/2.8" CMOS sensor produces up to 1920x1080 at 60fps/50fps (60Hz/50Hz) in H.265 and H.264 and 30fps in MJPEG, with minimum illumination of 0.015 lux in colour and 0.0015 lux in black-and-white. Simple focus plus DC auto iris and IR-corrected P iris assist commissioning, while WDR of up to 150 dB, ICR day and night switching and defog support the image itself. Loitering, directional, fog and audio detection, digital auto tracking, sound classification, tampering and motion detection round out the feature set, with an SD/SDHC/SDXC slot for up to 512 GB. Motorised 2.8–12 mm varifocal lens, 4.3xF1.4 wide to F3.6 tele aperture1/2.8" CMOS, up to 1920x108060fps/50fps in H.265 and H.264WDR up to 150 dB, defogSD/SDHC/SDXC up to 512 GB

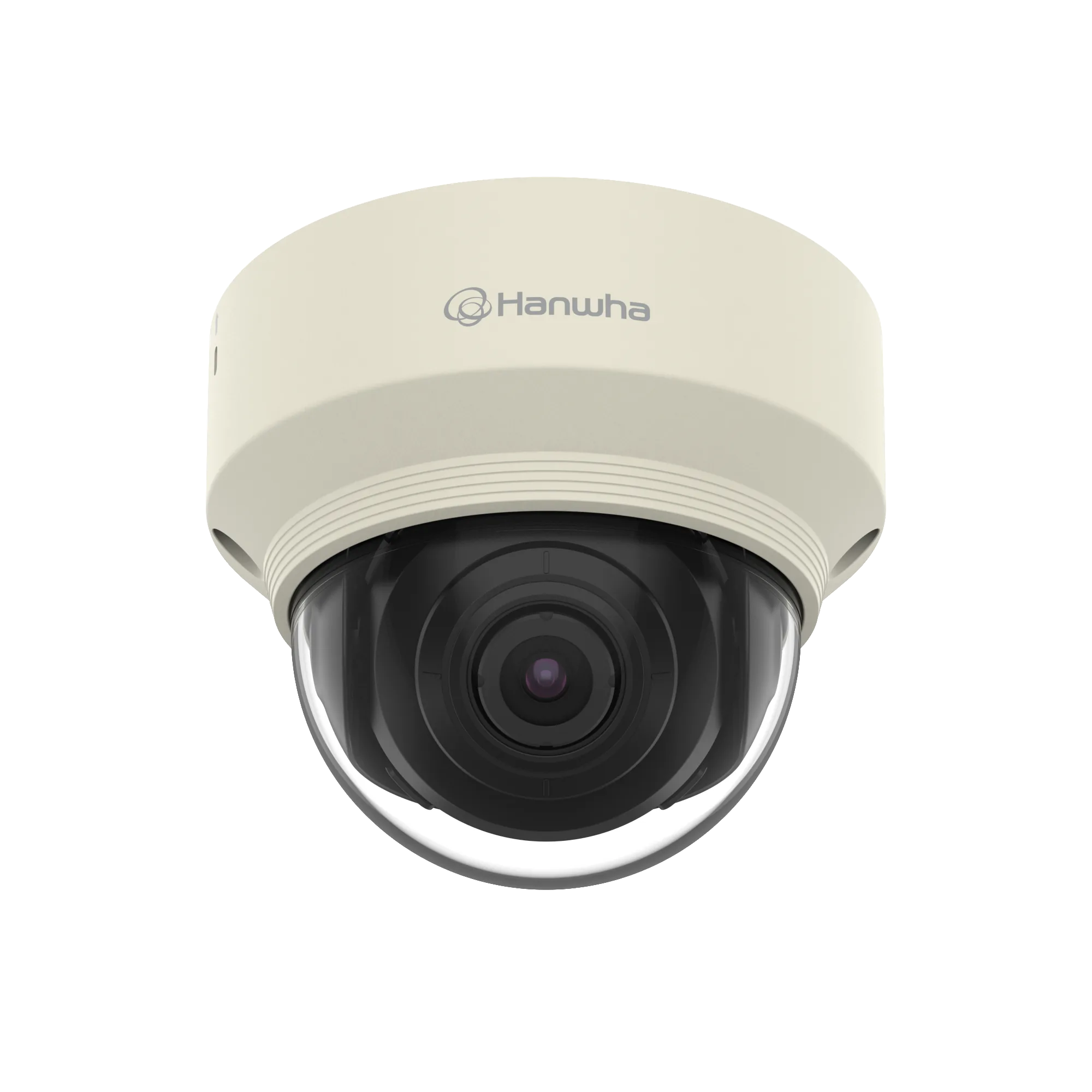

The XND-6010 is a 2MP network dome camera built around a 1/2.8" CMOS sensor with a top resolution of 1920x1080. Its built-in 2.4 mm F2.0 fixed lens sees 139° horizontally, 73° vertically and 167° diagonally from a minimum object distance of 0.4 m. H.265 and H.264 run at 60fps/50fps (60Hz/50Hz) and MJPEG at 30fps, while minimum illumination is 0.055 lux in colour and 0.0055 lux in black-and-white. Difficult lighting is handled by ICR day and night switching, WDR of up to 150 dB, BLC, HLC and SSDR together with SSNRⅤ noise reduction and defog. Analytics cover loitering, directional, fog and audio detection, digital auto tracking, sound classification, heatmap, people counting, queue management, tampering and motion detection; an SD/SDHC/SDXC slot takes up to 512 GB and power comes from PoE or 12V DC. 1/2.8" CMOS, up to 1920x1080Fixed 2.4 mm F2.0 lens, 139° horizontal60fps/50fps in H.265 and H.264WDR up to 150 dB, day/night (ICR), defogSD/SDHC/SDXC up to 512 GBPoE or 12V DC power

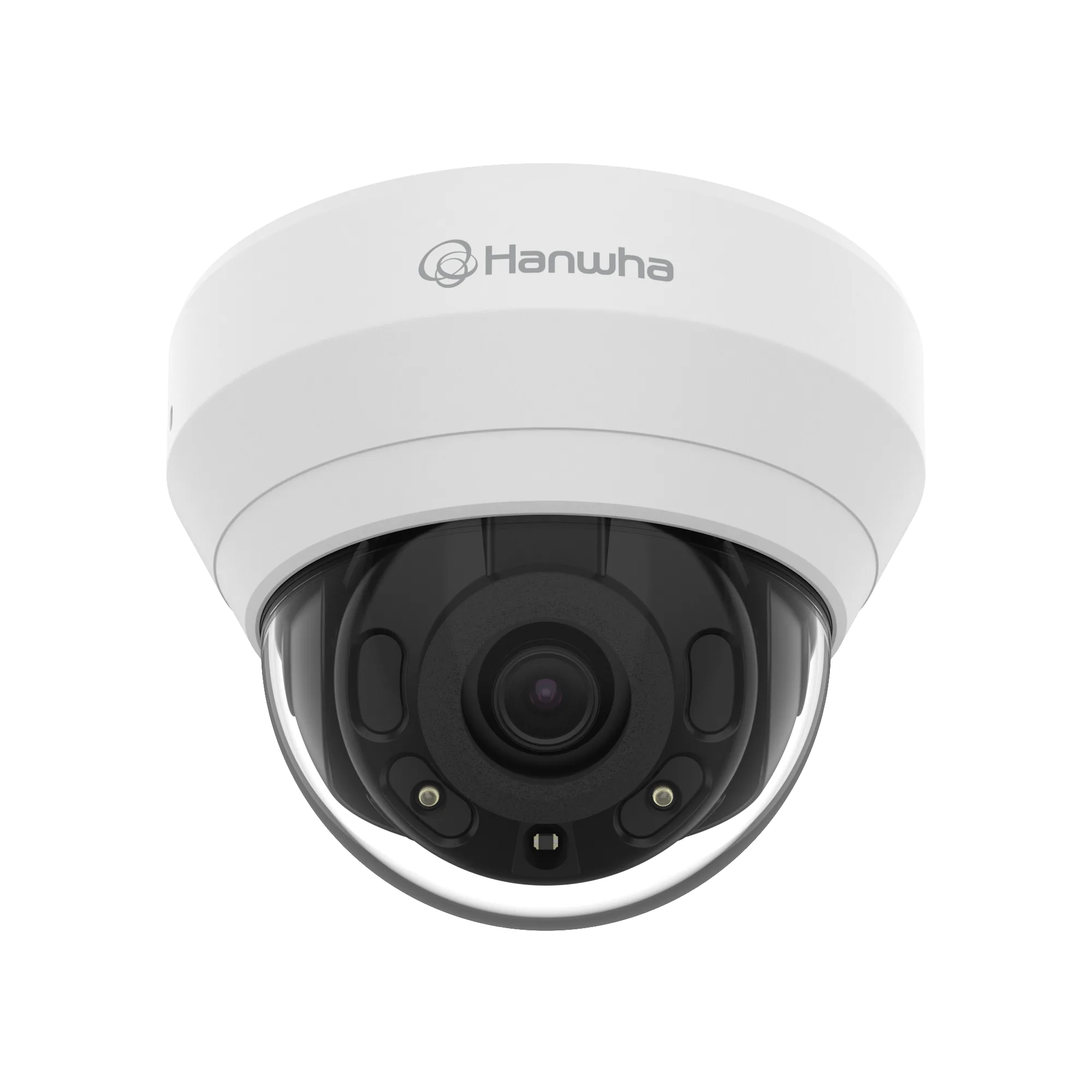

The QND-6022R is an IR network dome camera with a 1/2.8-inch CMOS sensor and a maximum resolution of 2MP (1920x1080). Its fixed 4mm F1.6 lens covers 88° horizontally, 47° vertically and 105° diagonally, with a minimum object distance of 0.5m. All resolutions are available in H.265 and H.264 at up to 30fps/25fps (60Hz/50Hz), while MJPEG reaches 15fps and a maximum of 4fps at 2MP, and multiple streaming is supported. Colour images begin at 0.03 lux and black and white at 0.003 lux, with 0 lux operation when the IR LED is on, assisted by 120dB WDR, BLC, SSDR and SSNR. Motion, tampering and defocus detection are provided, hallway view (90°/270°) and LDC are supported, and the Micro SD/SDHC/SDXC slot accepts up to 128GB. 2MP (1920x1080) on a 1/2.8-inch CMOS sensorFixed 4mm F1.6 lens0.03 lux in colour, 0 lux with IR LED onHallway view (90°/270°) and LDC supportMicro SD/SDHC/SDXC slot up to 128GB120dB WDR with BLC and SSDR
