Media converter

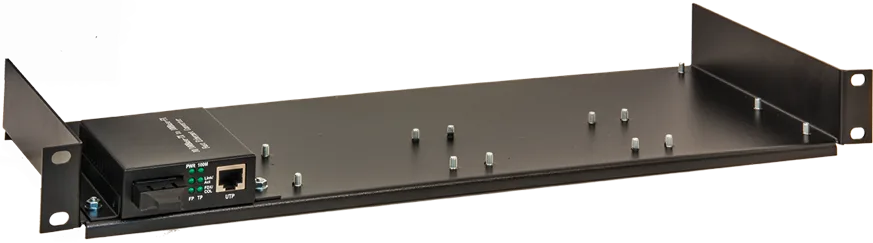

The LO-9500-R1 is a 19-inch rack of one height unit for media converters of the LO-9500 range. It takes up to four converters, and fitting the devices is straightforward. All the mounting accessories needed are supplied with it. The operating temperature range runs from -20 C to +50 C, and the rack itself produces no thermal power loss. Gross weight is 1.7 kg and net weight 1.4 kg. 19-inch rack, 1 UHolds up to four LO-9500 media convertersMounting accessories includedOperating temperature -20 C to +50 C

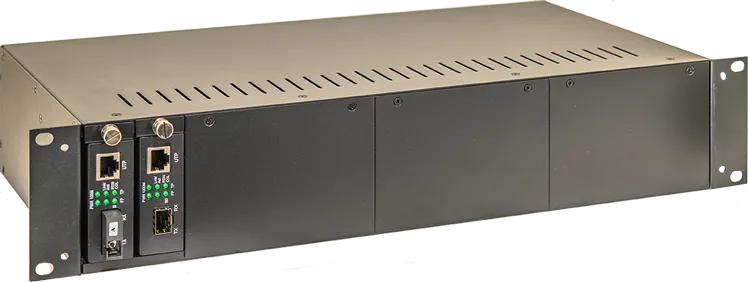

As a 19-inch rack of two height units, the LO-9500-R2A accommodates up to 14 media converters of the LO-9500 range. Two redundant power supplies for 110-230 VAC each at 50-60 Hz are part of the delivery and secure availability. Fully equipped with 14 converters the rack draws a maximum of 50 W, and thermal power loss is 34 BTU/h. Fitting the converters is simple and the necessary mounting accessories are included. Dimensions are 230 x 490 x 90 mm at 5.4 kg gross and 4.8 kg net, with an operating temperature range of -20 C to +50 C. 19-inch rack, 2 UHolds up to 14 LO-9500 media convertersTwo redundant 110-230 VAC power supplies includedPower consumption max. 50 W when fully equippedOperating temperature -20 C to +50 C

Digital video receiver, compact module Multimode 1300nm, ST connector incl. power supply 230VAC/12VDC

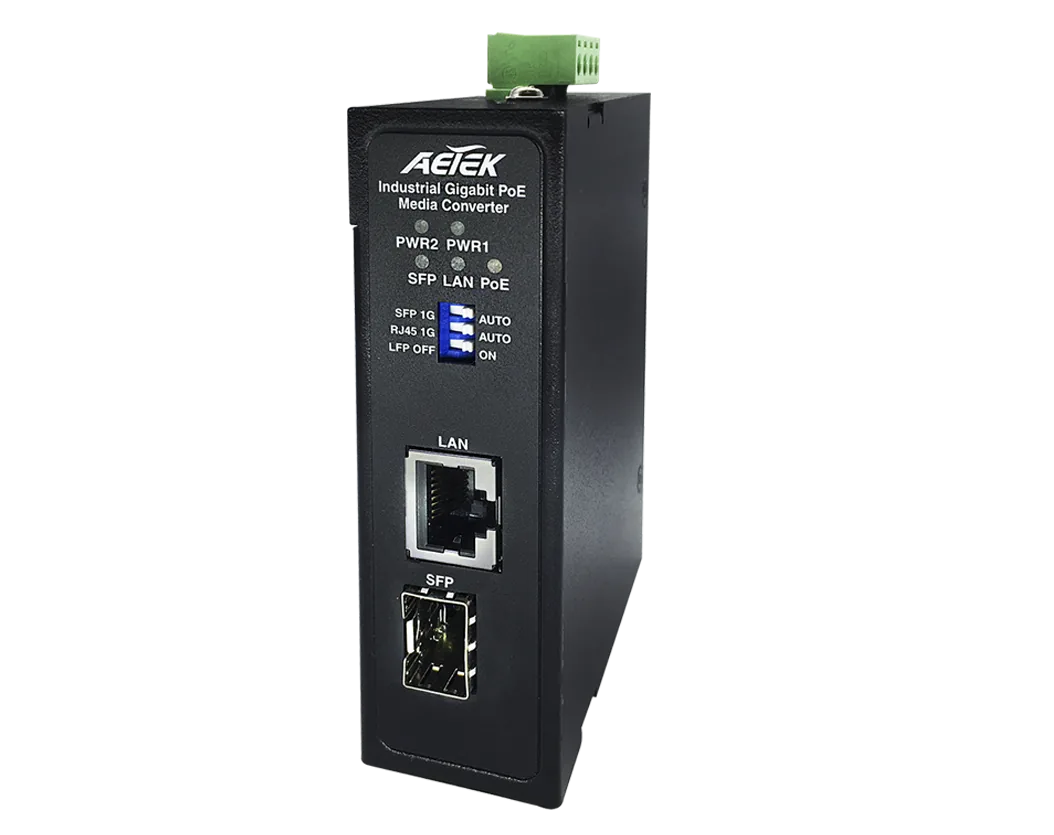

DIN-rail media converter with a PoE output: one 10/100/1000BASE-T copper port feeds a camera or an access point to IEEE 802.3af at 15.4 W or 802.3at at up to 30 W over pairs 12(+) and 36(-), while an SFP slot for 100/1000BASE-X carries the link on over fibre. PoE budget 30 W, input 48 to 56 V DC, standby draw 1 W at 48 V DC. Compact IP30 case without a fan, working range -40 °C to 75 °C, storage -40 °C to 85 °C. Switching capacity 4 Gbps, forwarding 2.976 Mpps, jumbo frames 9K bytes, Energy Efficient Ethernet to IEEE 802.3az. Surge protection 6 kV common mode per PoE port. 81.5 x 30 x 100 mm, 0.29 kg.

DIN-rail media converter that hands a copper run over to fibre: one 10/100/1000BASE-T port and one SFP slot for 100/1000BASE-X, two Gigabit ports in all. It belongs at the point where a camera run outgrows what copper reaches. Power comes from 12 to 56 V DC or from 24 V AC, with 1 W standby draw at 48 V DC. IP30 case, no fan, working range -40 °C to 75 °C. Switching capacity 4 Gbps, forwarding 2.976 Mpps, jumbo frames 9K bytes, store and forward, auto-MDI/MDI-X and auto-negotiation. Link fault passthrough reports a failure on one side to the other. Surge protection 6 kV, ESD ±4 kV on contact and ±8 kV through air. 81.5 x 30 x 100 mm, 0.27 kg.

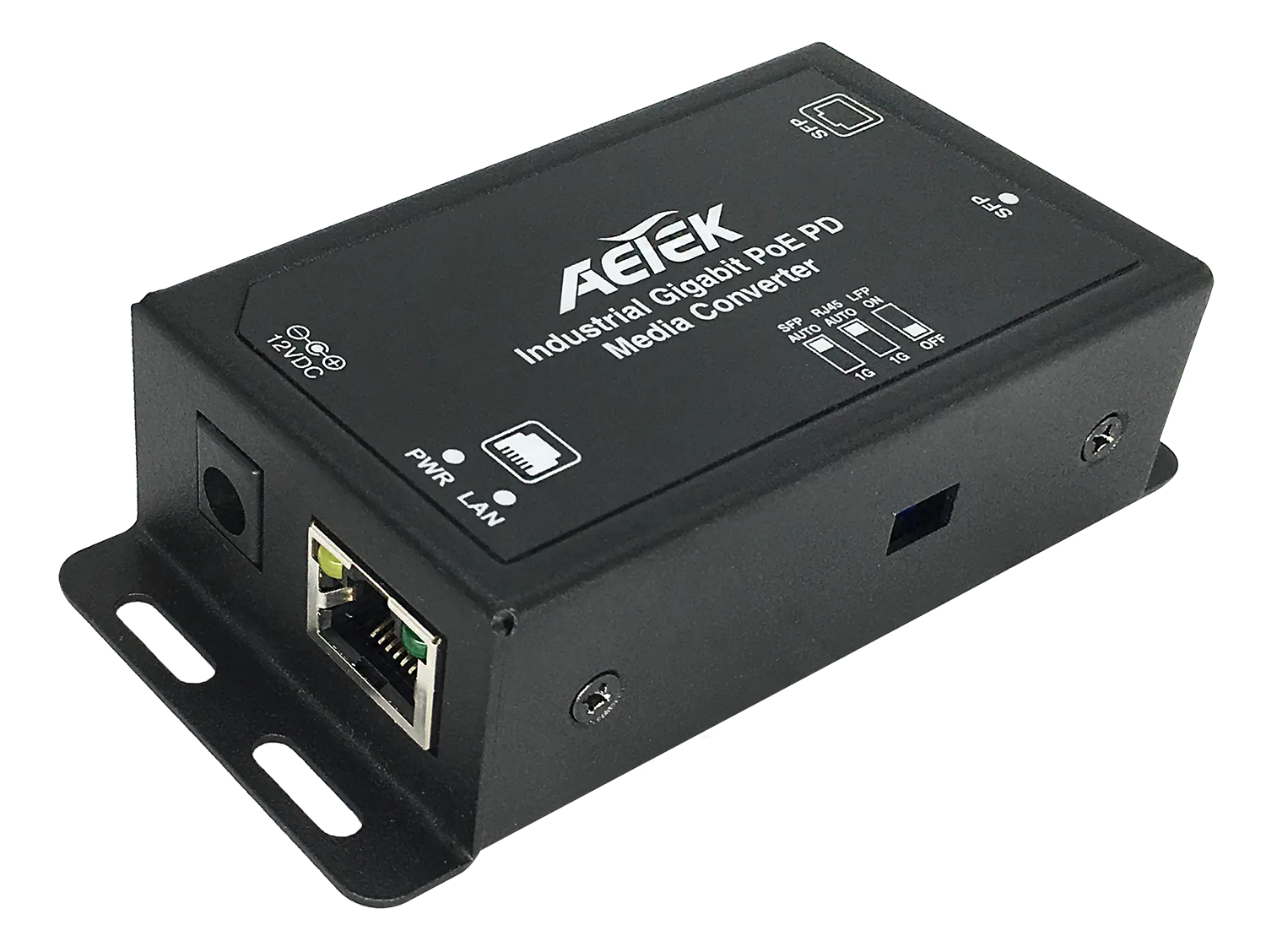

Media converter that draws its own power over the network: the Gigabit copper port acts as a PD and takes power from a bt PoE source, or the unit runs from 12 V DC instead. The SFP slot for 100/1000BASE-X carries the link on over fibre. This gives a copper-to-fibre transition at a location with no mains socket nearby. The PD input accepts either polarity, 12(-) with 36(+), then 45(+) with 78(-) as well as 12(+) with 36(-), then 45(+) with 78(-). Standby draw 0.36 W at 12 V DC. Switching capacity 4 Gbps, forwarding 2.976 Mpps, 4K MAC table, jumbo frames 9K bytes, link fault passthrough. IP30, fanless, -40 °C to 75 °C, 103.9 x 48.9 x 28.2 mm, 0.3 kg.

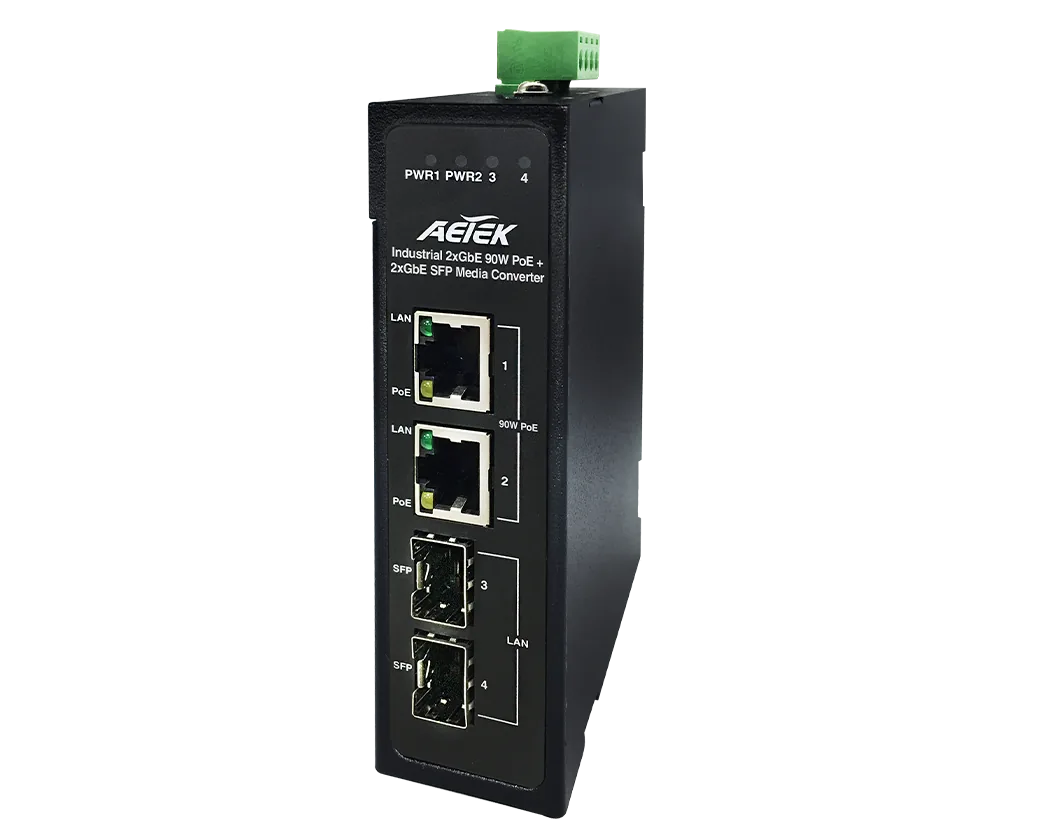

Industrial media converter with PoE to IEEE 802.3bt: two 10/100/1000BASE-T copper ports put out 15.4 W to 802.3af, 30 W to 802.3at or up to 90 W to 802.3bt across four pairs, pinned 12(-) with 36(+), then 45(+) with 78(-), alongside two SFP slots for 100/1000BASE-X. Four Gigabit ports in total, PoE budget 180 W. For 15.4 W and 30 W an input of 48 to 56 V DC is enough; 90 W calls for 52 to 56 V DC. Idle draw is 1.44 W at 48 V DC. IP30 case for a DIN rail, fanless, -40 °C to 75 °C. Switching capacity 8 Gbps, forwarding 5.952 Mpps, 4K MAC table, jumbo frames 9K bytes, surge protection 6 kV common mode per PoE port. 87 x 33 x 120 mm, 0.3 kg.

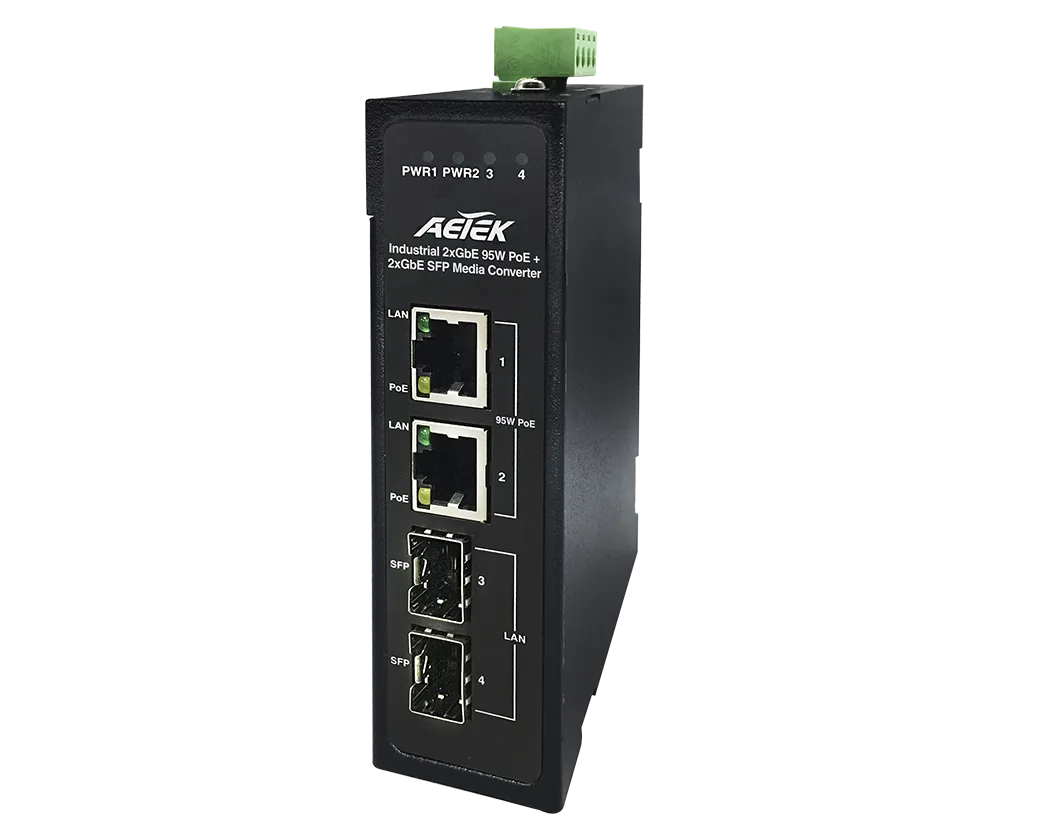

Media converter with two PoE ports and two SFP slots, four Gigabit ports in total. The copper ports feed to IEEE 802.3af at 15.4 W, 802.3at at 30 W, or PoH at up to 90 W over all four pairs, pinned 12(-) with 36(+), then 45(+) with 78(-); the SFP slots take 100/1000BASE-X. Input voltage depends on the output wanted: 48 to 56 V DC for 15.4 W and 30 W, 52 to 56 V DC for 90 W. PoE budget 180 W, standby draw 1.44 W at 48 V DC. DIN-rail mounting, IP30, fanless, working range -40 °C to 75 °C. Switching capacity 8 Gbps, forwarding 5.952 Mpps, 4K MAC table, jumbo frames 9K bytes. 87 x 33 x 120 mm, 0.3 kg.

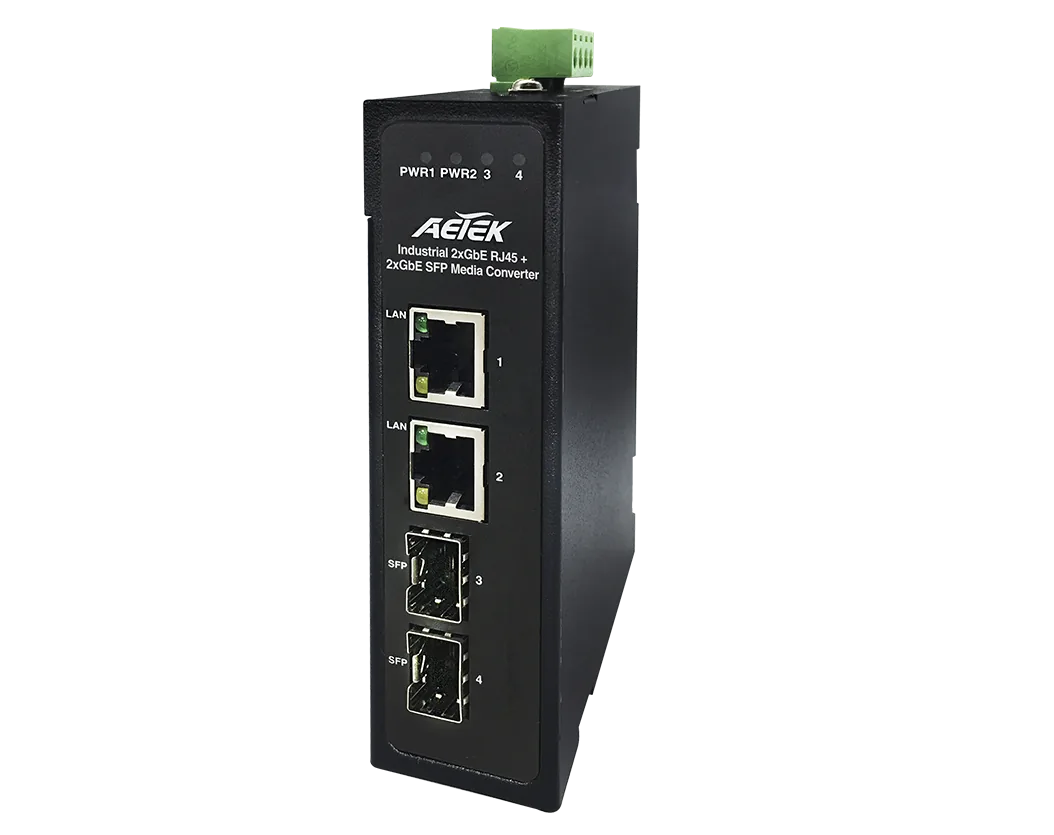

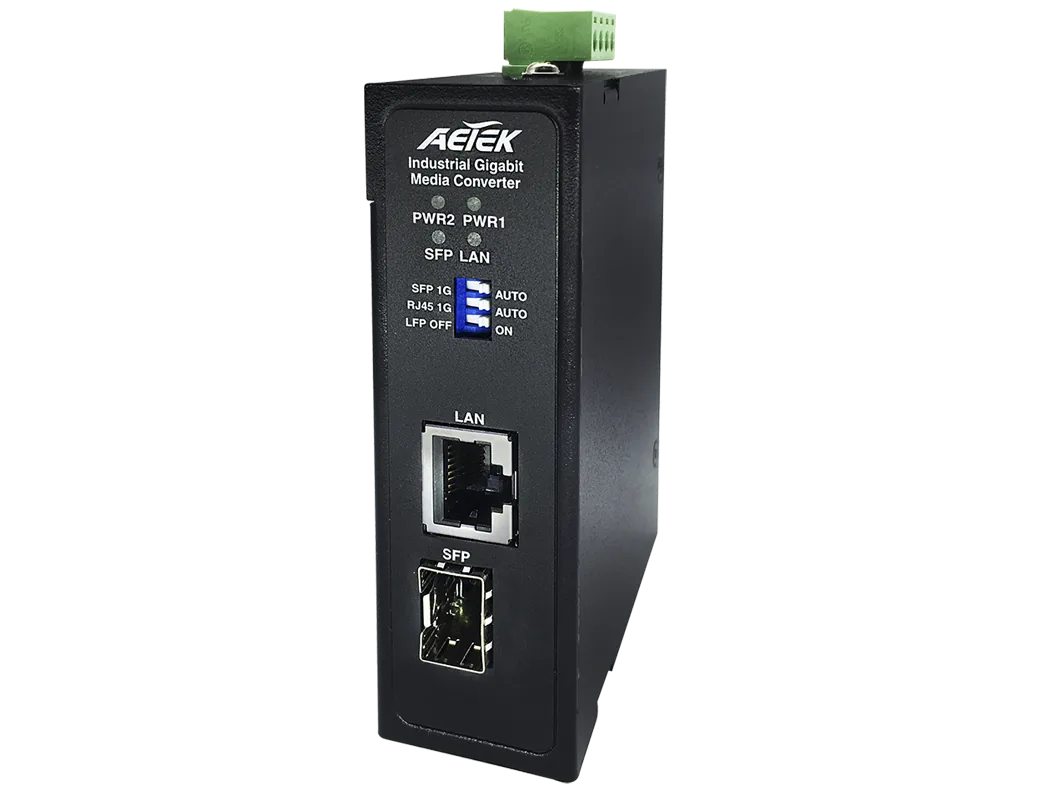

Media converter with four Gigabit ports: two 10/100/1000BASE-T copper connections and two SFP slots for 100/1000BASE-X. Two runs can change to fibre at one point without a second unit. Power 12 to 56 V DC, standby draw 1 W at 48 V DC, DIN-rail mounting, IP30 case, no fan. Working range -40 °C to 75 °C, storage to 85 °C, humidity 5 to 95 % non-condensing. Switching capacity 8 Gbps, forwarding 5.592 Mpps, 4K MAC table, jumbo frames 9K bytes, Energy Efficient Ethernet to IEEE 802.3az. Surge protection 6 kV common mode, ESD ±4 kV on contact. 87 x 33 x 120 mm, 0.19 kg.

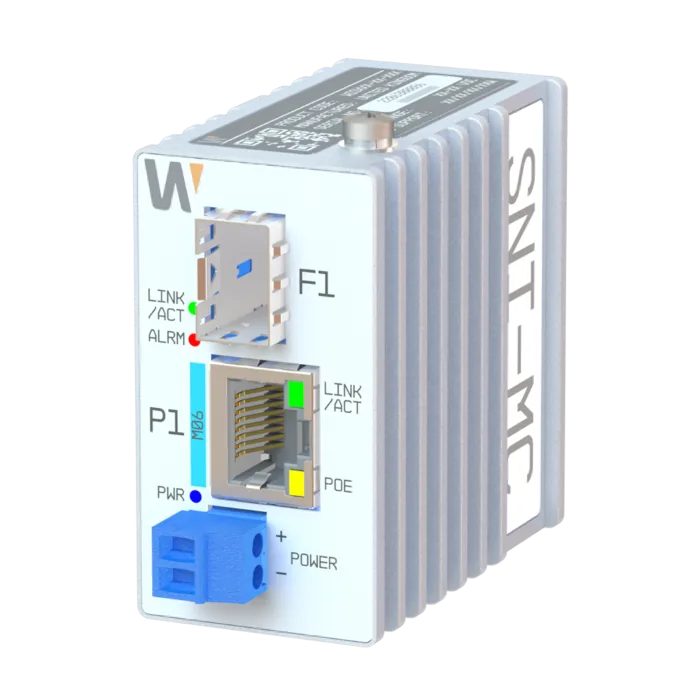

Industrial PoE Mini Media Converter 1 x 10/100/1000Base-T(x) RJ45 Port with 802.3bt 60/90W PoE, 1 x 100/1000Base-Fx SFP Port, DIP-Switch Functions, DIN Rail / Wall Mount, -40°C to +75°C, 52-56VDC Power Input (Power supply not included)

The LO-9500-S extends Ethernet links over singlemode optical fibre and works without management. It converts one 10/100BaseTX copper port with RJ45 to a fixed 100BaseFX port with two singlemode fibres, SC duplex and 1300 nm. Power is supplied at 5 VDC through a 5.5/2.5 mm DC connector, the PSU is included, and consumption reaches 2 W at most. The desktop housing measures 94 x 71 x 26 mm and can be placed on a wall or inside the 19-inch LO-9500-R2 rack. The operating temperature range is 0 to 50 C, with support for 802.3 10BaseT, 802.3u 100BaseT(X) and 100BaseFX plus flow control to 802.3X. Copper port 1 x 10/100BaseTX, RJ45Fibre optic port 1 x 100BaseFX, singlemode, SC duplex, 1300 nmNo managementPower supply 5 VDC, PSU included, max. 2 WOperating temperature 0 to 50 C

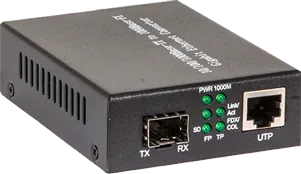

The LO-9500-G-SFP extends Ethernet links over optical fibre and needs no configuration. It offers one 10/100/1000BaseTX copper port with RJ45 and one 1000BaseFX SFP port; fibre count, wavelength and the distance that can be bridged depend on the SFP type used. Power is supplied at 5 VDC through a 5.5/2.5 mm DC connector, the power supply is included, and consumption is 2 W at most. The desktop housing measures 94 x 71 x 26 mm and can alternatively be fitted into the 19-inch LO-9500-R2 rack; table and wall mounting are also possible. Supported standards are 802.3 10BaseT, 802.3u 100BaseT(X) and 100BaseFX plus flow control to 802.3X, and the operating temperature range is 0 to 50 C. Copper port 1 x 10/100/1000BaseTX, RJ45Fibre optic port 1 x 1000BaseFX SFPNo managementPower supply 5 VDC, PSU included, max. 2 WTable or wall mounting, 94 x 71 x 26 mm

This barox media converter can be operated as a desktop unit or installed in a 19-inch rack. On the copper side it offers one 10/100TX port with an RJ45 socket. The fibre side is equipped with a 100FX single-mode connection in SC simplex format. AC-SFP-BIB-FXSE is stated as the matching SFP type. Desktop and 19-inch mounting1x 10/100TX, RJ451x 100FX single-mode, SC simplexMatching SFP type AC-SFP-BIB-FXSE

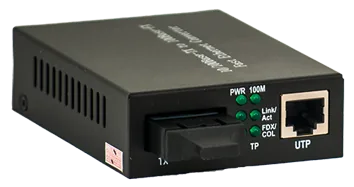

The LO-9500-M extends Ethernet links over multimode optical fibre and requires no configuration. The unit converts one 10/100BaseTX copper port with RJ45 to a fixed 100BaseFX port with two multimode fibres, SC duplex and 1300 nm. Power comes from 5 VDC through a 5.5/2.5 mm DC connector at a maximum draw of 2 W, and the power supply is included. The desktop housing measures 94 x 71 x 26 mm, can be fixed to a wall and alternatively fitted into the 19-inch LO-9500-R2 rack. The operating temperature range is 0 to 50 C, and 802.3 10BaseT, 802.3u 100BaseT(X) and 100BaseFX as well as flow control to 802.3X are supported. Copper port 1 x 10/100BaseTX, RJ45Fibre optic port 1 x 100BaseFX, multimode, SC duplex, 1300 nmNo managementPower supply 5 VDC, PSU included, max. 2 WOperating temperature 0 to 50 C

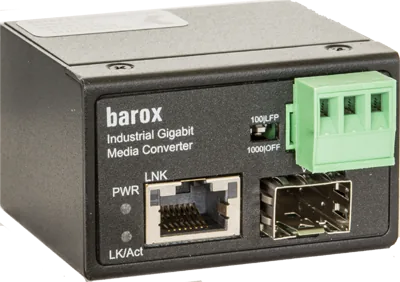

The PC-MC101-GE couples a 10/100/1000BaseTX copper port on RJ45 with an SFP slot for 100 or 1000 Mbit/s using LC connectors; the SFP data rate is selected by dipswitch. This lets the media converter attach to practically all common central switches. Auto negotiation, auto MDI/MDI-X, full and half duplex plus LFP (Link Fault Pass Through) are part of the feature set, while management is not provided. It is powered at 12-56VDC through screw clamps and draws 2W; no power supply unit is included and it must be ordered separately. With IP30 protection, an operating range of -40° to +75°C, dimensions of 59 x 36 x 50mm (WxHxD) and 0.12 kg net, the unit mounts on a DIN rail. It cannot be operated in combination with VDSL SFPs of the PD-VDSL-SFP series. 10/100/1000BaseTX copper port, RJ45SFP slot 100/1000 Mbit/s, LC connectorSFP data rate set by dipswitchLFP (Link Fault Pass Through)Supply 12-56VDC, power supply ordered separately

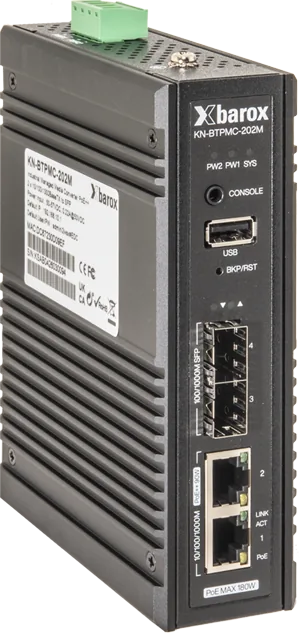

The KN-BTPMC-202M links two 10/100/1000TX copper ports to two SFP ports for 100/1000 Mbit/s and is mounted on a DIN rail. Both copper ports supply power to IEEE 802.3af/at/bt with up to 90 W per port, and a maximum of 180 W of PoE power is available across the two ports together. Power is fed redundantly with 48-57 VDC, and at least 52 VDC for PoE++; consumption ranges from 18 W without PoE to 200 W under full PoE load. Administration runs under IPv4 and IPv6 via web, Telnet, serial console, CLI, uPnP and SNMP v1/v2c/v3, complemented by PoE monitoring, PoE scheduling, PoE priority and a PD alive check that reboots end devices automatically. RSTP and ERPS, tag-based VLAN with 4k VLANs and IEEE 802.1X, RADIUS, TACACS+ and SSL/SSH cover redundancy and access protection. The operating temperature range is -40 to +75 C, the housing measures 42 x 118 x 145 mm and thermal power loss is 104 BTU/h. DIN rail mounting2 x 10/100/1000TX with PoE 802.3af/at/bt, 180 W in total2 x 100/1000 Mbit/s SFPPower supply 48-57 VDC, redundantOperating temperature -40 to +75 CManagement via web, CLI and SNMP v1/v2c/v3

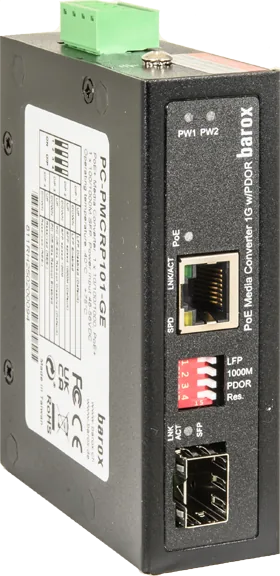

The defining feature of this media converter is the PDOR function, which switches the PoE output off and on again remotely. Combined with the SFP autochecking function of the RY switches, connected devices such as IP cameras can be monitored and restarted automatically in the event of a fault; the connected switch has to support SFP autochecking for this. The unit works without management and links a 10/100/1000TX copper port with PoE to af/at/bt up to 90 W with an SFP port for 100/1000BaseFX, where LC duplex or simplex depends on the SFP type. Power is fed redundantly through 2 x 48-56 VDC, and consumption is a maximum of 4 W without PoE and a maximum of 94 W with PoE. Protection class IP30, an operating range of -40 C to +75 C and dimensions of 104 x 32 x 82 mm without plugs complete the profile, with MTBF at 1'360'600 h at 20 C and 209'900 h at 75 C. PDOR function for remote PoE controlDIN rail, table or wall mounting1 x 10/100/1000TX with PoE af/at/bt up to 90 W1 x 100/1000 SFPPower supply 2 x 48-56 VDC, redundantIP30 protection, -40 C to +75 C

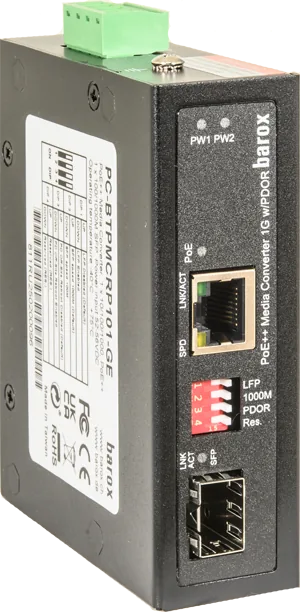

The PDOR (PD Optical Reboot) function allows the PoE output of this media converter to be switched off and on again remotely, so that attached IP cameras can be restarted in the event of a fault. For active monitoring and control the connected switch has to support the SFP auto-checking function. The converter joins a 10/100/1000TX copper port carrying PoE af/at up to 30W with an SFP slot for 100/1000 using an LC connector in simplex or duplex, whose data rate is set by dipswitch. Power arrives on two inputs at 48-56VDC in redundant form, with consumption of at most 4W without and 34W with PoE. At -40°C to +75°C, IP30 protection, 104 x 32 x 82mm (HxWxL) excluding plugs and 0.15 kg net, DIN rail, table and wall mounting are all possible. PDOR function for remote PoE control10/100/1000TX copper port, PoE af/at up to 30WSFP slot 100/1000, LC simplex or duplexRedundant supply 2 x 48-56VDCOperating temperature -40°C to +75°C, IP30

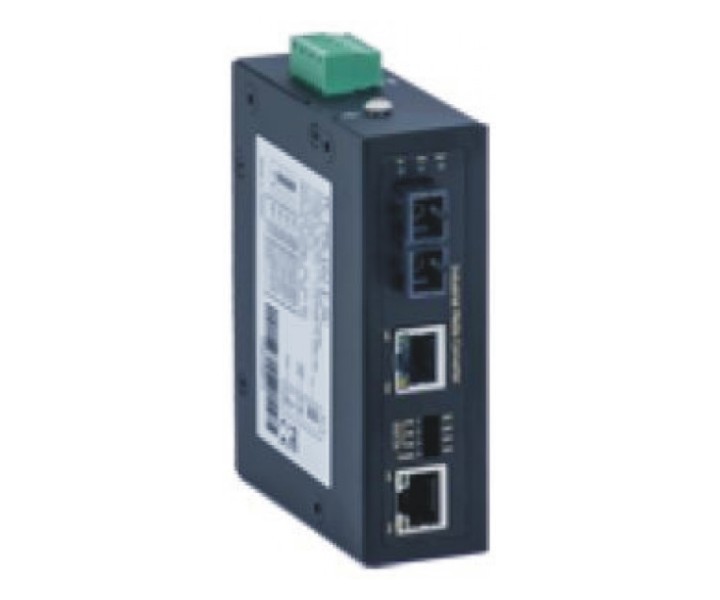

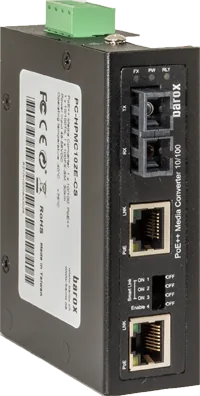

This industrial barox media converter provides two RJ45 ports with PoE+ at 100 Mbit/s and adds one SC fibre port with 100FX single-mode. The unit mounts on a DIN rail, uses a rugged enclosure and is rated for an extended temperature range and harsh environments. Power management as well as administration via web interface and CLI are included. Supply voltage is 9 to 56 VDC, or 44 to 56 VDC when PoE is used. 2x RJ45 with PoE+, 100 Mbit/s1x SC fibre port 100FX single-modeExtended temperature range, rugged housingPower management, web and CLI administration9-56 VDC, 44-56 VDC with PoEDIN rail form factor, fibre converter

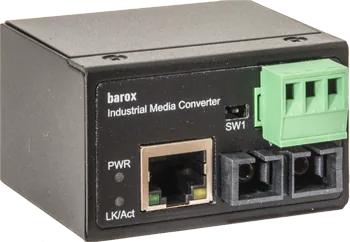

This unmanaged media converter links a 10/100BaseTX copper port on RJ45 to a fixed 100BaseFX fibre port in multimode with SC duplex. The copper side handles auto negotiation, auto MDI/MDI-X and full or half duplex operation. Power is drawn at 12-56VDC or 18-36VAC, with a consumption of 2W and a thermal loss of 7 BTU/h. IP30 protection, an operating range of -40° to +75°C and an MTBF of 1'382'500h at 20°C fit the device for remote sites. It measures 59 x 36 x 50mm (WxHxD) at 0.13 kg net, mounts on a DIN rail and is tested to EN 55032/24, CISPR 32 and IEC 61000-4-2 among others. 10/100BaseTX copper port, RJ45, auto MDI/MDI-X100BaseFX fibre port, multimode, SC duplexSupply 12-56VDC or 18-36VACOperating temperature -40° to +75°C, IP30DIN rail mounting, 59 x 36 x 50mm

This media converter turns a 10/100/1000TX copper port with PoE+ into an optical uplink using an SFP for 100/1000 with LC duplex. Attached devices are powered over the copper port to 802.3af at 15W or 802.3at at 30W. Without PoE a supply of 12-56VDC suffices, while PoE operation requires 48-56VDC with redundant feeding provided for; own consumption is a maximum of 4W without PoE at 21 BTU/h thermal loss. The unmanaged unit works from -40°C to +75°C in IP30 and reaches an MTBF of 1'360'600h at 20°C and 209'900h at 75°C. It measures 104 x 32 x 82mm (HxWxL) excluding plugs, weighs 0.19 kg net and mounts on a DIN rail or a wall. 10/100/1000TX copper port with PoE+ up to 30WUplink 1 x 100/1000 SFP, LC duplexSupply 12-56VDC without PoE, 48-56VDC with PoE, redundantOperating temperature -40°C to +75°C, IP30DIN rail or wall mounting, 0.19 kg net

This managed barox media converter links 10/100/1000Base-T with 1000Base-SX or 1000Base-LX using SC connectors. As a fibre converter in DIN rail format it is intended for industrial applications. VLAN, QoS and PoE passthrough are supported. The device operates across an extended temperature range and is housed in a rugged metal enclosure. 10/100/1000Base-T to 1000Base-SX/LXSC connectorsVLAN, QoS, PoE passthroughExtended temperature rangeRugged metal housing, DIN rail form factor

This unmanaged media converter routes two 10/100TX copper ports with RJ45 and screw clamp onto a fixed 100FX optical port for multimode fibres with SC duplex and a reach of up to 2 km. One of the copper ports acts as a PoE source to 802.3af/at with a maximum of 60 W. The backplane delivers 0.5 Gbit/s, the MAC table holds 1k entries, and link fault pass through is supported. Power is fed through 2 x 48-56 VDC at a maximum draw of 3 W and 10 BTU/h thermal loss. The unit meets protection class IP30, measures 104 x 32 x 82 mm and can be mounted on a DIN rail, on a table or on a wall, with an operating range from -40 C to +75 C. DIN rail, table or wall mounting2 x 10/100TX, RJ45, one port with PoE up to 60 W1 x 100FX, multimode, SC duplex, 2 kmLink fault pass throughPower supply 2 x 48-56 VDCIP30 protection, -40 C to +75 C

The PC-HPMC101-GE is an unmanaged media converter with one 10/100/1000TX copper port and one 100/1000 SFP uplink. The copper port supports PoE-af at 15 W, PoE-at at 30 W and PoE++ up to 60 W. The device runs on 12-56 VDC without PoE and on 48-56 VDC in PoE operation, drawing a maximum of 4 W without PoE at a thermal loss of 28 BTU/h. The mounting accessories supplied allow fixing on a DIN rail or on a wall. The converter meets protection class IP30, carries FCC Class A and CE marking and operates from -40 C to +75 C; MTBF is 1'319'000 h at 20 C and 197'300 h at 75 C. DIN rail or wall mounting1 x 10/100/1000TX with PoE up to PoE++ 60 WUplink 1 x 100/1000 SFPPower supply 48-56 VDCIP30 protection, -40 C to +75 C
