Monitors

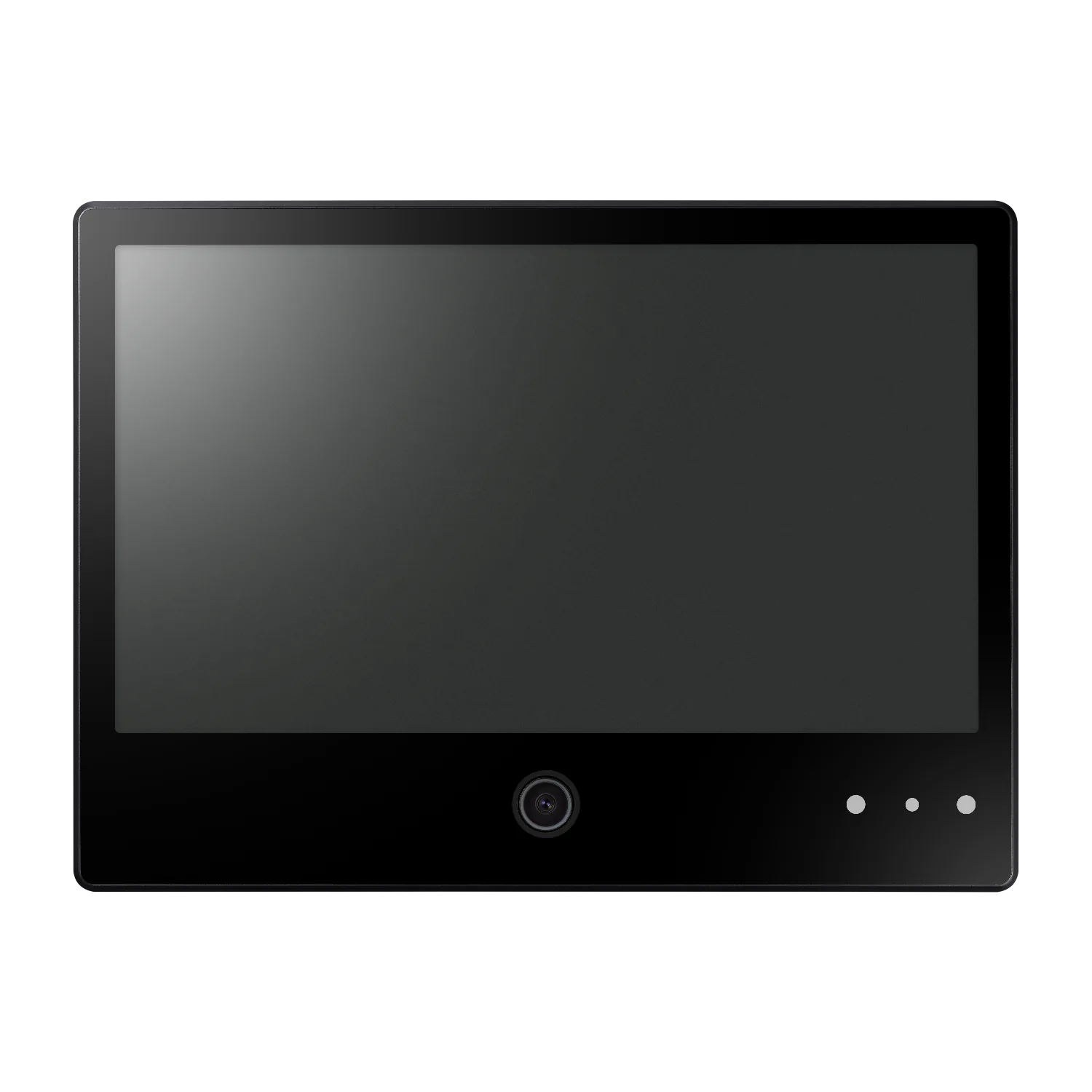

The SMT-1031PV is a public view monitor in black that combines a 10-inch LED panel with a built-in 2 MP AI camera (f1.6). The display runs at 1024x600, delivers 500 cd/m2 with a 500:1 contrast ratio in 16:9, renders 16.7 million colours, responds in 20 ms and is rated for 50,000 hours; viewing angles are 140 degrees horizontal and 120 degrees vertical. AI analytics classify objects, a face detection box is shown on screen, and motion or event triggers activate the LED and audio alarm. Operators can add a customisable text overlay defaulting to "Recording in progress", an on-screen logo image and an image slide show that needs no additional storage. Integration uses SUNAPI and ONVIF Profile S/G/T/M over one RJ-45 10/100BASE-T port, with one alarm input, one alarm output and a micro SD/SDHC/SDXC slot up to 256 GB; the two speakers are rated 8 ohm 1 W each. Power comes from DC24V or PoE+ per 802.3at at 14 W, and the unit operates from 0 to +40 C at 10 to 80 percent non-condensing humidity. 10-inch LED panel at 1024x600Built-in 2 MP AI camera, f1.6AI object classification and face detection boxSUNAPI and ONVIF Profile S/G/T/MDC24V or PoE+ 802.3at, 14 WMicro SD slot up to 256 GB

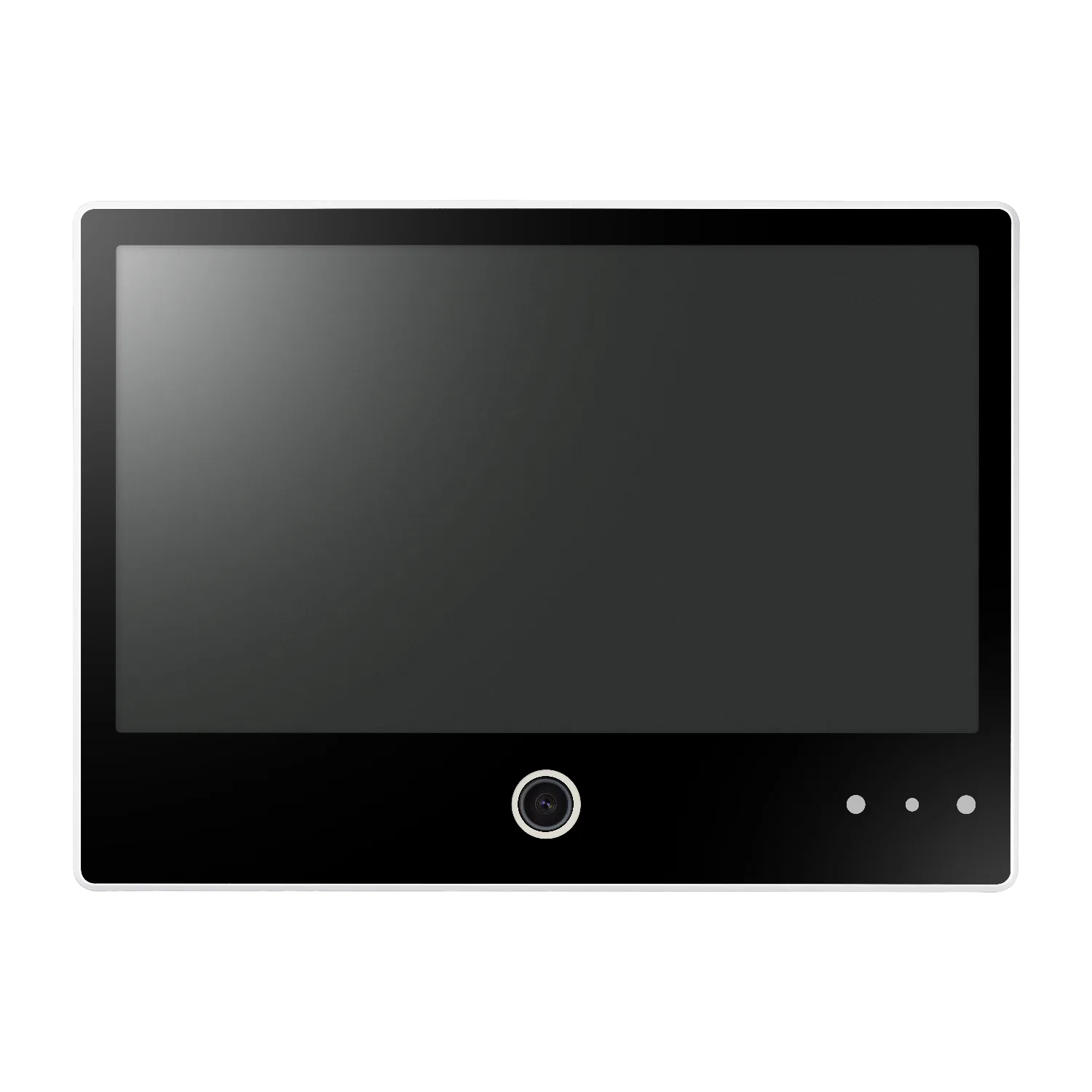

The SMT-1031PV is a public view monitor in white that combines a 10-inch LED panel with a built-in 2 MP AI camera (f1.6). The display runs at 1024x600, delivers 500 cd/m2 with a 500:1 contrast ratio in 16:9, renders 16.7 million colours, responds in 20 ms and is rated for 50,000 hours; viewing angles are 140 degrees horizontal and 120 degrees vertical. AI analytics classify objects, a face detection box is shown on screen, and motion or event triggers activate the LED and audio alarm. Operators can add a customisable text overlay defaulting to "Recording in progress", an on-screen logo image and an image slide show that needs no additional storage. Integration uses SUNAPI and ONVIF Profile S/G/T/M over one RJ-45 10/100BASE-T port, with one alarm input, one alarm output and a micro SD/SDHC/SDXC slot up to 256 GB; the two speakers are rated 8 ohm 1 W each. Power comes from DC24V or PoE+ per 802.3at at 14 W, and the unit operates from 0 to +40 C at 10 to 80 percent non-condensing humidity. 10-inch LED panel at 1024x600Built-in 2 MP AI camera, f1.6AI object classification and face detection boxSUNAPI and ONVIF Profile S/G/T/MDC24V or PoE+ 802.3at, 14 WMicro SD slot up to 256 GB

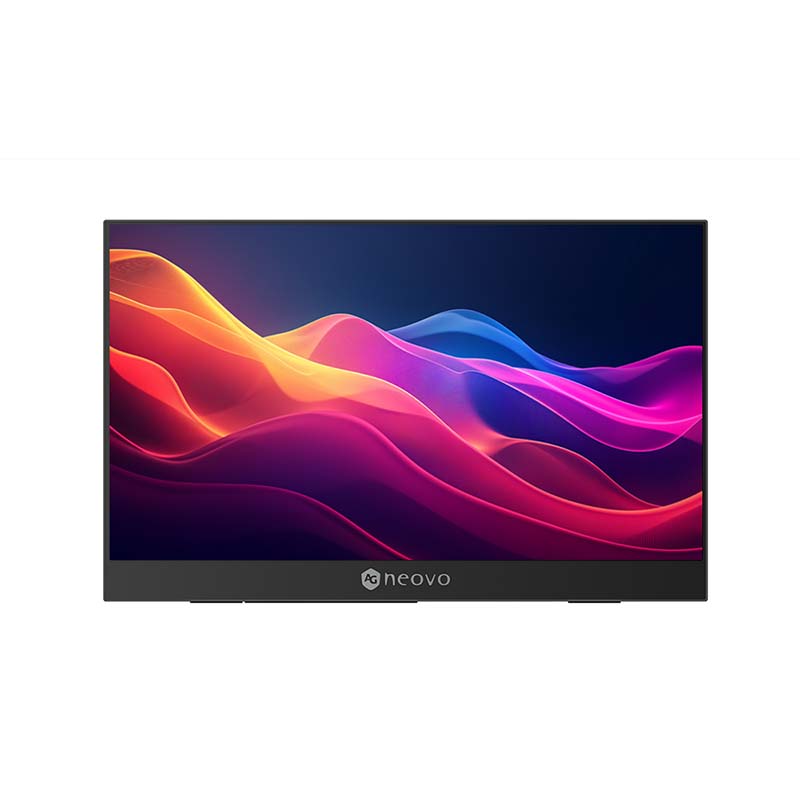

The N1651 is a portable monitor with a 15.6 inch OLED panel and 4K resolution. Viewing angles are 170°/170°, contrast is 100000:1 and brightness is quoted as 350~499 cd/㎡, with a blue light filter included. The surface uses a glare finish with 3H hard coating and AF treatment, giving a reflection rate below 1% and haze under 2%. Two Type-C ports with PD 60W and one Mini HDMI 1.4 input handle connectivity, and two 1 W speakers are built in. Power comes from an external supply at 5-20V, 3A, drawing 11W in on mode and less than 0.5W in standby. The housing is rated IK03, the unit weighs 0.7 kg, and approvals cover CE, LVD, FCC, ICES-003 Issue 7, WEEE, RoHS, REACH and BSMI. 15.6 inch OLED panel100000:1 contrast, 350~499 cd/㎡170°/170° viewing anglesTwo Type-C ports (PD 60W)Mini HDMI 1.4 input0.7 kg, IK03 rated

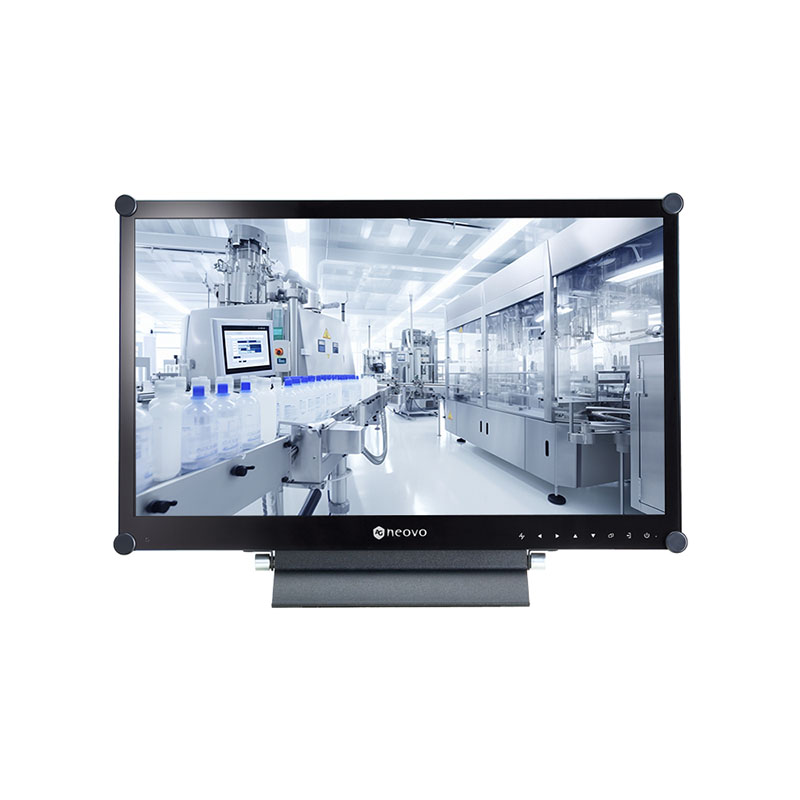

X-2202 is a semi-industrial 22-inch monitor with Full HD resolution of 1920 x 1080 pixels in 16:9, 250 cd/m², 16.7 million colours, a dynamic contrast ratio of 20,000,000:1 and 178/178 degree viewing angles. Its 3.0 mm NeoV Optical Glass reflects under 1 percent, transmits over 97 percent of the light and withstands chemical exposure in light industrial environments. The feature set spans 24/7 operation, EcoSmart, PbP, PiP, a speaker and the patented anti-burn-in technology with gamma selection and black-level adjustment. DisplayPort, DVI-D, HDMI and VGA are available for connection. The metal casing accepts VESA patterns of 100 x 100 and 75 x 75 mm, the HDL-02 handle is available, and operation is rated for 0 °C to 40 °C at 10 to 90 percent non-condensing humidity. 22-inch Full HD 1920 x 1080 (16:9), 250 cd/m²3.0 mm NeoV Optical Glass, under 1 percent reflectionAnti-burn-in technology, gamma selection24/7, EcoSmart, PbP, PiP, speakerDisplayPort, DVI-D, HDMI, VGAMetal casing, VESA 100 x 100 and 75 x 75 mm

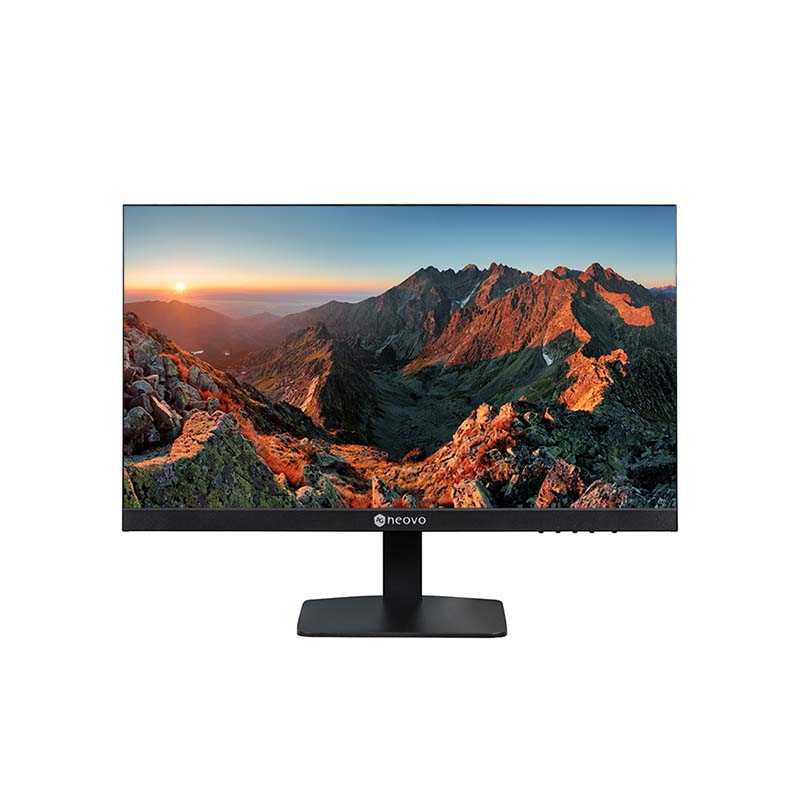

The LA-2203 is a 22-inch monitor built on a 21.5" IPS panel with FHD 1920 x 1080 (16:9) resolution, 250 cd/m² brightness and a 20,000,000:1 (DCR) dynamic contrast ratio. Its 178/178 viewing angles keep colours and detail consistent from any direction, response time is 5 ms and 16.7M colours are reproduced. A blue light filter and flicker-free backlight reduce eyestrain over long sessions, while the surface carries anti-glare treatment (Haze 25%) with 3H hard coating. Connectivity covers HDMI, VGA and Audio, and integrated speakers handle sound. Cable management on the stand gathers the cables, and mounting options are the DMC-01, DMC-02D, DMS-01D and ES-02 desk mounts plus the PMK-01 and WMK-01 wall mounts. An HDMI cable, power adaptor and quick start guide are supplied. 21.5" IPS panel, FHD 1920 x 1080 (16:9)250 cd/m² brightness, 20,000,000:1 (DCR) contrast178/178 viewing angles, 5 ms response timeBlue light filter and flicker-freeHDMI, VGA and Audio inputsIntegrated speakers and cable management

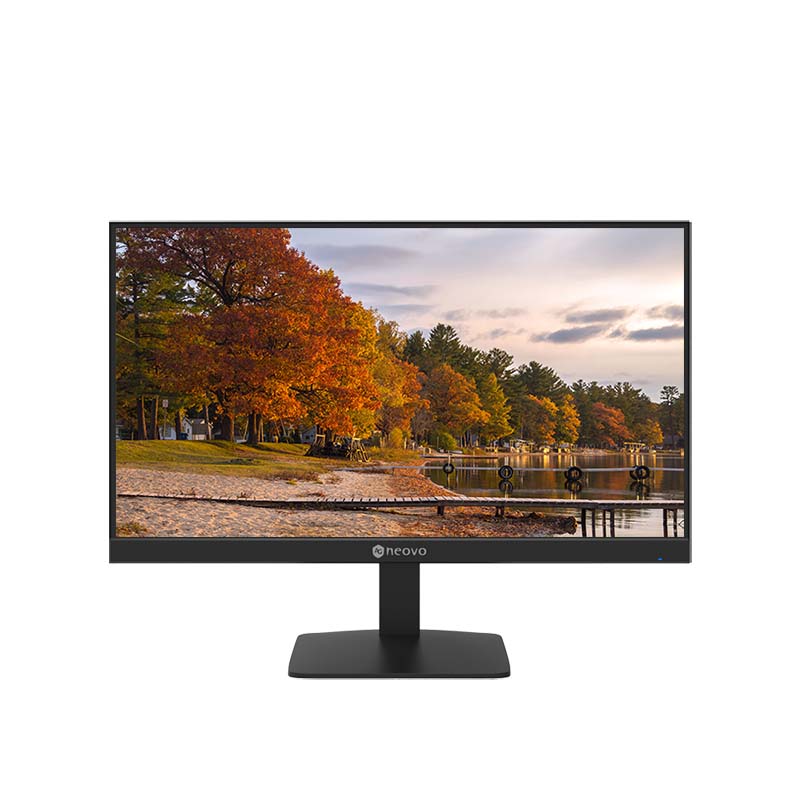

The LA-2204 is a 22-inch monitor using a 21.5" VA panel with FHD 1920 x 1080 resolution, a 0.241 mm pixel pitch and 250 cd/m² brightness. Dynamic contrast is 20,000,000:1 (DCR), viewing angles are 178°/178°, and the panel shows 16.7M colours across an NTSC 72% gamut at a 5 ms response time. The surface combines anti-glare treatment (Haze 25%) with a 3H hard coating, while a flicker-free backlight and blue light filter ease eyestrain. Connections are HDMI 1.4 x 1 and VGA (15-Pin D-Sub x 1), with 2W x 2 speakers built in. The internal power supply draws 16W when on, 25W at maximum, < 0.5W in standby and < 0.3W when off, and wall mounting follows VESA 100 x 100 mm. 21.5" VA panel, FHD 1920 x 10800.241 mm pixel pitch, 5 ms response time20,000,000:1 (DCR) contrast, 178°/178° viewing angleNTSC 72% colour gamut, 16.7M coloursHDMI 1.4 x 1 and VGA, 2W x 2 speakersVESA FPMPMI 100 x 100 mm

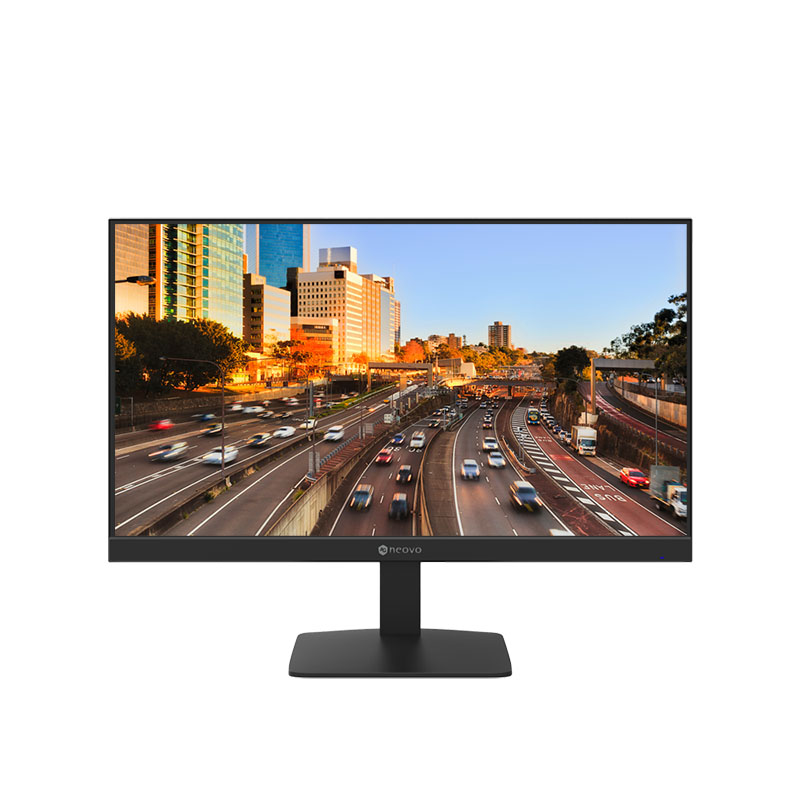

The 21.5-inch VA panel in this surveillance display resolves FHD 1920 x 1080 with a 0.241 mm pixel pitch and 178-degree viewing angles in both axes. Brightness is 280 cd/m², the dynamic contrast ratio 20,000,000:1 (DCR), colour depth 16.7M and response time 5 ms. Anti-glare treatment at haze 25% and a 3H hard coating finish the surface, and the frequency range runs from 30 kHz to 85 kHz and 23 Hz to 75 Hz. Video arrives on one composite BNC input and loops out through one composite BNC output. Ceiling, desk and wall mounting is covered by CMP-01 with WMK-03, DMC-01, DMC-02D, DMS-01D, ES-02, PMK-01, WMA-01, WMK-01 and WMK-03; an HDMI cable, power cord and quick start guide are supplied. 21.5-inch VA panel, FHD 1920 x 1080280 cd/m² brightness, 20,000,000:1 (DCR) contrast5 ms response time, 178/178 viewing anglesComposite (BNC) input and outputAnti-glare haze 25% with 3H hard coatingCeiling, desk and wall mount options

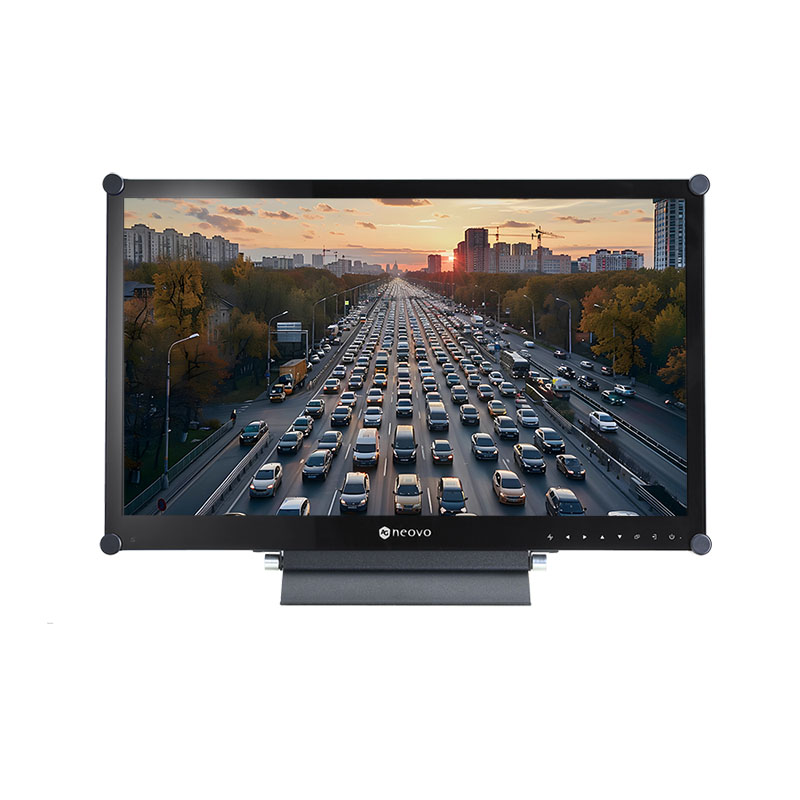

Intended for video surveillance, this 22-inch monitor pairs FHD 1920 x 1080 resolution in 16:9 with 178/178 viewing angles and round-the-clock operation. Its construction relies on anti-burn-in technology, a metal casing and NeoV Optical Glass rated below 1% reflection and above 97% transmission. Inputs cover audio, composite (BNC), DisplayPort, DVI-D, HDMI, RS232 and VGA, with a composite (BNC) output, and external control runs over RS232 on a 2.5 mm phone jack. Image tuning includes black-level adjustment and gamma selection, and the unit handles 24 kHz to 83 kHz and 50 Hz to 75 Hz. Without base it measures 513.2 x 324.3 x 56.2 mm, mounts to VESA 100 x 100 mm and 75 x 75 mm, and operates from 0 to 40 degrees Celsius at 10% to 90% non-condensing humidity. FHD 1920 x 1080 (16:9), 178/178 viewing anglesNeoV Optical Glass, reflection below 1%Anti-burn-in technology and metal casingComposite (BNC), DisplayPort, DVI-D, HDMI and VGA inputsBlack-level adjustment and gamma selectionVESA 100 x 100 mm and 75 x 75 mm

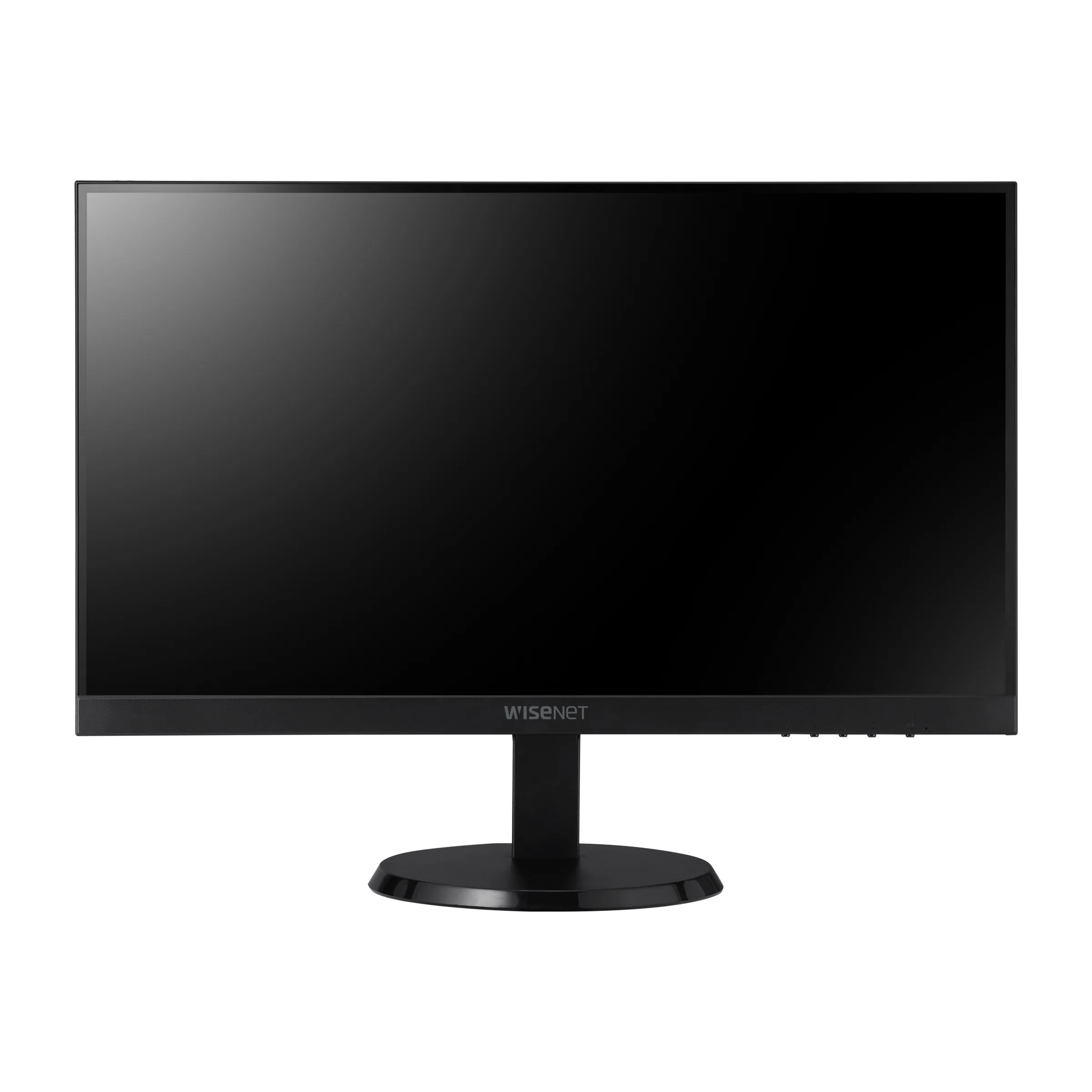

The SMT-2212 is a 22-inch LED monitor for Full HD content, supporting up to 1920x1080 at 60 Hz in 16:9. Brightness is 250 cd/m2, the contrast ratio 3000:1 and the response time 6.5 ms, with 178-degree viewing angles both horizontally and vertically and 16.7 million colours. Video reaches the panel through one VGA and one HDMI input, each accepting 1920x1080 at 60 Hz. The frameless housing ships with a monitor stand and measures 491.9x186.7x371.4 mm including that stand. Panel life is stated as 30,000 hours, and the on-screen display is VESA DPMS compatible and available in several languages. Power is DC 12V 5A from the included adapter at 30 W, with operation from 0 to +40 C at 10 to 80 percent non-condensing humidity. 22 inch, 1920x1080 at 60 Hz250 cd/m2 brightness, 3000:1 contrast6.5 ms response timeVGA and HDMI inputs30,000 hour panel lifeFrameless design with stand

The LA-2404 is a 24-inch-class monitor built around a 23.8" IPS panel with FHD 1920 x 1080 resolution in 16:9, a 0.275 mm pixel pitch and 250 cd/m² brightness. It is rated for 24/7 operation and can be used in landscape or portrait orientation. Dynamic contrast reaches 20,000,000:1 (DCR) and viewing angles are 178°/178°; the panel shows 16.7M colours across an NTSC 72% gamut with a 5 ms response time and a vertical frequency of 48 Hz-120 Hz. A 3H hard coating with anti-glare treatment (Haze 25%) protects the surface, and a flicker-free backlight with blue light filter eases eyestrain over long sessions. Inputs are DisplayPort x 1 and HDMI 1.4 x 1, with 2W x 2 speakers built in. Power comes from an external adaptor (DC 12V, 2.5A); consumption is 16W when on, 30W at maximum, < 0.5W in standby and < 0.3W when off. The stand tilts the black housing by -5° ~ 20° and keeps cables tidy, wall mounting follows VESA 100 x 100 mm, and a Kensington lock can be attached. An HDMI cable and the power adaptor are included. 23.8" IPS panel, FHD 1920 x 1080, 16:90.275 mm pixel pitch, 5 ms response time20,000,000:1 (DCR) contrast, 178°/178° viewing angleNTSC 72% colour gamut, 16.7M coloursDisplayPort x 1 and HDMI 1.4 x 1, 2W x 2 speakersRated for 24/7 operation, VESA 100 x 100 mm

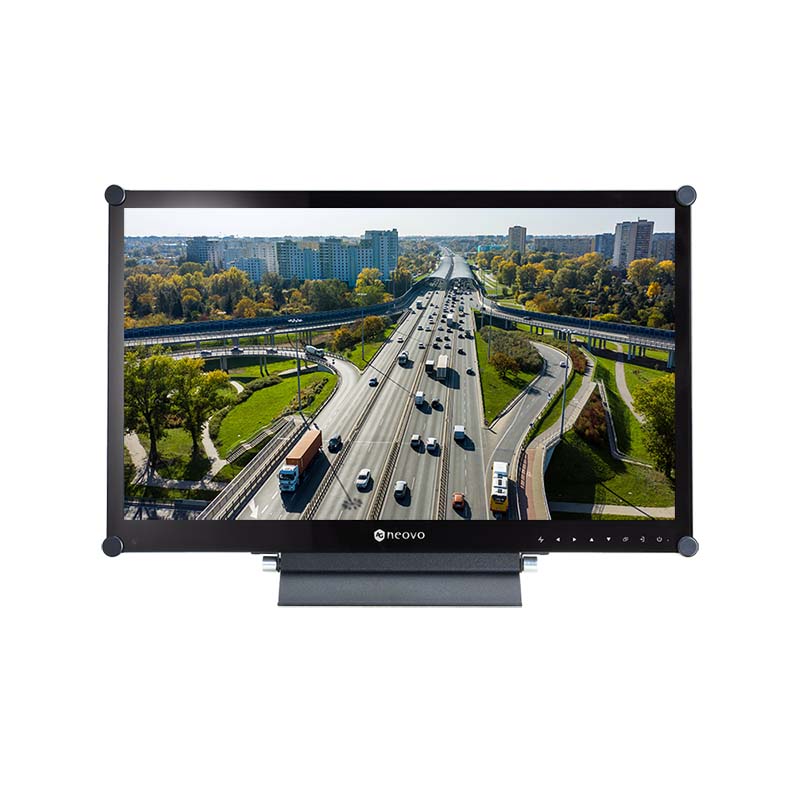

The HX-2402 is a 24-inch SDI monitor for surveillance use with a 0.275mm pixel pitch and a 5ms response time. One BNC input and one BNC output each for SDI and Composite allow camera signals to be displayed and looped through, covering SD-SDI at 480i @60fps and 576i @50fps, HD-SDI at 720p and 1080p, and 3G-SDI at 1080p @50/60fps with a transmission rate above 97%. Audio arrives through a 3.5 mm stereo jack and RCA, while control runs over RS232 on a 2.5 mm phone jack. The stand tilts from 3° to 21°, wall mounting uses the 100 x 100 mm and 75 x 75 mm VESA patterns, and the HDL-02 handle is available. Without its base the monitor measures 562.4 x 352.6 x 56.2 mm, weighs 7.0 kg (15.4 lb) and draws 18W when on. 24-inch SDI monitor for surveillanceSDI and Composite, BNC x 1 in and out3G-SDI 1080p @50/60fps, HD-SDI, SD-SDITransmission rate > 97%, 5ms response timeTilt 3° to 21°, VESA 100 x 100 mm and 75 x 75 mm18W power draw when on

This 24-inch surveillance monitor with NeoV Optical Glass is designed for continuous operation and adds EcoSmart. Video reaches it through two composite BNC inputs and a 4-pin mini DIN S-Video connector, audio through a 3.5 mm stereo jack and RCA, while output is provided on an RCA stereo jack. Control runs over RS232 on a 2.5 mm phone jack and can be handled with Neovo Controller software. The AR-treated surface reaches 9H pencil hardness with transmission above 97%, and the unit covers 24 kHz to 83 kHz and 50 Hz to 75 Hz. It weighs 6.9 kg without base and 7.7 kg with base, tilts from 3 to 21 degrees, draws 18 W in on mode and works from minus 5 to 45 degrees Celsius at 5% to 95% non-condensing humidity. Two composite (BNC) inputs and S-VideoNeoV Optical Glass, transmission above 97%9H pencil hardness, AR surface treatmentOperating temperature minus 5 to 45 degrees Celsius18 W (On) power consumptionTilt from 3 to 21 degrees

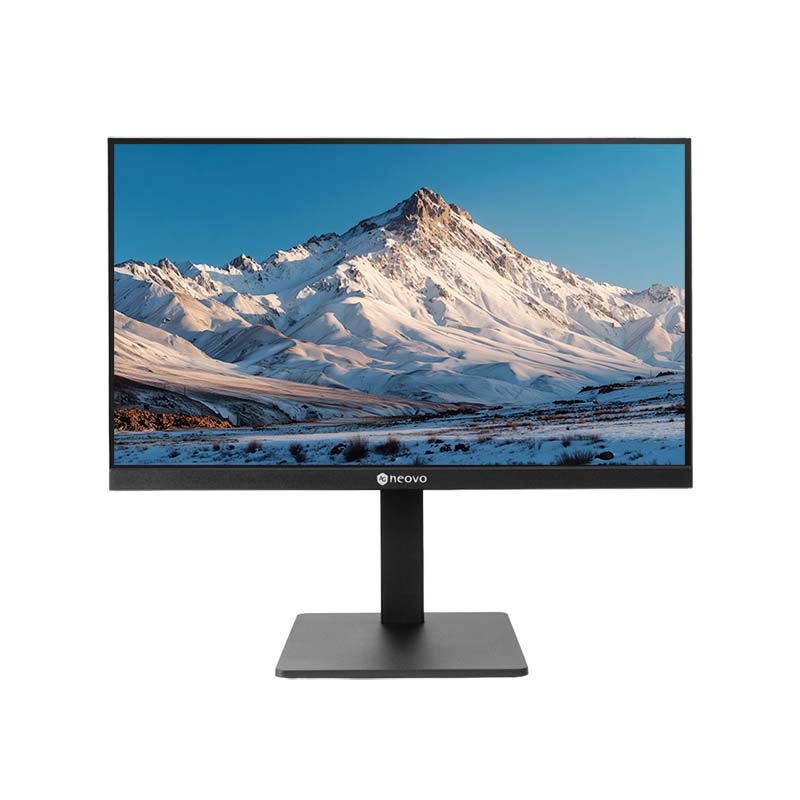

The LH-2404 is an ergonomic desktop monitor with a 23.8 inch IPS panel, FHD 1920 x 1080 resolution and 0.275mm pixel pitch. It is rated at 250 cd/m² brightness, 20,000,000 :1 (DCR) contrast, sRGB 99% colour gamut, 178°/178° viewing angles and a 5ms response time. The stand provides 0-120 mm height adjustment, 0° to 90° pivot and ± 40° swivel. Bezel width is 1.6mm at the top, left and right and 20.8mm at the bottom, with a blue light filter and flicker-free operation included. Signal handling spans 30 kHz-138 kHz horizontally and 48Hz-120Hz vertically, and one earphone audio output is provided. Without base the monitor weighs 2.8 kg; an HDMI cable, power cord, quick start guide and screw stud are supplied. 23.8 inch IPS panel, FHD 1920 x 1080sRGB 99% colour gamut, 250 cd/m²0-120 mm height adjustment0° to 90° pivot, ± 40° swivelBlue light filter, flicker-free2.8 kg without base

This 24-inch monitor works in Full HD and presents 1920x1080 pixels at a 16:9 aspect ratio. The panel is specified with 250 nit brightness, a contrast ratio of 1,000:1 and a response time of 4 ms. HDMI and DisplayPort serve as signal inputs, supplemented by USB 2.0. The stand is height adjustable, and VESA mounting is supported as an alternative. 24-inch Full HD, 1920x1080250 nit, 1,000:1 contrast4 ms response timeHDMI, DisplayPort, USB 2.0Height adjustable stand, VESA support

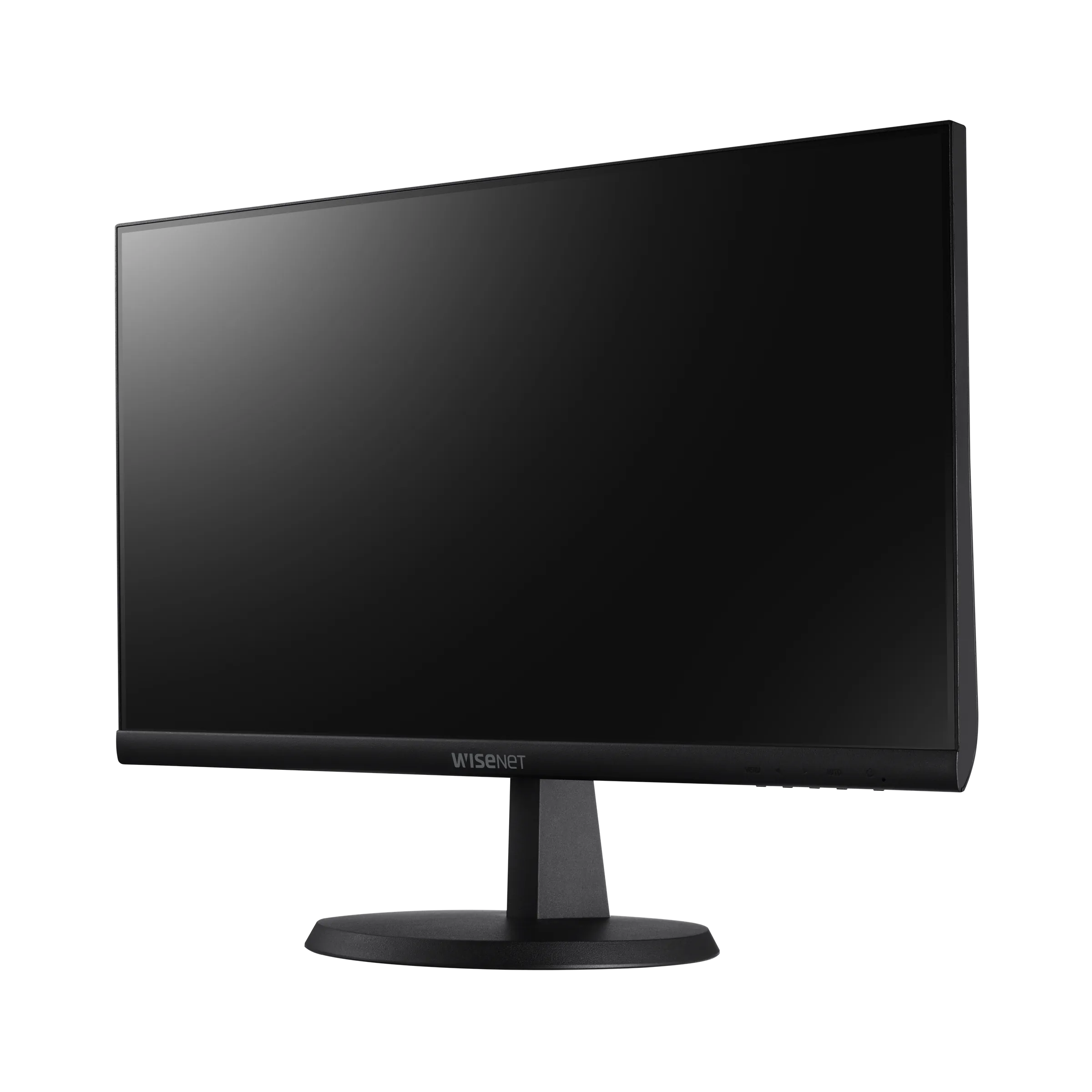

The SMT-2431 is a 24-inch LED monitor in a frameless housing with a maximum resolution of 1920x1080 in 16:9. It reaches 250 cd/m2, a 4000:1 contrast ratio and a 14 ms response time, with 178-degree viewing angles horizontally and vertically and 16.7 million colours. One VGA and one HDMI input accept the signal, both at 1920x1080 and 60 Hz. The on-screen display is VESA DPMS compatible and offered in several languages, while panel life is rated at 30,000 hours. Including its stand the monitor measures 540x420.3x224.1 mm. It runs on AC 100 to 240V (50/60 Hz) drawing 30 W, and is specified for 0 to +40 C at 10 to 80 percent non-condensing humidity. 24 inch at 1920x10804000:1 contrast, 250 cd/m214 ms response timeHDMI and VGA video inputsAC 100 to 240V, 30 W30,000 hour panel life

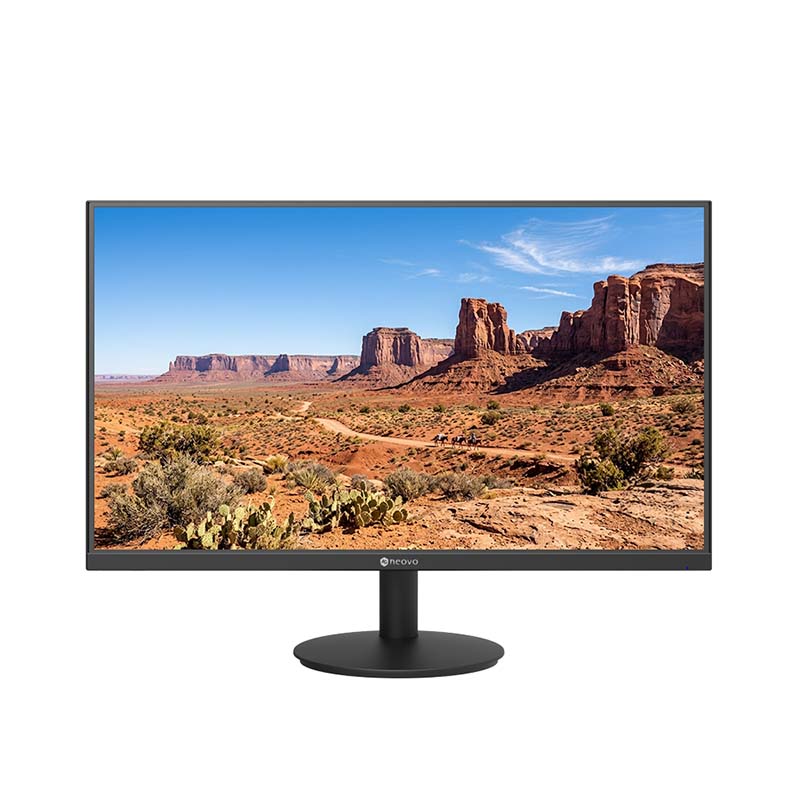

The LA-2704 is built on a 27.0 inch IPS panel with FHD 1920 x 1080 resolution, 0.311 mm pixel pitch and a 16:9 aspect ratio. Brightness reaches 250 cd/m², contrast is rated 20,000,000:1 (DCR), viewing angles are 178°/178°, and the panel reproduces 16.7M colours across an NTSC 72% gamut. Response time is 5 ms and the horizontal frequency range covers 30 kHz-138 kHz. An anti-glare treatment with 25% haze plus a 3H hard coating finishes the surface, and the panel is rated for 24/7 operation in landscape or portrait orientation. Connectivity consists of one DisplayPort and one HDMI 1.4 port. An external supply delivers DC 12V, 3.0A, with 18W consumed in on mode and below 0.5W in standby. 27.0 inch IPS panel, FHD 1920 x 1080250 cd/m², 20,000,000:1 (DCR) contrast5 ms response timeAnti-Glare Treatment (Haze 25%), 3H Hard Coating24/7 operation, landscape or portraitDisplayPort and HDMI 1.4

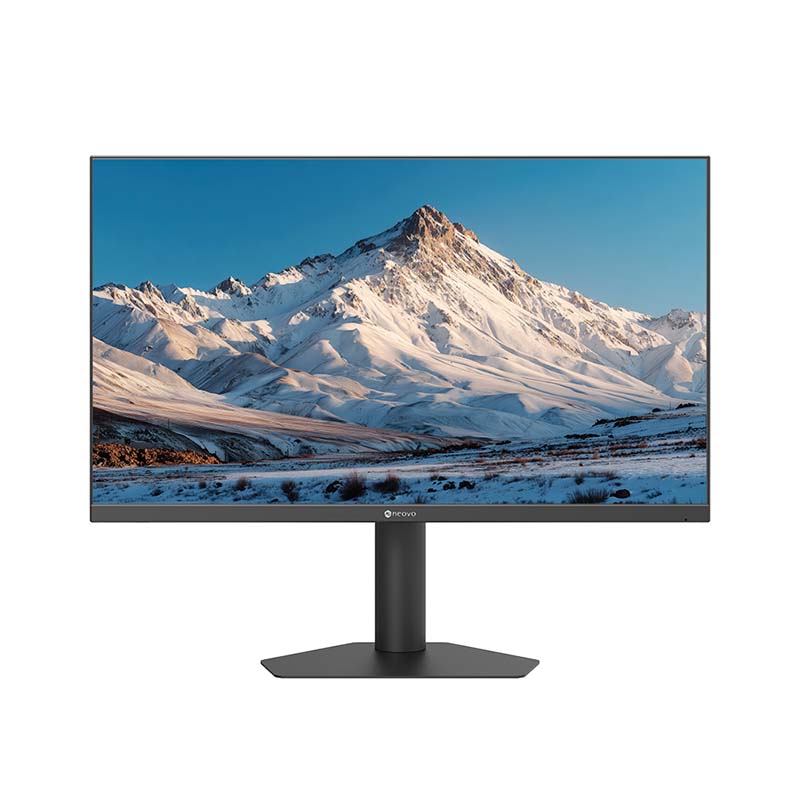

The LH-2704 pairs a 27.0 inch IPS panel in FHD 1920 x 1080 with a 0.311 mm pixel pitch and 16.7M displayable colours. Stated figures include 250 cd/m² brightness, 20,000,000:1 (DCR) contrast, an NTSC 72% colour gamut, 178°/178° viewing angles and a 5 ms response time. Positioning options comprise 0-100 mm height adjustment, 0° to 90° pivot and ± 30° swivel. Sources connect through one DisplayPort and one HDMI 1.4 input, while two 2W speakers reproduce audio. Horizontal frequency runs from 30 kHz to 138 kHz and power is supplied as DC 12V, 3.0A at 18W in on mode. Operation is specified for 0°C-40°C and 20%-85% non-condensing humidity, and an HDMI cable, power adaptor and quick start guide are included. 27.0 inch IPS panel, FHD 1920 x 1080250 cd/m², 20,000,000:1 (DCR) contrast0-100 mm height adjustment0° to 90° pivot, ± 30° swivelDisplayPort and HDMI 1.42W x 2 internal speakers

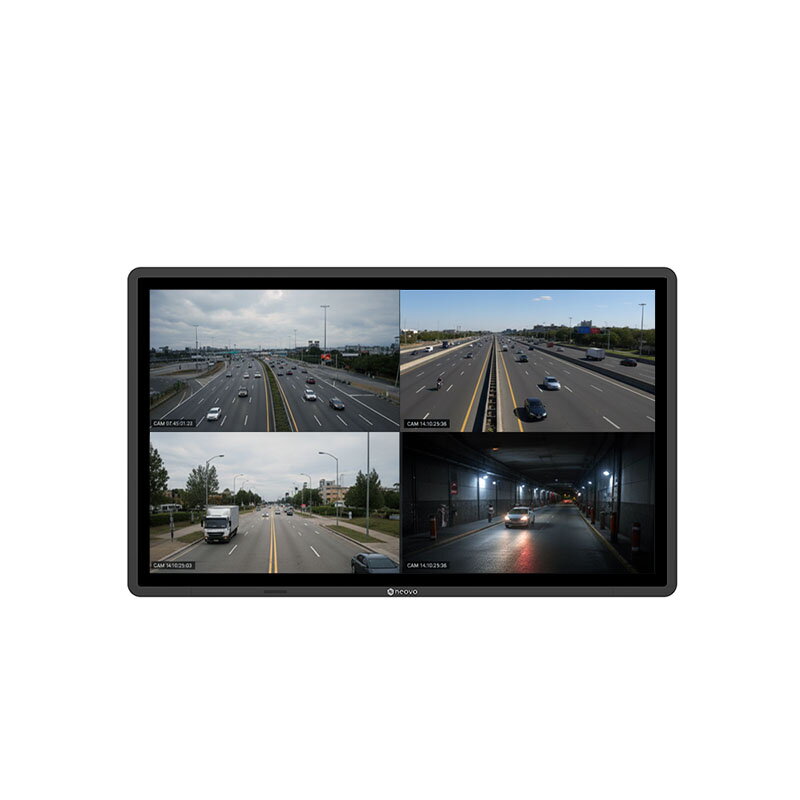

This display combines a 27.0-inch VA panel with a maximum resolution of UHD 3840 x 2160 for workplaces fed by several sources at once. Four HDMI 2.0 inputs and one DisplayPort 1.2 are available, with DisplayPort and RS232 on the output side; IR out uses a 3.5 mm phone jack and RS232 in and out use 2.5 mm jacks. Daisy chain, RJ45 and RS232 handle external control, optionally extended by the KPD01 keypad, the KNB01 control knob and Neovo Controller software. The metal casing carries an IK10 rating and the even bezel measures 12.8 mm. Without base the unit is 653.2 x 392.0 x 57.0 mm and weighs 7.93 kg, drawing DC 24V, 5.5A and 33 W in on mode. 27.0-inch VA panel, UHD 3840 x 21604 x HDMI 2.0 and 1 x DisplayPort 1.2IK10 metal casingEven bezel 12.8 mmDaisy chain, RJ45 and RS232 control33 W (On) power consumption

This monitor provides a 27-inch screen diagonal and resolves in Full HD with 1920x1080 pixels in 16:9 format. Panel data are stated as 250 nit, a contrast ratio of 1,000:1 and a response time of 4 ms. Sources can be connected via HDMI and DisplayPort, and USB 2.0 is available as well. The supplied stand is height adjustable, while VESA mounting is supported. 27-inch Full HD, 1920x1080250 nit, 1,000:1 contrast4 ms response timeHDMI, DisplayPort, USB 2.0Height adjustable stand, VESA support

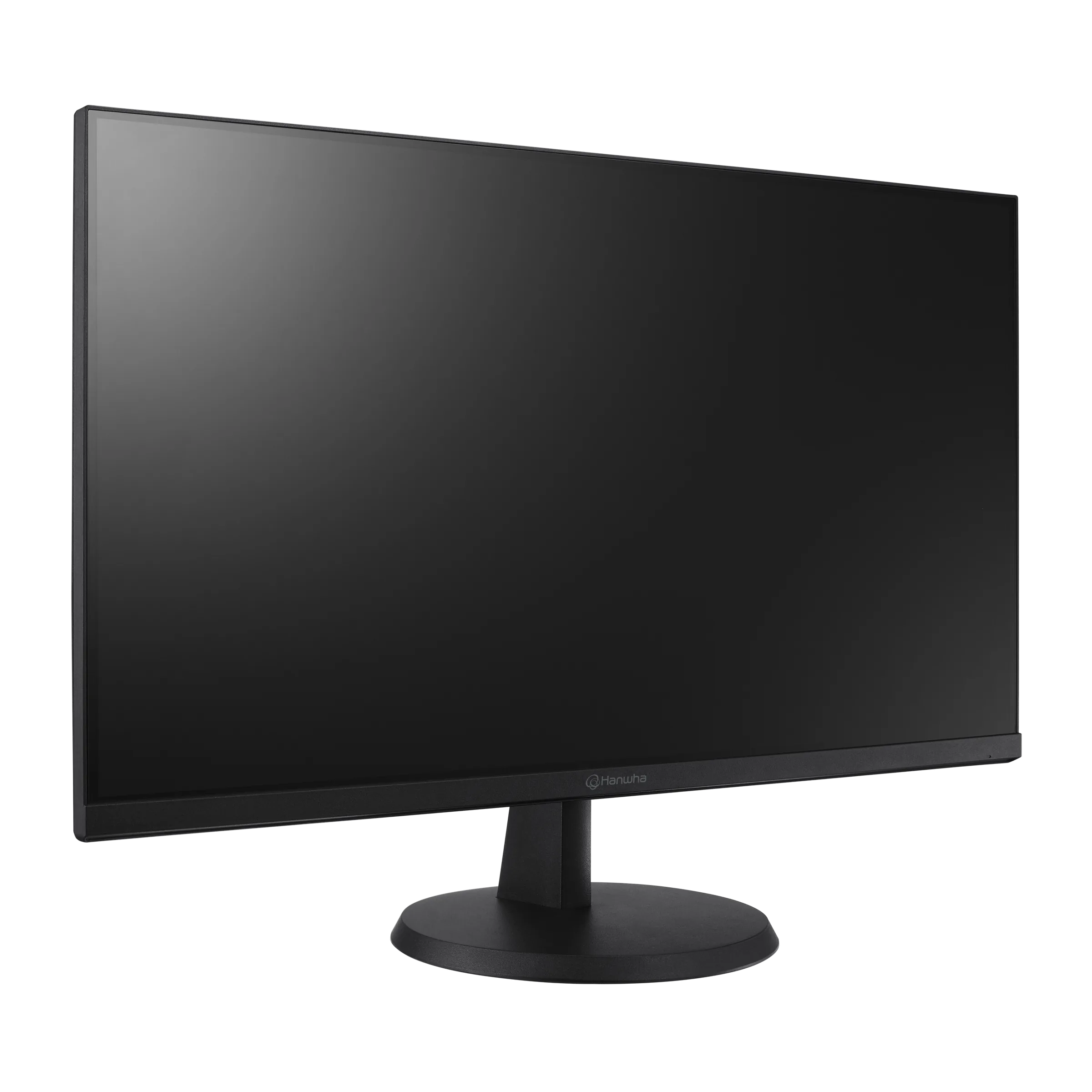

The SMT-2710 is a 27-inch monitor for Full HD sources up to 1920x1080 at 60 Hz. Its LED panel provides 250 cd/m2, a 4000:1 contrast ratio, 6.5 ms response time, 16.7 million colours and 178-degree viewing angles on both axes. Sources connect through VGA, HDMI and DisplayPort, each at 1920x1080 and 60 Hz, alongside one audio input, one audio output and two 4 ohm 2.5 W speakers. Panel life is given as 30,000 hours, and the monitor is designed and tested for 24/7 operation. A monitor stand is included and the on-screen display is VESA DPMS compatible with multiple languages. Supply voltage is AC 100 to 240V at 50/60 Hz. 27 inch, 1920x1080 at 60 Hz4000:1 contrast at 250 cd/m2VGA, HDMI and DisplayPort inputsTwo 4 ohm 2.5 W speakersDesigned and tested for 24/7 operation30,000 hour panel life

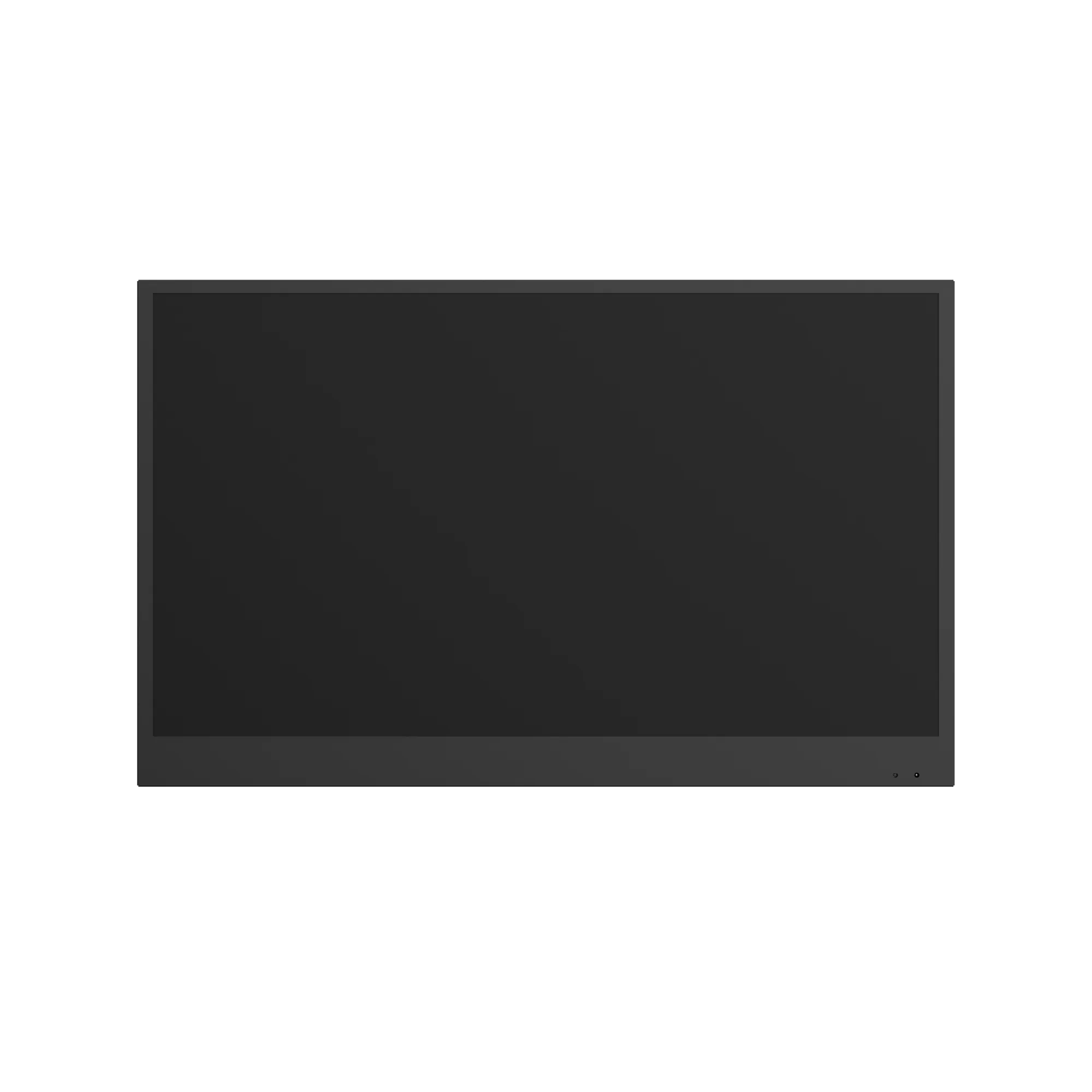

The SMT-2721D is a 27-inch Full HD monitor with a built-in video decoder that handles up to 64 live streams and cameras of up to 4K. Several screen layouts are selectable; HDMI 1 feeds the internal main monitor while HDMI 2 drives an external secondary display at 1280x720, 1280x1024 or 1920x1080, each at 60 Hz. The panel resolves 1920x1080 at 300 cd/m2 with a 3000:1 contrast ratio, 12 ms response time, 178-degree viewing angles and 30,000 hours of rated life. Connectivity covers one RJ-45 10/100/1000BASE-T port, two USB 2.0 ports for mouse and keyboard, a further USB 2.0 port for firmware upgrades and two 8 ohm 1 W speakers. Power is supplied either by DC24V or HPoE per 802.3bt at 31 W. Hanwha states FCC certification, NDAA compliance and manufacture in Korea, with operation from 0 to +40 C at 10 to 80 percent non-condensing humidity. 27 inch with integrated video decoderUp to 64 live video streamsCamera support up to 4KHDMI output for an external monitorDual power: DC24V or HPoE 802.3btGigabit Ethernet over RJ-45

The SMT-2740 is a 27-inch monitor for UHD material at up to 3840x2160 and 60 Hz. Its LED panel reproduces 1.07 billion colours, reaches 300 cd/m2 and a 1200:1 contrast ratio, with a 14 ms response time and 178-degree viewing angles on both axes. Two HDMI inputs and one DisplayPort each accept 3840x2160 at 60 Hz, and two windows can be shown as PIP or PBP. Audio is handled by an audio output and two 4 ohm 2.5 W speakers. Hanwha rates panel life at 30,000 hours and states that the monitor is designed and tested for 24/7 operation; a stand is included. It runs on AC 100 to 240V (50/60 Hz) drawing 45 W, from 0 to +40 C. 27 inch at 3840x2160, 60 Hz1200:1 contrast at 300 cd/m2Two HDMI inputs plus DisplayPortTwo-window PIP and PBP1.07 billion colours45 W power consumption

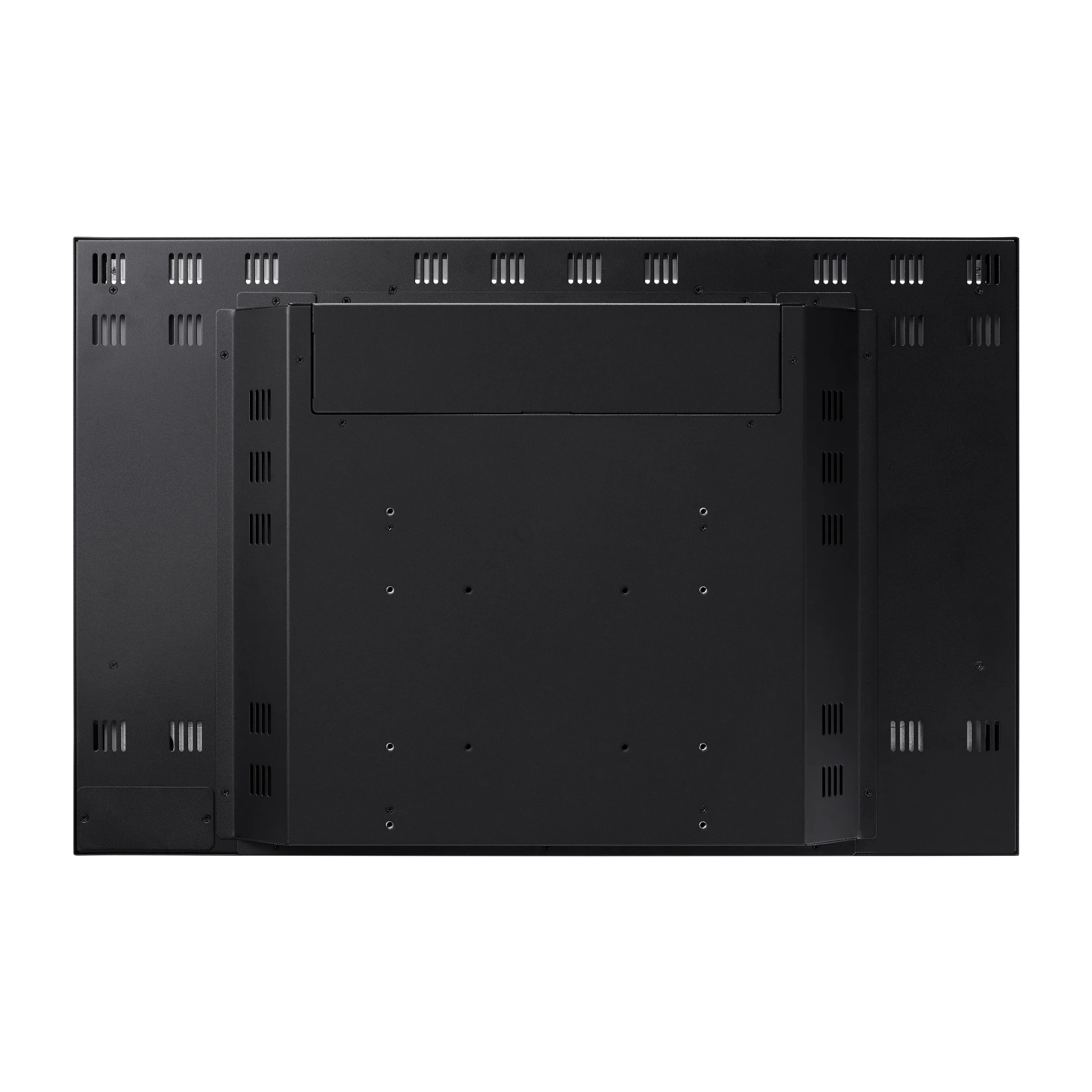

The SMT-2731PV is a 27-inch public view monitor with a 2 MP AI camera and additional two-window picture-in-picture and picture-by-picture modes, which combine the internal camera with HDMI 1; a second HDMI input is also fitted. The panel resolves 1920x1080 and is rated at 300 cd/m2, 1000:1 contrast, 14 ms response time, 178-degree viewing angles, 16.7 million colours and 30,000 hours of life. Camera processing uses AI-based object classification and intelligent video analytics, marking detected faces with a coloured bounding box as a visual deterrent. Image slide shows run without an extra micro SD card or USB medium, and text overlays such as "Recording in progress" plus an uploaded logo image can be displayed. Landscape and portrait mounting are both supported, and the interfaces add one alarm input and output, an RJ-45 10/100BASE-T port, a micro SD slot up to 256 GB and two 8 ohm 2 W speakers. Power comes from DC24V or HPoE 802.3bt at 31 W, with operation from 0 to +40 C. Two-window PIP and PBP2 MP AI camera with video analyticsColoured face detection boxSlide show without extra storageTwo HDMI inputsDC24V or HPoE 802.3bt, 31 W

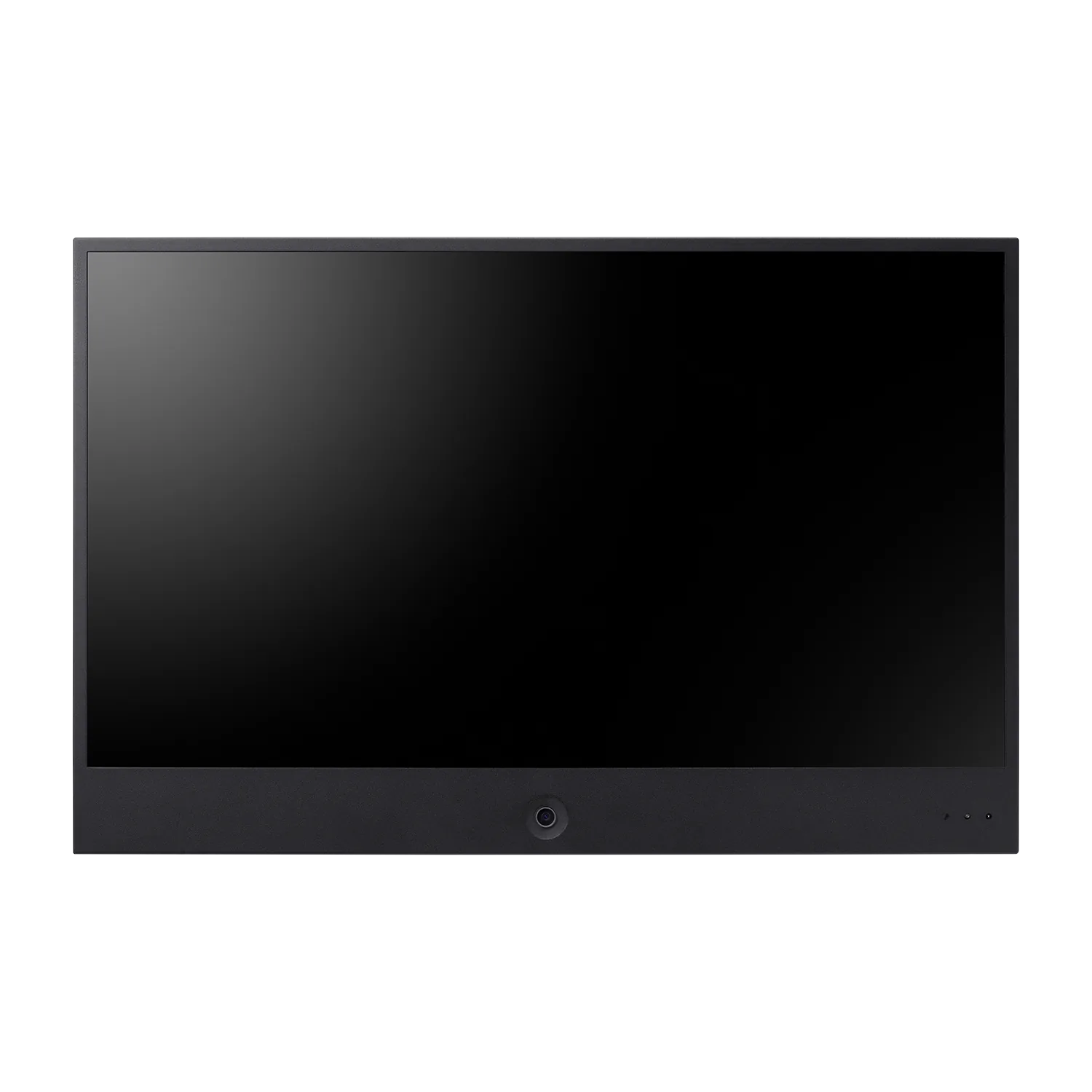

The SMT-2721PV is a 27-inch public view monitor with an integrated 2 MP AI camera (f1.6) and a Full HD panel at 1920x1080. Rated figures are 300 cd/m2, a 1000:1 contrast ratio, 14 ms response time, 178-degree viewing angles, 16.7 million colours and 30,000 hours of panel life. AI analytics classify objects, a face detection box is drawn on screen, and motion or events trigger the LED and audio alarm. Landscape and portrait installation are both supported, as are image slide shows that require no additional storage and a customisable text overlay preset to "Recording in progress". Besides the internal camera the monitor offers two HDMI inputs, one alarm input and output, an RJ-45 10/100BASE-T port, a micro SD slot up to 256 GB and two 8 ohm 2 W speakers, with SUNAPI and ONVIF Profile S/G/T/M for integration. It is powered by DC24V or HPoE per 802.3bt at 31 W and specified from 0 to +40 C. 27-inch Full HD with 2 MP AI cameraAI object classification and analyticsLandscape and portrait modesSUNAPI and ONVIF Profile S/G/T/MDC24V or HPoE 802.3bt, 31 W300 cd/m2 brightness
