PTZ

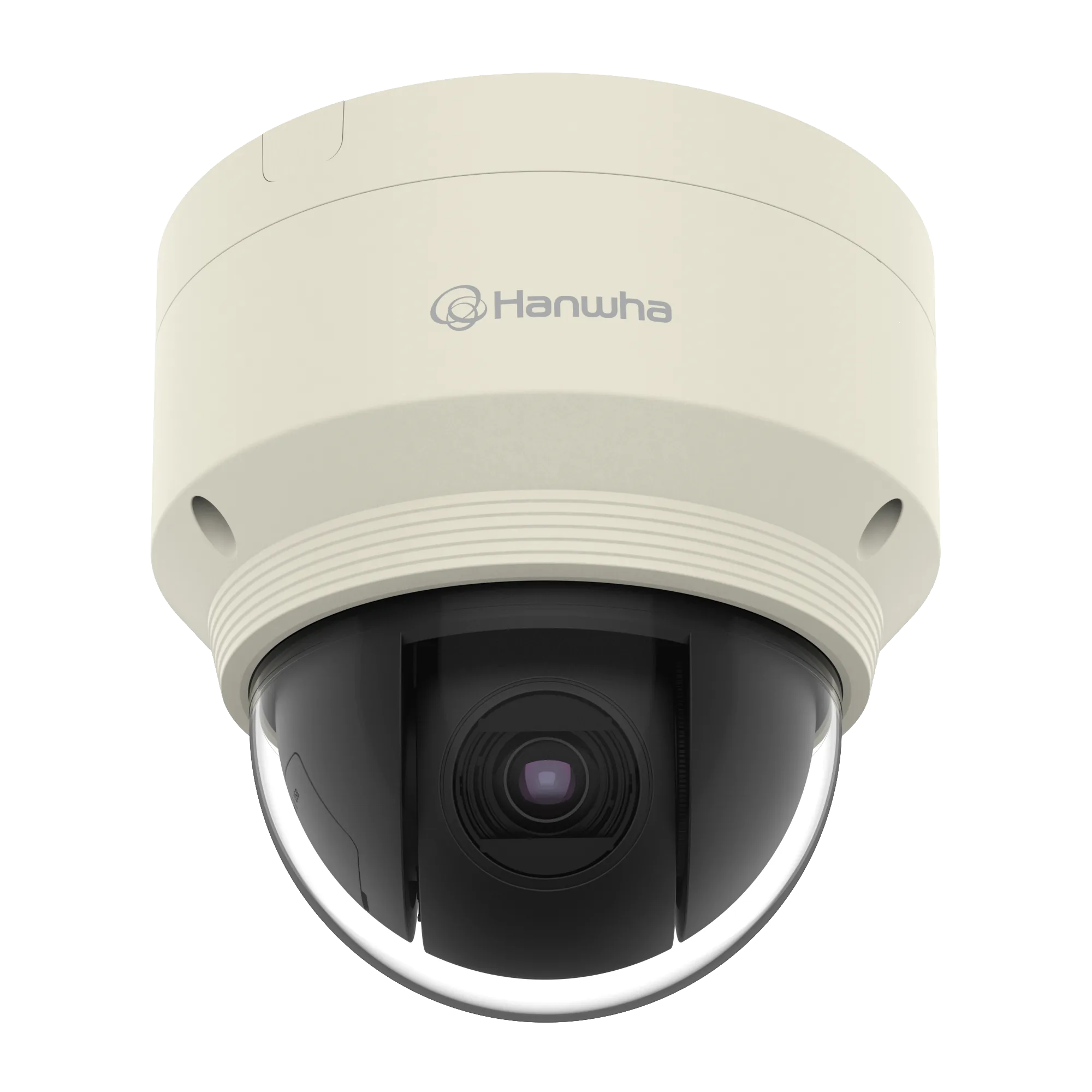

This PTZ dome camera pairs a 1/2.8 inch CMOS sensor with Full HD resolution of 1920x1080 in a 16:9 aspect ratio. The lens covers 5.2 to 62.4 mm, offers 12x optical and 32x digital zoom at F1.6 wide and F3.0 tele, and spans 54.58 to 5.30 degrees horizontally. H.265 and H.264 encode at 60fps/50fps (60Hz/50Hz) and MJPEG at 30fps, with minimum illumination given as 0.03 lux in colour and 0.003 lux in black and white. Panning is endless across 360 degrees, tilt runs from -5 to 185 degrees, and pan speed reaches 350 degrees per second on presets and 0.024 to 200 degrees per second manually. Further capabilities include ICR day and night operation, WDR at 150 dB, intelligent video analytics, an SD/SDHC/SDXC slot for up to 512 GB, two-way audio and IP66 with IK10 protection. 5.2~62.4 mm, 12x optical, 32x digital zoom1920x1080, 60fps/50fps in H.265/H.2640.03 lux colour / 0.003 lux BW360 degree endless pan, -5 to 185 degree tiltWDR 150 dB, ICR day and nightSD/SDHC/SDXC up to 512 GB, IP66, IK10

The QNP-6250R combines a 25x PTZ optic with infrared illumination reaching up to 100 m (328.08ft) and a housing rated IP66, IK10 and NEMA4X. Its 1/2.8" CMOS sensor resolves up to 1920x1080, with H.265 and H.264 at 60fps/50fps (60Hz/50Hz) and MJPEG at 30fps, supported by WiseStream II. The lens covers 4.44 to 111 mm at F1.6 to F3.9 with 32x digital zoom, a DC auto iris and oneshot AF with focus save, giving 64.66 to 2.99 degrees horizontally and 38.08 to 1.68 degrees vertically from 1.5 m. Pan is endless through 360 degrees while tilt spans 90 to -20 degrees, reaching up to 700 degrees per second on presets, 0.024 to 250 degrees per second in manual operation and up to 300 degrees per second for preset tilt. Sensitivity at 1/30 sec and 30 IRE is 0.05 lux in colour and 0.005 lux in black and white, alongside ICR, WDR, DIS with a gyro sensor, intelligent analytics and a Micro SD/SDHC/SDXC slot for 256 GB. IR viewable length up to 100 m (328.08ft)4.44 to 111 mm lens, 25x optical zoom90 to -20 degree tilt, 360 degree endless panIP66, IK10, NEMA4XDIS with gyro sensor, WDR, ICRMicro SD/SDHC/SDXC up to 256 GB

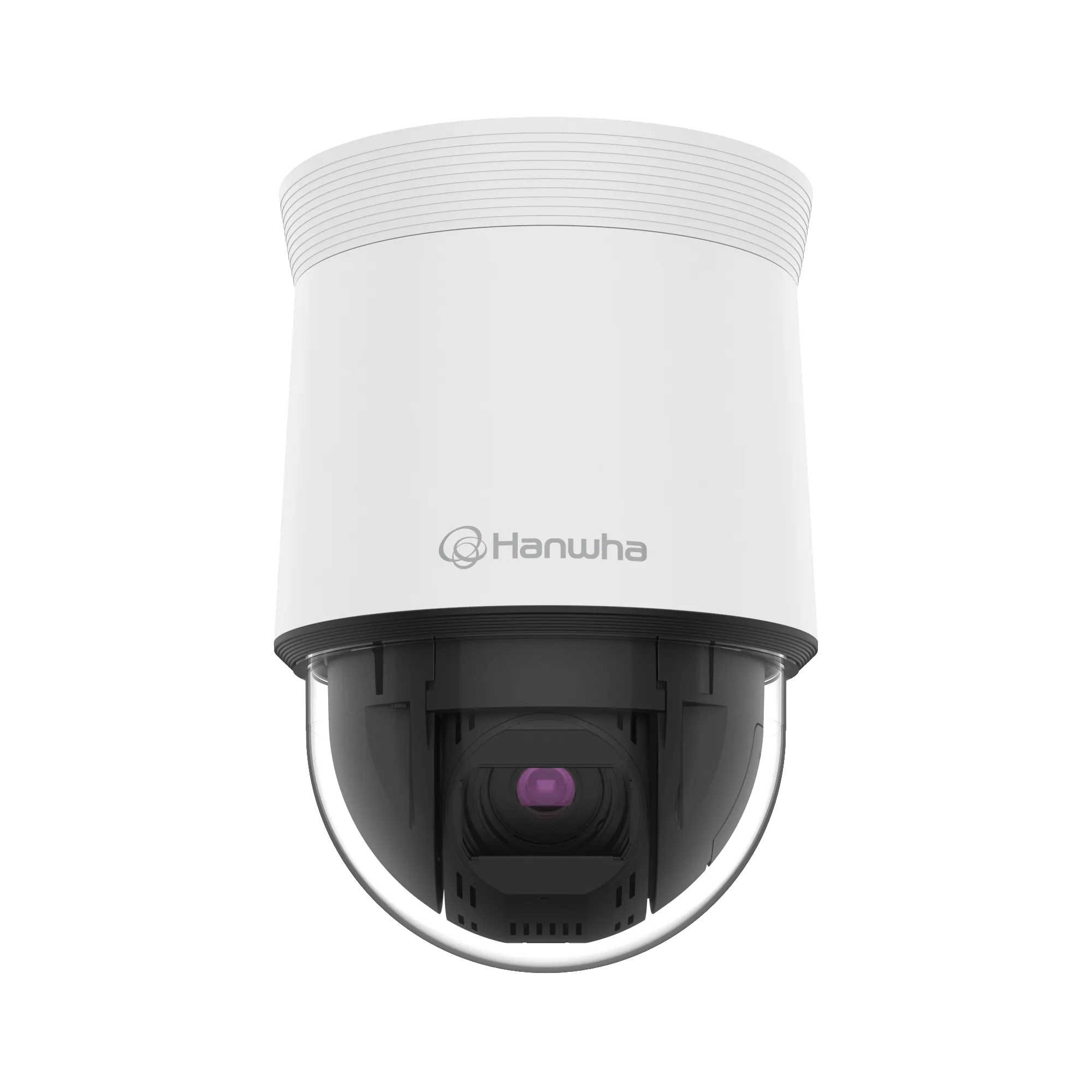

The QNP-6250 is a network PTZ camera with a 1/2.8" CMOS sensor and a maximum resolution of 1920x1080. H.265 and H.264 reach 60fps/50fps (60Hz/50Hz), MJPEG runs at 30fps, and WiseStream II keeps the bitrate down. Its lens spans 4.44 to 111 mm, giving 25x optical and 32x digital zoom at F1.6 to F3.9, and covers 64.66 to 2.99 degrees horizontally and 38.08 to 1.68 degrees vertically from 1.5 m, with oneshot AF plus focus save on a DC auto iris. Panning is endless across 360 degrees and tilt runs from 90 to -15 degrees, at up to 700 degrees per second on presets, 0.024 to 200 degrees per second manually and up to 300 degrees per second for preset tilt. Sensitivity at 1/30 sec and 30 IRE is 0.05 lux in colour and 0.005 lux in black and white, and the camera adds ICR day/night switching, WDR, DIS with a built-in gyro sensor, intelligent analytics and one Micro SD/SDHC/SDXC slot for 256 GB. 1/2.8" CMOS, max. 1920x10804.44 to 111 mm lens, 25x optical zoom360 degree endless pan, 90 to -15 degree tilt60fps/50fps in H.265/H.264, WiseStream IIDIS with built-in gyro sensor, WDR, ICRMicro SD/SDHC/SDXC up to 256 GB

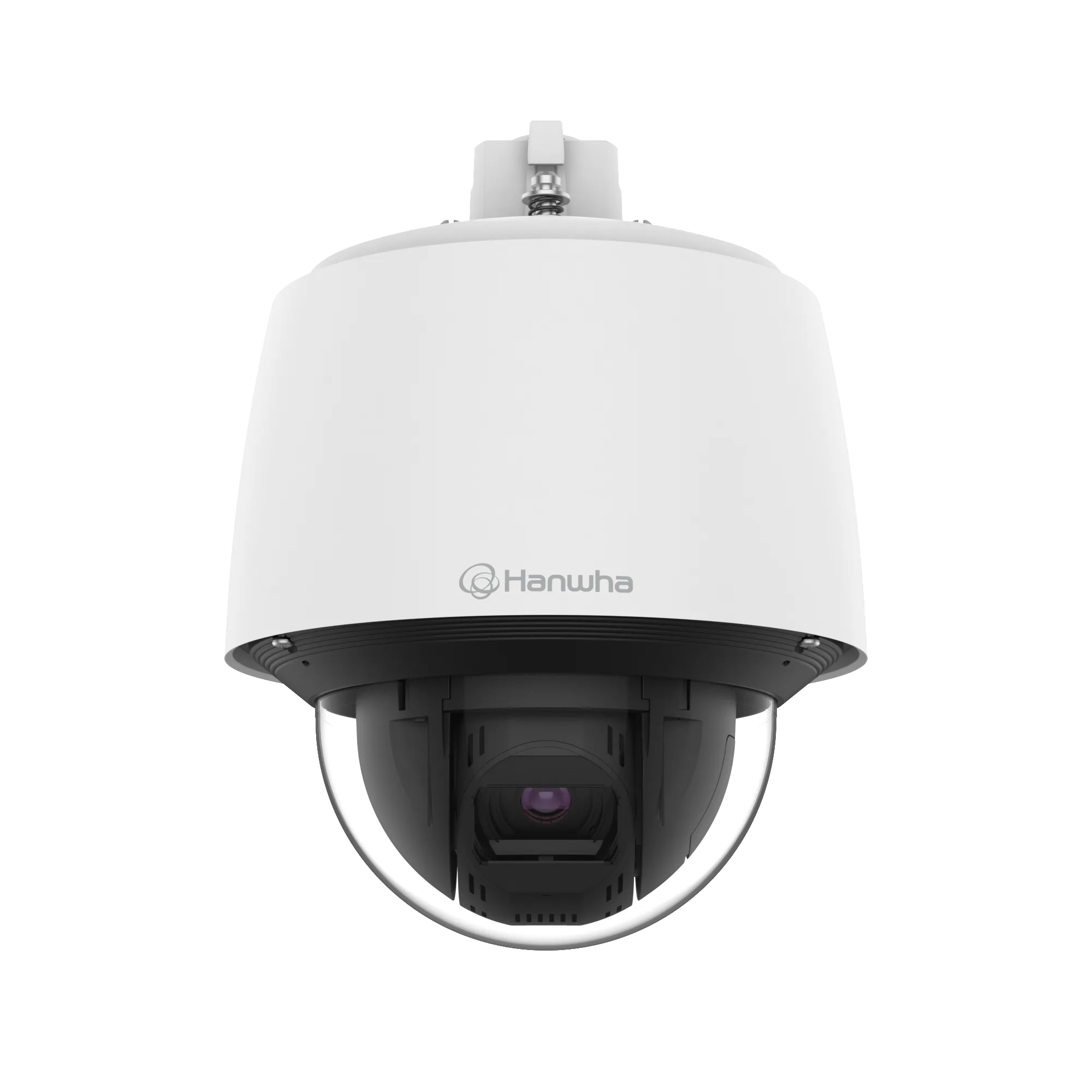

The QNP-6250H is a network PTZ camera that pairs a 1/2.8" CMOS sensor with a maximum of 1920x1080 and a housing rated IP66, IK10 and NEMA4X. Its 25x lens runs from 4.44 to 111 mm at F1.6 to F3.9, adds 32x digital zoom and offers auto, manual and oneshot AF with focus save on a DC auto iris. Coverage is 64.66 to 2.99 degrees horizontally and 38.08 to 1.68 degrees vertically from a minimum object distance of 1.5 m; pan is endless over 360 degrees and tilt spans 90 to -15 degrees, at up to 700 degrees per second on presets, 0.024 to 200 degrees per second manually and up to 300 degrees per second for preset tilt. H.265/H.264 encoding delivers 60fps/50fps (60Hz/50Hz), MJPEG runs at 30fps and WiseStream II lowers bandwidth. Minimum illumination is 0.05 lux in colour and 0.005 lux in black and white at 1/30 sec and 30 IRE, complemented by ICR, WDR, DIS with a gyro sensor, intelligent analytics and a 256 GB Micro SD/SDHC/SDXC slot. IP66, IK10, NEMA4X4.44 to 111 mm lens, 25x optical zoom1/2.8" CMOS, max. 1920x1080Auto, manual, oneshot AF, focus saveDIS with gyro sensor, WDR, ICRMicro SD/SDHC/SDXC up to 256 GB

The QNP-6320R is a PTZ camera with a 32x optic, infrared illumination up to 100 m (328.08ft) and a housing rated IP66, IK10 and NEMA4X. Its 1/2.8" CMOS sensor captures up to 1920x1080, H.264 and H.265 run at 60fps/50fps (60Hz/50Hz), MJPEG at 30fps, and WiseStream II is included. The lens spans 4.44 to 142.6 mm at F1.6 wide and F4.4 tele with additional 32x digital zoom, a DC auto iris and oneshot AF with focus save, covering 64.66 to 2.29 degrees horizontally and 38.08 to 1.30 degrees vertically from 1.5 m. Pan is endless through 360 degrees while tilt runs from 90 to -20 degrees, at up to 700 degrees per second on presets, 0.024 to 250 degrees per second manually and up to 300 degrees per second for preset tilt. Minimum illumination is 0.05 lux in colour and 0.005 lux in black and white at 1/30 sec and 30 IRE, with ICR, WDR, DIS using a gyro sensor, intelligent analytics and a Micro SD/SDHC/SDXC slot for 256 GB. IR viewable length up to 100 m (328.08ft)4.44 to 142.6 mm, 32x optical zoomIP66, IK10, NEMA4X90 to -20 degree tilt, 360 degree endless panDIS with gyro sensor, WDR, ICRMicro SD/SDHC/SDXC up to 256 GB

The QNP-6320H is a 32x zoom network PTZ camera whose 1/2.8" CMOS sensor delivers resolutions up to 1920x1080. The lens works from 4.44 to 142.6 mm at F1.6 wide and F4.4 tele, supplemented by 32x digital zoom, a DC auto iris and oneshot AF with focus save, covering 64.66 to 2.29 degrees horizontally and 38.08 to 1.30 degrees vertically from a minimum object distance of 1.5 m. Positioning uses endless 360 degree pan and a tilt range of 90 to -15 degrees, at up to 700 degrees per second on presets, 0.024 to 200 degrees per second manually and up to 300 degrees per second for preset tilt. Streaming runs in H.264, H.265 and MJPEG at 60fps/50fps (60Hz/50Hz) and 30fps respectively, assisted by WiseStream II. Minimum illumination is 0.05 lux in colour and 0.005 lux in black and white at 1/30 sec and 30 IRE, with ICR, WDR, DIS using a built-in gyro sensor, intelligent analytics and a 256 GB Micro SD/SDHC/SDXC slot. 4.44 to 142.6 mm lens, 32x optical zoom1/2.8" CMOS, max. 1920x10800.05 lux colour / 0.005 lux BWDIS with built-in gyro sensor, WDR, ICRH.264, H.265, MJPEG, WiseStream IIMicro SD/SDHC/SDXC up to 256 GB

The QNP-6320 is a network PTZ camera with a 32x optic and a 1/2.8" CMOS sensor capturing up to 1920x1080. Its lens spans 4.44 to 142.6 mm at F1.6 wide and F4.4 tele, adds 32x digital zoom, a DC auto iris and oneshot AF with focus save, and covers 64.66 to 2.29 degrees horizontally and 38.08 to 1.30 degrees vertically from 1.5 m. Pan is endless across 360 degrees and tilt ranges from 90 to -15 degrees, moving at up to 700 degrees per second on presets, 0.024 to 200 degrees per second manually and up to 300 degrees per second for preset tilt. H.265/H.264 reach 60fps/50fps (60Hz/50Hz), MJPEG runs at 30fps and WiseStream II trims the bitrate. At 1/30 sec and 30 IRE the camera achieves 0.05 lux in colour and 0.005 lux in black and white, rounded out by ICR day/night switching, WDR, DIS with a gyro sensor, intelligent analytics and a Micro SD/SDHC/SDXC slot for 256 GB. 4.44 to 142.6 mm lens, 32x optical zoom1/2.8" CMOS, max. 1920x1080360 degree endless pan, 90 to -15 degree tilt60fps/50fps in H.265/H.264, WiseStream IIDIS with gyro sensor, WDR, ICRMicro SD/SDHC/SDXC up to 256 GB

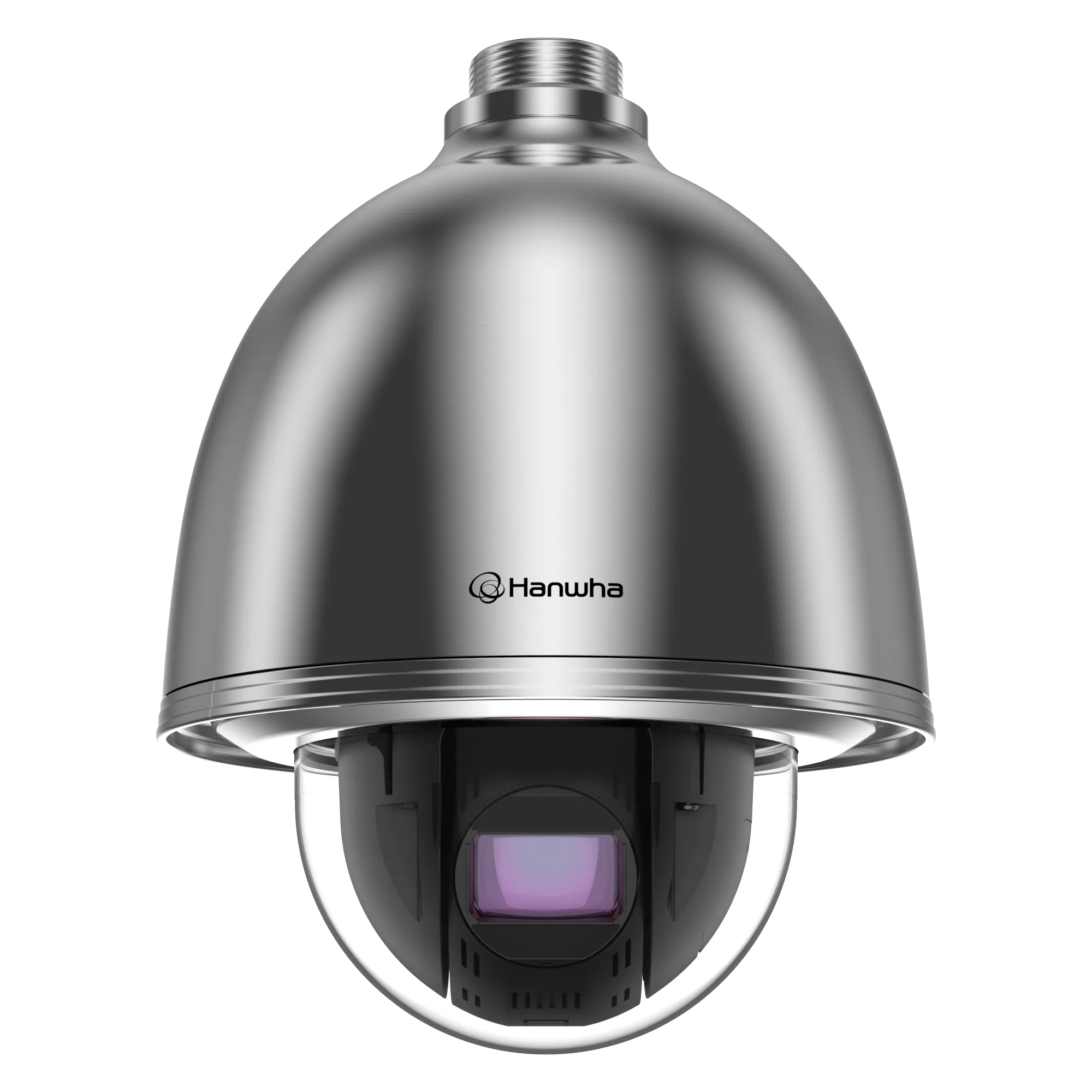

The QNP-6320HS is a PTZ camera in a SUS316L stainless steel housing rated IP66/IP67, IK10 and NEMA4X, powered over PoE. Its 1/2.8" CMOS sensor resolves up to 1920x1080, and H.265, H.264 and MJPEG stream at 60fps/50fps (60Hz/50Hz) and 30fps respectively, with multiple streaming and WiseStream II. The lens covers 4.44 to 142.6 mm, giving 32x optical and 32x digital zoom at F1.6 to F4.4, and combines a DC auto iris with auto, manual and oneshot AF plus focus save across 64.66 to 2.29 degrees horizontally and 38.08 to 1.30 degrees vertically from 1.5 m. Positioning is endless over 360 degrees with tilt from 90 to -15 degrees, at up to 700 degrees per second on presets, 0.024 to 200 degrees per second manually and up to 300 degrees per second for preset tilt. Sensitivity is 0.05 lux in colour and 0.005 lux in black and white at 1/30 sec and 30 IRE, while analytics cover directional detection, tampering, motion detection, audio detection and digital auto tracking, with recording to Micro SD/SDHC/SDXC up to 256 GB. SUS316L stainless steel, IP66/IP67, IK10, NEMA4X4.44 to 142.6 mm, 32x optical zoom120 dB WDR, ICR day/night, WiseStream IIDirectional, tampering and motion detectionAudio detection and digital auto trackingMicro SD/SDHC/SDXC up to 256 GB, PoE

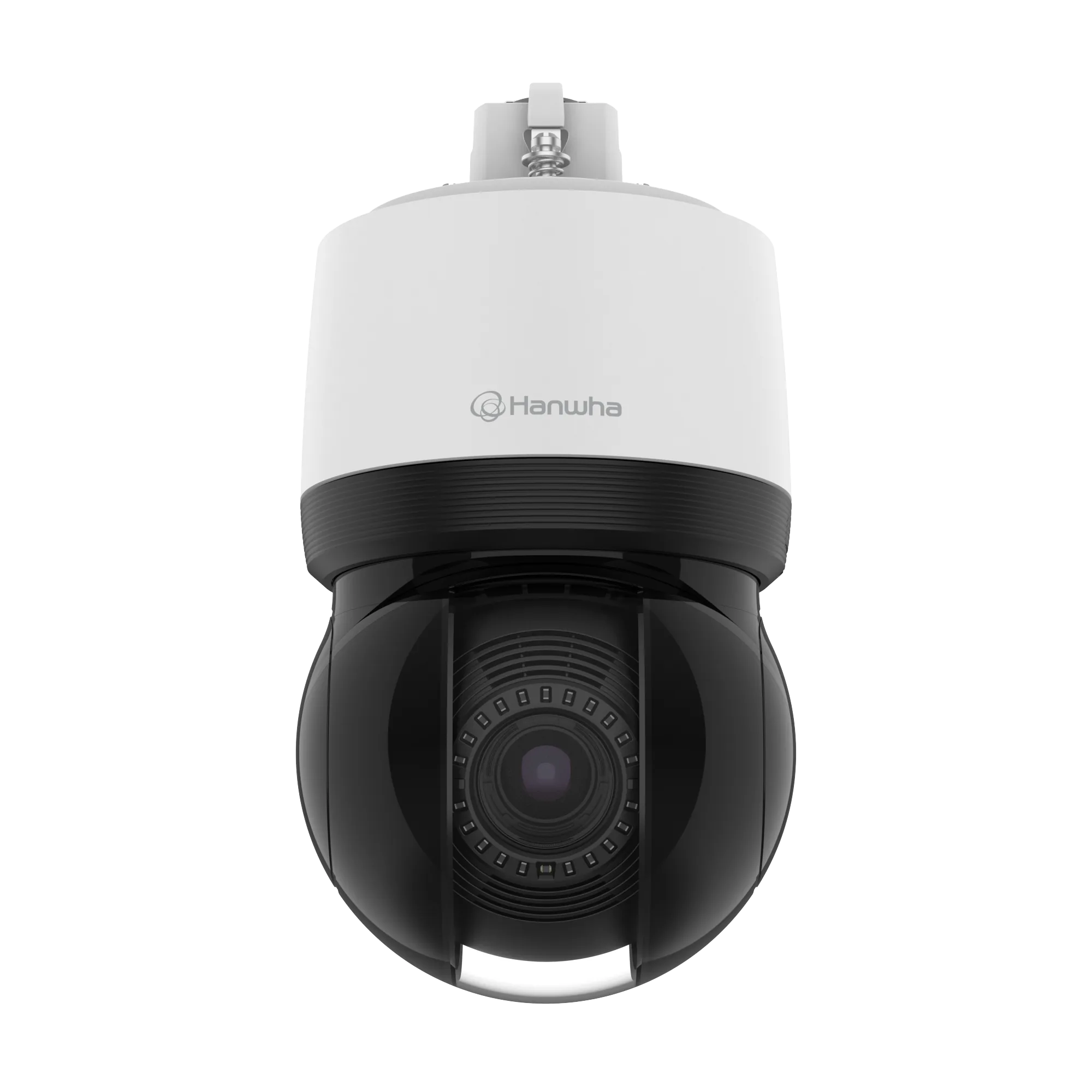

Fitted with a built-in wiper, this AI PTZ camera in PTZ PLUS design delivers a maximum of 1920x1080 from a 1/2.8 inch CMOS sensor. H.265 and H.264 run at 60fps/50fps (60Hz/50Hz) and MJPEG at 30fps, with 0.05 lux stated for colour, 0.005 lux for black and white and 0 lux with the IR LED on. The lens spans 4.25 to 170 mm with 40x optical and 32x digital zoom, 1280x in total, at F1.6 to F4.95 and a minimum object distance of 3 m (9.84ft). Pan is endless across 360 degrees at up to 500 degrees per second on presets, while tilt covers 90 to -20 degrees at up to 350 degrees per second. ICR day and night operation, extreme WDR, DIS with a gyro sensor, object auto tracking, target lock tracking and IP66, IK10, NEMA4X and NEMA-TS 2 (2.2.8, 2.2.9) ratings complete the package. Built-in wiper4.25~170 mm, 40x optical, 32x digital, 1280x total0.05 lux colour, 0.005 lux BW, 0 lux with IR LED3 m (9.84ft) minimum distance, oneshot AFICR day and night, extreme WDR, DISIP66, IK10, NEMA4X, NEMA-TS 2

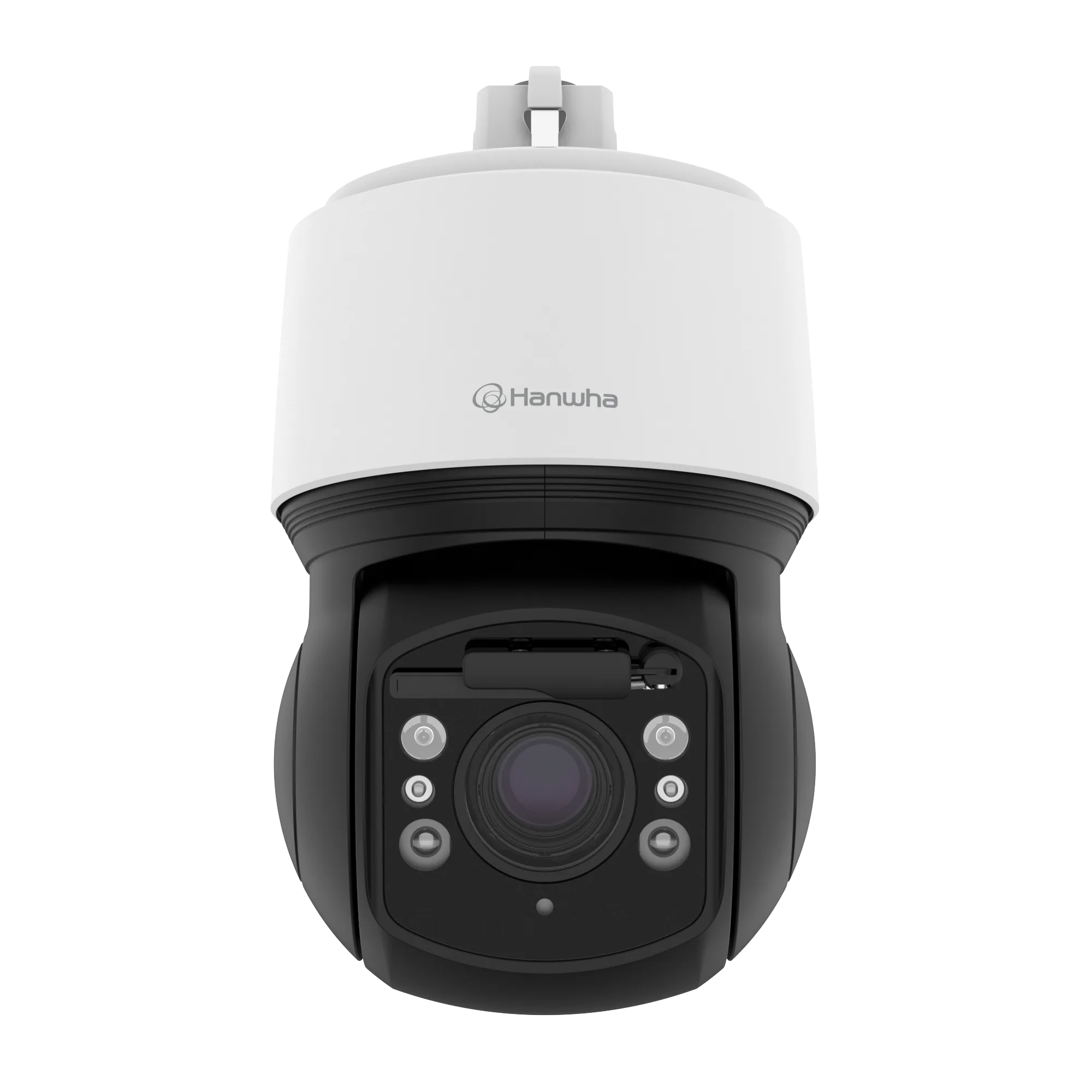

The IR version of this 40x PTZ camera produces up to 1920x1080 from a 1/2.8 inch CMOS sensor, at 60fps/50fps (60Hz/50Hz) in H.265 and H.264 and 30fps in MJPEG. Its lens spans 4.25 to 170 mm with 40x optical and 32x digital zoom, F1.6 at the wide end and F4.95 at tele, and a horizontal field of view of 65.66 to 1.88 degrees. Wise IR illumination carries up to 200 m (656.17 ft), while minimum illumination is 0.05 lux in colour and 0.005 lux in black and white. Pan movement is endless across 360 degrees, tilt covers 90 to -20 degrees, and preset speeds reach 700 degrees per second panning and 500 degrees per second tilting. Added to this are ICR day and night operation, WDR at 150 dB, DIS with a built-in gyro sensor, object auto tracking for persons and vehicles, WiseStream II and a housing rated IP66, IK10, NEMA4X and NEMA-TS 2 (2.2.8, 2.2.9). 4.25~170 mm, 40x optical, 32x digital zoomWise IR up to 200 m (656.17 ft)1920x1080, 60fps/50fps in H.265/H.264WDR 150 dB, DIS with gyro sensor360 degree endless pan, 90 to -20 degree tiltIP66, IK10, NEMA4X, NEMA-TS 2

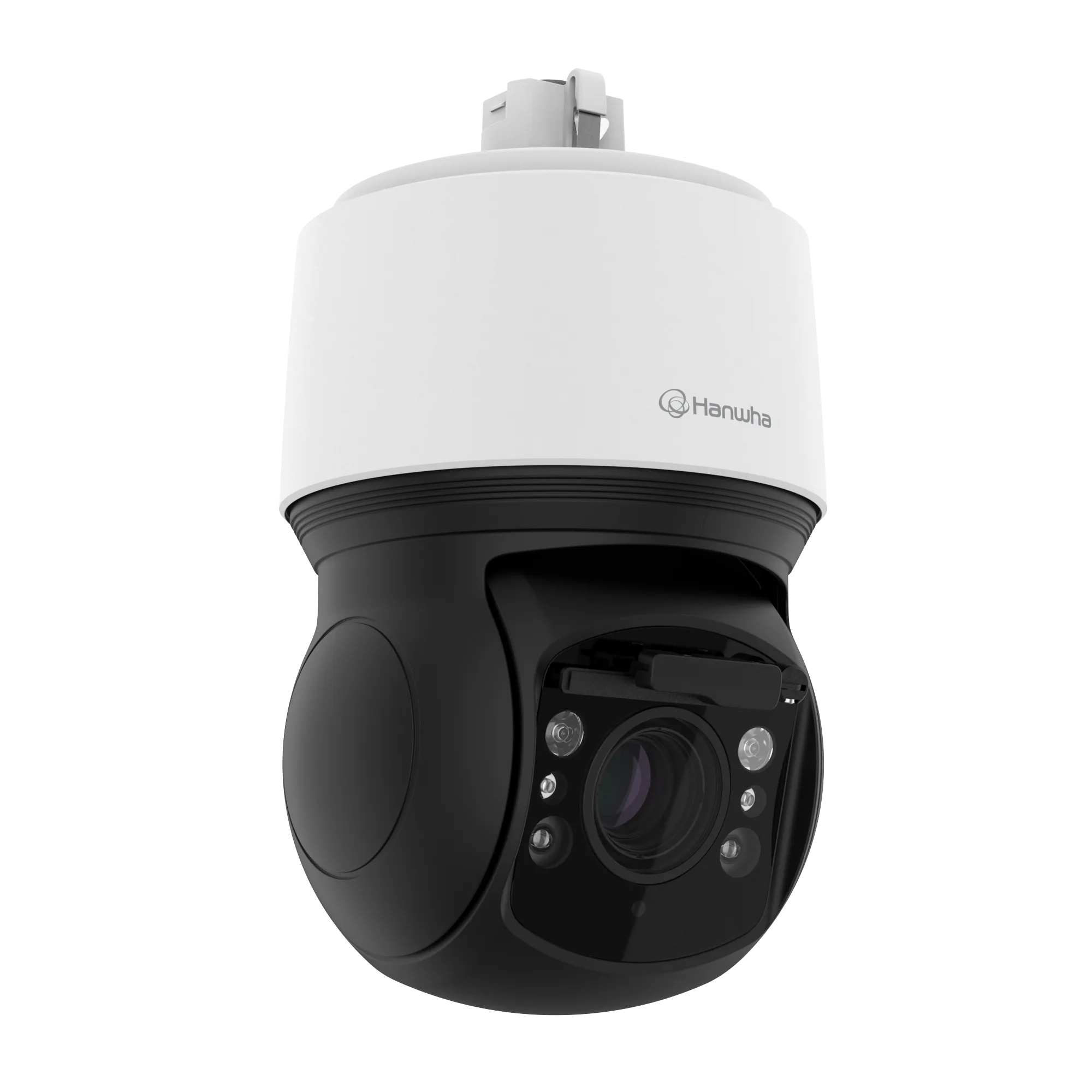

This 40x IR PTZ camera additionally carries a built-in wiper and works with a 1/2.8 inch CMOS sensor at a maximum resolution of 1920x1080. H.265 and H.264 reach 60fps/50fps (60Hz/50Hz) and MJPEG 30fps, with minimum illumination of 0.05 lux in colour and 0.005 lux in black and white. The lens runs from 4.25 to 170 mm with 40x optical and 32x digital zoom at F1.6 to F4.95, the closest object distance is 3 m (9.84ft), and focusing uses oneshot AF or a saved focus position. IR viewable length is stated as up to 200 m, panning is endless across 360 degrees at up to 500 degrees per second on presets, and tilt covers 90 to -20 degrees at up to 350 degrees per second. Also provided are ICR day and night operation, extreme WDR, DIS with a gyro sensor, intelligent analytics with object auto tracking and target lock tracking, plus IP66, IK10 and NEMA4X ratings. Built-in wiper4.25~170 mm, 40x optical, 32x digital zoomMax. IR viewable length 200 mOneshot AF and focus save, 3 m minimum distanceObject auto tracking and target lock trackingIP66, IK10, NEMA4X

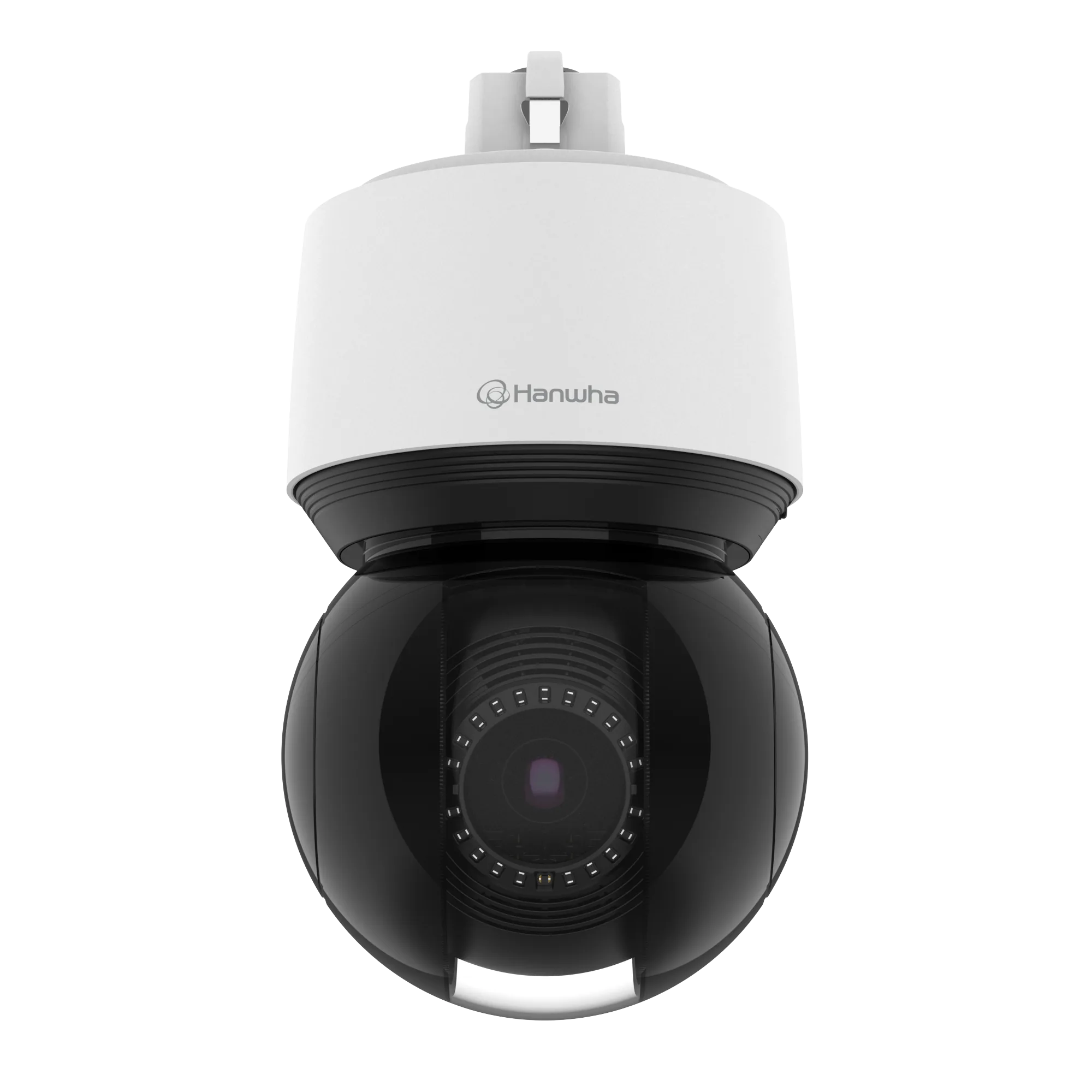

Built around a 1/2.8 inch CMOS sensor, this PTZ network camera resolves up to 1920x1080 and encodes at 60fps/50fps (60Hz/50Hz) in H.265 and H.264, or 30fps in MJPEG. Its lens runs from 4.25 to 170 mm with 40x optical and 32x digital zoom, opens to F1.6 wide and F4.95 tele and covers 65.66 to 1.88 degrees horizontally. At 1/30 sec and 30 IRE it reaches 0.05 lux in colour and 0.005 lux in black and white, with a minimum object distance of 5 m (16.4ft). Panning is endless over 360 degrees and tilt spans 90 to -20 degrees, at up to 700 degrees per second on presets and 0.024 to 250 degrees per second under manual control. The feature set includes ICR day and night operation, WDR at 150 dB, DIS with a gyro sensor, intelligent analytics with object auto tracking for persons and vehicles and WiseStream II, in a housing rated IP66, IK10, NEMA4X and NEMA-TS 2 (2.2.8, 2.2.9). 4.25~170 mm, 40x optical, 32x digital zoom1920x1080, 60fps/50fps in H.265/H.264WDR 150 dB, DIS with gyro sensorObject auto tracking for person and vehicle360 degree endless pan, up to 700 degrees/secIP66, IK10, NEMA4X, NEMA-TS 2

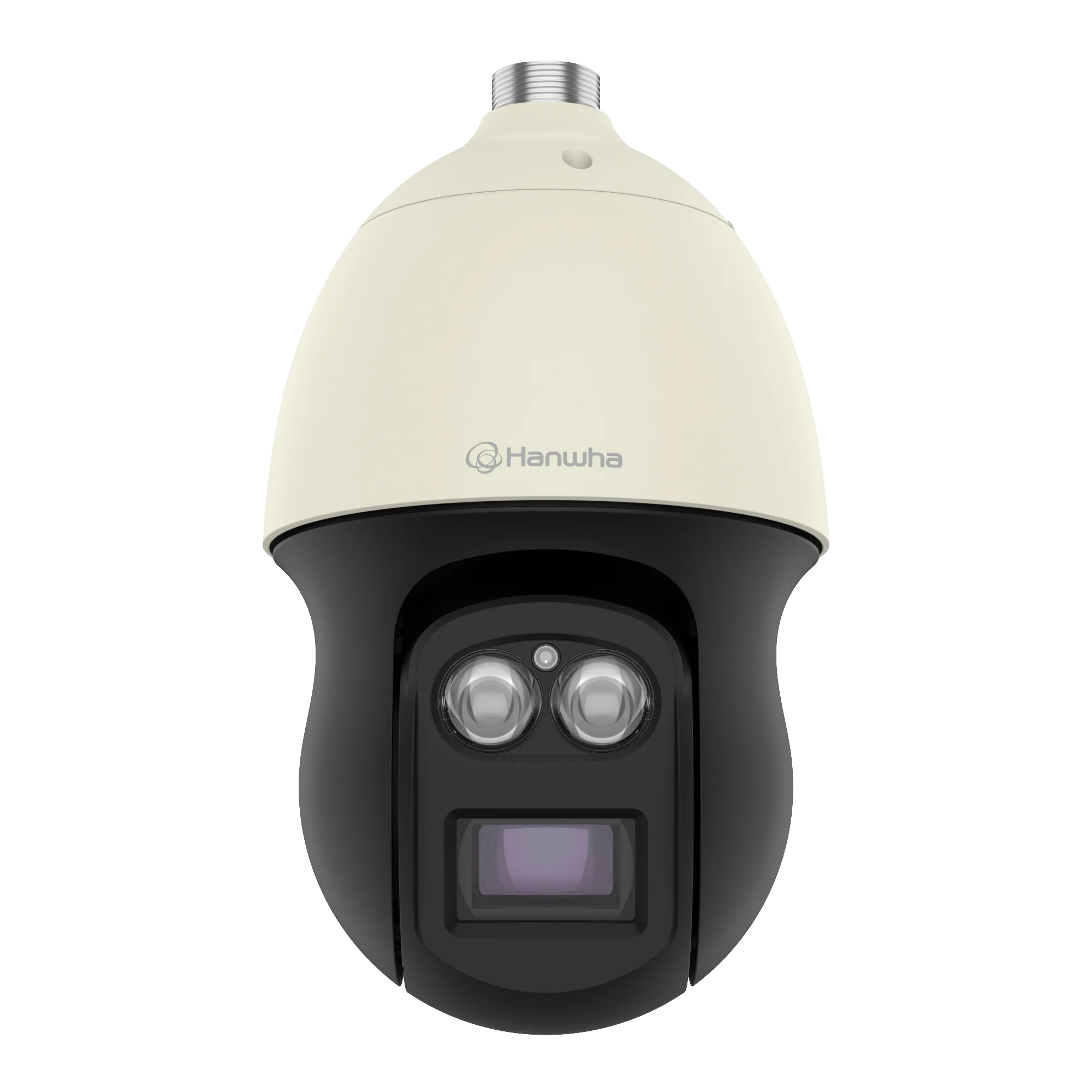

This IR PTZ dome camera resolves 1920x1080 from a 1/2.8 inch CMOS sensor and encodes H.265 and H.264 at 60fps/50fps (60Hz/50Hz), with MJPEG at 30fps. The lens covers 4.75 to 261.4 mm, equal to 55x optical zoom, opens to F1.6 wide and F6.5 tele and captures 58.6 to 1.23 degrees horizontally and 34.8 to 0.71 degrees vertically. Minimum illumination is given as 0.02 lux in colour and 0.002 lux in black and white, and maximum IR viewable length is 500 m. Pan range spans 0 to 360 degrees and tilt -5 to 90 degrees, with preset speeds of up to 400 degrees per second panning and 250 degrees per second tilting. It also offers ICR day and night operation, WDR at 120 dB, digital image stabilisation with a built-in gyro sensor, multiple streaming with WiseStream II and intelligent video and audio analytics with optical defog. 4.75~261.4 mm, 55x optical zoomIR viewable length up to 500 m0.02 lux colour / 0.002 lux BWWDR 120 dB, ICR day and nightImage stabilisation with gyro sensorVideo and audio analytics, optical defog

This AI PTZ camera in PTZ PLUS design uses a 1/2.8 inch CMOS sensor and delivers up to 1920x1080, encoding H.265 and H.264 at 60fps/50fps (60Hz/50Hz) and MJPEG at 30fps. The lens spans 4.25 to 170 mm and provides 40x optical plus 32x digital zoom, 1280x in total, at F1.6 wide and F4.95 tele. Horizontal field of view runs from 65.66 to 1.88 degrees and vertical from 39.4 to 1.09 degrees, with a minimum object distance of 5 m (16.4ft). At 1/30 sec it reaches 0.05 lux in colour and 0.005 lux in black and white; pan is endless across 360 degrees at up to 700 degrees per second and tilt covers 90 to -20 degrees at up to 500 degrees per second. Intelligent analytics with object auto tracking for persons and vehicles, target lock tracking, WiseStream II and a housing rated IP66, IK10, NEMA4X and NEMA-TS 2 (2.2.8, 2.2.9) complete the specification. 4.25~170 mm, 40x optical, 32x digital, 1280x total1920x1080, 60fps/50fps in H.265/H.2640.05 lux colour / 0.005 lux BWObject auto tracking and target lock tracking360 degree endless pan, up to 700 degrees/secIP66, IK10, NEMA4X, NEMA-TS 2

The IR variant of this AI PTZ camera in PTZ PLUS design works with a 1/2.8 inch CMOS sensor and a maximum resolution of 1920x1080 at 60fps/50fps (60Hz/50Hz) in H.265 and H.264. Its lens covers 4.25 to 170 mm with 40x optical and 32x digital zoom, 1280x in total, at F1.6 wide and F4.95 tele. Black and white sensitivity is 0.005 lux, dropping to 0 lux with the IR LED on, while colour is stated at 0.05 lux. Panning is endless over 360 degrees at up to 700 degrees per second, and tilt spans 90 to -20 degrees at up to 500 degrees per second on presets. The camera adds ICR day and night operation, extreme WDR, DIS with a built-in gyro sensor, intelligent analytics with object auto tracking and target lock tracking, and IP66, IK10, NEMA4X and NEMA-TS 2 (2.2.8, 2.2.9) ratings. 4.25~170 mm, 40x optical, 32x digital, 1280x total0.05 lux colour, 0.005 lux BW, 0 lux with IR LEDICR day and night, extreme WDRDIS with built-in gyro sensorObject auto tracking and target lock trackingIP66, IK10, NEMA4X, NEMA-TS 2

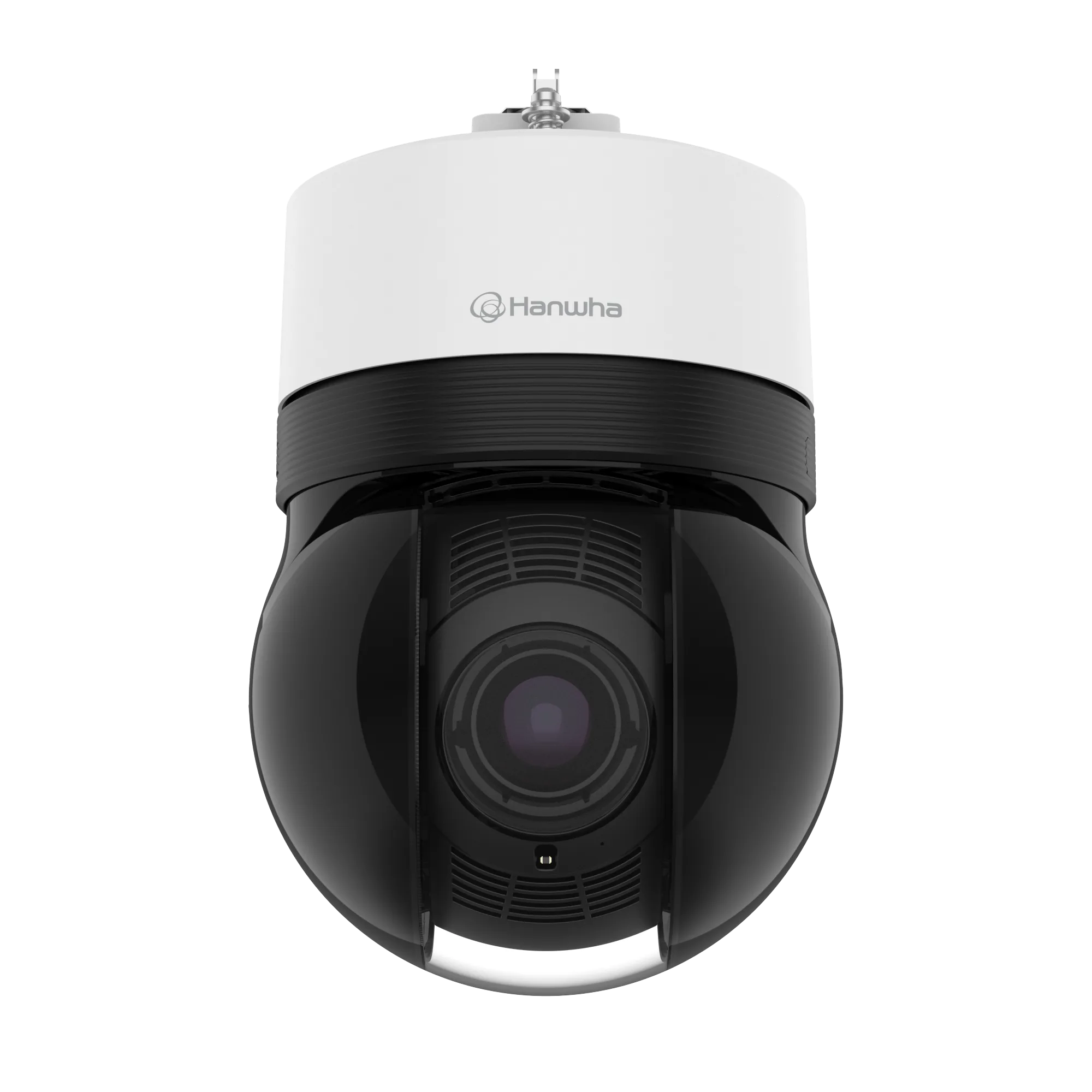

This 4MP AI IR PTZ camera is based on a 1/1.8 inch CMOS sensor with a maximum resolution of 2592x1520. H.265 and H.264 reach 60fps/50fps (60Hz/50Hz) with WDR off and 30fps/25fps with WDR on, while MJPEG runs at 30fps and a maximum of 5fps at 4MP. The motorised varifocal lens from 6.91 to 214.7 mm supplies 31x optical and 32x digital zoom, F1.36 wide and F4.6 tele, and a horizontal field of view of 59.4 to 2.54 degrees. Wise IR reaches 300 m (984ft), and sensitivity is quoted as 0.04 lux in colour and 0.004 lux in black and white, falling to 0 lux with the IR LED on. Focusing options include oneshot AF, focus save, focus scan and Wise auto focus, alongside WDR at 120 dB, AI-based WiseNR II and WiseStream III, DIS with a gyro sensor and IP66/IP67, IK10 and NEMA4X ratings. 6.91~214.7 mm, 31x optical, 32x digital zoom1/1.8 inch CMOS, up to 2592x1520Wise IR up to 300 m (984ft)WDR 120 dB, WiseNR II, prefer shutterWise auto focus and focus saveIP66/IP67, IK10, NEMA4X

This AI PTZ camera in PTZ PLUS design records at up to 3328x1872 and encodes H.265 and H.264 at 30fps/25fps (60Hz/50Hz), with MJPEG at 30fps and no more than 5fps at 6MP. Its lens runs from 5 to 125 mm, provides 25x optical and 32x digital zoom for 800x in total, and opens to F1.6 wide and F3.73 tele. Horizontal coverage is 57.42 to 2.71 degrees and vertical coverage 33.54 to 1.55 degrees, with a minimum object distance of 5 m (16.4ft). Sensitivity at 1/30 sec is quoted as 0.1 lux in colour and 0.01 lux in black and white; pan is endless over 360 degrees at up to 700 degrees per second and tilt covers 90 to -20 degrees at up to 500 degrees per second. The specification also lists intelligent analytics with object auto tracking for persons and vehicles, target lock tracking, WiseStream II and IP66, IK10, NEMA4X and NEMA-TS 2 (2.2.8, 2.2.9) ratings. 5~125 mm, 25x optical, 32x digital, 800x totalUp to 3328x1872, 30fps/25fps in H.265/H.2640.1 lux colour / 0.01 lux BWObject auto tracking and target lock tracking360 degree endless pan, up to 700 degrees/secIP66, IK10, NEMA4X, NEMA-TS 2

The IR version of this 25x AI PTZ camera in PTZ PLUS design resolves up to 3328x1872 and encodes H.265 and H.264 at 30fps/25fps (60Hz/50Hz). MJPEG runs at 30fps and drops to a maximum of 5fps at 6MP, while minimum illumination is stated as 0.1 lux in colour and 0.01 lux in black and white. The lens covers 5 to 125 mm with 25x optical and 32x digital zoom, 800x in total, at F1.6 wide and F3.73 tele. Panning is endless across 360 degrees at up to 700 degrees per second on presets, and tilt spans 90 to -20 degrees at up to 500 degrees per second. It further offers ICR day and night operation, extreme WDR, DIS with a built-in gyro sensor, object auto tracking for persons and vehicles, target lock tracking, WiseStream II and IP66, IK10, NEMA4X and NEMA-TS 2 (2.2.8, 2.2.9) ratings. 5~125 mm, 25x optical, 32x digital, 800x totalUp to 3328x1872, 30fps/25fps in H.265/H.264ICR day and night, extreme WDRDIS with built-in gyro sensorObject auto tracking and target lock trackingIP66, IK10, NEMA4X, NEMA-TS 2

This 6MP AI PTZ camera in PTZ PLUS design includes a built-in wiper and records at a maximum of 3328x1872. H.265 and H.264 operate at 30fps/25fps (60Hz/50Hz), MJPEG at 30fps and no more than 5fps at 6MP, with 0.1 lux quoted for colour and 0.01 lux for black and white. The lens runs from 5 to 150 mm with 30x optical and 32x digital zoom, 960x in total, at F1.6 wide and F4.56 tele, and a minimum object distance of 3 m (9.84ft). Horizontal field of view spans 57.42 to 2.19 degrees, pan is endless across 360 degrees at up to 500 degrees per second, and tilt covers 90 to -20 degrees at up to 350 degrees per second. Also specified are ICR day and night operation, extreme WDR, DIS with a gyro sensor, object auto tracking, target lock tracking and IP66, IK10, NEMA4X and NEMA-TS 2 (2.2.8, 2.2.9) ratings. Built-in wiper5~150 mm, 30x optical, 32x digital, 960x totalUp to 3328x1872, 30fps/25fps in H.265/H.264ICR day and night, extreme WDR, DIS360 degree endless pan, up to 500 degrees/secIP66, IK10, NEMA4X, NEMA-TS 2

This 8MP AI PTZ camera in PTZ PLUS design offers a maximum resolution of 3840x2160 and encodes H.265 and H.264 at 30fps/25fps (60Hz/50Hz). MJPEG reaches 30fps and a maximum of 5fps at 8MP, while minimum illumination is given as 0.1 lux in colour and 0.01 lux in black and white. The lens spans 5 to 125 mm and supplies 25x optical plus 32x digital zoom, 800x in total, at F1.6 wide and F3.73 tele. Coverage runs from 57.42 to 2.71 degrees horizontally and 33.54 to 1.55 degrees vertically, with a minimum object distance of 5 m (16.4ft). Pan is endless across 360 degrees at up to 700 degrees per second and tilt covers 90 to -20 degrees at up to 500 degrees per second, complemented by object auto tracking, target lock tracking, WiseStream II and IP66, IK10, NEMA4X and NEMA-TS 2 (2.2.8, 2.2.9) ratings. 5~125 mm, 25x optical, 32x digital, 800x totalUp to 3840x2160, 30fps/25fps in H.265/H.2640.1 lux colour / 0.01 lux BWObject auto tracking and target lock tracking360 degree endless pan, up to 700 degrees/secIP66, IK10, NEMA4X, NEMA-TS 2

The IR version of this 8MP AI PTZ camera in PTZ PLUS design records up to 3840x2160 and encodes H.265 and H.264 at 30fps/25fps (60Hz/50Hz). MJPEG runs at 30fps with a maximum of 5fps at 8MP, and minimum illumination is stated as 0.1 lux in colour and 0.01 lux in black and white. The lens covers 5 to 125 mm and delivers 25x optical plus 32x digital zoom, 800x in total, at F1.6 wide and F3.73 tele. Pan movement is endless over 360 degrees at up to 700 degrees per second, while tilt spans 90 to -20 degrees at up to 500 degrees per second on presets. This is rounded out by ICR day and night operation, extreme WDR, DIS with a built-in gyro sensor, object auto tracking, target lock tracking and IP66, IK10, NEMA4X and NEMA-TS 2 (2.2.8, 2.2.9) ratings. 5~125 mm, 25x optical, 32x digital, 800x totalUp to 3840x2160, 30fps/25fps in H.265/H.264ICR day and night, extreme WDRDIS with built-in gyro sensorObject auto tracking and target lock trackingIP66, IK10, NEMA4X, NEMA-TS 2

Equipped with a built-in wiper, this 8MP AI PTZ camera in PTZ PLUS design records at a maximum of 3840x2160. H.265 and H.264 operate at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps, dropping to 5fps at 8MP, with 0.1 lux quoted for colour and 0.01 lux for black and white. The lens runs from 5 to 150 mm with 30x optical and 32x digital zoom, 960x in total, at F1.6 wide and F4.56 tele, and a closest object distance of 3 m (9.84ft). Pan is endless across 360 degrees at up to 500 degrees per second, while tilt covers 90 to -20 degrees at up to 350 degrees per second. Also included are ICR day and night operation, extreme WDR, DIS with a gyro sensor, object auto tracking, target lock tracking, WiseStream II and IP66, IK10, NEMA4X and NEMA-TS 2 (2.2.8, 2.2.9) ratings. Built-in wiper5~150 mm, 30x optical, 32x digital, 960x totalUp to 3840x2160, 30fps/25fps in H.265/H.2643 m (9.84ft) minimum object distanceICR day and night, extreme WDR, DISIP66, IK10, NEMA4X, NEMA-TS 2

This AI IR PTZ camera uses a 1/1.8 inch CMOS sensor and reaches 4K resolution of up to 3840x2160 at 30fps/25fps (60Hz/50Hz) in H.265 and H.264. MJPEG runs at 30fps and a maximum of 5fps at 8MP, with minimum illumination quoted as 0.06 lux in colour and 0.006 lux in black and white, or 0 lux with the IR LED on. The motorised varifocal lens covers 6.91 to 214.7 mm, gives 31x optical and 32x digital zoom at F1.36 to F4.6, and spans 60.6 to 2.59 degrees horizontally and 68.8 to 2.97 degrees diagonally. Wise IR reaches 250 m (820ft), and focusing can be automatic, manual, oneshot AF, focus save, focus scan or Wise auto focus. Pan is endless over 360 degrees at up to 550 degrees per second, supported by WDR at 120 dB, AI-based WiseNR II and WiseStream III, DIS with a gyro sensor and IP66/IP67, IK10 and NEMA4X ratings. 6.91~214.7 mm, 31x optical, 32x digital zoom1/1.8 inch CMOS, up to 3840x2160Wise IR up to 250 m (820ft)0.06 lux colour / 0.006 lux BWWDR 120 dB, WiseNR II, Wise auto focusIP66/IP67, IK10, NEMA4X

IR Speed Dome, 5M 30fps, H.265, 30x Optical Zoom, IR 200M, WDR Pro, 3DNR, PoE/DC48V/AC24V, I/O*2/1, Two way audio, Micro SDXC, IP66, IK10, NEMA 4X
