Flateye

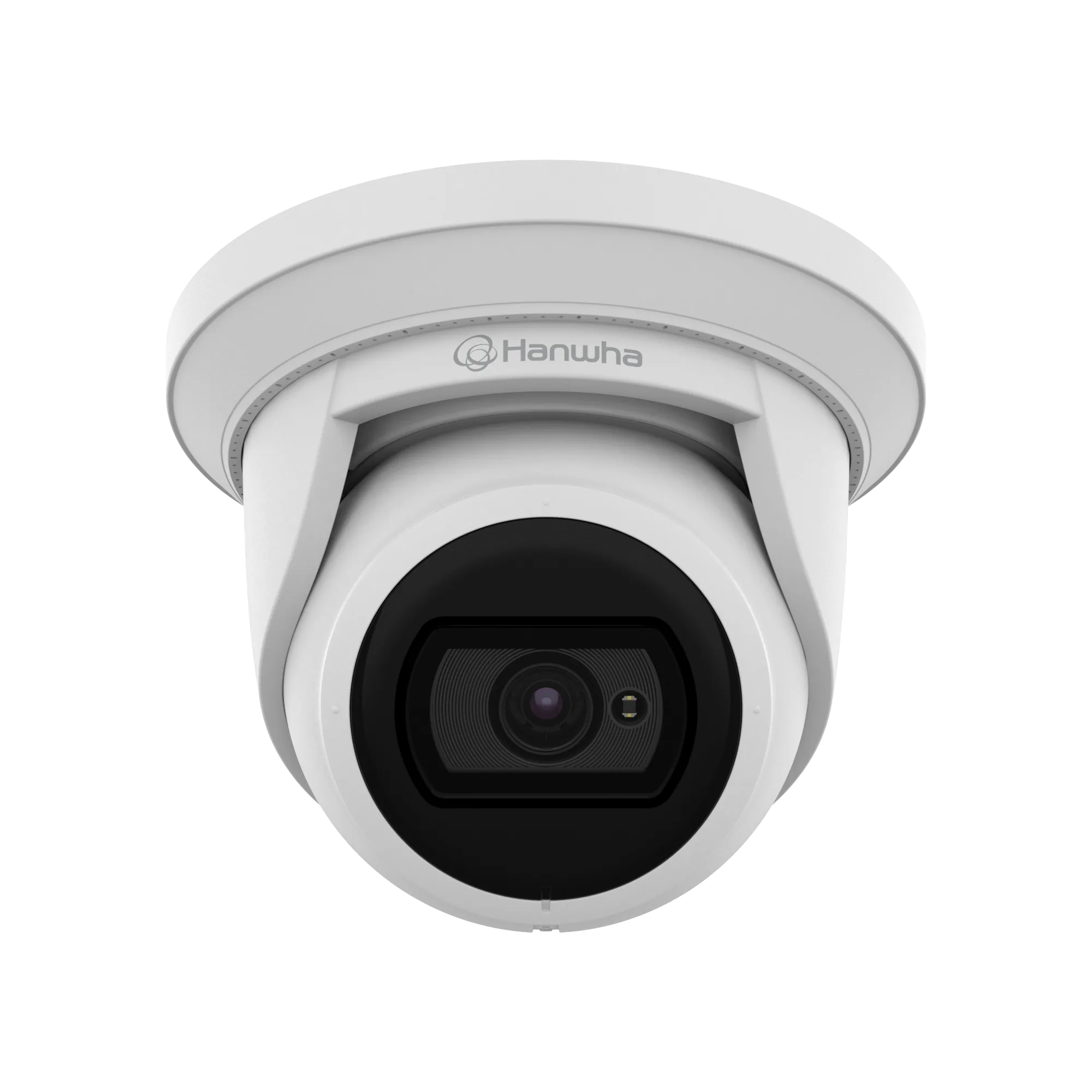

The ANE-L6012R is a super-compact IR flateye camera whose 1/2.8 inch CMOS sensor captures 2 megapixels at 1920x1080. A built-in 3.0mm F1.6 lens covers 108 degrees horizontally, 59 degrees vertically and 127 degrees diagonally, with a minimum object distance of 1.1m. H.265, H.264 and MJPEG are available with multiple streaming, reaching 30fps or 25fps in H.265/H.264 and 10fps in MJPEG. Imaging relies on ICR day and night switching, 120dB WDR, SSDR, BLC and SSNR, with minimum illumination of 0.03 lux in colour and 0.003 lux in black and white. Analytics include virtual line crossing with directional detection, enter and exit, tampering and motion detection across four zones, joined by a microSD/SDHC slot up to 32GB, PoE, hallway view and WiseStream II. 2 megapixel, 1920x10803.0mm fixed lens, F1.6, 108 degrees horizontal120dB WDR, ICR day and night0.03 lux colour, 0.003 lux B/WmicroSD/SDHC up to 32GB, PoEHallway view and WiseStream II

The ANE-L7012R is a super-compact IR flateye camera with a 1/2.8 inch CMOS sensor recording 4 megapixels at 2560x1440. Its built-in 3mm F1.6 lens takes in 99 degrees horizontally, 55 degrees vertically and 115 degrees diagonally from a minimum object distance of 1.1m. H.265 and H.264 run at 30fps or 25fps, MJPEG at 15fps, and multiple streaming is supported. Difficult lighting is addressed by ICR day and night switching, 120dB WDR, SSDR, BLC and SSNR, with minimum illumination of 0.13 lux in colour and 0.013 lux in black and white. Defocus, directional and motion detection across four zones, enter and exit, tampering, a microSD/SDHC slot up to 32GB, PoE, hallway view and WiseStream II complete the unit. 4 megapixel, 2560x14403mm fixed lens, F1.6, 99 degrees horizontal120dB WDR, ICR day and night0.13 lux colour, 0.013 lux B/WDefocus, directional and tampering detectionmicroSD/SDHC up to 32GB, PoE

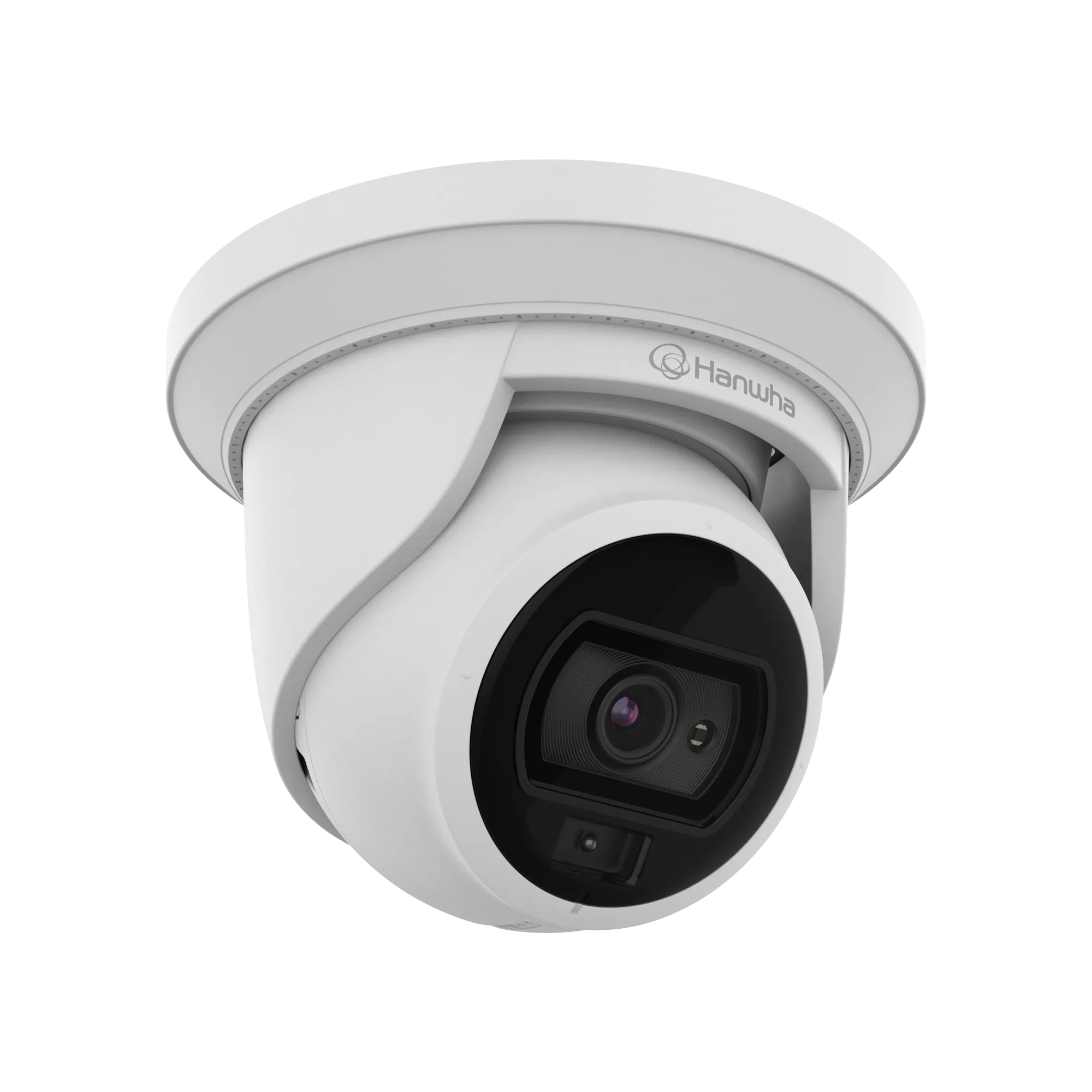

The ANE-L7012L is a white light flateye camera built around a 1/2.8 inch CMOS sensor that produces 4 megapixels at 2560x1440. Its fixed 3mm lens works at F1.2 with a field of view of 97 degrees horizontal, 53 degrees vertical and 113 degrees diagonal from a minimum object distance of 1.1m. H.265, H.264 and MJPEG form the triple codec, reaching 30fps or 25fps while MJPEG runs at 15fps. Recording is colour only and day and night switching is electrical, supported by 120dB WDR, SSDR, BLC, SSNR and minimum illumination of 0.05 lux. Virtual areas for intrusion, enter and exit, virtual lines with direction detection, tampering and motion detection in four eight-point polygonal zones, a microSD/SDHC slot up to 32GB and PoE power complete the camera. 4 megapixel, 2560x14403mm fixed lens, F1.2, 97 degrees horizontalWhite light, colour only operation120dB WDR, 0.05 lux minimum illuminationmicroSD/SDHC up to 32GBPoE powered

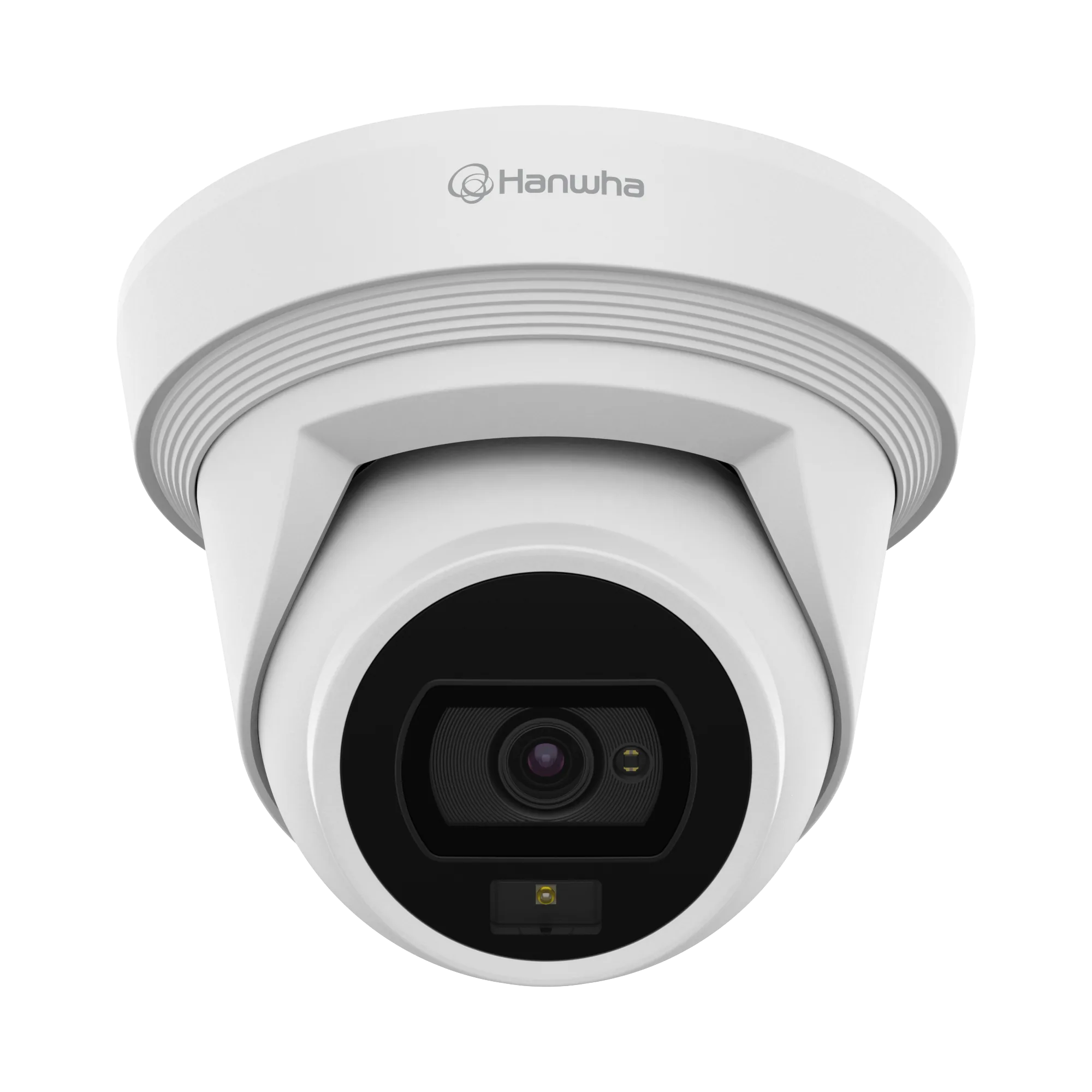

The QNE-C8013RL is an AI flateye camera with dual light illumination and a maximum resolution of 5 megapixels (2592 x 1944). Its 3 mm fixed lens with F1.2, fixed iris and M12 mount covers 97° horizontally, 71° vertically and 130° diagonally, with a minimum object distance of 2.0 m (6.56ft). H.265 and H.264 reach 30fps/25fps (60Hz/50Hz), MJPEG runs at 30fps and up to 5fps at 5MP, and WiseStream Ⅲ based on the AI engine plus multiple streaming are supported. Colour requires only 0.022 lux (F1.2, 1/30sec), black and white 0.0022 lux (F1.2, 1/30sec, 30IRE), and 0 lux with the IR LED on. ICR day/night switching, 120 dB WDR and WiseNR Ⅱ using the AI engine work together with object classification, attributes and DetectionShot, while the Micro SD/SDHC/SDXC slot holds up to 256 GB. 5MP resolution (2592 x 1944)3 mm fixed lens, F1.2, M12 mount120 dB WDR, WiseNR Ⅱ using the AI engineObject classification, attributes and DetectionShotMicro SD/SDHC/SDXC slot up to 256 GB

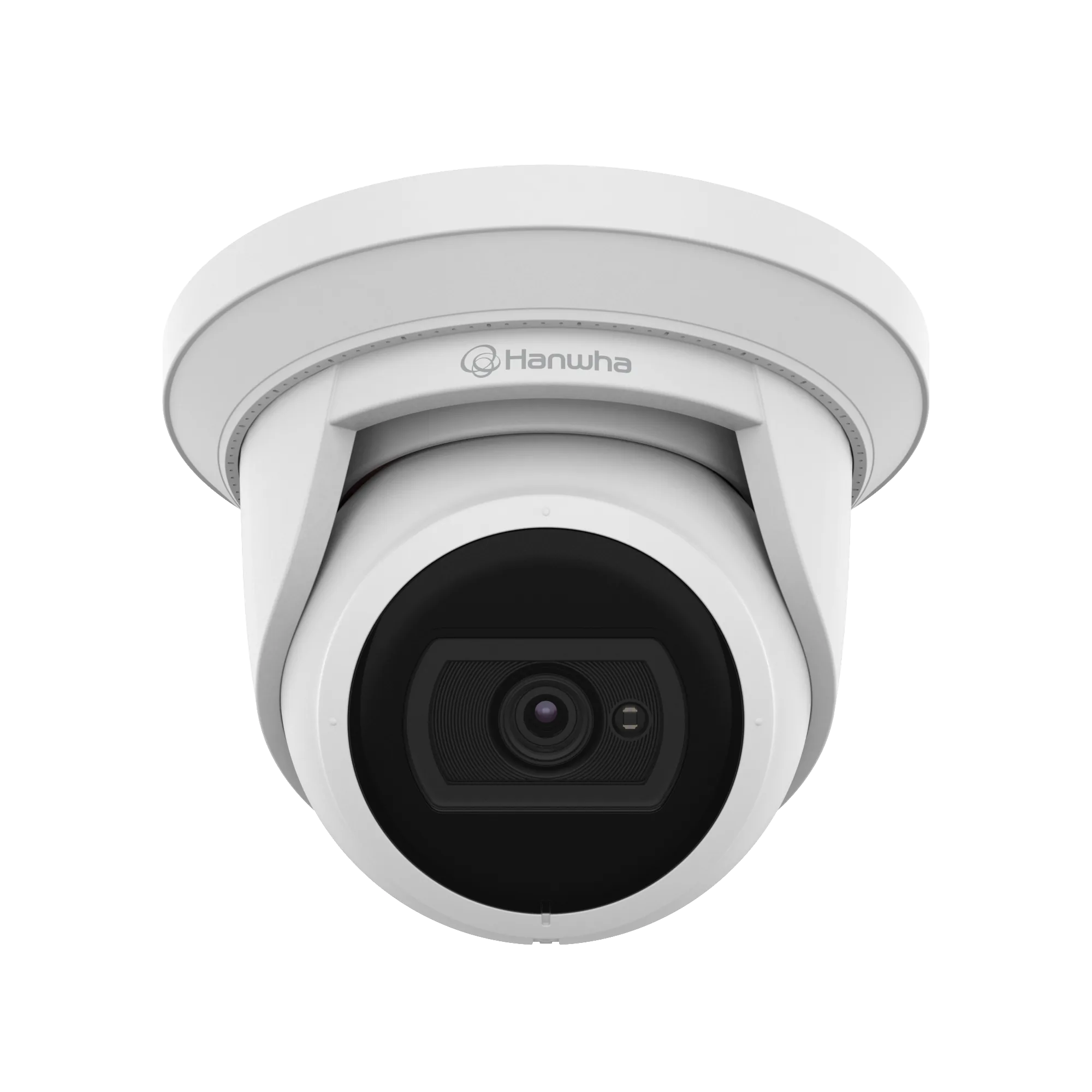

The QNE-8011R is a flateye network camera with IR illumination, using a 1/2.8-inch CMOS sensor for up to 5 megapixels (2592 x 1944). A fixed 2.8 mm lens at F2.0 covers 105° horizontally, 77° vertically and 137° diagonally. H.265 and H.264 run at 30fps/25fps (60Hz/50Hz) and MJPEG at 15fps (max. 2fps at 5MP), with multiple streams available in parallel. Colour output holds down to 0.15 lux, black and white down to 0.015 lux, and 0 lux once the IR LED is on. ICR day/night switching, 120 dB WDR, BLC, SSDR and SSNR meet tampering, motion and defocus detection across four eight-point polygonal zones. The Micro SD/SDHC/SDXC slot accepts up to 128 GB. 5MP resolution (2592 x 1944)2.8 mm fixed lens, F2.0Field of view 105° H, 77° V, 137° D120 dB WDR, ICR day/nightMicro SD/SDHC/SDXC slot up to 128 GB

Resolving up to 8 megapixels (3840 x 2160), the QNE-C9013RL is an AI flateye camera with dual light illumination. Its 3 mm fixed lens with F1.6, fixed iris and M12 mount covers 108° horizontally, 59° vertically and 127° diagonally at a minimum object distance of 0.5 m (1.64ft). H.265 and H.264 deliver 30fps/25fps (60Hz/50Hz), MJPEG 30fps and up to 5fps at 8MP, with WiseStream Ⅲ based on the AI engine and multiple streaming available. Colour images work from 0.034 lux (F1.6, 1/30sec), black and white from 0.0034 lux (F1.6, 1/30sec, 30IRE), and 0 lux with the IR LED on. The camera switches between day and night via ICR, applies 120 dB WDR and WiseNR Ⅱ using the AI engine, and provides object classification, attributes and DetectionShot; the Micro SD/SDHC/SDXC slot takes up to 256 GB. 8MP resolution (3840 x 2160)3 mm fixed lens, F1.6, M12 mount120 dB WDR, WiseNR Ⅱ using the AI engineObject classification, attributes and DetectionShotMicro SD/SDHC/SDXC slot up to 256 GB
