Camera towers

  Additional battery for backup and more capacity ·  Incl. 10 mm2 connection cable ·  Incl. small parts ·  Incl. installation ·  Incl. battery cover

This extension lets an EFOY Pro fuel cell work from two fuel cartridges instead of one, so it runs correspondingly longer without refilling. The package consists of an additional M28 cartridge with 28 l of methanol, the adapter an M28 needs to connect to the fuel cell or fuel manager, and the FM2 fuel manager for two cartridges. SFC gives the example of an EFOY Pro 1800 at a continuous 50 W load without solar: 52 days of autonomy instead of 26 with one cartridge. The extension is intended for EFOY Pro only; commodity code 3917 40 00, made in Germany. The images show the individual parts. M28 fuel cartridge, M28 adapter and FM2 fuel managerTwo fuel cartridges on one EFOY Pro52 instead of 26 days of autonomy (EFOY Pro 1800, 50 W)For EFOY Pro fuel cells onlyCommodity code 3917 40 00, made in Germany

Base equipment for the Securitbox control cabinet in size 809040, solar variant. This package is the foundation of the installation; the extension carrying the surveillance equipment is article SB-TS809040-P2. The Securitbox control cabinets are built for the towers of the series and manufactured in house at SEBA. They carry side mounting plates, a rear plate for the complete electronics, a mounting plate on the door and a document pocket. The openings hold two fan inlets, cable glands, power in and out and a main switch, so the installation needs no rework on the enclosure. The housings are nano powder coated and therefore weatherproof. Base equipment package, solar variantSize 809040 of the cabinet lineFoundation for the SB-TS809040-P2 extensionSide mounting plates, rear plate, door plate, document pocketTwo fan inlets, cable glands, main switchNano powder coated, weatherproof

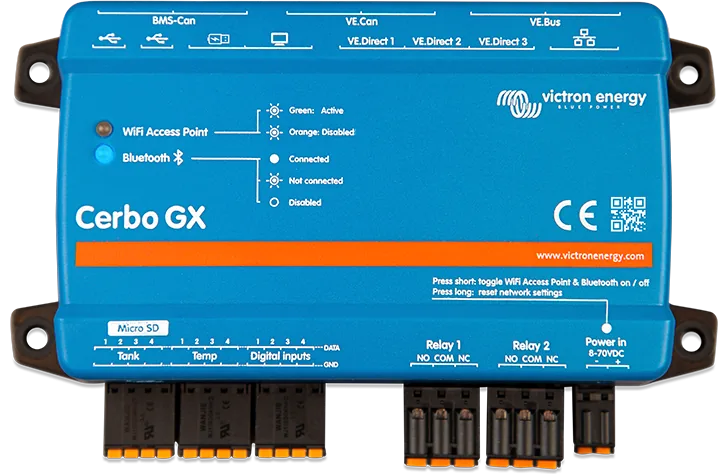

This package monitors the battery of a Securitbox with a Victron shunt and the Victron Cerbo GX. The Cerbo GX gathers the data of the connected Victron devices and offers it three ways: remotely through the Victron Remote Management (VRM) portal, on site through its built-in WiFi access point with the VictronConnect app, or on an optional touch display. It has resistive tank level and temperature inputs and a microSD slot that stores data even without a connection. Securitbox supplies the package with a 0.90 m VE.Direct cable and 10 mm² connecting cable, installs it and runs a test. Victron shunt and Victron Cerbo GXRemote monitoring through Victron Remote Management (VRM)On site via WiFi with the VictronConnect appTank level and temperature inputs, microSD storageIncl. 0.90 m VE.Direct cable, 10 mm² connecting cable, installation and test run

Surveillance equipment extension for the Securitbox control cabinet in size 809040, solar variant. It builds on the SB-TS809040-P1 base package and adds the equipment for surveillance operation. The Securitbox control cabinets are built for the towers of the series and manufactured in house at SEBA. They carry side mounting plates, a rear plate for the complete electronics, a mounting plate on the door and a document pocket. The openings hold two fan inlets, cable glands, power in and out and a main switch, so the installation needs no rework on the enclosure. The housings are nano powder coated and therefore weatherproof. Surveillance equipment extension, solar variantSize 809040 of the cabinet lineRequires the SB-TS809040-P1 base packageSide mounting plates, rear plate, door plate, document pocketTwo fan inlets, cable glands, main switchNano powder coated, weatherproof

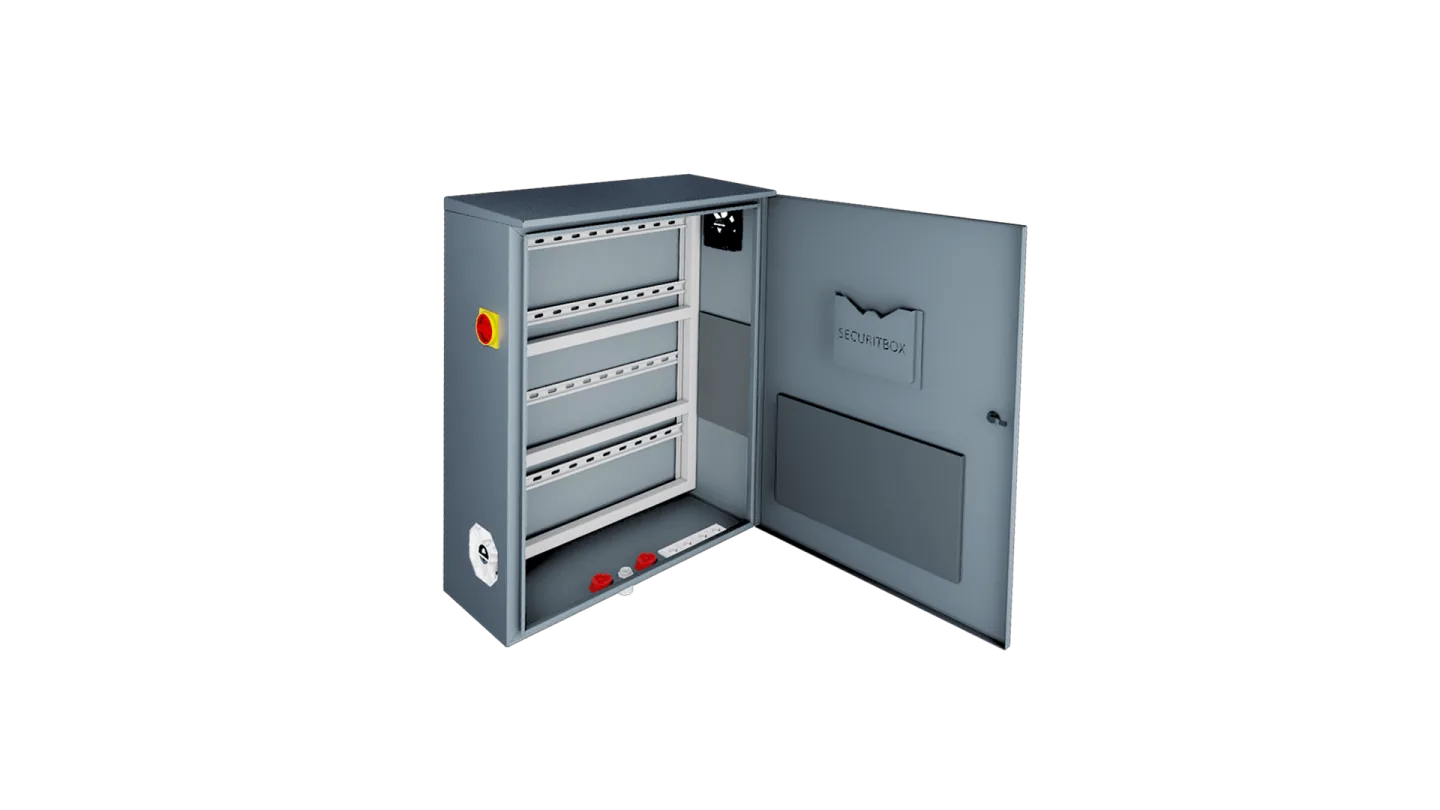

Control cabinet SB-TS709030 in version V4, complete with the mobile equipment installed. The size is fixed by the article key 709030; V4 denotes the current build state of that size. The Securitbox control cabinets are built for the towers of the series and manufactured in house at SEBA. They carry side mounting plates, a rear plate for the complete electronics, a mounting plate on the door and a document pocket. The openings hold two fan inlets, cable glands, power in and out and a main switch, so the installation needs no rework on the enclosure. The housings are nano powder coated and therefore weatherproof. Fully equipped version V4Size 709030 of the cabinet lineSide mounting plates, rear plate, door plate, document pocketTwo fan inlets, cable glands, main switchNano powder coated, weatherproofManufactured in house at SEBA

Control cabinet SB-TS386035 in the fully equipped 12 volt version. It is supplied ready to run with the mobile equipment installed; the size is fixed by the article key 386035 and is what distinguishes it from the other cabinets in the line. The Securitbox control cabinets are built for the towers of the series and manufactured in house at SEBA. They carry side mounting plates, a rear plate for the complete electronics, a mounting plate on the door and a document pocket. The openings hold two fan inlets, cable glands, power in and out and a main switch, so the installation needs no rework on the enclosure. The housings are nano powder coated and therefore weatherproof. Fully equipped 12 volt versionSize 386035 of the cabinet lineSide mounting plates, rear plate, door plate, document pocketTwo fan inlets, cable glands, main switchNano powder coated, weatherproofManufactured in house at SEBA

Control cabinet SB-TS507020 in the fully equipped 12 volt version. It is supplied ready to run with the mobile equipment installed; the size is fixed by the article key 507020 and is larger than that of the SB-TS386035. The Securitbox control cabinets are built for the towers of the series and manufactured in house at SEBA. They carry side mounting plates, a rear plate for the complete electronics, a mounting plate on the door and a document pocket. The openings hold two fan inlets, cable glands, power in and out and a main switch, so the installation needs no rework on the enclosure. The housings are nano powder coated and therefore weatherproof. Fully equipped 12 volt versionSize 507020, larger than the SB-TS386035Side mounting plates, rear plate, door plate, document pocketTwo fan inlets, cable glands, main switchNano powder coated, weatherproofManufactured in house at SEBA

  ·  Nationwide delivery, flat rate (mainland) ·  Delivery is made to the address stated in the quotation ·  Incl. tail lift ·  Kerbside ·  Interim storage, intermediate stop and loading are possible. ·  Packaging and preparation

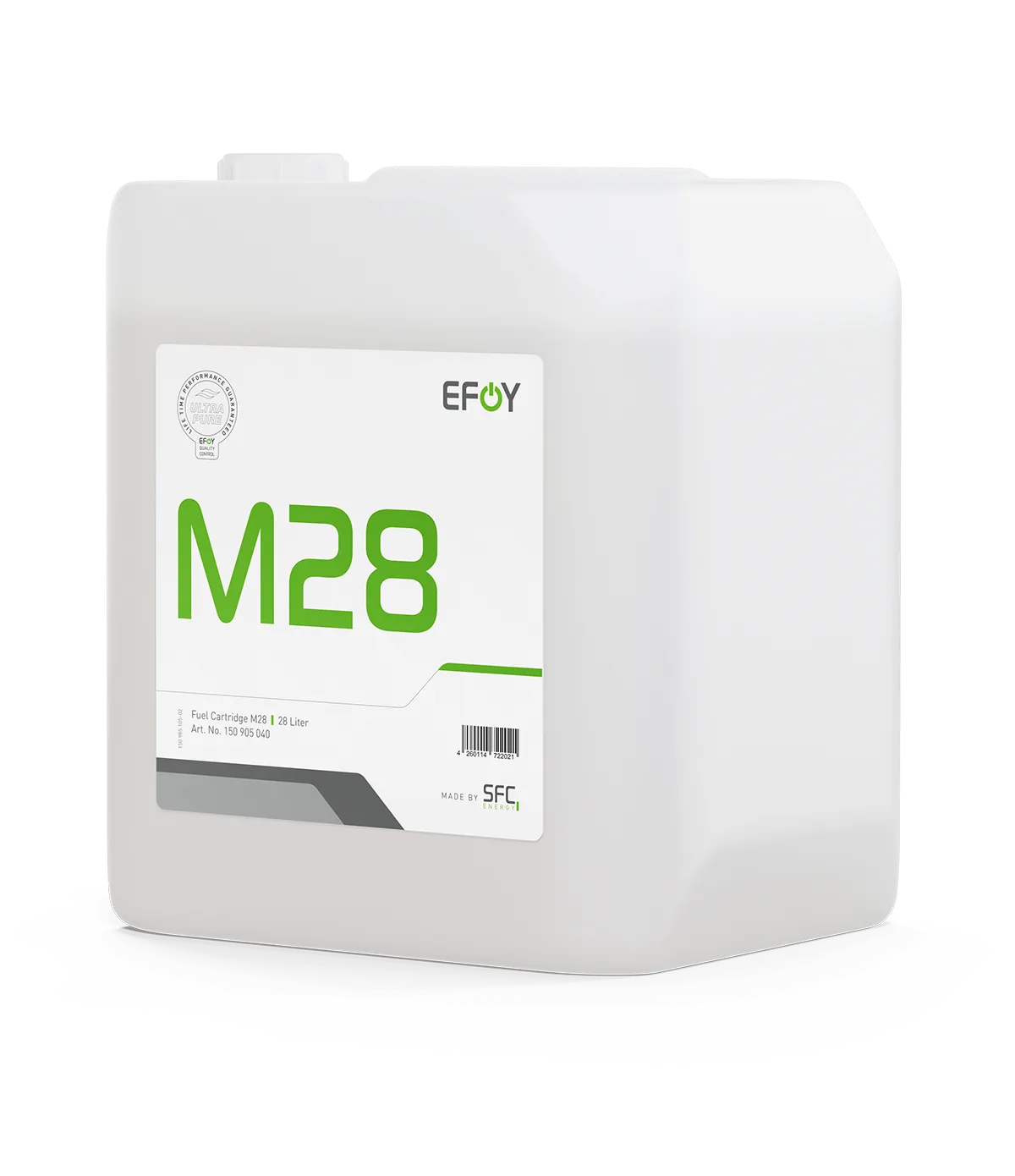

The EFOY M28 fuel cartridge holds 28 l of methanol and is the fuel for EFOY Pro fuel cells. SFC's example shows how far it goes: an EFOY Pro 1800 supplies a continuous 50 W load without solar support for 26 days on one cartridge. The cartridge weighs 24 kg, is made in Germany and ships as dangerous goods under UN3473; its commodity code is 2905 11 00. 28 l methanol for EFOY Pro fuel cells26 days of autonomy with EFOY Pro 1800 at 50 WWeight 24 kgDangerous goods number UN3473Commodity code 2905 11 00, made in Germany

The EFOY Pro 1800 keeps the battery of a Securitbox charged where there is no mains connection. The direct methanol fuel cell starts as soon as the battery needs energy, charges it fully automatically and switches itself off again afterwards - maintenance-free and without anyone having to step in. It delivers 82 W in continuous operation at 12/24 V DC, weighs 7.2 kg, measures 448 x 198 x 275 mm and operates from -20 °C to +50 °C. It runs on methanol from EFOY fuel cartridges: one cartridge directly, up to eight through the EFOY fuel manager. According to SFC, one M28 cartridge lasts 26 days at a continuous 50 W load without solar support, and 52 days with the FM2 fuel manager and two cartridges. The OP3 operating panel with data cable, two mounting brackets and the CL5 charging cable are included. Direct methanol fuel cell, 82 W continuous output12/24 V DC, 7.2 kg, 448 x 198 x 275 mmOperation from -20 °C to +50 °C1 fuel cartridge, up to 8 with EFOY fuel manager26 days of autonomy with one M28 at 50 WIncl. OP3 operating panel, mounting brackets and CL5 charging cable

The EFOY Pro 2800 supplies a Securitbox with energy where there is no grid. The direct methanol fuel cell charges the connected battery fully automatically whenever it needs energy and switches itself off again afterwards - without maintenance and without intervention. Its continuous output is 125 W at 12/24 V DC; it weighs 7.8 kg, measures 448 x 198 x 275 mm and operates from -20 °C to +50 °C. It draws methanol from EFOY fuel cartridges, from one cartridge directly or from up to eight through the EFOY fuel manager. The OP3 operating panel with data cable, two mounting brackets and the CL5 charging cable come with it. Direct methanol fuel cell, 125 W continuous output12/24 V DC, 7.8 kg, 448 x 198 x 275 mmOperation from -20 °C to +50 °C1 fuel cartridge, up to 8 with EFOY fuel managerCharges the battery fully automatically, maintenance-freeIncl. OP3 operating panel, mounting brackets and CL5 charging cable

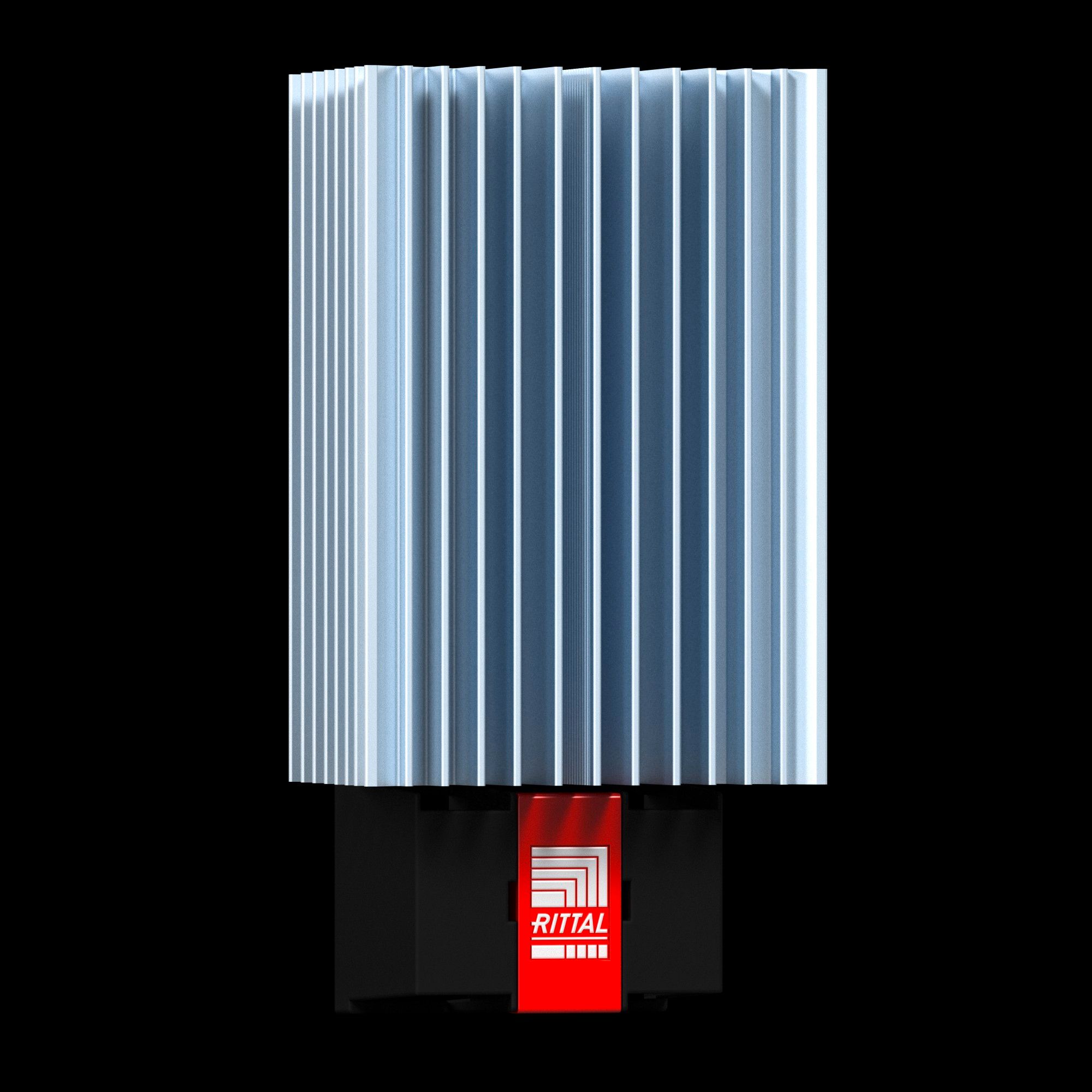

The Rittal SK 3105.320 is a PTC heater without fan for the control cabinet of a Securitbox. It keeps the temperature above the dew point so that no moisture settles and electronics neither corrode nor suffer from short circuits. At 10 °C it delivers a continuous 18 W - 20 W and runs on 110 V - 240 V, 1~, 50 Hz/60 Hz; it is protected by a 2 A miniature circuit-breaker or fuse. The anodised aluminium housing measures 45 x 120 x 46 mm, weighs 0.2 kg, reaches IP 20 to IEC 60 529 and protection class II (insulated), and operates between -33 °C and 65 °C. Rittal includes a quick-connect terminal and assembly parts and recommends a thermostat for exact control and a hygrostat against condensation on components. Securitbox supplies the heater including mounting material, temperature sensor and test run. Rittal SK 3105.320, PTC heater without fanContinuous heat output 18 W - 20 W at 10 °C110 V - 240 V, 1~, 50 Hz/60 Hz45 x 120 x 46 mm, anodised aluminium, 0.2 kgIP 20, protection class II, -33 °C...65 °CIncl. mounting material, temperature sensor and test run

Additional cost for the Teltonika Router 901 if it is to be fitted with I/O inputs.

· 2 foils for doors / coloured · Including foiling · Incl. 1 design (layout) creation.

  ·  100 watt white light ·  Set contains 2 pcs.

· 50 watt white light · Set contains 2 pcs.

Opening detector for 2 doors on SB-Flex incl. mounting material and installation

  ·  5 mal Outdoor CAT7 Patchkabel 7,5m ·  1 mal Outdoor 3x1,5 Stromleitung 8,5m ·  5 mal Outdoor Netzwerkverbinder Schaltkasten (Adapter / Verbinder) ·  5 mal CAT6-a Schaltkasten Patchkabel 1 m ·  1 mal Antennenkabel verlängerung 5 Meter ·  Inklusive Montage, Installation.

2 mal Outdoor CAT7 Patchkabel · 1 mal Outdoor 3x1,5 Stromleitung · 2 mal Outdoor Netzwerkverbinder Schaltkasten (Adapter / Verbinder) · 2 mal CAT6-a Schaltkasten Patchkabel 1 m · 1 mal Antennenkabel · Inklusive Montage, Installation.

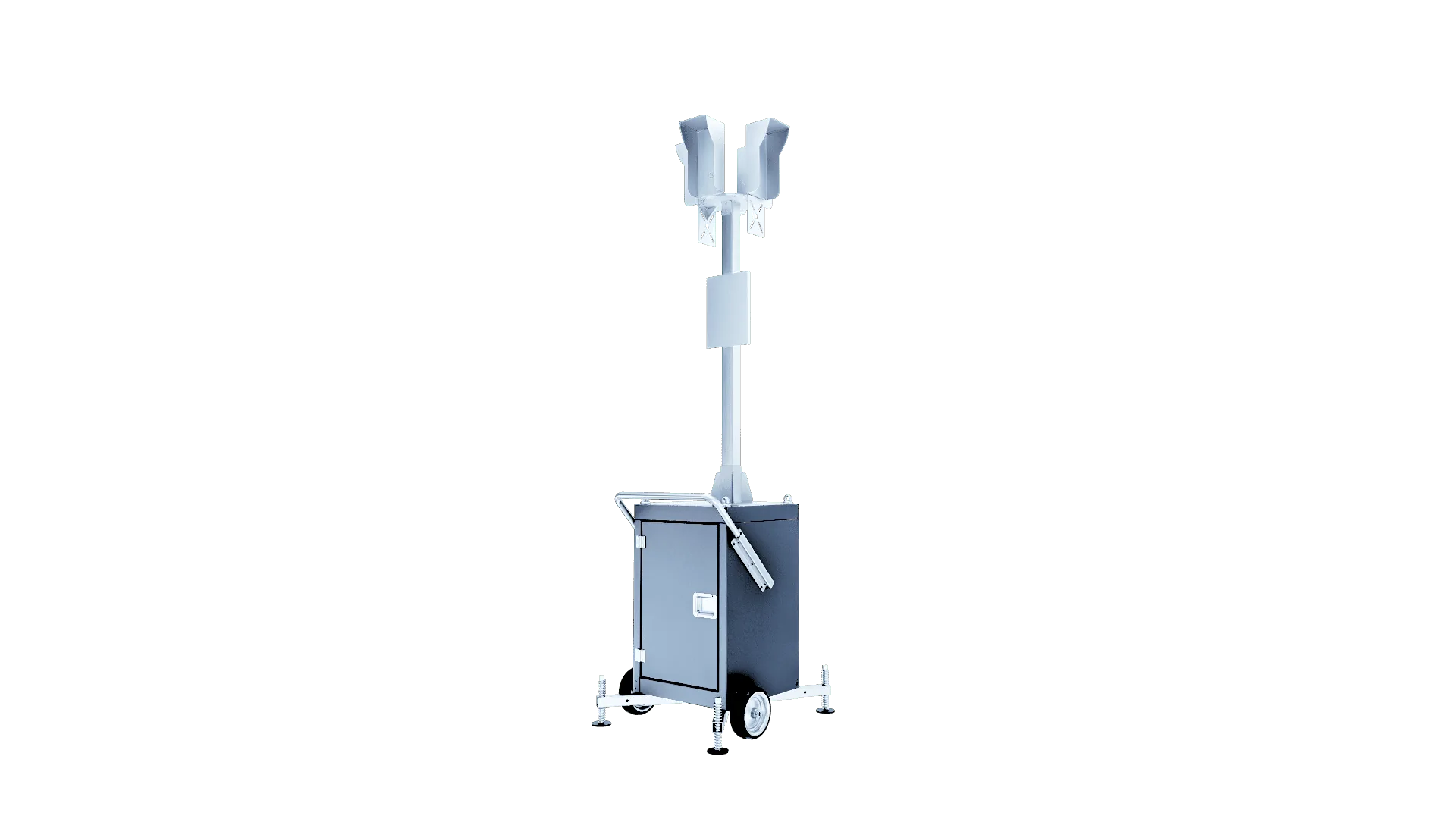

The SB-Flex is the smallest mobile video and light mast in the Securitbox range. At 50 × 50 × 110 cm and around 100 kg empty it can be moved by hand on its wheels; the telescopic mast carries up to 25 kg and extends to 3.5 metres. The structure is galvanised steel, with doors, walls and housing additionally coated electrostatically and the mast hot-dip galvanised. Four extending stabilisers give a firm stand on uneven ground, four lifting eyes allow repositioning by crane, and two units stack for transport and storage. The mast is raised by hand and locked with a safety pin; four steel cables secure it in wind. Cabling runs inside the mast and is therefore protected against vandalism. Typical uses are building sites, events and temporary surveillance tasks where floor space is short. Footprint 50 × 50 × 110 cm, around 100 kg emptyTelescopic mast to 3.5 m, carrying up to 25 kgGalvanised steel structure, hot-dip galvanised mastFour extending stabilisers and four lifting eyesCabling inside the mast, protected against vandalismTwo units stackable, moved by hand on wheels

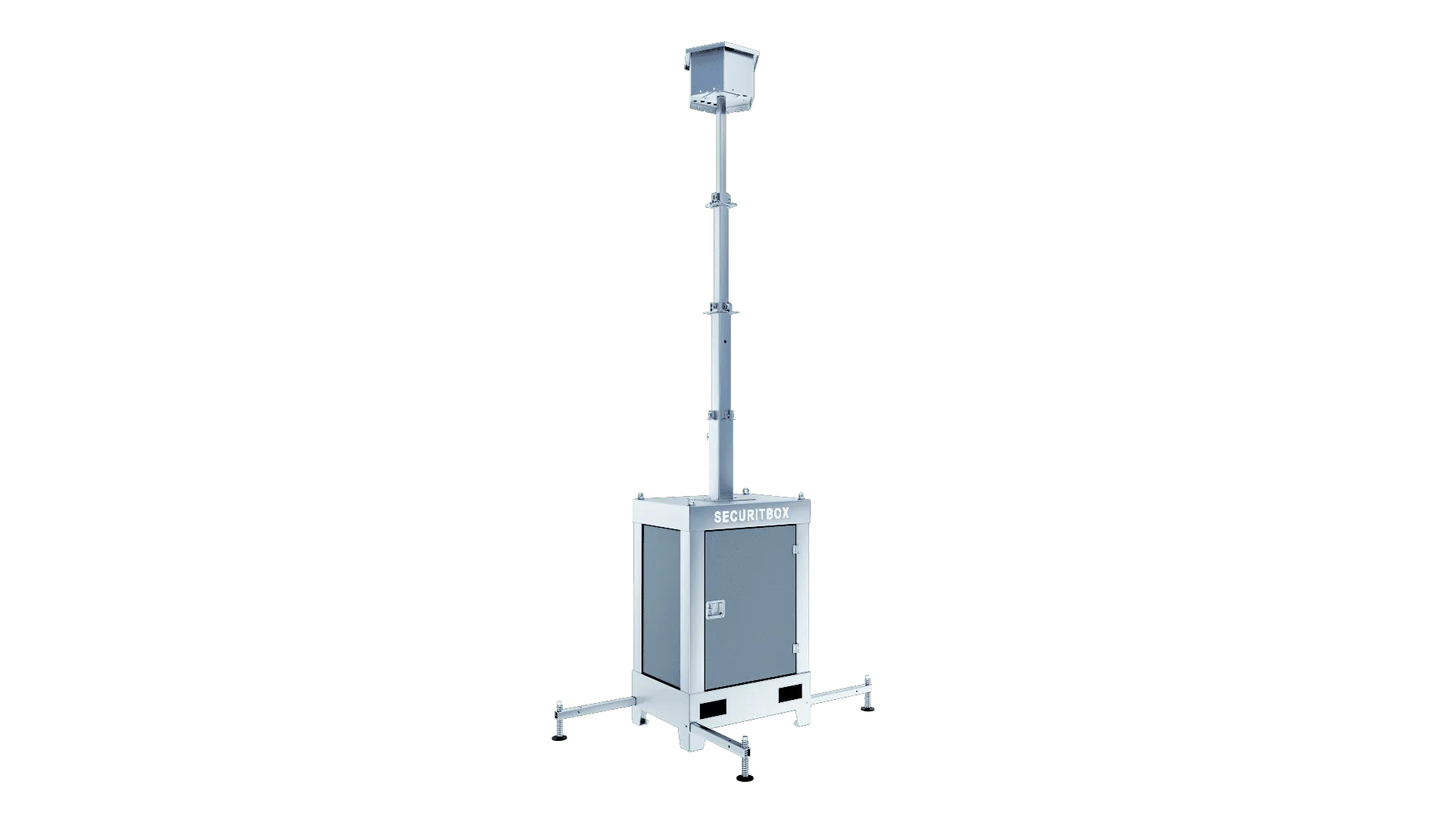

The SB4-Mini is the compact version of the mobile video tower: 60 × 80 × 110 cm footprint, 220 cm high with the mast lowered, around 200 kg empty. The telescopic mast reaches 4.20 metres and can go to 6 metres; it carries up to 65 kg. The steel structure is fully hot-dip galvanised, with doors and walls additionally coated electrostatically. Four fork pockets and lifting eyes on every side let the tower be moved by forklift, crane or trailer; four extending stabilisers secure the stand. Two units can be stacked. The mast is raised by a CE-approved hand winch with 900 kg of pull, stops automatically at the top and is held by four steel cables. A cable conduit carries the wiring up under cover. This makes the SB4-Mini suitable for building sites, car parks and events where the larger towers do not fit. Footprint 60 × 80 × 110 cm, 220 cm high, around 200 kgTelescopic mast 4.20 m, up to 6 m possible, 65 kg capacitySteel structure 100 % hot-dip galvanisedFour fork pockets and lifting eyes, four stabilisersCE-approved hand winch, 900 kg pull, automatic stopMast secured by four steel cables, cable conduit against vandalism

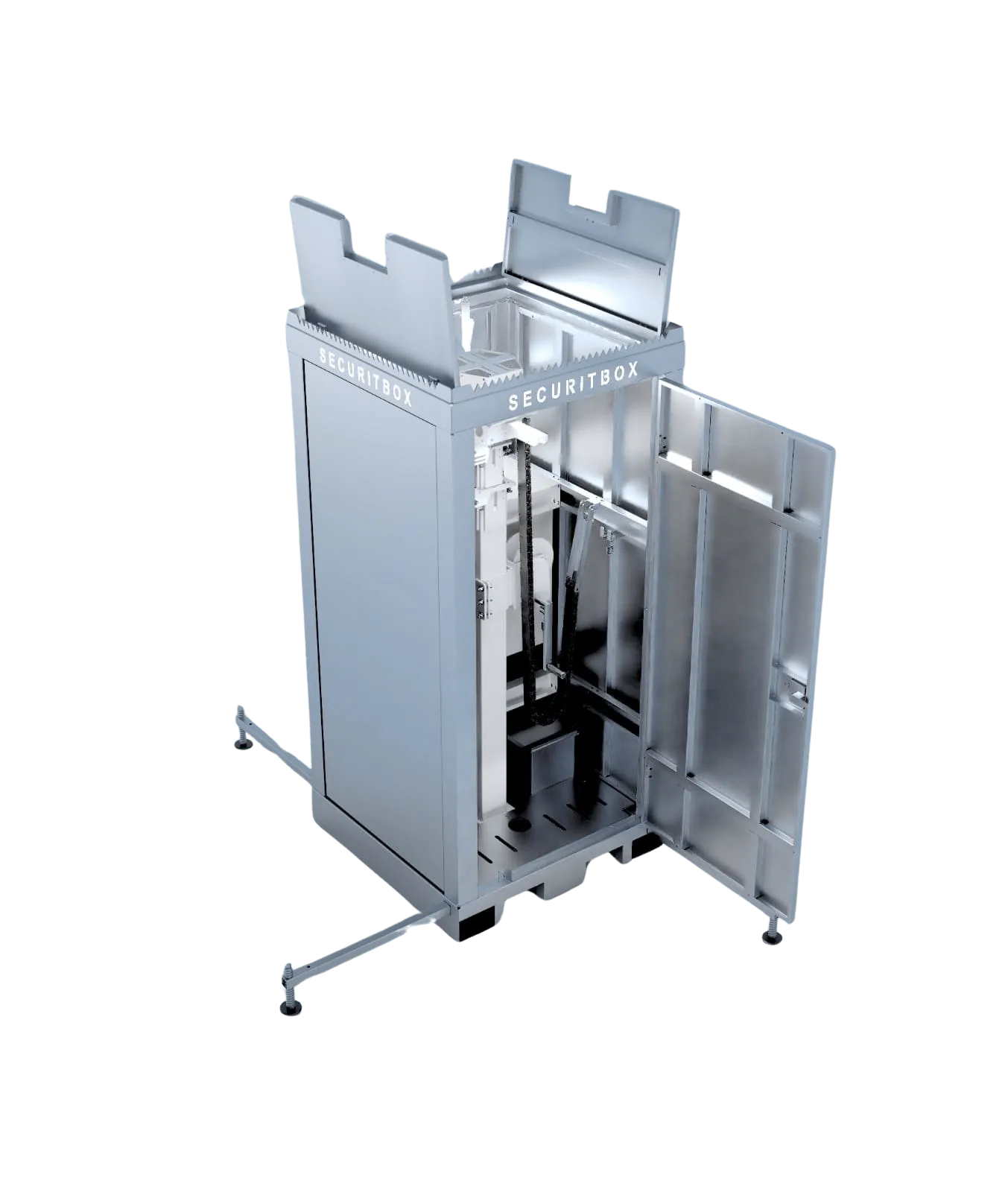

The SB6-Easy Plus is the entry model of the SB6 line with a lockable roof. Two lockable doors and lockable roof doors give access to the equipment, and climbing protection is fitted as standard. The footprint is 100 × 100 × 220 cm at around 315 kg empty. The telescopic mast reaches 6 metres and carries up to 65 kg. It is raised by a CE-approved hand winch with 900 kg of pull, stops automatically and is secured by four steel cables. A drag chain closed on one side carries the wiring up under cover. The steel structure is fully hot-dip galvanised, with doors and walls additionally coated electrostatically. Four fork pockets and lifting eyes on every side, plus four extending stabilisers, make the tower quick to reposition; two units can be stacked. The interior holds a complete surveillance installation. Footprint 100 × 100 × 220 cm, around 315 kg emptyTelescopic mast to 6 m, carrying up to 65 kgLockable roof, two lockable doors, climbing protectionCE-approved hand winch, 900 kg pull, automatic stopDrag chain closed on one side, protected against vandalismFour fork pockets and lifting eyes, two units stackable
