19-inch free-standing cabinet with 12 rack units, 600 × 600 × 719 mm, in black. Free-standing cabinets of the Data Line series for cabling and servers in offices and equipment rooms. Front and rear doors and the side panels are removable and each lock separately; the front door is glass, the rear door steel. The mounting rails adjust in depth and the holes are square. A wide cable entry sits at the bottom with a rubber-edged sliding module that closes once the cables are in, keeping the dust-tight structure. Load capacity 2000 kg, IP20, passive cooling, delivered assembled. 12U, 600 × 600 × 719 mm, blackGlass front door, steel rear door, removable side panelsAll three accesses lock separately2000 kg capacity, IP20, passive coolingAdjustable mounting rails, square holesCable entry with rubber-edged sliding module

19-inch free-standing cabinet with 20 rack units, 600 × 600 × 1075 mm, in black. Free-standing cabinets of the Data Line series for cabling and servers in offices and equipment rooms. Front and rear doors and the side panels are removable and each lock separately; the front door is glass, the rear door steel. The mounting rails adjust in depth and the holes are square. A wide cable entry sits at the bottom with a rubber-edged sliding module that closes once the cables are in, keeping the dust-tight structure. Load capacity 2000 kg, IP20, passive cooling, delivered assembled. 20U, 600 × 600 × 1075 mm, blackGlass front door, steel rear door, removable side panelsAll three accesses lock separately2000 kg capacity, IP20, passive coolingAdjustable mounting rails, square holesCable entry with rubber-edged sliding module

19-inch power strip for horizontal rack mounting, 1U, in black. It carries five Schuko type F sockets and connects through a 3 metre lead with a type F plug. The strip is single-phase at 230 V in and out and rated for a maximum of 16 A. An LED shows that power is present. This is a basic PDU without metering and without switching. 1U, horizontal rack mounting, blackFive Schuko type F sockets3 m lead with type F plugSingle-phase, 230 V, 16 A maximumLED power indicatorBasic PDU, no metering, no switching

19-inch wall-mounted cabinet with 7 rack units rated IP66 for outdoor use, 600 × 600 × 410 mm, in white. The stated depth includes the overhanging roof; without it the depth is 400 mm. The door is steel rather than glass and the enclosure is fully closed and dust-tight. The cabinet ships assembled with mounting rails and is cooled passively. Feet and castor sets are available as options for free-standing use. 7U, 600 × 600 × 410 mm, whiteIP66 rated for outdoor useDepth without the overhanging roof is 400 mmSteel door instead of glass, lockablePassive cooling, mounting rails includedDelivered assembled

19-inch Pro series wall-mounted cabinet with 12 rack units, 600 × 560 × 645 mm, in black. Against the standard line the side panels are removable and lock separately, and the mounting rails adjust in depth. The front door is 4 mm antistatic toughened safety glass in an extruded aluminium frame with coloured accent strips at the sides, and it locks. A fan module with up to two fans can be fitted to the ventilation opening in the upper chassis; feet or castor sets are available for free-standing use. The cabinet ships assembled, with mounting rails and a cable entry. Load capacity 80 kg, IP20, passive cooling. 12U, 600 × 560 × 645 mm, black, Pro seriesSide panels removable and separately lockableAdjustable mounting railsLockable glass door, 4 mm toughened and antistatic80 kg capacity, IP20, passive coolingDelivered assembled

19" wall cabinet with 7 rack units Glass door with lock removable side panels with lock Colour: black RAL9005 Dimensions: (WxDxH) 600 x 560 x 423 mm  Weight: 21.1 kg Max. load capacity: 80 kg

19-inch Pro series wall-mounted cabinet with 9 rack units, 600 × 560 × 512 mm, in black. Against the standard line the side panels are removable and lock separately, and the mounting rails adjust in depth. The front door is 4 mm antistatic toughened safety glass in an extruded aluminium frame with coloured accent strips at the sides, and it locks. A fan module with up to two fans can be fitted to the ventilation opening in the upper chassis; feet or castor sets are available for free-standing use. The cabinet ships assembled, with mounting rails and a cable entry. Load capacity 80 kg, IP20, passive cooling. 9U, 600 × 560 × 512 mm, black, Pro seriesSide panels removable and separately lockableAdjustable mounting railsLockable glass door, 4 mm toughened and antistatic80 kg capacity, IP20, passive coolingDelivered assembled

19-inch wall-mounted cabinet with 20 rack units, 600 × 560 × 1000 mm, in black. It is the tallest wall cabinet in this line. The front door is 4 mm antistatic toughened safety glass in an extruded aluminium frame with coloured accent strips at the sides, and it locks. A fan module with up to two fans can be fitted to the ventilation opening in the upper chassis; feet or castor sets are available for free-standing use. The cabinet ships assembled, with mounting rails and a cable entry. Load capacity 80 kg, IP20, passive cooling. 20U, 600 × 560 × 1000 mm, blackLockable glass door, 4 mm toughened and antistatic80 kg capacity, IP20, passive coolingFan module for up to two fans can be retrofittedMounting rails and cable entry includedDelivered assembled

19-inch wall-mounted cabinet with 6 rack units, 600 × 560 × 380 mm, in black. The front door is 4 mm antistatic toughened safety glass in an extruded aluminium frame with coloured accent strips at the sides, and it locks. A fan module with up to two fans can be fitted to the ventilation opening in the upper chassis; feet or castor sets are available for free-standing use. The cabinet ships assembled, with mounting rails and a cable entry. Load capacity 80 kg, IP20, passive cooling. 6U, 600 × 560 × 380 mm, blackLockable glass door, 4 mm toughened and antistatic80 kg capacity, IP20, passive coolingFan module for up to two fans can be retrofittedMounting rails and cable entry includedDelivered assembled

19-inch wall-mounted cabinet with 9 rack units, 600 × 560 × 512 mm, in black. The front door is 4 mm antistatic toughened safety glass in an extruded aluminium frame with coloured accent strips at the sides, and it locks. A fan module with up to two fans can be fitted to the ventilation opening in the upper chassis; feet or castor sets are available for free-standing use. The cabinet ships assembled, with mounting rails and a cable entry. Load capacity 80 kg, IP20, passive cooling. 9U, 600 × 560 × 512 mm, blackLockable glass door, 4 mm toughened and antistatic80 kg capacity, IP20, passive coolingFan module for up to two fans can be retrofittedMounting rails and cable entry includedDelivered assembled

Cable organiser for 19-inch cabinets, 1U, 482 × 72 × 44 mm, in RAL 9005. The panel carries five aluminium hooks on a base plate with cable entries and so orders the patch cables in front of the patch panels. It fits every 19-inch cabinet and can be mounted horizontally or vertically in the GT series cabinets. 1U, 482 × 72 × 44 mm, RAL 9005Five aluminium hooks on a base plateCable entries in the base plateFits every 19-inch cabinetHorizontal or vertical mountingFor routing patch cables in front of patch panels

Fixed shelf for 19-inch cabinets, 1U, 486 × 300 × 44 mm, in black. The shelf bolts to two points at the front of the rack and therefore fits any 19-inch cabinet. The surface is perforated so air can pass through. Static load capacity is 30 kg. Two rear brackets with adjustable depth can be added where needed. Cage nuts and screws are included and the mounting holes are oval. RoHS compliant. 1U, 486 × 300 × 44 mm, blackTwo attachment points, fits any 19-inch cabinet30 kg static load capacityPerforated surface for airflowRear brackets with adjustable depth can be addedCage nuts and screws included

Fixed shelf for 19-inch cabinets, 1U, 486 × 400 × 44 mm, in black. It is 100 mm deeper than the 300 mm shelf and needs a rack depth of at least 60 cm. The shelf bolts to two points at the front, the surface is perforated and the static load capacity is 30 kg. Two rear brackets with adjustable depth can be added. Cage nuts and screws are included. Certified to REACH and RoHS. 1U, 486 × 400 × 44 mm, blackRequires a rack depth of at least 60 cm30 kg static load capacityPerforated surface for airflowRear brackets with adjustable depth can be addedREACH and RoHS compliant

Solid blanking panel for 19-inch cabinets, 1U, 482 × 15 × 44 mm, steel, in black. Blanking panels close unused rack units and so direct the airflow inside the cabinet: without them the warm exhaust from the back of the equipment travels through the open gaps back to the intakes at the front, which cuts cooling efficiency sharply. Closing empty gaps is the simplest first step towards a better power usage figure, and it gives the rack an unbroken front at the same time. The panel snaps in and needs no tools; cage nuts and screws are included. RoHS compliant. 1U, 482 × 15 × 44 mm, steel, blackSolid surface, directs airflow inside the rackStops warm exhaust returning to the equipment intakesSnap fitting, no tools requiredCage nuts and screws includedRoHS compliant

Vented blanking panel for 19-inch cabinets, 1U, 482 × 15 × 44 mm, steel, in black. Unlike the solid version this panel is perforated and lets air pass through the covered unit. It closes the front without blocking the air path and suits positions where intake air at the front is wanted. The panel snaps in and needs no tools. RoHS compliant. 1U, 482 × 15 × 44 mm, steel, blackPerforated, lets air pass through the unitCloses the front without blocking the air pathSnap fitting, no tools requiredTwo attachment points, pre-assembledRoHS compliant

2 fans Digital thermostat Airflow: 280m³/hour Universal Roof mounting RAL7035 - light grey 42.5db - 44.5db noise level Dimensions: 486x133x44 mm

Blanking panel 2U  Snap-fit fastening Colour: RAL 9005

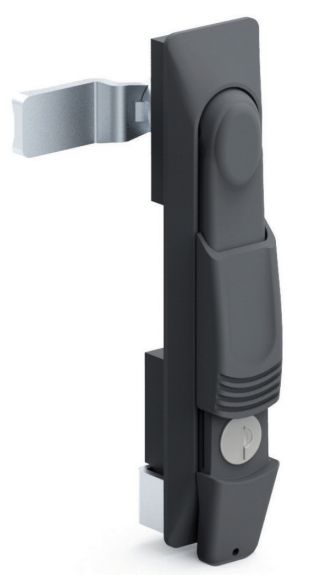

Lock with its own key for free-standing cabinets. The keying is individual, meaning the key fits this lock and no other cabinet. The lock has an ergonomic handle and a sliding dust cover over the cylinder and is rated IP65. A version for a padlock is also available. Lock with key for free-standing cabinetsIndividual keying, not a master keyErgonomic handleSliding dust cover over the cylinderIP65 ratedPadlock version available
