Keyboard

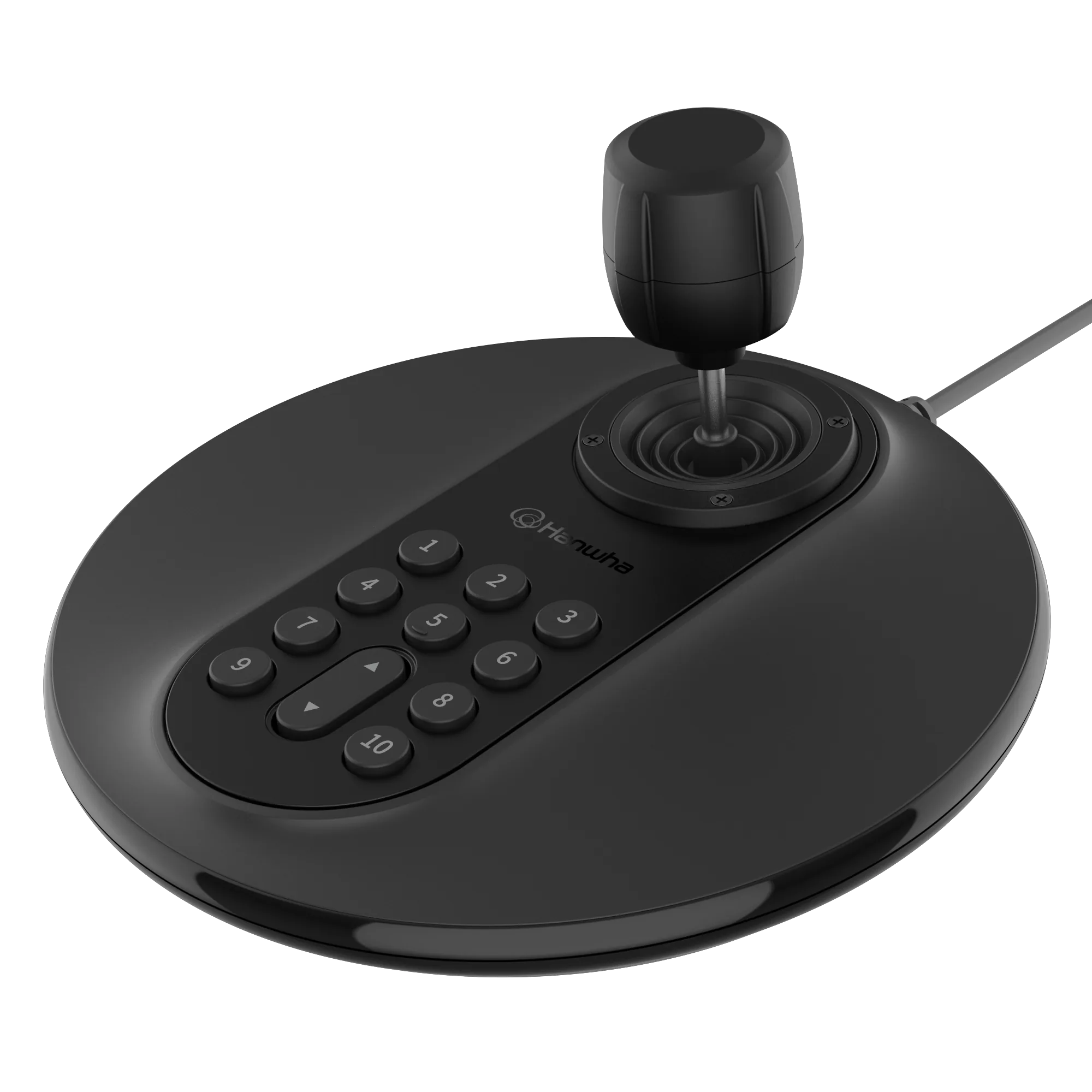

The SPC-2001 is a joystick controller connected through a 4-pin USB Type A port and running on standard DirectX drivers (DirectInput). Its 3-axis joystick uses the Hall-effect principle, travelling -28° to +28° on the X and Y axes and -23.5° to +23.5° on the Z axis, with two springs in two directions handling the return to centre. Twelve buttons are additionally available, and actuation forces are 0.109 [N·m] minimum, 0.151 [N·m] operating and 0.169 [N·m] maximum. The housing is ABS, the handle polycarbonate, the button cover rubber and the shaft SUM24L with Ni plating; the 2 [m] cable supplies 5 [V] DC (±0.5 [V]) and 50 [mA] over USB. The black unit measures 182x182x106mm at 405g and is specified for 0℃ to +40℃ at 20% to 85% RH. According to the manufacturer there is system compatibility with CMS software on the PC (SSM, Wisenet Viewer). USB joystick controller, 4-pin Type A portHall-effect 3-axis joystick12 buttons, 2 [m] cableRange of movement -28° to +28° on X and YDimensions 182x182x106mm, 405gStandard DirectX drivers (DirectInput)

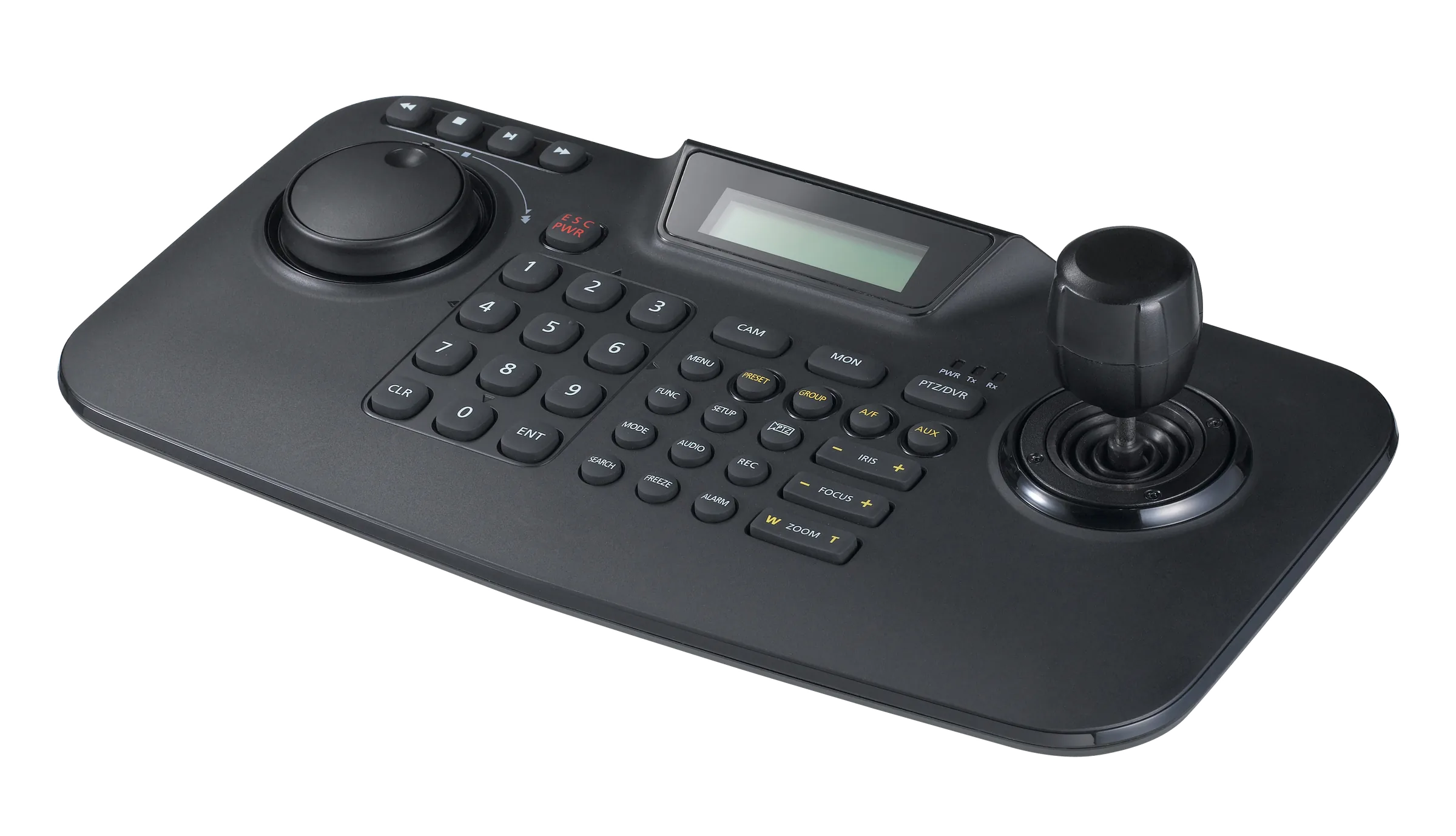

The SPC-2010 is a compact control keyboard for PTZ cameras, DVRs and receivers. Communication runs over two RS-485/422 interfaces at baud rates from 2400 to 57,600bps, and up to 255 PTZ and zoom cameras, DVRs and receivers can be addressed. Protocol support covers Samsung-T/E, Pelco-D/P, Panasonic, Vicon, AD, Honeywell, Bosch, Elmo and GE, plus SCZ series zoom cameras, SRD series DVRs (except SRD-480D) and the Samsung-T receiver (SRX-100B). Operation uses a 3-axis twist zoom joystick, a jog shuttle for DVR playback control and a 16 x 2 character LCD in English. The keyboard runs on 12V DC at 1.1W, measures 334.1x171.1x105.2mm (13.15"x6.74"x4.14") and weighs 800g (1.76lb). Its operating range is 0°C to 40°C (+32°F to +104°F) at 0 to 90% humidity. Control keyboard for PTZ, DVR and receiversTwo RS-485/422 interfaces, 2400 to 57,600bpsUp to 255 devices3-axis joystick and jog shuttle16 x 2 character LCD12V DC, 1.1W, 800g

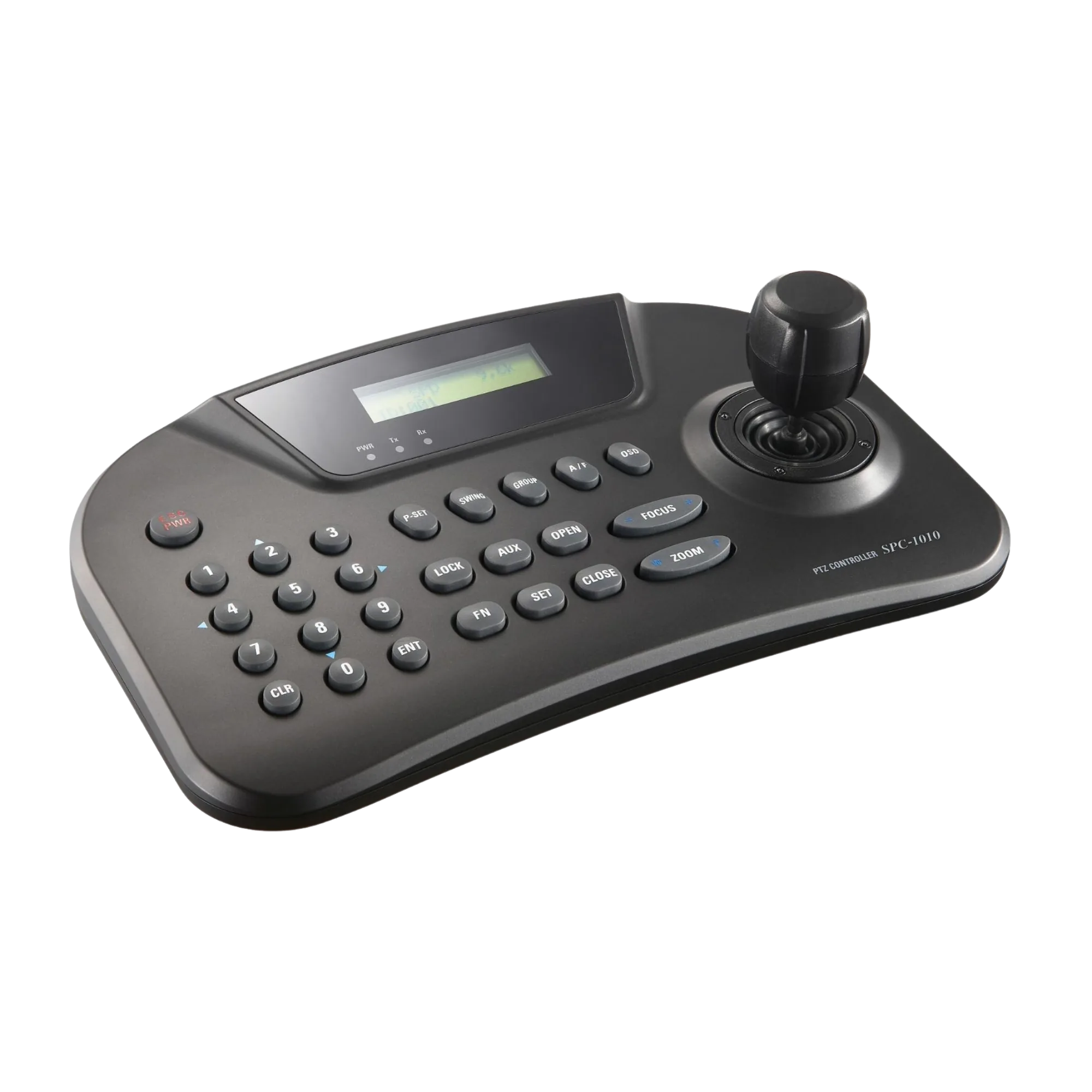

The SPC-1010 is a compact control keyboard for PTZ cameras. It connects over RS-485/422 with a remote control distance of up to 1km and baud rates from 2400 to 57,600bps; up to 255 cameras can be addressed, which the manufacturer rates as suitable for medium to large systems. Supported protocols are Samsung-T/E, Pelco-D/P, Panasonic, Vicon, AD and Honeywell. Operation is via a 3-axis twist zoom joystick together with a 16 x 12 character LCD. Power is 12V DC at 140mA, the unit measures 280.0x100.0x180.0mm and weighs approximately 0.7kg without the adaptor. Operation is specified for 0˚C to 45˚C at 10% to 70% humidity. Control keyboard for PTZ camerasRS-485/422, up to 1km, 2400 to 57,600bpsUp to 255 cameras3-axis twist zoom joystick16 x 12 character LCD12V DC, 140mA, approx. 0.7kg

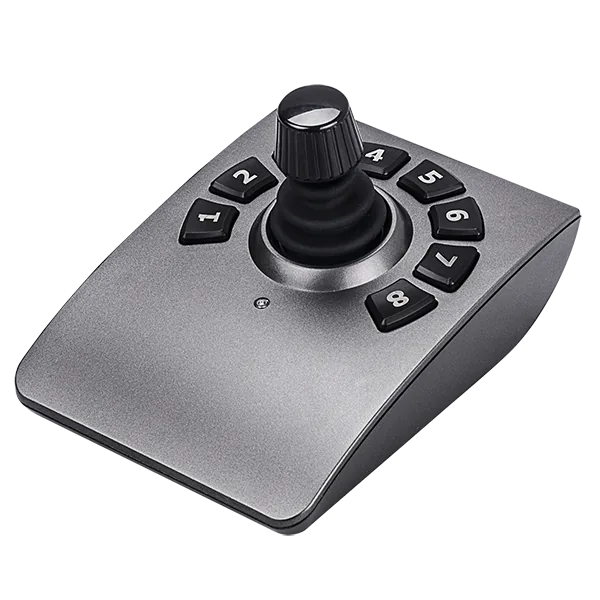

The AJ-001 is a USB joystick carrying eight keys for operating video surveillance equipment. Positioning control runs through a Hall effect three axes joystick (X/Y/Z), with joystick travel of +/-20 on the X and Y axes and +/-30 on the Z axis. Eight long life tactile switches and three LED indicators complete the control surface, all held in a high impact ABS housing. Power and data both arrive over the USB interface at 5V DC with 100mA consumption, connected via USB2.0 (USB Type A Male). Windows 7/8/10/11 are supported with plug & play, as are all VIVOTEK NVR, Speed Dome and VSS platforms. The unit measures 120 (W) x 157 (L) x 97 (H) mm, weighs 0.6 kg and operates from -25°C to 60°C (-13°F to 140°F). Hall effect three axes joystick, X/Y/Z8 long life tactile switches, 3 LED indicatorsHigh impact ABS housingUSB2.0 Type A, 5V DC / 100mAWindows 7/8/10/11 plug & playOperating temperature -25°C to 60°C
