1-Port Gigabit 95W PoH PoE Injector
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 weeks
Product data
- Manufacturer
- AETEK
- Article number
- I39-200
- EAN / GTIN
- 4711502640569
Description

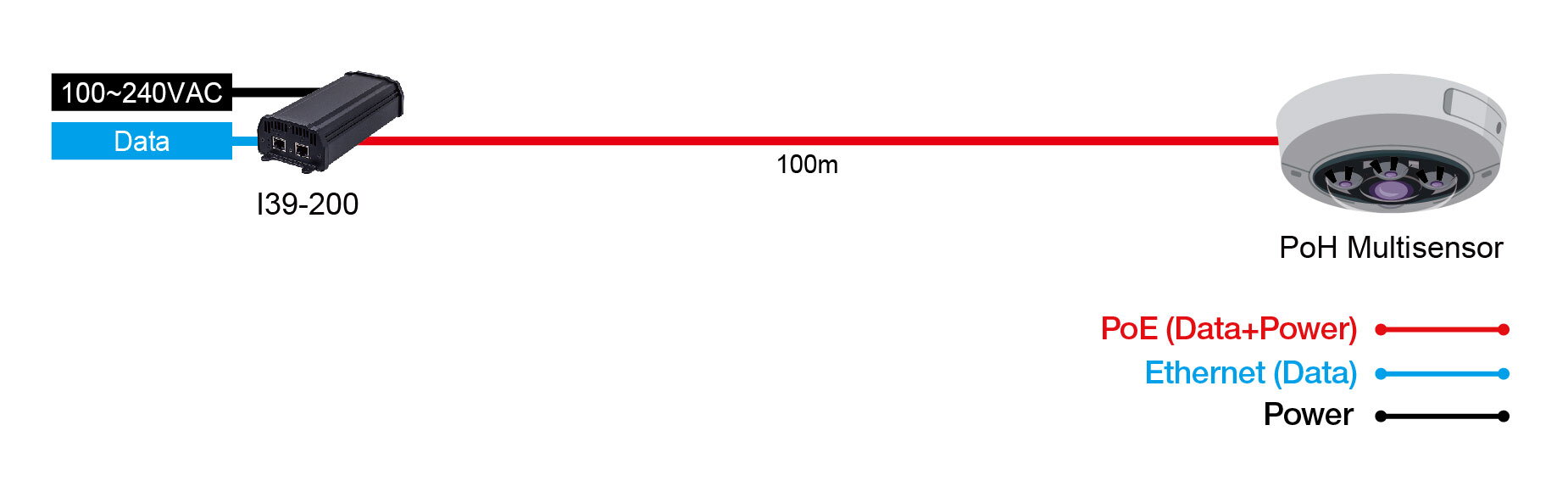

Mid-span injector for a single Gigabit run indoors. It puts power onto an existing 10/100/1000Base-T line and so feeds devices a plain switch port cannot: speed domes, or camera housings carrying a blower, heater, illuminator and wiper. Power leaves as 95 W PoH on all four pairs at 54 V DC, pinned 1/2 (-) with 3/6 (+), then 4/5 (+) with 7/8 (-), and reaches 100 m. It works with IEEE 802.3at/af and recognises non-standard terminals, protecting them. Input 100–240 V AC, briefly 280 V AC for four hours and 300 V AC for one minute. Surge protection is 6 kV at the data/PoE port and 4 kV on the mains side. 182 x 78.6 x 41.9 mm, 0.58 kg, LEDs for power and PoE, -10 °C to 50 °C.
Made by
AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Certifications (3)
- Certifications EMC
- CE, FCC, VCCI, C-Tick
- Safety
- EN60950-1, IEC60950-1
- Surge
- IEC/EN 61000-4-5 Ed.2014+A1:2017
Environmental Specifications (3)
- Environmental Specifications – Operating Humidity
- 10% ~ 90% non-condensing
- Environmental Specifications – Operating Temperature
- -10°C ~ 50°C (14°F ~ 122°F)
- Environmental Specifications – Storage Temperature
- -20°C ~ 70°C (-4°F ~ 158°F)
Mechanical Specifications (3)
- Mechanical Specifications – Dimensions (L x W x H)
- 182 x 78.6 x 41.9 mm
- Mechanical Specifications – LED Indicators
- Power, PoE
- Mechanical Specifications – Weight
- 0.58 kg (1.28 lb)
Networking Specifications (3)
- 95W PoH PoE
- Support
- Networking Specifications – Gigabit Ethernet 10/100/1000Mbps (RJ45)
- 1
- Networking Specifications – IEEE 802.3at Power over Ethernet
- support
Power Specifications (4)
- Power Specifications – Input Voltage 100VAC ~ 240VAC 280VAC 4hr. 300VAC 1min. Output Power
- 54VDC, max. 95W
- Power Specifications – Power Pin Assignment
- 1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-)
- Power Specifications – Surge Protection Data / PoE Port
- 6KV
- Power Specifications – Surge Protection for AC Power
- 4KV
