Industrial 2-Port Gigabit PoE+ Injector, 12-48V DC Input
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 weeks
Product data
- Manufacturer
- AETEK
- Article number
- I63-216
- EAN / GTIN
- 4711502643652
Description

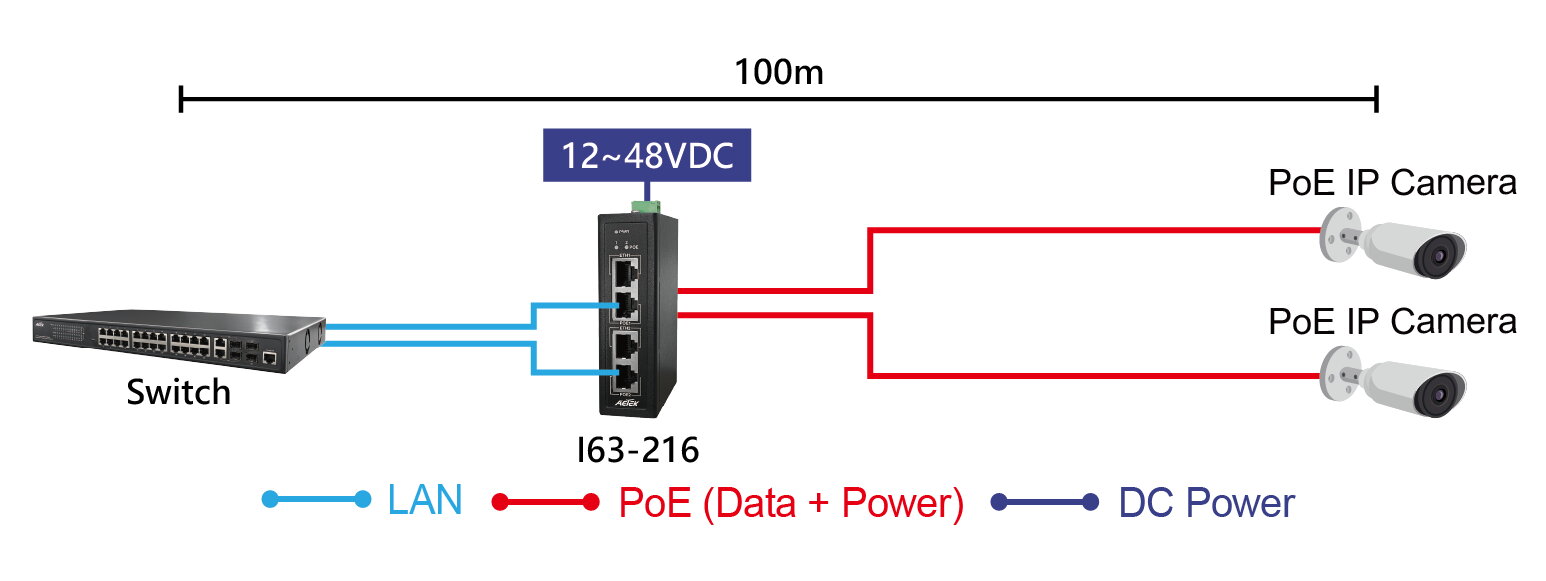

Industrial injector for two Gigabit runs, mounted on a DIN rail. Each port puts out 30 W to IEEE 802.3at over pairs 45(+) and 78(-), powering a camera or an access point on the same cable that carries its data, over a run of up to 100 m. The input accepts 12 to 48 V DC: a built-in boost stage lifts a low input to the voltage PoE needs, so a site with nothing but low-voltage power available, in transport for instance, needs no special supply. Surge protection at the data/PoE port is 6 kV, non-standard terminals are detected and protected, and LEDs show power and PoE. Working range -40 °C to 75 °C, 30 x 70.1 x 104 mm, 0.3 kg.
Made by
AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Environmental (3)
- Environmental – Operating Humidity
- 10% to 90% non-condensing
- Environmental – Operating Temperature
- -40°C ~ 75°C (-40°F ~ 167°F)
- Environmental – Storage Temperature
- -40°C ~ 85°C (-40°F ~ 185°F)
Mechanical (4)
- Dimensions (W x D x H)
- 30 x 70.1 x 104 mm
- Installation
- Din-Rail
- Mechanical LED Indicators
- Power, PoE
- Mechanical Weight
- 0.3 kg (0.67 lb)
Networking (2)
- Networking – Gigabit Ethernet 10/100/1000Mbps (RJ45)
- 2
- Networking – IEEE 802.3at Power over Ethernet
- Support
Power (4)
- Output Power per Port
- 30W at PoE
- Power Input Voltage
- 12~48V DC
- Power Pin Assignment
- 45(+),78(-)
- Power – Surge Protection Data / PoE Port
- 6KV
