Industrial 1-Port Gigabit 95W PoH PoE Injector
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 weeks
Product data
- Manufacturer
- AETEK
- Article number
- I69-206
- EAN / GTIN
- 4711502640828
Description

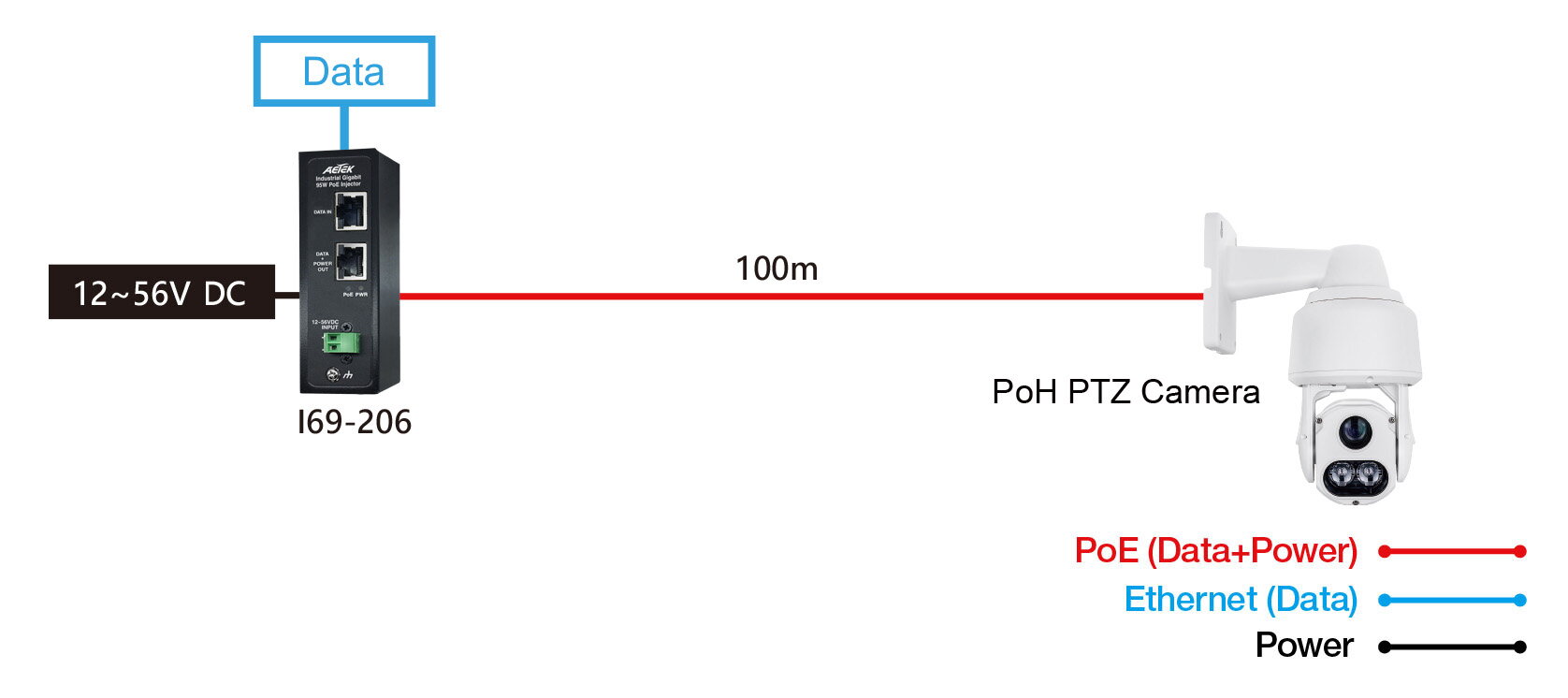

DIN-rail injector with a wide input window: 12 to 56 V DC is enough to feed one Gigabit port with up to 95 W across all four pairs, pinned 1/2 (-) with 3/6 (+), then 4/5 (+) with 7/8 (-). That allows a feed where only a low DC voltage is present. The run to the device may be 100 m, and it suits a speed dome or a camera housing with blower, heater, illuminator and wiper. Compatible with IEEE 802.3at/af, detecting and protecting terminals outside the standard, with 6 kV surge protection at the data/PoE port. Working range -40 °C to 75 °C, 120 x 102 x 38.2 mm, 0.3 kg, LEDs for power and PoE.
Made by
AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Certifications (2)
- Certifications EMC
- CE, FCC, VCCI, C-Tick
- Safety
- IEC/EN 61000-4-5 Ed.2014+A1:2017
Environmental Specifications (3)
- Environmental Specifications – Operating Humidity
- 10% to 90% non-condensing
- Environmental Specifications – Operating Temperature
- -40°C ~ 75°C (-40°F ~ 167°F)
- Environmental Specifications – Storage Temperature
- -40°C ~ 85°C (-40°F ~ 185°F)
Mechanical Specifications (4)
- Mechanical Specifications – Dimensions (L x W x H)
- 120 X 102 X 38.2 mm
- Mechanical Specifications – Installation
- Din-Rail
- Mechanical Specifications – LED Indicators
- Power, PoE
- Mechanical Specifications – Weight
- 0.3 kg (0.67 lb)
Networking Specifications (3)
- 95W PoH PoE
- Support
- Networking Specifications – Gigabit Ethernet 10/100/1000Mbps (RJ45)
- 1
- Networking Specifications – IEEE 802.3at Power over Ethernet
- support
Power Specification (4)
- Power Specification – Input Voltage
- 12~56V DC
- Power Specification – Output Power
- Max. 95W
- Power Specification – Power Pin Assignment
- 1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-)
- Power Specification – Surge Protection Data / PoE Port
- 6KV
