Indoor 1-Port 30/60/90W bt PoE to 2-Port Passive PoE Extender
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 weeks
Product data
- Manufacturer
- AETEK
- Article number
- E59-102
- EAN / GTIN
- 4711502640408
Description

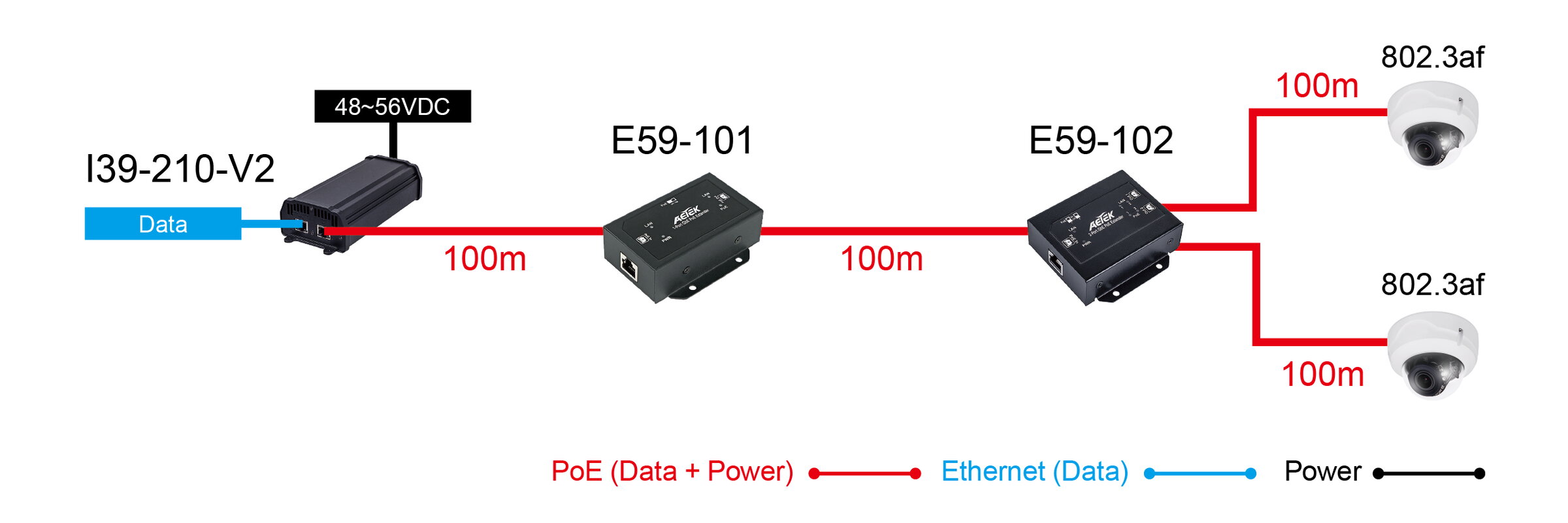

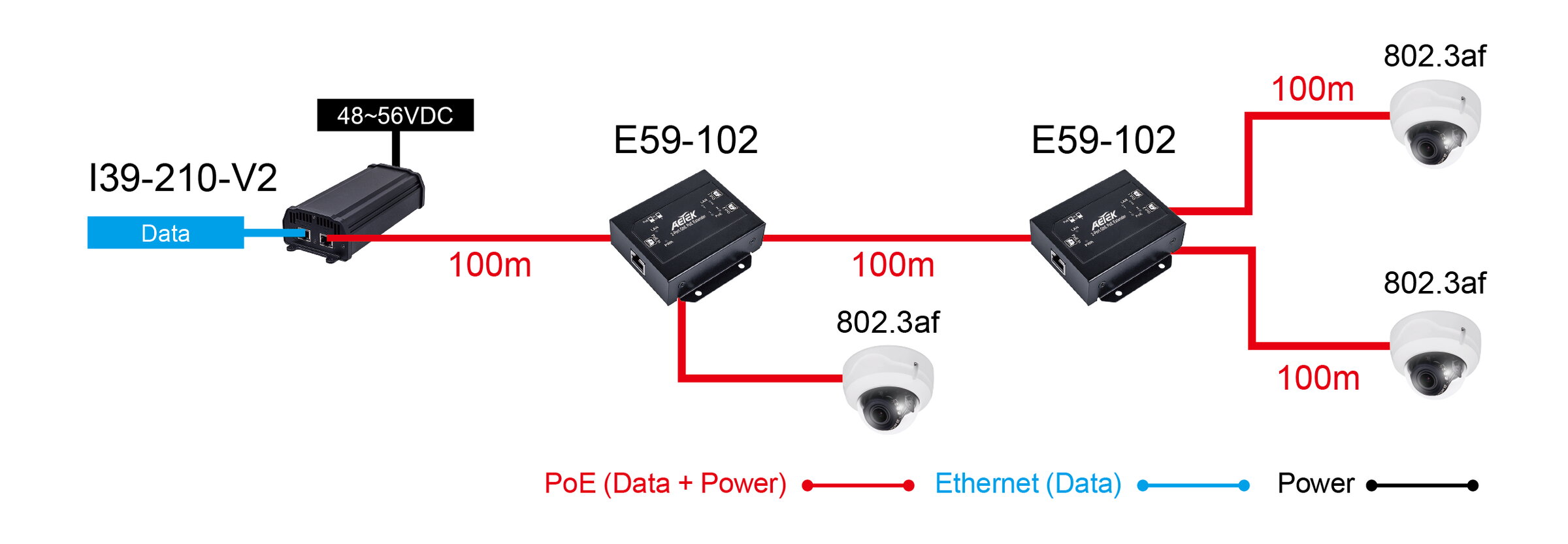

Indoor PoE extender with one input and two output ports: power arrives at the PD port from an injector, midspan hub or switch and is handed on to two devices as passive PoE compliant with IEEE 802.3af. No local power supply is required. Two units in a star reach up to 500 m, and a speed dome drawing 48 W still gets 200 m. The input takes 50 to 57 V DC at no more than 70 W; the outputs run 48 to 55 V DC at no more than 68 W. PSEs rated 30 W, 60 W or 90 W are supported. All three ports run 10/100/1000 Mbit/s, switching capacity is 6 Gbps, the MAC table holds 2K, and a DIP switch cuts PSE power. 6 kV surge protection per PoE port, -40 °C to 75 °C, 89 x 86.5 x 28 mm, 0.21 kg.
Made by
AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Environmental Specifications (3)
- Environmental Specifications – Operating Humidity
- 10% to 90% non-condensing
- Environmental Specifications – Operating Temperature
- -40°C ~ 75°C (-40°F ~ 167°F)
- Environmental Specifications – Storage Temperature
- -40°C ~ 85°C (-40°F ~ 185°F)
Mechanical Specifications (3)
- Mechanical Specifications – Dimensions (L x W x H)
- 89 x 86.5 x 28 mm
- Mechanical Specifications – LED Indicators
- Power, LAN, PoE
- Mechanical Specifications – Weight
- 0.21KG
Networking Specifications (5)
- Networking Specifications – Auto-MDI/MDI-X, Auto- Negotiation
- Supported
- Networking Specifications – Bandwidth
- 10/100/1000Mbps
- Networking Specifications – Mac Table
- 2 k
- Networking Specifications – Switching Capacity
- 6 Gbps
- Networking Specifications – Total Gigabit Ethernet Ports
- 3
Power Specifications (8)
- PD Gigabit Ethernet Ports
- 1
- PD Input Power
- 50~57VDC , max. 70W
- PSE Gigabit Ethernet Ports
- 2
- Power Specifications – Extension Distance
- 2 Units, Daisy-chain Installation Up to 500M Extension (No Local Power Required)
- Power Specifications – PSE Output Power 48~55VDC, max. 68W Passive PoE (Compliant IEEE 802.3af PoE) PD Power Pin Assignment
- 1~8 Pin
- Power Specifications – PSE Power On/Off Dip Switch
- Support
- Power Specifications – PSE Power Pin Assignment
- 12(-),36(+),45(+),78(-)
- Power Specifications – Surge Protection /each PoE Port
- 6KV
