Indoor 1-Port 30W/60W/90W bt PoE to 2-Port Passive PoE Extender Plus
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 weeks
Product data
- Manufacturer
- AETEK
- Article number
- E59-602
- EAN / GTIN
- 4711502640415
Description

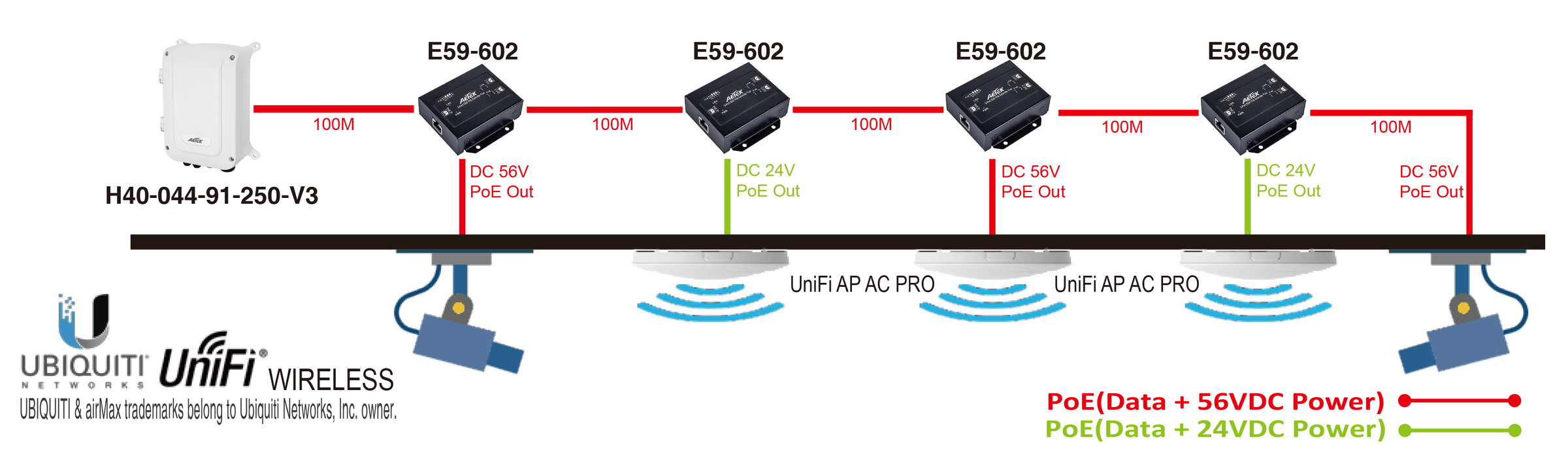

Indoor PoE extender with a built-in voltage booster that holds the output steady at the far end of a long run. Three RJ45 ports: one input takes data and power from an injector, midspan hub or switch and two outputs pass them on. Port 1 supplies 54 V DC compliant with IEEE 802.3af; port 2 can be set to 24 V DC or 54 V DC passive PoE, with 68 W available in total. The input accepts 50 to 57 V DC and up to 72 W, and PSEs of 30 W, 60 W or 90 W are supported. Up to four units chain together for 500 m without local power. The unit itself draws 4 W. 4K MAC table, 6 Gbps switching capacity, 9,216 byte jumbo frames, flow control. -40 °C to 65 °C, 87 x 86.5 x 28 mm, 0.2 kg.
Made by
AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Certifications (2)
- Certifications EMC
- CE,FCC,VCCI,C-Tick
- Surge
- IEC-61000-4-5
Environmental Specifications (5)
- Environmental Specifications – Operating Humidity
- 10% to 90% non-condensing
- Environmental Specifications – Operating Temperature
- -40°C ~ 65°C (-40°F ~ 149°F℉)
- Environmental Specifications – Storage Temperature
- -40°C ~ 85°C (-40°F ~ 185°F)
- Environmental Specifications – Vandal Proof
- -
- Environmental Specifications – Weather Rating
- -
Mechanical Specifications (3)
- Mechanical Specifications – Dimensions (L x W x H)
- 87 x 86.5 x 28 mm
- Mechanical Specifications – LED Indicators
- Power, LAN, PoE
- Mechanical Specifications – Weight
- 0.2KG
Networking Specifications (9)
- Networking Specifications – Auto-MDI/MDI-X, Auto-Negotiation
- Supported
- Networking Specifications – Flow Control
- Supported
- Networking Specifications – Jumbo Frames
- 9,216 Bytes
- Networking Specifications – Mac Table
- 4k
- Networking Specifications – Switching Capacity
- 6Gbps
- PoE Input Port (RJ45)
- 1
- PoE Output Ports (RJ45)
- 2
- PoE af / at / bt Standard
- Supported
- Total Fast Ethernet Port
- 3
Power Specifications (9)
- PD GbE Ethernet (RJ45)
- 1
- PD Input Power
- PoE (Data + 50~57VDC power), max. 72W
- PSE GbE Ethernet (RJ45)
- 2
- Power Specifications – Adjustable DC 24V/54V PoE Output
- Port 2 Only
- Power Specifications – Extension Distance
- 4 Units, Daisy-chain Installation Up to 500M Extension (No Local Power Required)
- Power Specifications – PD Power Pin Assignment
- 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-)
- Power Specifications – PSE Output Power Port 1 : 54VDC (Compliant IEEE 802.3af PoE) Port 2 : Adjustable 24VDC Passive PoE or 54VDC Passive PoE (Compliant IEEE 802.3af PoE) max. 68W (No Local Power Required) PSE Output Voltage Booster
- v
- Power Specifications – PSE Power Pin Assignment Port 1:1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) Port 2 : 4/5 (+), 7/8 (-) PSE Power On/Off Dip Switch
- V
- Power Specifications – Unit Power Consumption
- 4W
