Industrial 1-Port Gigabit 95W PoH PoE Injector
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 weeks
Product data
- Manufacturer
- AETEK
- Article number
- I69-200
- EAN / GTIN
- 4711502640811
Description

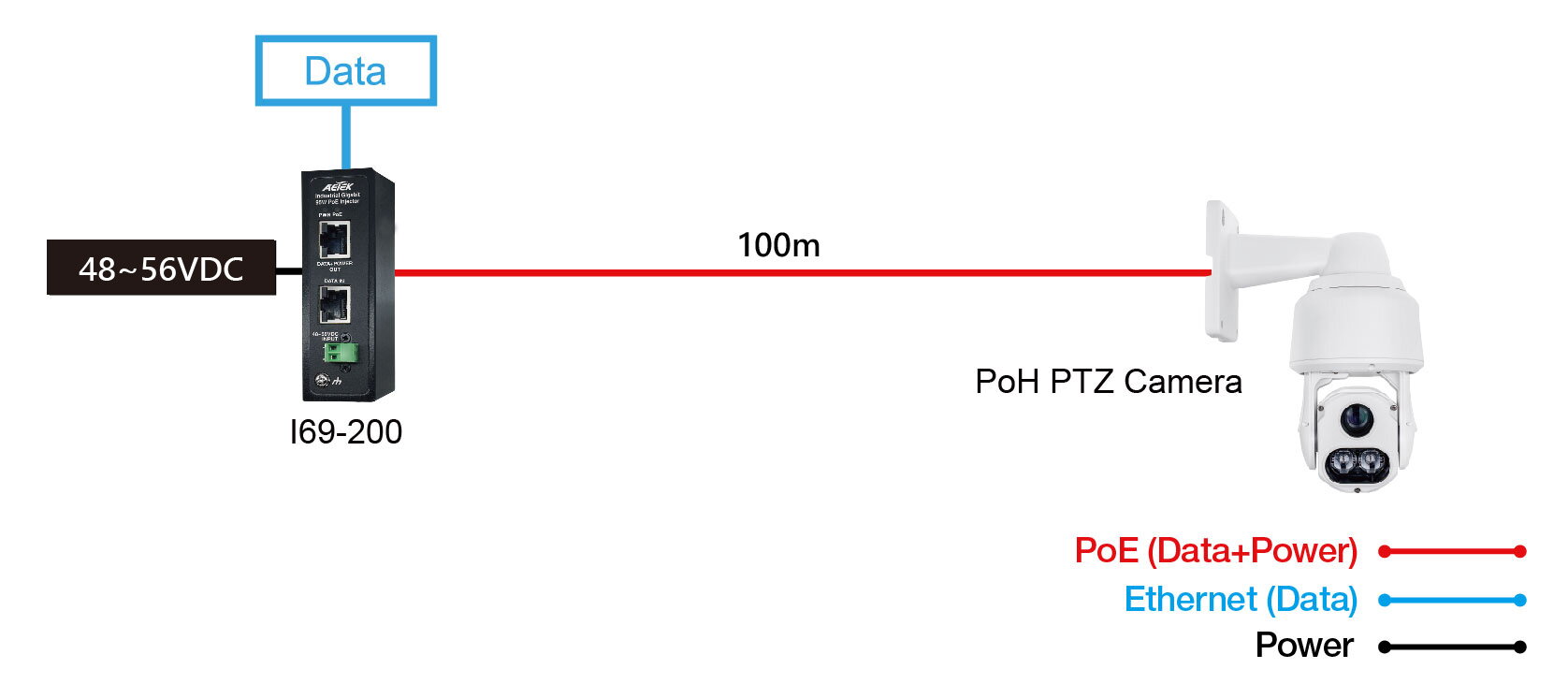

Industrial DIN-rail injector that feeds one Gigabit port with up to 95 W PoH over all four pairs. Pins are 1/2 (-) with 3/6 (+), then 4/5 (+) with 7/8 (-), the run may be 100 m, and the input takes 48 to 56 V DC. It is aimed at heavy loads: speed domes, or a camera housing whose blower, heater, illuminator and wiper draw from the same feed. Compatible with IEEE 802.3at/af, terminals outside the standard are detected and protected, and the data/PoE port carries 6 kV surge protection. Working range -40 °C to 75 °C, storage -40 °C to 85 °C, humidity 10 to 90 % non-condensing. Small format at 100 x 81.5 x 30 mm and 0.2 kg, with LEDs for power and PoE.
Made by
AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Certifications (2)
- Certifications EMC
- CE, FCC, VCCI, C-Tick
- Safety
- IEC/EN 61000-4-5 Ed.2014+A1:2017
Environmental Specifications (3)
- Environmental Specifications – Operating Humidity
- 10% to 90% non-condensing
- Environmental Specifications – Operating Temperature
- -40°C ~ 75°C (-40°F ~ 167°F)
- Environmental Specifications – Storage Temperature
- -40°C ~ 85°C (-40°F ~ 185°F)
Mechanical Specifications (4)
- Mechanical Specifications – Dimensions (L x W x H)
- 100 X 81.5 X 30 mm
- Mechanical Specifications – Installation
- Din-Rail
- Mechanical Specifications – LED Indicators
- Power, PoE
- Mechanical Specifications – Weight
- 0.2 kg (0.44 lb)
Networking Specifications (3)
- 95W PoH PoE
- Support
- Networking Specifications – Gigabit Ethernet 10/100/1000Mbps (RJ45)
- 1
- Networking Specifications – IEEE 802.3at Power over Ethernet
- support
Power Specification (4)
- Power Specification – Input Voltage
- 48~56VDC
- Power Specification – Output Power
- Max. 95W
- Power Specification – Power Pin Assignment
- 1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-)
- Power Specification – Surge Protection Data / PoE Port
- 6KV
