1-CH Indoor 10Gbps 802.3af / 802.3at / 802.3bt / UPoE PoE Surge Protectors
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 weeks
Product data
- Manufacturer
- AETEK
- Article number
- SD-102
- EAN / GTIN
- 4711502640491
Description

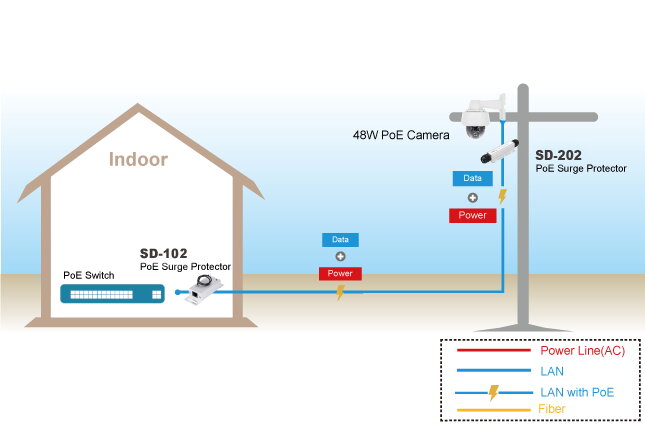

One-channel surge protector for equipment inside a building, rated to 10 Gbps: it passes 10M/100M/1G/2.5G/10G over Cat 5e or Cat 6, UTP or STP. Data and power are protected across all eight conductors, at 20 kV common mode and 4 kV differential mode, with up to 10 kA discharge current, 5 ns response and clamping of 600 V to ground and 20 V line to line. PoE support covers 802.3af, 802.3at, 802.3bt and UPoE at no more than 60 V DC, 1 A over two pairs, 2 A over four pairs and 95 W. Insertion loss is 1 dB and return loss -20 dB at 10 and 100 MHz. Nothing has to be configured, and an LED marks a spent protector. Temperature range -40 °C to 85 °C, 80 x 40 x 25 mm, 0.18 kg, two RJ45 sockets.
Made by
AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Certifications (1)
- Certifications EMC
- CE, FCC, VCCI, C-Tick
Environmental Specifications (3)
- Environmental Specifications – Operating Humidity
- 5% ~ 95% non-condensing
- Environmental Specifications – Operating Temperature
- -, -40°C~ 85°C (-40°F~ 185°F)
- Environmental Specifications – Storage Temperature
- -40°C~ 85°C (-40°F~ 185°F)
Hardware Specifications (14)
- Hardware Specifications – Clamping Voltage (Line to GND)
- 600V
- Hardware Specifications – Clamping Voltage (Line to Line)
- 20V
- Hardware Specifications – Common Mode Protection Level (10/700us)
- 20KV
- Hardware Specifications – Differential Mode Protection Level (10/700us)
- 4KV
- Hardware Specifications – Insertion Loss @ 10MHz/100MHz
- 1db
- Hardware Specifications – Max Discharge Current (8/20us)
- 10KA
- Hardware Specifications – Maximum Operation DC Current
- 1A for 2 pair, 2A for 4 pair, 95W maximum
- Hardware Specifications – Maximum Operation DC Voltage
- 60VDC
- Hardware Specifications – Number of Ports
- 1
- Hardware Specifications – Pass Through Data Rates
- 10M/100M/1G/2.5G/10G bps
- Hardware Specifications – PoE Supoort
- 802.3af / 802.3at / 802.3bt
- Hardware Specifications – Response Time
- 5ns
- Hardware Specifications – Return Loss @ 10MHz/100MHz
- -20db
- Hardware Specifications – Transmission Media
- Cat. 5e,6 UTP/STP
Mechanical Specifications (3)
- Mechanical Specifications – Connectors
- RJ45 x 2
- Mechanical Specifications – Dimensions (L x W x H)
- 80 x 40 x 25 mm
- Mechanical Specifications – Weight
- 0.18KG
