1-CH Indoor 802.3af / 802.3at / 802.3bt / UPoE PoE Surge Protectors
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 weeks
Product data
- Manufacturer
- AETEK
- Article number
- SD-101
- EAN / GTIN
- 4711502640460
Description

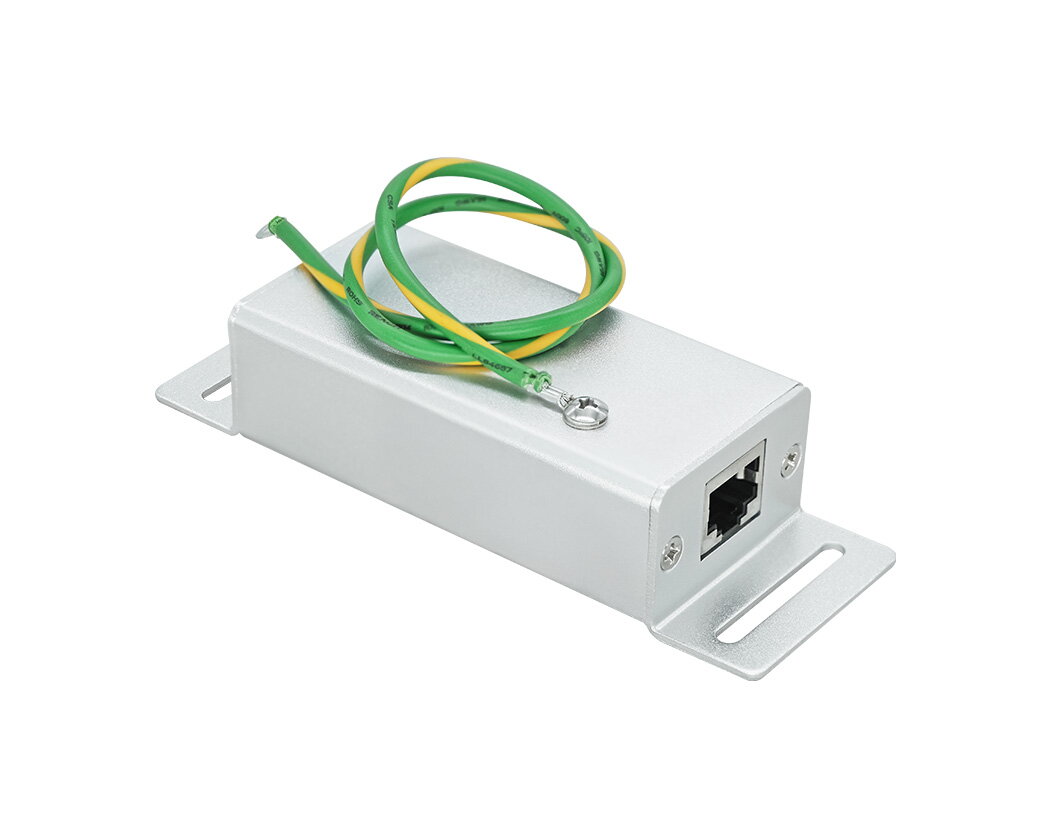

Single-channel PoE surge protector for indoor positions: next to the PoE switch, or inside a junction or power box. Data and PoE feed are covered on all eight conductors, with a 20 kV common-mode and 4 kV differential-mode level, 10 kA discharge capability, 5 ns response and clamping at 600 V to ground and 20 V between lines. It passes 10M/100M/1G/2.5G over Cat 5e or Cat 6 UTP/STP and supports 802.3af, 802.3at, 802.3bt and UPoE up to 60 V DC, with 1 A over two pairs, 2 A over four pairs and 95 W maximum. An LED shows when the protector has reached the end of its life. Working range -40 °C to 85 °C, 80 x 40 x 25 mm, 0.18 kg, two RJ45 sockets, EMC to CE, FCC, VCCI and C-Tick.
Made by
AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Certifications (1)
- Certifications EMC
- CE, FCC, VCCI, C-Tick
Environmental Specifications (3)
- Environmental Specifications – Operating Humidity
- 5% ~ 95% non-condensing
- Environmental Specifications – Operating Temperature
- -40°C~ 85°C (-40°F~ 185°F)
- Environmental Specifications – Storage Temperature
- -40°C~ 85°C (-40°F~ 185°F)
Hardware Specifications (14)
- Hardware Specifications – Clamping Voltage (Line to GND)
- 600V
- Hardware Specifications – Clamping Voltage (Line to Line)
- 20V
- Hardware Specifications – Common Mode Protection Level (10/700us)
- 20KV
- Hardware Specifications – Differential Mode Protection Level (10/700us)
- 4KV
- Hardware Specifications – Insertion Loss @ 10MHz/100MHz
- 1db
- Hardware Specifications – Max Discharge Current (8/20us)
- 10KA
- Hardware Specifications – Maximum Operation DC Current
- 1A for 2 pair, 2A for 4 pair, 95W maximum
- Hardware Specifications – Maximum Operation DC Voltage
- 60V DC
- Hardware Specifications – Number of Ports
- 1
- Hardware Specifications – Pass Through Data Rates
- 10M/100M/1G/2.5G bps
- Hardware Specifications – PoE Supoort
- 802.3af / 802.3at / 802.3bt
- Hardware Specifications – Response Time
- 5ns
- Hardware Specifications – Return Loss @ 10MHz/100MHz
- -20db
- Hardware Specifications – Transmission Media
- Cat. 5e,6 UTP/STP
Mechanical Specifications (3)
- Mechanical Specifications – Connectors
- RJ45 x 2
- Mechanical Specifications – Dimensions (L x W x H)
- 80 x 40 x 25 mm
- Mechanical Specifications – Weight
- 0.18KG
