1-Port Gigabit 90W bt PoE++ Injector
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 weeks
Product data
- Manufacturer
- AETEK
- Article number
- I39-210-V2
- EAN / GTIN
- 4711502640583
Description

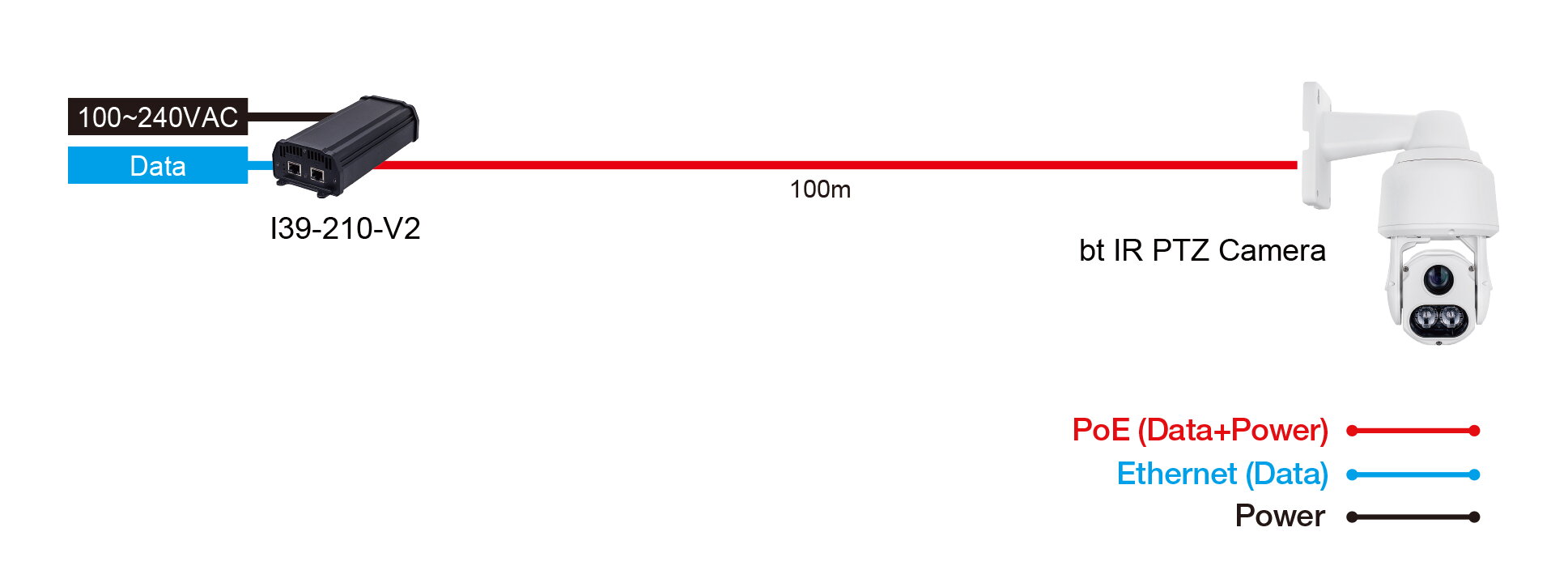

Indoor PoE++ injector to IEEE 802.3bt, backward compatible with 802.3at and 802.3af. It supplies one Gigabit port with up to 90 W across four pairs at 54 V DC, pinned 1/2 (-) with 3/6 (+), then 4/5 (+) with 7/8 (-), over a cable run of 100 m. It suits loads that draw heavily, such as speed domes or housings with heater, blower, wiper and illuminator. Terminals outside the standard are detected and protected. Mains input 100–240 V AC, rated to 280 V AC for four hours and 300 V AC for one minute. Surge protection: 6 kV at the data and PoE port, 4 kV at the mains input. Case 182 x 78.6 x 41.9 mm, 0.58 kg, -10 °C to 50 °C, humidity 10–90 % non-condensing.
Made by
AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Certifications (3)
- Certifications EMC
- CE, FCC, VCCI, C-Tick
- Safety
- EN60950-1, IEC60950-1
- Surge
- IEC/EN 61000-4-5 Ed.2014+A1:2017
Environmental Specifications (3)
- Environmental Specifications – Operating Humidity
- 10% ~ 90% non-condensing
- Environmental Specifications – Operating Temperature
- -10°C ~ 50°C (14°F ~ 122°F)
- Environmental Specifications – Storage Temperature
- -20°C ~ 70°C (-4°F ~ 158°F)
Mechanical Specifications (3)
- Mechanical Specifications – Dimensions (L x W x H)
- 182 x 78.6 x 41.9 mm
- Mechanical Specifications – LED Indicators
- Power, PoE
- Mechanical Specifications – Weight
- 0.58 kg (1.28 lb)
Networking Specifications (3)
- IEEE802.3at PoE+
- support
- IEEE802.3bt 90W PoE++
- Support
- Networking Specifications – Gigabit Ethernet 10/100/1000Mbps (RJ45)
- 1
Power Specifications (4)
- Power Specifications – Input Voltage 100VAC ~ 240VAC 280VAC 4hr. 300VAC 1min. Output Power
- 54VDC, max. 90W
- Power Specifications – Power Pin Assignment
- 1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-)
- Power Specifications – Surge Protection Data / PoE Port
- 6KV
- Power Specifications – Surge Protection for AC Power
- 4KV
