Industrial 1-Port Gigabit 90W bt PoE++ Injector
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 weeks
Product data
- Manufacturer
- AETEK
- Article number
- I69-210-V2
- EAN / GTIN
- 4711502640835
Description

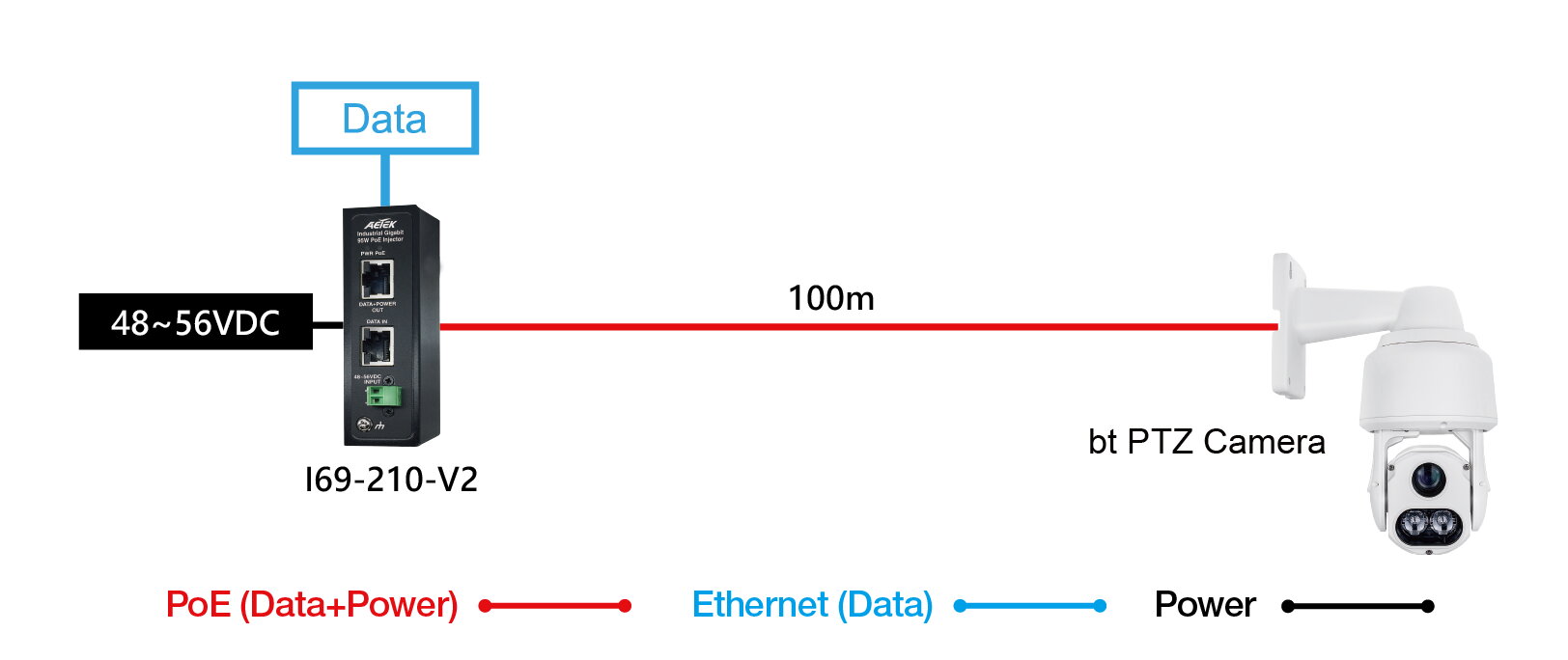

Industrial PoE++ injector to IEEE 802.3bt for DIN-rail mounting, backward compatible with 802.3at and 802.3af. One Gigabit port puts out a maximum of 90 W over four pairs, pinned 1/2 (-) with 3/6 (+), then 4/5 (+) with 7/8 (-), from an input of 48 to 56 V DC and across a cable run of up to 100 m. It powers devices that draw heavily, such as speed domes or housings with heater, blower, wiper and illuminator. Terminals outside the standard are detected and protected, and the data/PoE port has 6 kV of surge protection. Working range -40 °C to 75 °C, humidity 10 to 90 % non-condensing, 100 x 81.5 x 30 mm, 0.2 kg.
Made by
AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Certifications (2)
- Certifications EMC
- CE, FCC, VCCI, C-Tick
- Safety
- IEC/EN 61000-4-5 Ed.2014+A1:2017
Environmental Specifications (3)
- Environmental Specifications – Operating Humidity
- 10% to 90% non-condensing
- Environmental Specifications – Operating Temperature
- -40°C ~ 75°C (-40°F ~ 167°F)
- Environmental Specifications – Storage Temperature
- -40°C ~ 85°C (-40°F ~ 185°F)
Mechanical Specifications (4)
- Mechanical Specifications – Dimensions (L x W x H)
- 100 X 81.5 X 30 mm
- Mechanical Specifications – Installation
- Din-Rail
- Mechanical Specifications – LED Indicators
- Power, PoE
- Mechanical Specifications – Weight
- 0.2 kg (0.44 lb)
Networking Specifications (3)
- IEEE 802.3at 30W PoE
- support
- IEEE 802.3bt 90W PoE
- Support
- Networking Specifications – Gigabit Ethernet 10/100/1000Mbps (RJ45)
- 1
Power Specification (4)
- Power Specification – Input Voltage
- 48~56V DC
- Power Specification – Output Power
- Max. 90W
- Power Specification – Power Pin Assignment
- 1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-)
- Power Specification – Surge Protection Data / PoE Port
- 6KV
