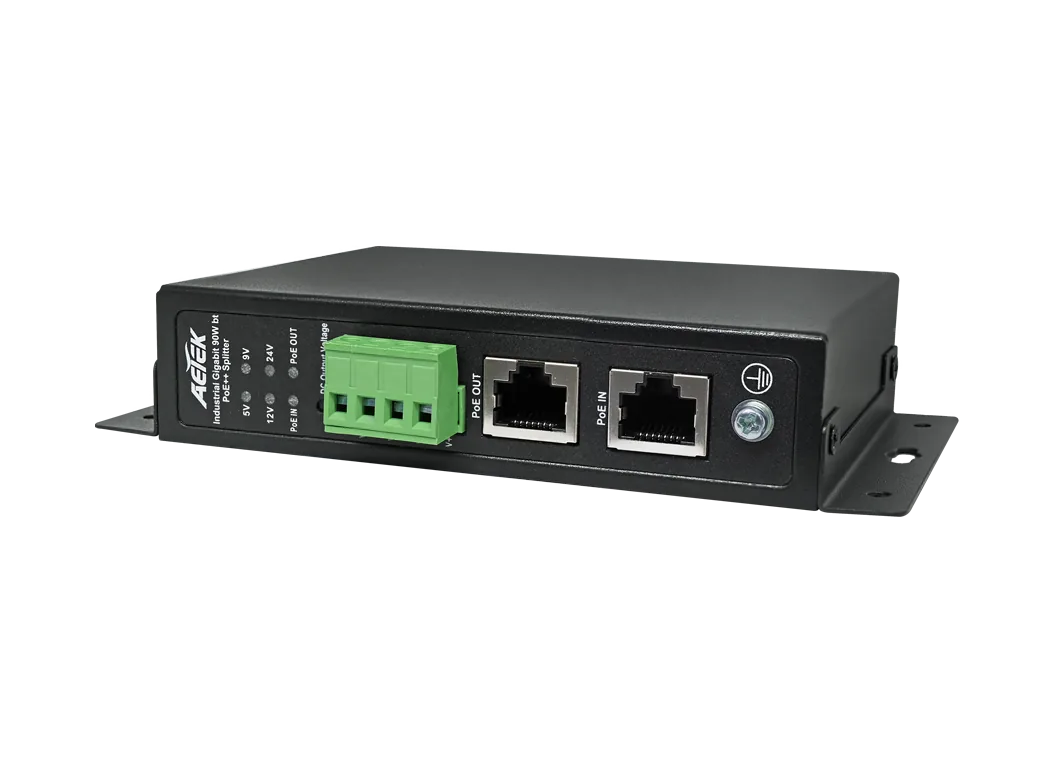

Industrial 1-Port Gigabit bt PoE++ Splitter with 5/9/12/24V DC Output, PoE PD Input
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 weeks
Product data
- Manufacturer
- AETEK
- Article number
- S69-220
- EAN / GTIN
- 4711502640859
Description

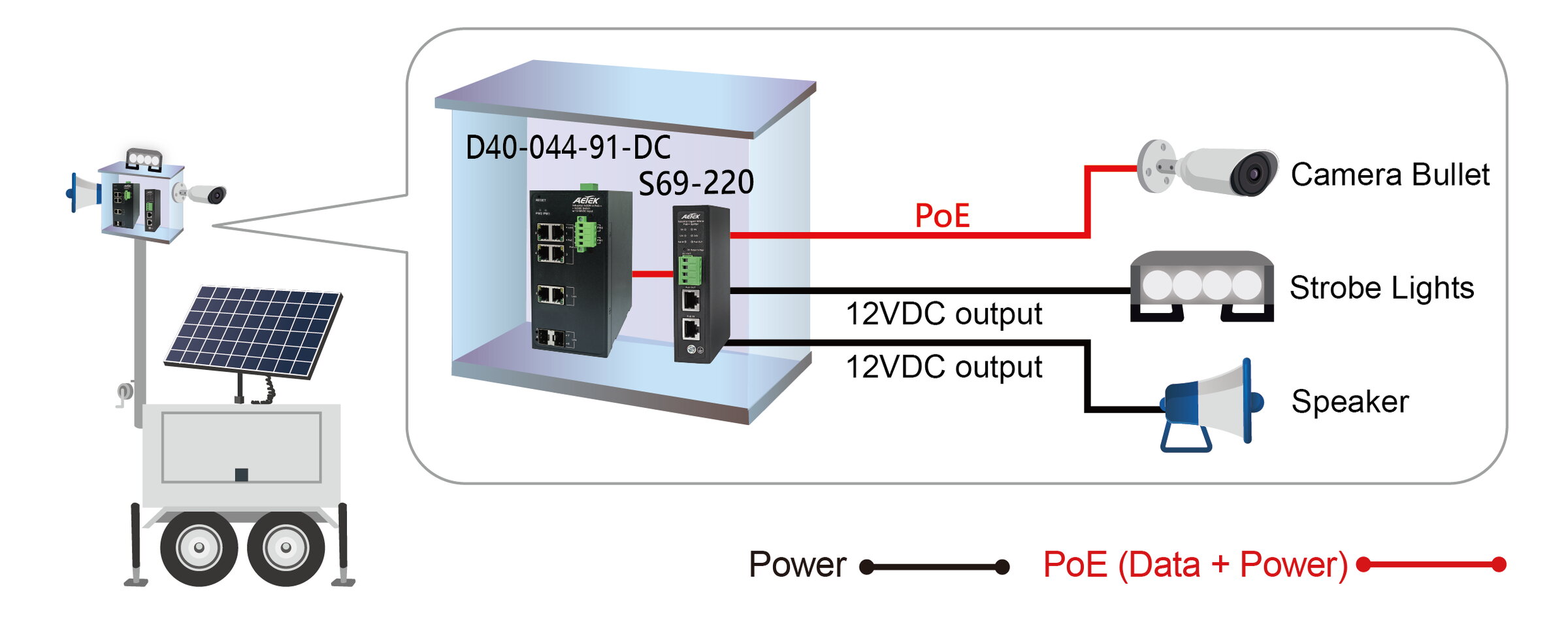

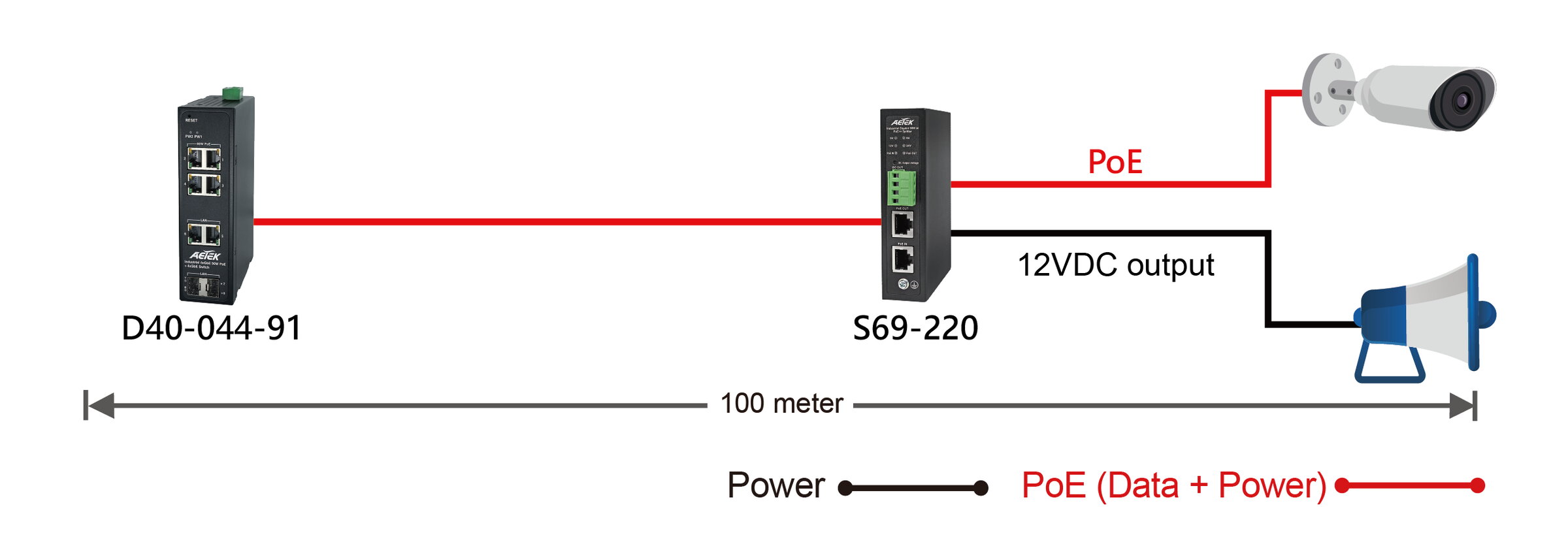

Industrial PoE splitter that turns one PoE feed into two supply forms at once: 802.3af/at/bt PoE for devices with a PoE input, plus a DC rail for devices without one. The DC voltage is selectable at 5, 9, 12 or 24 V. Fed from an 802.3bt source, 70 W is available (5 V/14 A, 9 V/7.7 A, 12 V/5.8 A, 24 V/2.9 A); from an 802.3at source, 24 W (5 V/4.8 A, 9 V/2.6 A, 12 V/2 A, 24 V/1 A). Its two RJ45 ports run at 10/100/1000 Mbps over Cat 5e or Cat 6 up to 100 m. Operating range -40 °C to 75 °C, storage -40 °C to 80 °C, 6 kV surge protection, 120 x 100 x 32 mm. LEDs cover power, PoE and each of the four DC voltages.
Made by
AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Networking Specifications (15)
- Networking Specifications – DC Power Output @ 802.3 at Input
- 5V/4.8A, 9V/2.6A, 12V/2A, 24V/1A
- Networking Specifications – DC Power Output @ 802.3 bt Input
- 5V/14A, 9V/7.7A, 12V/5.8A, 24V/2.9A
- Networking Specifications – Dimensions (WxHxD)
- 120 *100 *32 mm
- Networking Specifications – Gigabit Ethernet 10/100/1000Mbps (RJ45)
- 2
- Networking Specifications – Network Media(Cable) 10BASE-T: UTP category 3,4, 5 cable (≤100m) 100BASE-TX: UTP category 5,5e cable (≤100m) 1000BASE-T: UTP category 5e,6 cable (≤100m) LED
- Power, 5VDC, 9VDC, 12VDC, 24VDC, PoE
- Networking Specifications – Operating Humidity
- 10% ~ 90% RH non-condensing
- Networking Specifications – Operating Temperature
- -40°C ~ 75 °C (-49°F ~ 167°F)
- Networking Specifications – RJ45 PoE Input Power Pin Assignment
- 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) or1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-)
- Networking Specifications – Storage Temperature
- -40°C ~ 80°C (-40°F ~ 176°F)
- Networking Specifications – Surge Protection
- 6KV
- Networking Specifications – Total Power Budget @ 802.3at PoE Input
- 24W
- Networking Specifications – Total Power Budget @ 802.3bt PoE Input
- 70W
- Output PoE Power
- 802.3 bt/at/af PoE
- PoE Input
- 802.3 bt/at/af PoE
- Storage Humidity
- 5% ~ 90% RH non-condensing
