Indoor 1-Port 802.3bt PoE++ to 1-Port 802.3af/at/bt PoE++ Extender
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 weeks
Product data
- Manufacturer
- AETEK
- Article number
- E59-201
- EAN / GTIN
- 4711502641993
Description

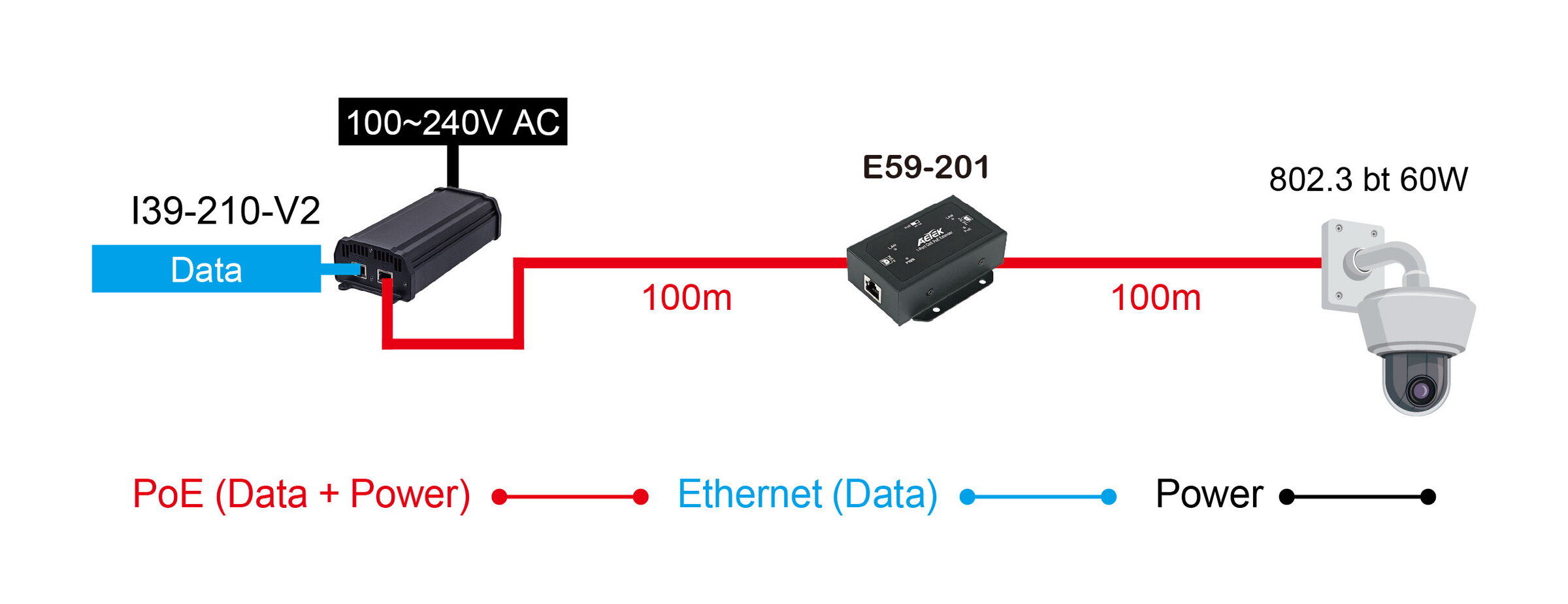

Indoor PoE extender that re-powers to the standard rather than passively. The input behaves as an IEEE 802.3bt PoE++ Type 4 PD and takes in up to 90 W; the output acts as an 802.3bt Type 3, 802.3at or 802.3af PSE and detects the attached device on its own. That adds another 100 m to a PoE run, and two units chained together reach up to 300 m. No local power supply is needed — installation is a matter of plugging in both leads. Both Gigabit ports handle auto-MDI/MDI-X and auto-negotiation, switching capacity is 4 Gbps and the MAC table holds 2K. A DIP switch disables output power. 6 kV surge protection per PoE port, -40 °C to 65 °C, 90 x 69.4 x 28.5 mm, 0.19 kg.
Made by
AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Environmental Specifications (3)
- Environmental Specifications – Operating Humidity
- 10% to 90% non-condensing
- Environmental Specifications – Operating Temperature
- -40°C ~ 65°C (-40°F ~ 149°F)
- Environmental Specifications – Storage Temperature
- -40°C ~ 85°C (-40°F ~ 185°F)
Mechanical Specifications (3)
- Mechanical Specifications – Dimensions (L x W x H)
- 90 x 69.4 x 28.5 mm
- Mechanical Specifications – LED Indicators
- Power, LAN, PoE
- Mechanical Specifications – Weight
- 0.19KG
Networking Specifications (5)
- Networking Specifications – Auto-MDI/MDI-X, Auto- Negotiation
- Supported
- Networking Specifications – Bandwidth
- 10/100/1000Mbps
- Networking Specifications – Mac Table
- 2 k
- Networking Specifications – Switching Capacity
- 4 Gbps
- Networking Specifications – Total Gigabit Ethernet Ports
- 2
Power Specifications (7)
- PD Gigabit Ethernet Ports
- 1
- PSE Gigabit Ethernet Ports
- 1

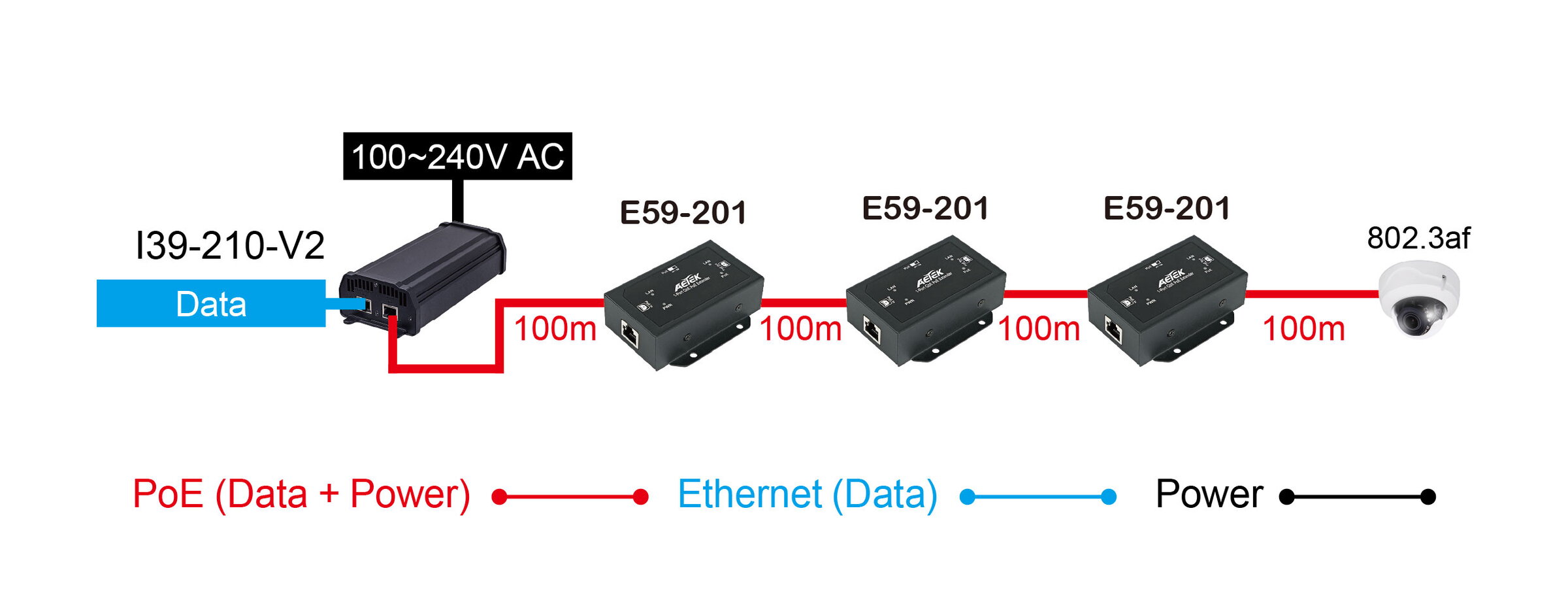

- Power Specifications – Extension Distance
- 2 Units, Daisy-chain Installation Up to 300M Extension
- Power Specifications – Input PoE PD 1 x 10/100/1000BASE-T Ethernet with 802.3bt PoE++ “Data + DC” in Auto MDI/MDI-X, auto-negotiation RJ45 connector Output PoE PSE IEEE 802.3bt PoE++ Type 3 PSE IEEE 802.3at PoE+ PSE IEEE 802.3af PoE PSE PD Power Pin Assig
- 12(-),36(+),45(+),78(-) or 12(+),36(-),45(+),78(-)
- Power Specifications – PSE Power On/Off Dip Switch
- Support
- Power Specifications – PSE Power Pin Assignment
- 12(-),36(+),45(+),78(-)
- Power Specifications – Surge Protection /each PoE Port
- 6KV
