Indoor 1-Port 30/60/90W bt PoE to 1-Port Passive PoE Extender
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 weeks
Product data
- Manufacturer
- AETEK
- Article number
- E59-101
- EAN / GTIN
- 4711502640392
Description

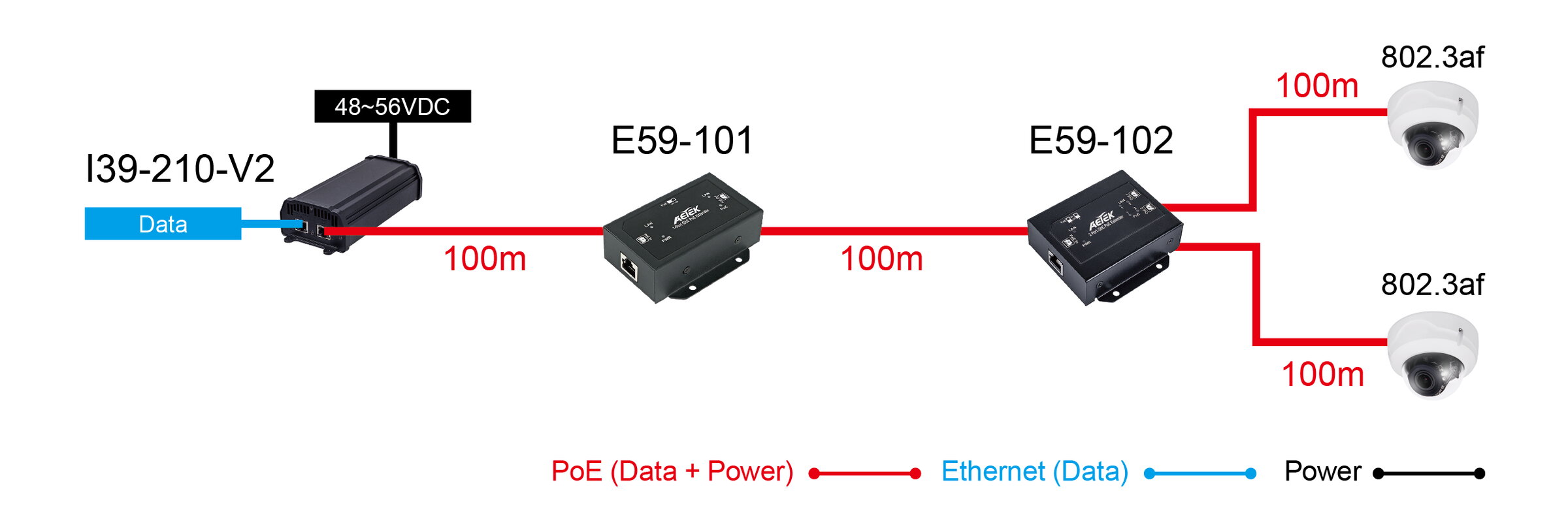

Indoor PoE extender: one RJ45 port takes data and power from an injector, midspan hub or switch, the second passes both on as passive PoE compliant with IEEE 802.3af to a camera or access point. No local power supply is needed. Two units in a chain bridge up to 300 m; a speed dome drawing 48 W still reaches 200 m. The input accepts 50 to 57 V DC and at most 70 W, the output runs 44 to 55 V DC and at most 68 W, and PSEs rated 30 W, 60 W or 90 W are supported. Both ports run 10/100/1000 Mbit/s with 4 Gbps switching capacity and a 2K MAC table. A DIP switch turns the PSE power off. 6 kV surge protection per PoE port, -40 °C to 75 °C, 90 x 69.4 x 28.5 mm, 0.19 kg.
Made by
AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Environmental Specifications (3)
- Environmental Specifications – Operating Humidity
- 10% to 90% non-condensing
- Environmental Specifications – Operating Temperature
- -40°C ~ 75°C (-40°F ~ 167°F)
- Environmental Specifications – Storage Temperature
- -40°C ~ 85°C (-40°F ~ 185°F)
Mechanical Specifications (3)
- Mechanical Specifications – Dimensions (L x W x H)
- 90 x 69.4 x 28.5 mm
- Mechanical Specifications – LED Indicators
- Power, LAN, PoE
- Mechanical Specifications – Weight
- 0.19KG
Networking Specifications (5)
- Networking Specifications – Auto-MDI/MDI-X, Auto- Negotiation
- Supported
- Networking Specifications – Bandwidth
- 10/100/1000Mbps
- Networking Specifications – Mac Table
- 2 k
- Networking Specifications – Switching Capacity
- 4 Gbps
- Networking Specifications – Total Gigabit Ethernet Ports
- 2
Power Specifications (8)
- PD Gigabit Ethernet Ports
- 1
- PD Input Power
- 50~57VDC , max. 70W
- PSE Gigabit Ethernet Ports
- 1
- Power Specifications – Extension Distance
- 2 Units, Daisy-chain Installation Up to 300M Extension (No Local Power Required)
- Power Specifications – PSE Output Power 44~55VDC, max. 68W Passive PoE (Compliant IEEE 802.3af PoE) PD Power Pin Assignment
- 1~8 Pin
- Power Specifications – PSE Power On/Off Dip Switch
- Support
- Power Specifications – PSE Power Pin Assignment
- 12(-),36(+),45(+),78(-)
- Power Specifications – Surge Protection /each PoE Port
- 6KV
