Professional AC24V (DC24V Optional) Cold Start Camera Housing w/Wiper
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 weeks
Product data
- Manufacturer
- AETEK
- Article number
- P2000-AIW
- EAN / GTIN
- 4711502640910
Description

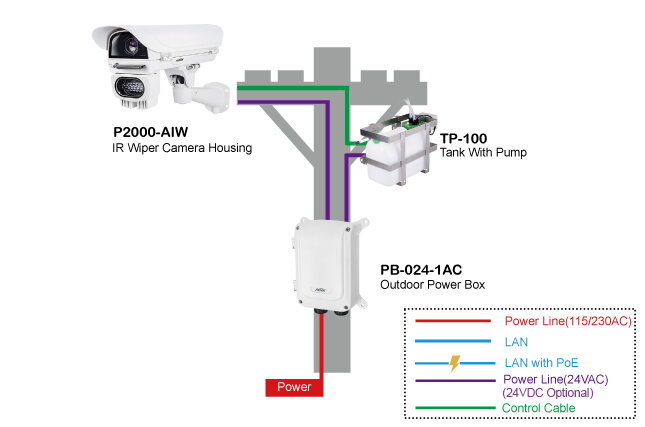

Camera housing with a wiper and a cold start heater, cast aluminium to IP66 and IK10, sized for box cameras with lenses from 8 to 80 mm. It is fed from 24 V AC or optionally 24 V DC and provides 30 W at 12 V DC and 80 W at 24 V AC. The camera heater allows a cold start at -40 °C; the working range runs from -50 °C to 65 °C, and to 50 °C with IR illuminators. The camera inside must be rated for -20 °C to 65 °C, and the wiper works between -10 °C and 60 °C. Consumption item by item: window heater 10 W, blower 2 W, camera 6 to 8 W, cold start heater 30 W, wiper 6 W; the optional illuminators draw 12 W (VR-120), 24 W (VR-240/241) and 48 W (VR-480/481), and the optional 10 l tank and pump TP-100 draws 12 W. Adjustable sunshield, side-opening alarm switch, ITB board, one RS485 port. 502.8 x 170 x 158.5 mm, 2.9 kg, four M16 glands.
Made by
AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Electrical Specifications (4)
- AC24V Output Power Budget
- 80W
- DC12V Output Power Budget
- 30W
- Electrical Specifications – Input Voltage
- 24VAC (24VDC Optional)
- Electrical Specifications – Power Consumption Window Heater: 10W Blower: 2W Camera: 6 ~ 8W Cold Start Heater: 30W Wiper: 6W Optional VAIR LEDs Power Consumption VR-120: 12W VR-240/241: 24W VR-480/481: 48W Optional 10L Water Tank & Pump
- TP-100: 12W
Environmental Specifications (3)
- Environmental Specifications – Operating Temperature -50°C ~ 65°C (-58°F ~ 149°F) -50°C ~ 50°C (w/IR LEDs) Cold Startup: -40°C (-40°F) * Inside camera specifications must be within -20°C ~ 65°C Wiper is functional at -10°C to + 60°C (14°F to 140°F) Window
- IP66
- Environmental Specifications – Vandal Proof
- IK10 Impact Rated on Cast Aluminum Housing
- RS485 Ports
- 1
Mechanical Specifications (4)
- Body Material
- Cast Aluminum
- Body Weight
- 2.9 kg (6.39 lb)
- Cable Grants
- M16 x 4
- Mechanical Specifications – Dimensions (L x W x H)
- 502.8 x 170 x 158.5 mm
