Outdoor Surveillance System IP PoE Cabinet with Integrated Power and Battery Backup, 360W Power Budget
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 weeks
Product data
- Manufacturer
- AETEK
- Article number
- OS-210-360
- EAN / GTIN
- 4711502643621
Description

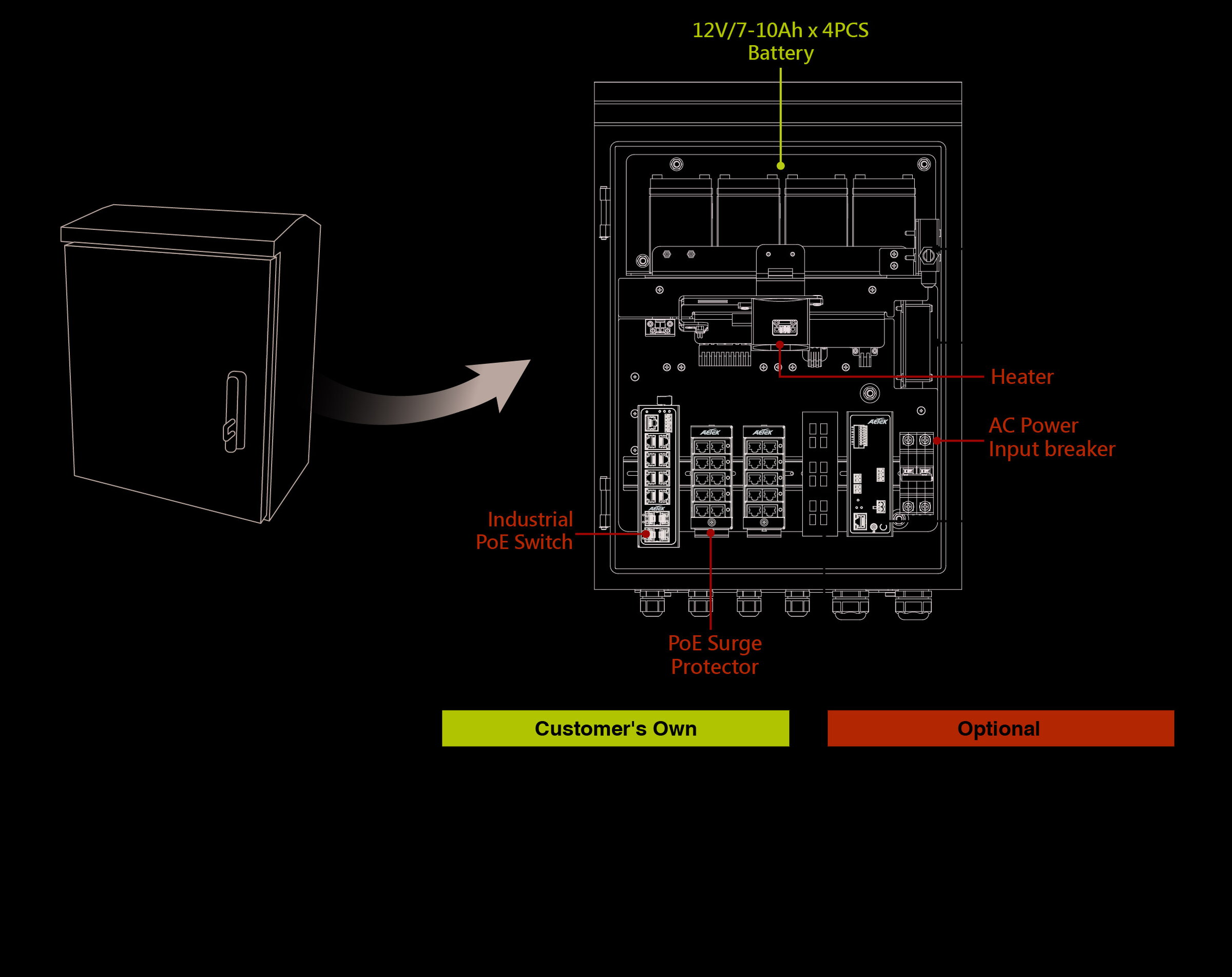

Outdoor 304L stainless steel cabinet to IP66 with a power supply, battery backup and a controller of its own. The power module puts out 55 V DC at 5.03 A within a 360 W budget; the controller adds 12 V DC at 2.5 A and 24 V DC at 1.25 A for devices that take no PoE. Without any PoE load the system draws 12.3 W. Four 12 V batteries of 7 to 10 Ah fit inside (not supplied, lead acid or LiFePO4), charged at 1.5 A and 55 V DC, cut off at 43 V ±0.5 V, with reverse polarity handled. A web interface reports the current power source and input voltage, battery voltage, remaining capacity and estimated runtime, plus temperature, humidity and GPS position; events such as a change of source or a low battery raise an alert. GPS antenna on SMA, 2 digital inputs and 2 outputs, glands 4 x M25 and 8 x M16, lockable 304 stainless swing handle. Working range -5 °C to 50 °C, from -40 °C with a heater or blower module. 380 x 273.5 x 525 mm, 12 kg.
Made by
AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Battery (not included) (7)
- Battery Battery Capacity
- 4 x 12V / 7-10Ah
- Battery Battery Cutoff Voltage
- 43V±0.5V
- Battery Charging Current
- 55V DC@1.5A
- Battery Reverse Polarity
- Support
- Battery Type
- Lead Acid or Lithium (LiFePO4) batteries
- Max. Battery Size per Unit
- 66 x 151 x 120 mm (2.6 x 5.94 x 4.72'')
- Total Battery Size (W x D x H)
- 280 x 151 x 140 mm (11.02 x 5.94 x 5.51'')
Environmental (2)
- Environmental IP Rating
- IP66
- Environmental – Operating Temperature -5°C ~ 50°C (32°F ~ 122°F) -40°C ~ 50°C (-40°F ~ 122°F) with heater / blower module Storage Temperature
- -20°C ~ 70°C (-4°F ~ 158°F)
Mechanical (8)
- Blower
- Support
- DI/DO
- 2/2
- Enclosure Material
- 304L Stainless Steel
- Fiber Tray
- Support (without LC adapter)
- Mechanical Weight
- 12 kg (26.5 lb)
- Mechanical – Connectors 4 x M25 8 x M16 GPS Connect
- SMA(with antenna)
- Mechanical – Handle 304 Stainless Steel Padlockable Swing Handle Padlock Seat 304 Stainless Steel; supports padlock shackle < Ø13 mm Recommended Padlocks: ASSA ABLOY Padlock 611 / Padlock 492303 Dimensions (W x D x H)
- 380 x 273.5 x 525 mm (14.96 x 10.77 x 20.67'')
- Open Alarm Switch
- Support
Power (4)
- Output Power per DC Port
- 1 x 55V DC@5.03A
- Power Input Voltage
- 110VAC or 220VAC
- Power – Output Power per DC Port (from OS-210 controller) 1 x 12V DC@2.5A 1 x 24V DC@1.25A Output Power Budget
- 360W
- System Power Consumption
- 12.3W
